The orange boom links the upper body to the arm, lifting the attachment through hydraulic movement.
Utility Corridor ExcavationZT27 C Mini Crawler Excavator
Controlled work across compact outdoor sites
The four scenes show the machine digging drainage trenches, shaping planted edges, working beside a utility route and cutting a shallow foundation edge. Each scene keeps the tracked excavator on stable ground while the articulated bucket works directly with loose soil.
- Drainage Trench Digging

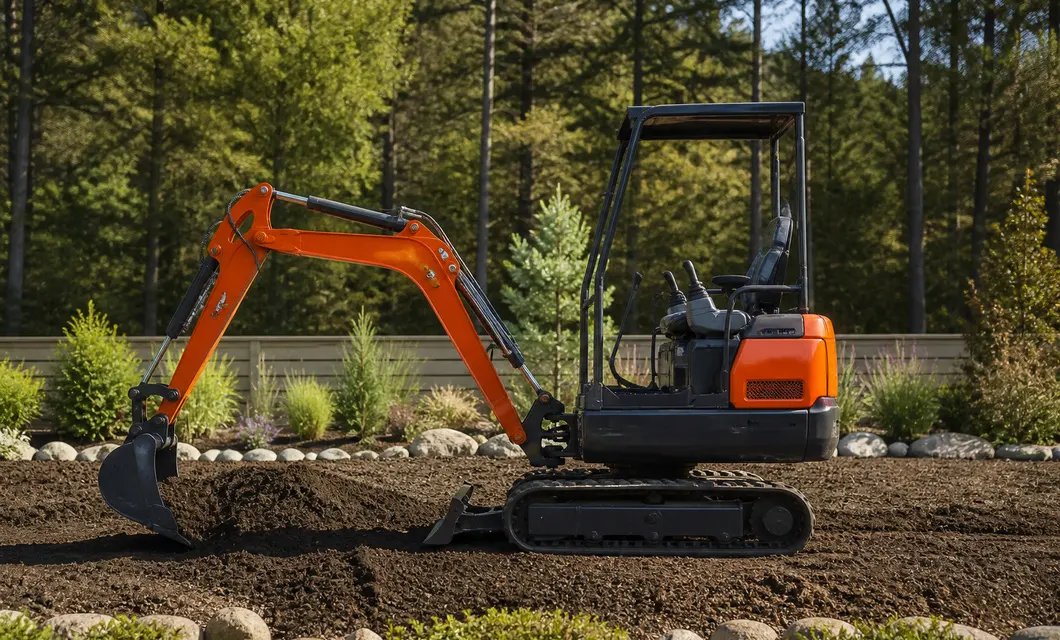

- Landscape Edge Shaping

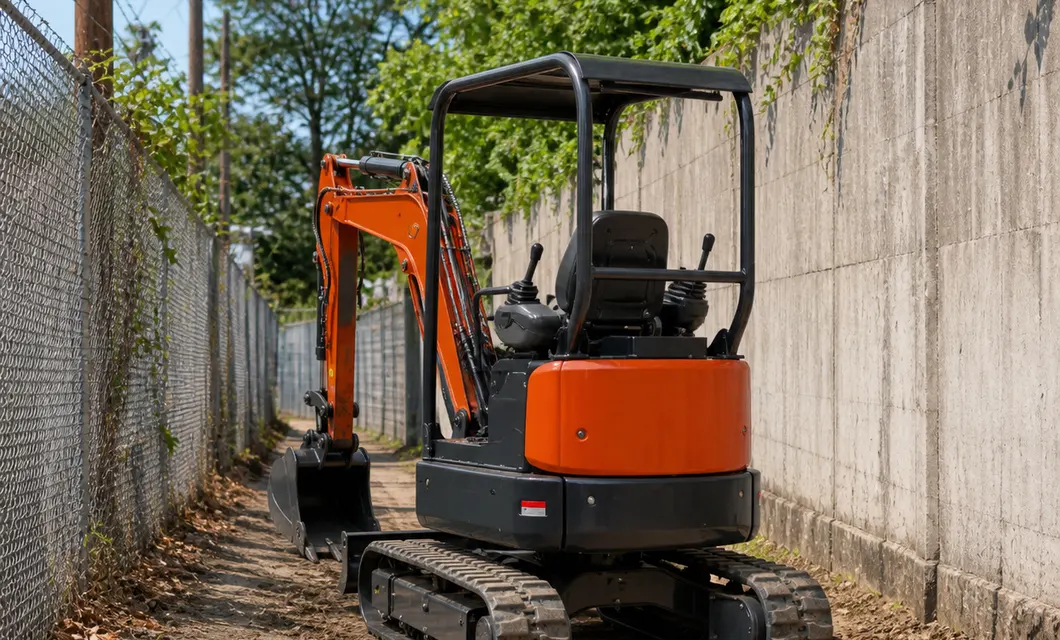

- Utility Corridor Excavation

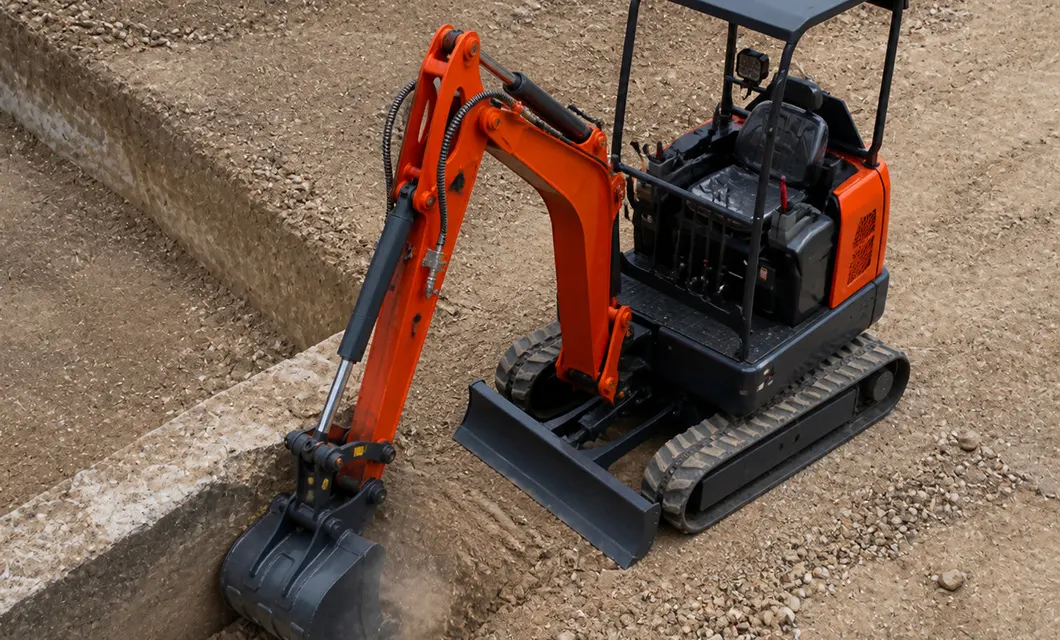

- Foundation Edge Cutting

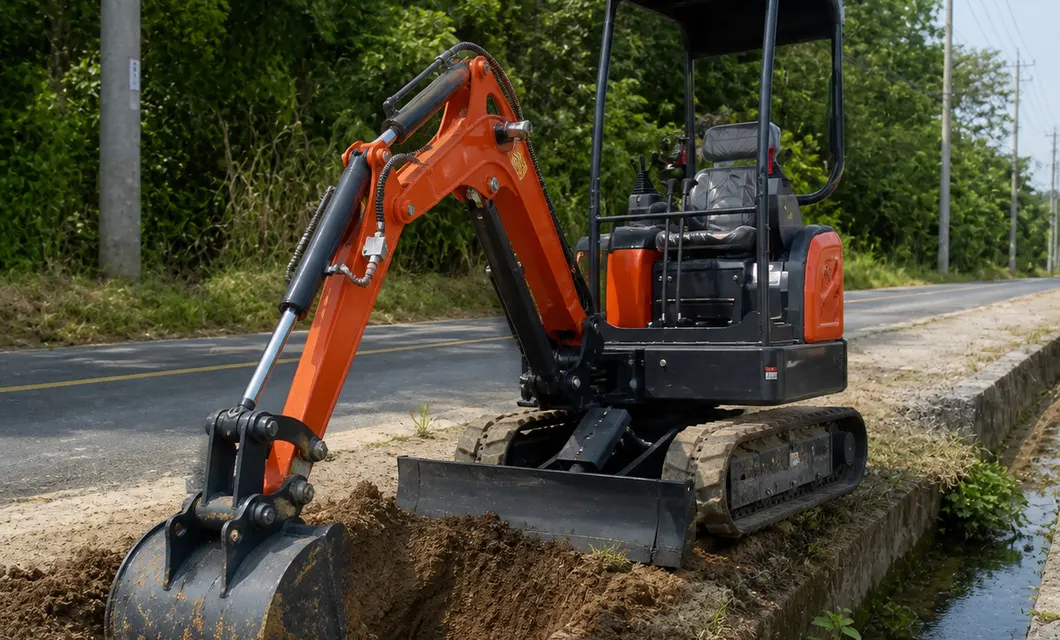

Drainage Trench Digging
Landscape Edge ShapingUtility Corridor Excavation
Foundation Edge CuttingDrainage Trench DiggingLandscape Edge ShapingSpecifications & Structural Decomposition

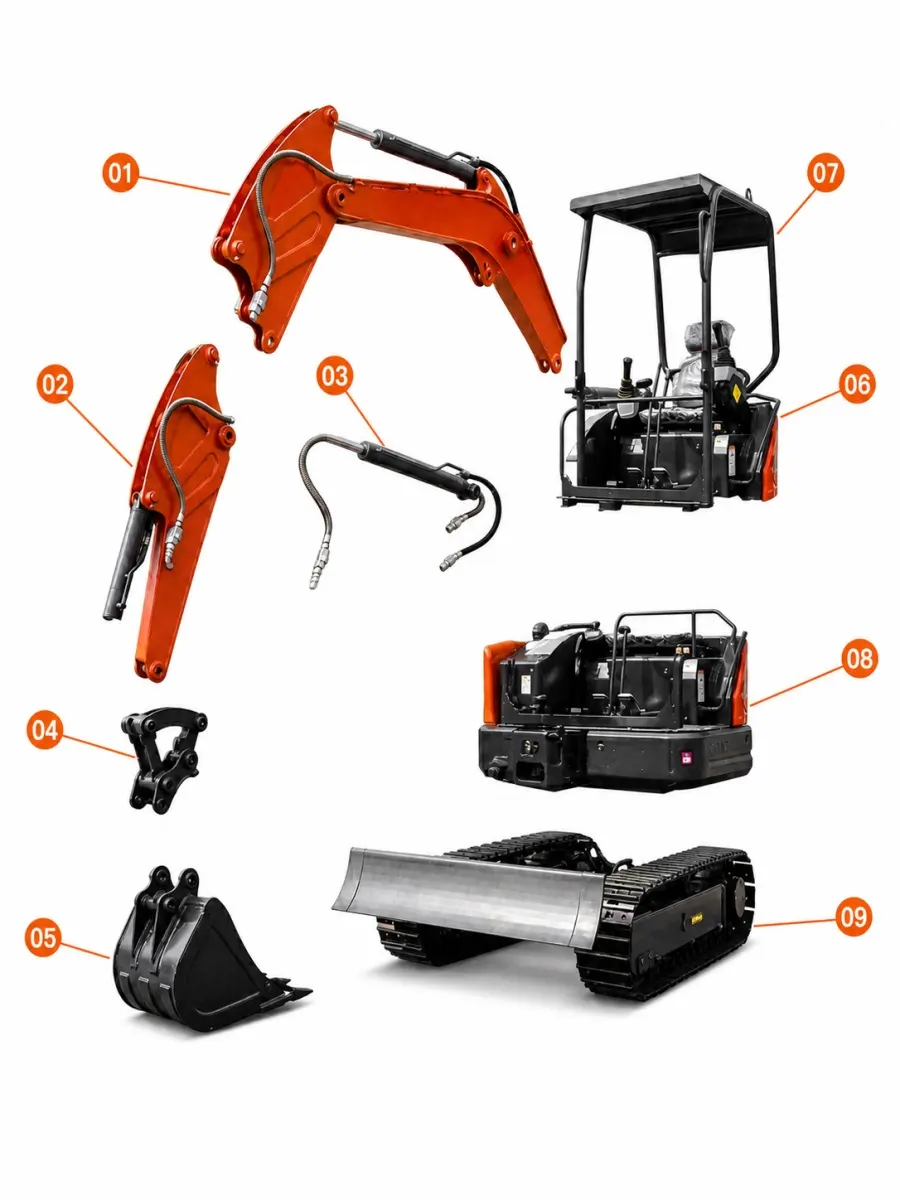

Product Structure
- Boom Assembly
- Dipper Arm Assembly
The forward arm extends digging reach and transfers hydraulic force to the coupler and bucket.

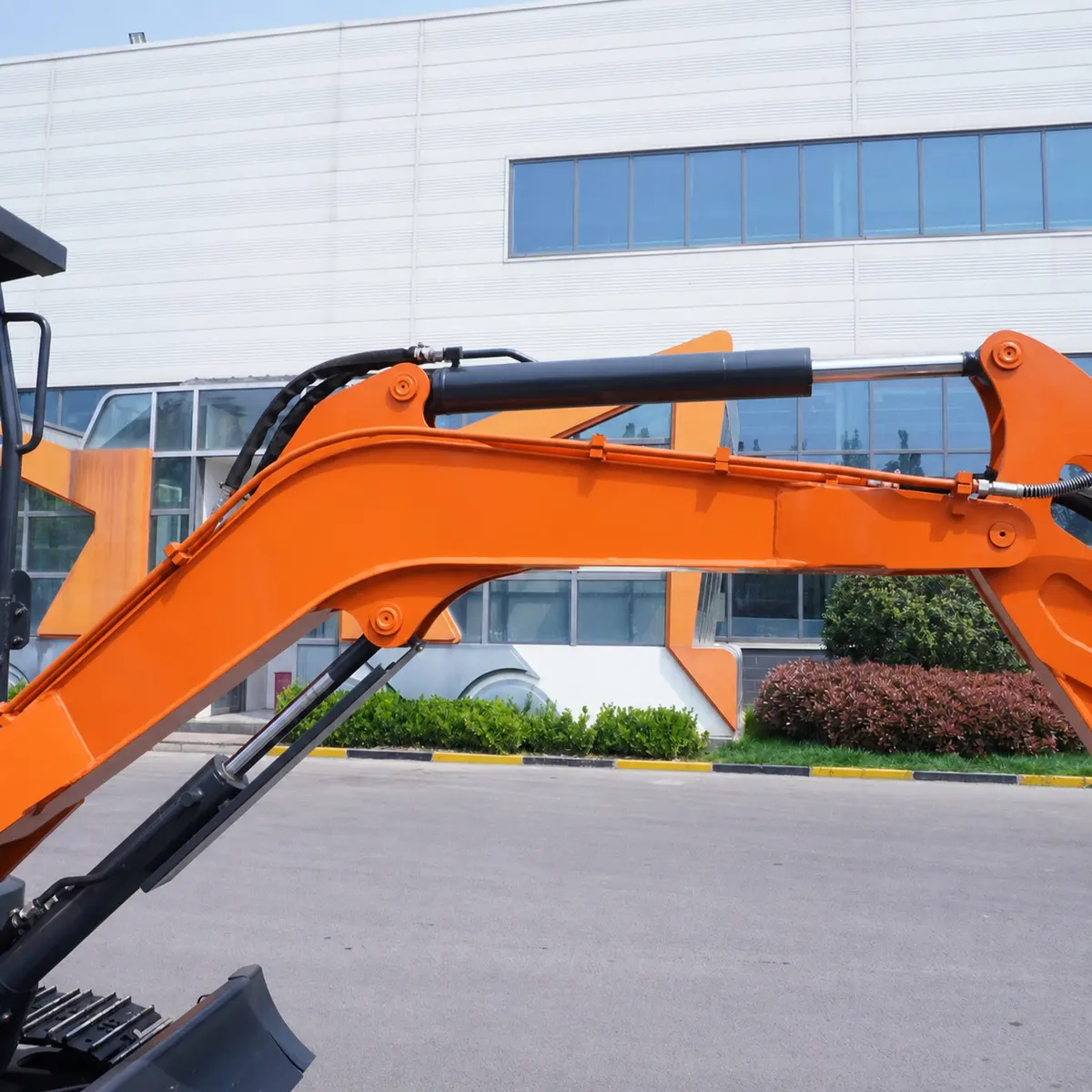

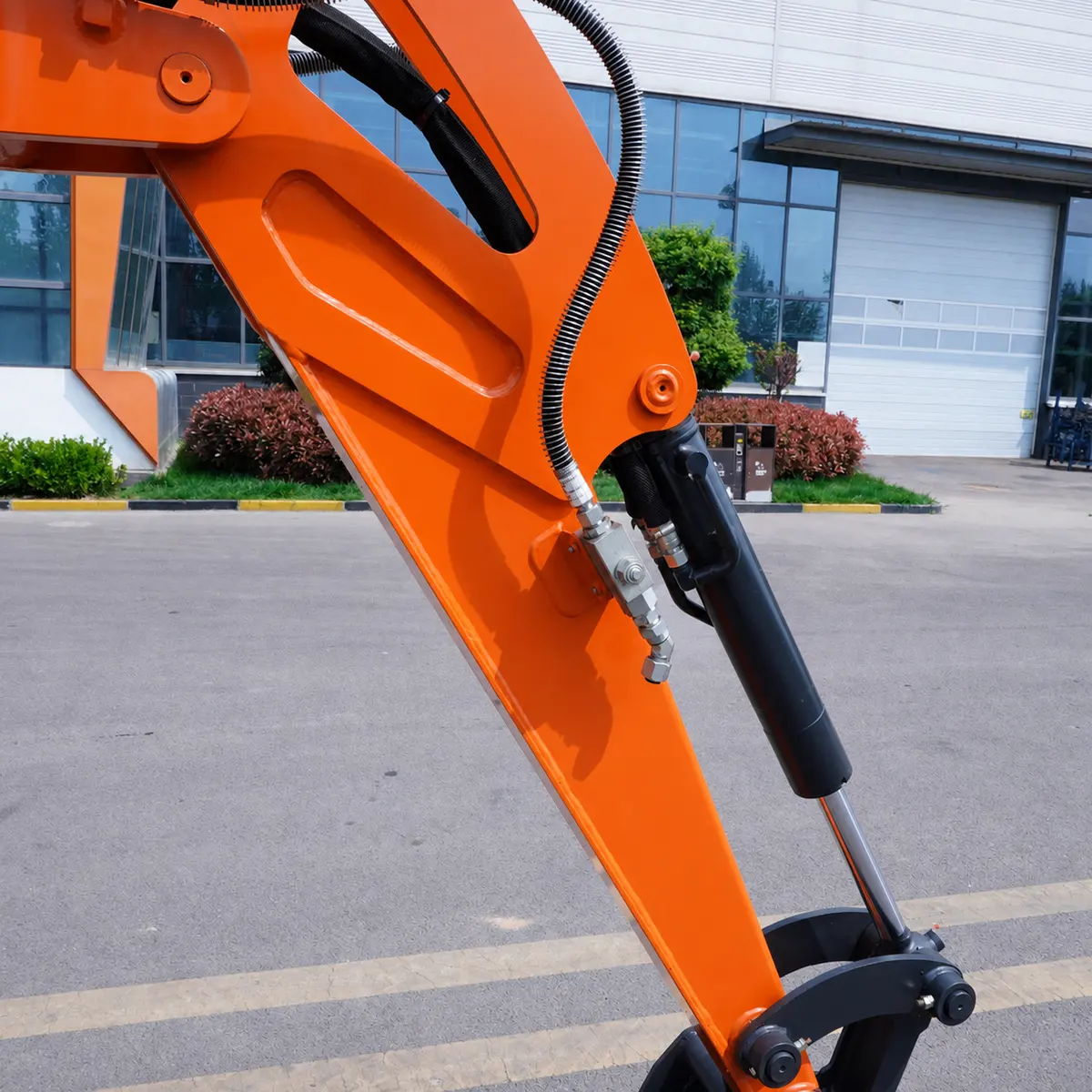

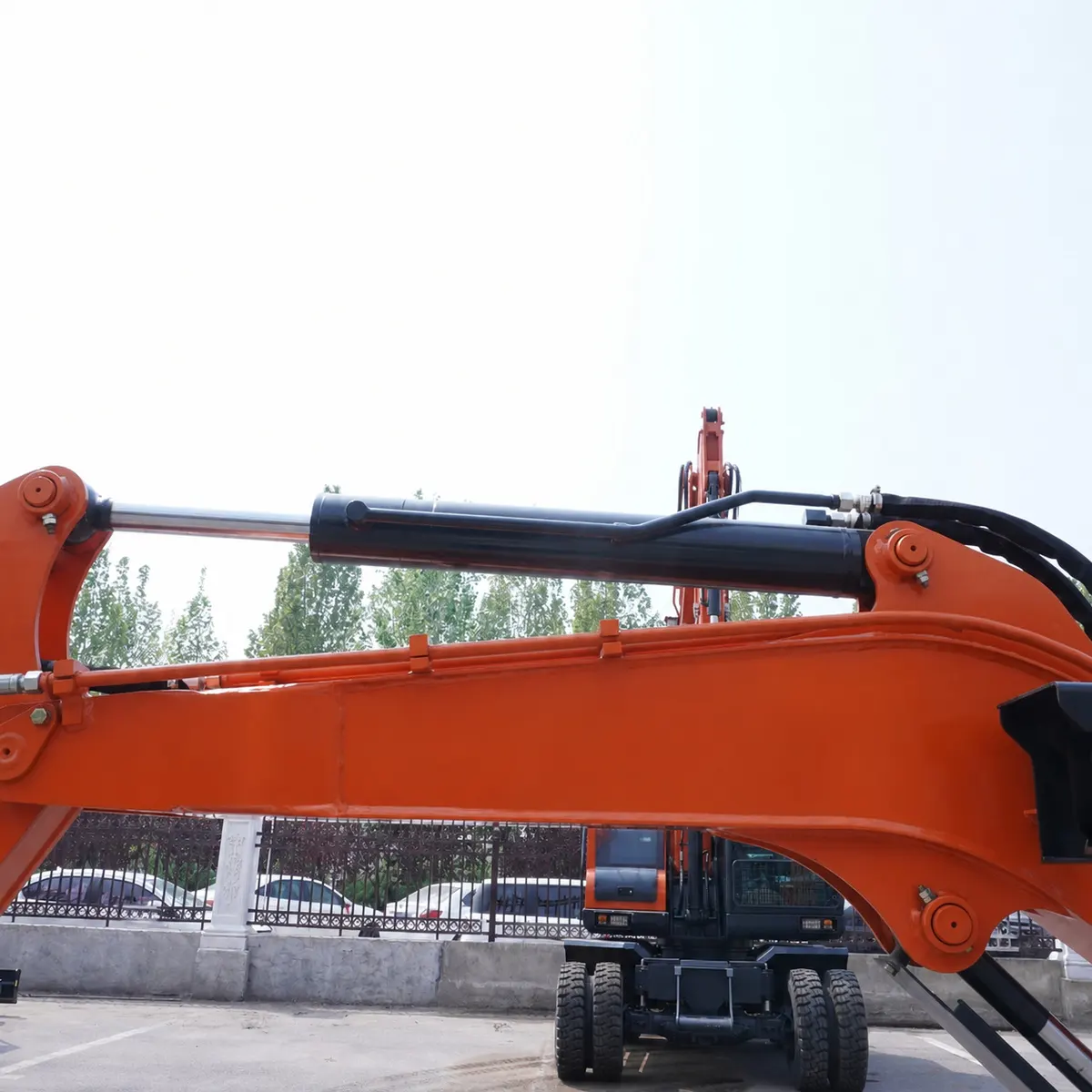

- Hydraulic Cylinder and Hoses
The visible cylinder and hoses drive boom and arm motion while routing oil through the joints.
- Quick Coupler
The black coupler links the arm and bucket for secure attachment and efficient tool changes.

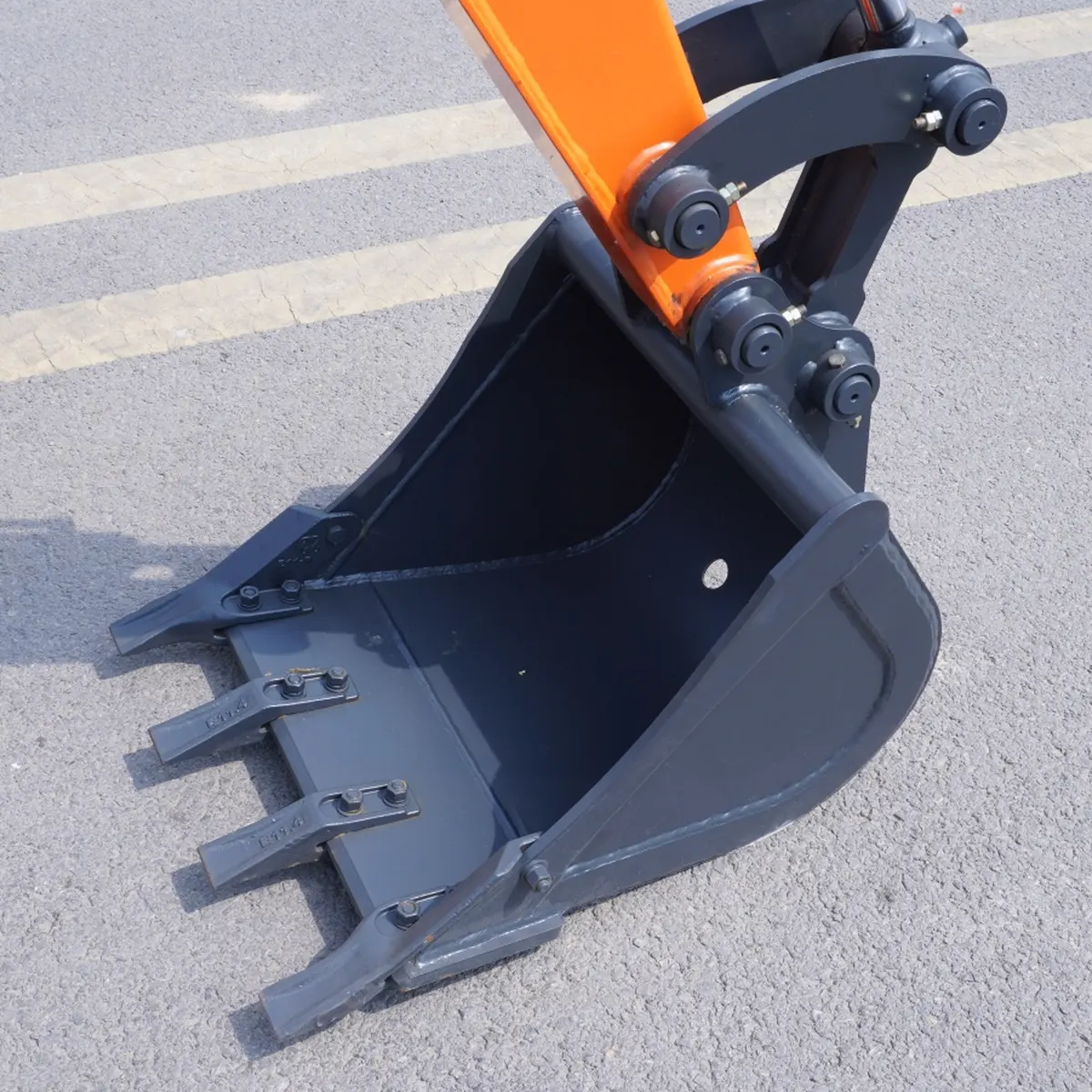

- Digging Bucket
The toothed bucket cuts, gathers and carries soil, then releases material cleanly.

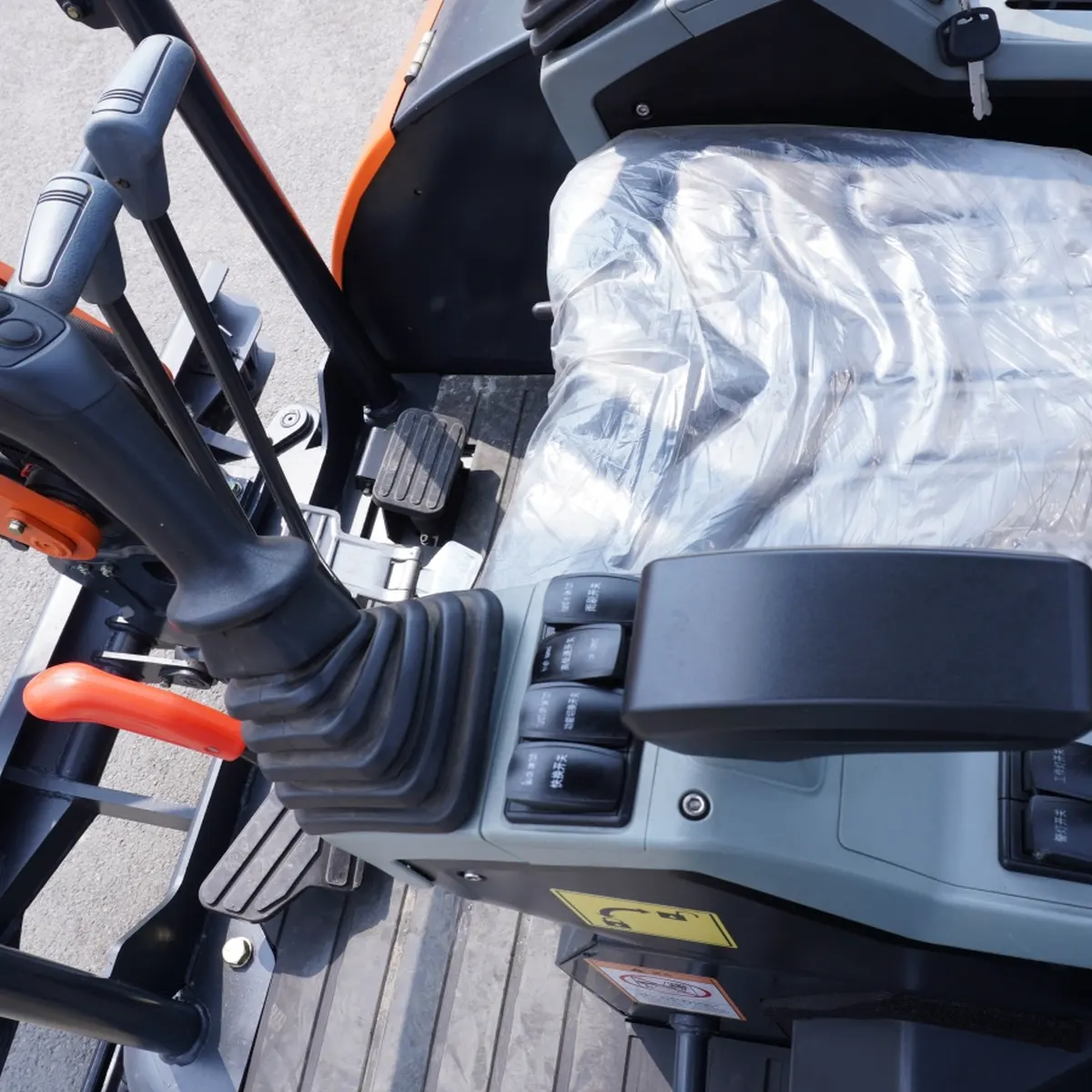

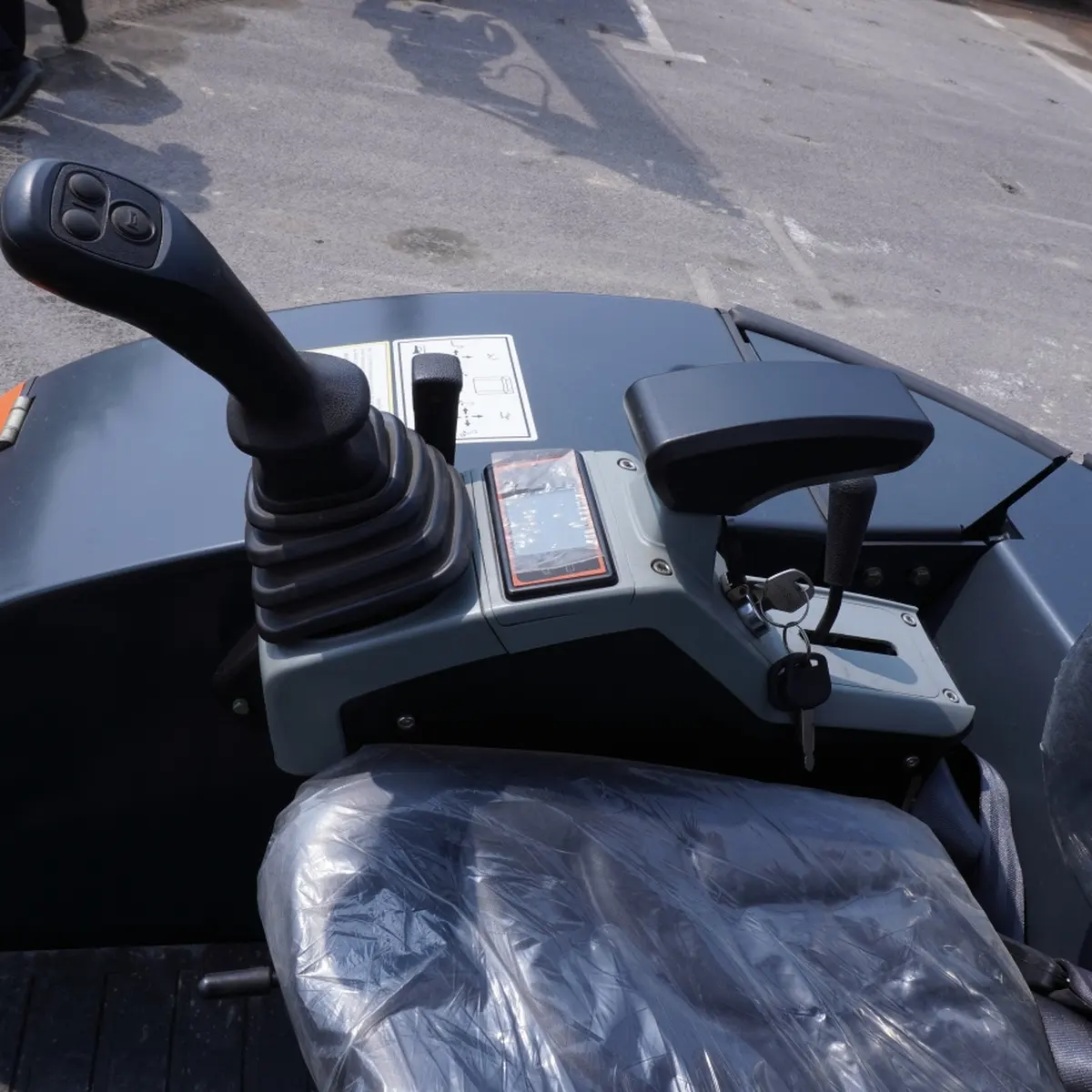

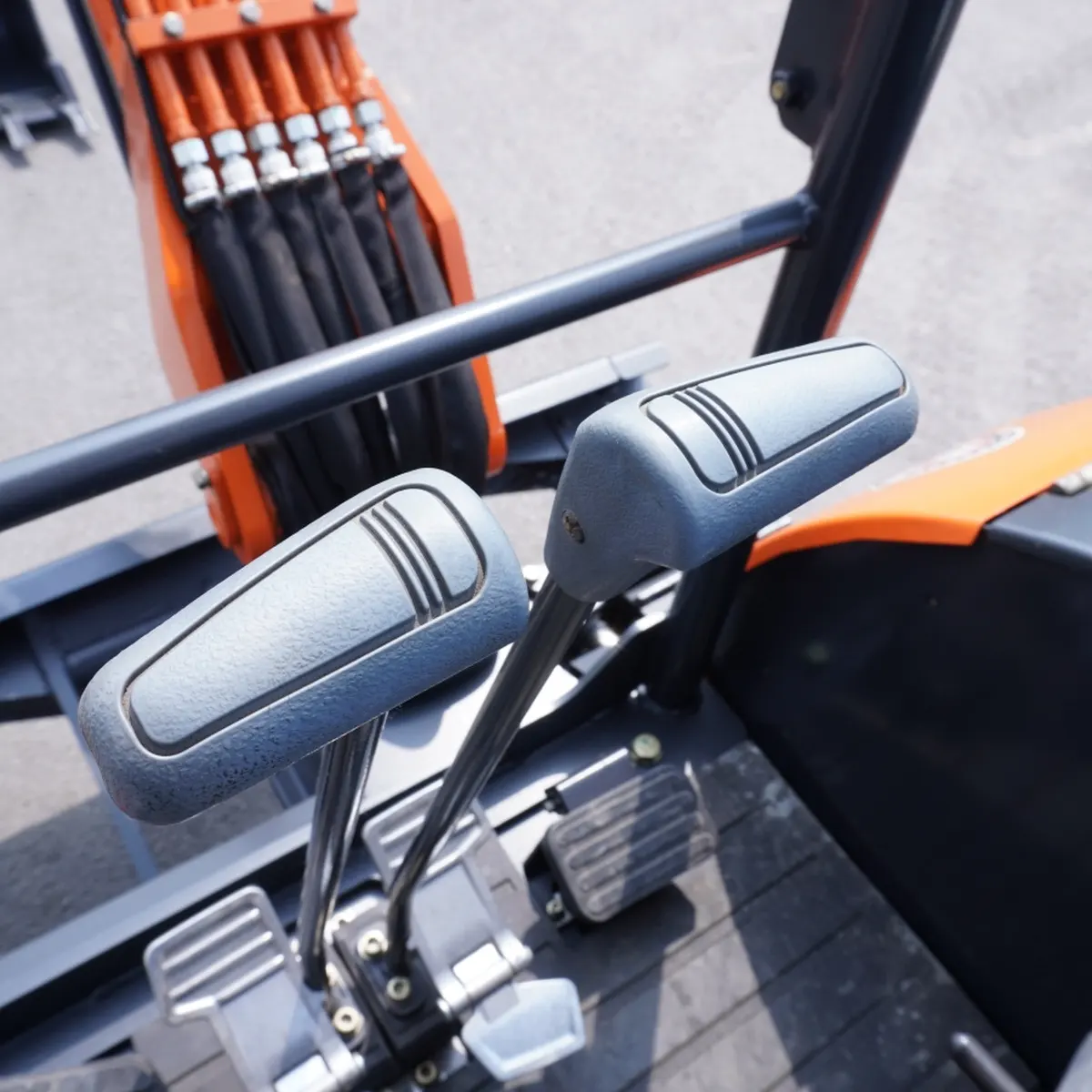

- Open Operator Station
The seat, joysticks and console give the operator direct control of travel and excavation.
- Canopy Frame and Roof
The overhead canopy frames the open station and provides a protective roof with clear visibility.
General information
- Product Basic Information
- Tailless track-type micro excavator
- Operating weight/tonnage
- 2.45 tons
- Product Introduction
- Operating a canopy-equipped, tailless miniature tracked excavator
- Standard engine model
- 3TNV80F
- Power
- 15.7 kW
- Track type
- rubber track
- Cab type
- Driving shed
General instructions
Simplified explanationCore Component Details
Certifications
Qualification Documents
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions
Which tasks suit this excavator?
It is suited to localized digging, soil shaping and shallow trench work where a compact tracked machine can be placed close to the intended work edge.
How is the digging end controlled?
The operator station uses visible hand controls to coordinate the articulated boom, dipper and bucket through their existing hydraulic pivot connections.
What supports stable work placement?

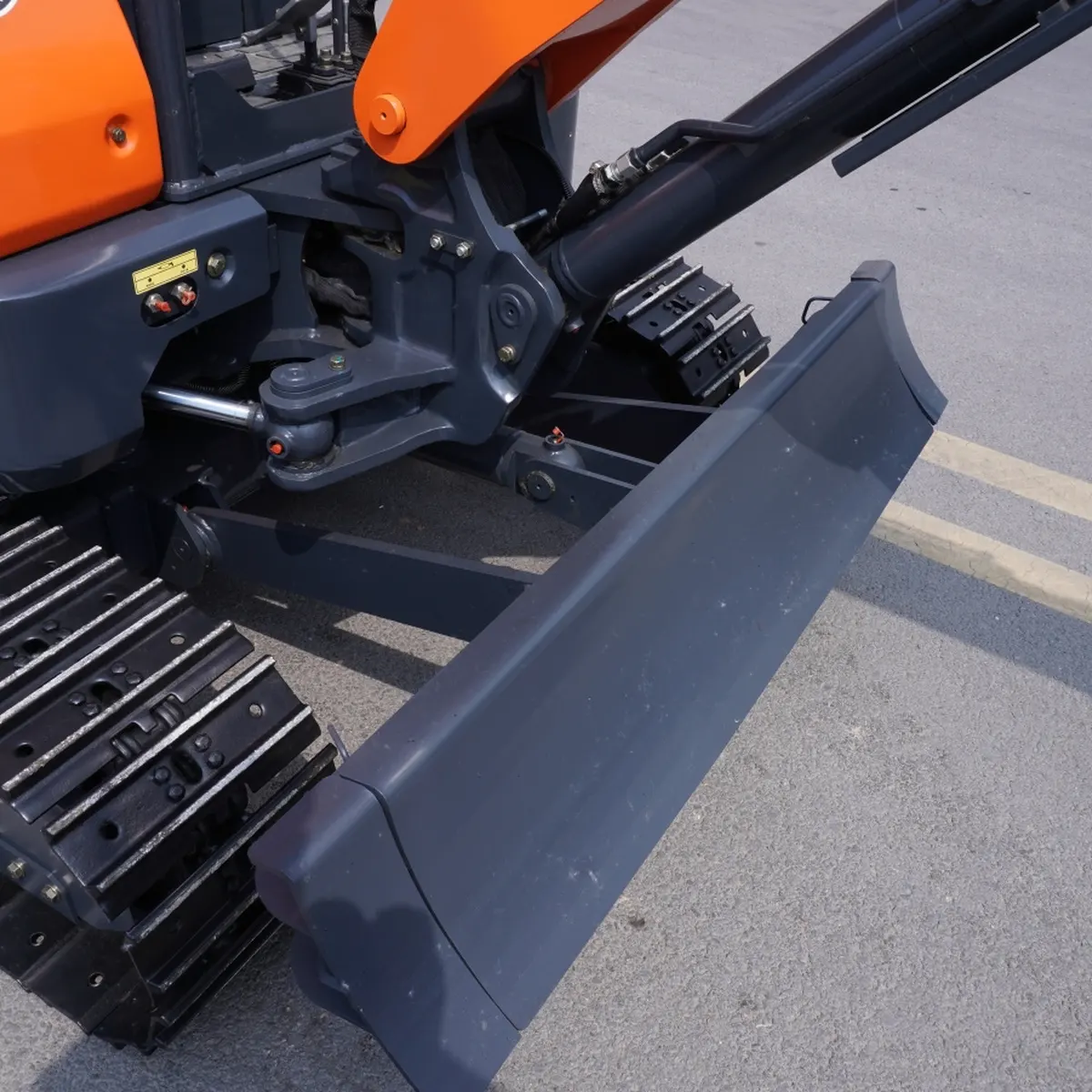

The crawler undercarriage provides broad ground contact, while the front blade can support orderly material grading and work-area setup.
Which details are supplied in images?

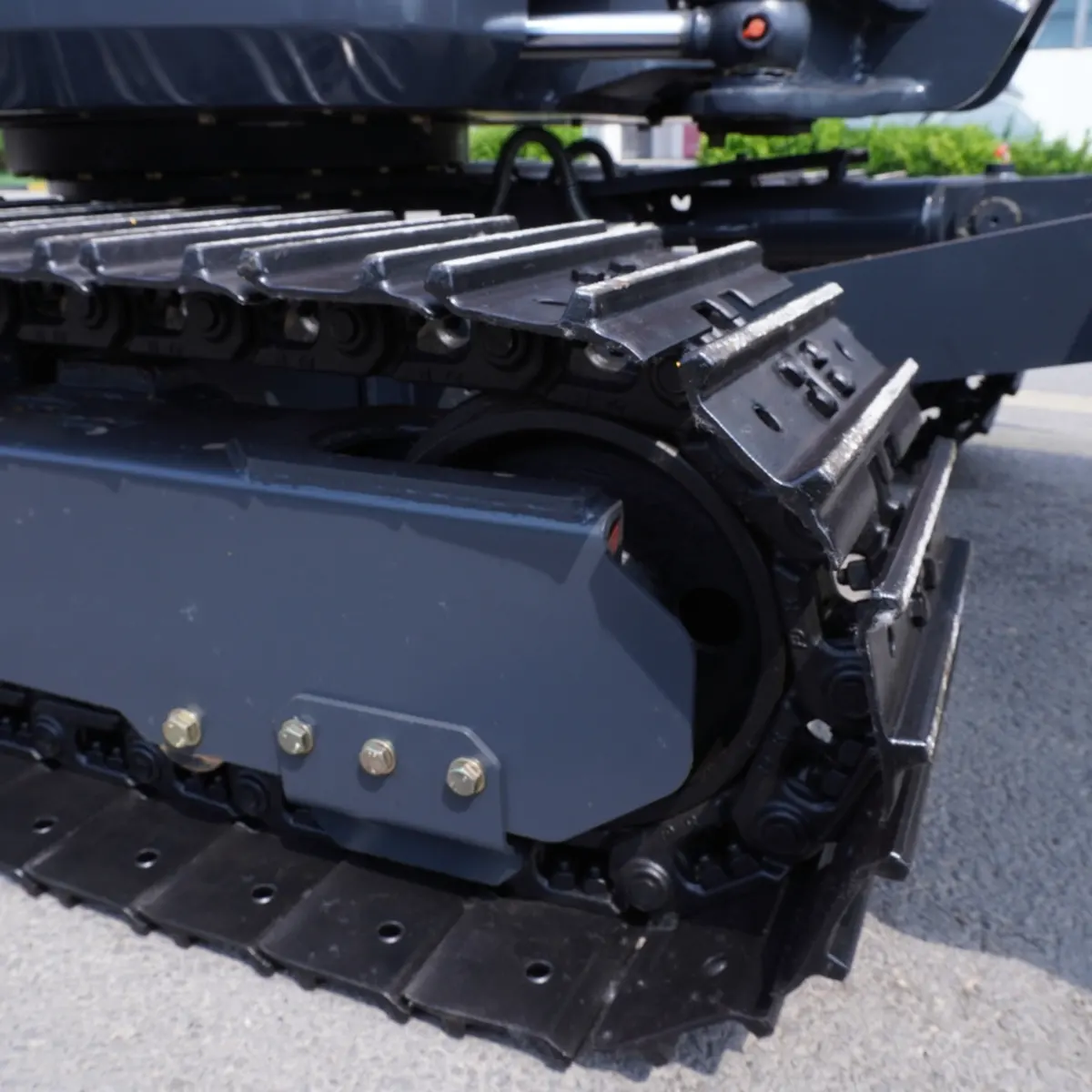

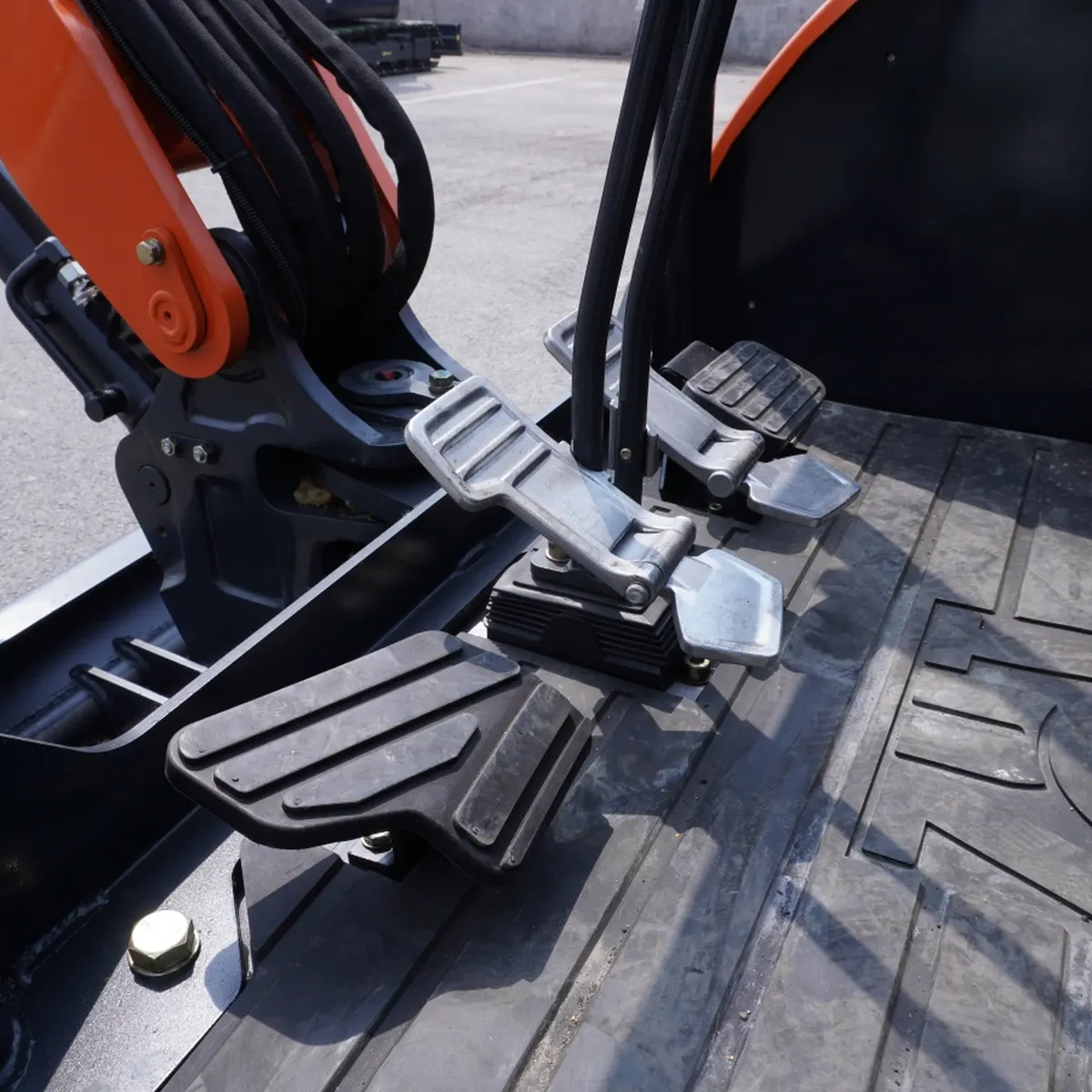

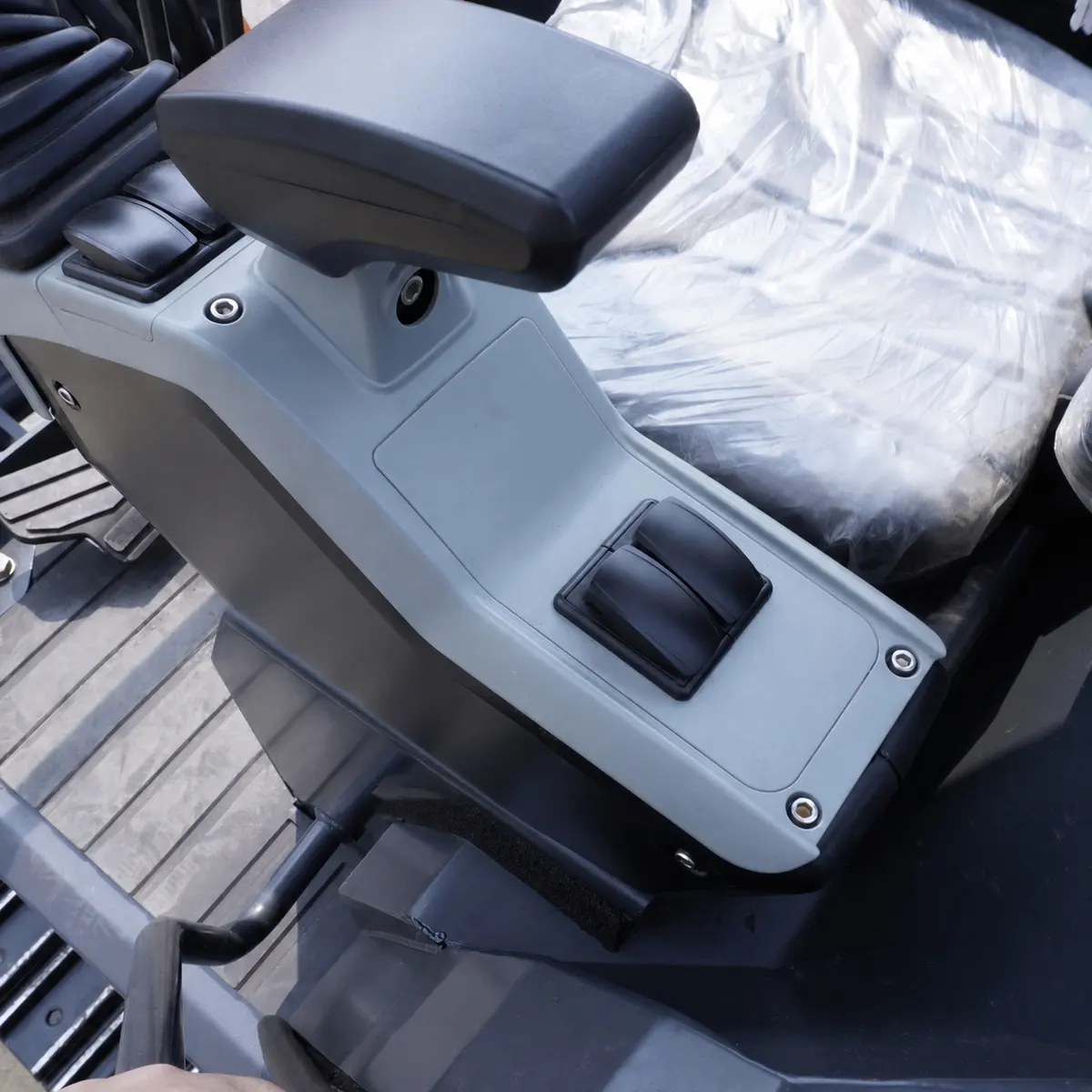

The supplied detail images show the control buttons, crawler track, attachment pedal, dozer blade and digging bucket.
What should be confirmed before ordering?
Confirm the intended task, required access space, preferred configuration and actual ground conditions so the machine can be matched to planned work.
