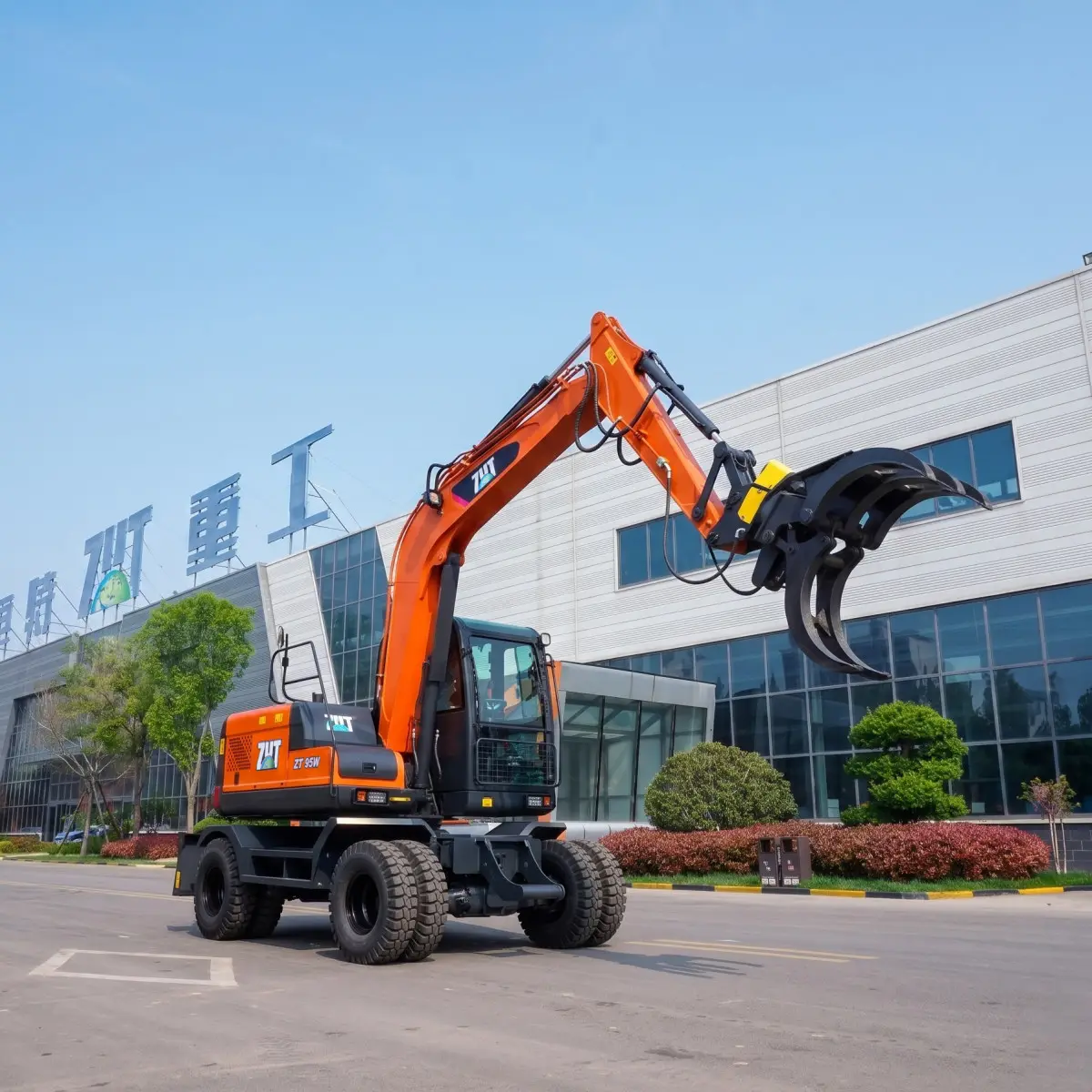

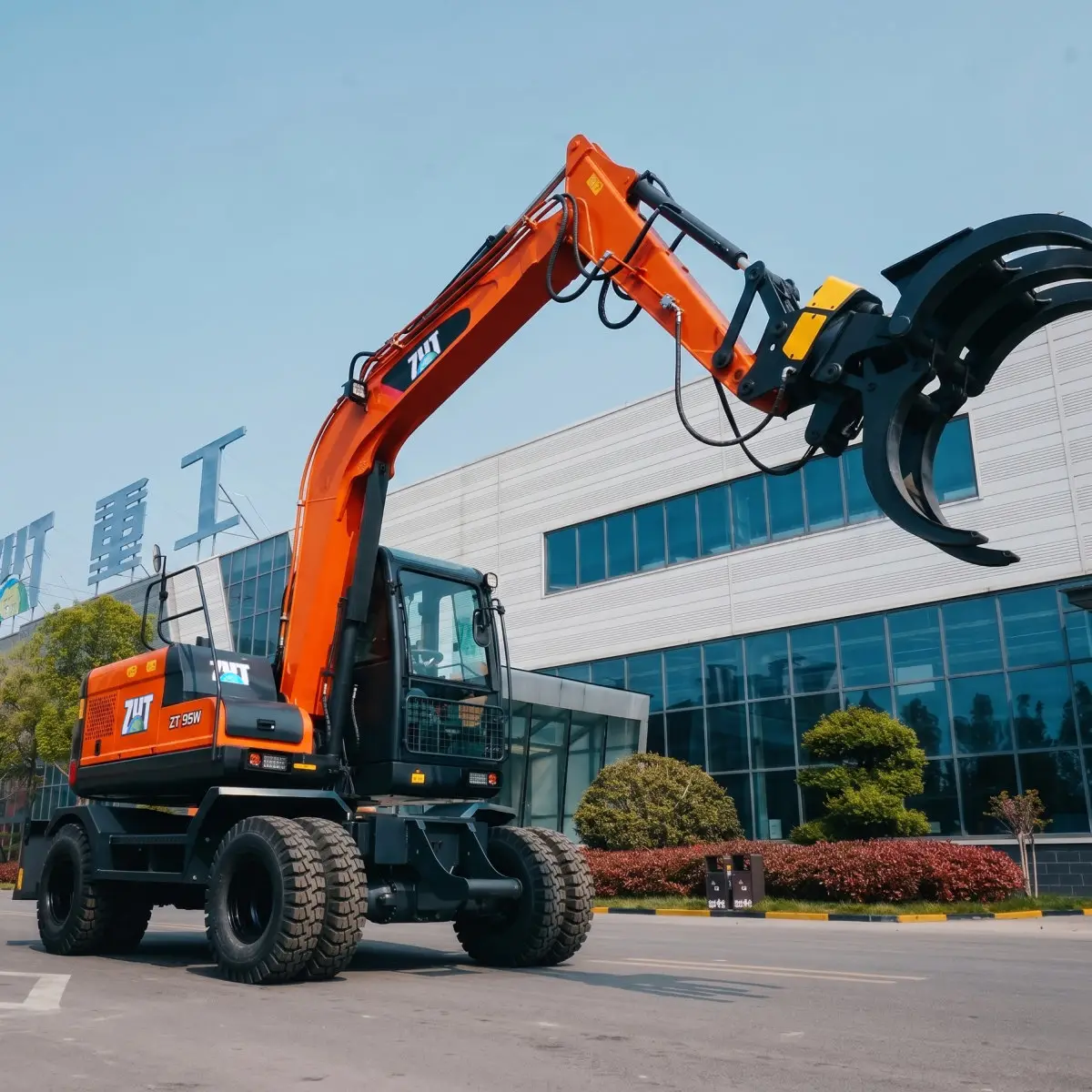

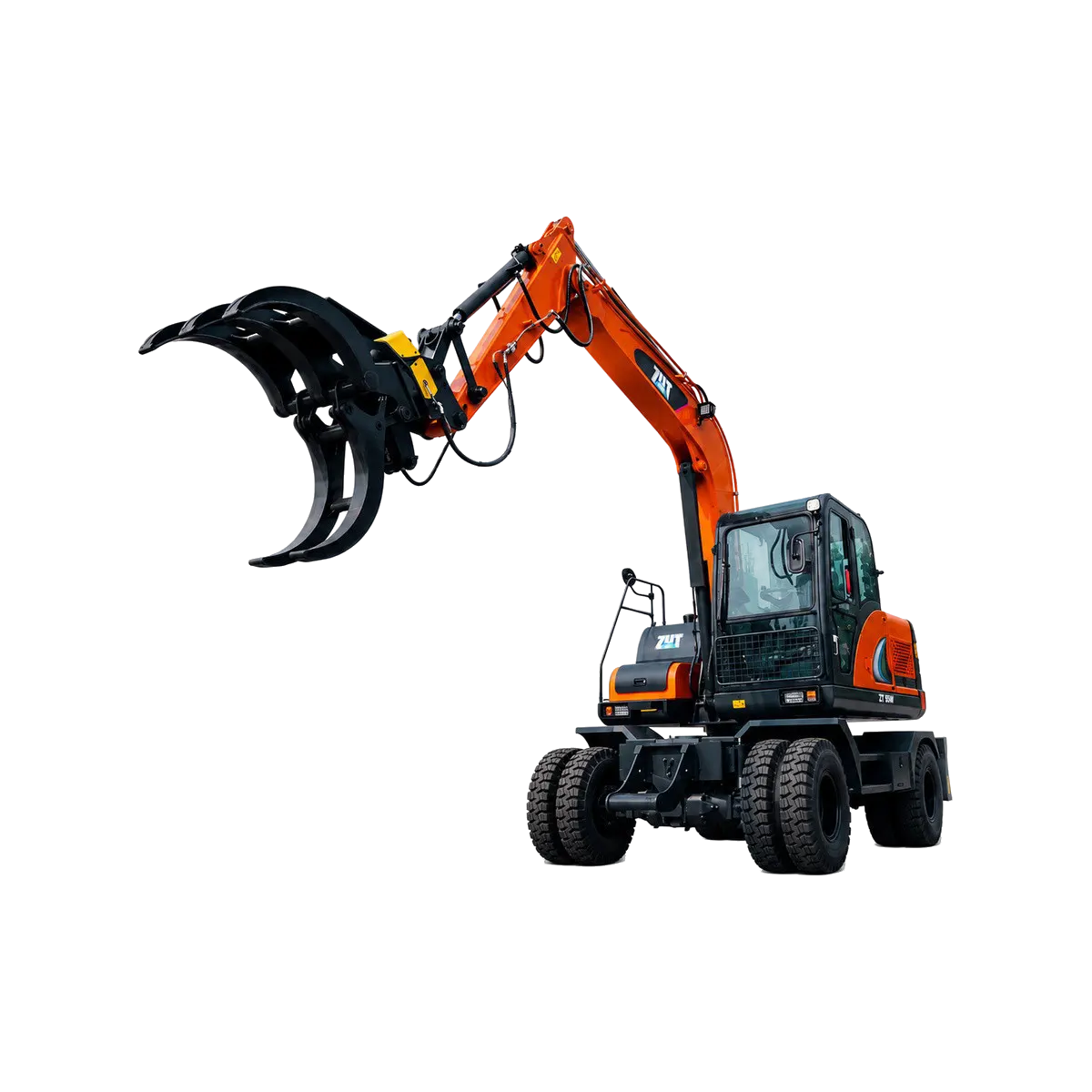

The black grapple is the front work tool shown on the white image for controlled material handling.
Roadside Storm Debris ClearanceZT95W Wheeled Excavator
Controlled timber handling tasks
The illustrated applications show controlled handling of cut timber in organized yards, trailer-adjacent loading areas, roadside clearance zones and forest-access tracks. The seated operator works from the enclosed cab while the grapple holds grouped logs for careful placement. The wheeled chassis, front blade and articulated arm support stable positioning on prepared ground.
- Organized Timber Grapple Sorting
- Controlled Trailer Timber Loading

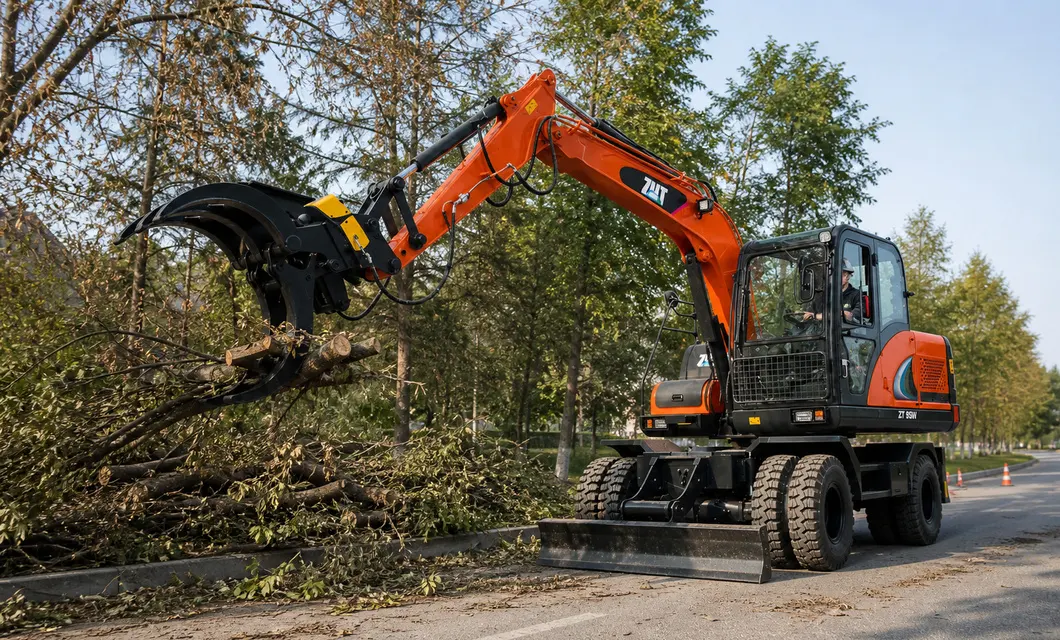

- Roadside Storm Debris Clearance
- Forest Track Log Stack Placement
Organized Timber Grapple Sorting
Controlled Trailer Timber LoadingRoadside Storm Debris Clearance
Forest Track Log Stack PlacementOrganized Timber Grapple SortingControlled Trailer Timber LoadingSpecifications & Structural Decomposition

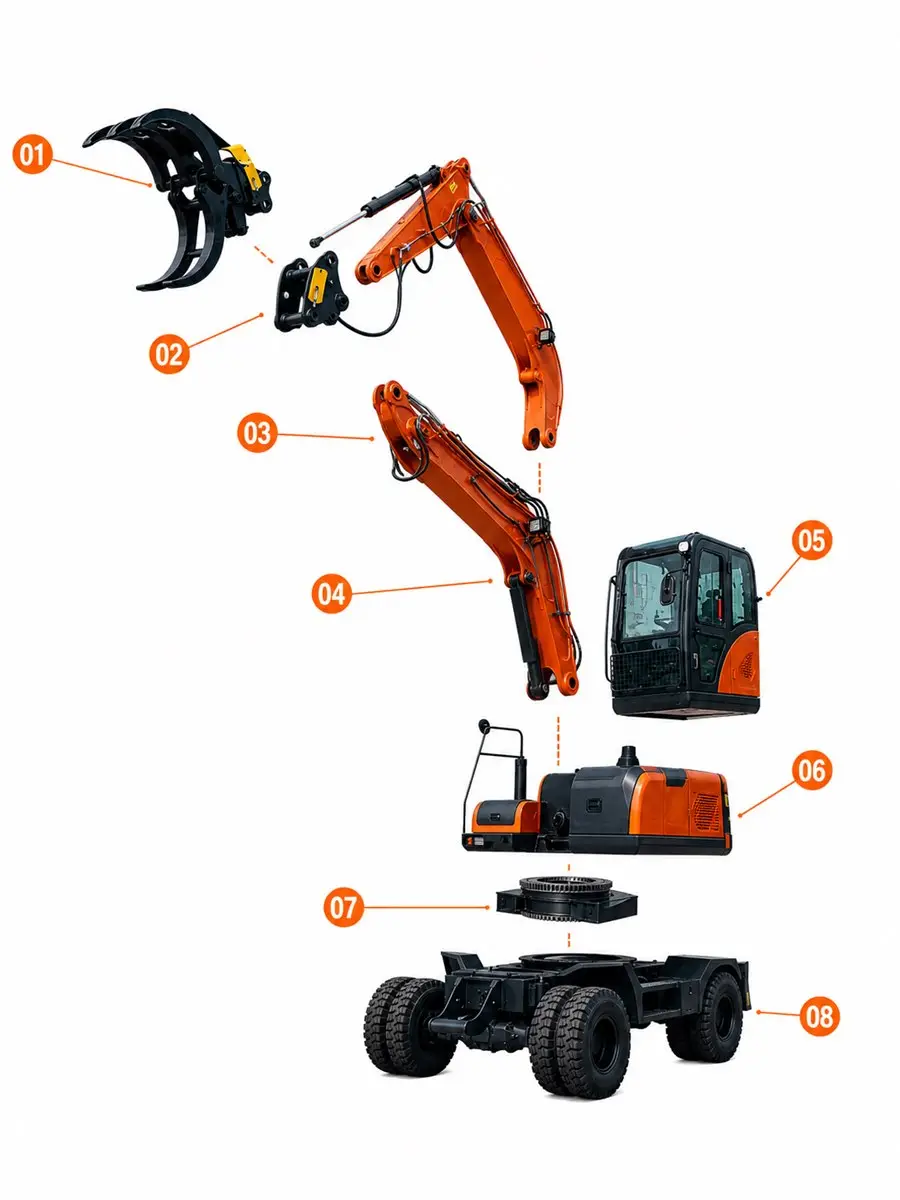

Product Structure
- Grapple Work Tool
- Quick Coupler and Linkage
The coupler and linkage connect the grapple to the arm and transfer controlled hydraulic movement.
- Arm Assembly
The arm section extends from the boom to the coupler through the visible pivot and hose route.

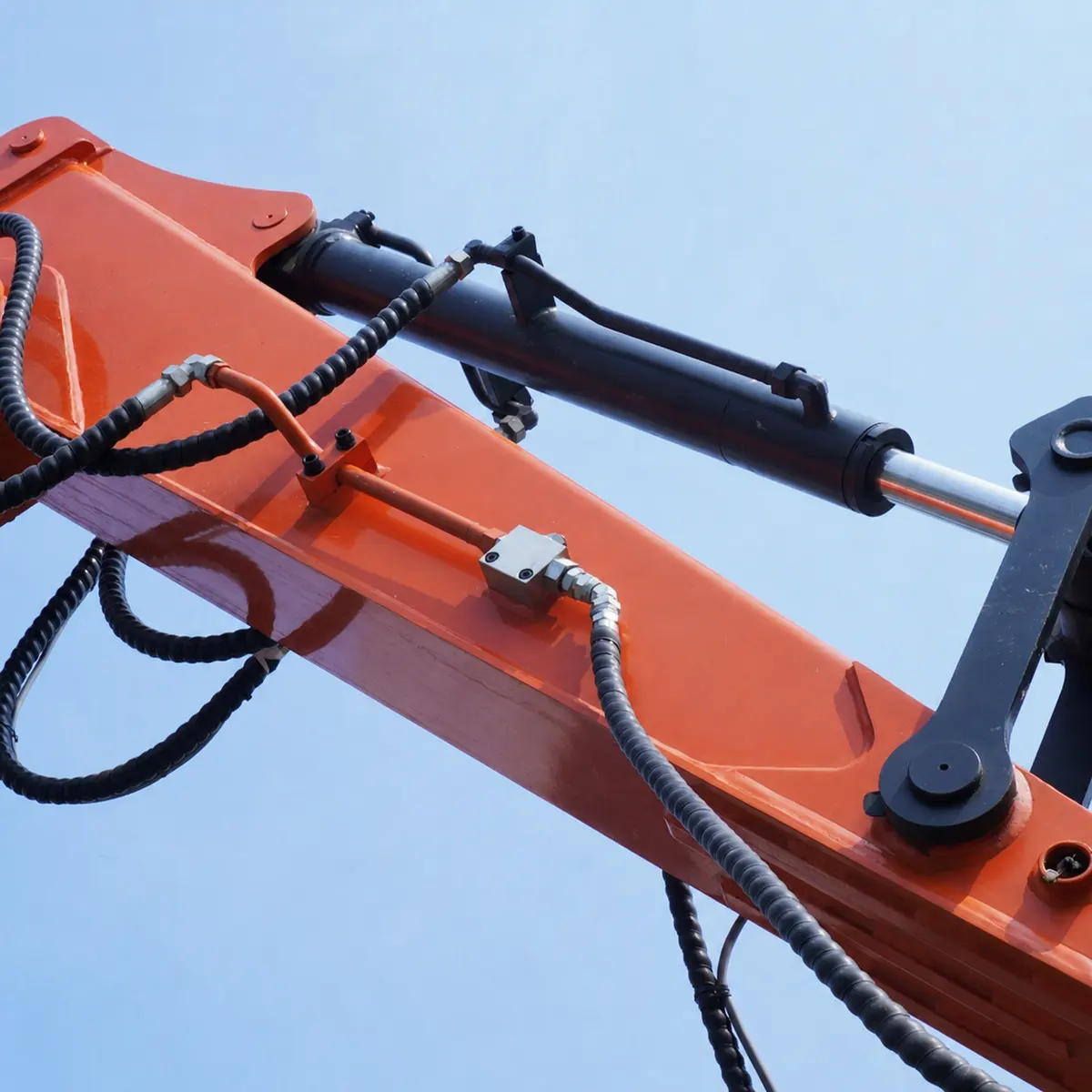

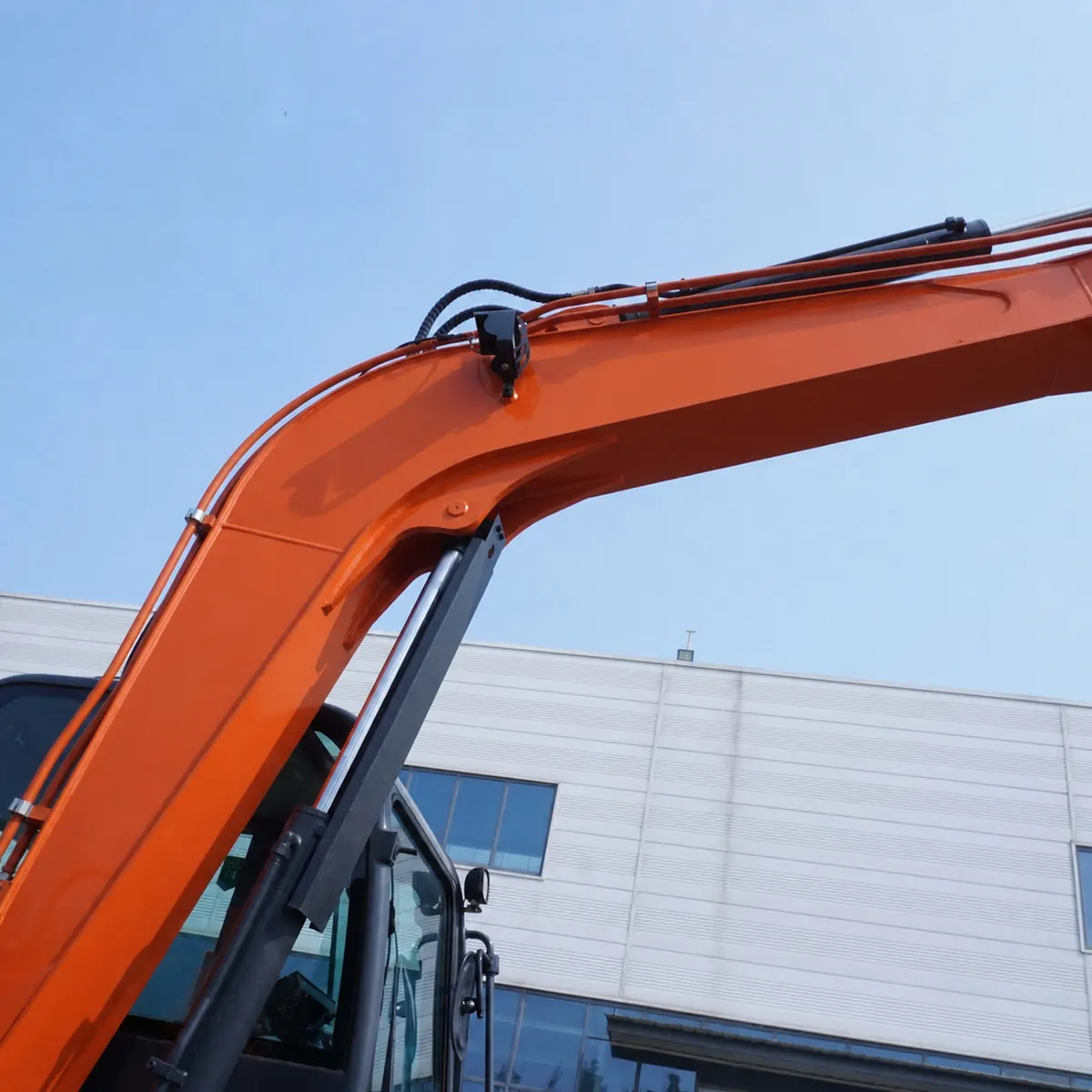

- Boom and Hydraulic Group

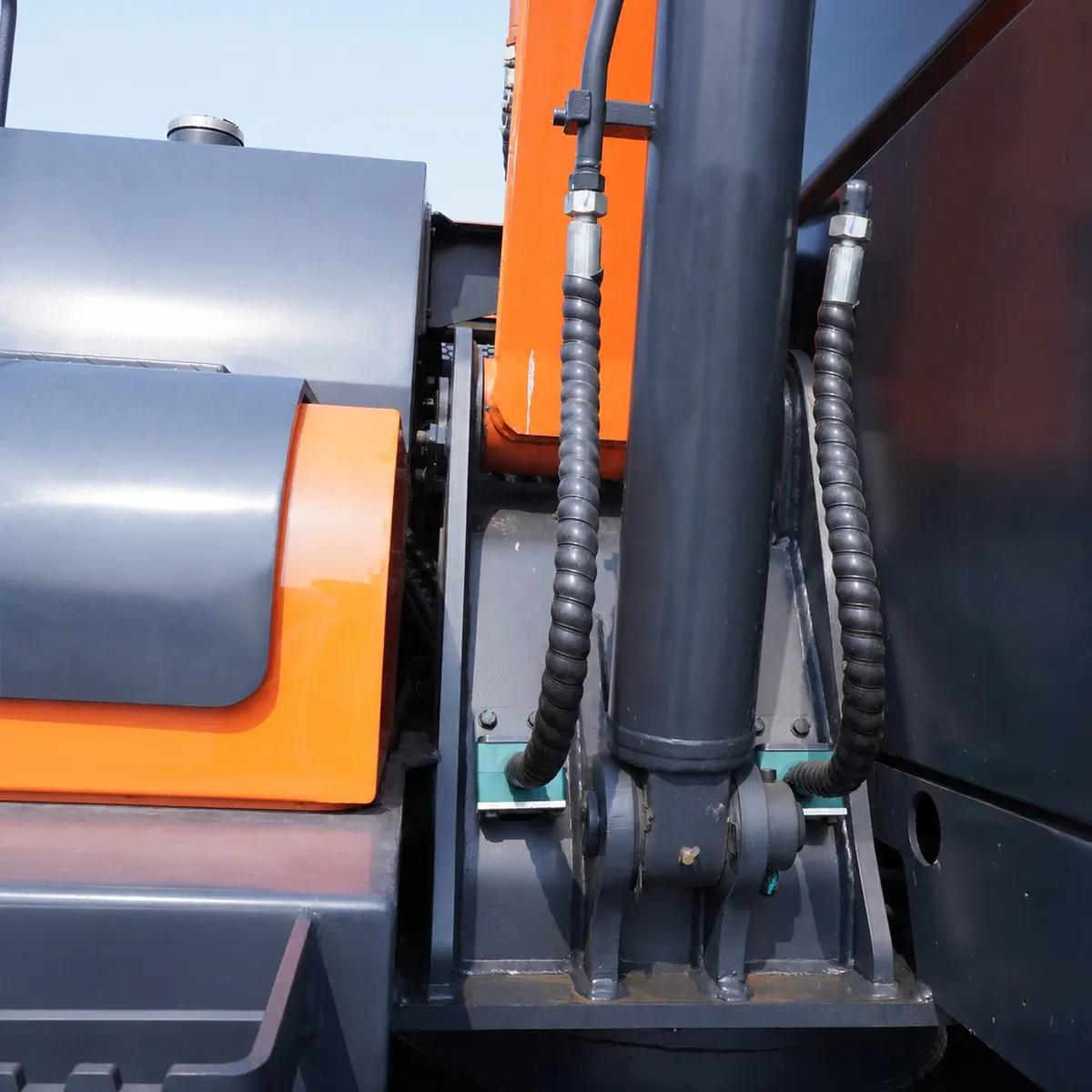

The boom carries the visible cylinders and hoses that control reach and lifting movement.
- Operator Cab and Controls

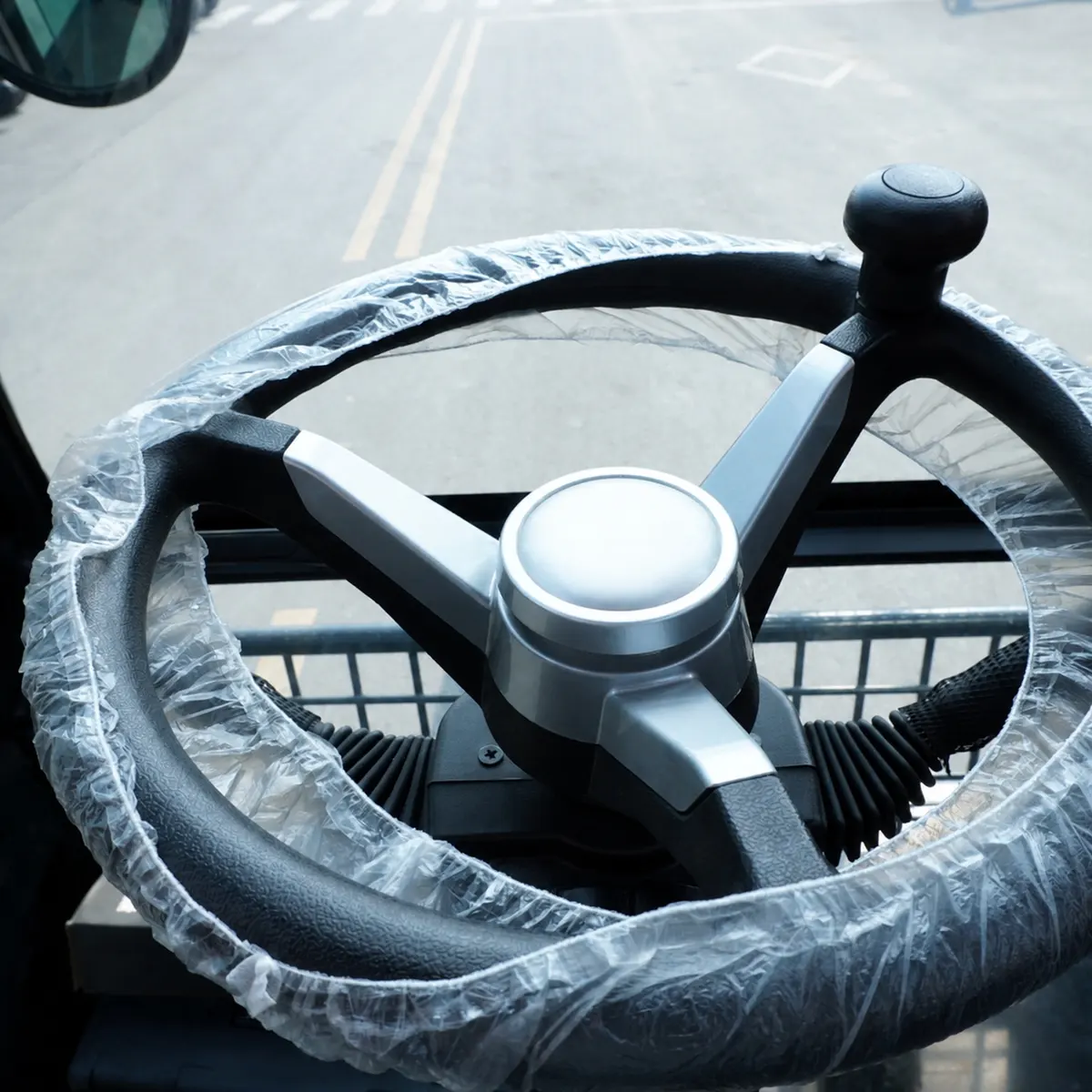

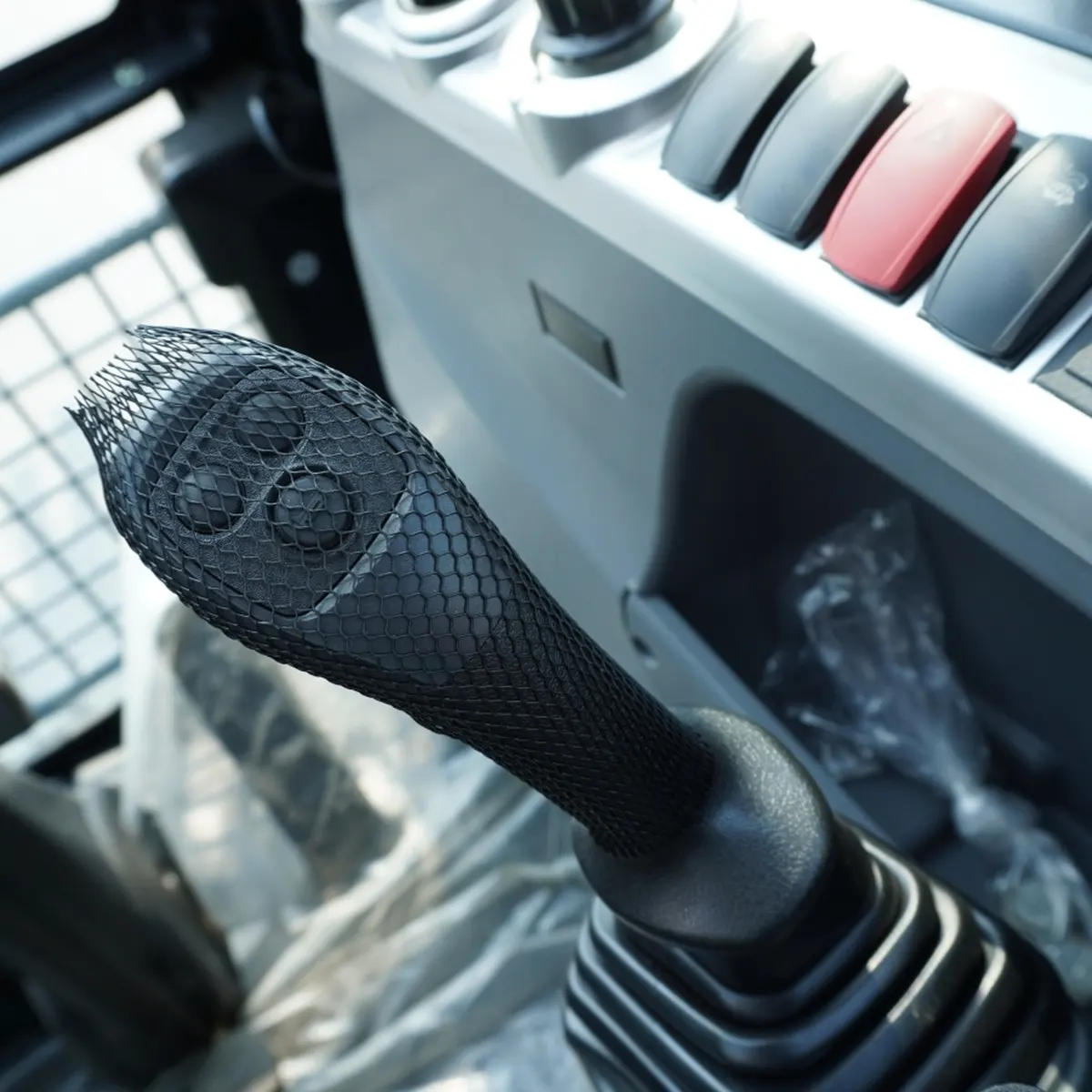

The enclosed cab provides the protected operating position and visible machine controls.

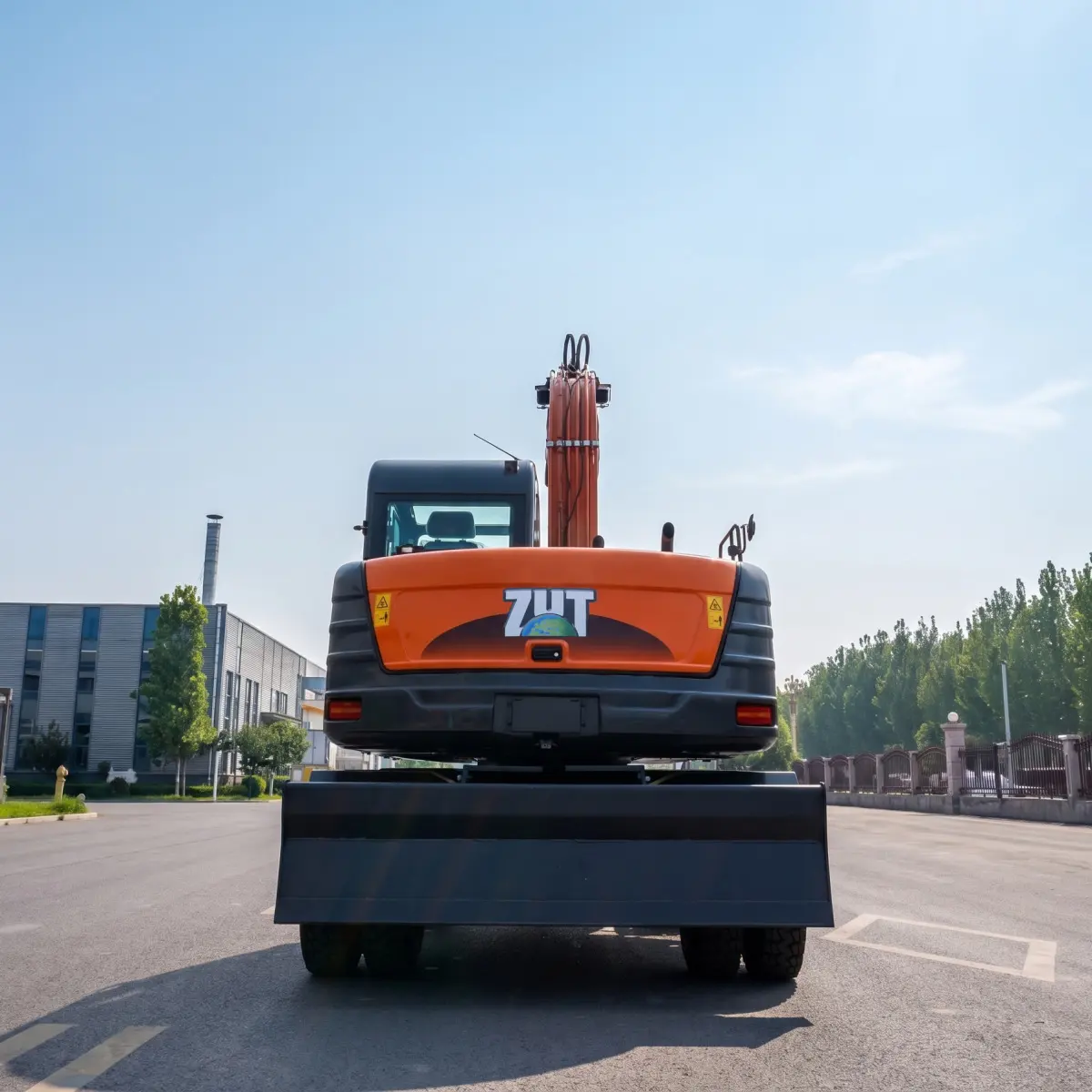

- Rear Body Assembly
The rear housing contains the visible upper-machine cover and balances the front working equipment.
- Slewing Ring and Upper Mount
The slewing ring supports the upper body and allows controlled rotation above the running chassis.
General information
- Brand
- ZUT
- Product Model
- ZT95W
- Overall operational quality of the machine
- 8100 kg
- Bucket capacity
- 0.29 m³

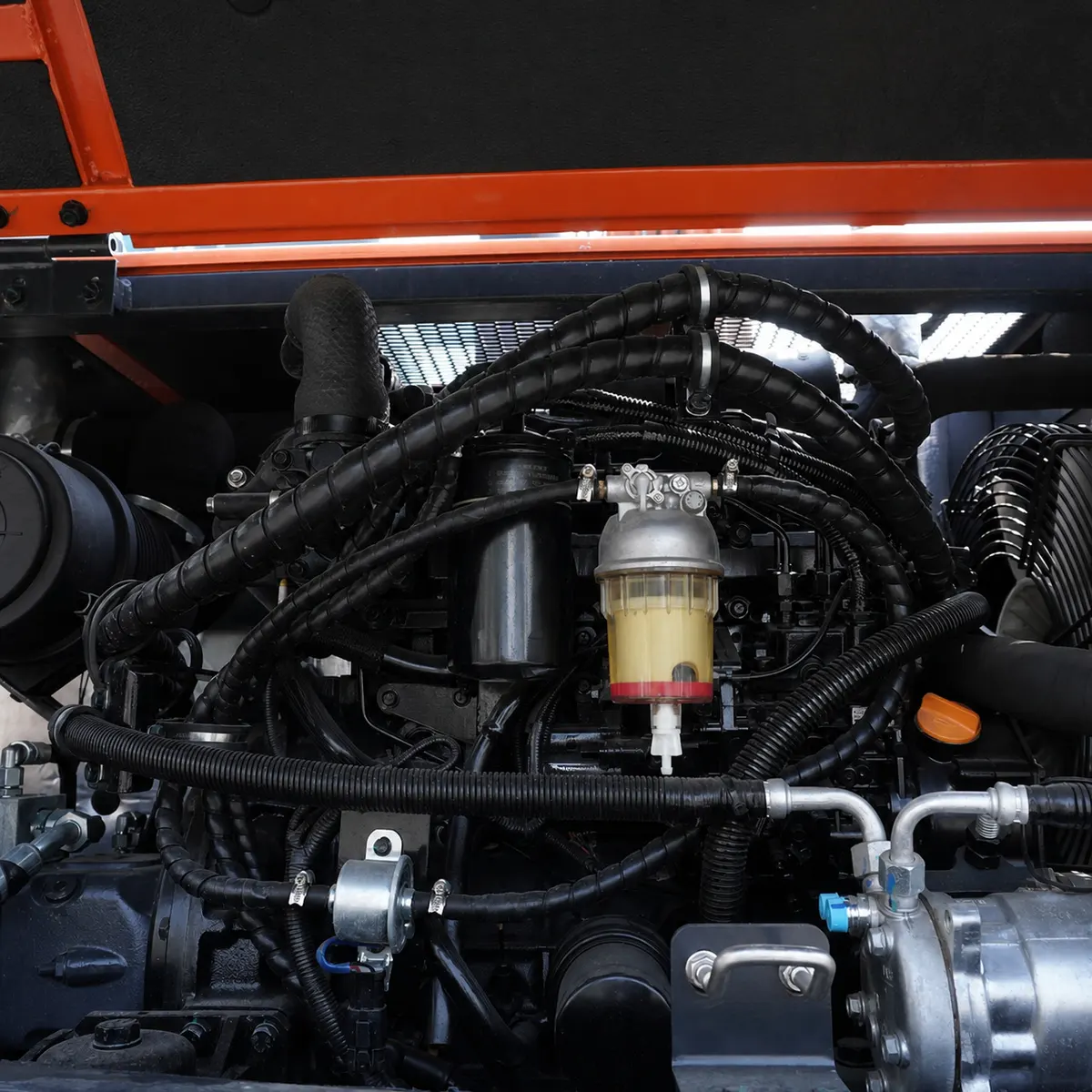

- Engine model
- 4TNV98CT
- Engine brand
- Yanmar
- Engine rated power
- 56.5 kW
General instructions
Simplified explanationCore Component Details
Certifications
Qualification Documents
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions
Which tasks suit the log grapple?
The installed log grapple is shown holding grouped timber for controlled sorting, loading-area placement and roadside material-clearance work.
What supports stable positioning?

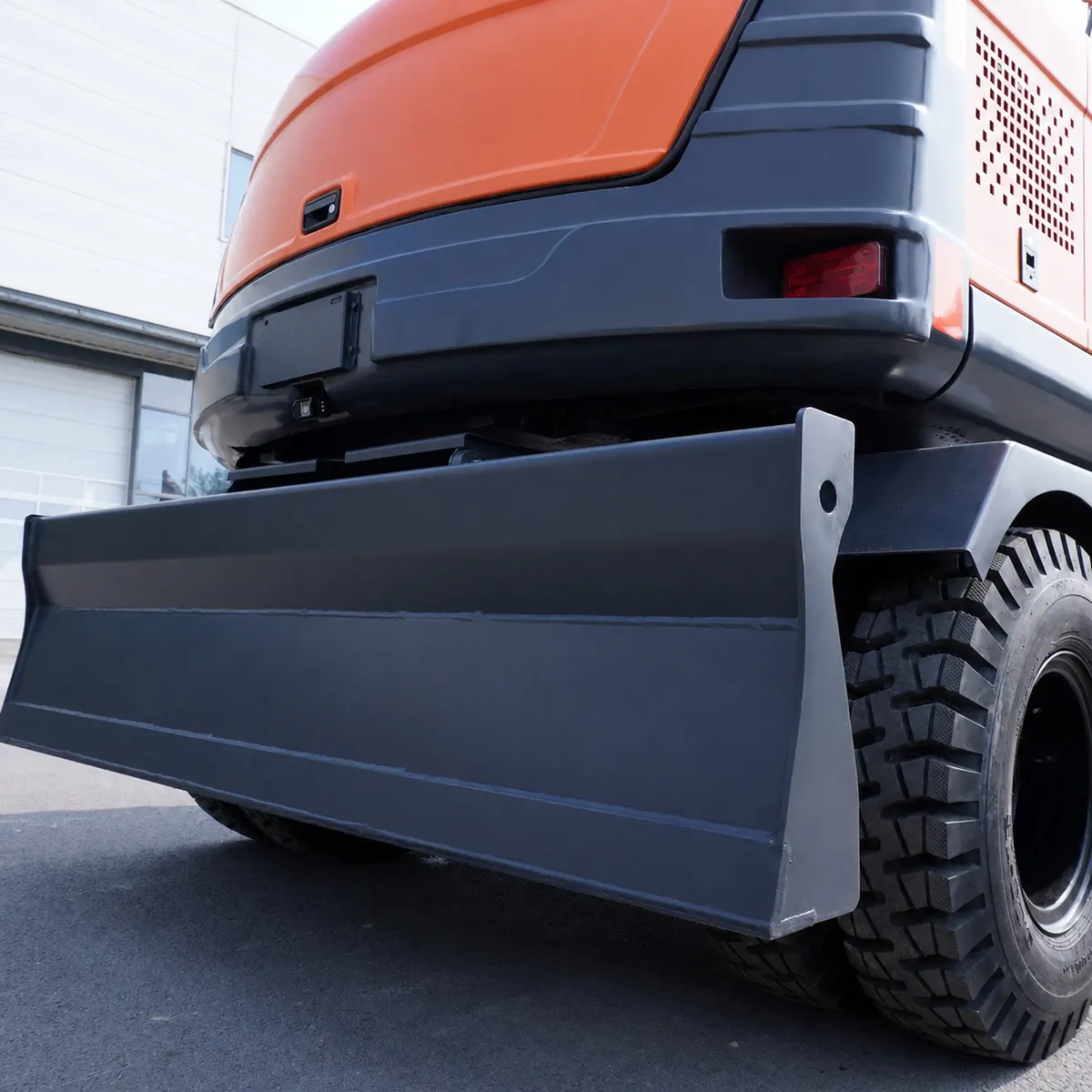

The front blade, four-wheel chassis and visible ground contact support stable positioning while the articulated arm is used for controlled reach.
Where is the operator positioned?
The operator is positioned in the enclosed cab, using the seated work area and controls shown in the confirmed product images.
How is timber placed with control?
The grapple closes around grouped logs, allowing the operator to lift and place material with a clear work zone and controlled arm movement.
What should be prepared on site?
Prepare a firm, clear work area with room for the full machine, its articulated arm, the grapple reach and orderly material placement.
