The verified bucket is the front work tool for collecting, carrying and placing loose material.
Landscape Soil PlacementZT510 Skid Steer Loader
Controlled material handling across compact outdoor sites

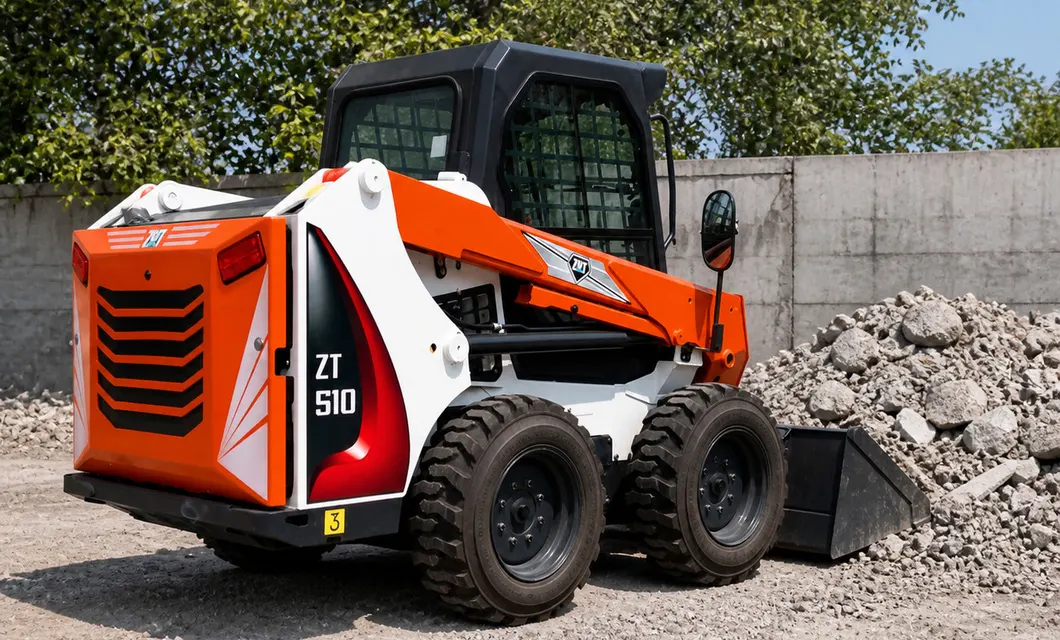

The four scenes show the loader collecting aggregate, leveling prepared site material, placing soil along a landscape edge and collecting small loose material at a compact cleanup site. Each scene keeps the four-wheel machine on firm ground while the front bucket works directly with the material.
- Aggregate Loading

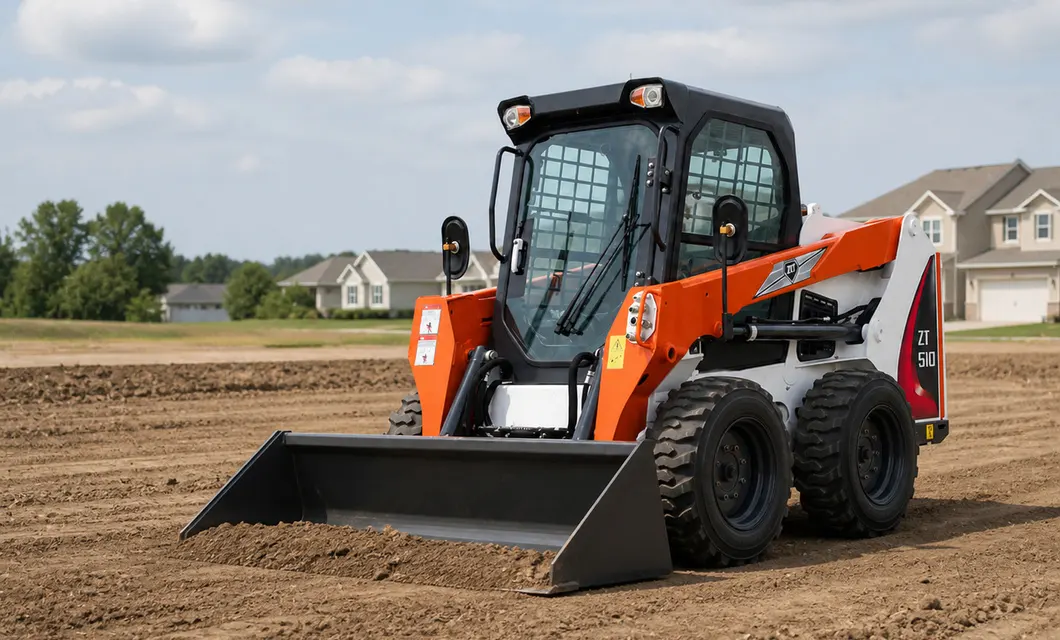

- Site Material Leveling

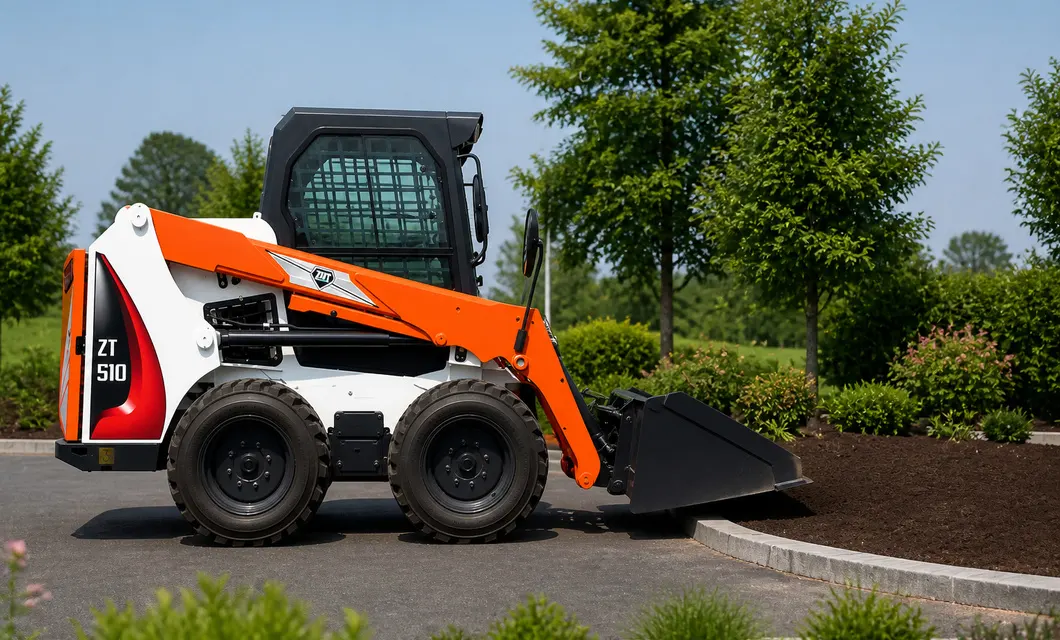

- Landscape Soil Placement
- Compact Site Cleanup

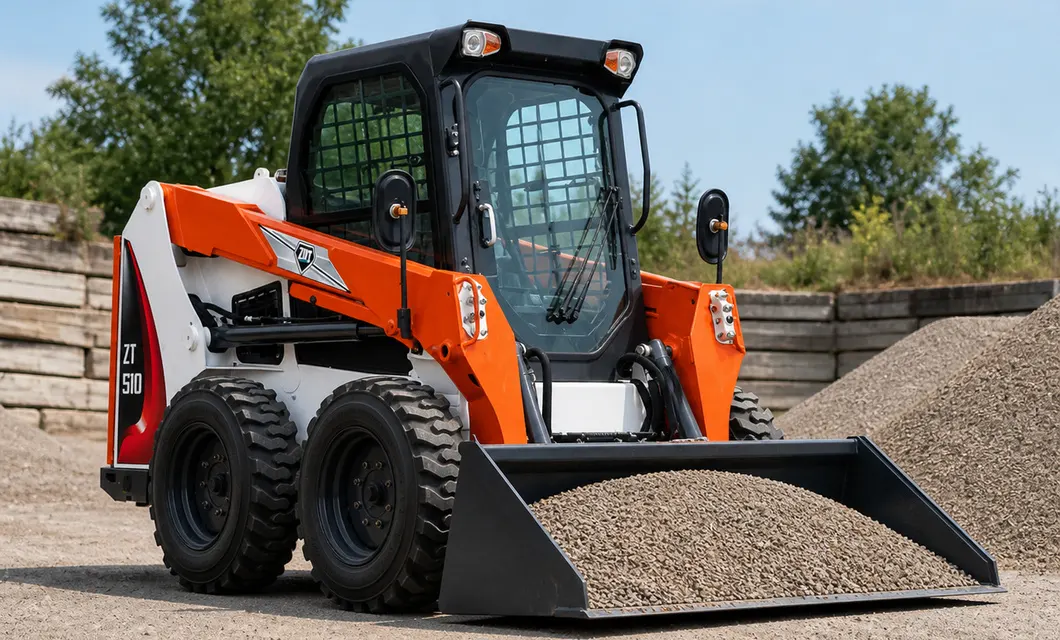

Aggregate Loading
Site Material LevelingLandscape Soil Placement
Compact Site CleanupAggregate LoadingSite Material LevelingSpecifications & Structural Decomposition

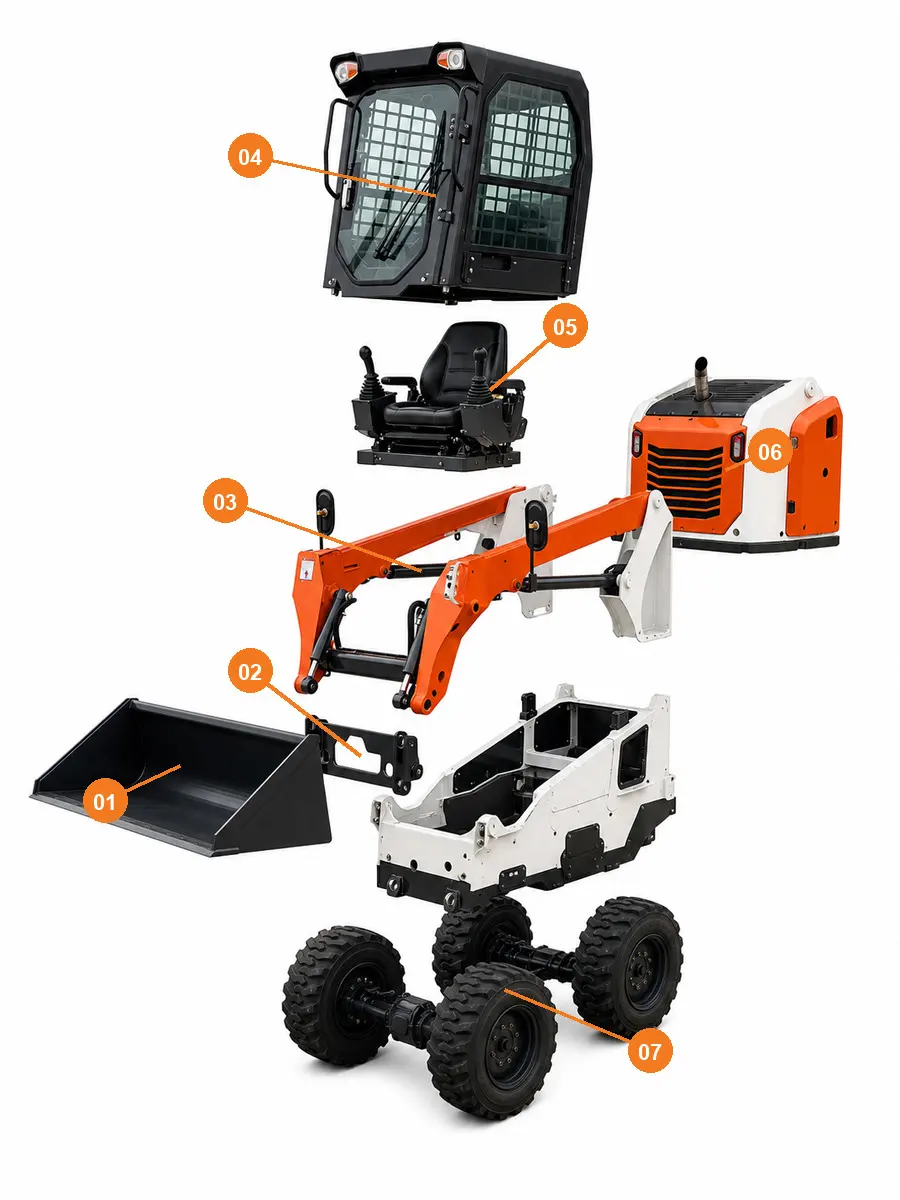

Product Structure

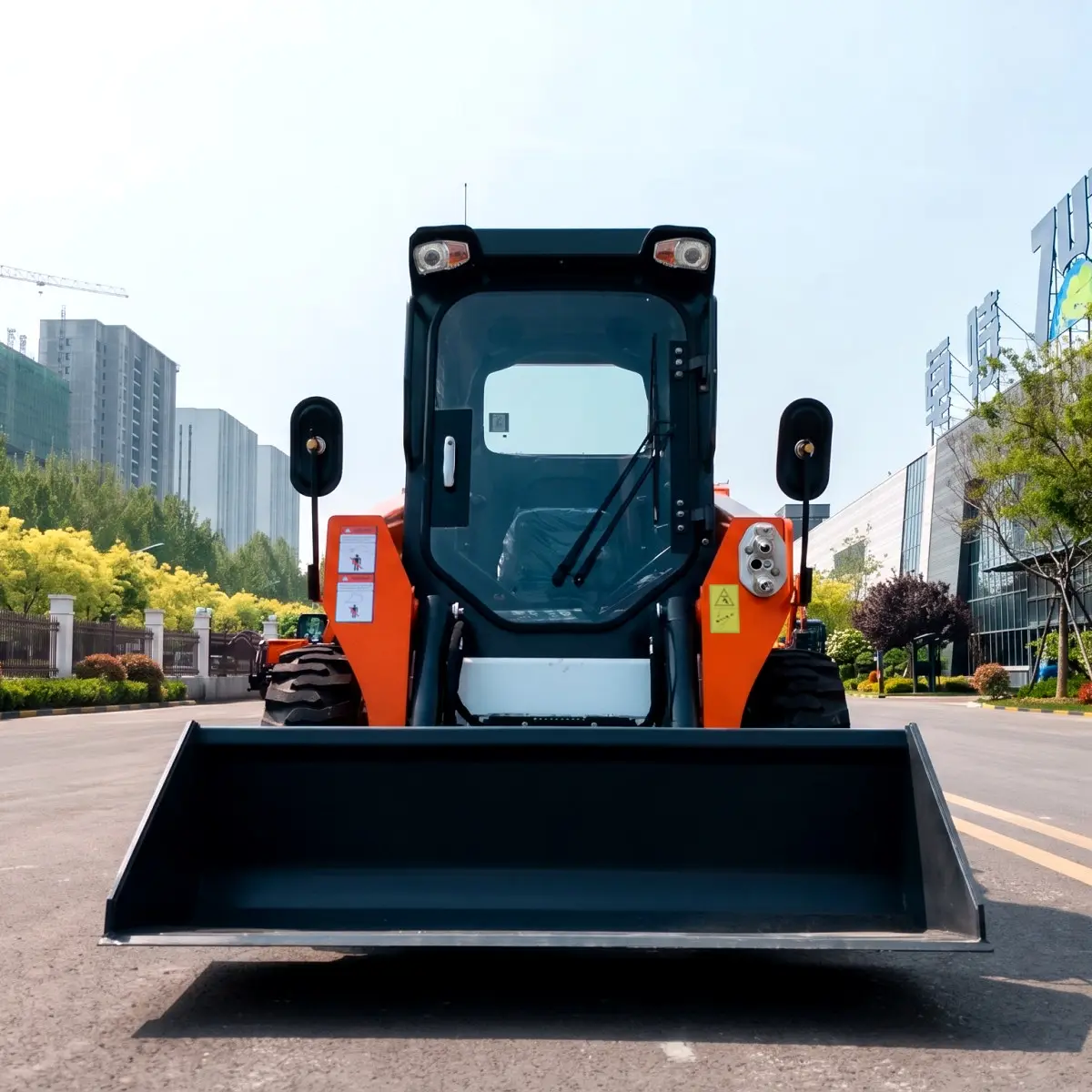

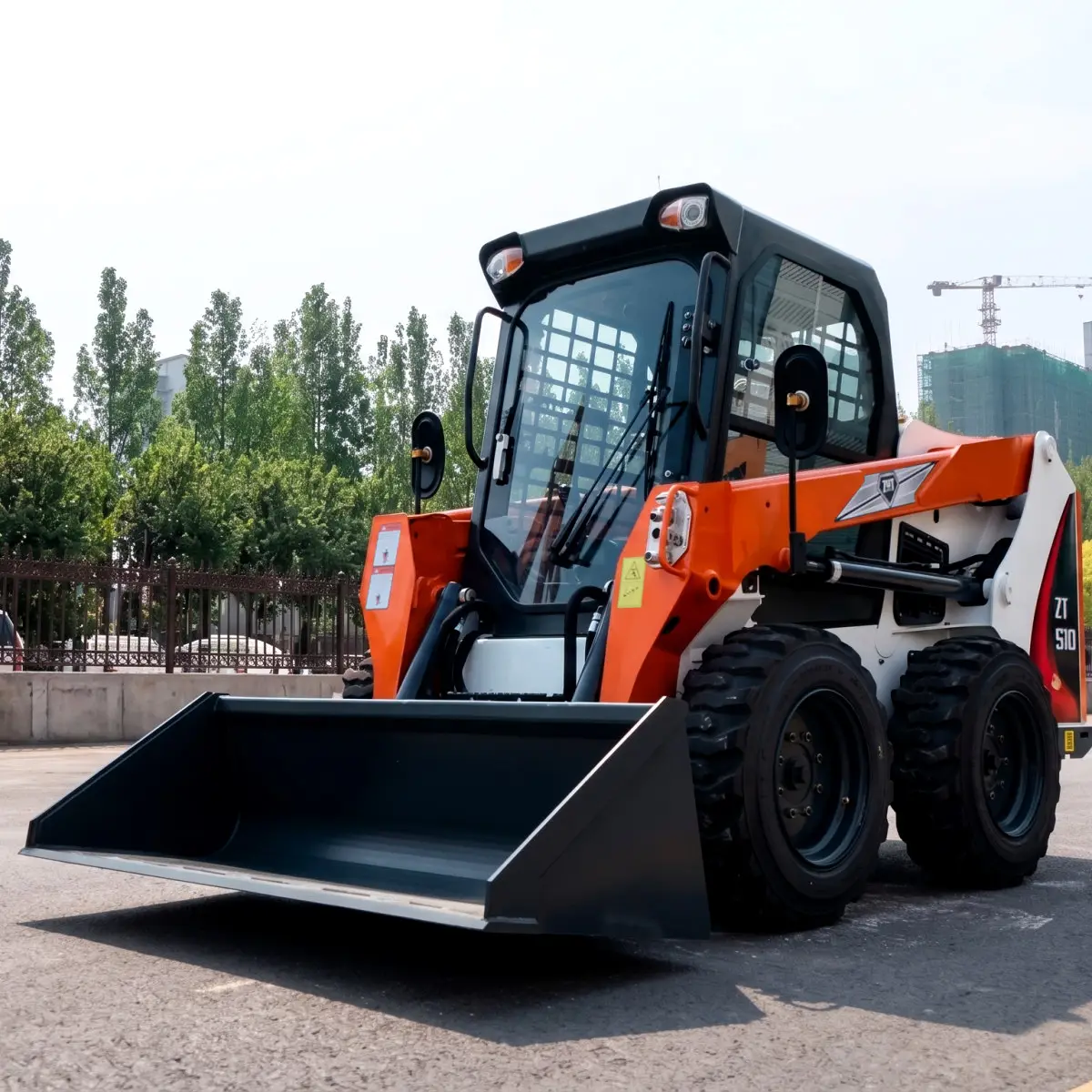

- Loader Bucket
- Quick Attach Plate
The verified quick-attach plate provides the direct connection between the bucket and lift arms.
- Lift Arm Assembly
The verified paired lift arms and crossbar raise the work tool with matched side geometry.
- Safety Cab Shell
The verified protective cab shell forms the operator enclosure and forward safety screen.

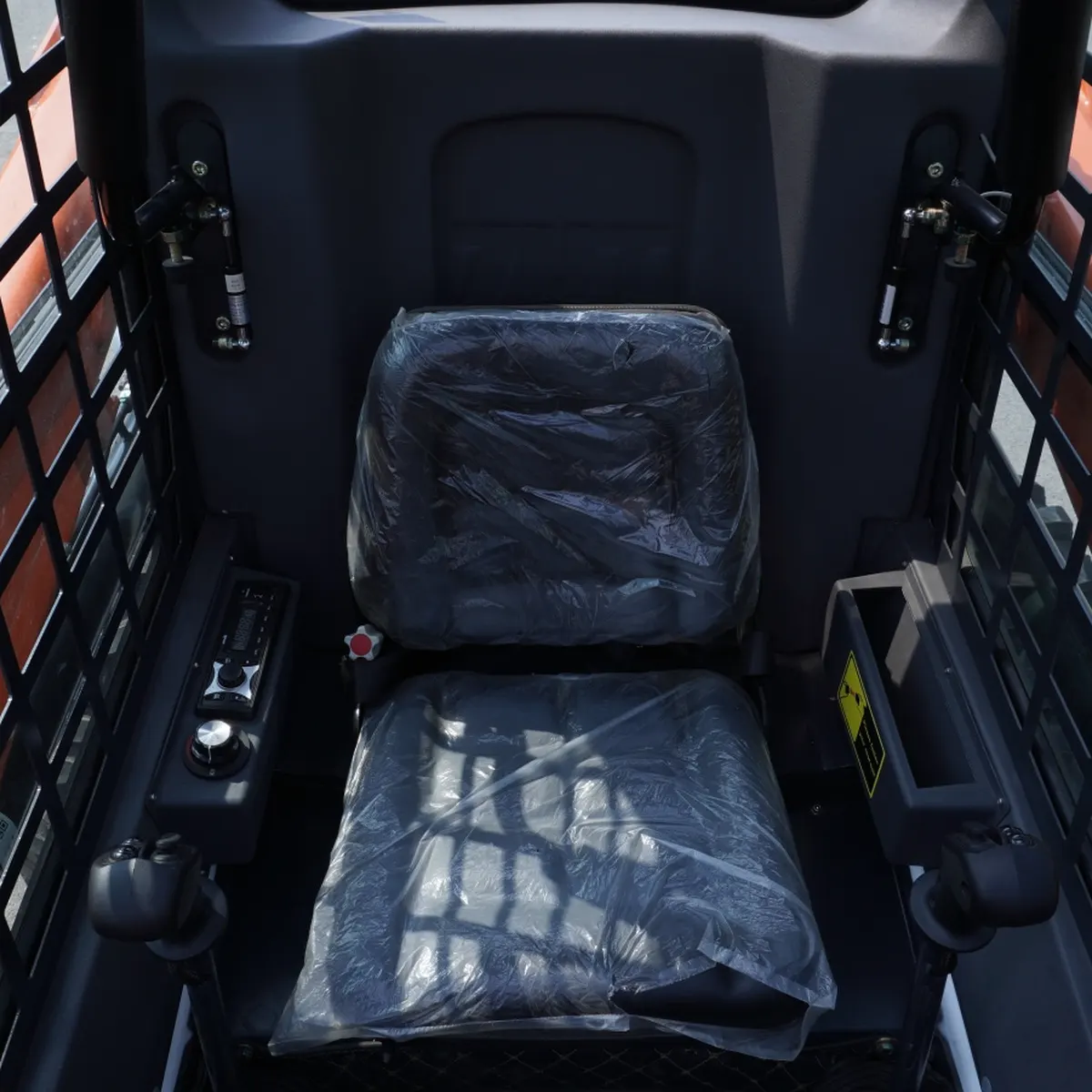

- Seat and Control Station

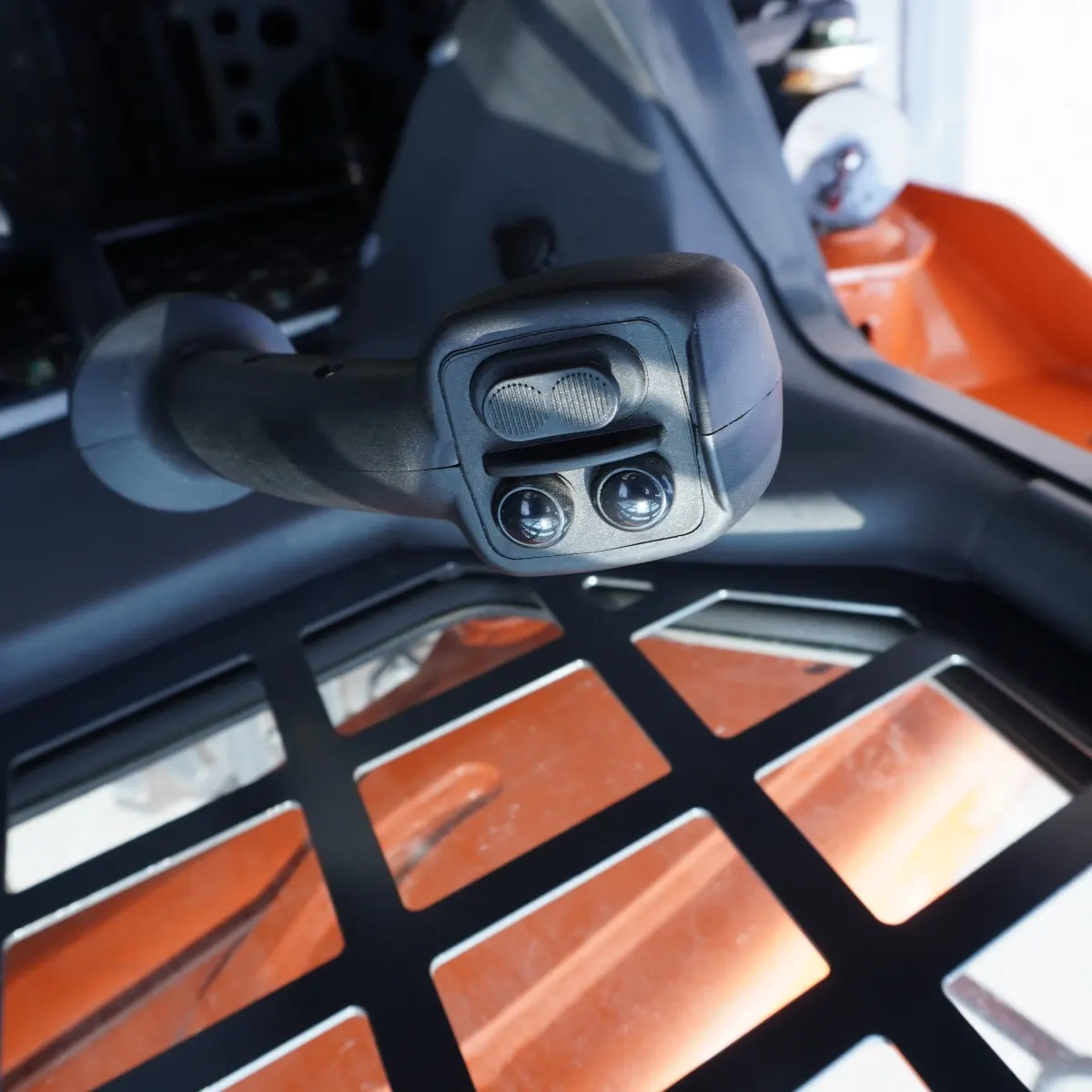

The verified seat and control station provide the operator position and visible machine controls.
- Rear Engine Housing

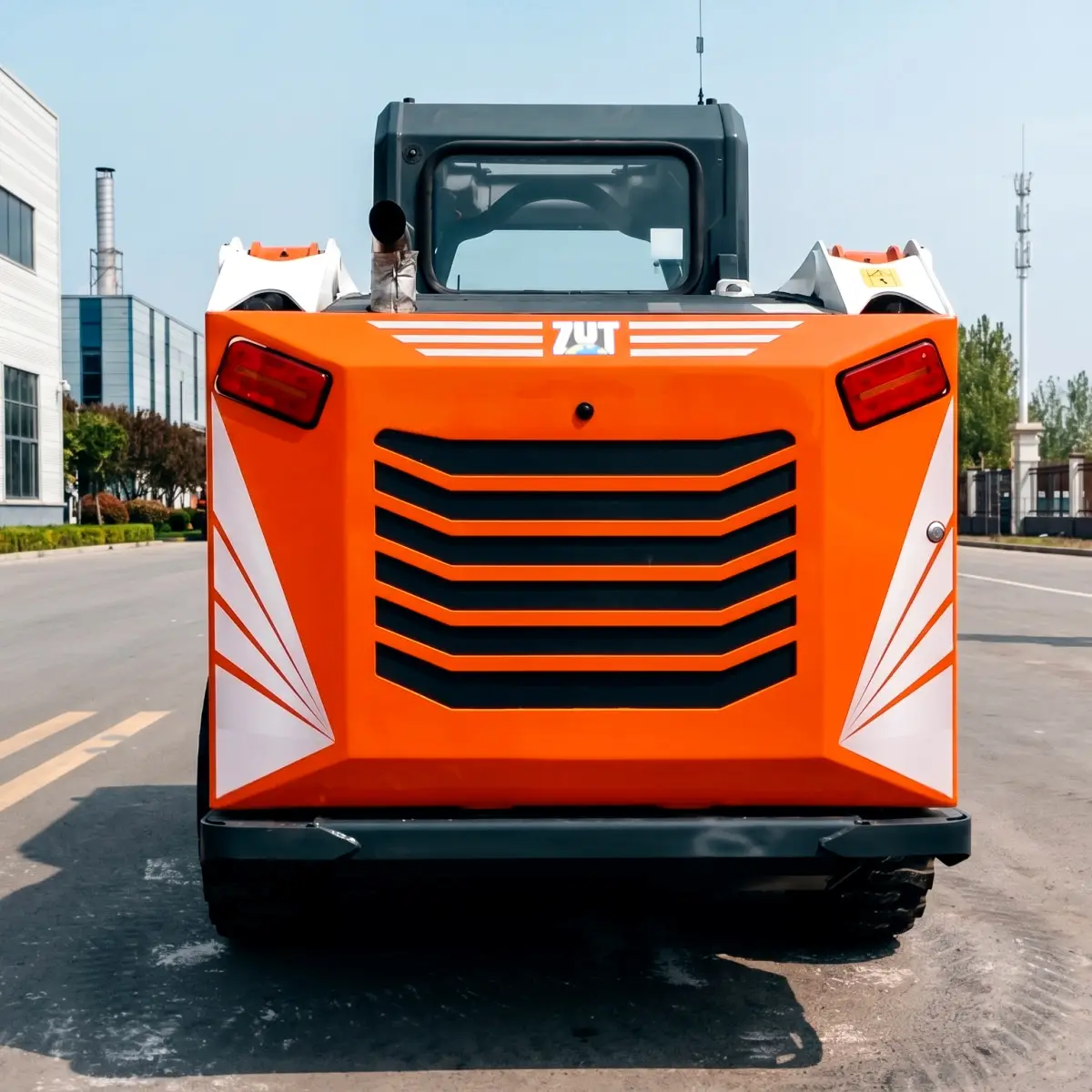

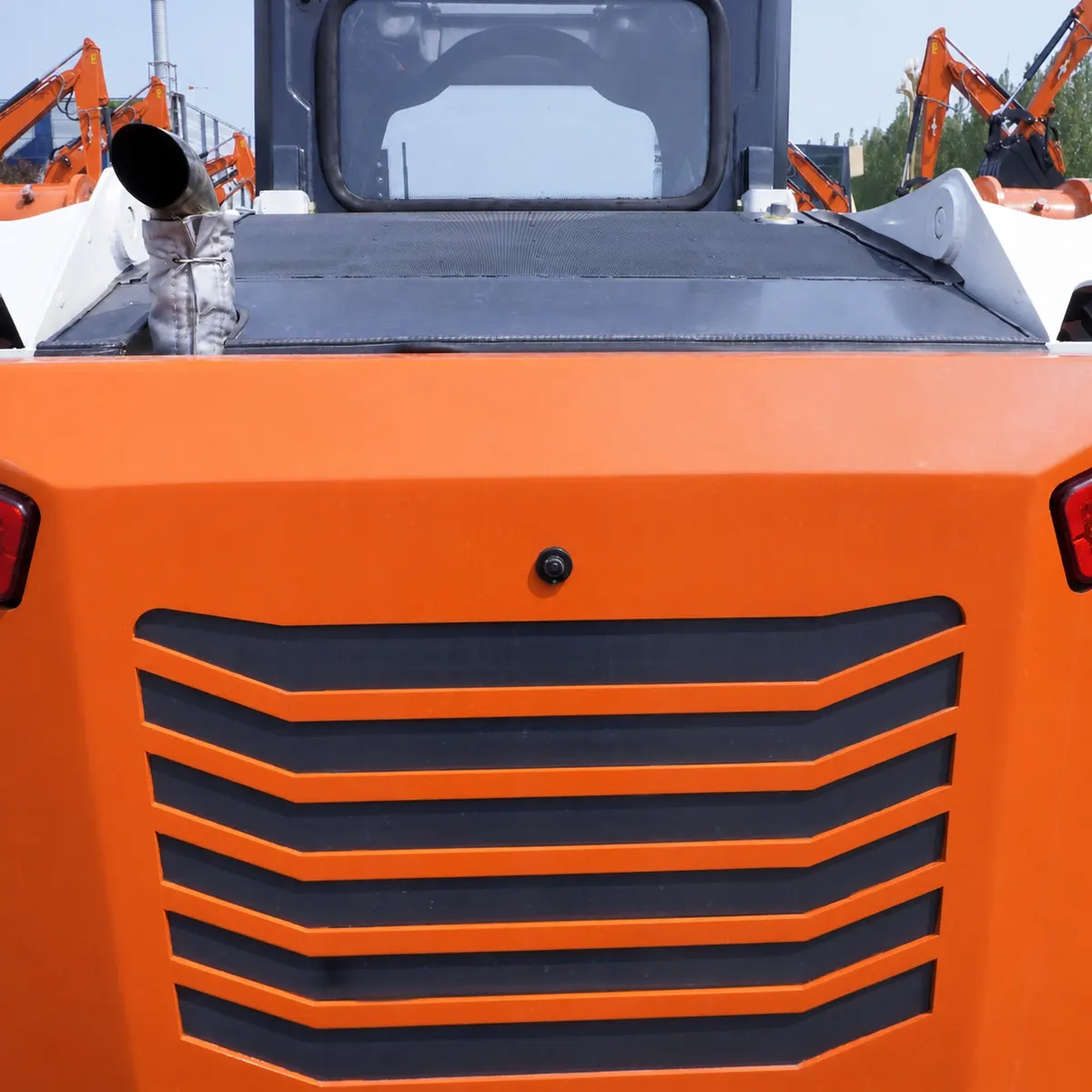

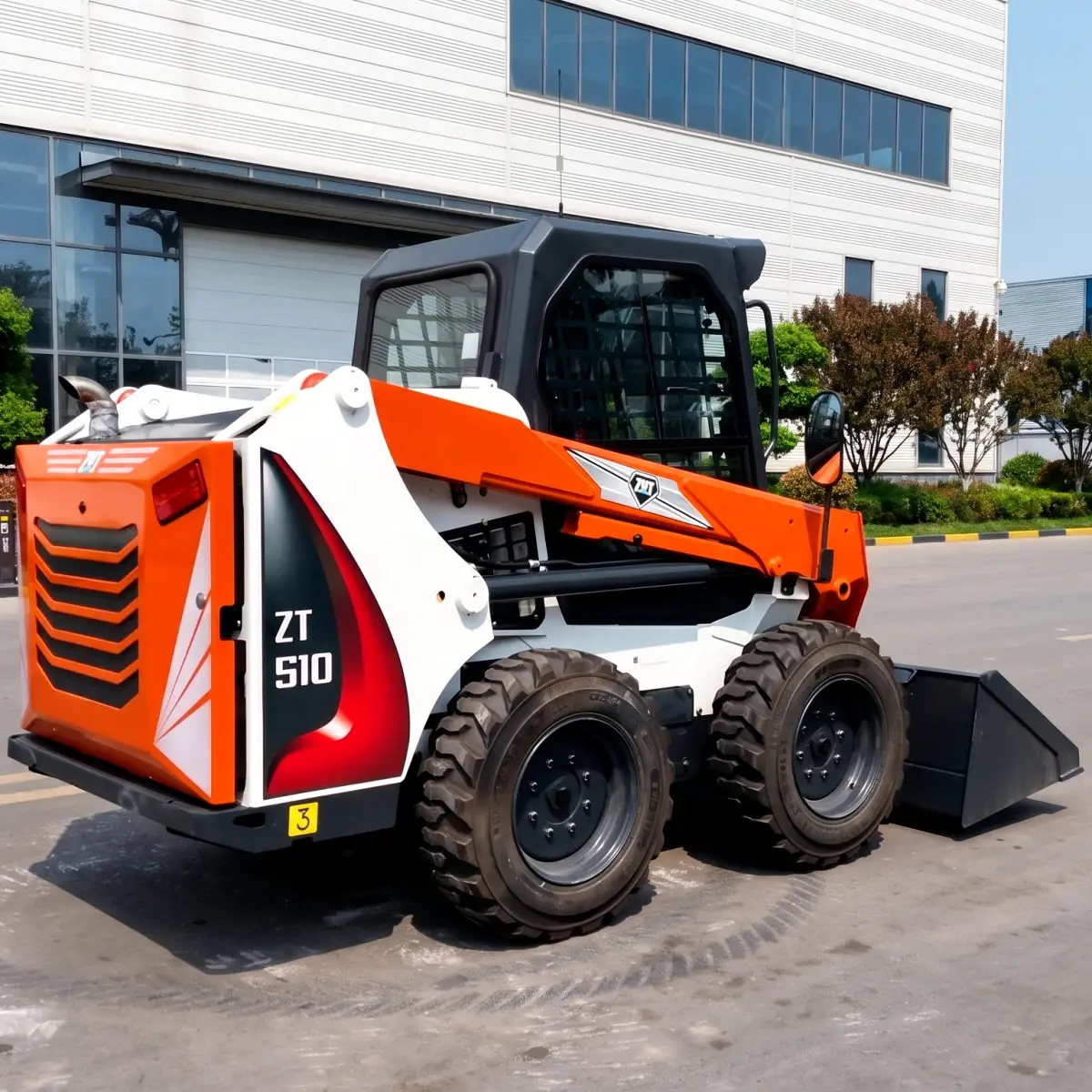

The verified rear housing encloses the shown rear equipment area and ventilation grille.
- Wheel and Axle Chassis
The verified four-wheel chassis combines both axles and supports travel under the loader frame.
General information
- Product Basic Information

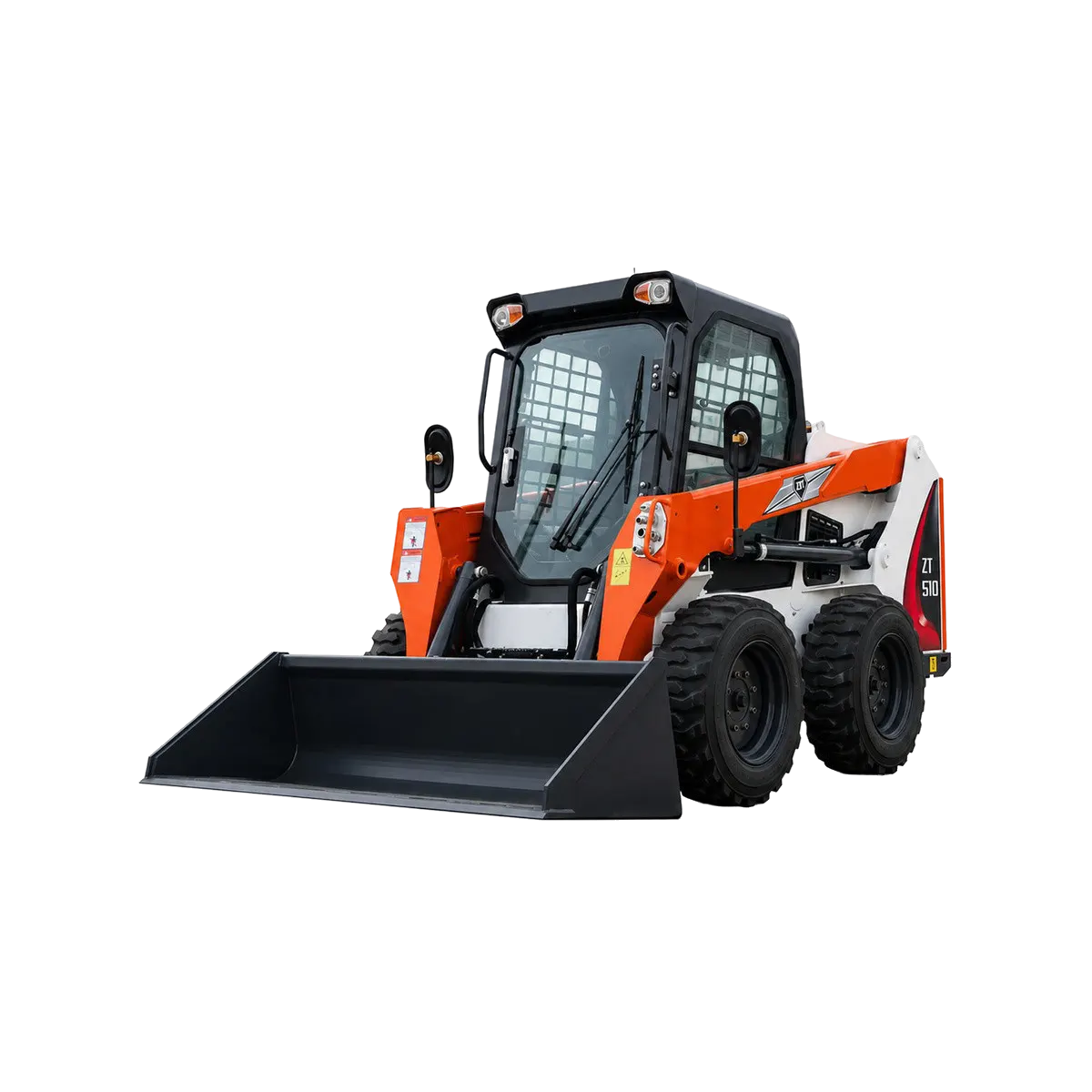

- Wheeled skid-steer loader
- Load weight/tonnage
- 2.343 tons
- Product Introduction
- 0.5 m³ bucket skid-steer loader
- Standard engine model
- 4TNV88
- Power
- 35.5 kW
- Applicable Scenarios
- Loading and in-yard transportation
- Dimensional parameters
- With bucket, length 3,378 mm; vehicle width 1,643 mm.
General instructions
Simplified explanationCore Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions
Which tasks suit this loader?
It is suited to collecting, carrying, placing and leveling loose aggregate or soil around prepared outdoor work areas.
How is material moved with the bucket?
The visible lift arms and hydraulic linkage raise and position the front material bucket through its working arc.
What supports compact-site maneuvering?
The compact four-wheel chassis supports placement and turns on firm prepared surfaces, subject to actual site and load conditions.
Which details are supplied in images?

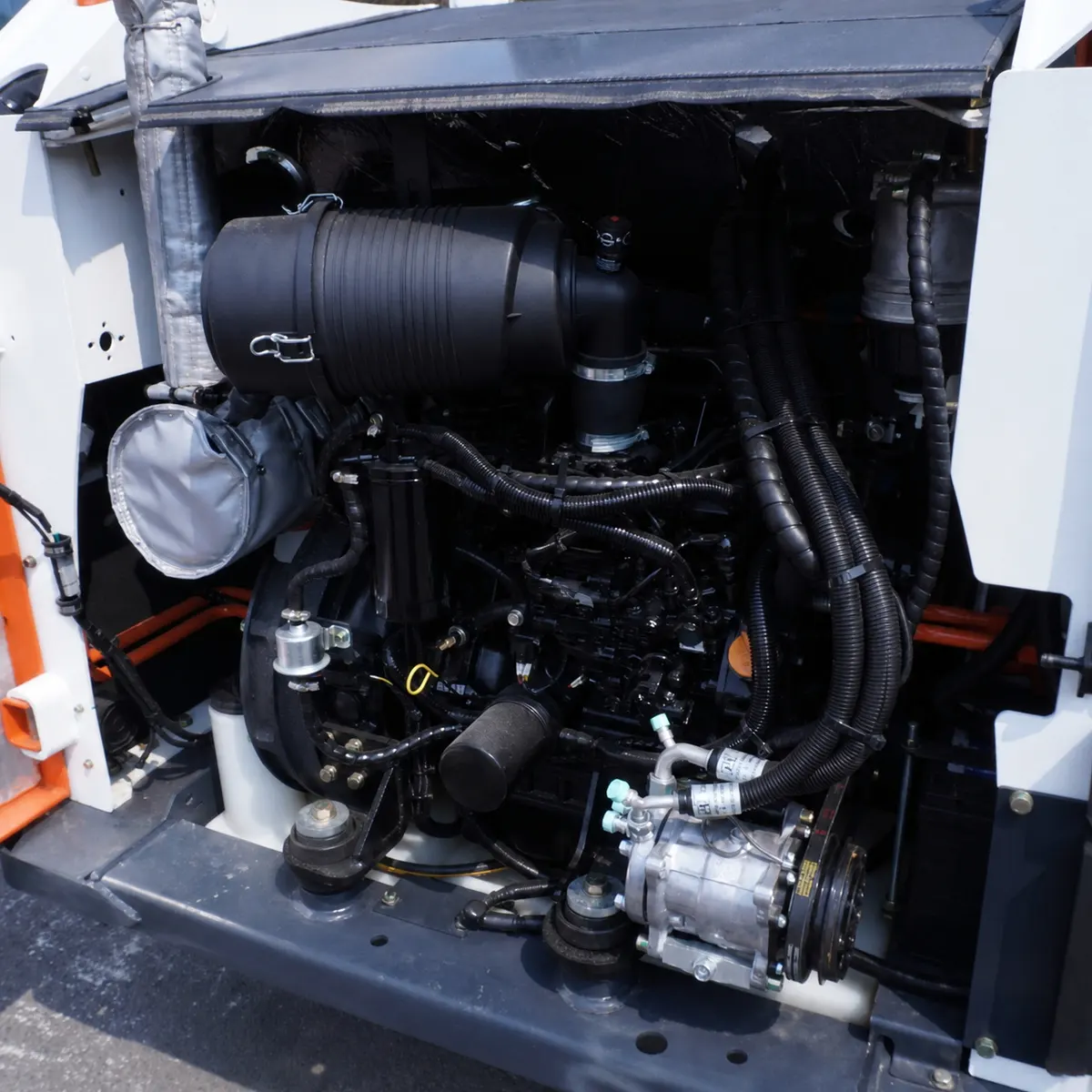

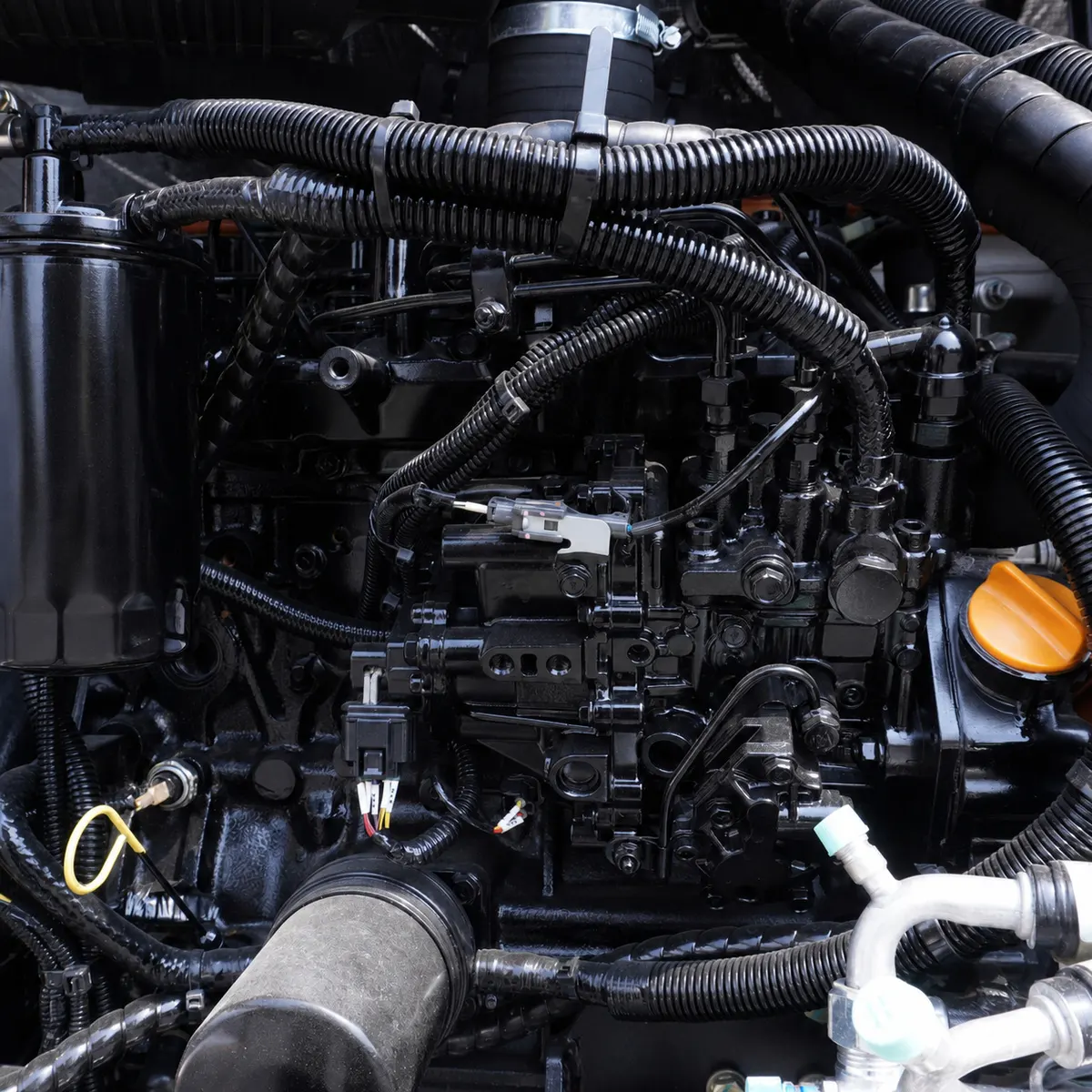

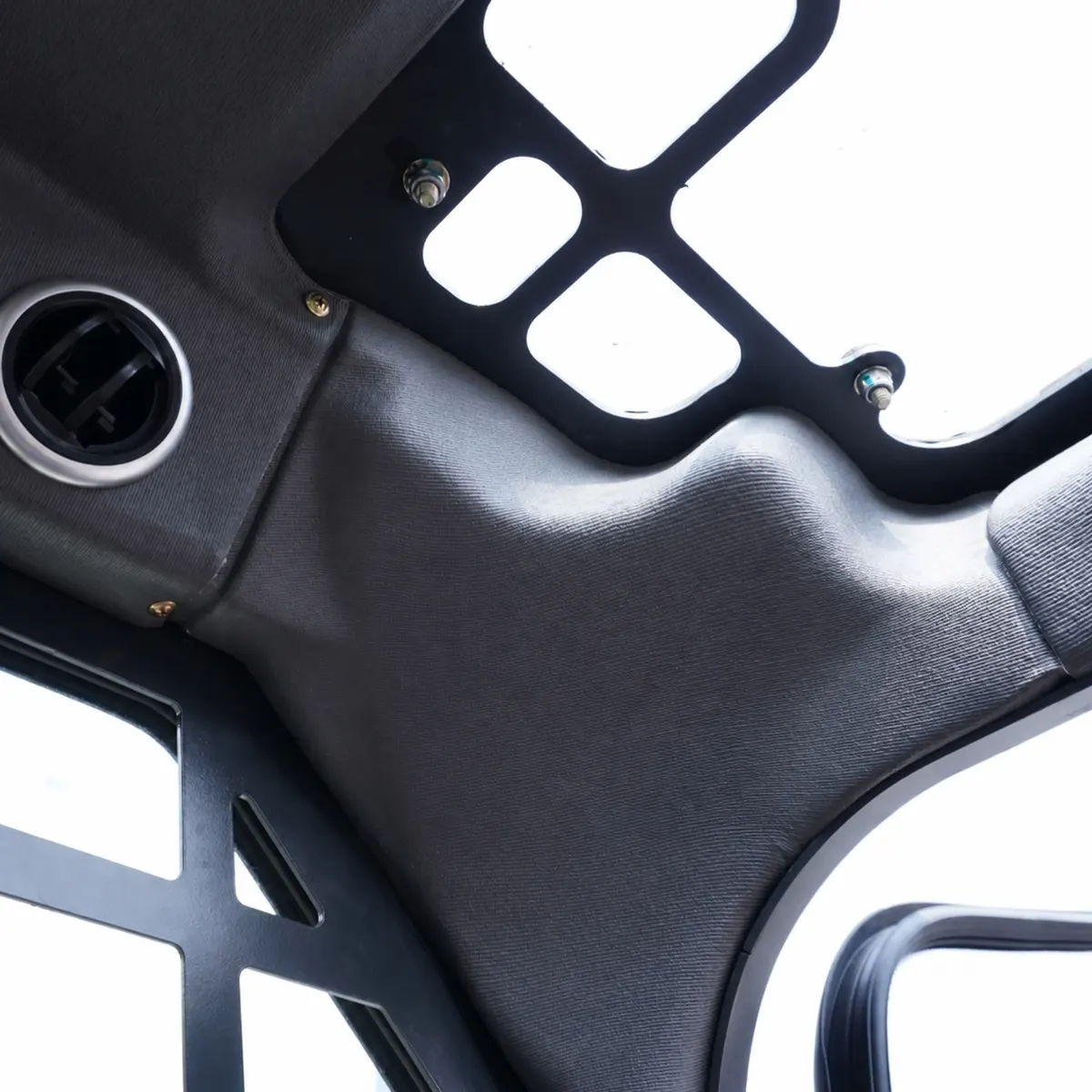

The supplied detail images show the lift arm, engine compartment, cab safety grid, rear vent panel and cab ventilation.
What should be confirmed before ordering?
Confirm the intended material, required access space, preferred configuration and actual ground conditions so the machine can be matched to planned work.
