Consists of green roof, reinforced support frame and fasteners, offering sun‑rain protection and improving riding comfort.

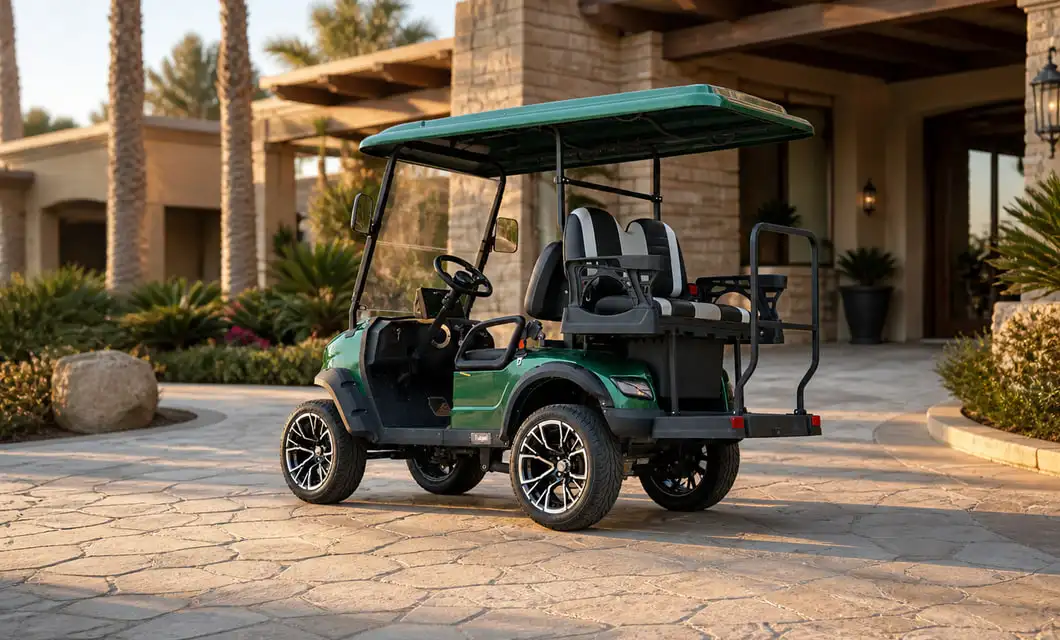

Ready at the Resort Villa ArrivalCommercial Transport and Fleet Operations with Golf JHK-B1-2+2
Golf JHK-B1-2+2 is suited to industrial parks, logistics routes, worksites and managed fleet operations. It supports passenger or cargo movement matched to route, load, speed and local operating conditions. Before deployment, confirm payload, dimensions, axle or tire specification, powertrain, route and regulatory requirements.
- Industrial Parks
- Logistics Routes
- Worksites
- Fleet Operations

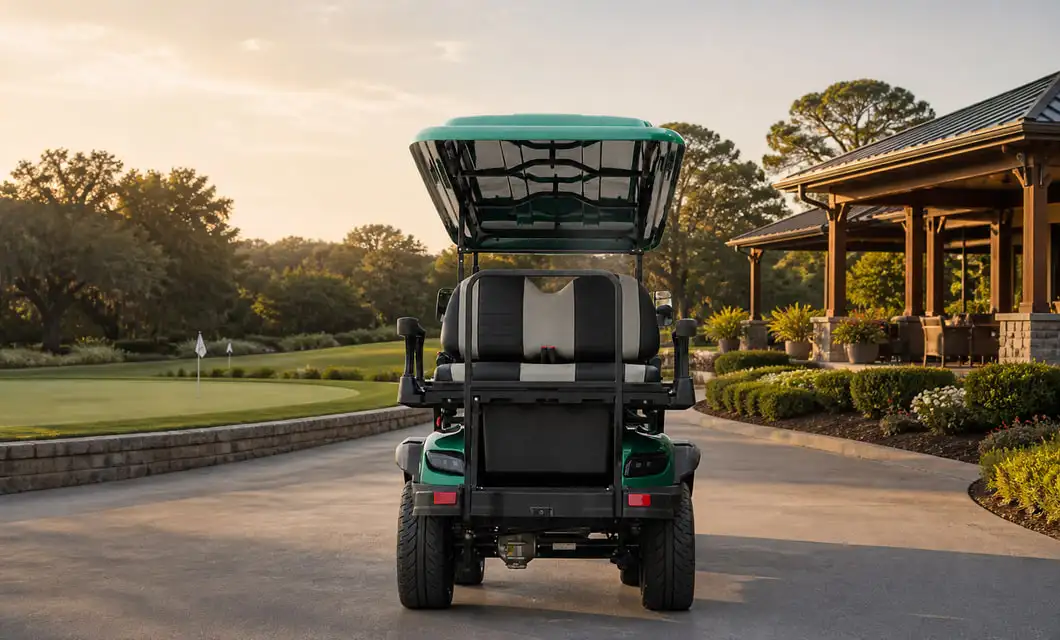

Calm Stop Beside the Practice Grounds
Poised at the Clubhouse TurnaroundReady at the Resort Villa Arrival
Relaxed Travel Along the Fairway RouteCalm Stop Beside the Practice GroundsPoised at the Clubhouse TurnaroundProduct Advantages

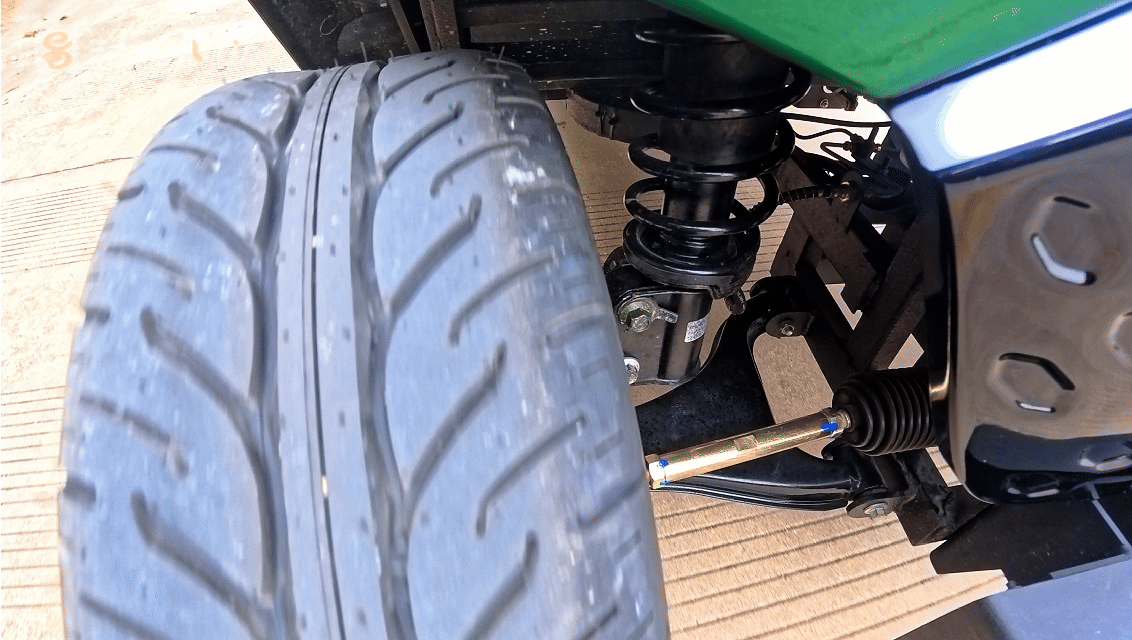

JHK-B1-2-2 Chassis Driving
Specifications & Structural Decomposition

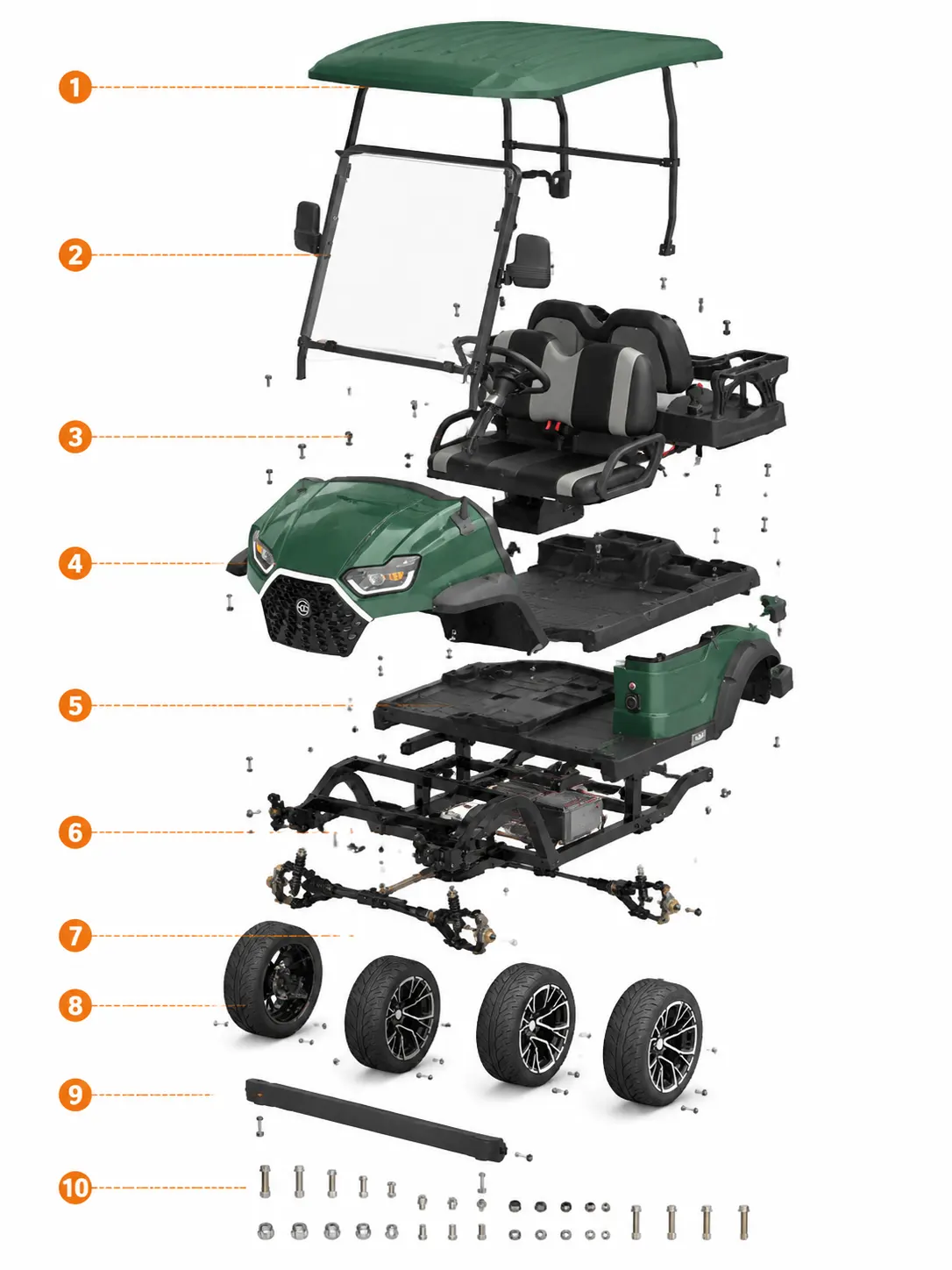

Product Structure Diagram
- Top‑Canopy Assembly
- Windshield & Support Frame
Includes front windshield, left‑right pillars, rear‑view mirrors and mounting brackets for driver protection and forward vision.

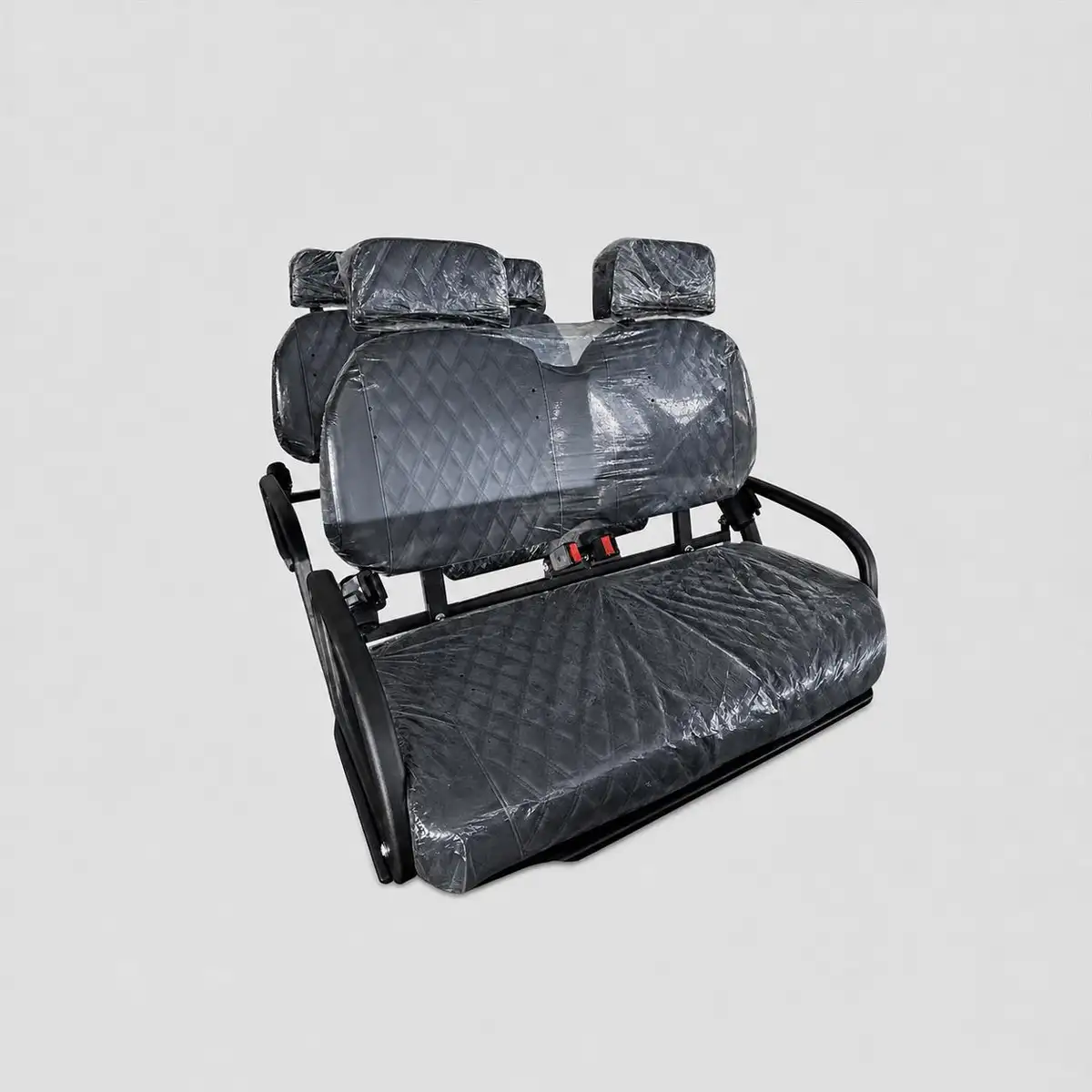

- Driver‑Seat & Control Assembly
Composed of seat, backrest, steering wheel, steering column and armrests for passenger seating and vehicle control.
- Front‑Hood Cover Assembly

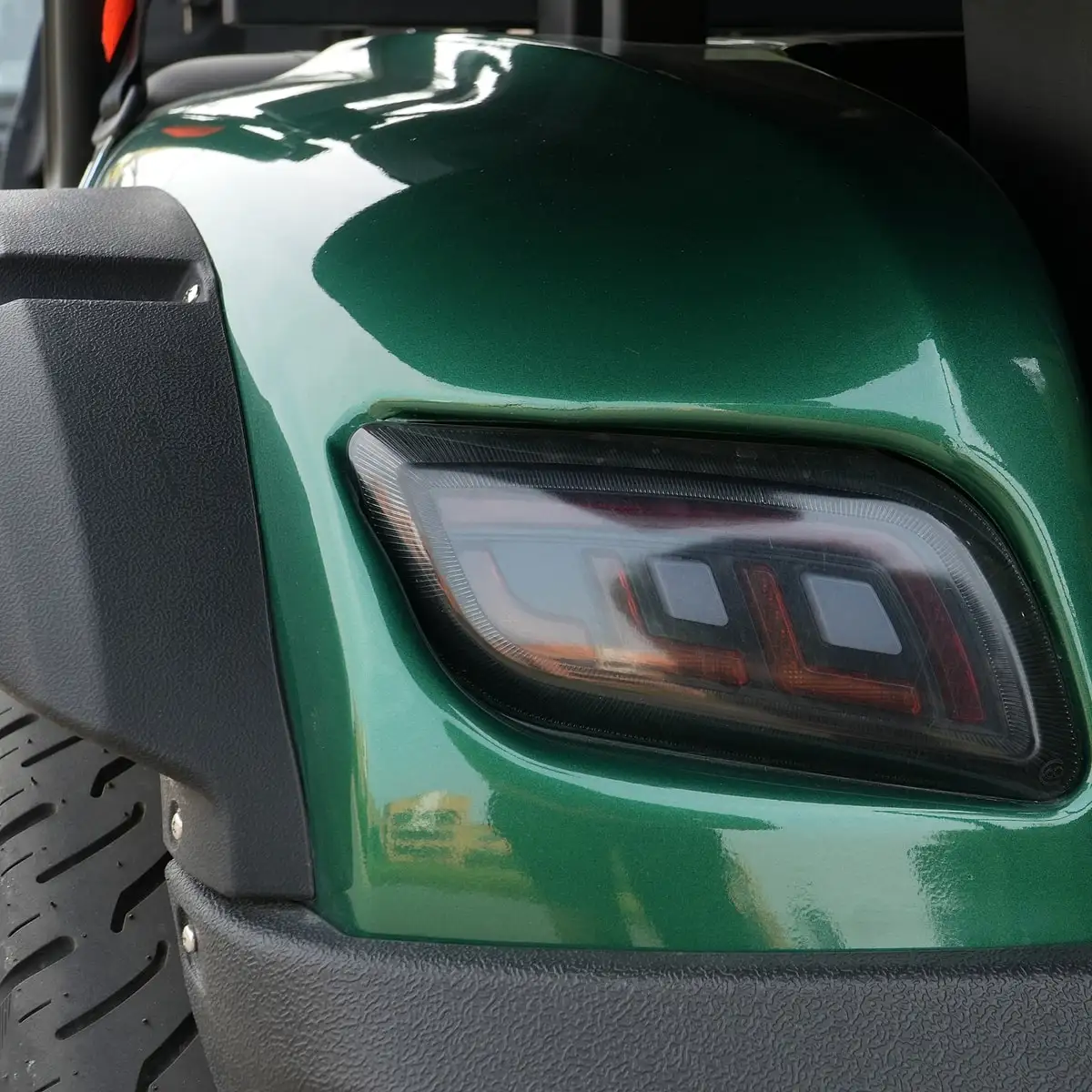

Contains green hood, front grille, lamp group and trims, protecting front‑end structure and enhancing vehicle appearance.
- Mid‑Body & Floor Panel Assembly
Made up of passenger‑zone floor, side shells and connecting brackets to carry cabin and join body structures.
- Chassis‑Frame & Powertrain‑Mount Assembly

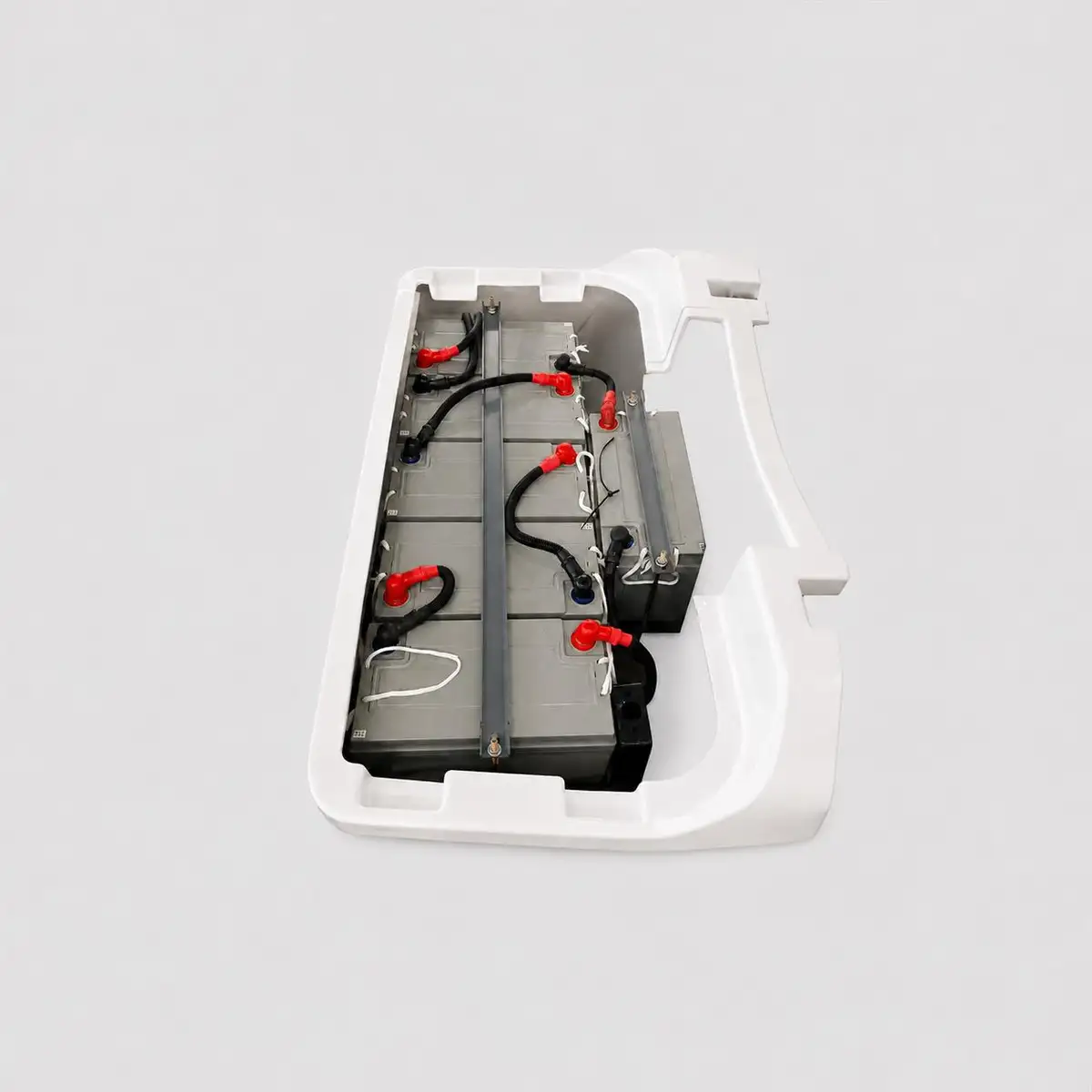

Includes main frame, cross beams, bottom supports and mounting structures for battery & power system, the core load‑bearing part.

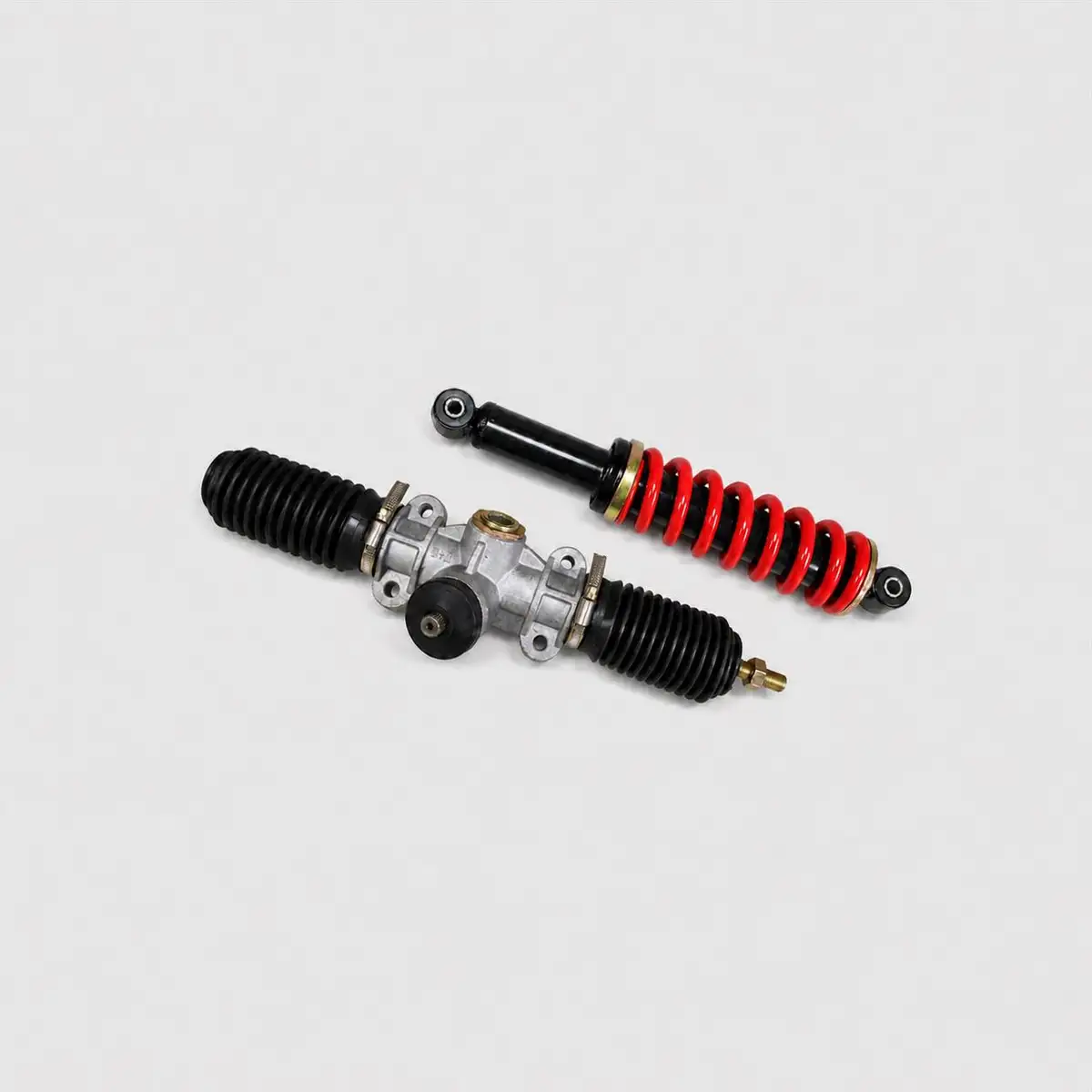

- Suspension & Steering Assembly
Consists of front‑rear axles, steering mechanism, suspension arms and links to realize steering, shock absorption and stable travel.
General information
- Product Basic Information
- 3010*1330*2040
- Maximum speed
- 40km/h
- Braking distance
- ≤4m
- Climbing angle
- 30
- Drive system
- Rear-wheel drive
- Front suspension
- MacPherson front suspension
- Rear suspension
- Solid-axle rear suspension
General instructions
Simplified explanationProduct Attachments or Core Configurations
Product Video
JHK-B1-2-2 Appearance Display
JHK-B1-2-2 Appearance Display
00:34
JHK-B1-2-2 Operation Demonstration
00:36
Container loading
00:29
Container loading
00:31
Container loading
00:51
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
Certifications
Qualification Documents
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
1. Where is Golf JHK-B1-2+2 typically used?
1. It is commonly used for industrial parks, logistics routes, worksites and managed fleet operations, subject to the selected model and site conditions.
2. How do I choose the right model?
2. Match payload, dimensions, axle or tire specification, powertrain, route and regulatory requirements to the actual workload and operating environment.
3. What should be confirmed before ordering?
3. Confirm model, color, payload, axle or tire specification and optional equipment, then verify the response time and any special requirements.
4. How should it be installed and maintained?
4. Prepare delivery inspection, approved registration where applicable and scheduled tire, brake and fluid checks; follow the manual for operation, inspection and routine maintenance.
