Large-Format CO2 Laser Engraving Machine

Name: Large-Format CO2 Laser Engraving Machine
SKU: p1_0Cqz6QrN396VY9gjfiiO08_Etds
Availability: InStock

This laser engraving machine combines centralized parameter control, consistent feeding and positioning, clearly defined maintenance access, and stable processing for continuous production workflows.

GE-1325

Core parameters

Full specifications

Working width/mm: 1300*2500
Light source: glass laser tube (CO2)
Power: ≤1500W (laser tube: CDWG 135W)

QuantityUnit: Units

Get a Tailored Procurement Plan

Product Model: GE-1325
Product Color: Designated color
Response Time: 24 hours
Special Requirements: Communicate based on actual needs

Large Working Envelope

The 1300 × 2500 mm work area accommodates large flat sheets, helping operators arrange broad layouts without repeated repositioning.

Stable Optical Path

The flight optical path and focusing lens arrangement guide the CO2 beam toward a fine spot for clear engraving and cutting.

Protected Laser Head

The sealed laser head uses air blowing to reduce dust entering the optical path and supports cleaner routine operation.

Integrated Support Systems

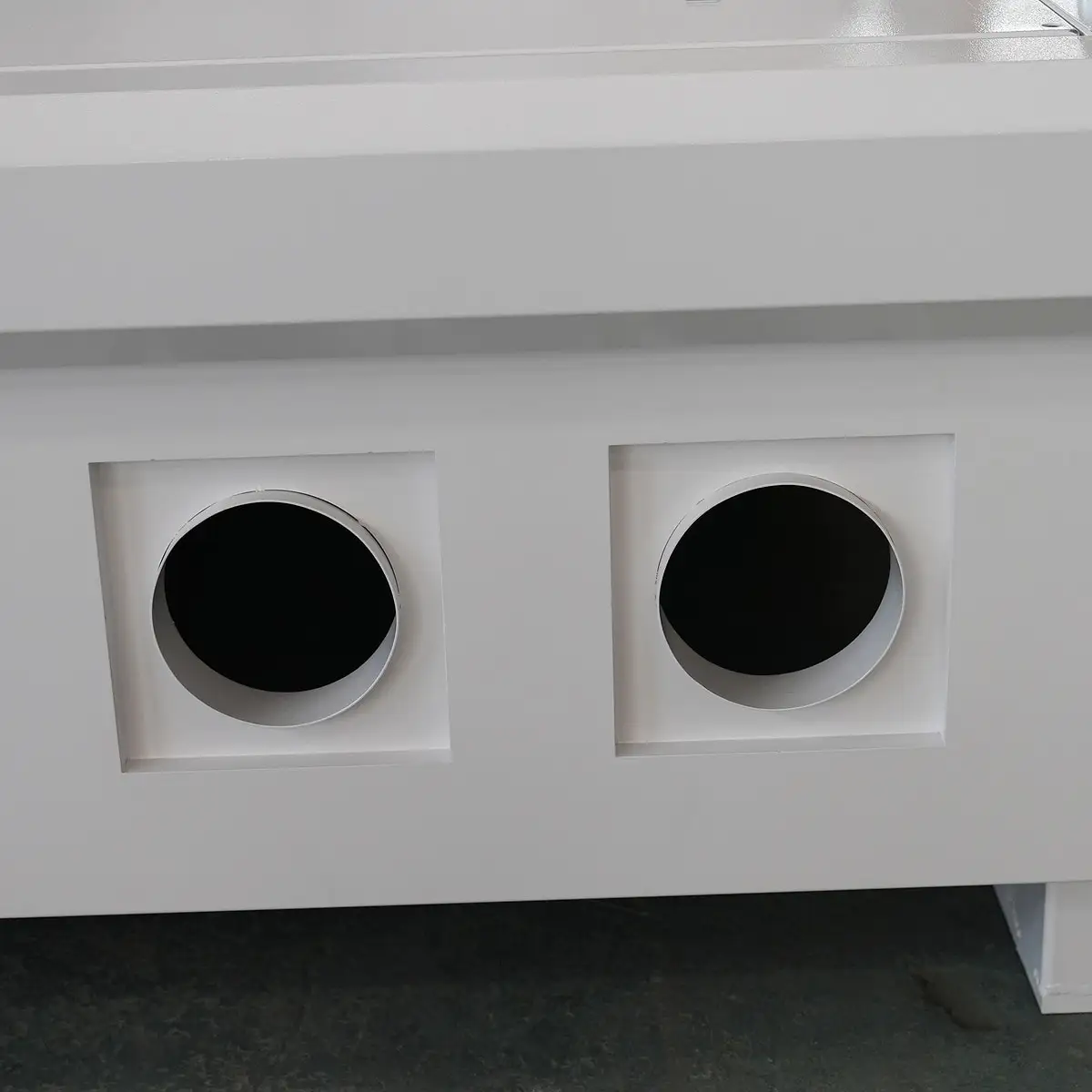

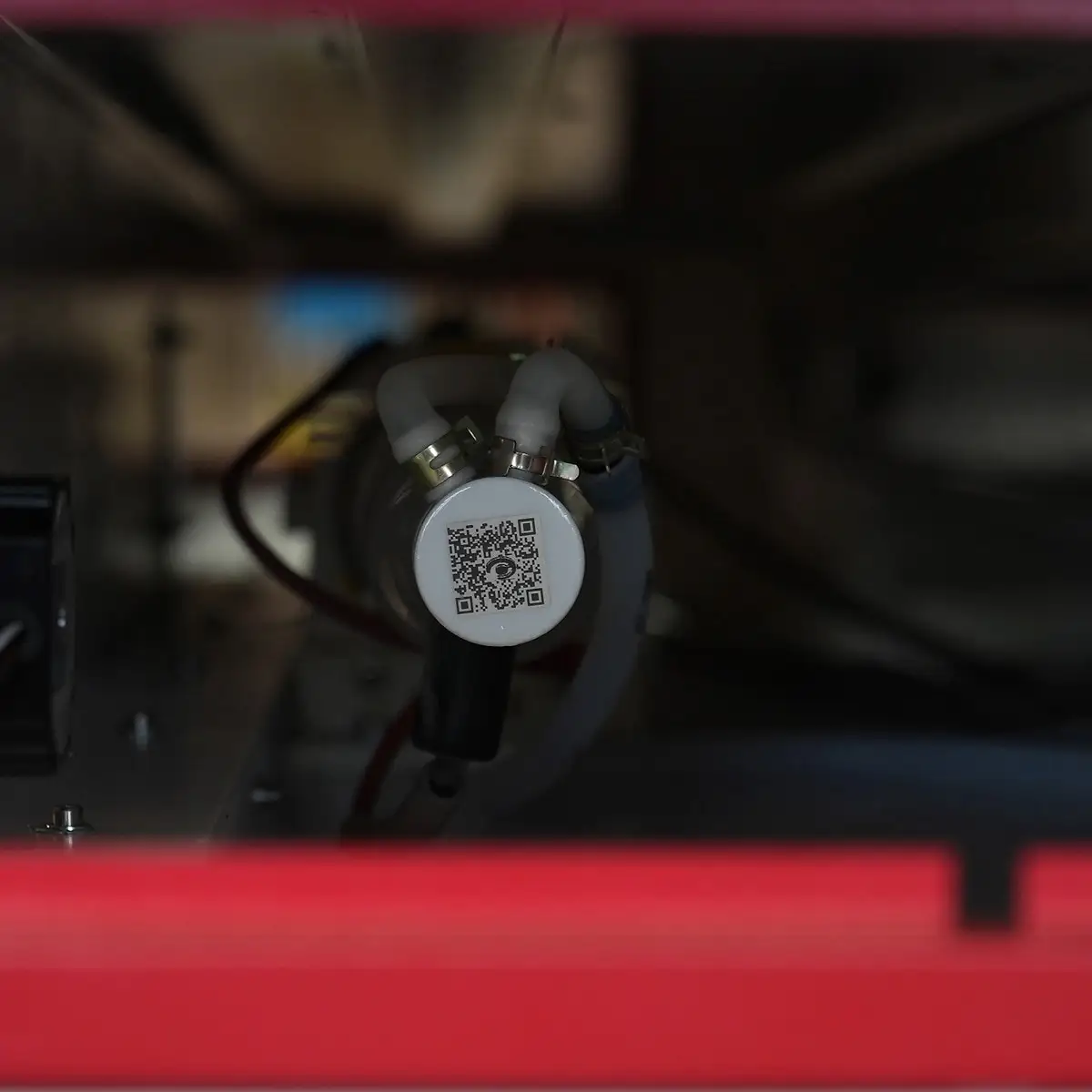

Water cooling, smoke extraction and power connections are arranged around the machine for a more orderly installation workflow.

Organized CO2 Laser Workflows for Flat Materials

Large-sheet creative production

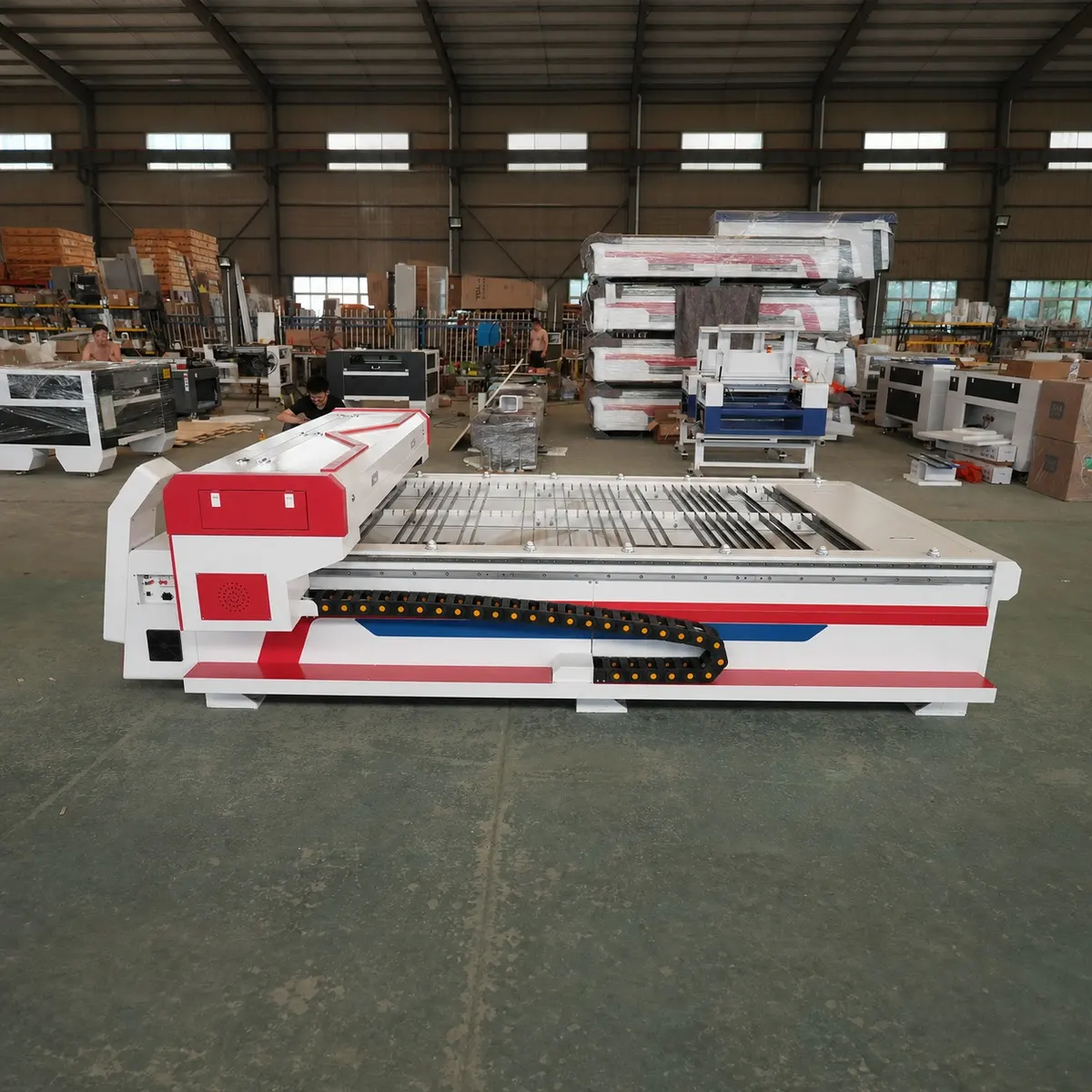

The machine is suited to organized production of large flat workpieces. Its open slat bed supports material placement, while the gantry and laser head follow programmed paths for engraving or cutting. Typical visible work includes acrylic signs, wood panels, leather goods, paper packaging and decorative sheets. The broad work envelope helps keep large layouts together, and the rear or side support systems leave the working area easier to access during preparation and cleanup.

Large Panel Layout
Acrylic Sheet Processing
Material Positioning
Batch Production

Operator-Guided Material Positioning

Organized Batch Production Workflow

Precision Large-Panel Engraving

Controlled Acrylic Sheet Processing

Operator-Guided Material Positioning

Organized Batch Production Workflow

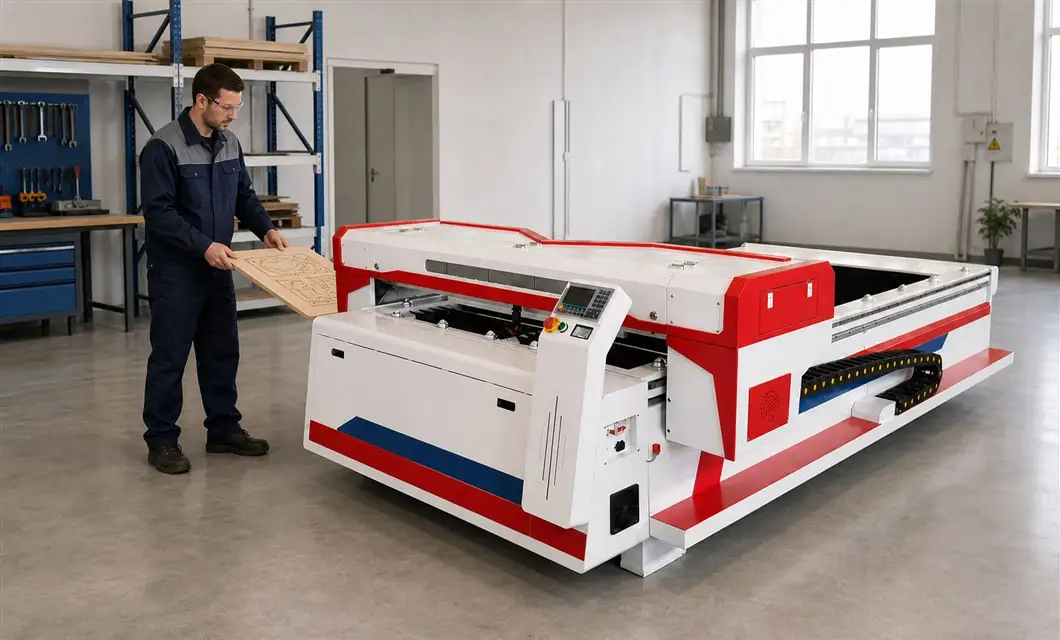

Precision Large-Panel Engraving

Controlled Acrylic Sheet Processing

Product Advantages

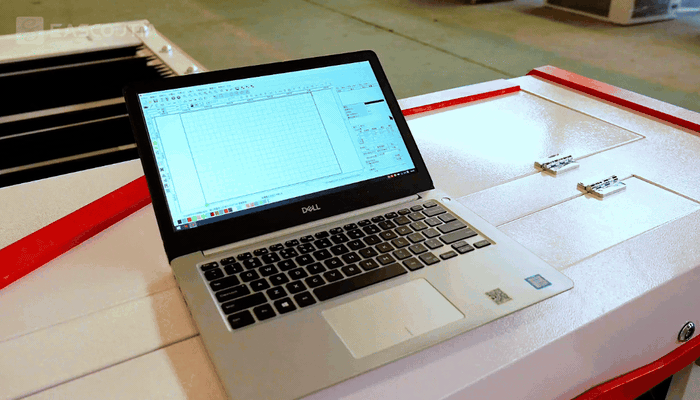

Large Working Envelope

Specifications & Structural Decomposition

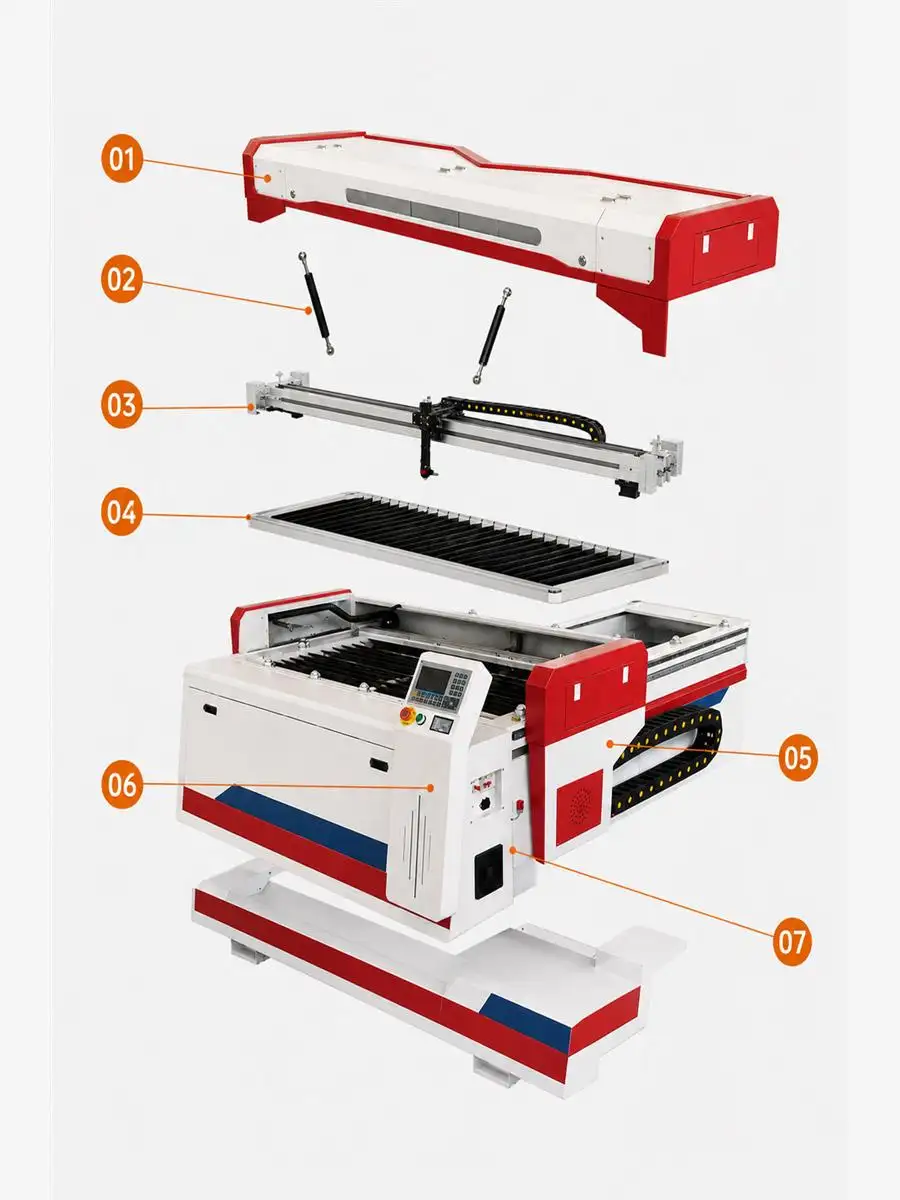

Product Structure Diagram

CO₂ laser tube
CDWG 135W glass laser tube, with a wavelength of 10.6 μm, utilizes a water-cooling system.

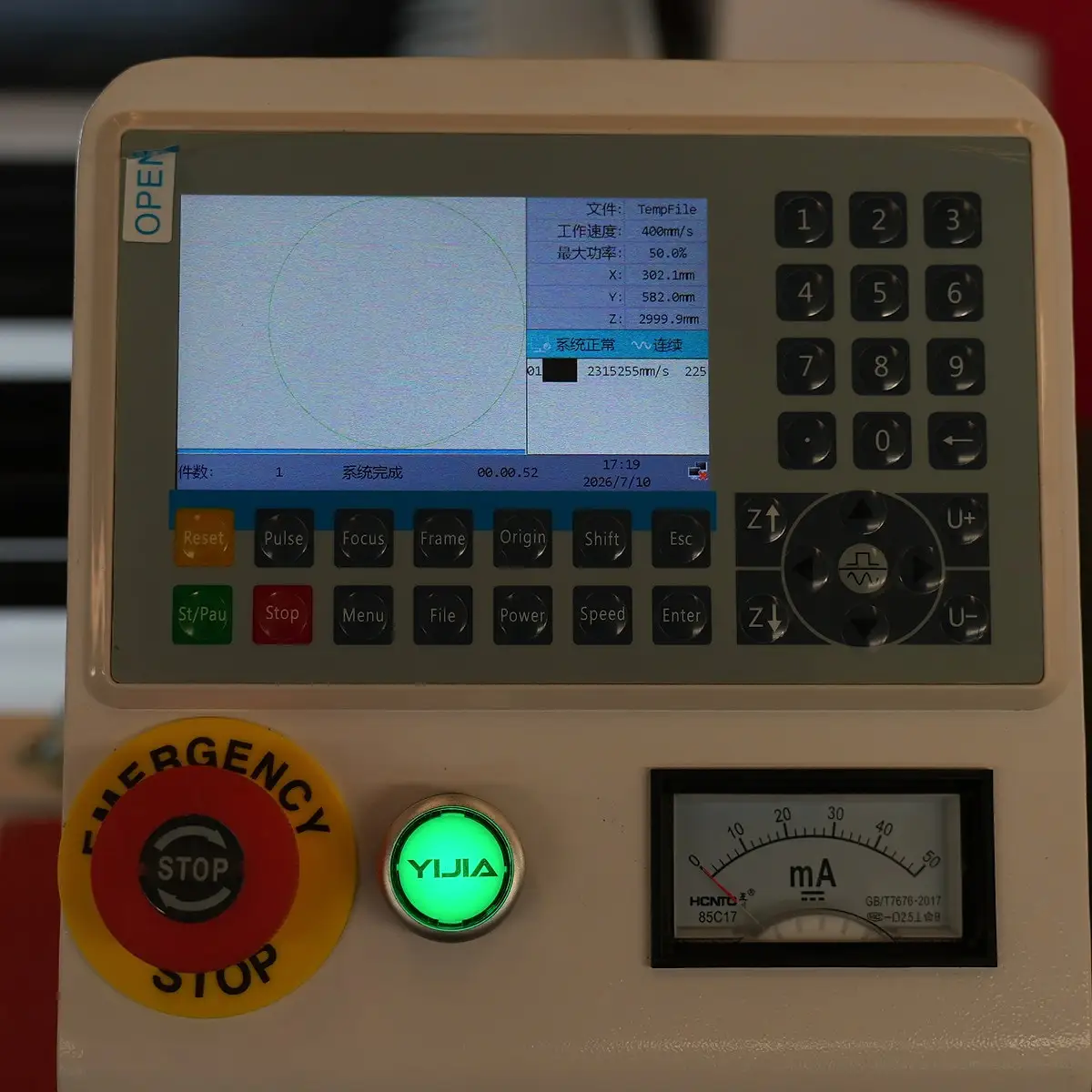

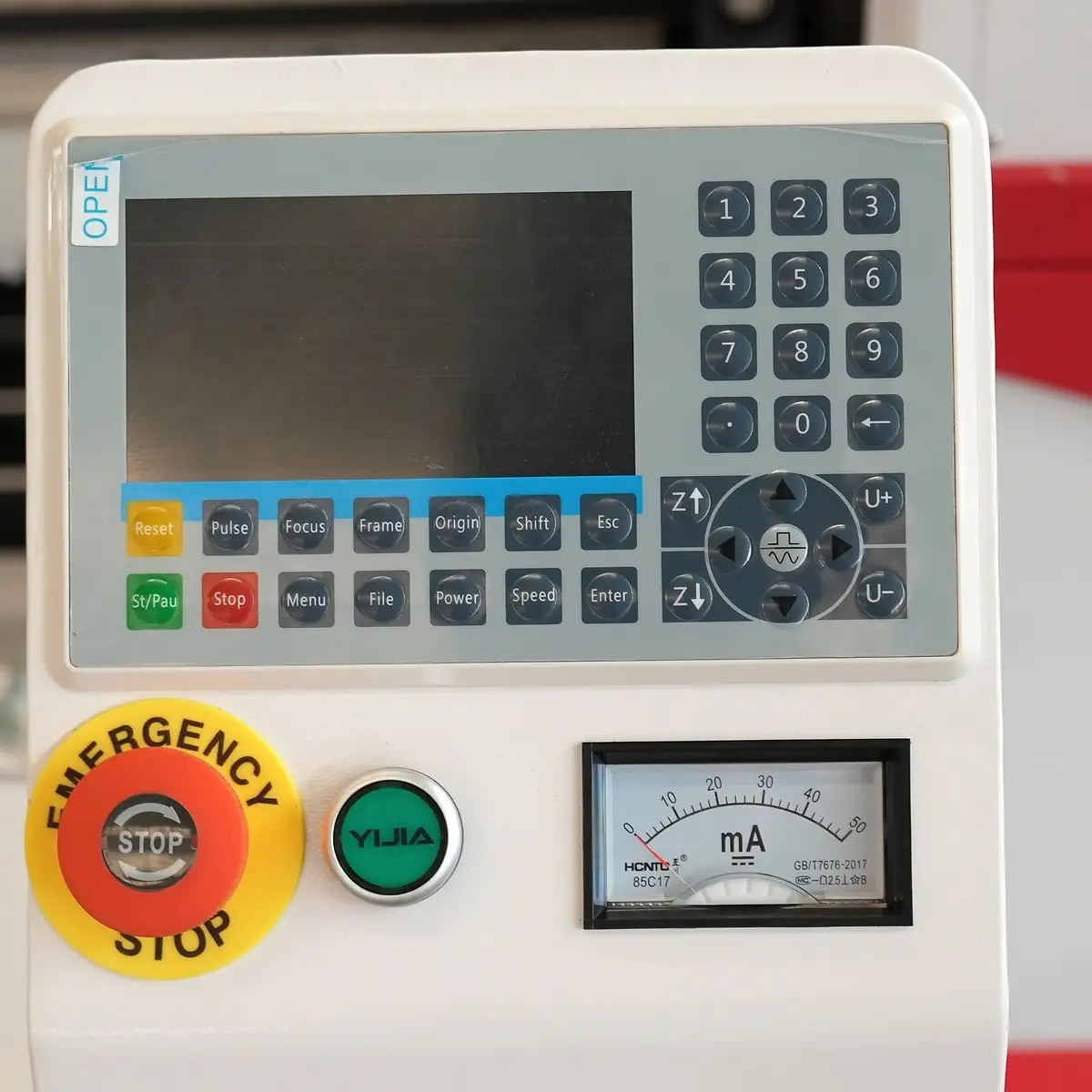

Control system
RD control system, push-button operation, equipped with a USB interface.
Linear guide rail
Standard guide rail, used for guiding equipment motion.

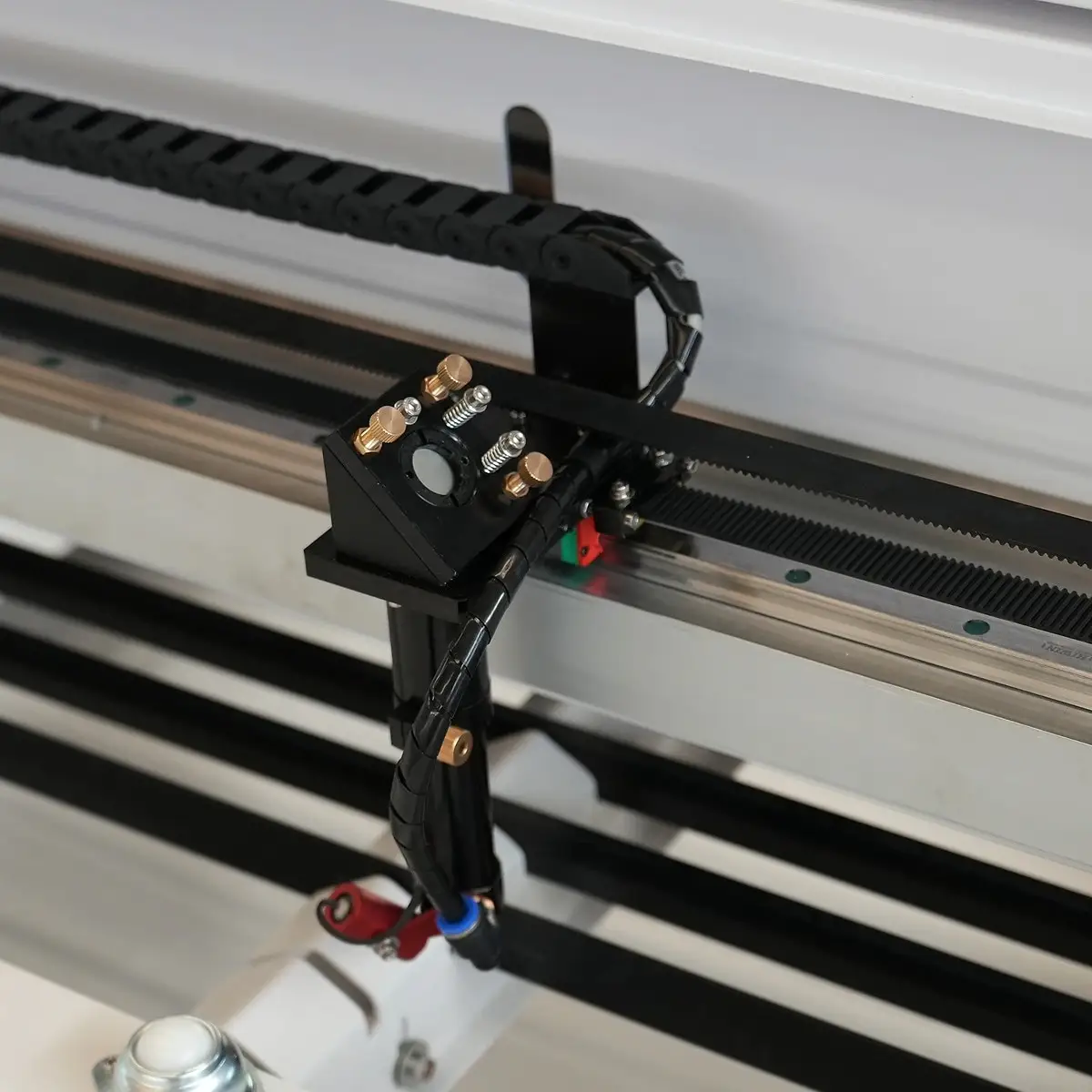

Laser head
Equipped with a standard laser head, suitable for both engraving and cutting applications.
Blade platform
It employs a knife-edge-type work platform, which does not feature lifting functionality.
Transmission assembly
X-axis belt drive, Y-axis rack-and-pinion and linear guide rail drive.

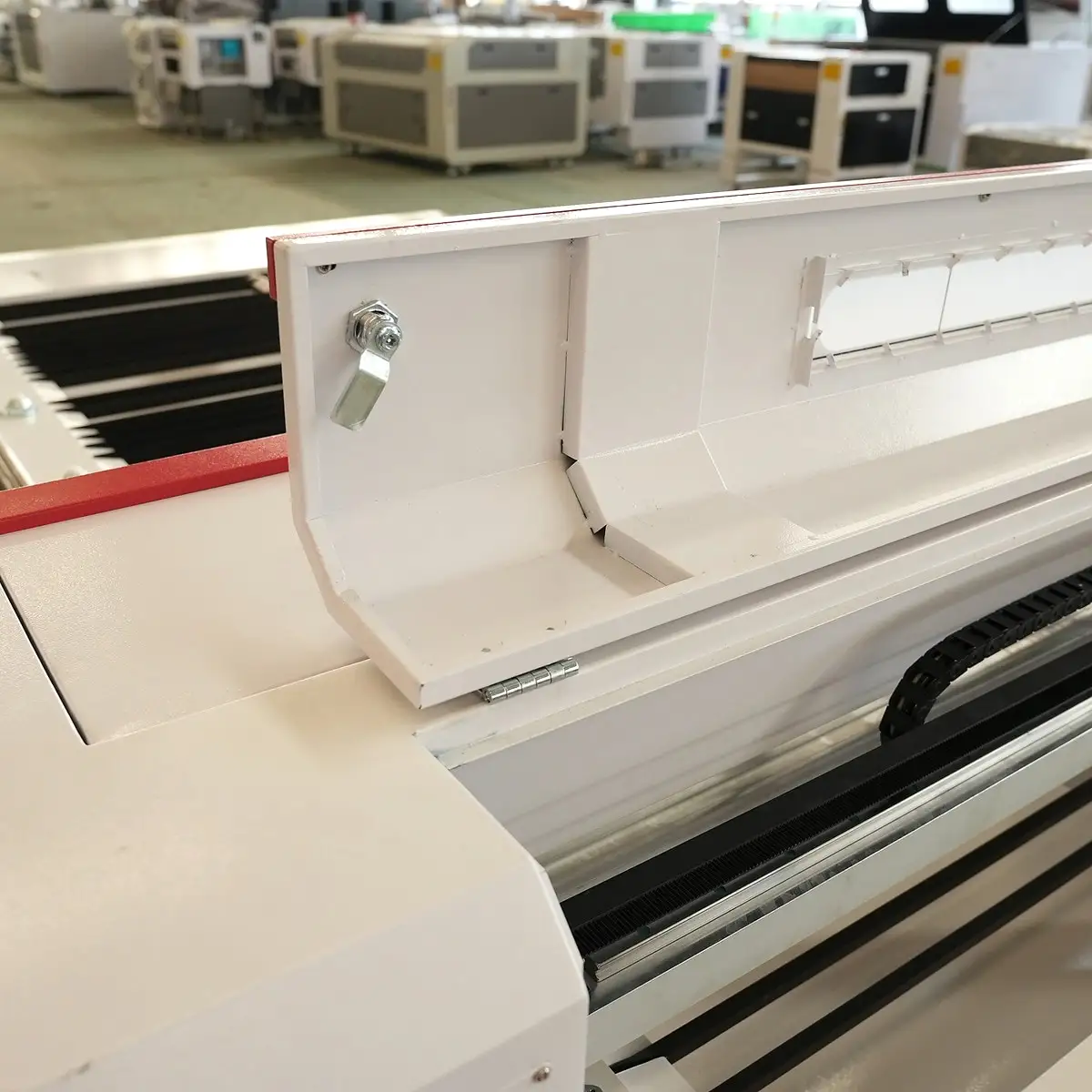

Cable drag chain
The parameter table does not provide specific model numbers or specifications.

General information

Product Basic Information: GE‑1325 CO2 Laser Engraving Cutting Machine
Working width/mm: 1300*2500
Product Introduction: CO2 laser engraving cutting machine for various non‑metal materials
Light source: glass laser tube (CO2)
Power: ≤1500W (laser tube: CDWG 135W)
Applicable Materials: Solid wood,plywood MDF,Bamboo products,Acrylic(PMMA),Leather/fabric,Paper/cardboard,Plastic/resin,Glass/Ceramic/Stone,Rubber,silicone,two‑color board,shell,cow horn,coconut shell etc.
Adapter power supply: AC220V/110V ±10% 50/60HZ

General instructions

Simplified explanation

Product Video

00:51

1325 Appearance and Operation

A close look at the 1325 laser engraving machine—exterior design and key details. We walk through the frame, worktable, guide rails and drive system, laser head, and control panel so you can quickly see the build quality and design highlights. Machine model: 1325.

1325 Appearance and Operation

00:51A close look at the 1325 laser engraving machine—exterior design and key details. We walk through the frame, worktable, guide rails and drive system, laser head, and control panel so you can quickly see the build quality and design highlights. Machine model: 1325.

Appearance and Operation of the 1325 Laser Engraving Machine

00:31How to operate and cut with a 1325 laser engraving machine. From power-on and parameter setup to loading material, focusing, and starting a cut, this walkthrough covers the full everyday workflow—perfect if you want to get started fast and understand the cutting steps. Machine model: 1325.

Installation of laser equipment

04:21Full set of accessories, simple assembly process. Finish installation and commissioning following instructions for smooth and stable machine operation.

Product packaging

00:12Custom thickened cushion packaging is shockproof and pressure-resistant, providing all-round protection for laser equipment to avoid damage from bumps during transportation.

Product loading in the cabinet

00:37Machines are loaded in order and tightly bound to reduce vibration during ocean transport and ensure intact delivery.

Installation of laser equipment

05:27Clear assembly process with complete accessories. Complete installation and commissioning following instructions for stable operation after startup.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

Factory real scene

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
