Integrates traveling, steering, lifting, lowering and emergency stop functions. Ergonomic and intuitive for pallet handling operations.
Precise Delivery Beside Work CellsElectric handling across warehouse work zones
Controlled pallet movement for daily operations
The truck supports day-to-day pallet transfer between storage, dispatch and production areas. Its operator-guided tiller relationship suits controlled travel, alignment at loading points and steady movement through prepared industrial routes. The scenes emphasize practical positioning, visible control and a consistent load path without relying on unsupported performance claims.
- Bright Visibility During Pallet Transfer

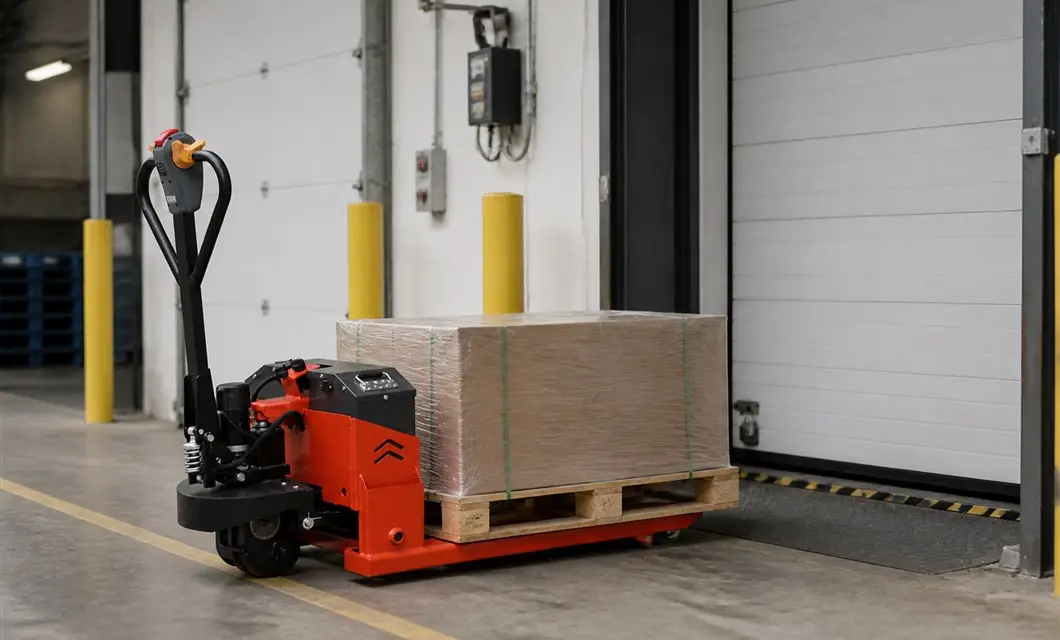

- Controlled Positioning Before Shipment
- Precise Delivery Beside Work Cells
- Smooth Travel Across Level Paving

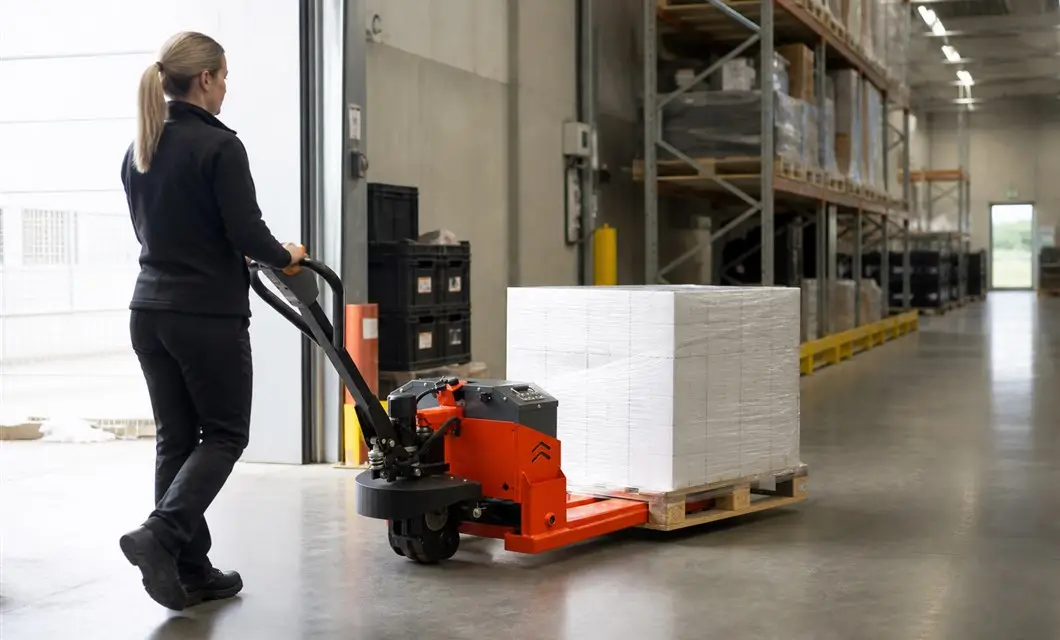

Bright Visibility During Pallet Transfer
Controlled Positioning Before ShipmentPrecise Delivery Beside Work Cells

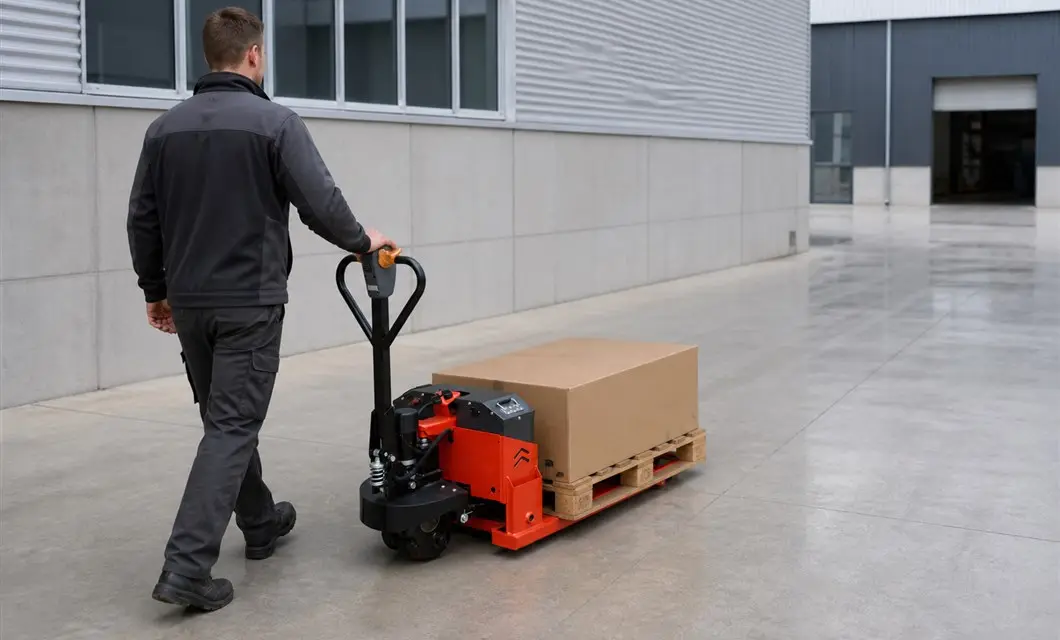

Smooth Travel Across Level PavingBright Visibility During Pallet TransferControlled Positioning Before ShipmentProduct Advantages

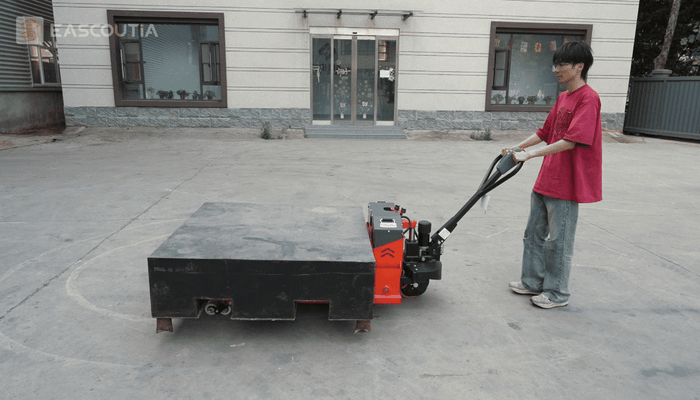

Powered travel moves the forks and material together, with travel controls grouped at the handle.
Specifications & Structural Decomposition

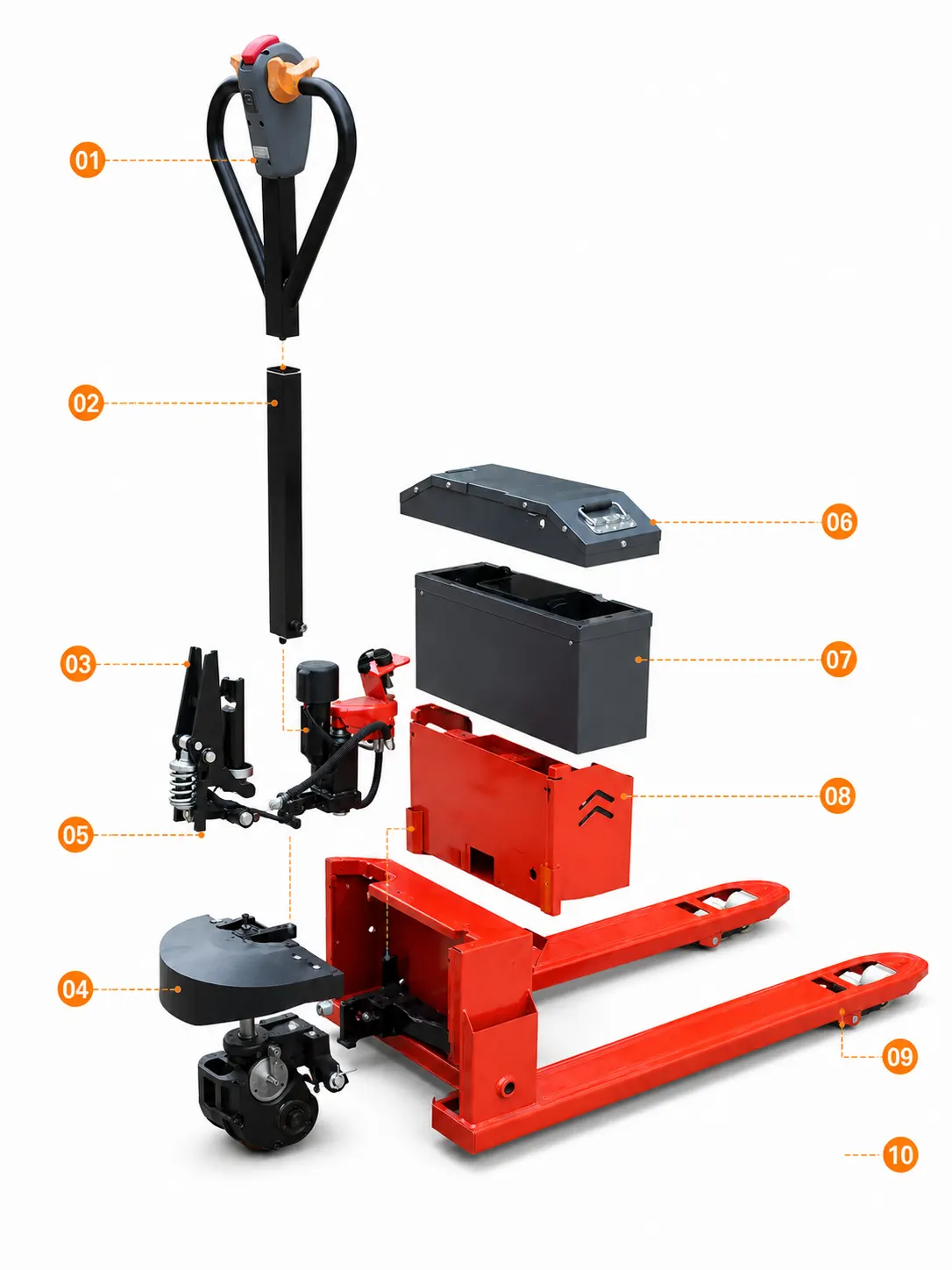

Product Structure Diagram

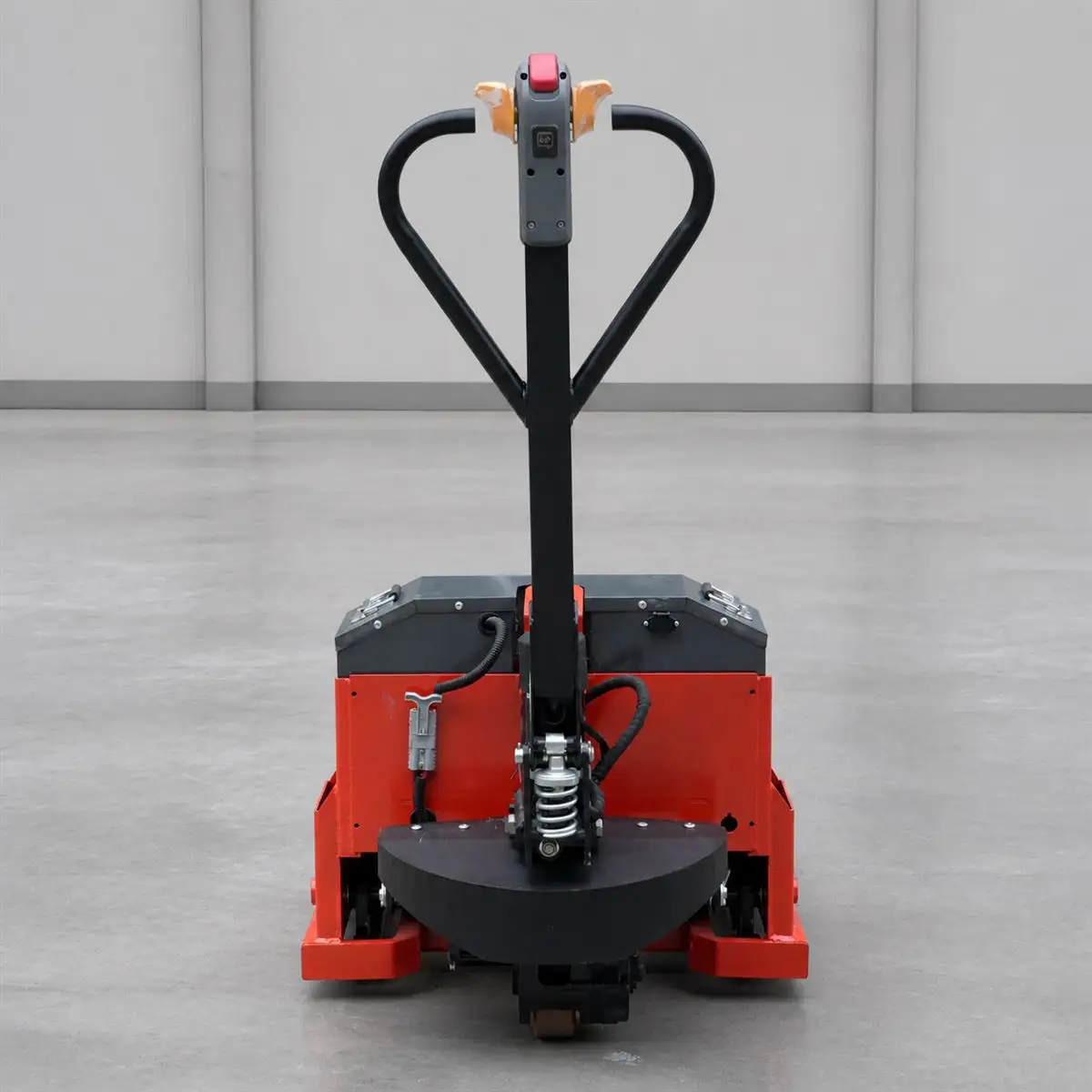

- Control Handle Assembly
- Steering Control Lever
Connects the control handle to the bottom steering mechanism and transmits commands to control the traveling direction.
- Lever Mounting Bracket
Secures the steering lever and connects the drive assembly with a compact and sturdy structure for flexible and reliable operation.

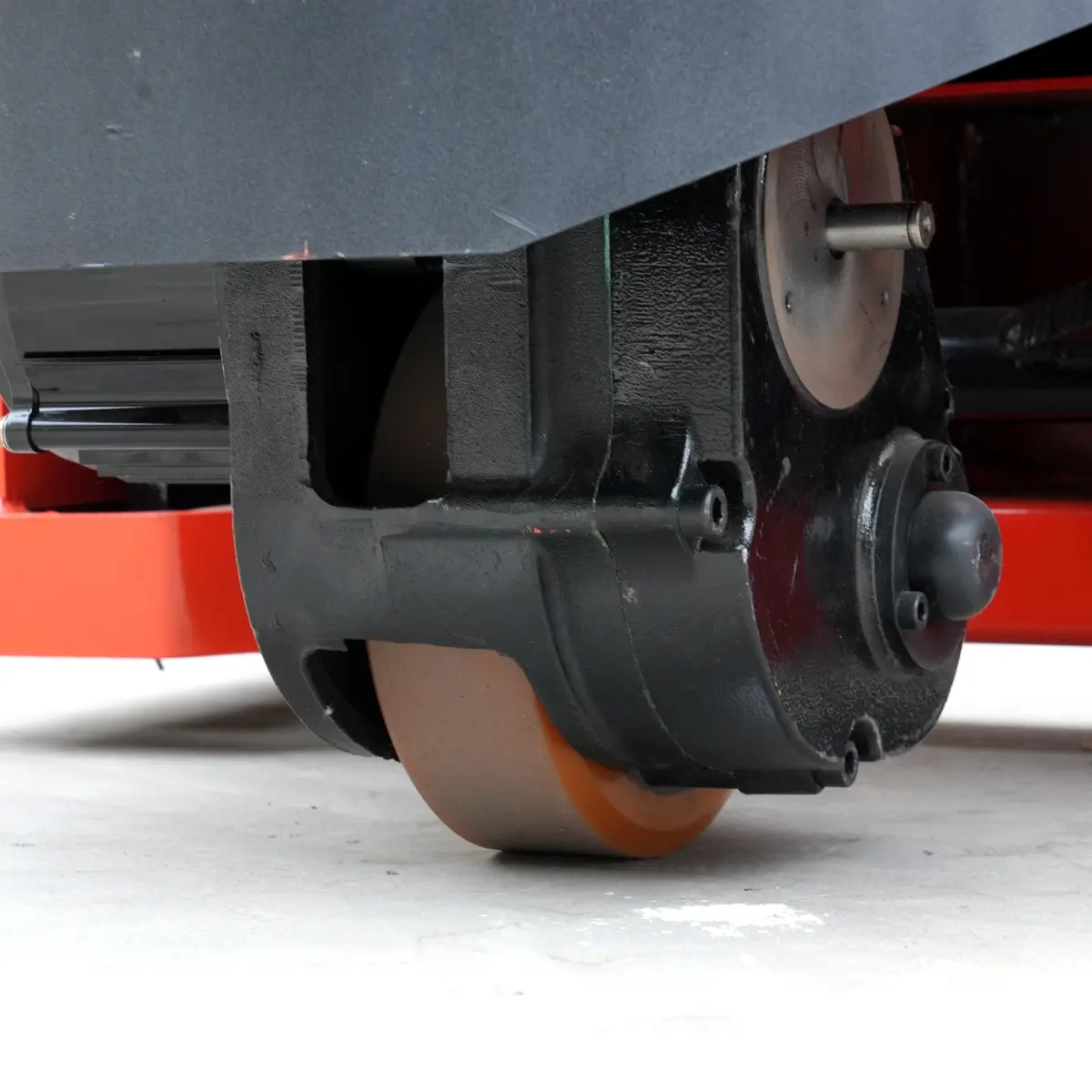

- Drive Unit Protective Cover
Black shield covers the drive wheel and steering mechanism to prevent damage from dust, debris and external collisions.

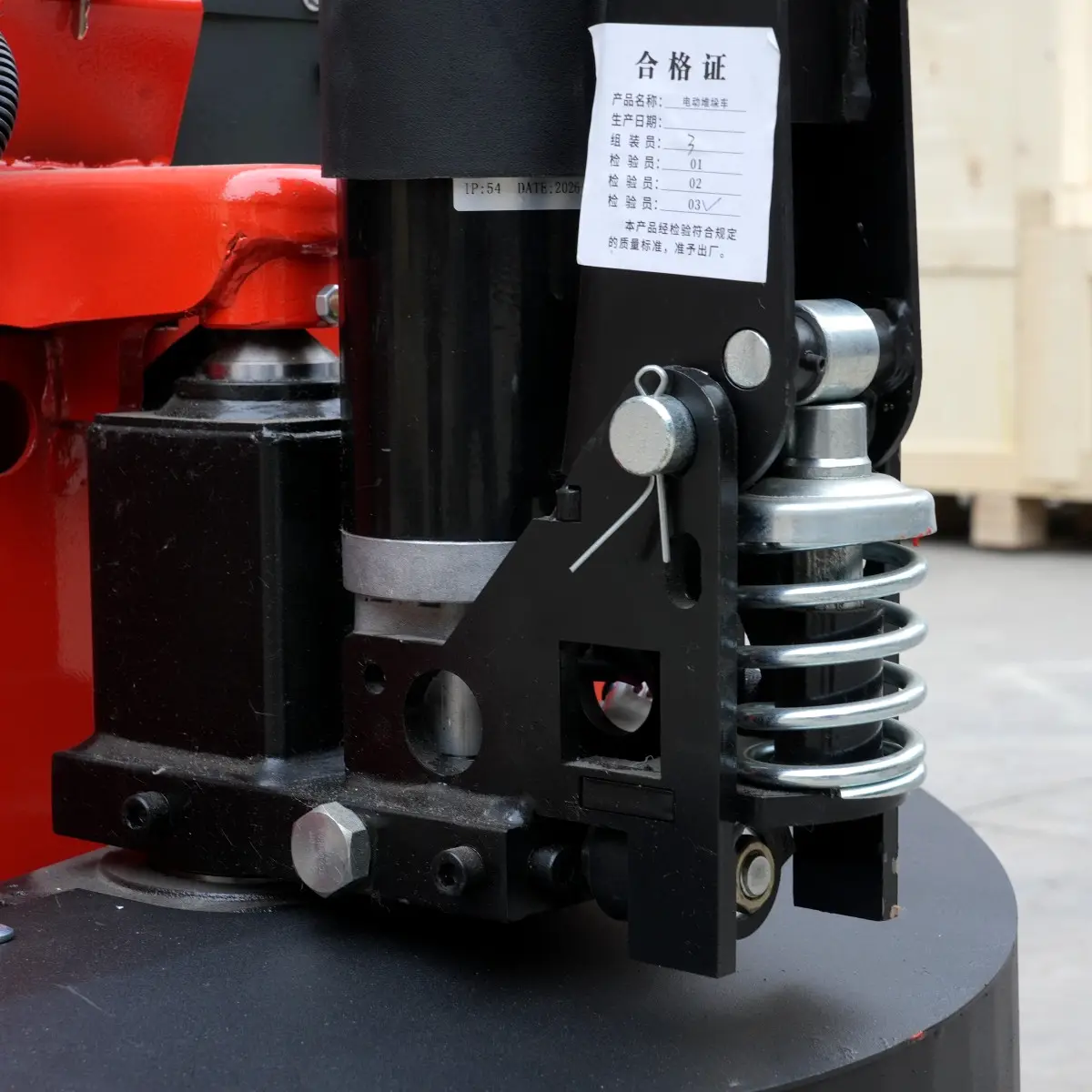

- Lever Reset Spring
Provides buffering and automatic reset for the lever, reducing operational impact and improving steering stability and safety.

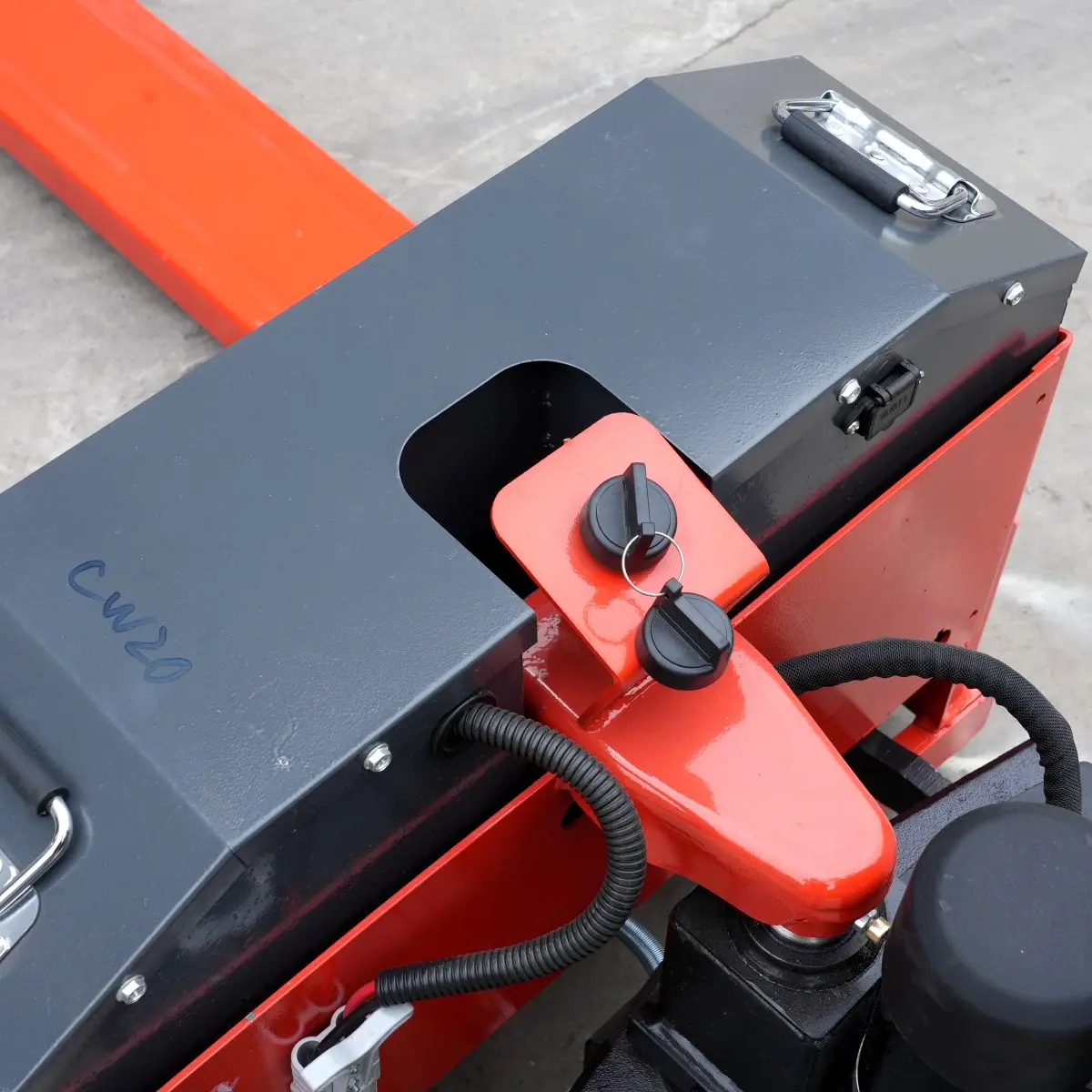

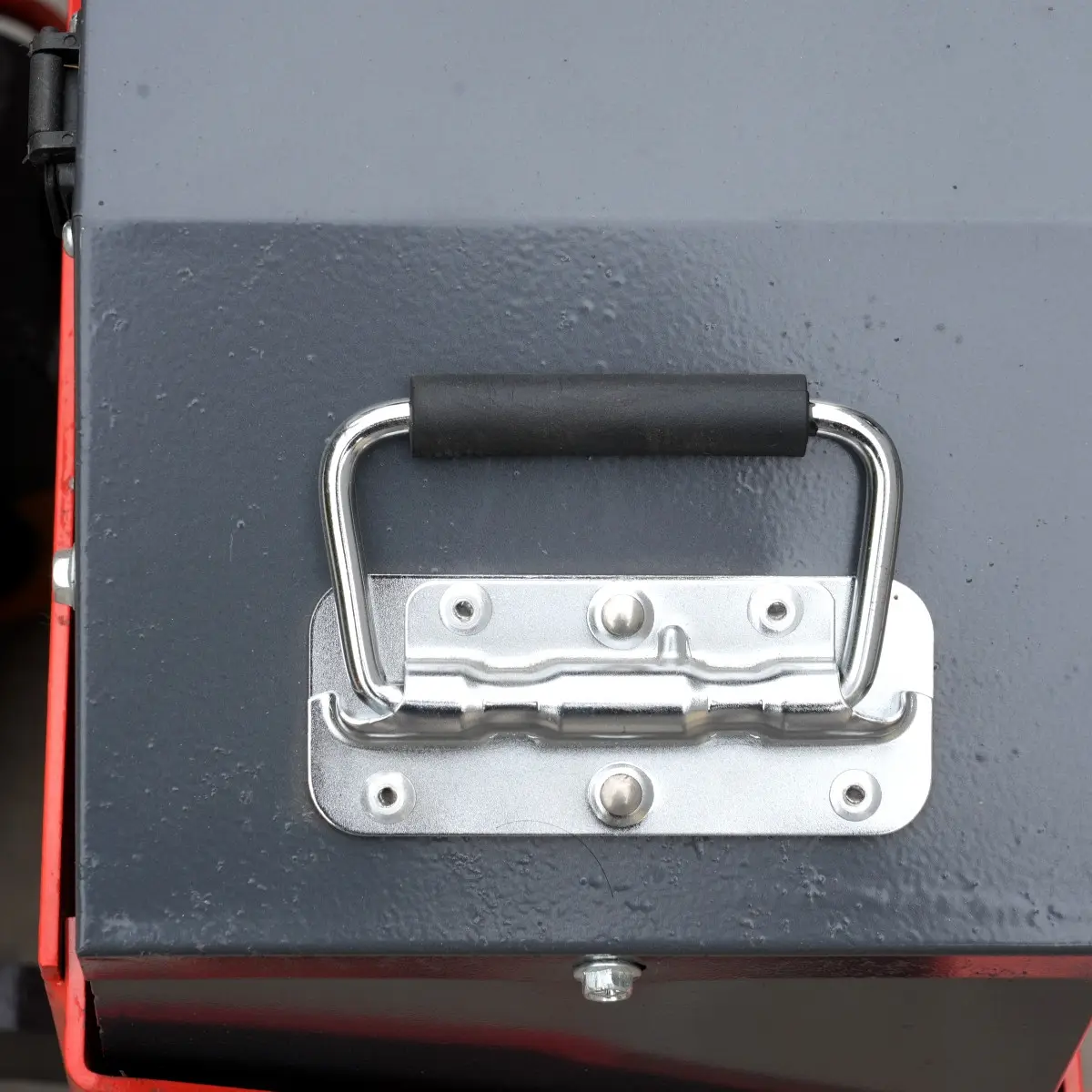

- Battery Box Upper Cover
Openable metal cover encloses the battery compartment, protecting internal components and facilitating daily inspection and maintenance.
- Power Battery Assembly
Supplies power for traveling and hydraulic lifting systems. Features compact structure for easy installation, charging and servicing.
General information
- Rated load
- 3T

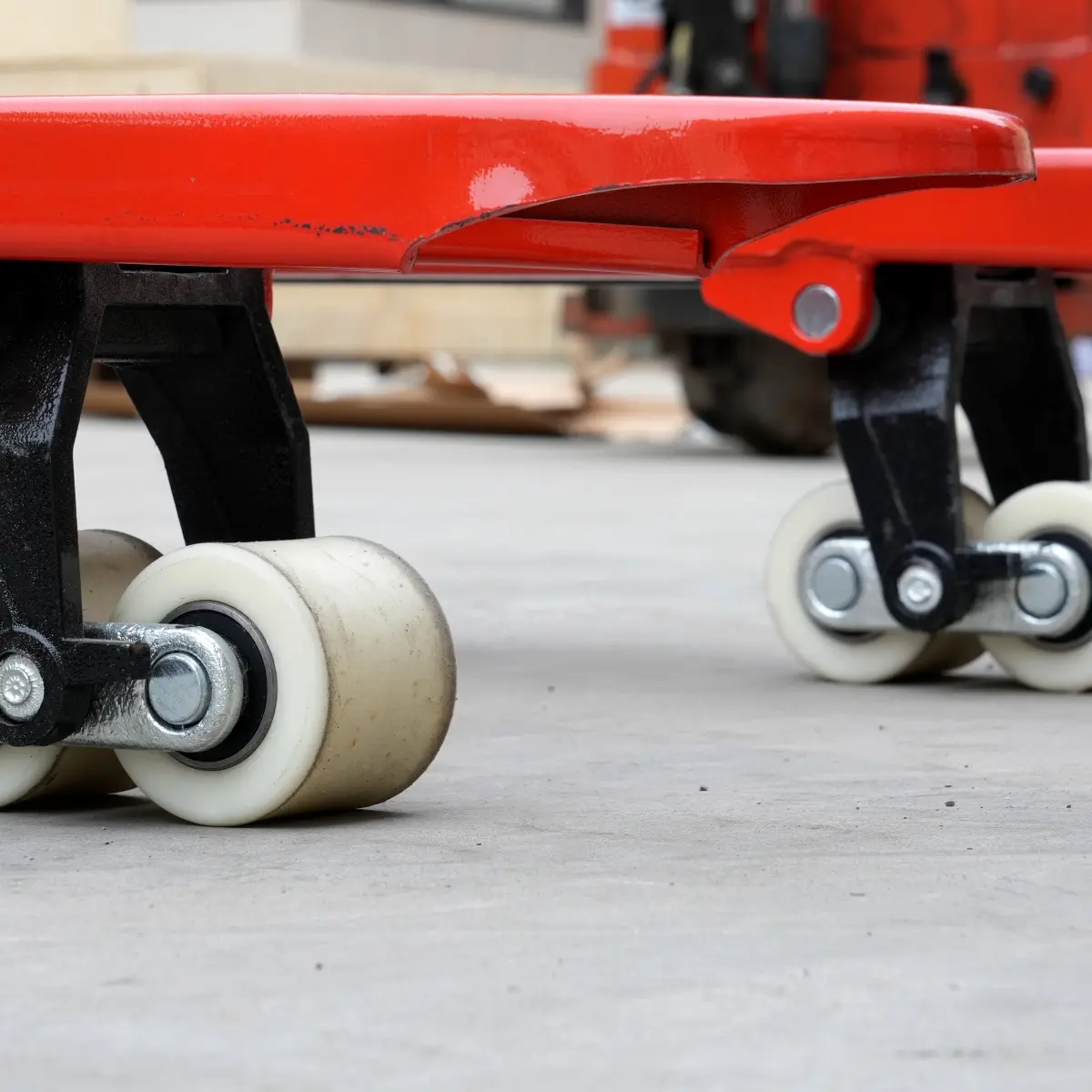

- Track roller size
- 170-55MM
- Minimum ground clearance of fork
- 80mm
- Maximum lifting height of fork
- 200mm
- Full length of vehicle
- 1700mm
- Vehicle width
- 685mm
- Drive motor power
- 48V1500W
General instructions
Simplified explanationProduct Attachments or Core Configurations
Product Video
Economy Model all-electric Forklift (orange) - Exterior display
Economy Model all-electric Forklift (orange) - Exterior display. Eye-catching orange finish, solid frame and compact body. Cabin with great view, practical and attractive.
Economy Model all-electric Forklift (orange) - Exterior display
00:22Economy Model all-electric Forklift (orange) - Exterior display. Eye-catching orange finish, solid frame and compact body. Cabin with great view, practical and attractive.
Economy model all-electric forklift (orange) - Operation
00:21Economy model all-electric forklift (orange) - Operation. Light and responsive control, stable fork lifting, sufficient power and low noise for warehouse cargo stacking & transfer.
Product packaging
00:52Product packaging. Thickened shockproof packaging with firm sealing. Full protection for safe long-distance transportation.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
Which pallet layouts are compatible?
Confirm pallet entry points, load geometry and the intended fork configuration with the procurement team before ordering.
How is tiller control arranged?
The tiller groups steering and movement inputs within the operator position for deliberate travel and positioning.
Which floor conditions are suitable?
Use the truck on prepared routes appropriate for the selected wheels and load; confirm unusual surfaces in advance.
What should be confirmed before ordering?
Confirm the model, color, accessory selection and site requirements with the procurement team.
How are accessory choices handled?
Accessory images and descriptions in this package identify the supplied components; compatibility should be confirmed for the selected configuration.
