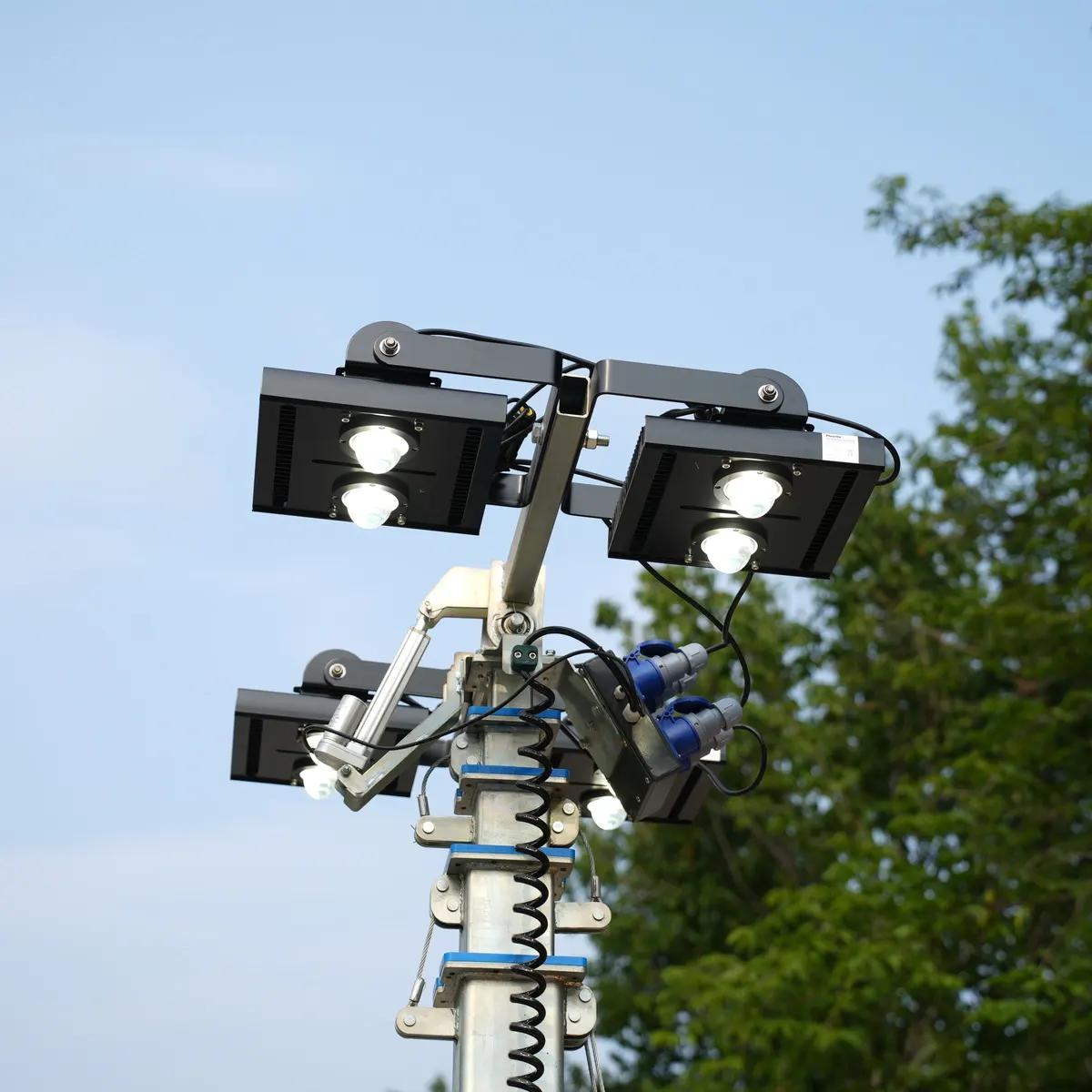

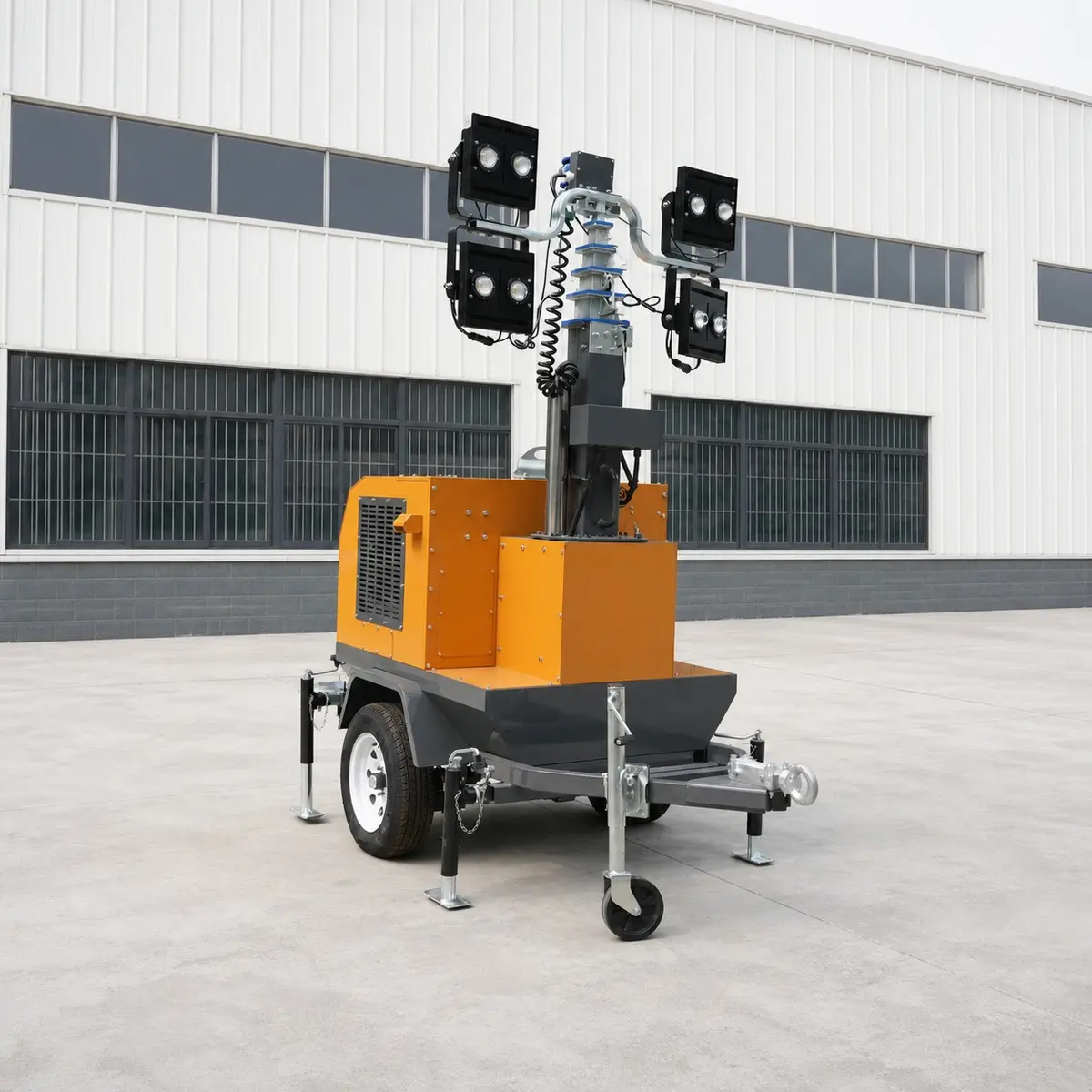

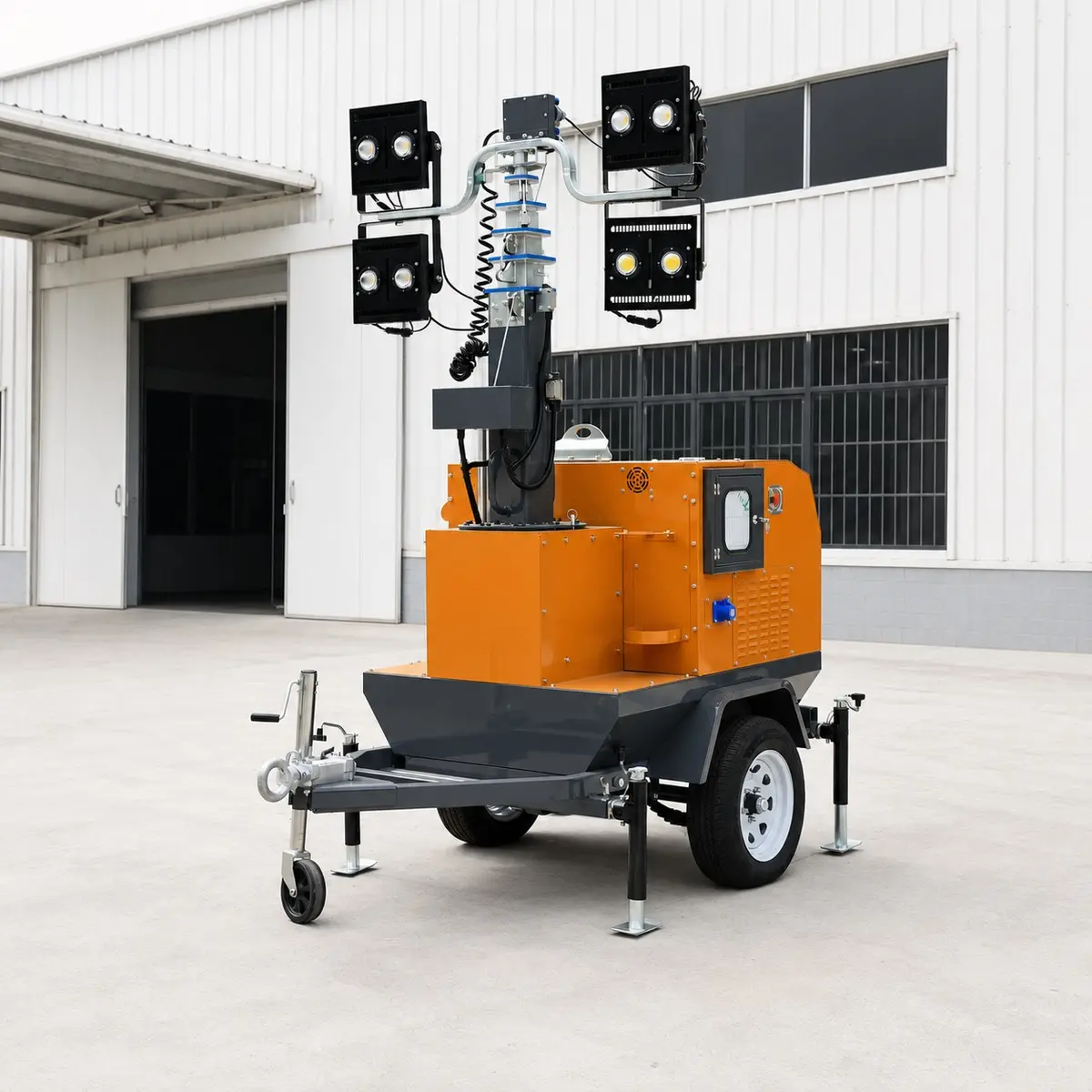

Four LED lamp units provide broad, high-intensity illumination for temporary outdoor work areas.

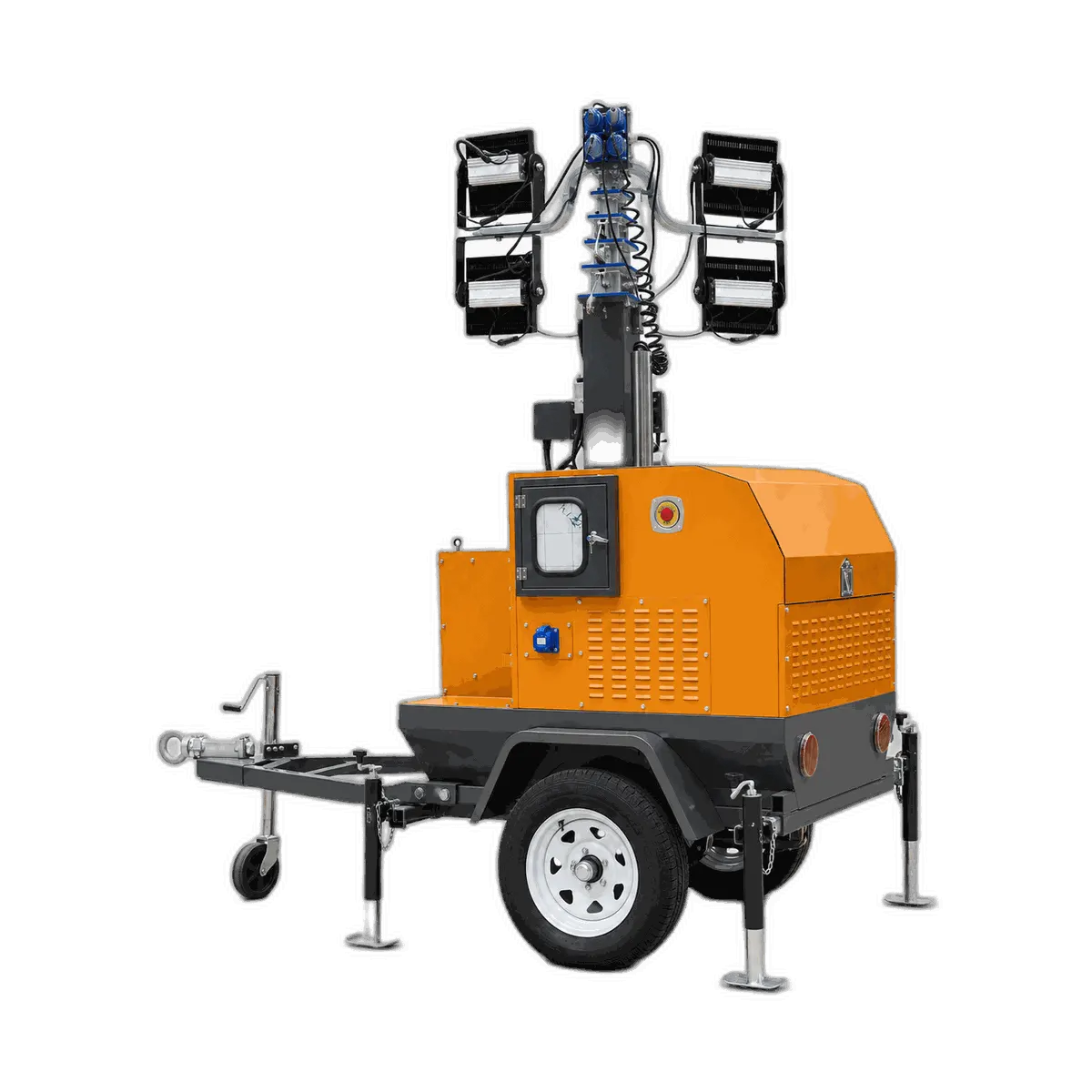

Elevated lighting supports temporary outdoor events and activity areas.4THVP1600 Lighting Vehicle
Reliable Mobile Lighting for Worksites
The 4THVP1600 provides mobile lighting for building construction, mine stockyards, outdoor events, road repairs, and other temporary outdoor operations. Confirm access, setup space, and selected configuration before deployment.
- Building Construction
- Mine Stockyard
- Outdoor Events
- Road Repair

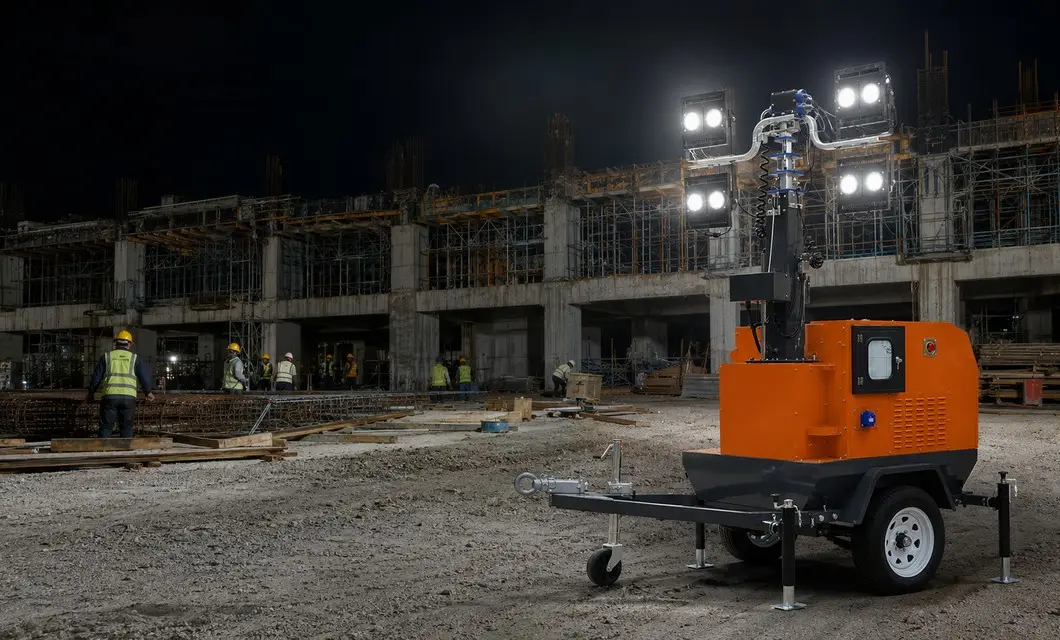

LED mast lighting improves visibility around active building construction areas.

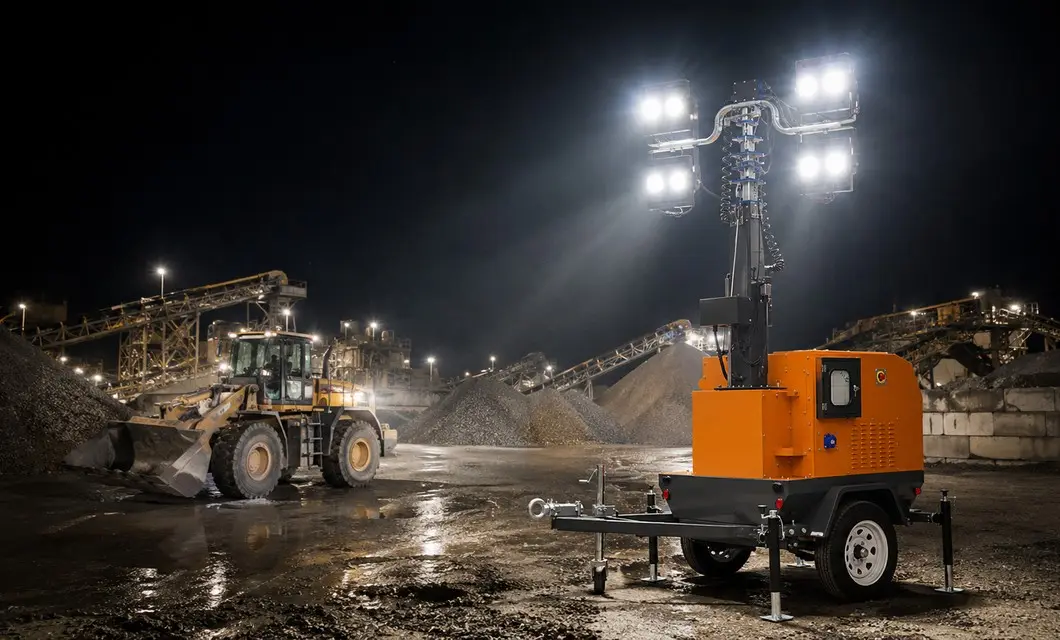

Portable generator lighting supports safe work in mine stockyards at night.Elevated lighting supports temporary outdoor events and activity areas.

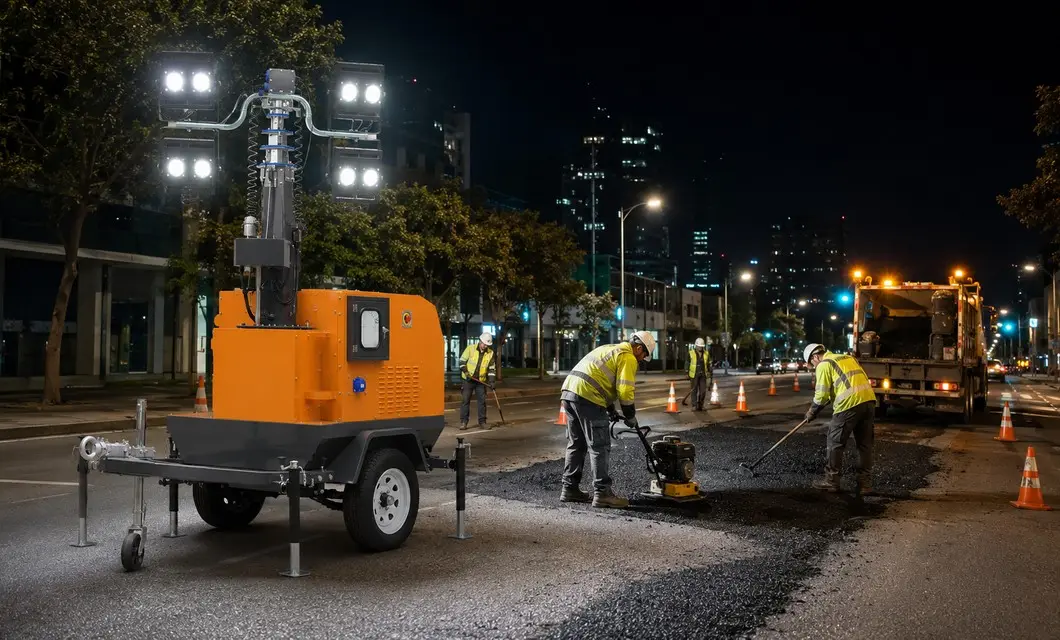

Mobile mast lighting supports road repair and traffic work after dark.LED mast lighting improves visibility around active building construction areas.Portable generator lighting supports safe work in mine stockyards at night.Product Advantages

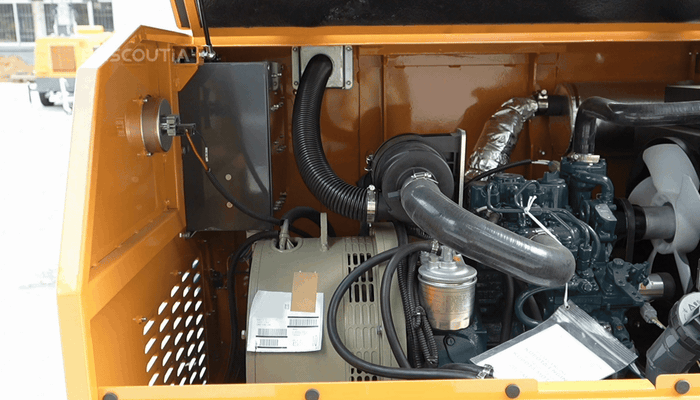

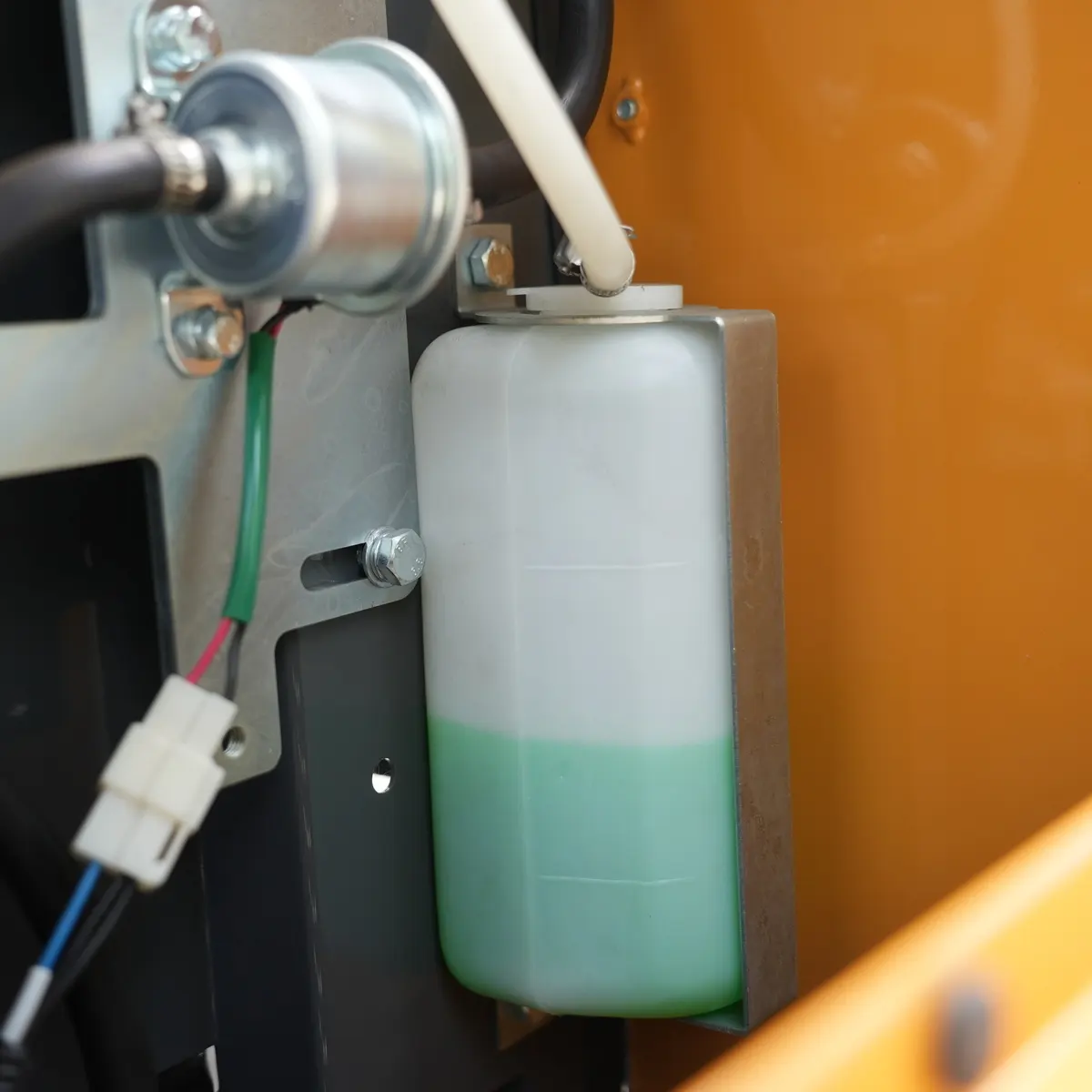

The diesel generator powertrain uses an integrated layout with the engine, generating section, and cooling components clearly visible for routine insp
Specifications & Structural Decomposition

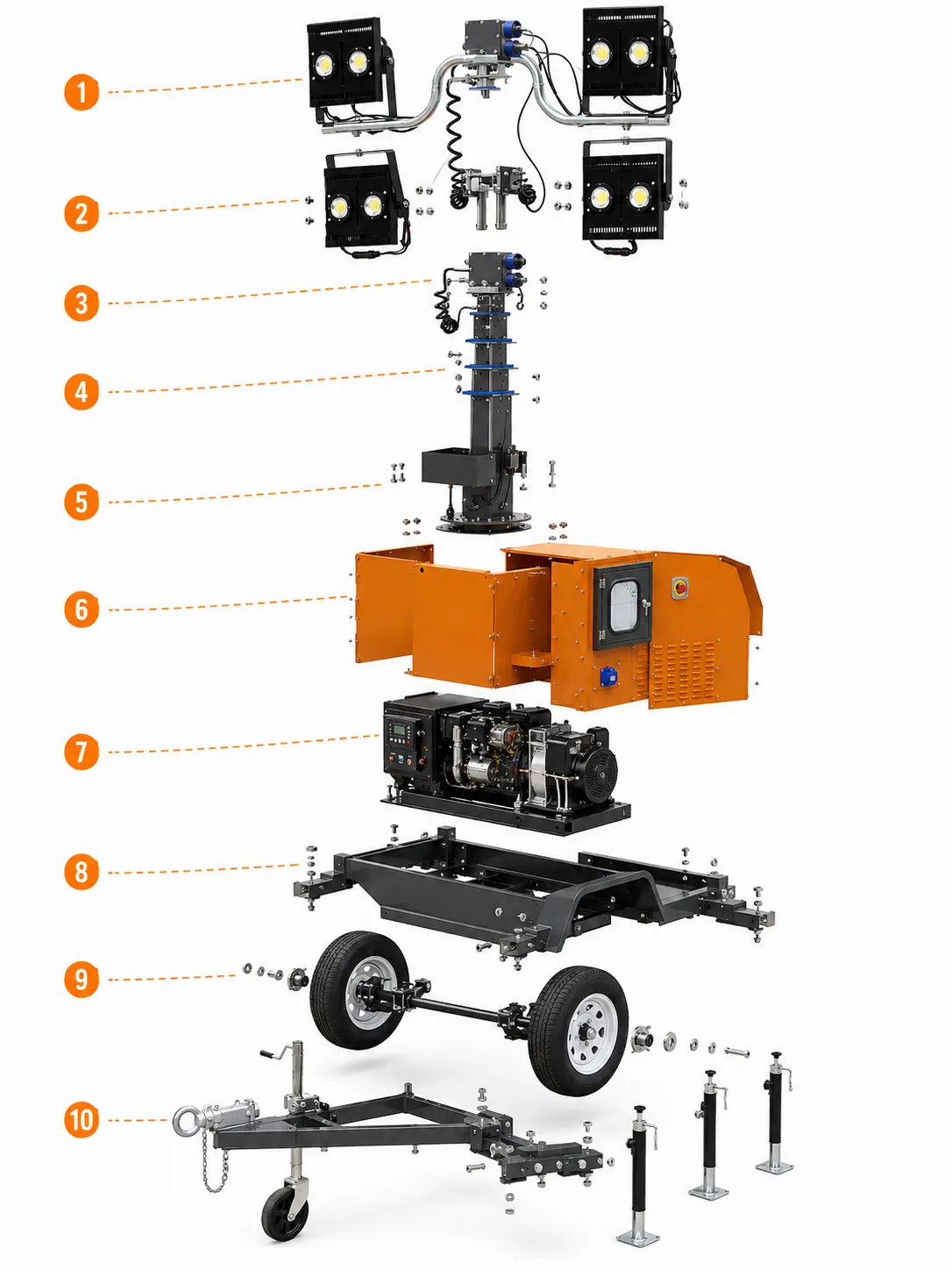

Product Structure Diagram
- LED lamp assembly

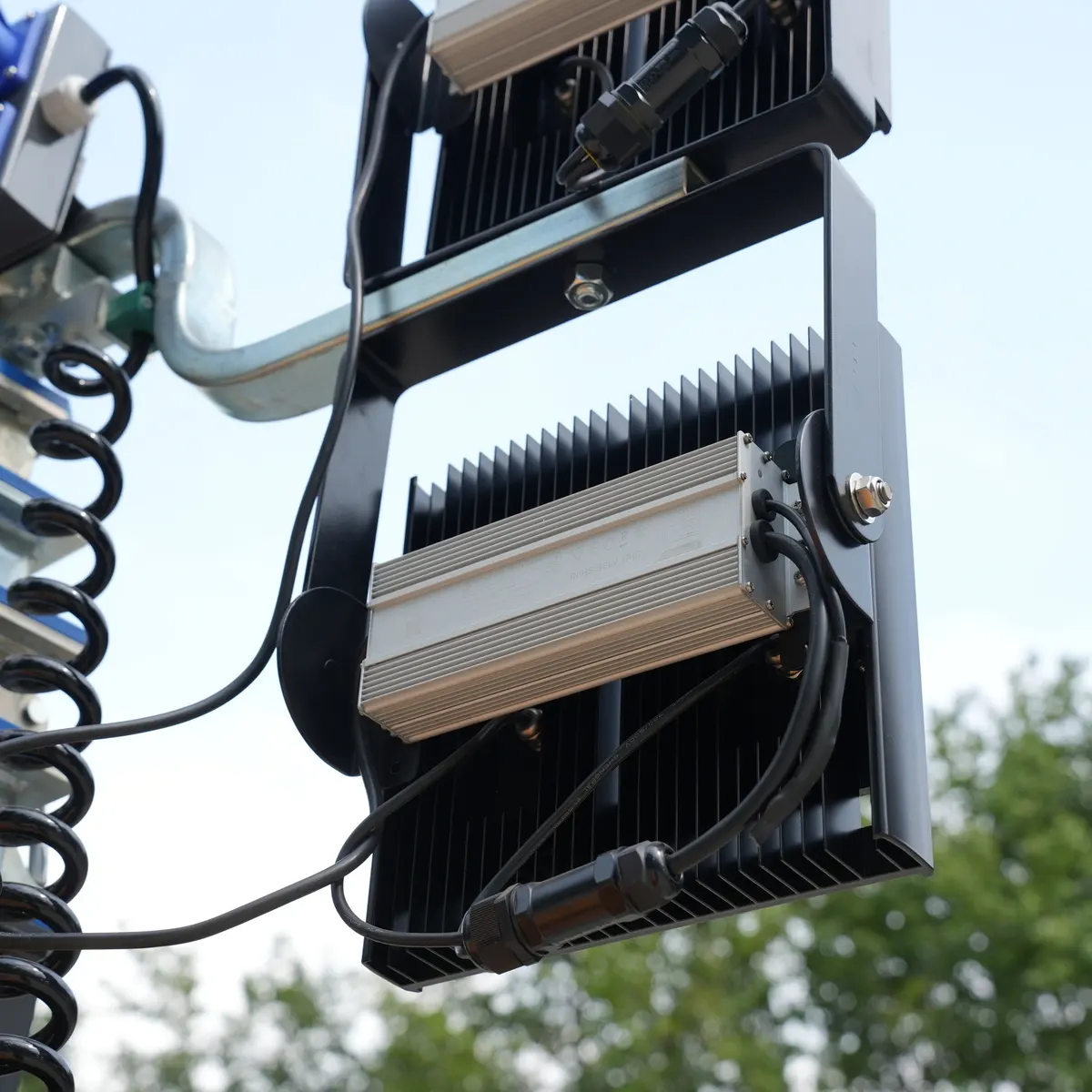

- Lamp mounting brackets
These brackets secure the lamp units and keep the lighting array stable during mast operation.

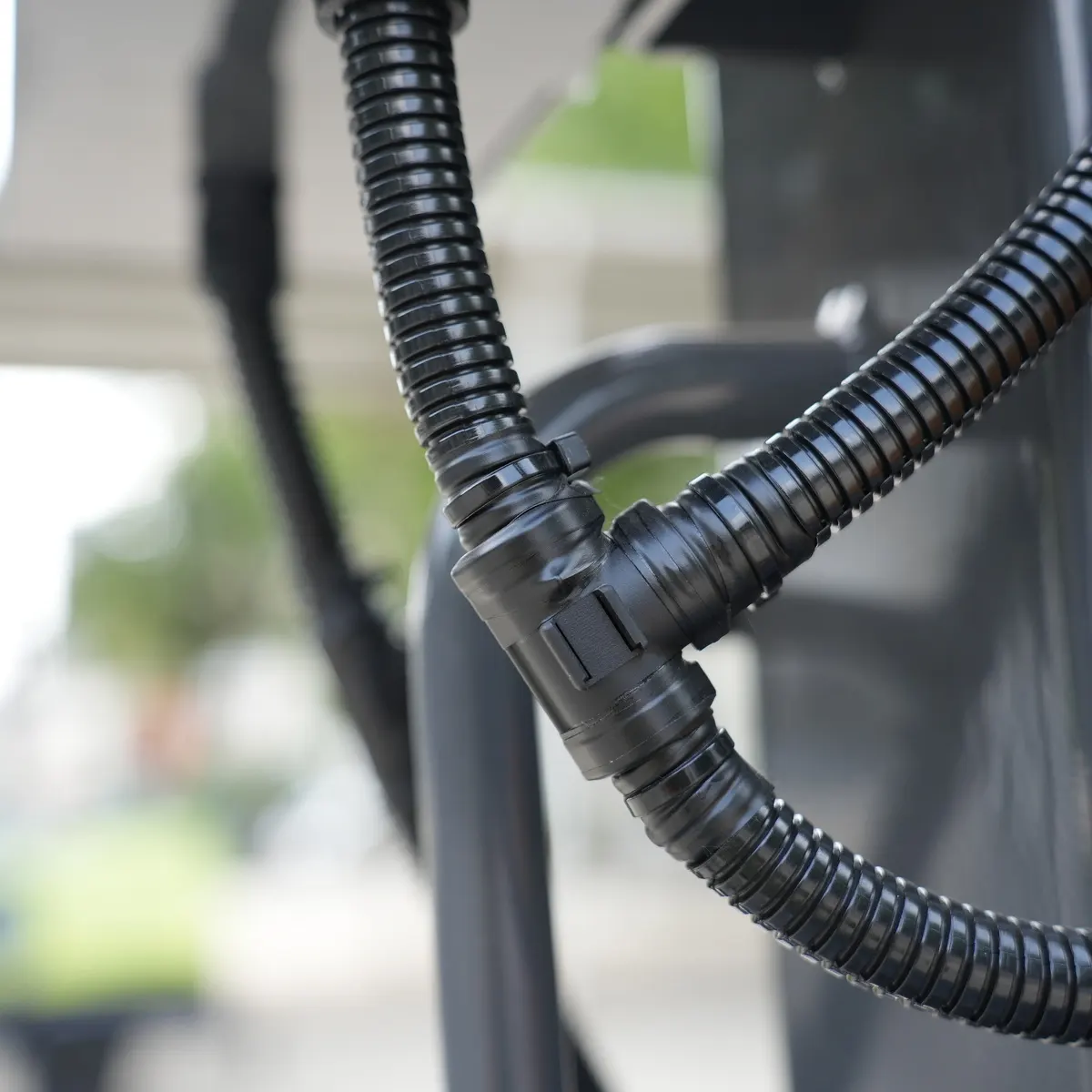

- Central connection mechanism
The central pivot, cable, and connector parts link the lamp array to the mast assembly.
- Telescopic lighting mast
The multi-section mast raises the lamp array to working height and supports controlled positioning.

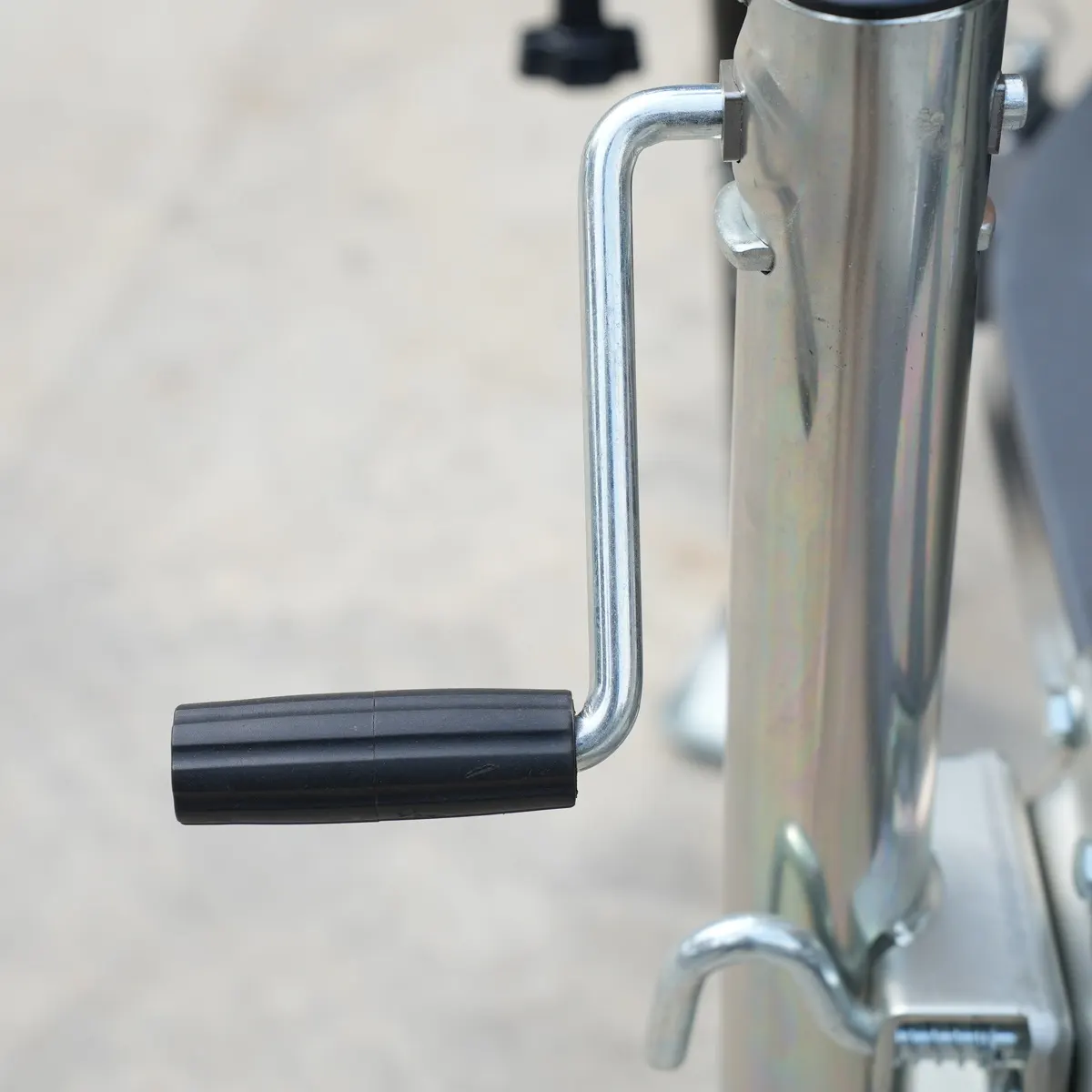

- Mast support and winch
The support column and hand winch anchor the mast and control raising and lowering on site.
- Generator enclosure panels
Ventilated protective panels shield the generator and provide access for inspection and maintenance.

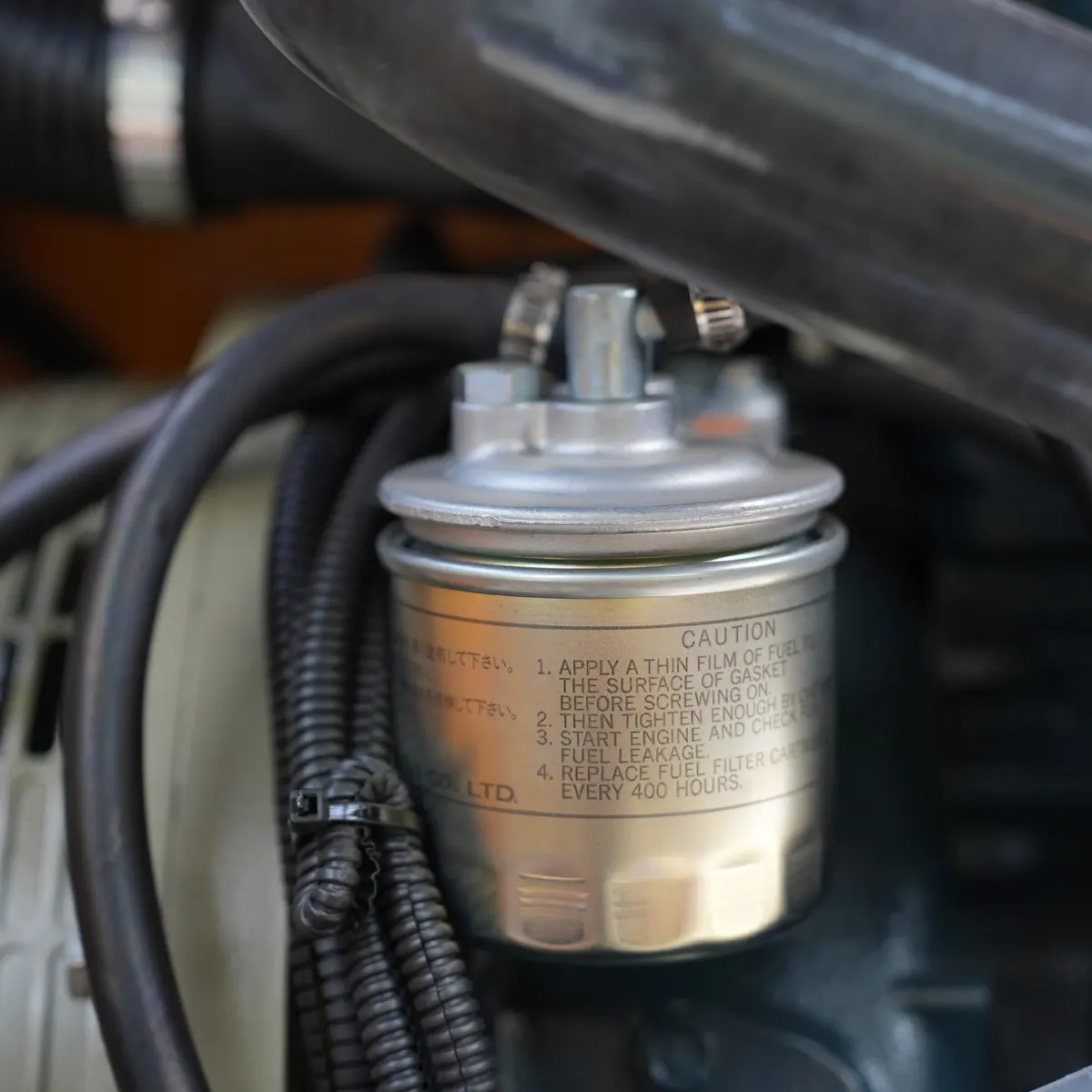

- Diesel generator set
The diesel generator supplies stable power for the LED lighting system during outdoor operation.
General information
- Height
- Lifts and lowers by 9 meters
- Continuous work
- 60h
- Noise level
- 72dB at 7 meters, electrically operated lift
- Maximum traction speed
- 80km/h
- Rotation
- 359°
- Weight
- 860kg
- Rotational speed
- 1,800 rpm, naturally aspirated
General instructions
Simplified explanationProduct Video
4THVP1600- Appearance Display
4THVP1600- Appearance Display. Static exterior showcase of 4THVP1600. Compact and sturdy structure with neat layout. Premium durable materials and fine workmanship deliver professional overall quality.
4THVP1600- Appearance Display
00:174THVP1600- Appearance Display. Static exterior showcase of 4THVP1600. Compact and sturdy structure with neat layout. Premium durable materials and fine workmanship deliver professional overall quality.
4THVP1600- Operation
00:274THVP1600- Operation. Field operation demonstration of 4THVP1600. Stable and quiet operation with strong and constant power output. Intuitive and simple control, sensitive response and efficient performance, suitable for outdoor construction and emergency power supply.
Product packaging
01:30Product packaging. Packaging display of finished 4THVP1600 equipment. Thick buffer materials provide shockproof protection to avoid damage during transportation. Cartons with clear marks and firm sealing fully protect the machine for safe delivery.
Product loading in the cabinet
01:30Product loading in the cabinet. Container loading display of 4THVP1600 equipment. Machines are neatly stacked and fastened with straps to maximize container space. Secure fixing prevents shaking and collision. Standard loading procedure ensures safe ocean shipment.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
What model is being offered?
This offer covers model 4THVP1600. Confirm the product label, selected configuration, and written order details before purchase.
Which setup is included?
The included setup follows the supplied material for this product. Confirm optional items, accessories, and delivery scope in writing.
What site conditions apply?
Use this product only in the applications and site conditions shown in its supplied materials, with adequate access and working clearance.
What checks are required?
Before use or installation, check the visible structure, connections, supplied parts, working area, and applicable product instructions.
How is delivery arranged?
Confirm access width, loading method, restraint points, delivery address, and receiving conditions before shipment is arranged.
