The orange boom links the upper body to the arm, lifting the attachment through hydraulic movement.

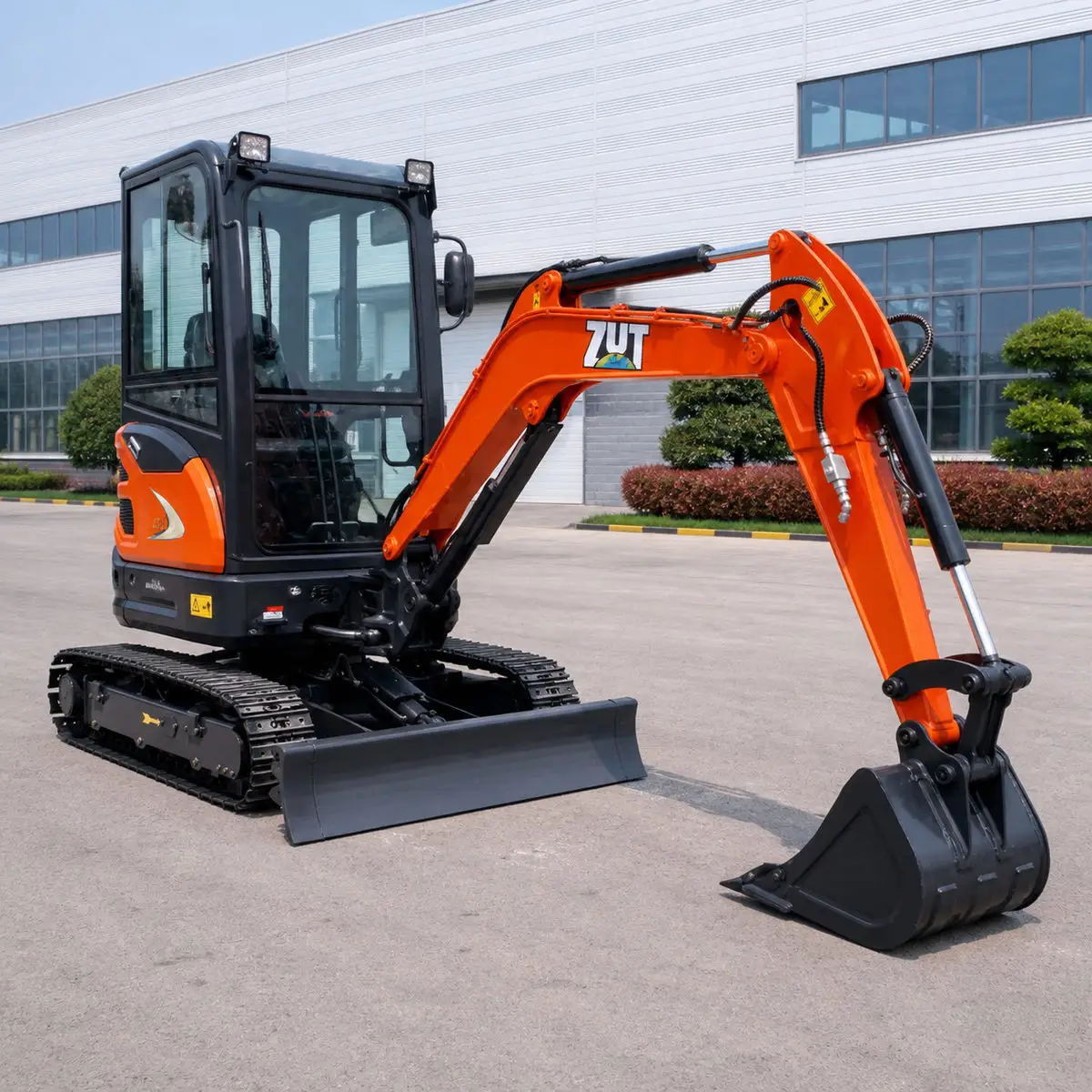

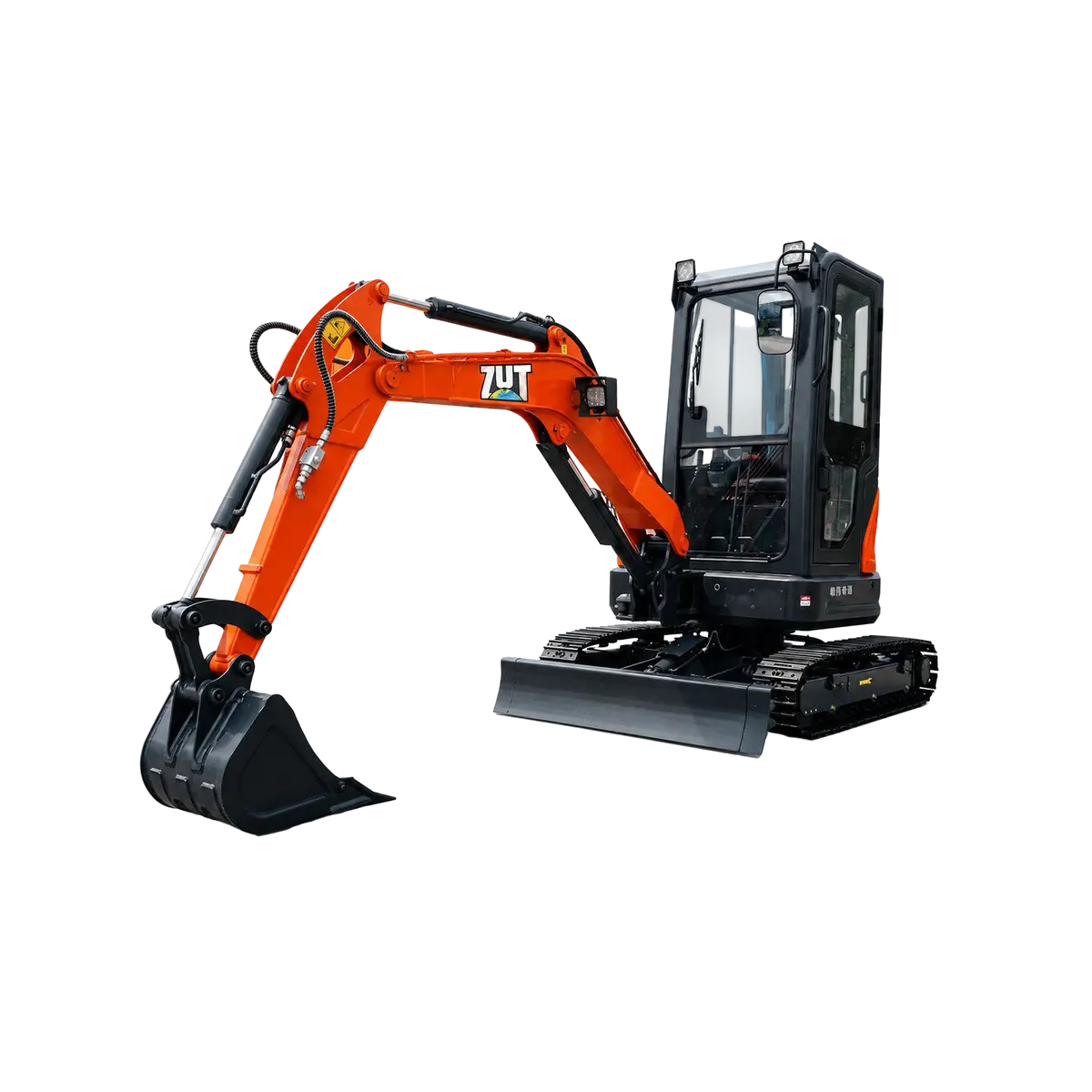

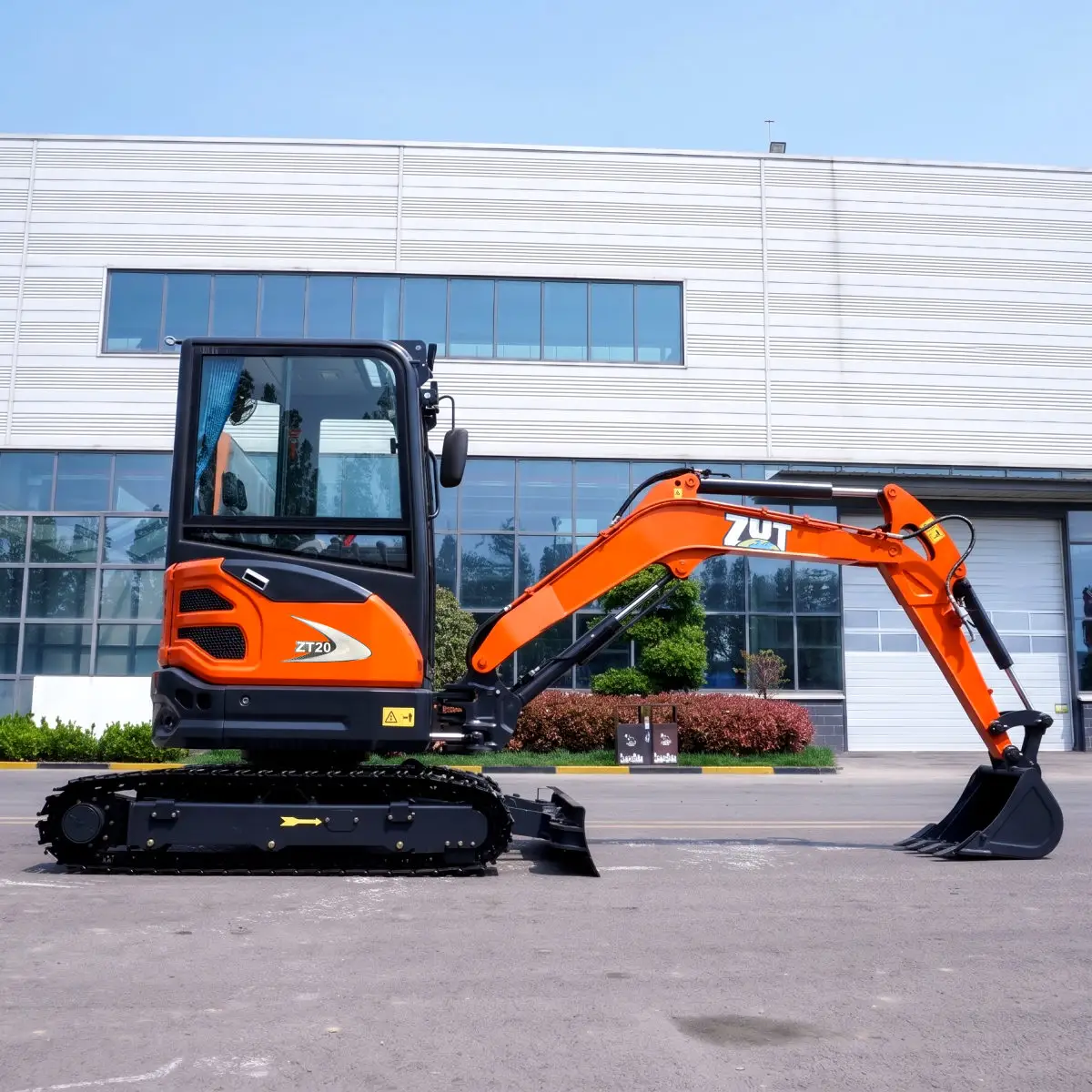

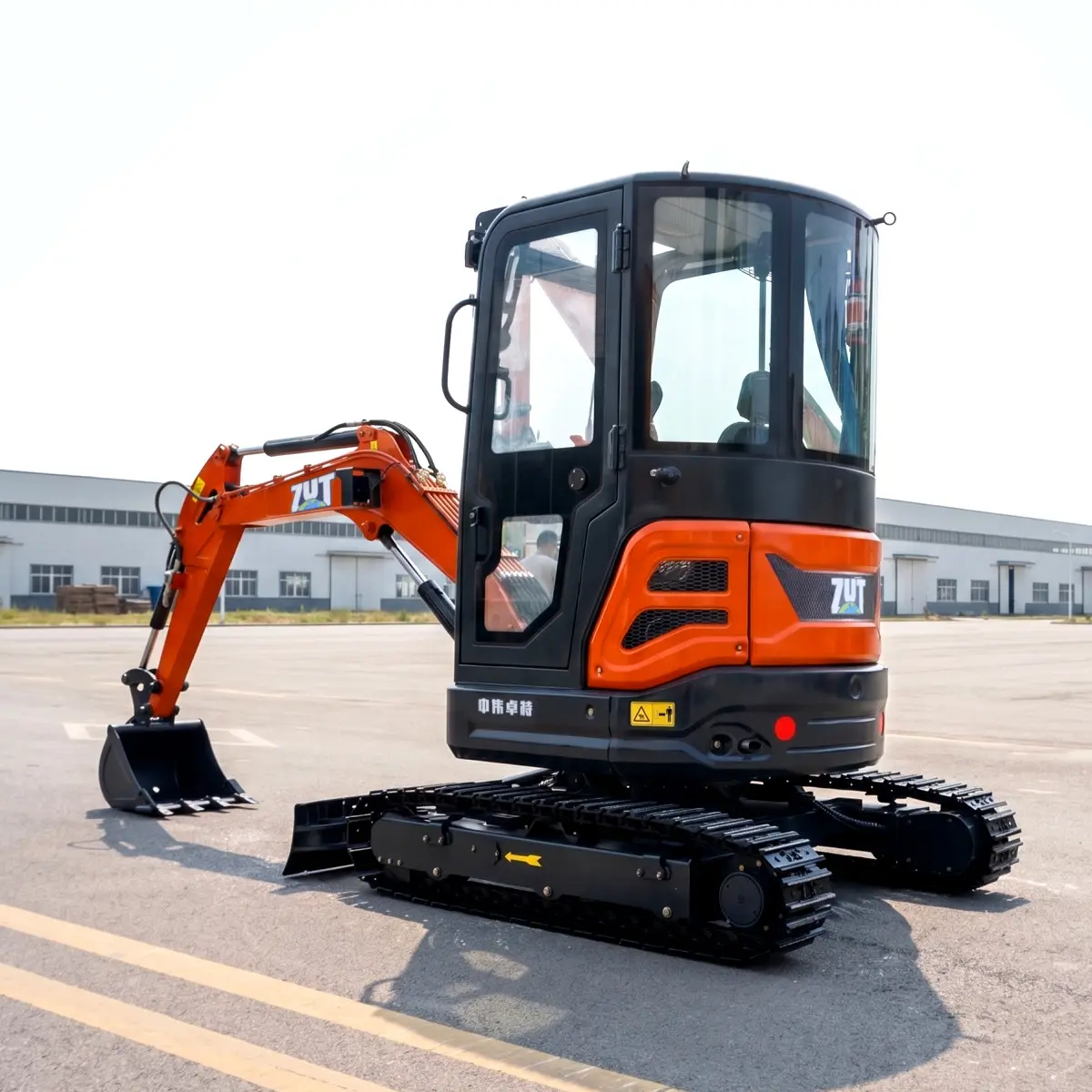

Utility Corridor ExcavationZT20 Cabin Mini Crawler Excavator with Cabin
Controlled work across compact outdoor sites
The four scenes show drainage trenching, landscape-edge shaping, narrow utility work and shallow foundation-edge cutting. The tracked excavator stays close to each defined work edge while the articulated bucket works directly with loose soil in daylight conditions.

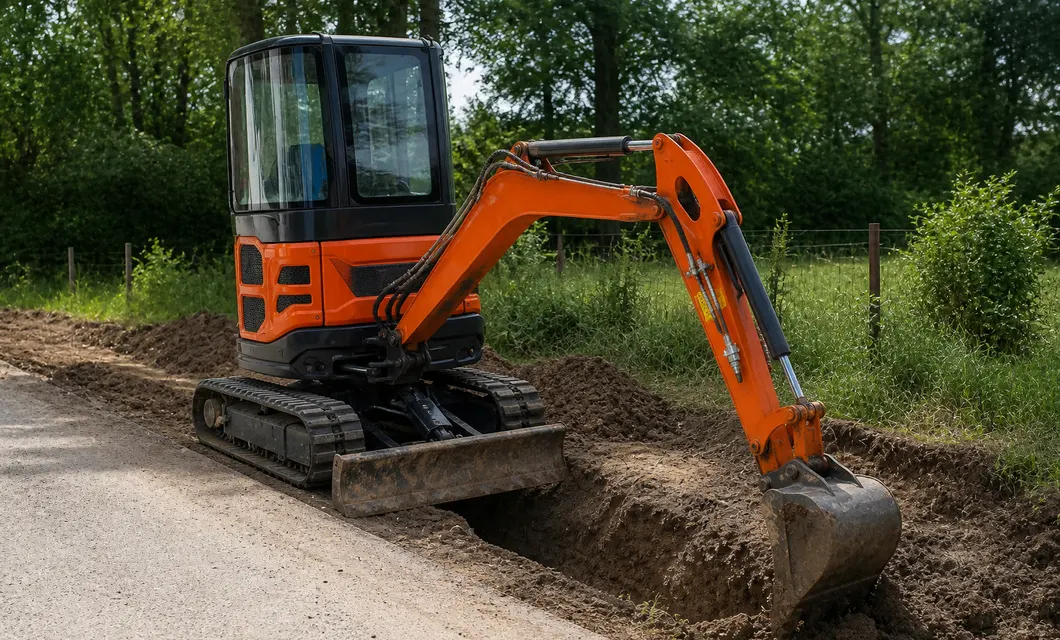

- Drainage Trench Digging

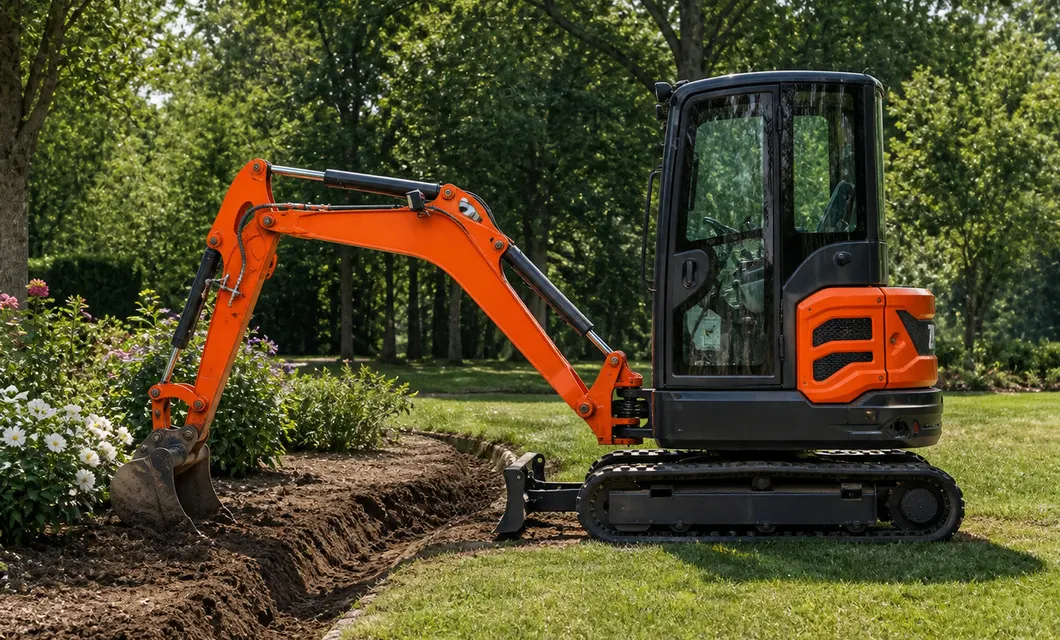

- Landscape Edge Shaping

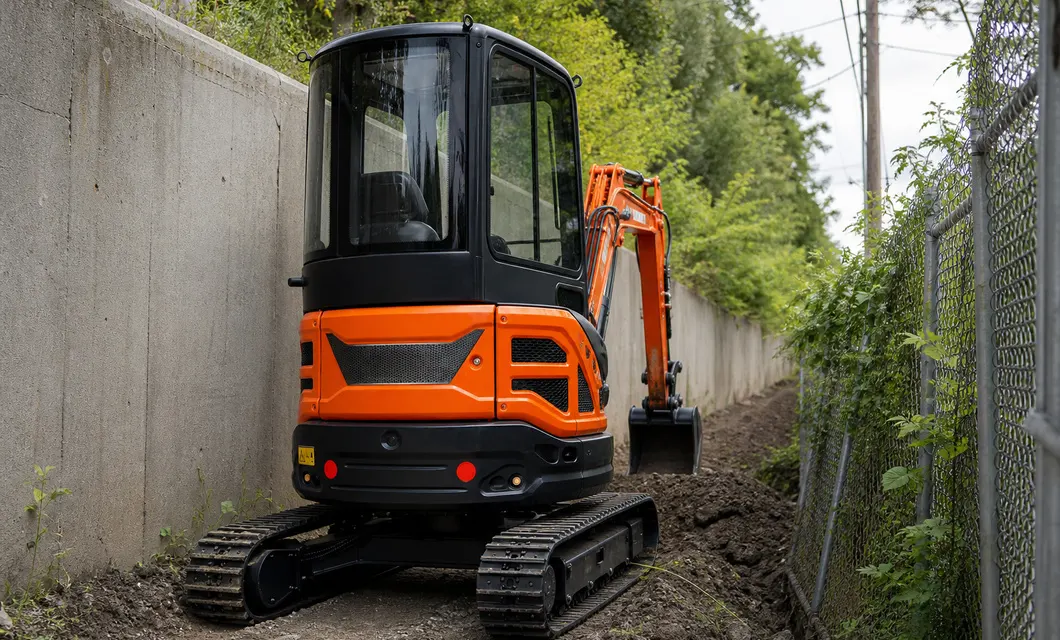

- Utility Corridor Excavation

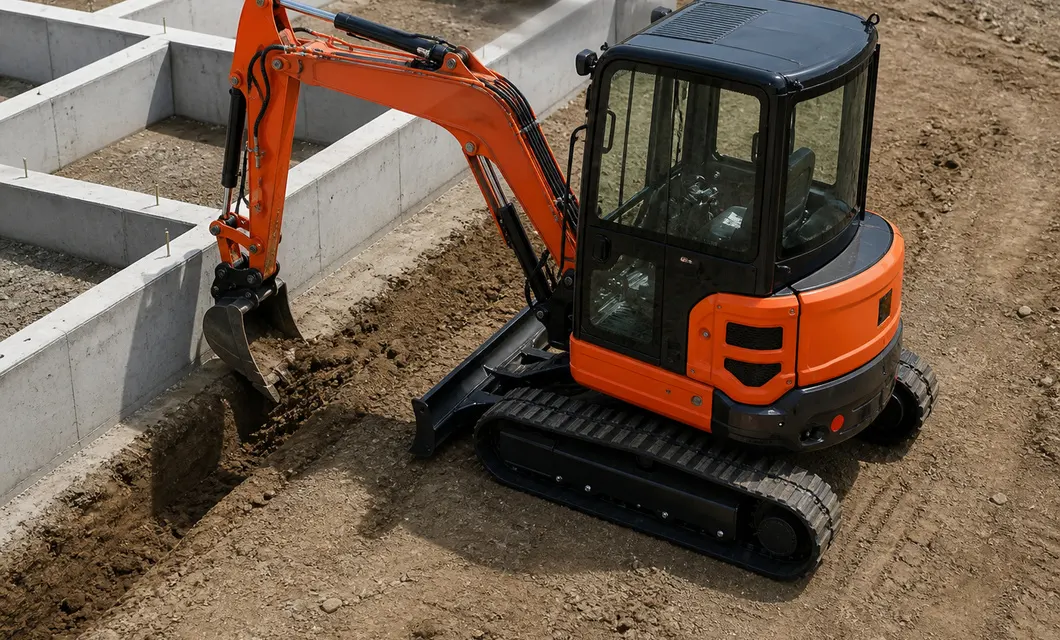

- Foundation Edge Cutting
Drainage Trench Digging
Landscape Edge ShapingUtility Corridor Excavation
Foundation Edge CuttingDrainage Trench DiggingLandscape Edge ShapingSpecifications & Structural Decomposition

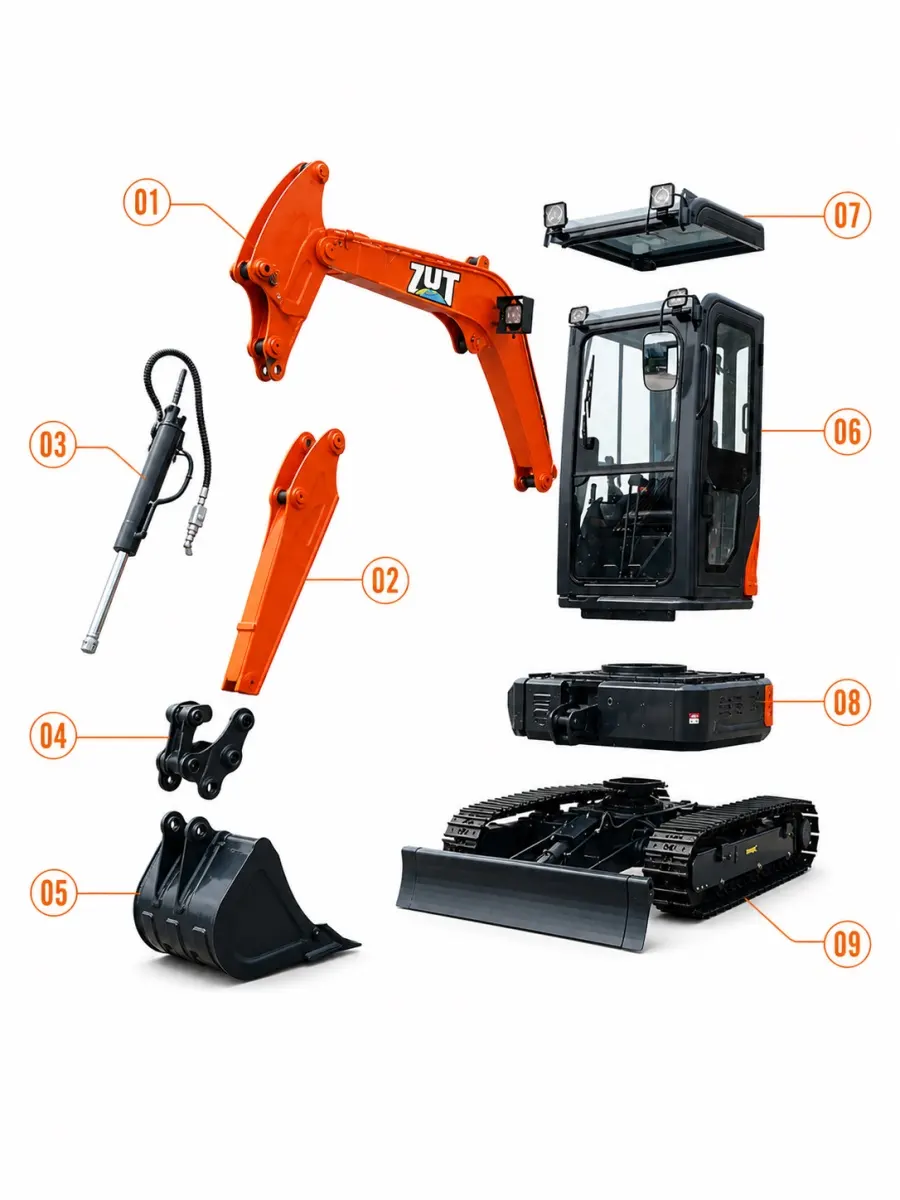

Product Structure
- Boom Assembly
- Dipper Arm Assembly
The forward arm extends digging reach and transfers hydraulic force to the coupler and bucket.

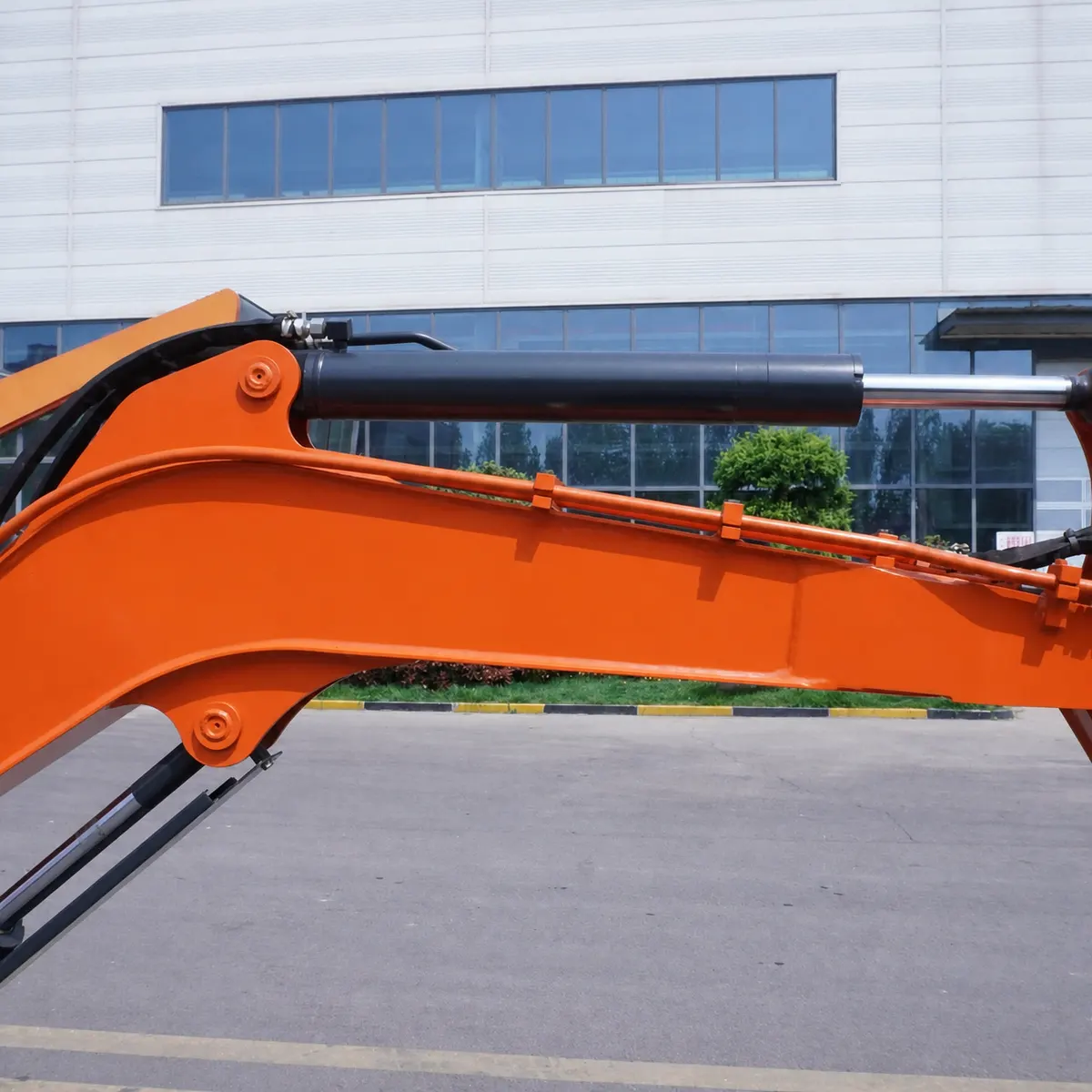

- Hydraulic Cylinder and Hoses
The visible cylinder and hoses drive boom and arm motion while routing oil through the joints.
- Quick Coupler
The black coupler links the arm and bucket for secure attachment and efficient tool changes.
- Digging Bucket
The toothed bucket cuts, gathers and carries soil, then releases material cleanly.

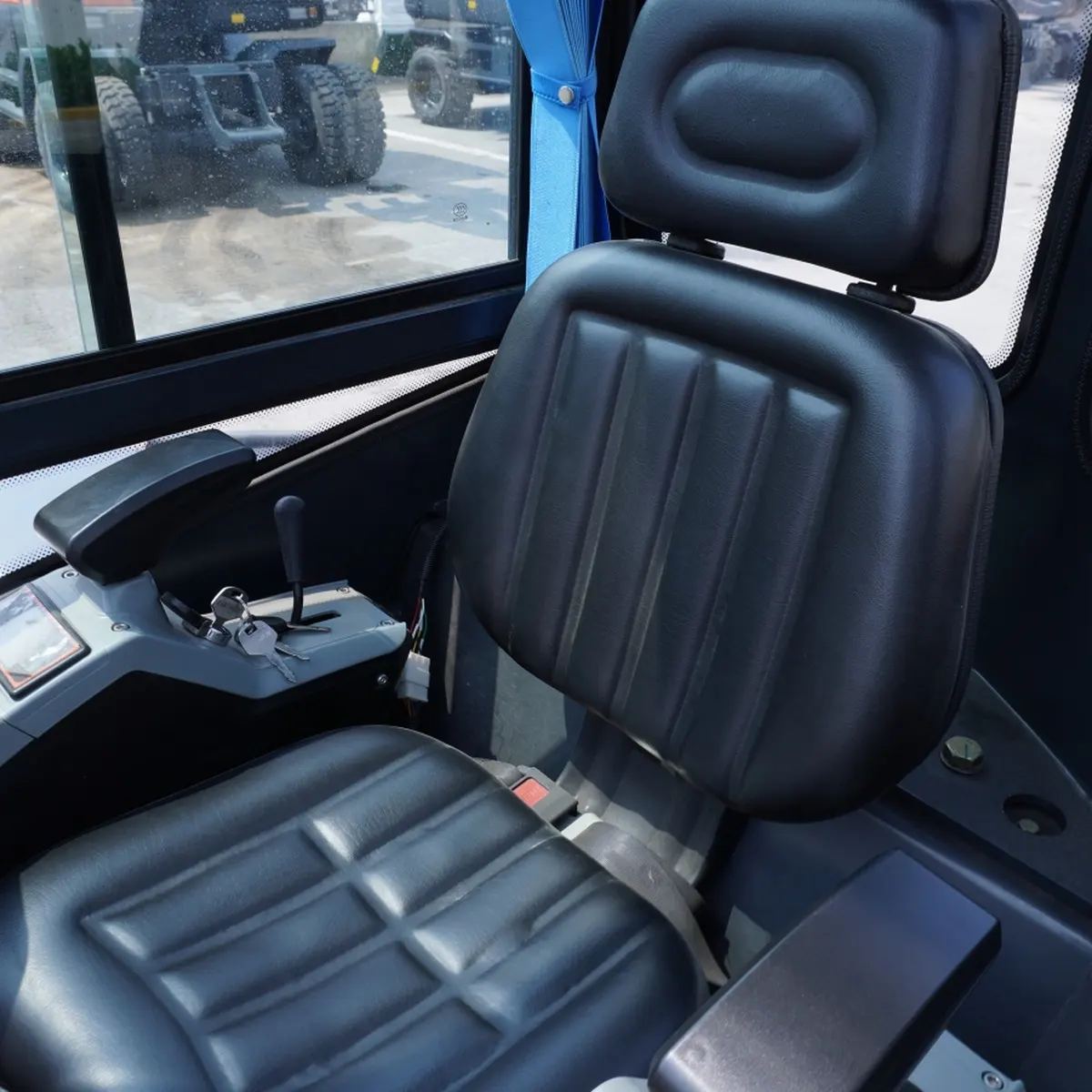

- Enclosed Operator Cabin
The glazed cabin holds the seat and controls, protecting the operator while preserving visibility.
- Cabin Roof and Work Lamps
The cabin roof carries two visible lamps that light the attachment area in low light.
General information
- Product Basic Information
- Tailless track-type micro excavator
- Operating weight/tonnage
- 2.2 tons
- Product Introduction
- Closed-cab, tailless mini crawler excavator
- Standard engine model
- 3TNV80F
- Power
- 15.2 kW
- Track type
- rubber track
- Cab type
- Enclosed cab
General instructions
Simplified explanationCore Component Details
Certifications
Qualification Documents
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions
Which tasks suit this excavator?
It is suited to localized digging, soil shaping and shallow trench work where a compact tracked machine can be placed close to the intended work edge.
How is the digging end controlled?
The enclosed operator station contains the visible controls used to coordinate the articulated boom, dipper and bucket through existing hydraulic pivots.
What supports stable work placement?
The crawler undercarriage provides broad ground contact, while the front blade can assist with orderly material grading and work-area setup.
Which details are supplied in images?

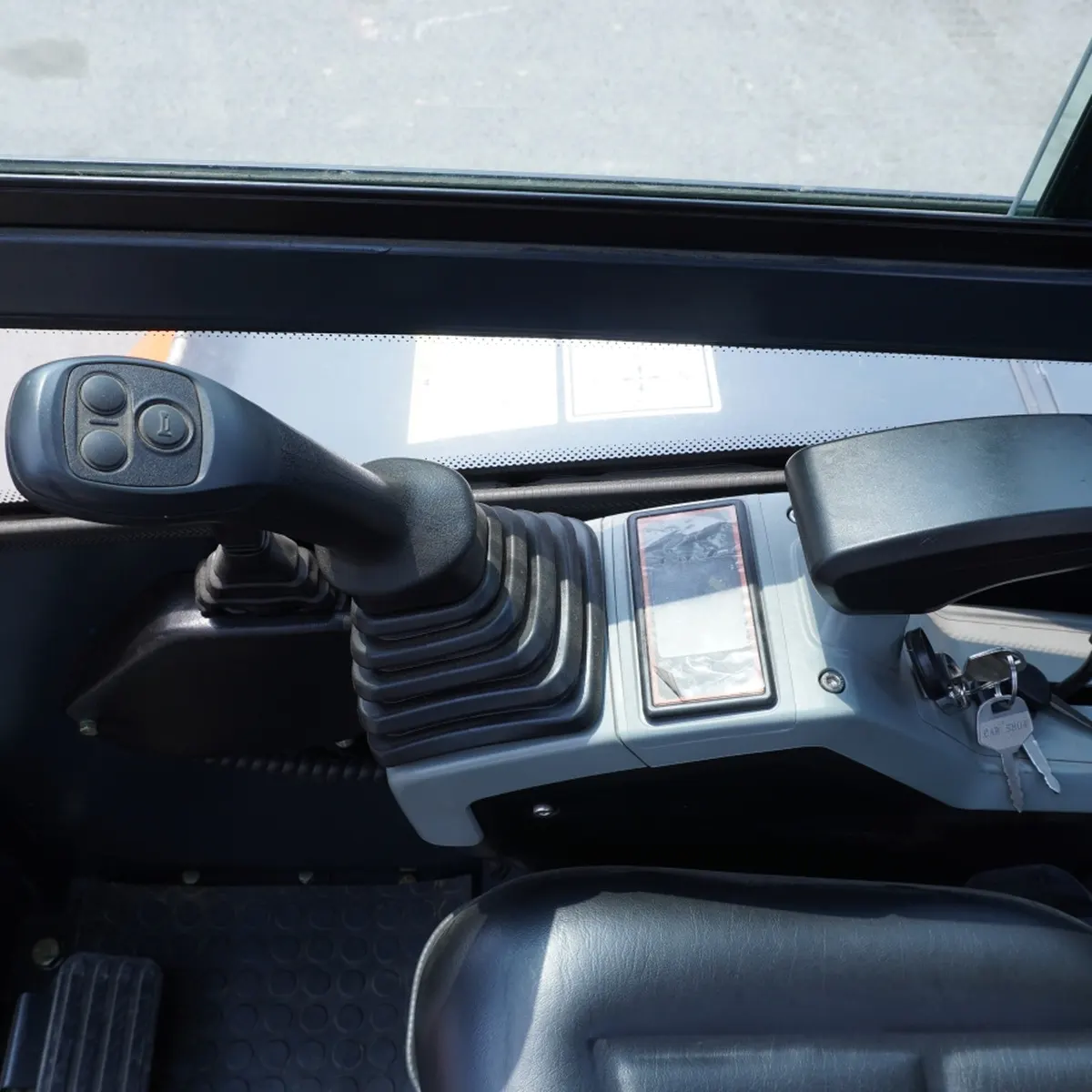

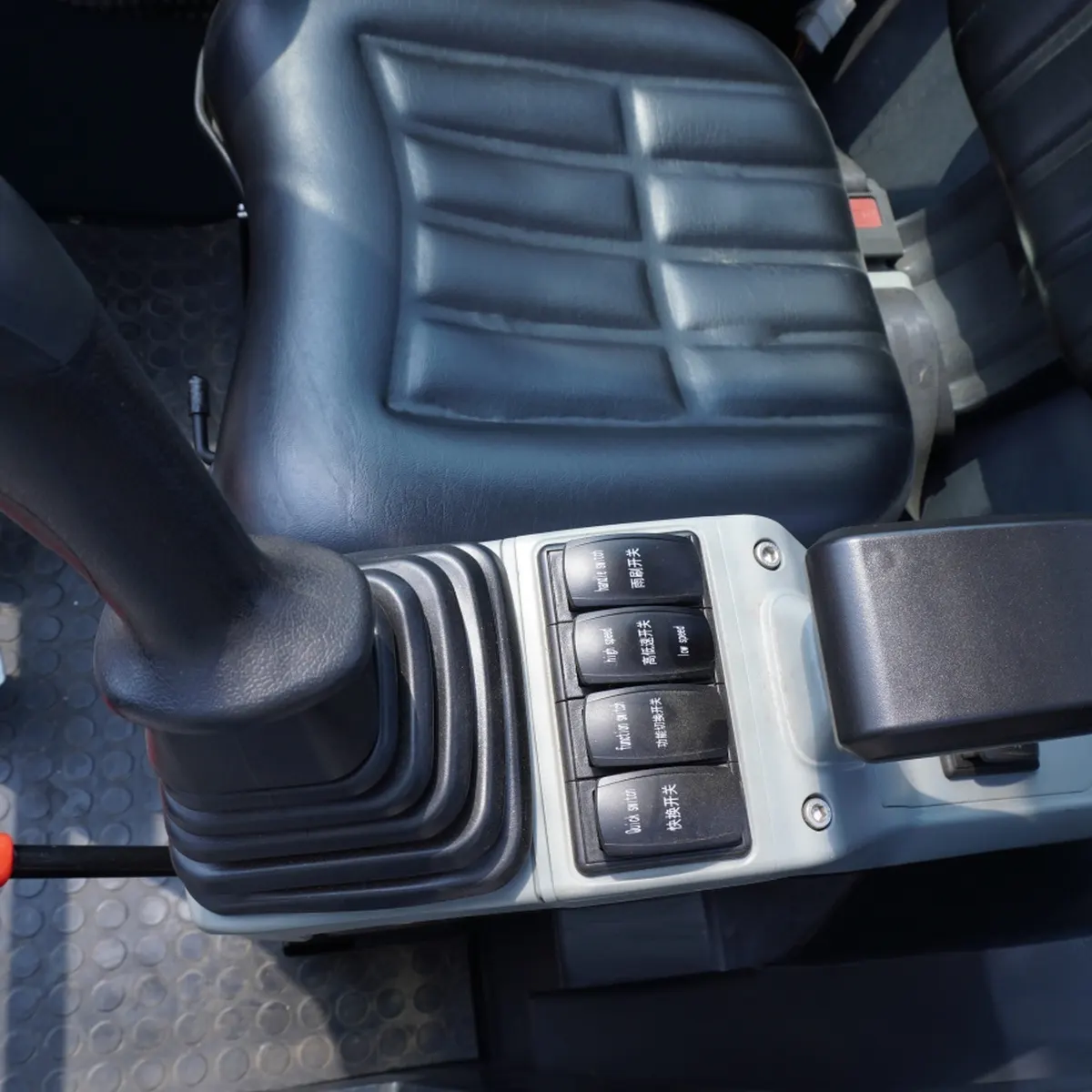

The supplied detail images show the control console, boom assembly, enclosed cab, attachment pedal and hydraulic cylinder as visible machine features.
What should be confirmed before ordering?
Confirm the intended task, required access space, preferred configuration and actual ground conditions so the machine can be matched to planned work.
