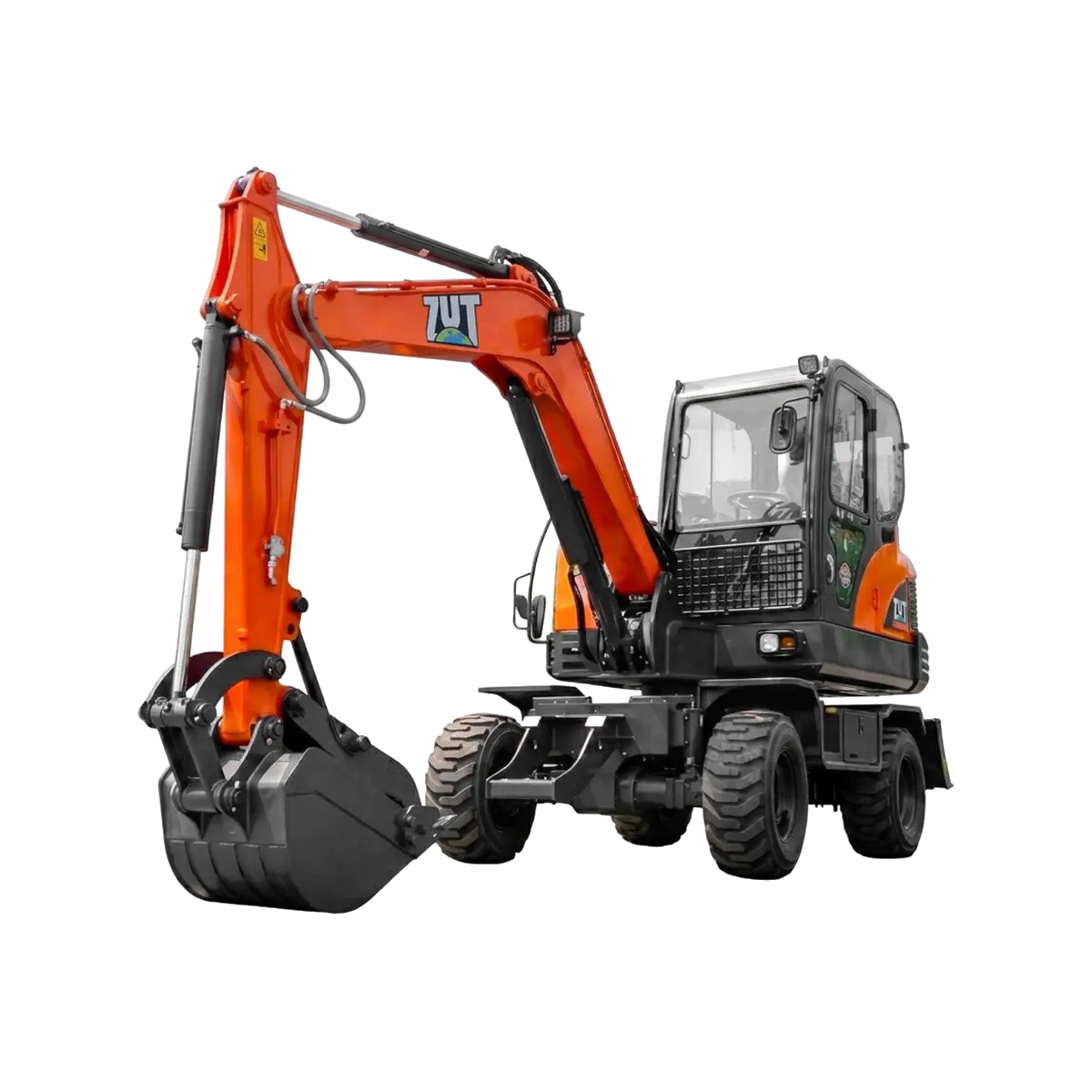

Front-mounted bucket shown in the white-background view cuts, lifts and places soil with control.
Material Loading Beside TrenchZT60W Wheeled Excavator
Prepared-site excavation and shaping
The illustrated applications show controlled trench excavation, drainage-swale shaping, foundation-edge finishing and material loading beside a prepared trench. The articulated arm, digging bucket and front blade work together for measured soil movement. The wheeled chassis supports repositioning between adjacent work zones while the enclosed cab provides a defined operating position.

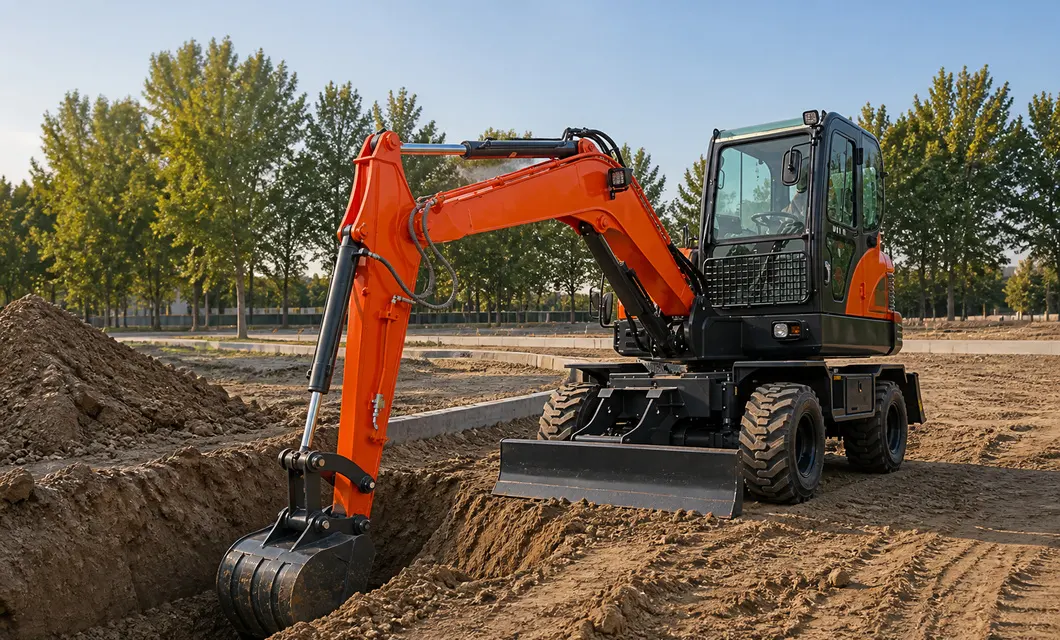

- Controlled Utility Trench Excavation

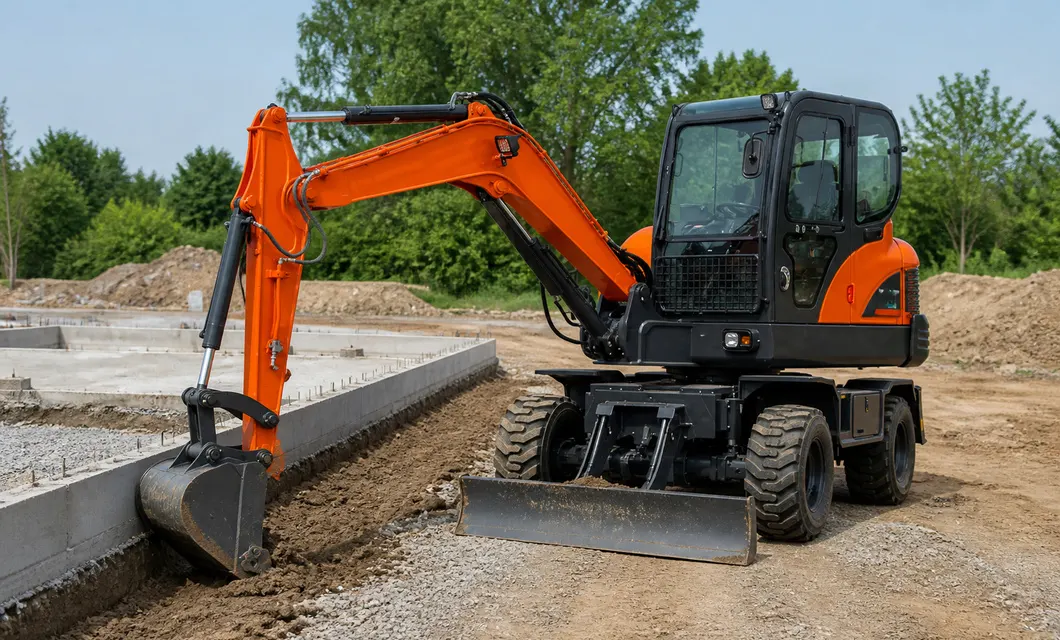

- Foundation Edge Soil Shaping
- Material Loading Beside Trench
- Roadside Drainage Swale Shaping
Controlled Utility Trench Excavation
Foundation Edge Soil ShapingMaterial Loading Beside Trench
Roadside Drainage Swale ShapingControlled Utility Trench ExcavationFoundation Edge Soil ShapingSpecifications & Structural Decomposition

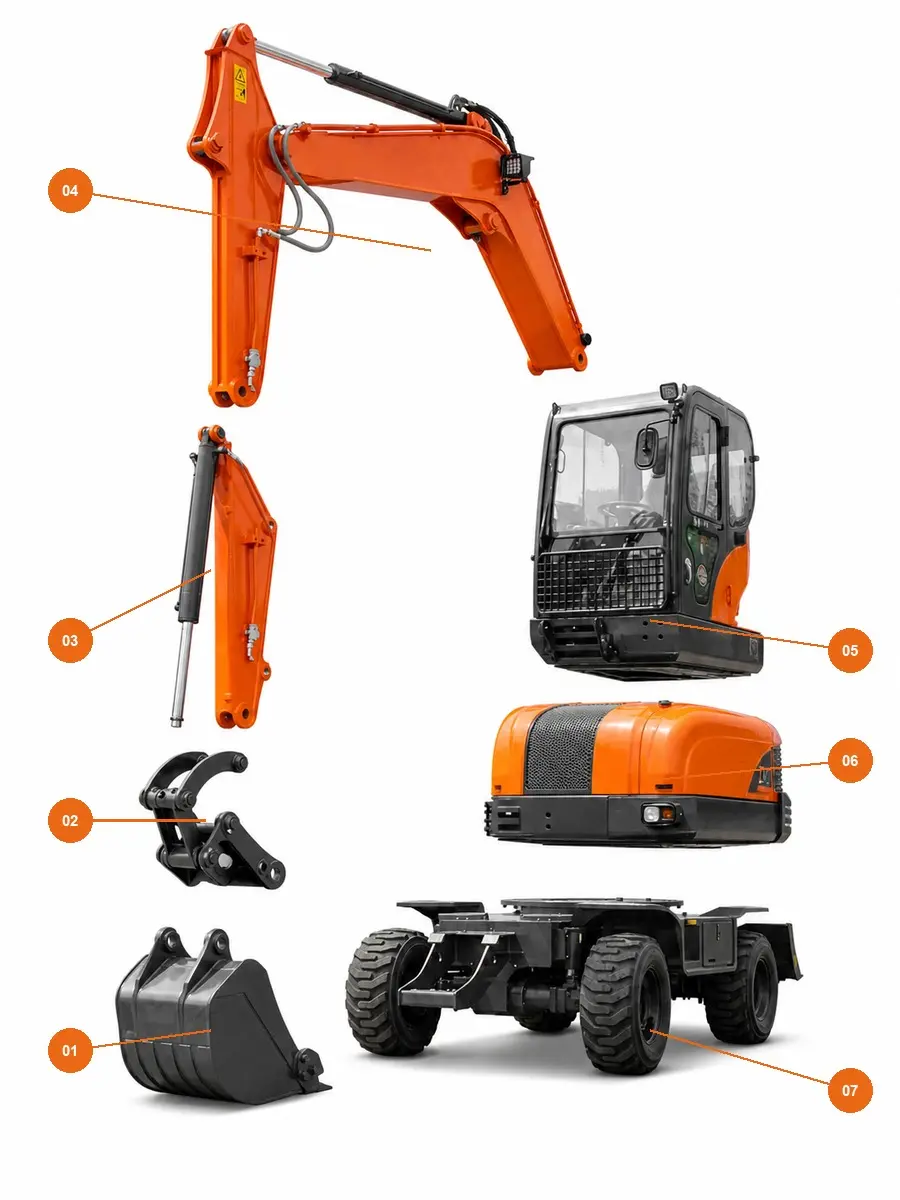

Product Structure

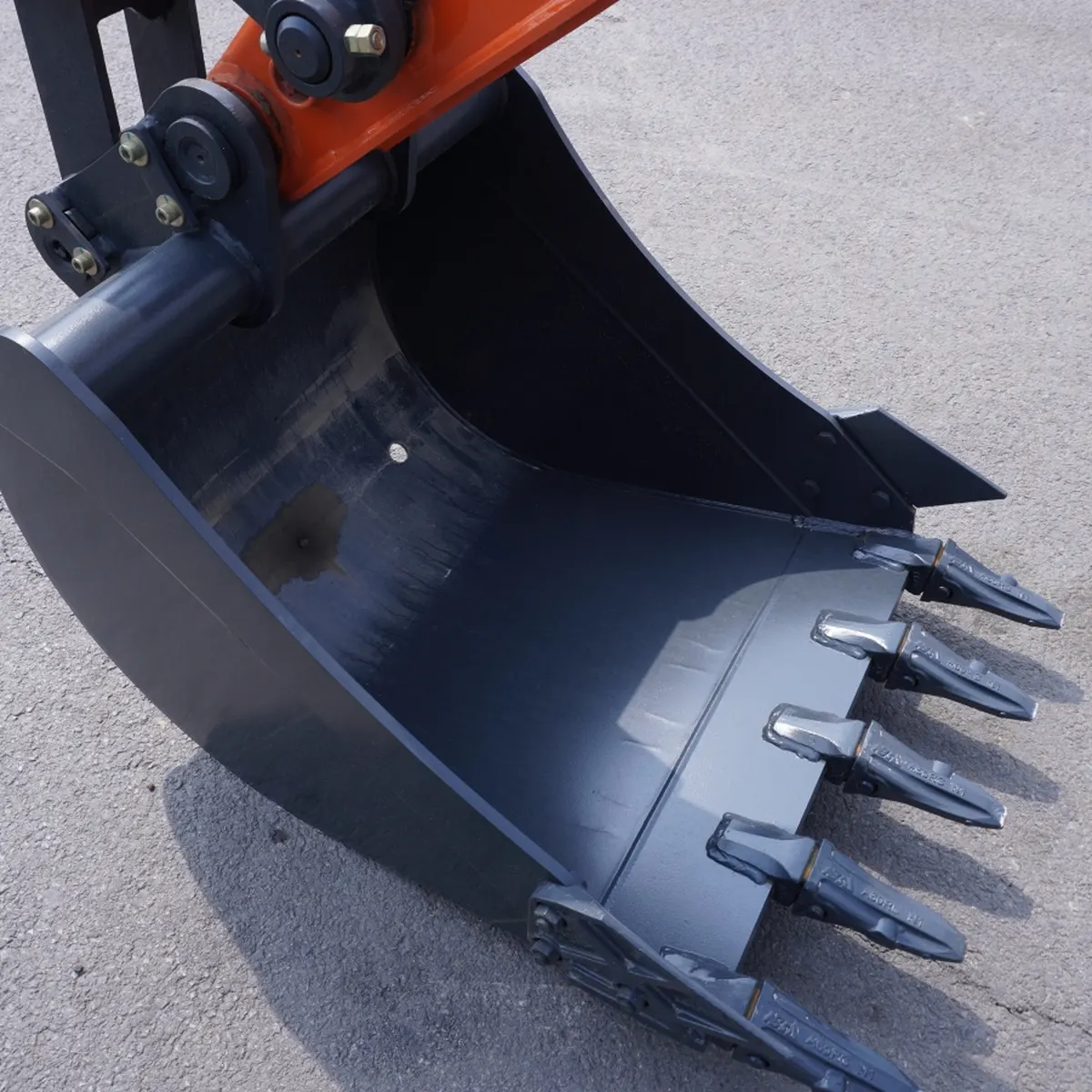

- Digging Bucket
- Bucket Linkage
Pivot linkage connects the bucket to the arm and transfers hydraulic motion for stable digging.
- Dipper Arm
The orange dipper arm extends reach and carries the verified bucket connection at its tip.

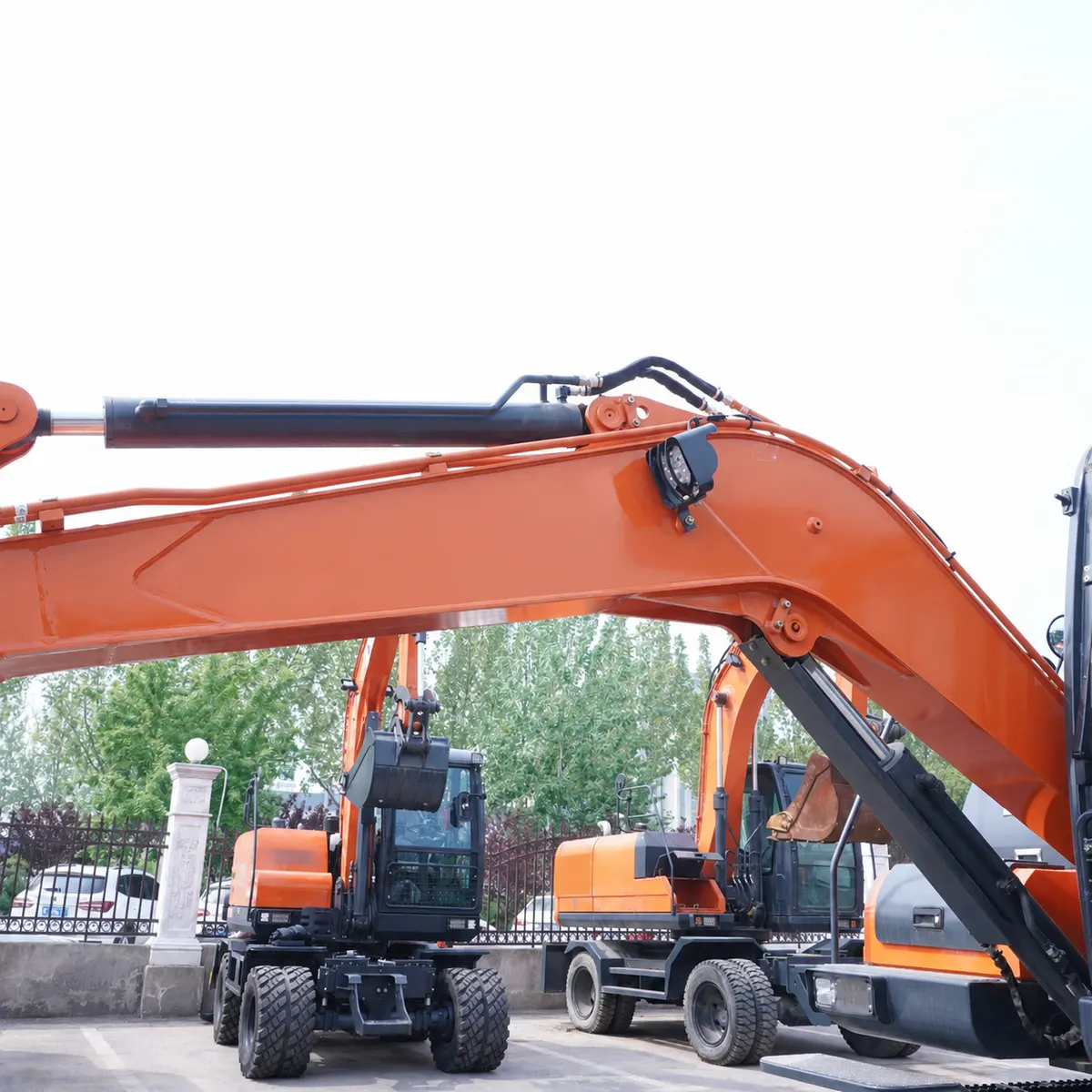

- Boom and Hydraulic Group

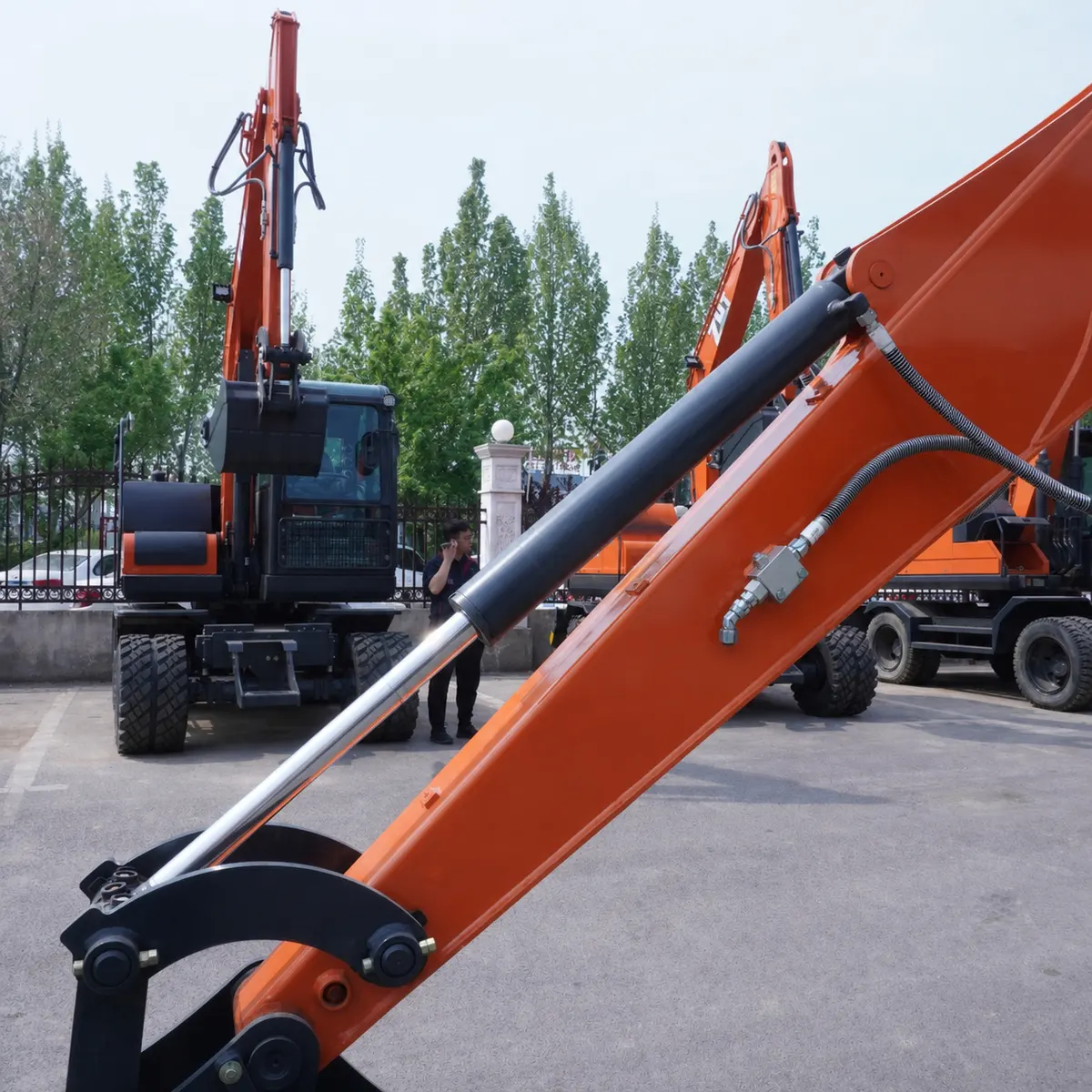

The main boom, visible cylinder and hose routing raise the work end through controlled movement.
- Enclosed Operator Cab

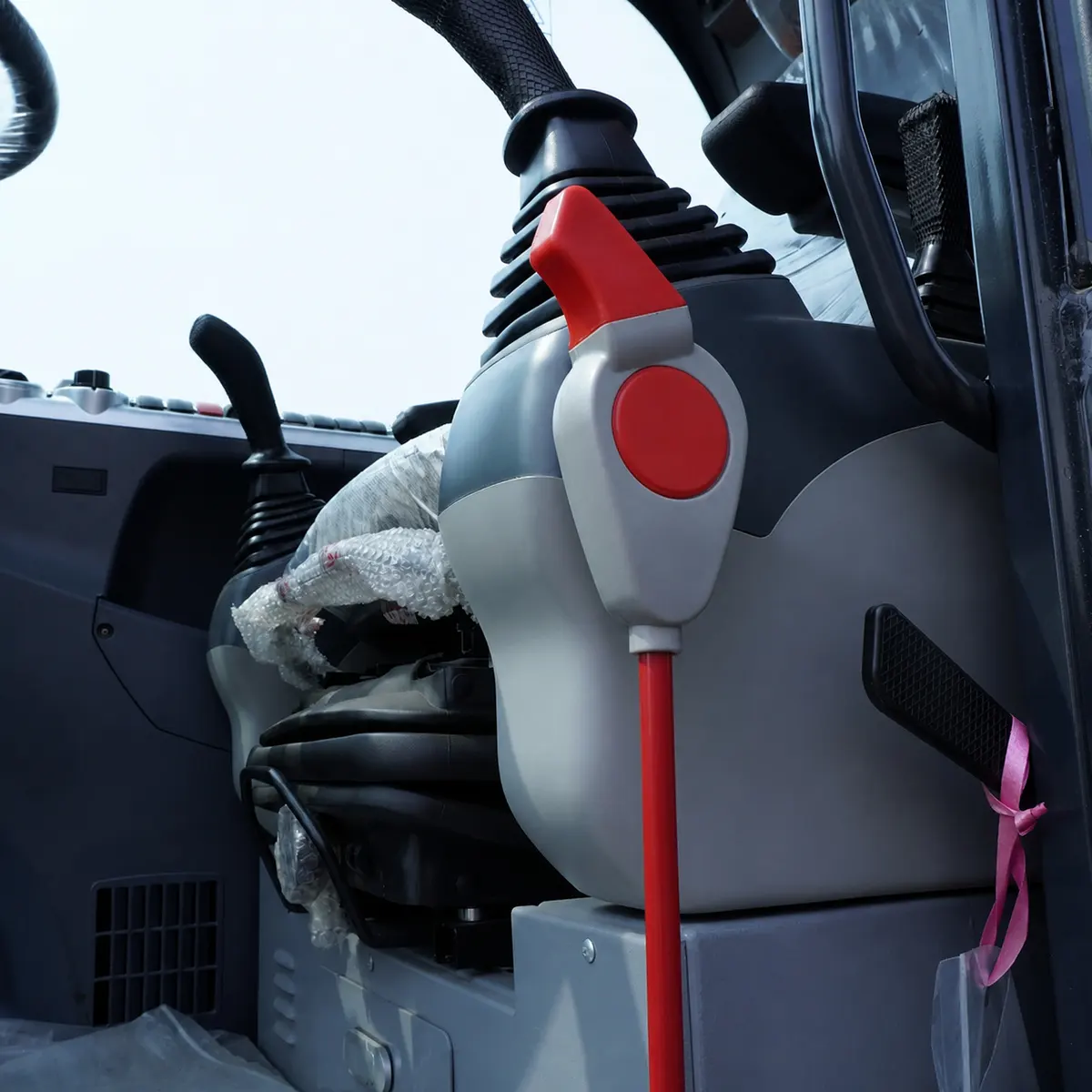

The enclosed cab contains the visible seat, controls and protective glazing for machine operation.

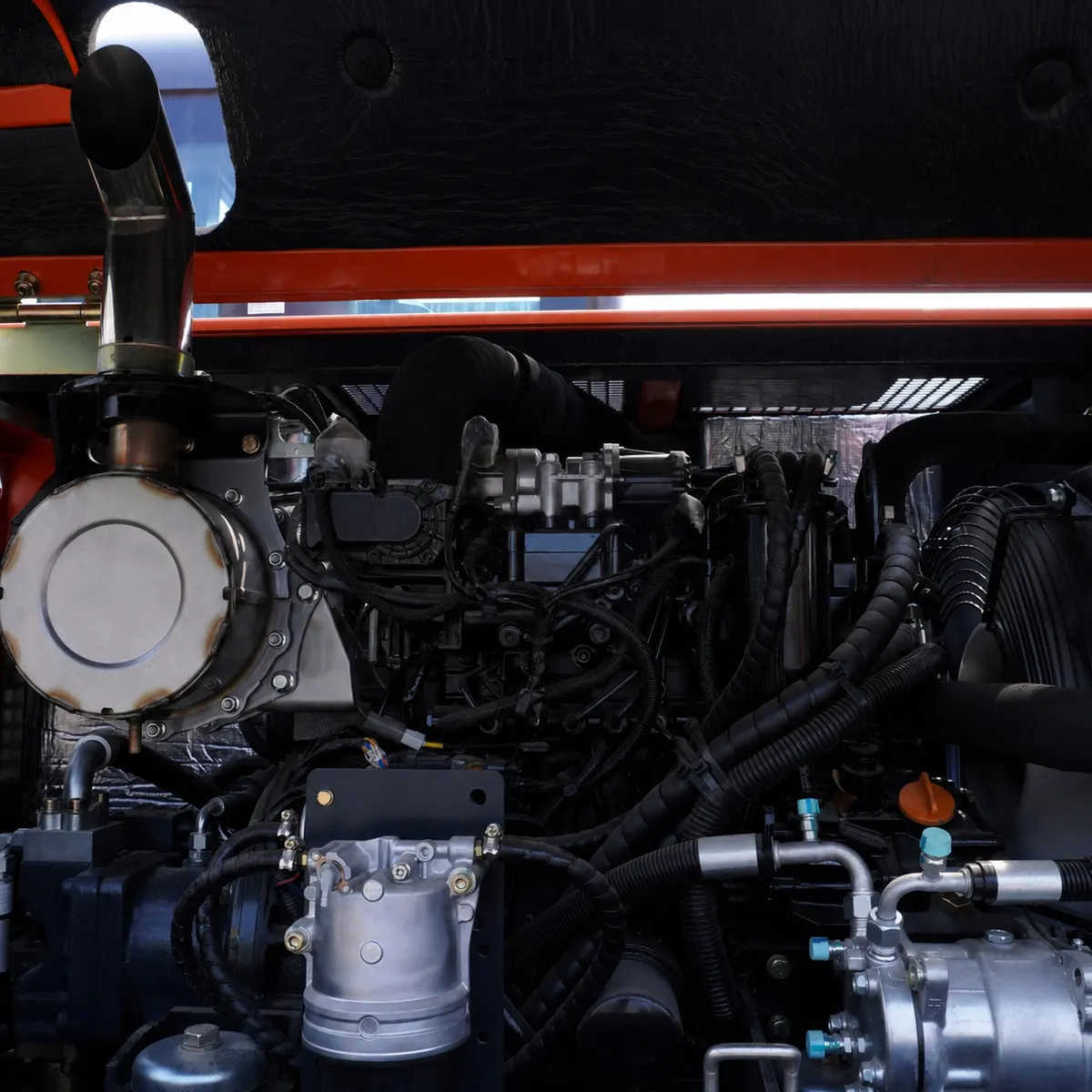

- Rear Engine Hood

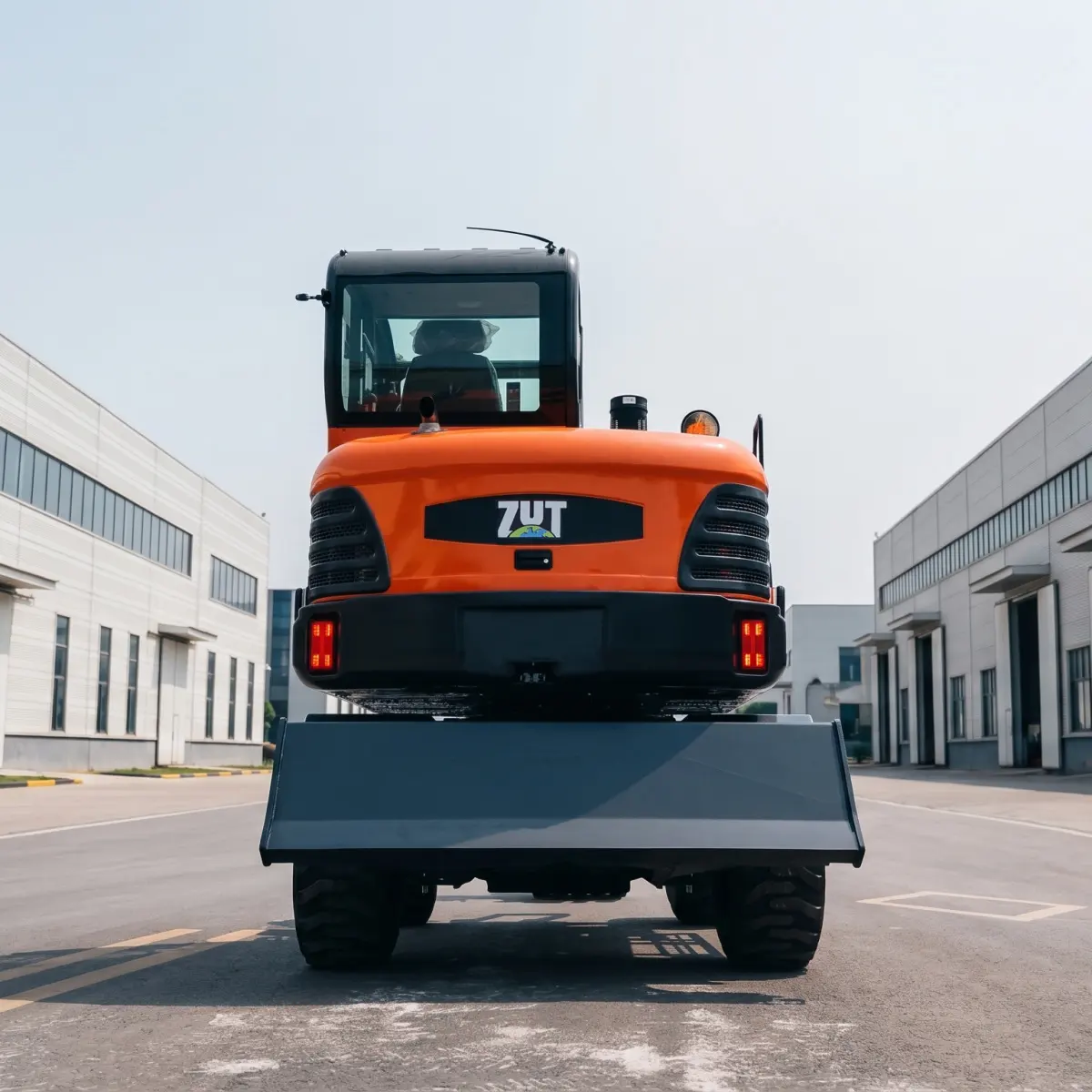

The orange rear hood encloses the visible engine housing and balances the upper machine body.

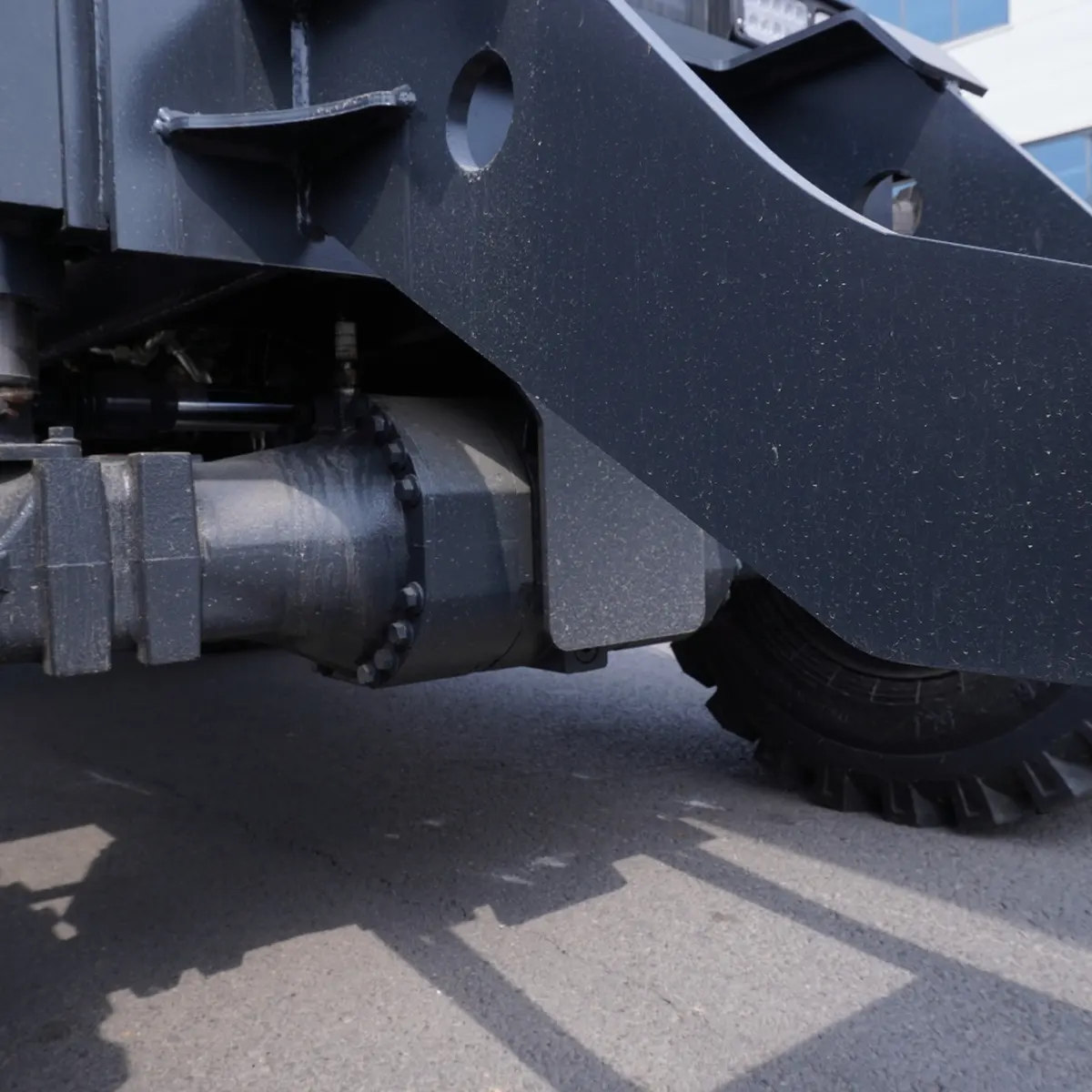

- Wheeled Undercarriage
The black chassis and four visible wheels provide the verified rolling support and stable load path.
General information
- Brand
- ZUT
- Product Model
- ZT60W
- Overall operational quality of the machine
- 5580 kg
- Bucket capacity
- 0.21 m³
- Engine brand
- Yanmar
- Engine rated power
- 46.3/35.9 kW
- Hydraulic oil tank capacity
- 90 L
General instructions
Simplified explanationCore Component Details
Certifications
Qualification Documents
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions
Which tasks suit the digging bucket?
The installed digging bucket is shown excavating trenches, shaping prepared edges, loading excavated soil beside a trench and forming drainage swales.
What supports stable positioning?
The front blade, four-wheel chassis and confirmed ground contact support stable positioning during controlled excavation and soil shaping.
How does the wheeled chassis help on site?
The wheeled chassis supports on-site repositioning between prepared, accessible work zones without changing the installed bucket setup.
Where is the operator positioned?

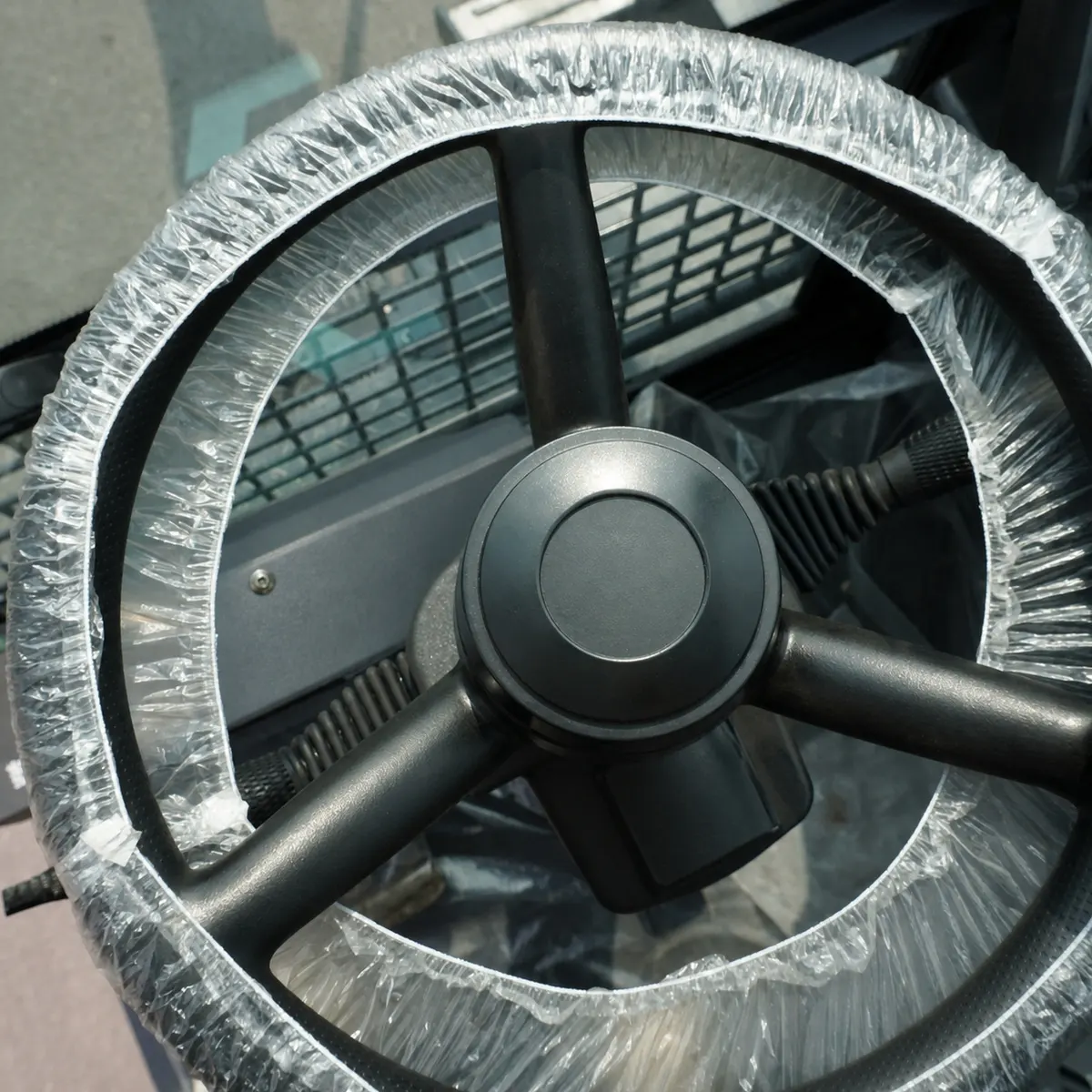

The operator is positioned in the enclosed cab, where the confirmed steering wheel, pedals and controls define the operating space.
What should be prepared before operation?
Prepare a firm, clear work area with room for the full machine, articulated arm, bucket reach, soil placement and safe movement paths.
