Wide hopper opening carries loose sand, gravel, soil, and construction material for site transport.
_1784107263995_4bPz.png?x-oss-process=image/resize,m_lfit,w_1200/format,webp/quality,q_82)

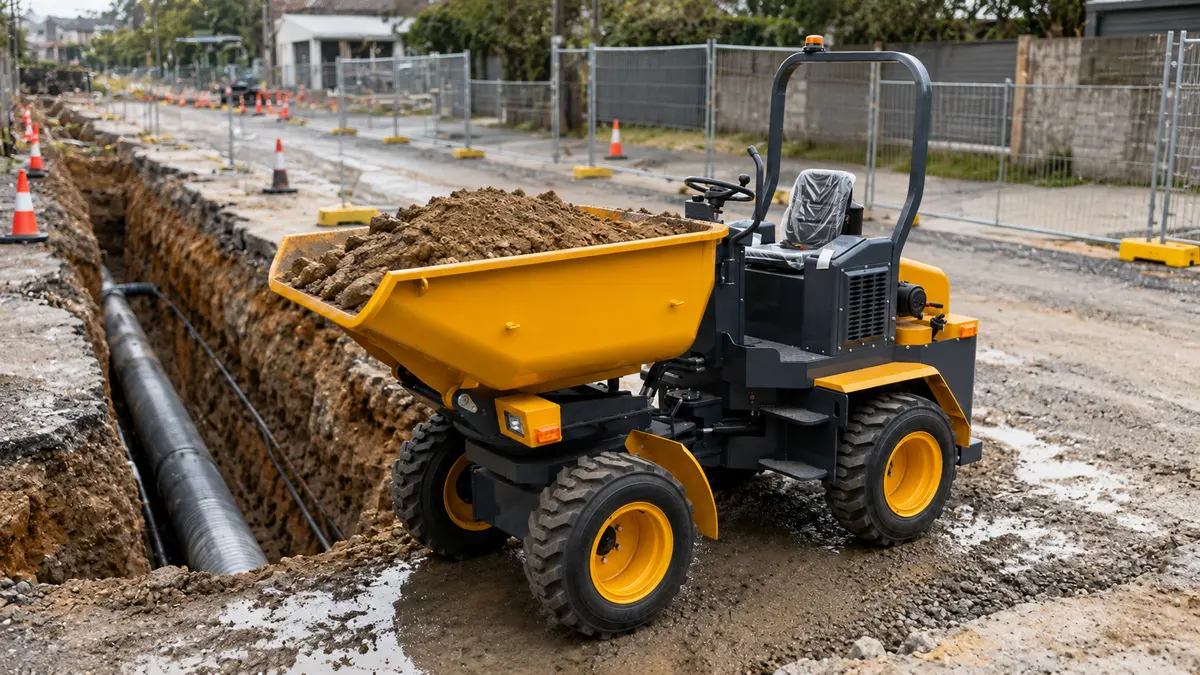

Rural road repair aggregate haul across uneven access routesArticulated Dumping on Work Sites

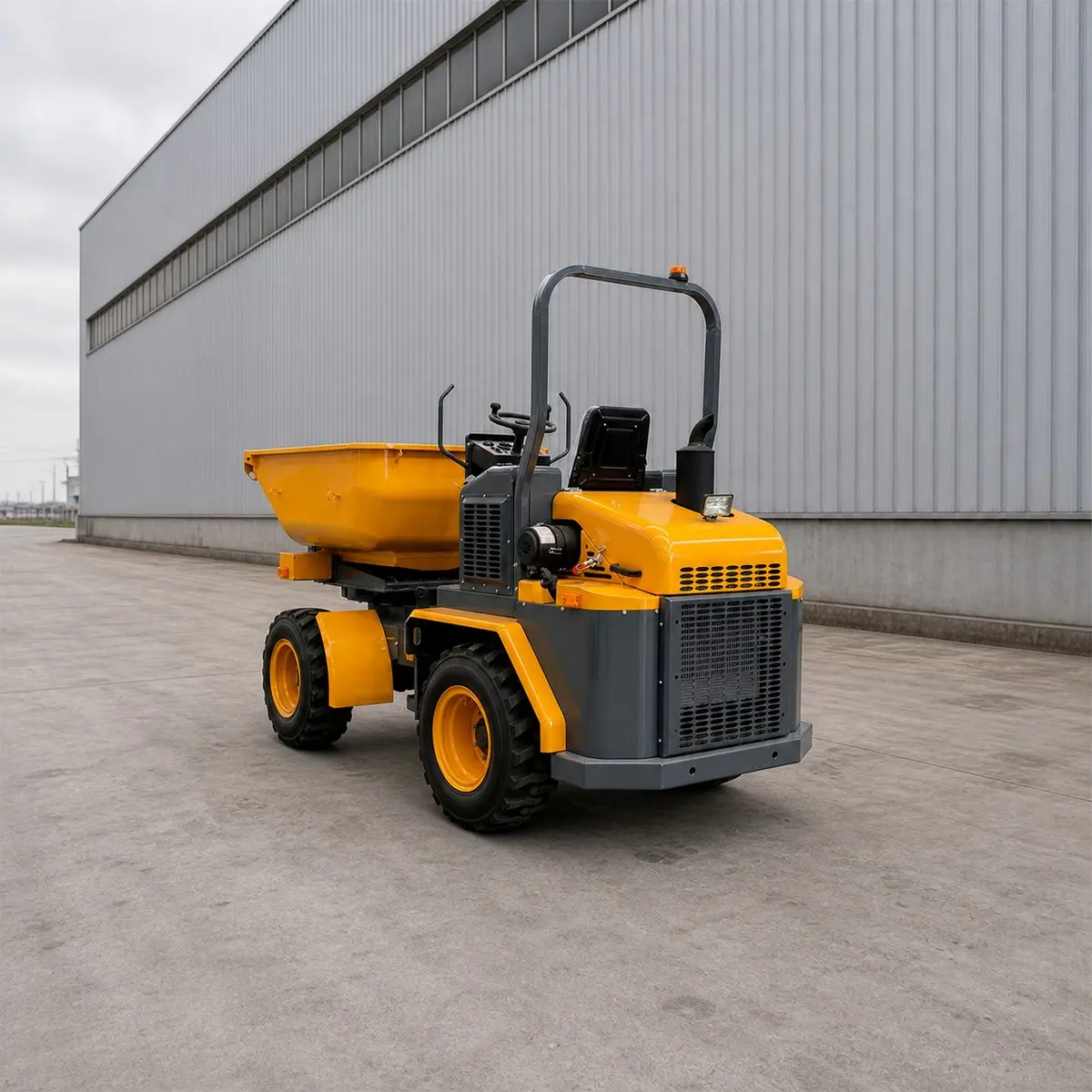

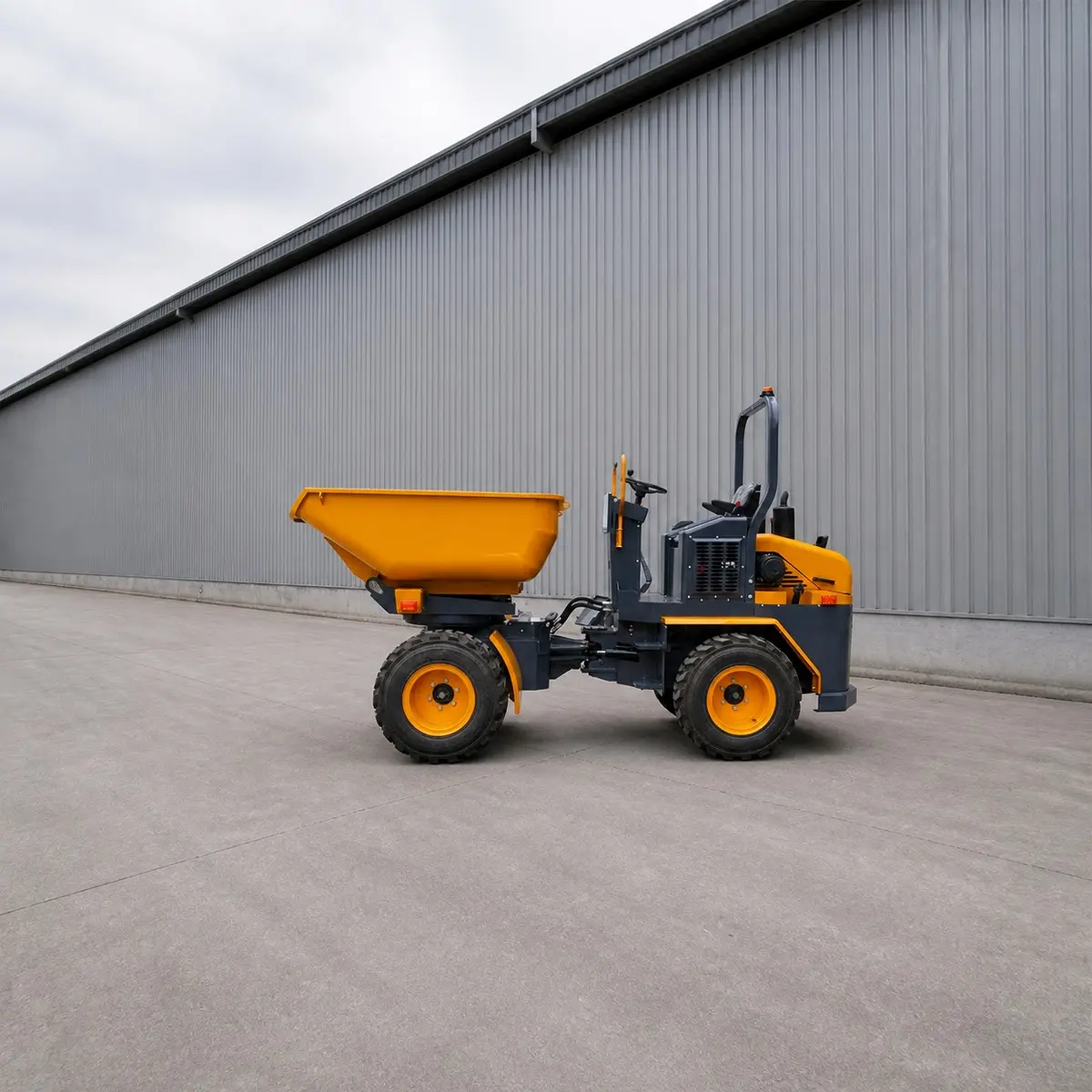

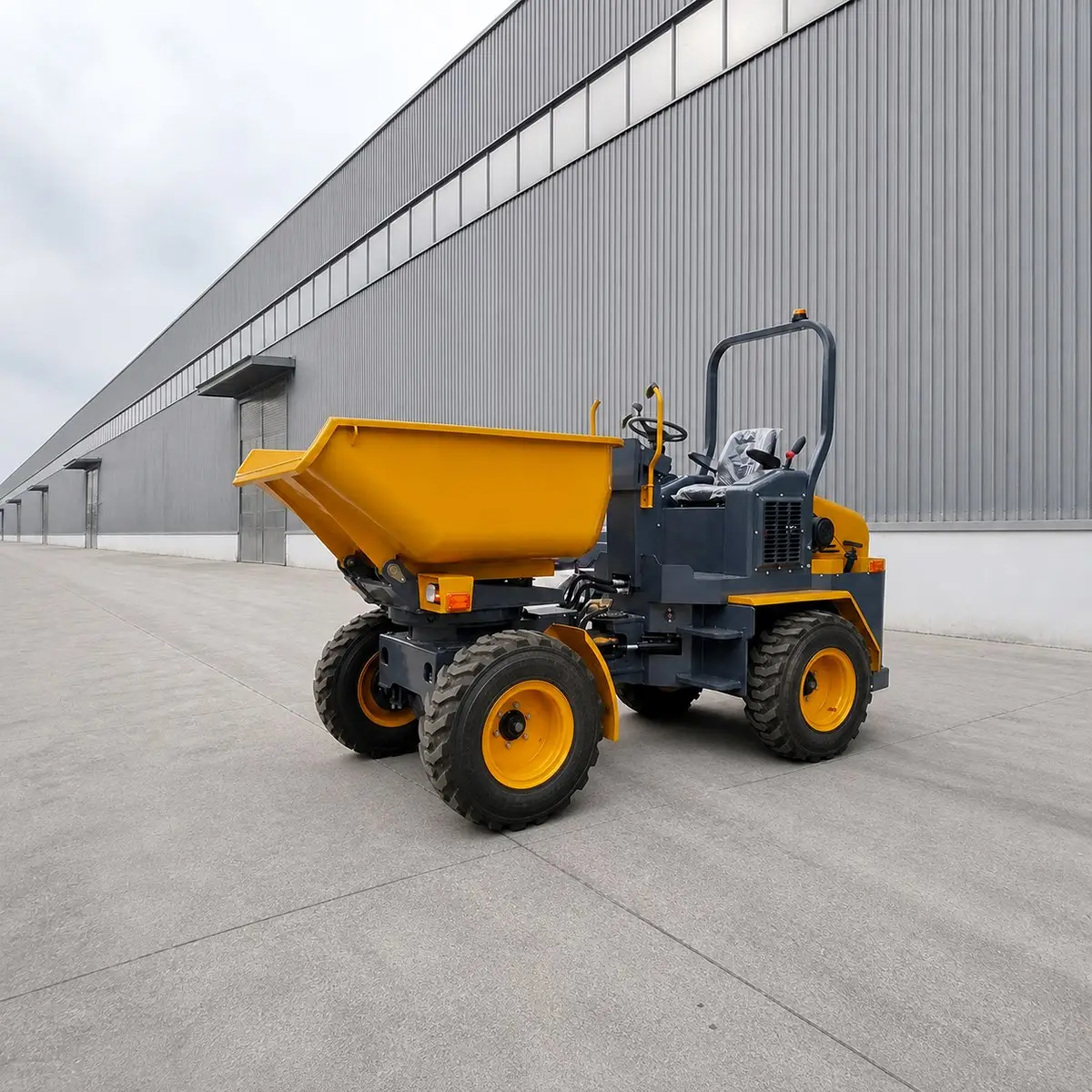

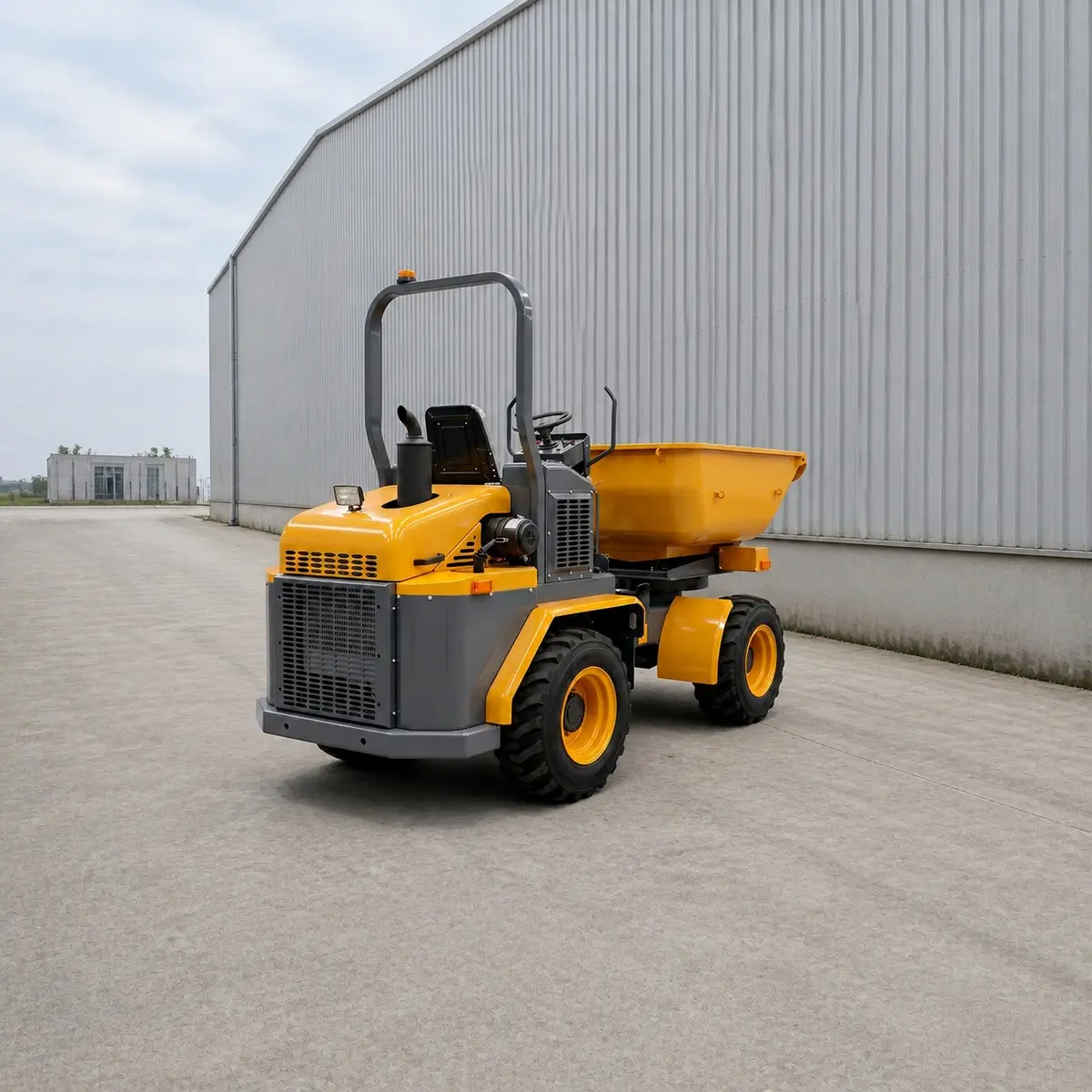

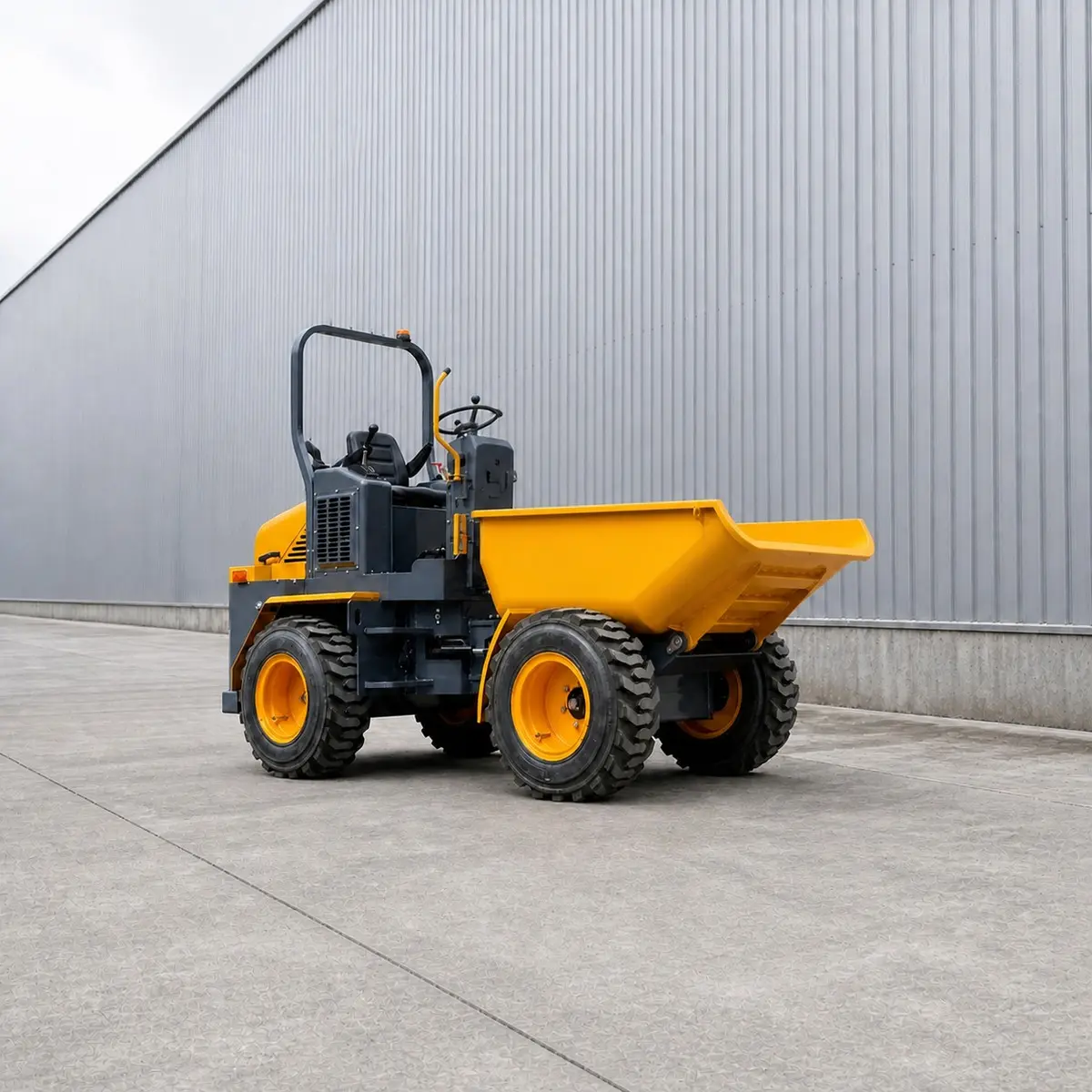

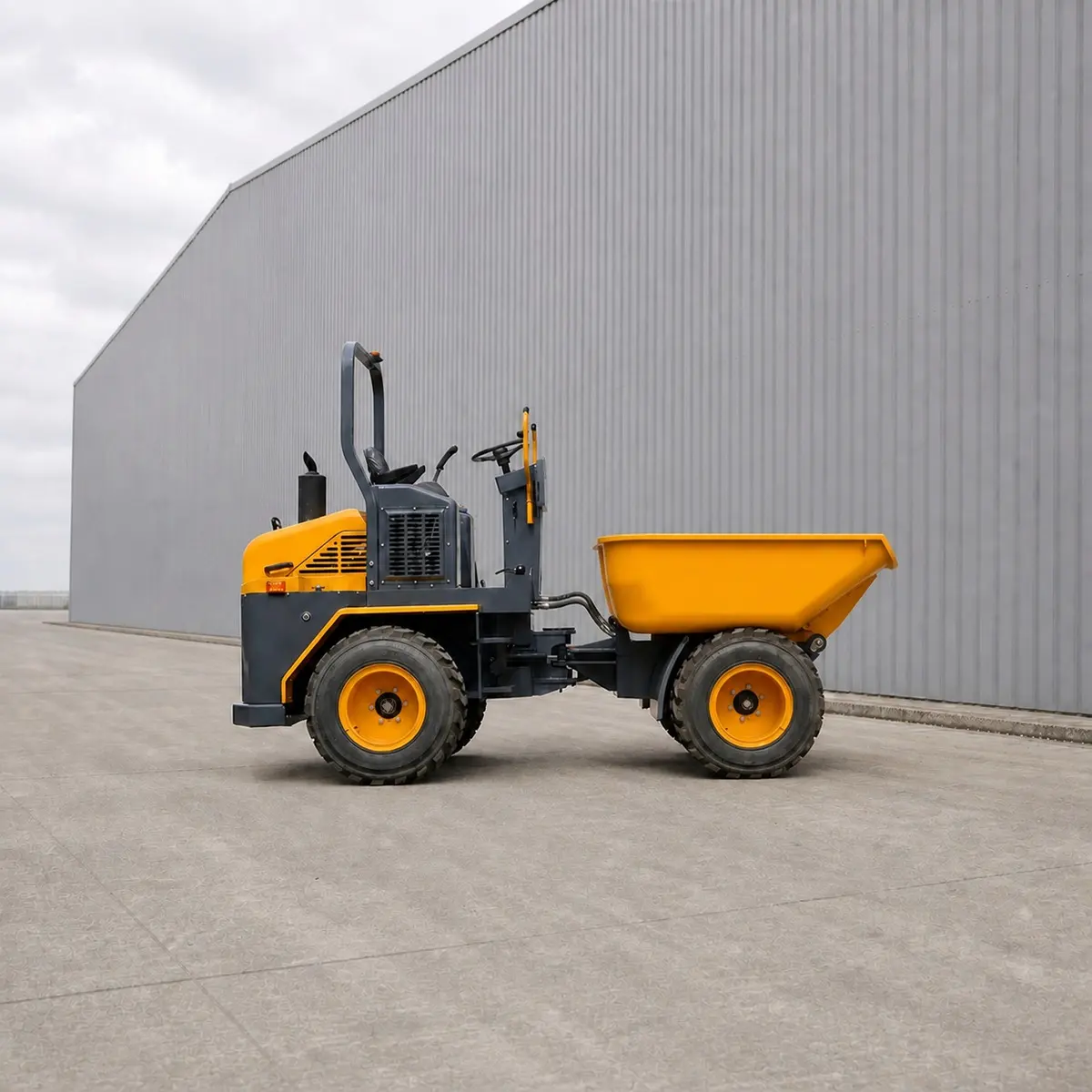

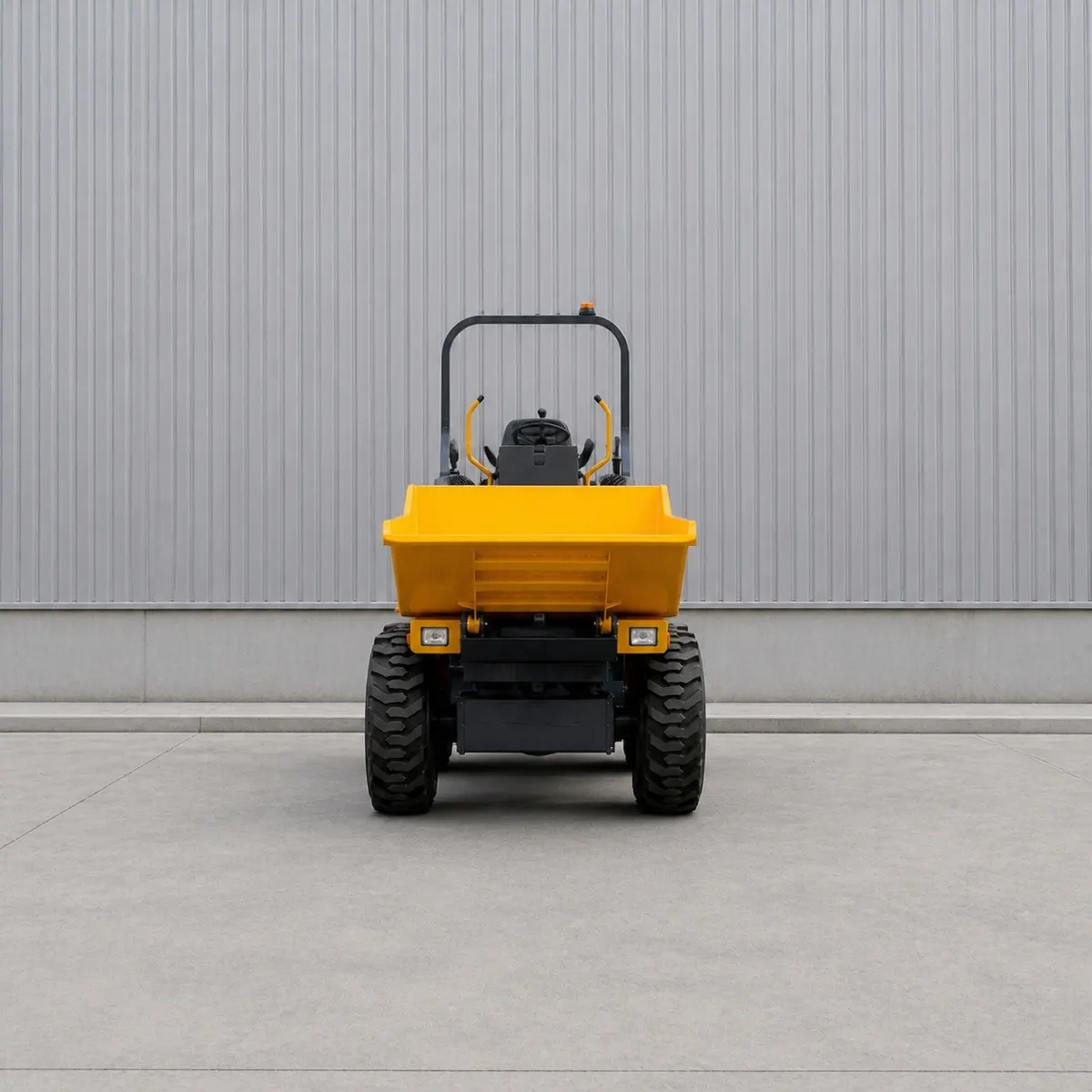

BL-3000 Four-Wheel Articulated Site Dumper
BL-3000 moves and unloads soil or gravel for farm drainage, residential landscaping, rural road repair, and wet access-road maintenance. Its four-wheel articulated chassis, hydraulic lift cylinder, tipping body, and open operator station support controlled material transport in demanding work areas.
- Industrial Parks
- Logistics Routes
- Worksites
- Fleet Operations

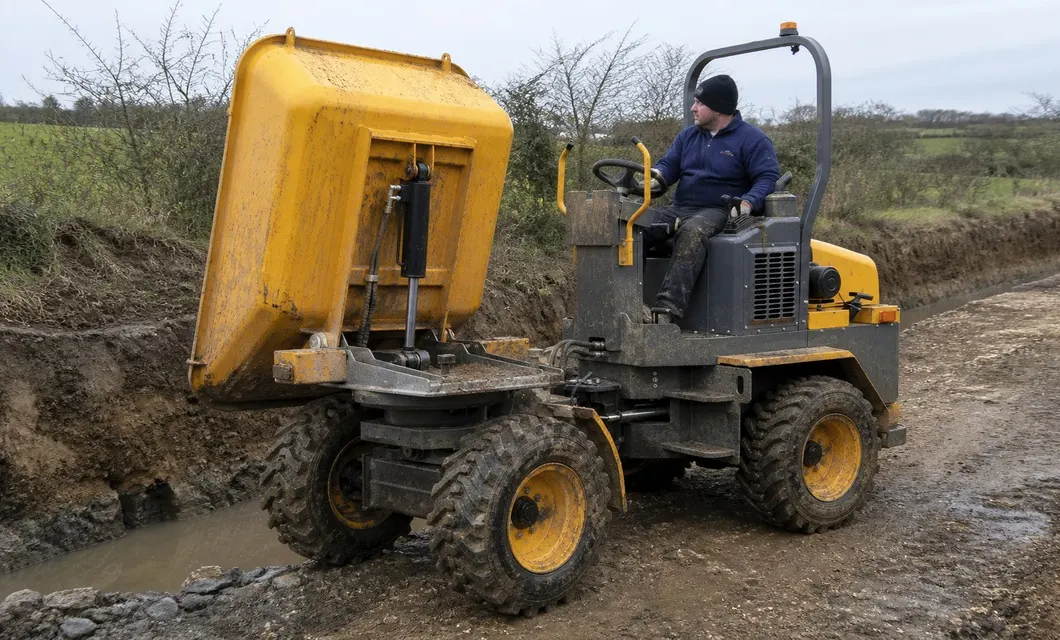

Farm drainage fill transport beside working ditches and wet ground_1784107261075_92Pc.png?x-oss-process=image/resize,m_lfit,w_1200/format,webp/quality,q_82)

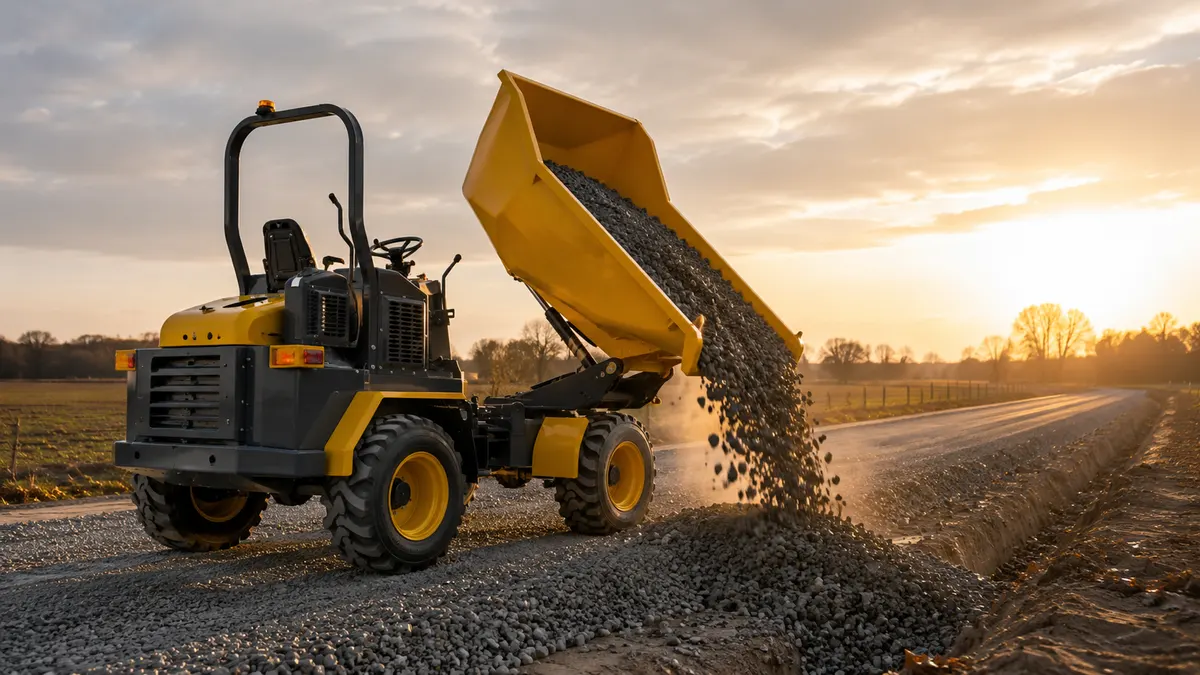

Residential landscaping soil delivery for garden construction workRural road repair aggregate haul across uneven access routes_1784107266929_9URd.png?x-oss-process=image/resize,m_lfit,w_1200/format,webp/quality,q_82)

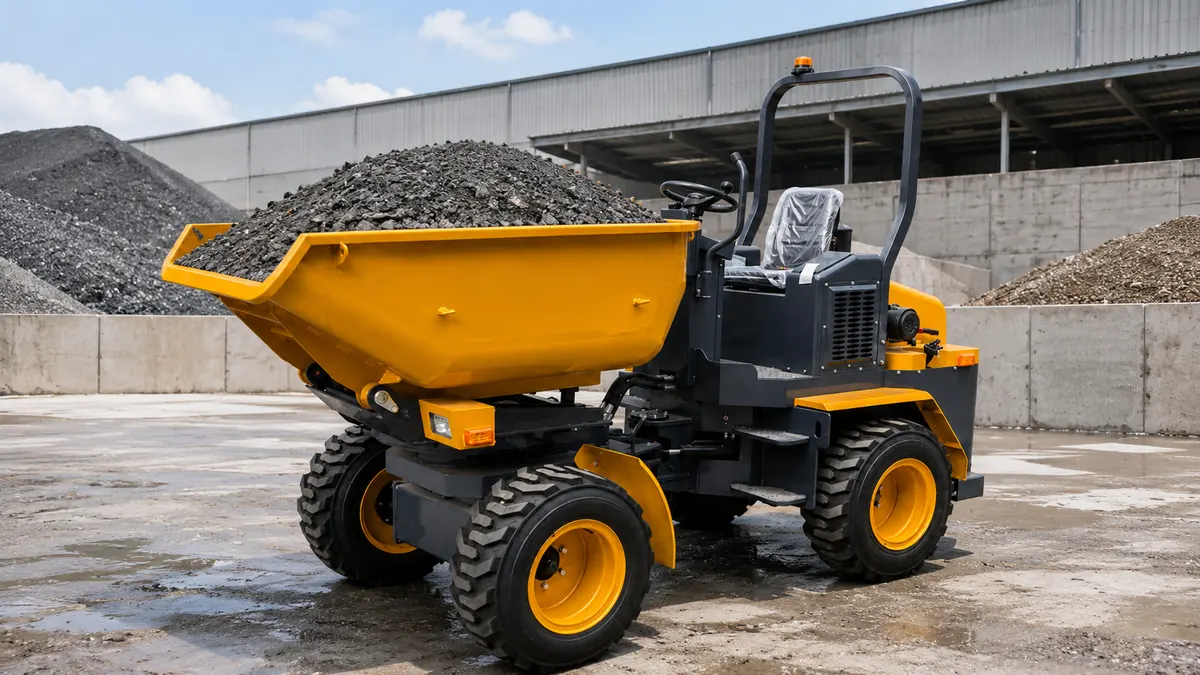

Wet access-road maintenance with controlled material transportFarm drainage fill transport beside working ditches and wet groundResidential landscaping soil delivery for garden construction workProduct Advantages

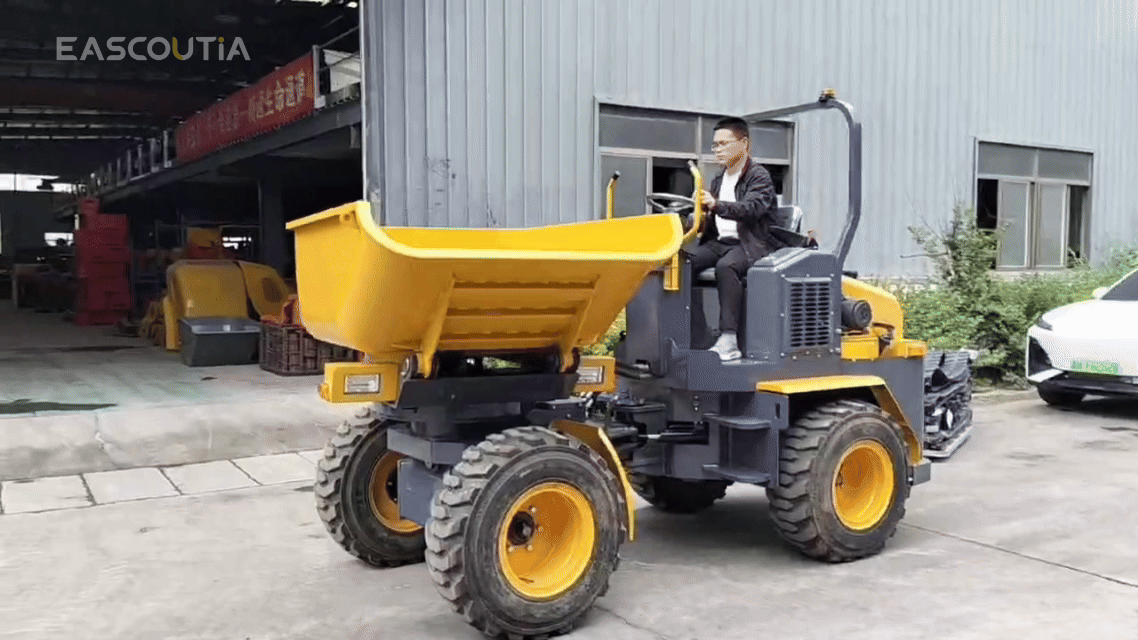

1. BL-3000 Tipping Unloading
Specifications & Structural Decomposition

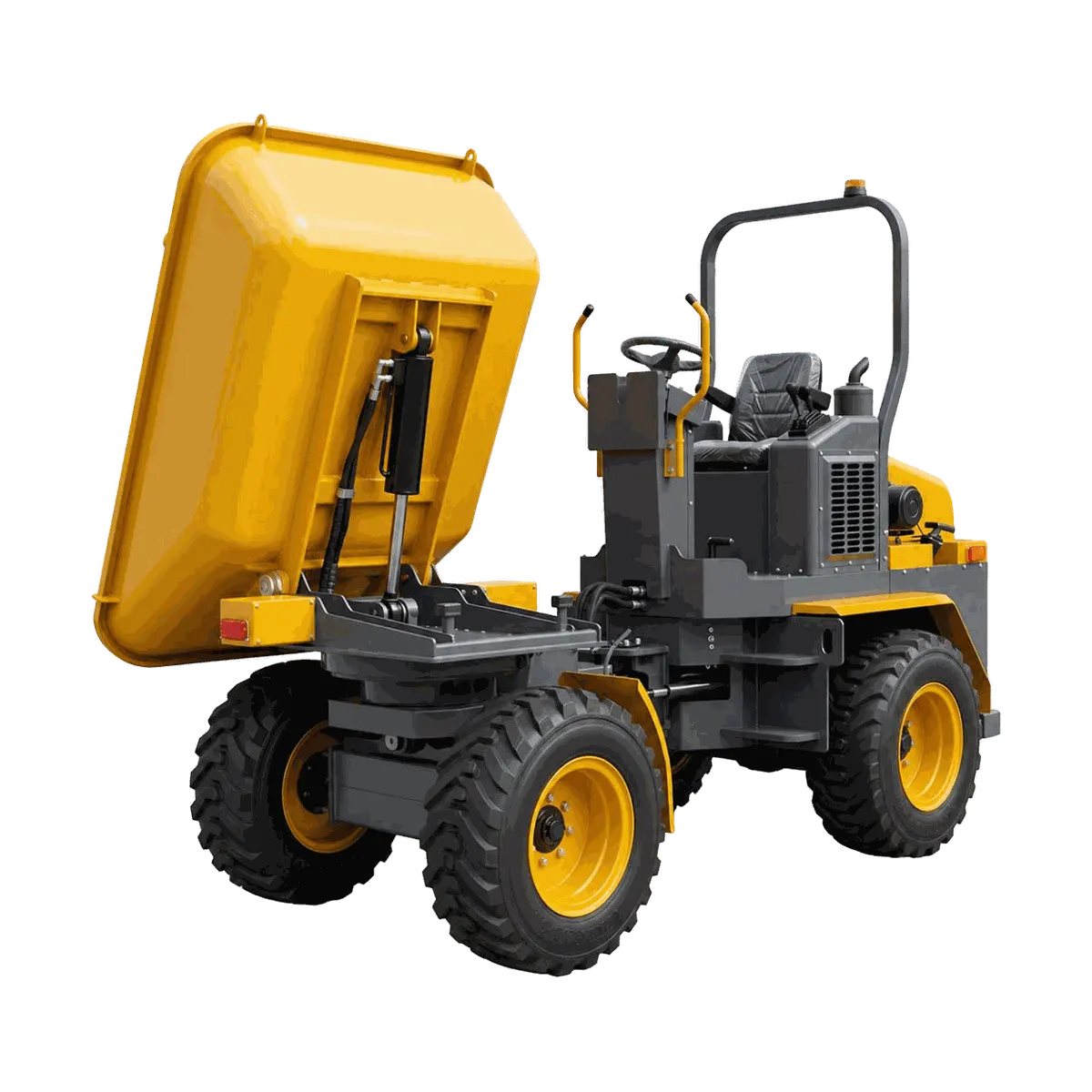

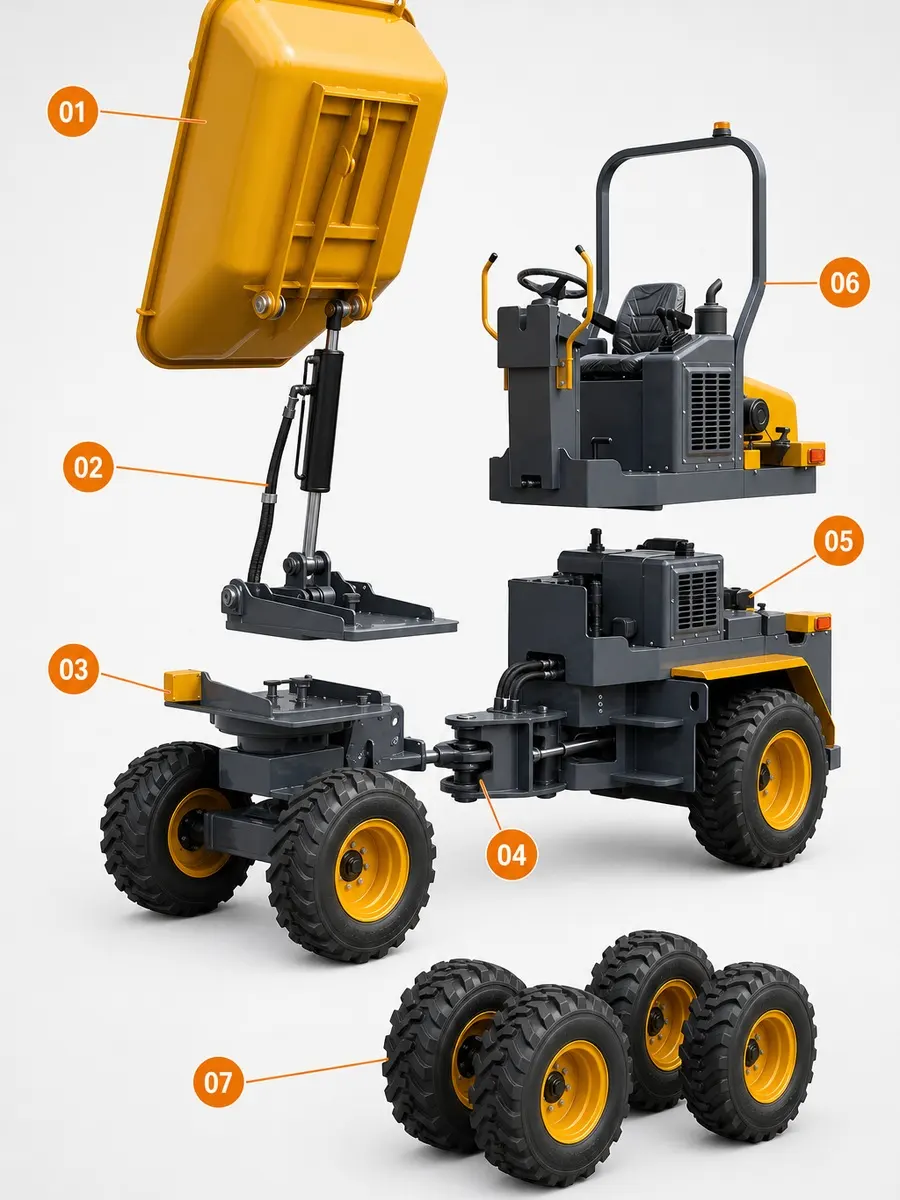

Product Structure Diagram

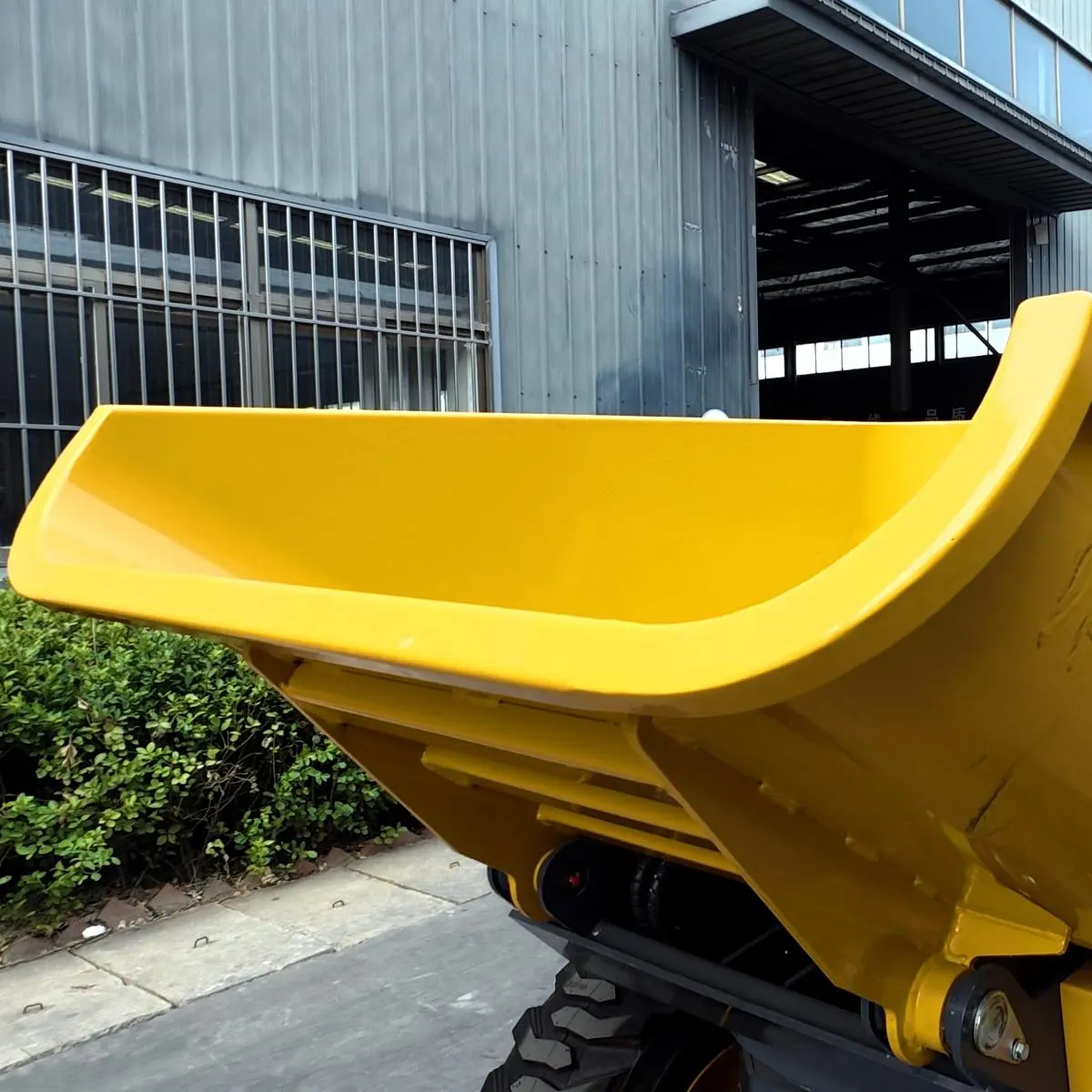

- High-Capacity Dump Hopper
- Hydraulic Lift Structure

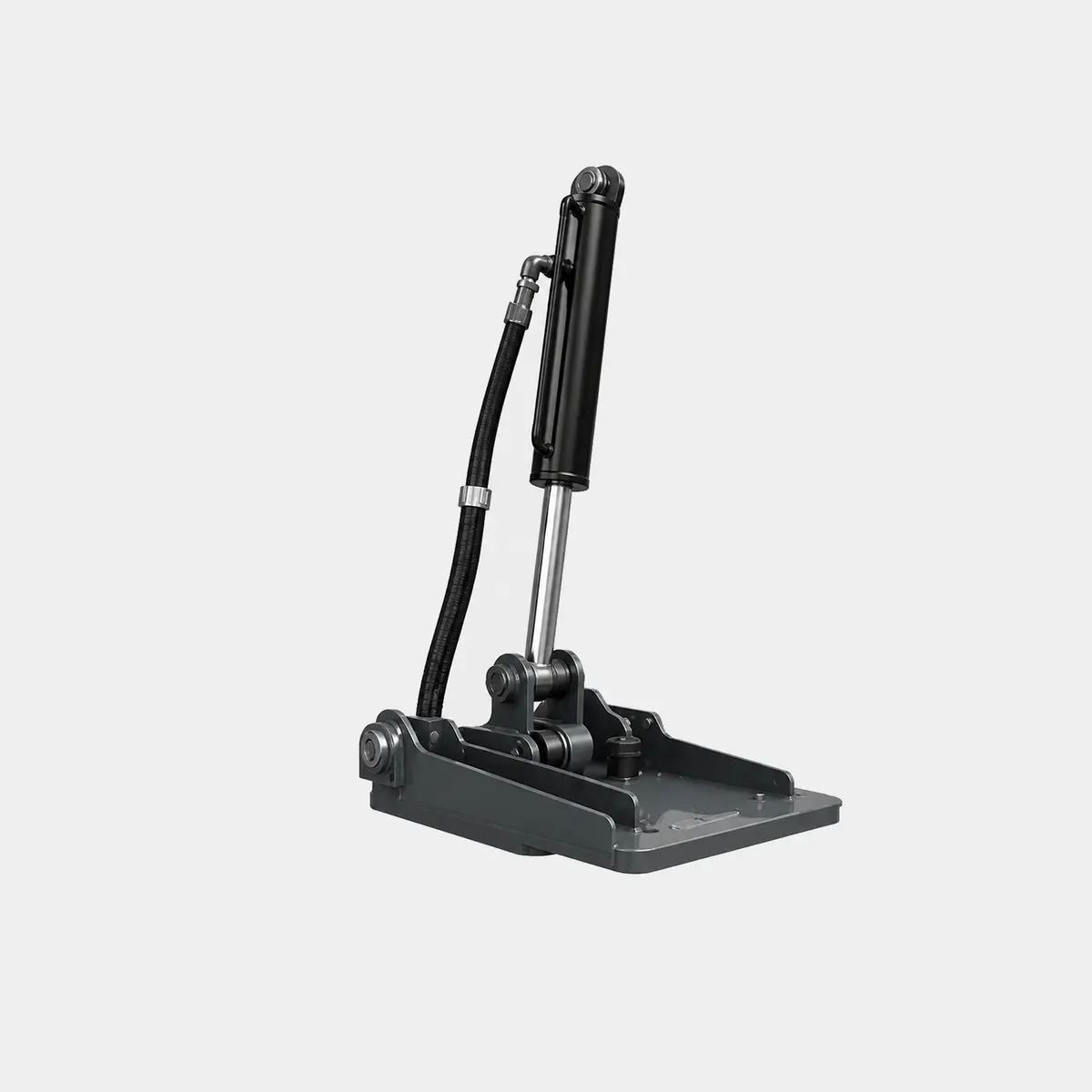

Hydraulic lift structure connects the hopper and chassis for controlled raising and tipping.

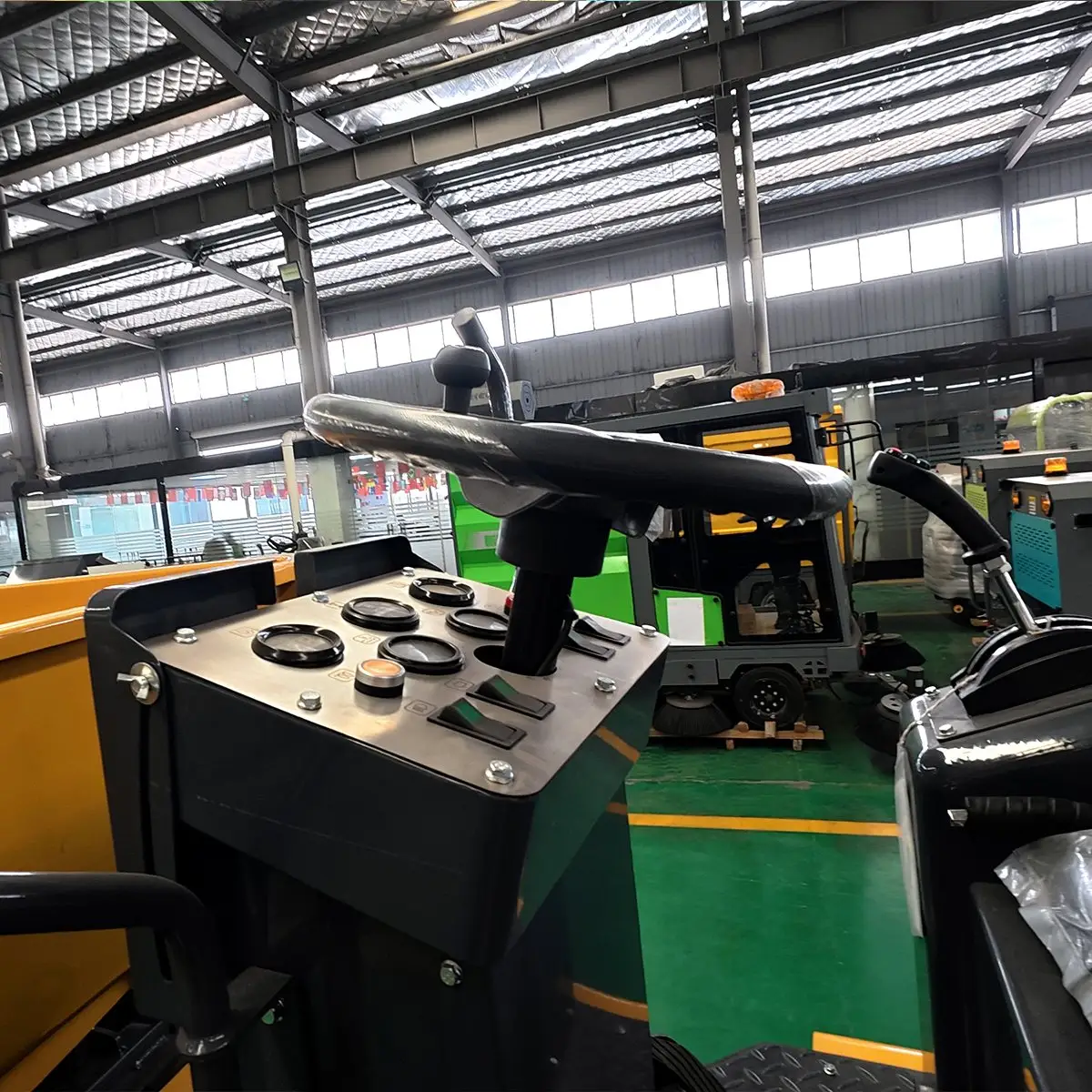

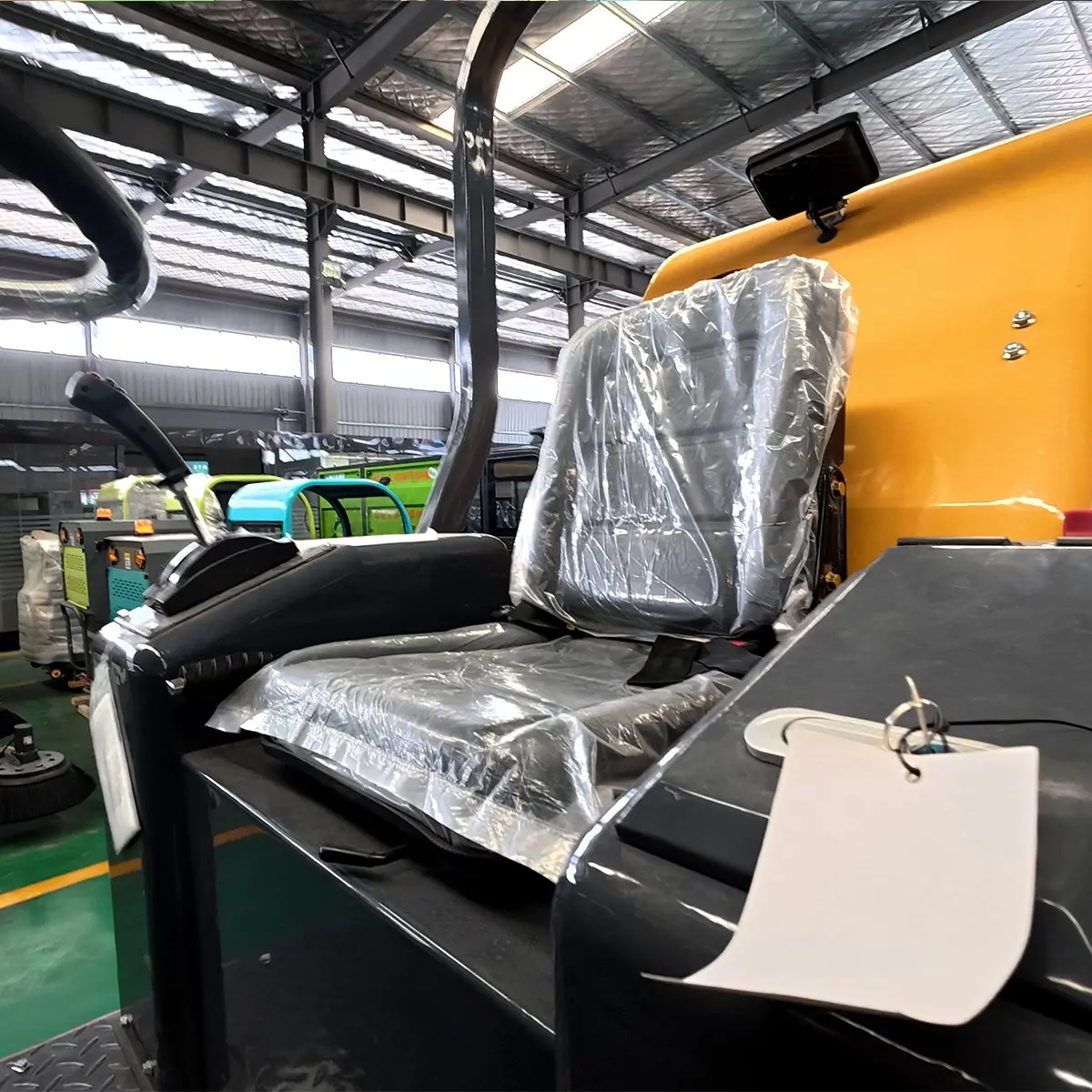

- Operator Seat and Controls
Seat, steering wheel, control lever, and console support direct operation of travel, steering, lifting, and unloading.
- Protective Roll Bar and Warning Light
Protective roll bar with warning light marks the operator area and adds basic overhead protection.
- Engine Side Cover

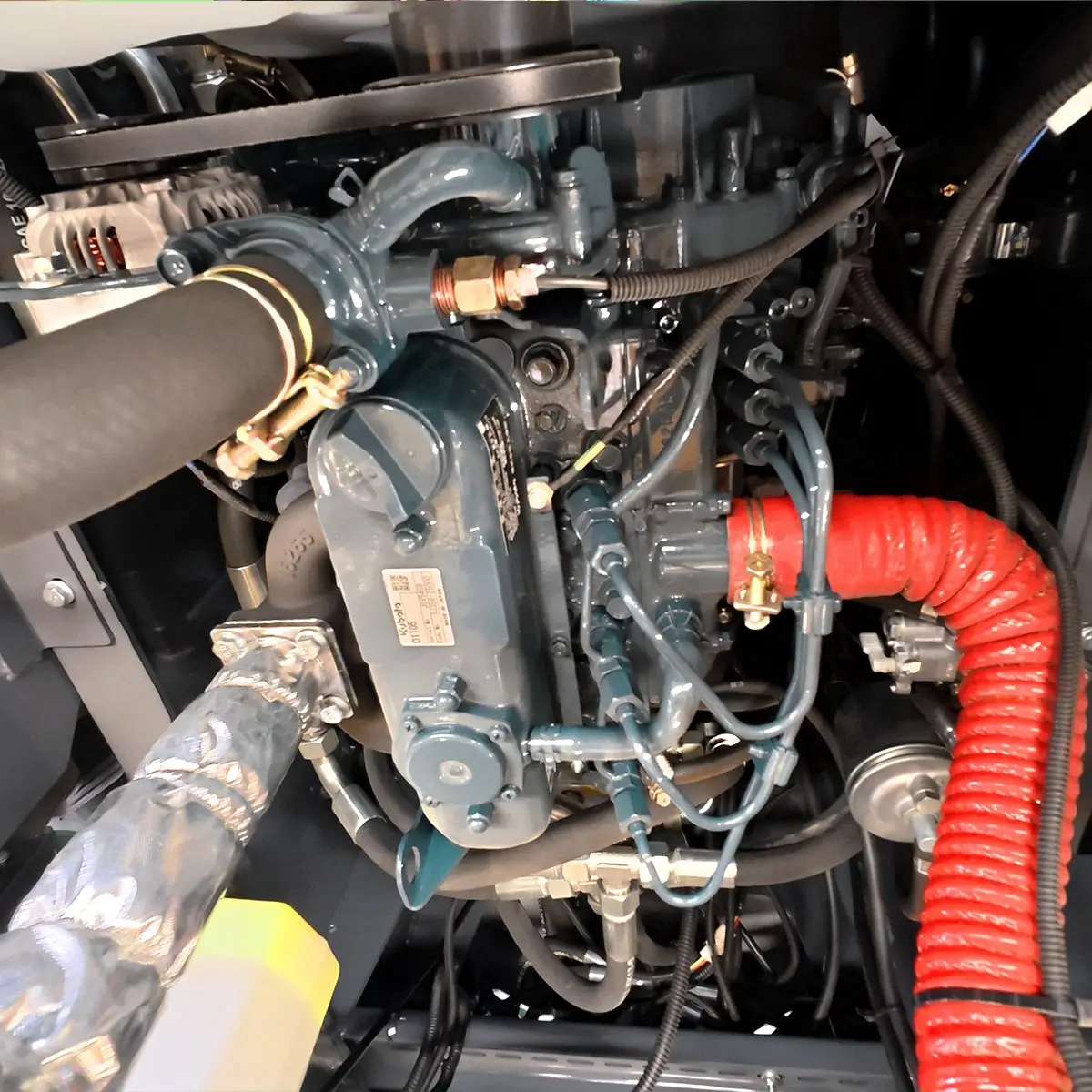

Side cover protects the internal power system and keeps routine inspection access practical.
- Main Chassis Frame
Steel main frame supports the hopper, power system, operator platform, and wheeled chassis.
- Rotary Platform and Support Bearing

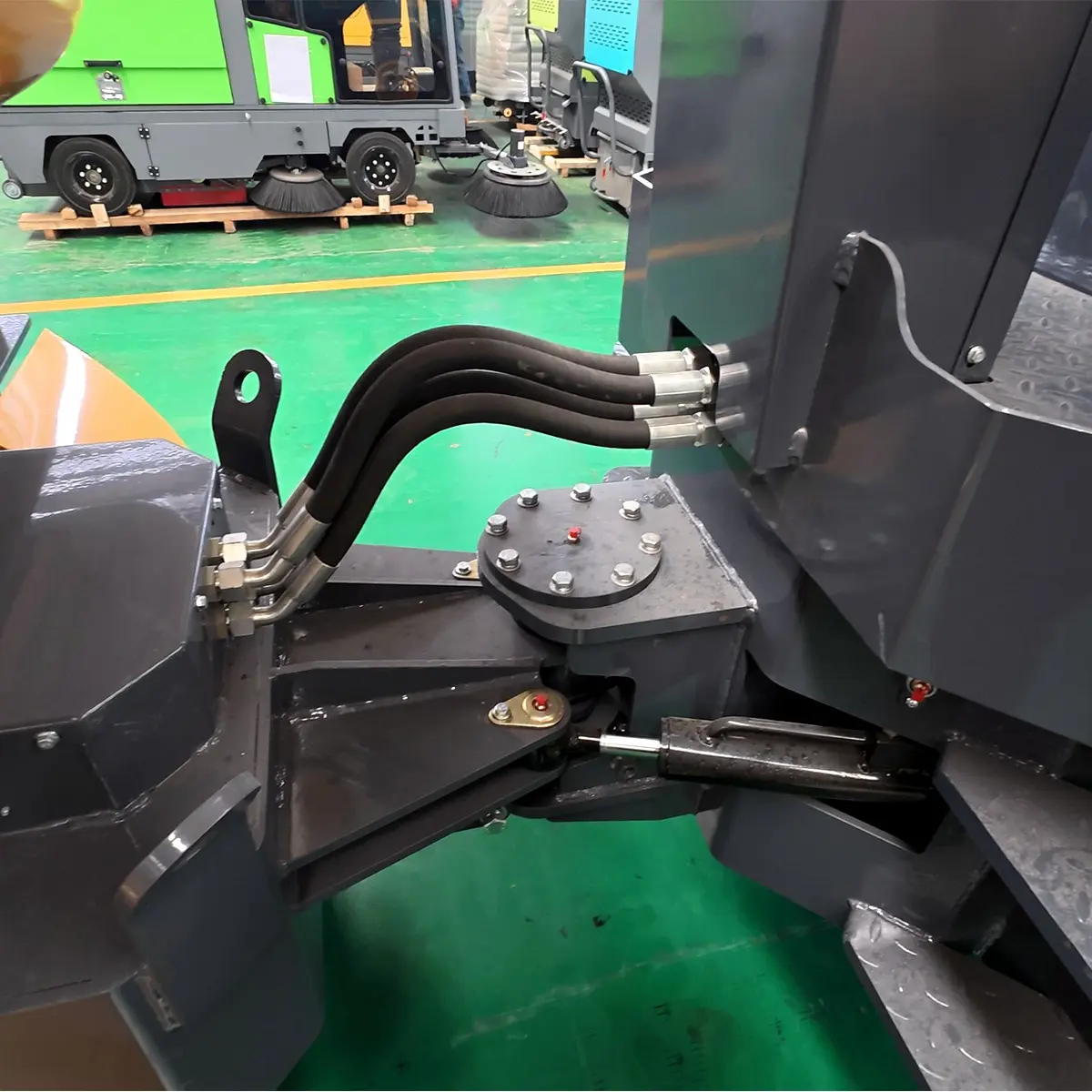

Rotary platform and support bearing connect upper hopper structure to the lower chassis for directional dumping.
General information
- Product Introduction
- +BL-3000 +Engine Model: Kubota D1105+Engine Type: 3-cylinder Water-cooled+Rated Power: 25HP/2800rpm+Fuel Type: Diesel+Machine Weight: 2150kg+Max Load Capacity: 3000kg+Cargo Box Dimensions: 1730*1280*600mm+Overall Width: 1500mm+Cargo Box Capacity: 1.28m³+Tipping Method: Hydraulic+Tipping Angle: 90°+Cargo Box Rotation Angle: 180°+Discharge Height: 750mm+Travel Speed: 12km/h+Gradeability: 30°+Tire Model: 12-16.5
- Standard color
- Yellow and black color scheme
- Feature Overview

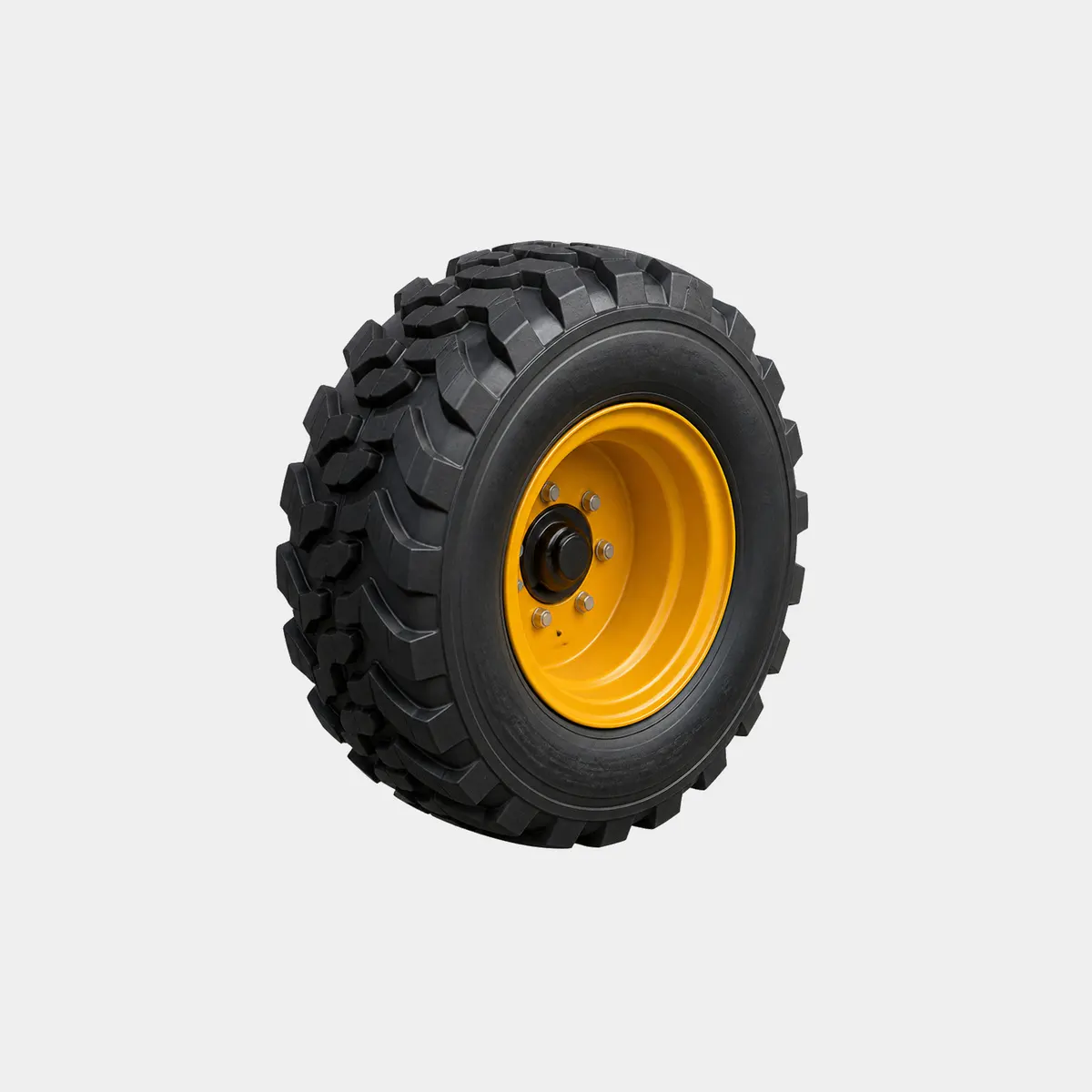

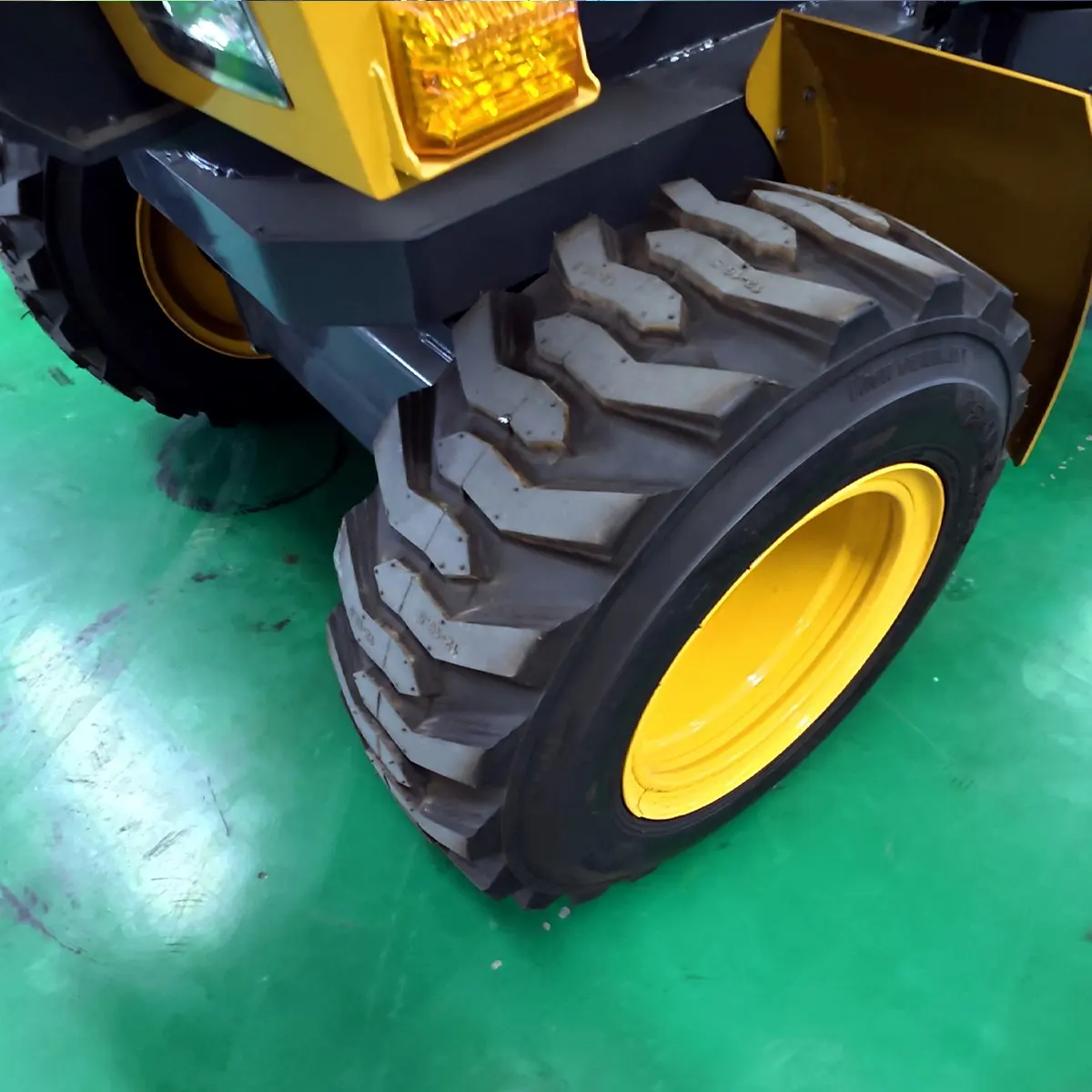

- High-load-capacity industrial tires adapt to various job site conditions. Features an alloy steel slewing bearing and a 360° rotating tipper, combined with a fully hydraulic lifting self-unloading system for precise multi-directional dumping without frequent machine repositioning. Together with high-sensitivity controls and comfortable shock absorption design, it achieves integrated efficient operation from loading to multi-angle dumping – saving labor and cost, improving efficiency.
- Standard product configuration
- Kubota D1105 25HP diesel engine compliant with US EPA Tier 5 & EU Stage V emission standards + electronic control switch assembly + driveline assembly Hydraulic pump + multi-way control valve + operator control console Hydraulic hopper High-load wide industrial tires + reinforced chassis frame Adjustable suspension seat + steering control system
- Container loading quantity
- 20GP/1set 40HQ/3set
- Assignment scenario
- Rural infrastructure/construction site applications: Designed for self-built rural homes and small-scale site paving, it features fast wheeled mobility, stable and reliable high‑load‑carrying tires, and a seated‑operator design ideal for extended work shifts, efficiently handling the transport of sand, gravel, and excavated spoil. Municipal/Road Maintenance Scenarios: Ideal for municipal projects and road maintenance operations, ensuring smooth travel on paved surfaces. The elevated driver’s seat provides a wide, unobstructed view, reducing safety risks and making it well-suited for material transport on urban and rural roads. Material yard/small‑scale mining applications: sand and gravel yards, building materials markets. Featuring a high‑strength steel structure and high‑load‑carrying tires, it is designed for heavy‑duty, continuous material handling, with precise control and flexible discharge capabilities to enhance operational efficiency at the yard. Agriculture/Landscape Engineering Scenarios: For farms and landscaping projects, it hardens construction sites and is ideal for transporting materials such as fertilizers, building supplies, and excavated spoil. Its operator‑seated design ensures comfortable operation, reducing fatigue during extended work periods.
- Competitor’s sales pitch
- Core Advantage Speech Compared with tracked dump trucks: wheeled models offer faster mobility and higher operational efficiency on paved surfaces, while the cab‑in‑front design is well‑suited for extended shifts, making them ideal for construction sites, material yards, and other hard‑surface environments. Compared to the non-seated/manual‑push model: the seated, shock‑absorbing seat offers a wide field of view, comfortable and safe operation, reduces fatigue during extended use, and delivers significantly higher efficiency. Compared with tricycles and manual transport: high load capacity, hydraulic self‑unloading system, enabling a single operator to handle both transport and unloading, doubling efficiency and significantly reducing labor costs. Objection Response Higher price: The ride‑on design enhances operator comfort and safety, while the heavy‑duty frame is tailored for high‑load applications, delivering greater efficiency and a faster return on investment. Compared to the tracked model, the wheeled version excels in efficient operations on paved surfaces, offering higher speeds and greater load capacity. In construction sites and material yards, it outperforms the tracked variant, making it the ideal choice for hard‑surfaced areas. Maintenance convenience: Uses standard‑compliant steel structures and universal components, ensuring easy maintenance, high durability, and lower long‑term operating costs.
General instructions
Simplified explanationProduct Attachments or Core Configurations
Product Video
Static display of a 3,000‑ton dump truck
Static display of a 3,000‑ton dump truck. Full static view of the heavy-duty dump truck with reinforced structure and oversized cargo bed. Exquisite solid details fully present its powerful heavy-load capacity.
Static display of a 3,000‑ton dump truck
00:20Static display of a 3,000‑ton dump truck. Full static view of the heavy-duty dump truck with reinforced structure and oversized cargo bed. Exquisite solid details fully present its powerful heavy-load capacity.
Dynamic display of the 3000 dump truck
00:32Dynamic display of the 3000 dump truck. Real dynamic working display of the 3000-ton heavy dump truck. Powerful output and stable driving. Reliable lifting and thorough unloading suit high-load mining and construction scenarios.
Product packaging
00:48Product packaging. Standard packaging process for the 3000-ton dump truck. Key parts fully protected with organized accessories. Shockproof and moisture-proof packaging prevents transit damage for intact delivery.
Container loading video
00:18Container loading video. Real loading footage of the 3000-ton dump truck. Precise placement and professional fixation resist long-distance transportation bumps, ensuring safe and intact overseas delivery.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
Where is the BL-3000 typically used?
It is commonly used for industrial parks, logistics routes, worksites and managed fleet operations, subject to the selected model and site conditions.
How do I choose the right model?
Match payload, dimensions, axle or tire specification, powertrain, route and regulatory requirements to the actual workload and operating environment.
What should be confirmed before ordering?
Confirm model, color, payload, axle or tire specification and optional equipment, then verify the response time and any special requirements.
How should it be installed and maintained?
Prepare delivery inspection, approved registration where applicable and scheduled tire, brake and fluid checks; follow the manual for operation, inspection and routine maintenance.
