Mixing tank dump truck

Name: Mixing tank dump truck
SKU: p1_0Dak9AnMr7KSYt0
Availability: InStock

The mixing-tank dump truck is designed based on actual operational needs, with the cargo body and chassis perfectly matched to material-transport requirements while ensuring load-carrying stability.

BL-750

Core parameters

Full specifications

Standard color: Yellow and black color scheme
Standard product configuration: Briggs & Stratton 13.5HP gasoline engine + electronic control switch system + driveline assembly Hydraulic pump + control valve + control console Mixing drum + hydraulic shovel Folding step + rubber track chassis
Configuration upgrade: Changchai 192 China Stage II Diesel Engine Koop 192 Euro V Diesel Engine Honda GX390 EPA Certified Gasoline Engine

QuantityUnit: Units

Get a Tailored Procurement Plan

Product Model: BL-750
Product Color: Confirm from the selected configuration
Response Time: Within 24 hours
Special Requirements: Confirm against actual project needs

Integrated Workflow

Mixing, transport, and dumping work in one compact tracked machine, reducing manual handling and separate support equipment onsite.

Confirmed 750 kg Load

The confirmed 750 kg maximum load supports concrete, mortar, aggregate, and other materials for compact construction tasks.

Efficient 90-Degree Dump

Hydraulic dumping reaches a confirmed maximum angle of 90 degrees for smoother discharge and less manual material clearing.

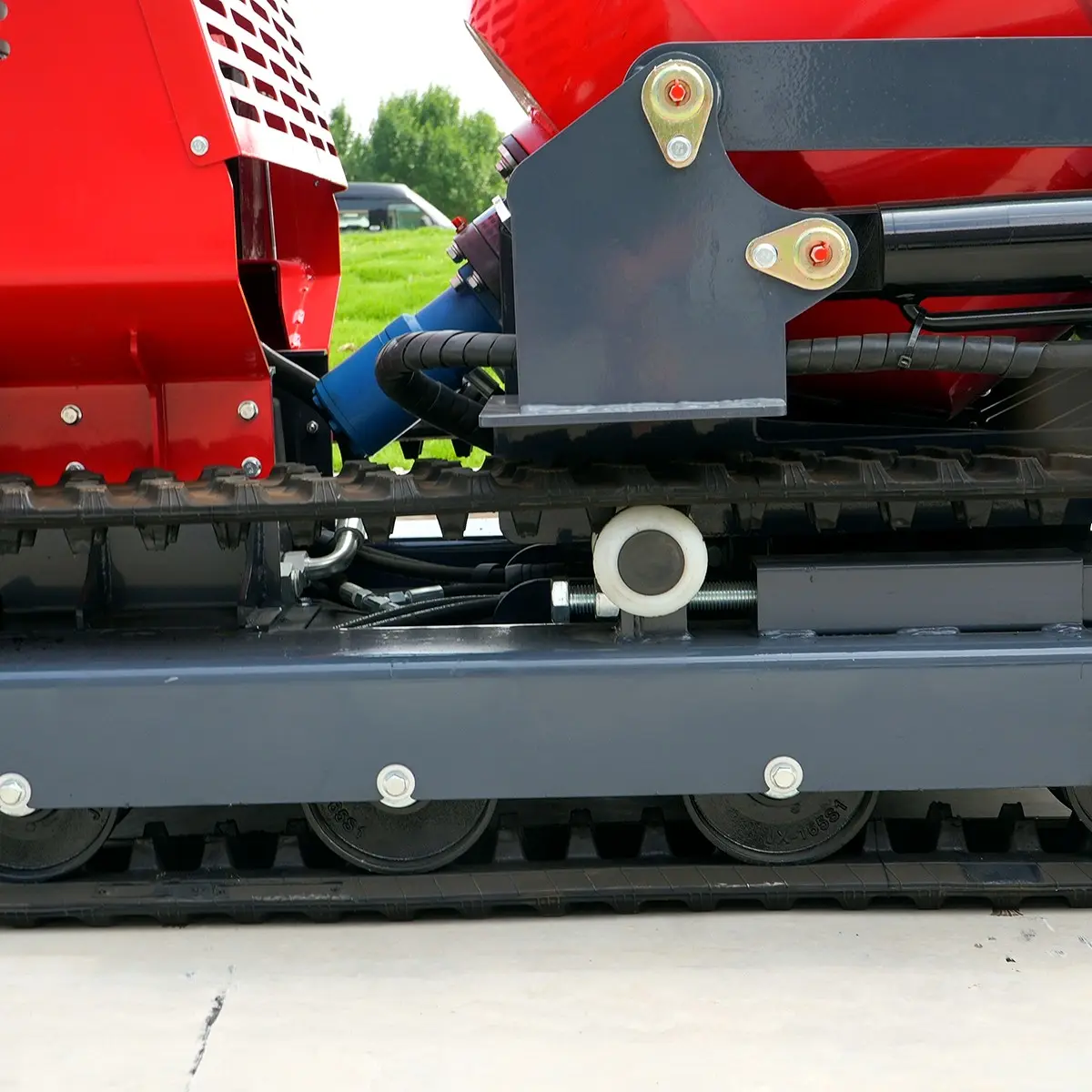

Stable Tracked Travel

Rubber tracks provide useful traction and stability across mud, gravel, slopes, and uneven access routes around active jobsites.

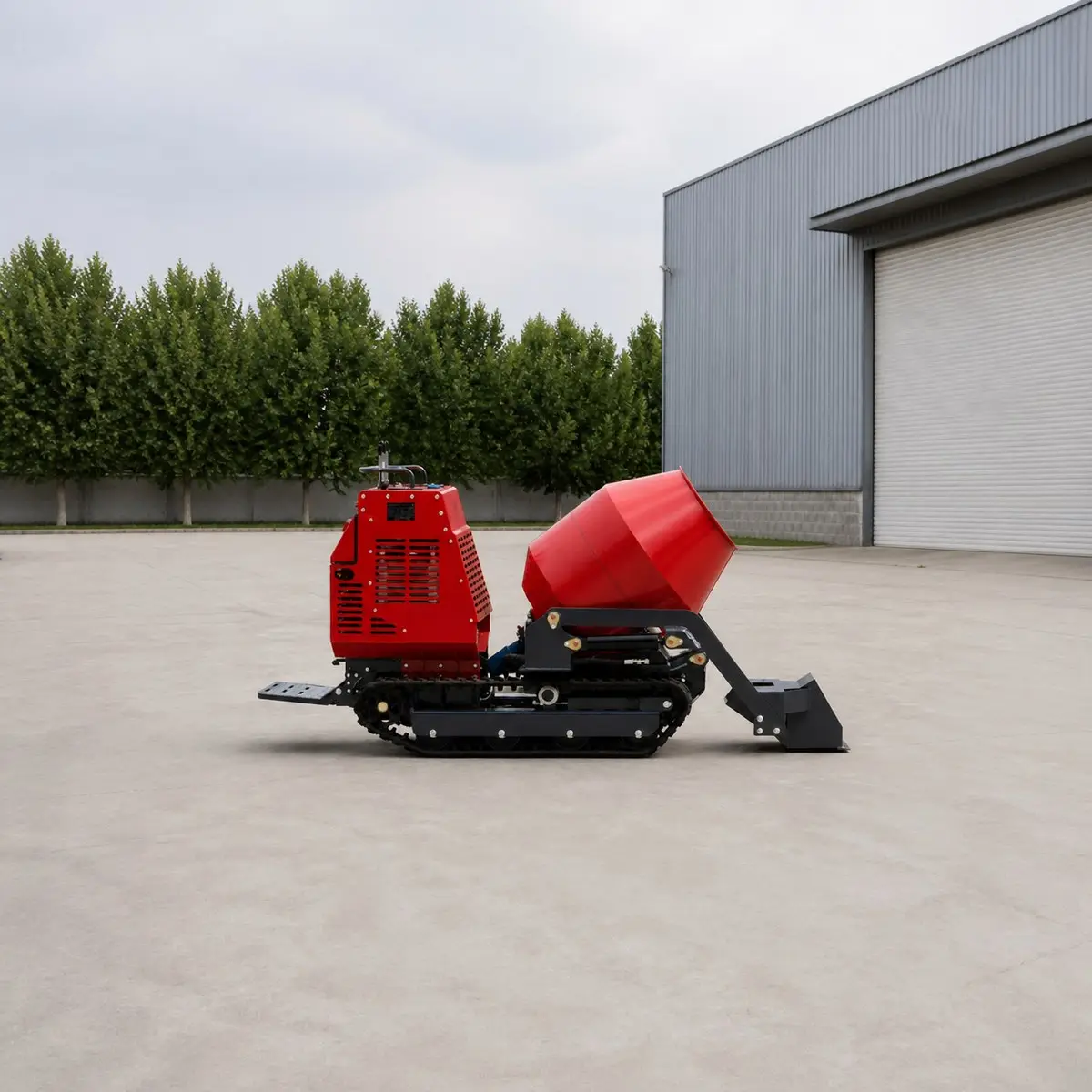

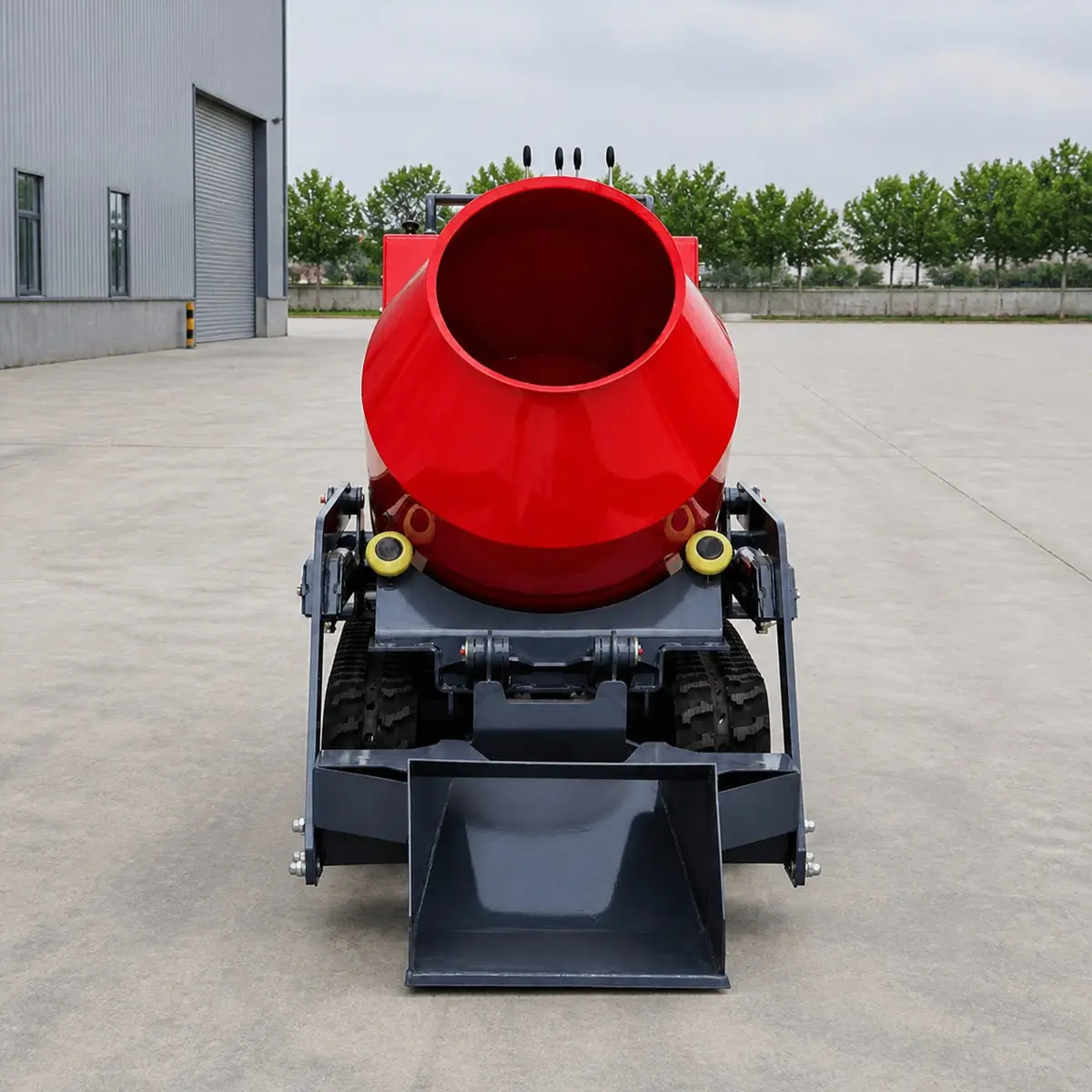

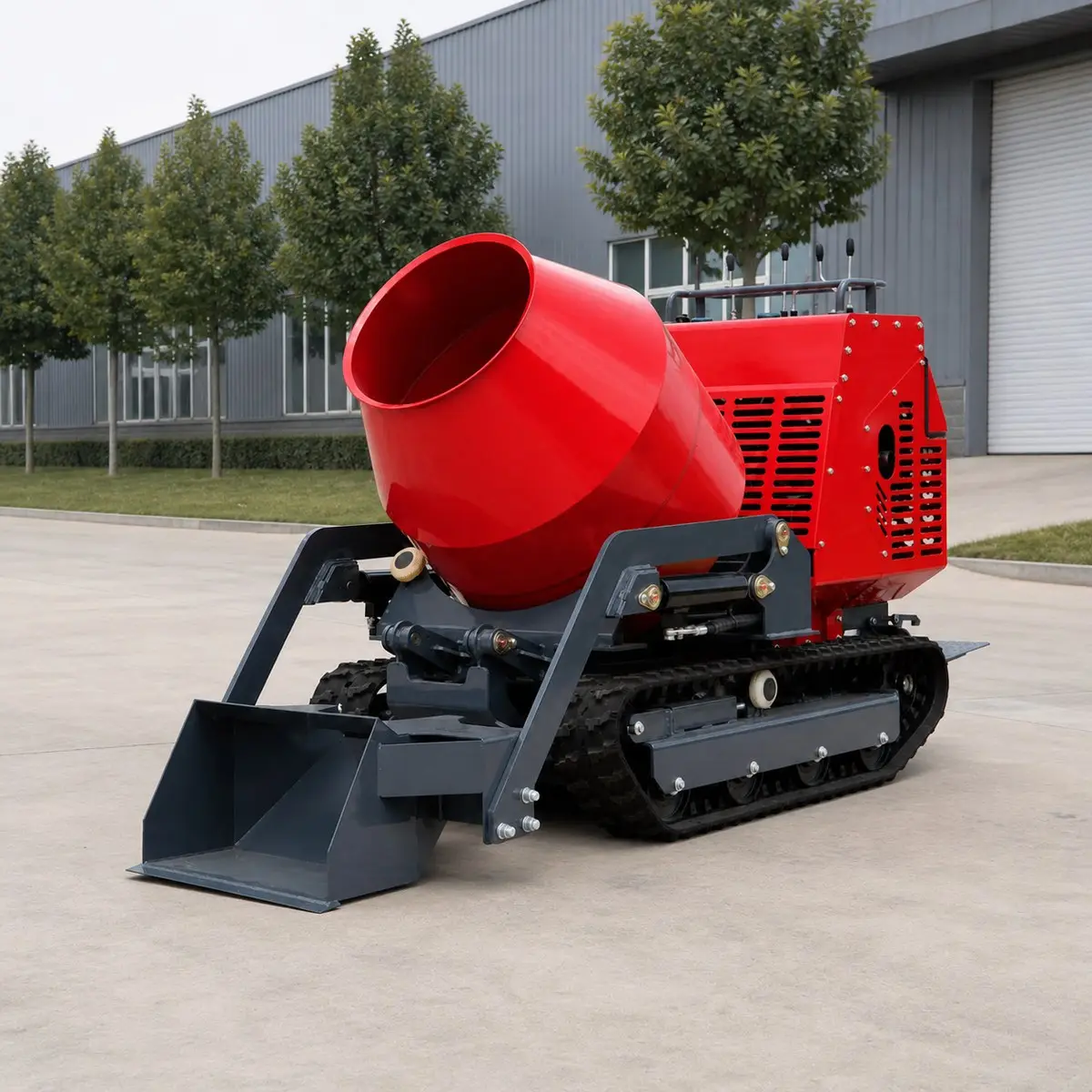

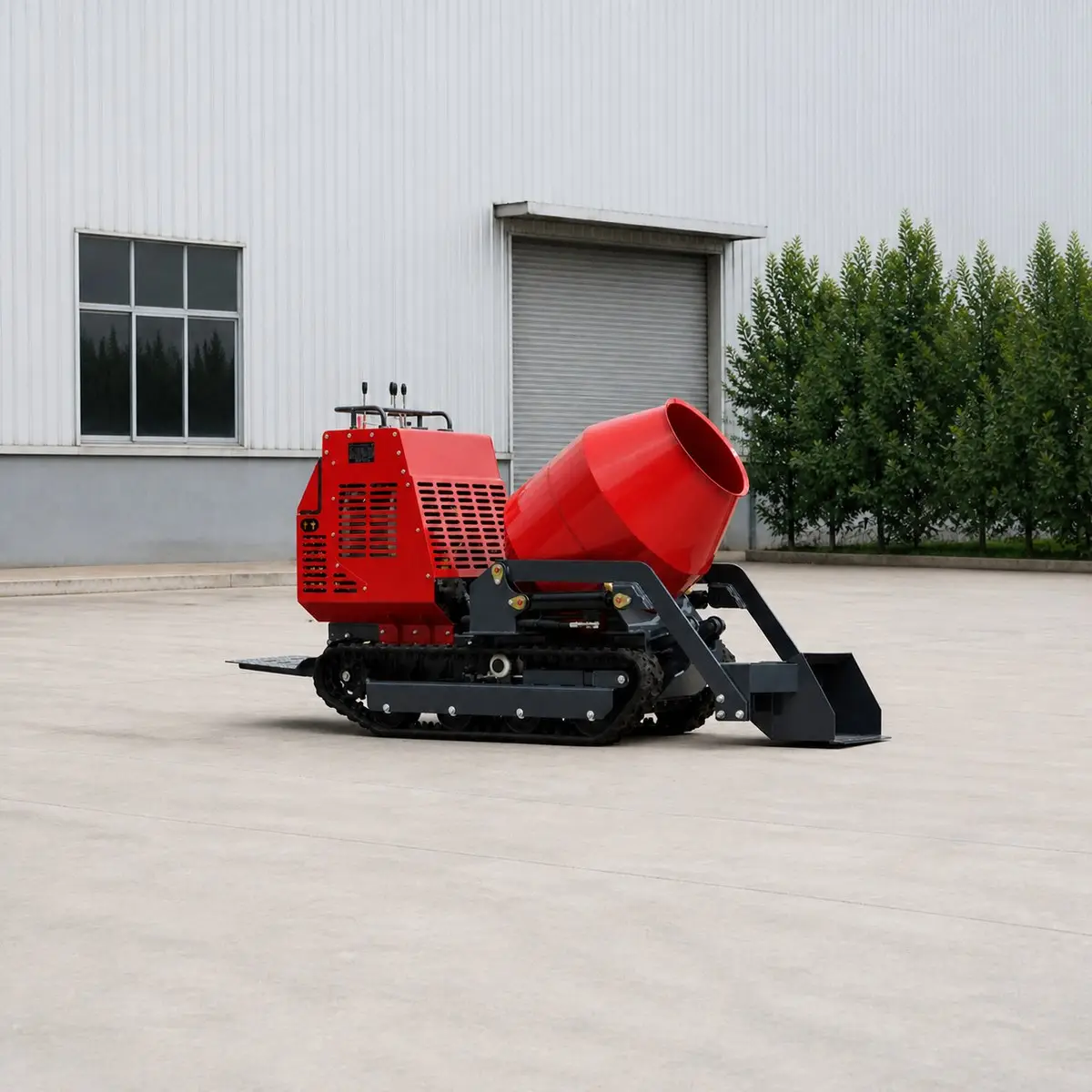

BL-750 Compact Tracked Mixer Dumper

One Machine for Mixing and Material Flow

The BL-750 supports compact construction, roadside repair, courtyard work, farm improvements, and narrow access routes. Its tracked chassis moves across loose or uneven ground while the drum mixes concrete or mortar. The front bucket assists loading, and hydraulic dumping provides controlled material discharge.

Backyard Base
Foundation Mixing
Gravel Loading
Roadside Repair

Gravel bucket loading and aggregate handling at active roadside jobsites

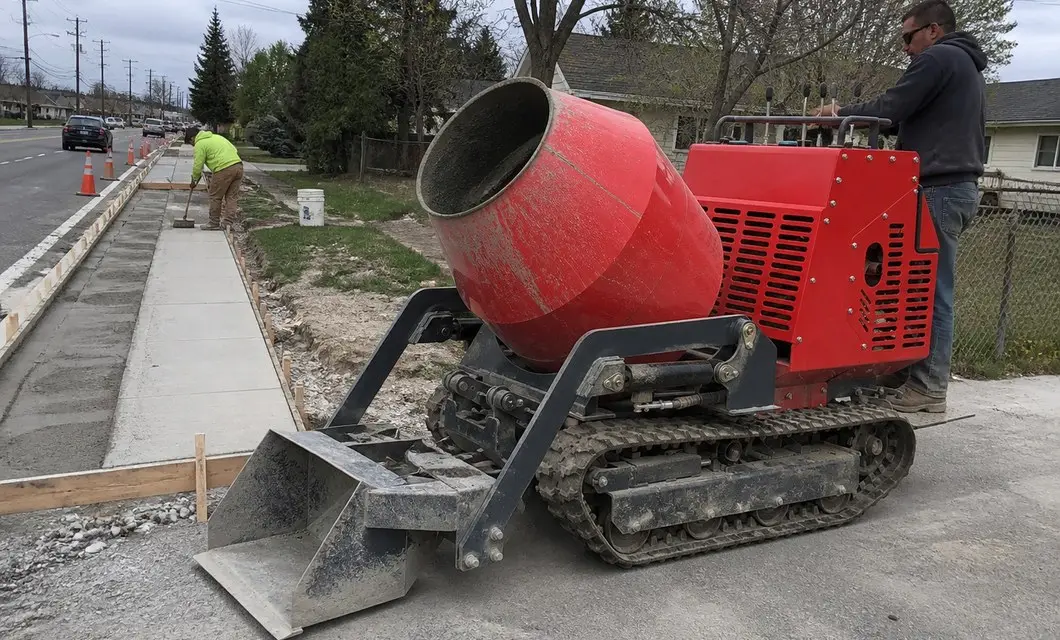

Roadside patch mixing for drainage and access route repair work

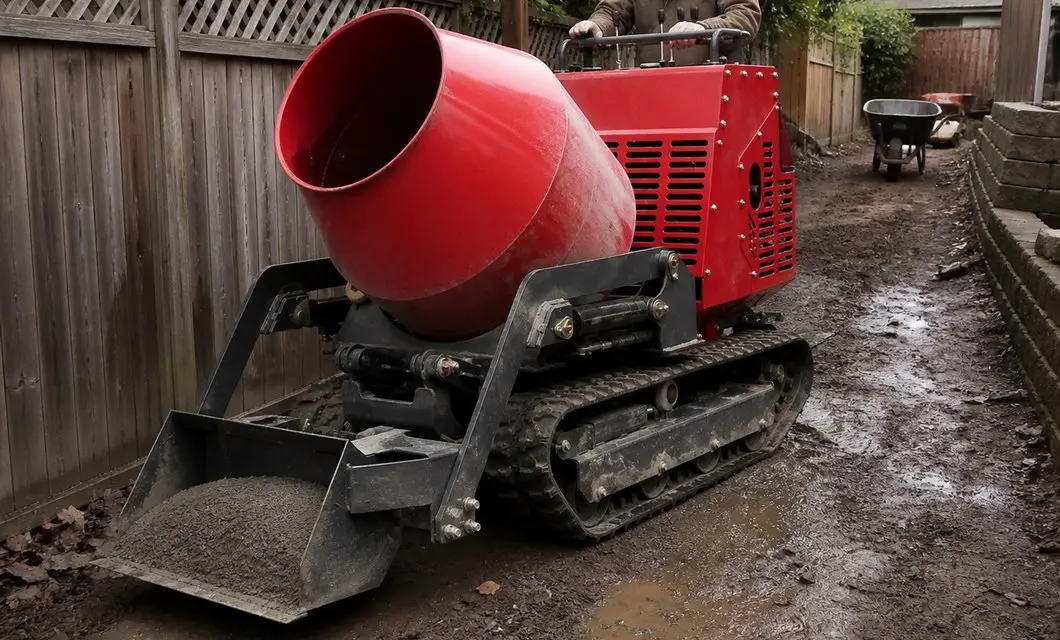

Backyard base mixing and gravel transfer through muddy access routes

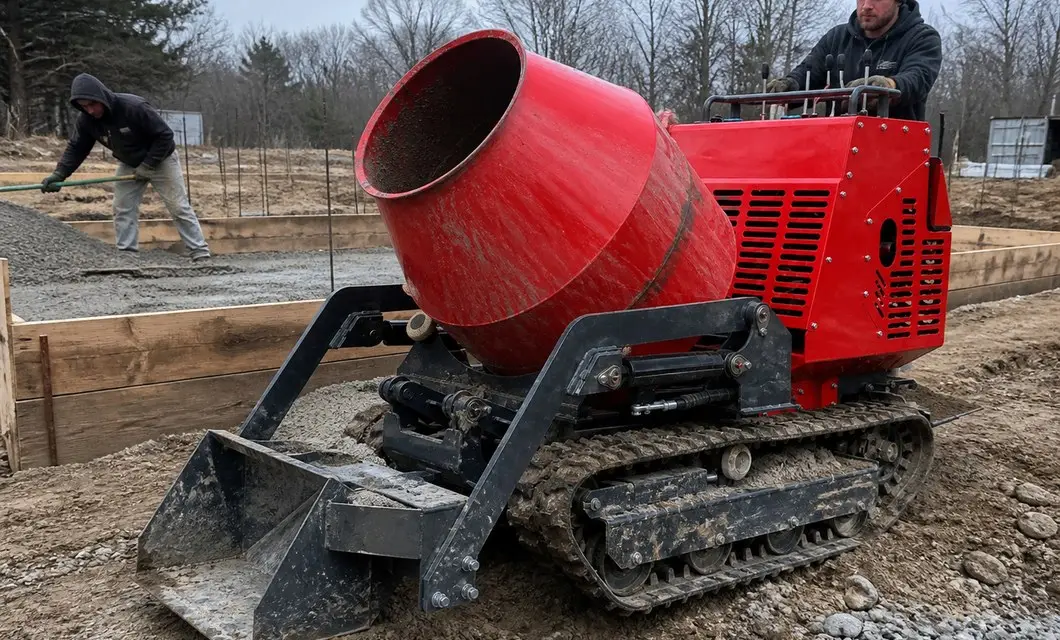

Foundation mixing beside rough timber forms on compact construction sites

Gravel bucket loading and aggregate handling at active roadside jobsites

Roadside patch mixing for drainage and access route repair work

Backyard base mixing and gravel transfer through muddy access routes

Foundation mixing beside rough timber forms on compact construction sites

Product Advantages

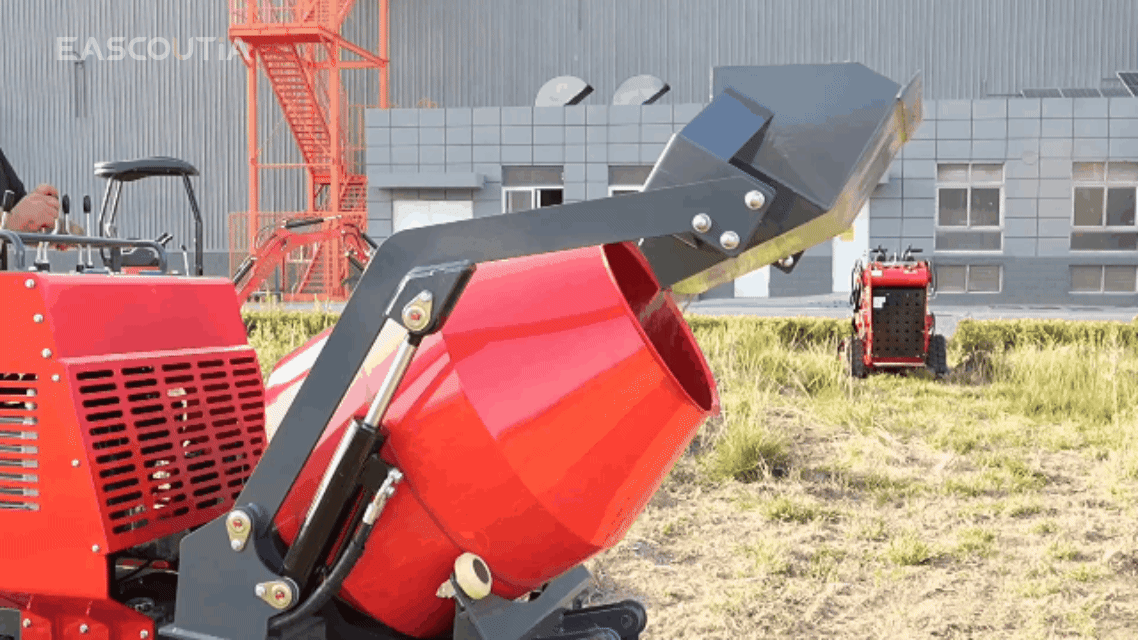

750 unloading

Specifications & Structural Decomposition

Product Structure Diagram

Mixing Drum
300 dm³ drum blends concrete or mortar with internal mixing blades for consistent material quality.

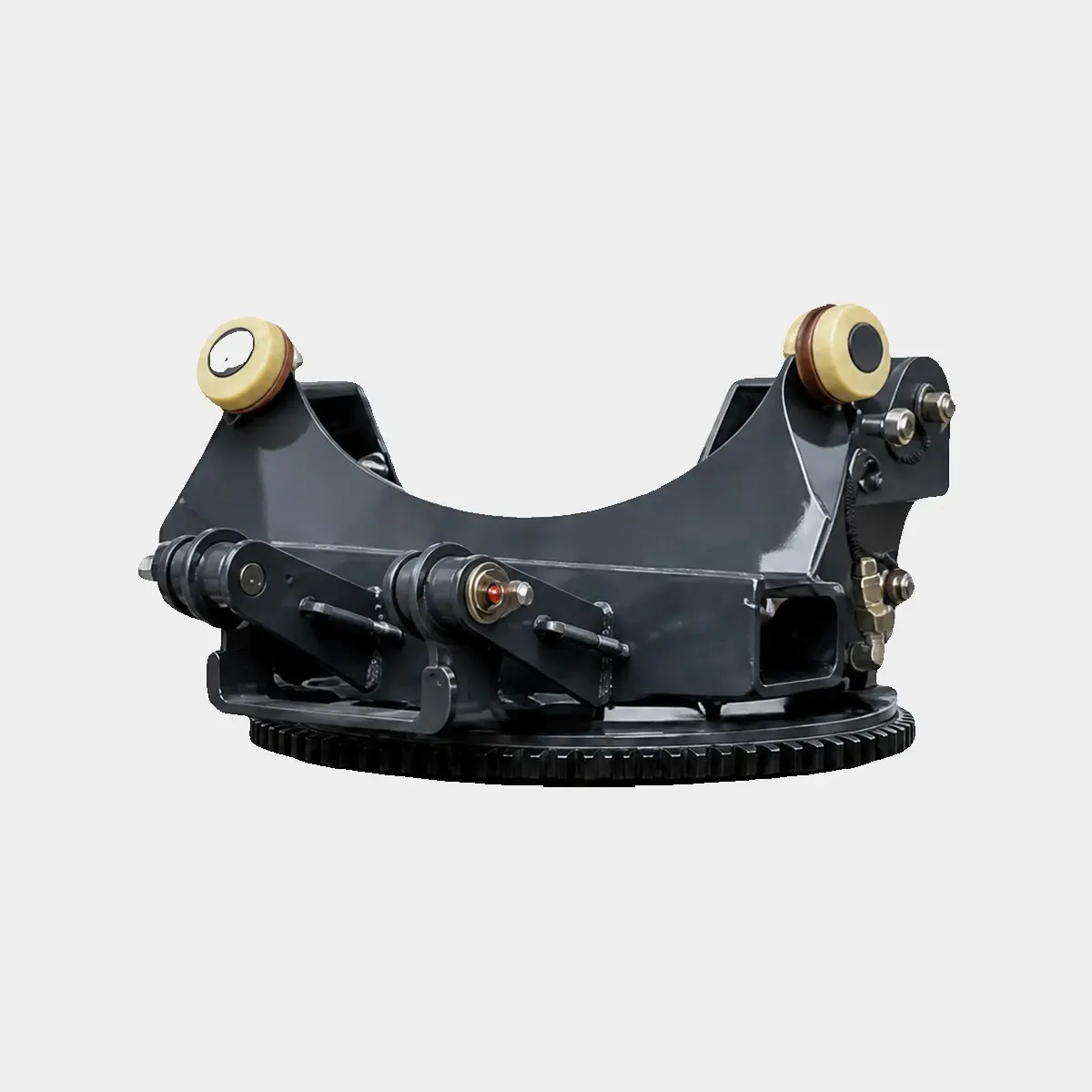

Drum Support Frame
Support frame holds the drum securely and maintains stable rotation during mixing and travel.

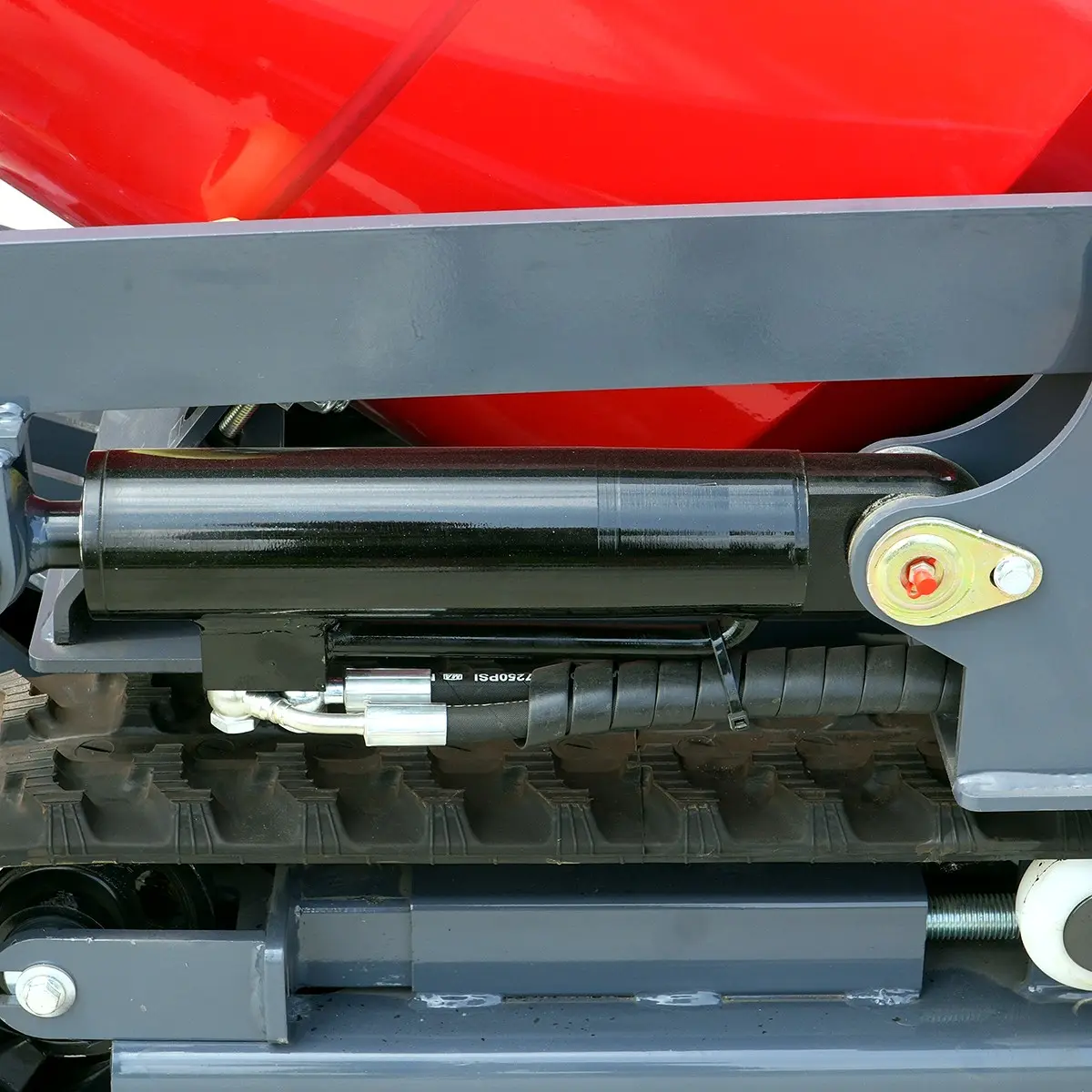

Hydraulic Cylinder
Hydraulic cylinder powers drum tipping and lifting actions with controlled extension and retraction.
Lifting Link Arms
Link arms connect the loading bucket and chassis to guide stable lifting and material handling.

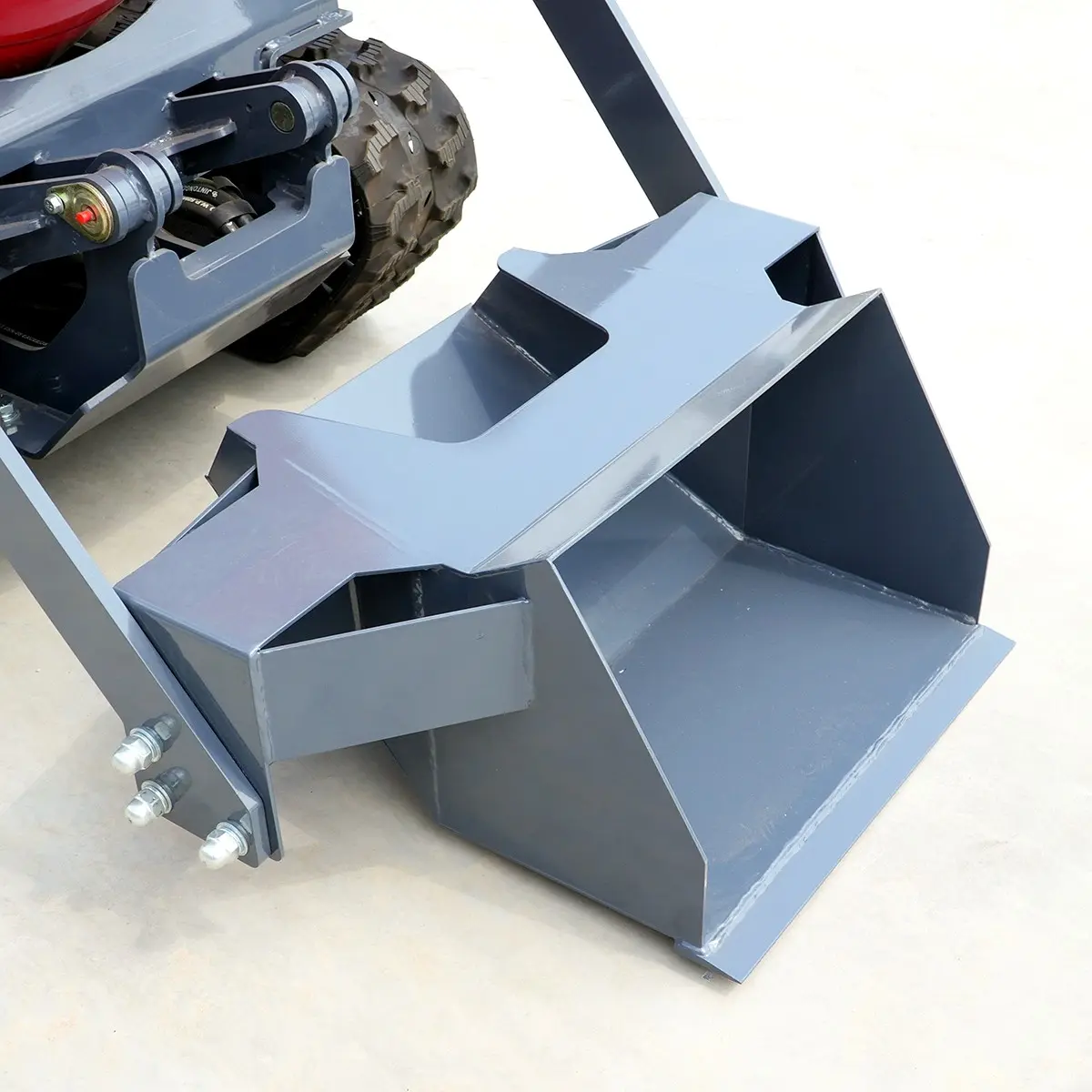

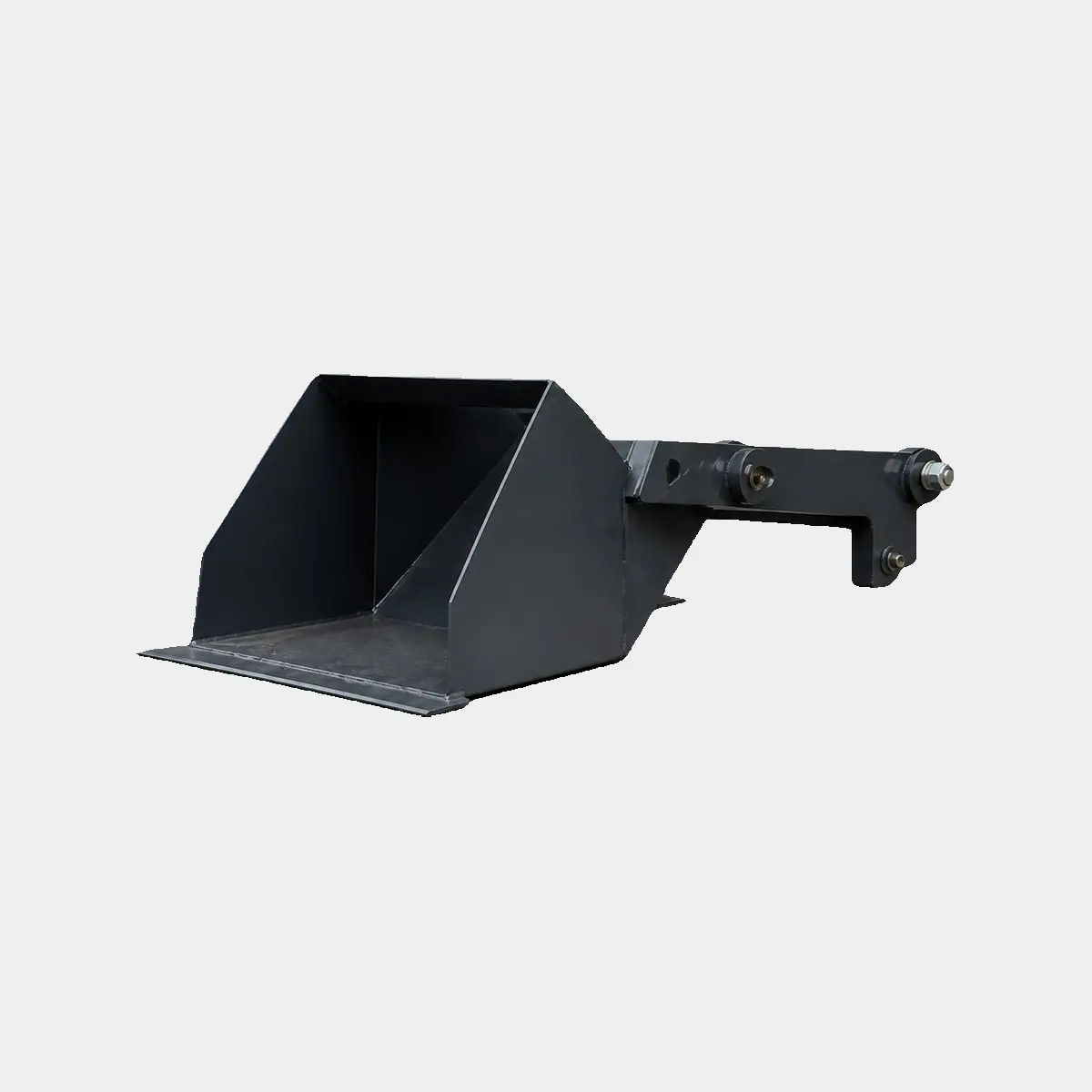

Front Loading Bucket
Front bucket scoops sand gravel and mixed material to support integrated loading and mixing.

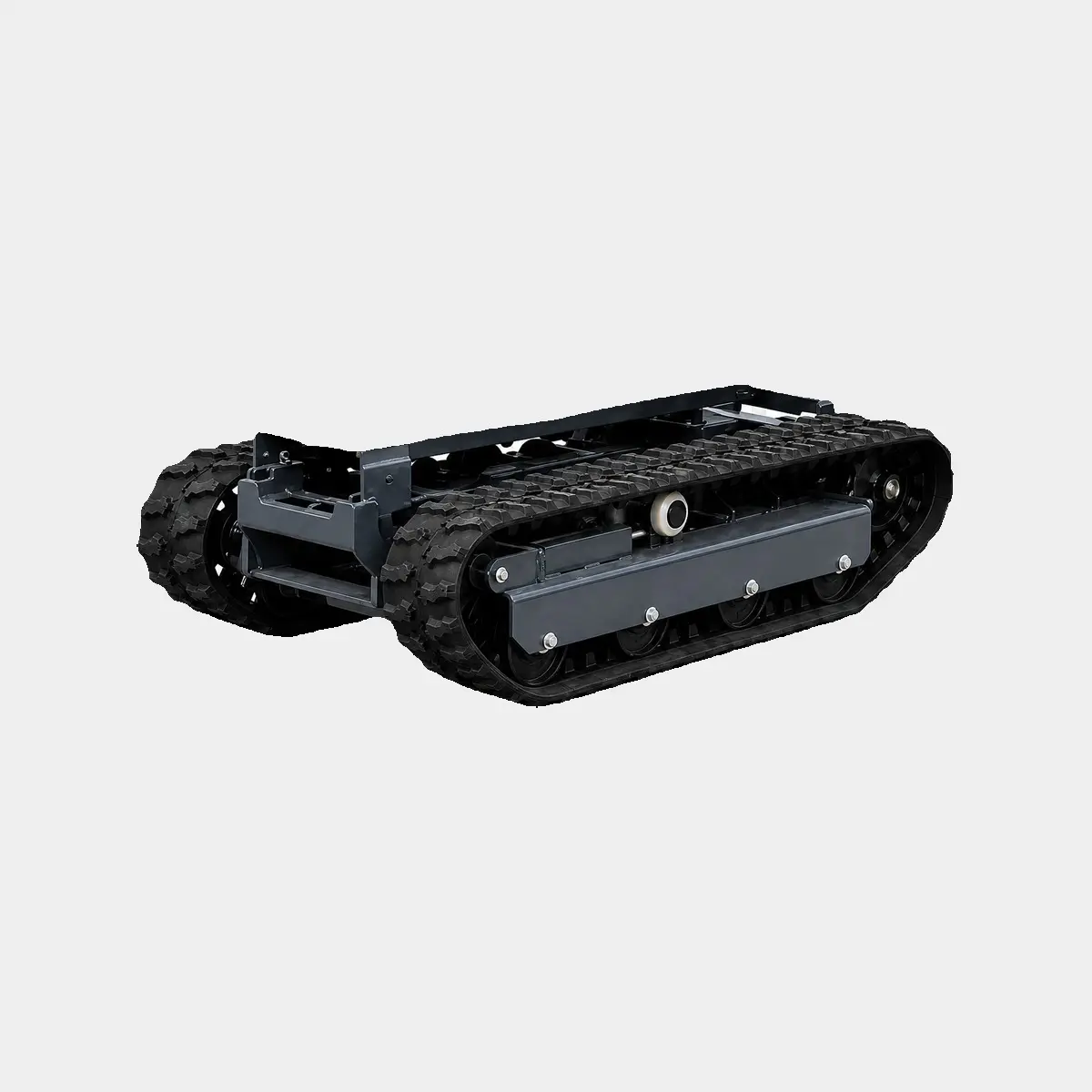

Main Chassis Frame
Steel chassis frame supports the powertrain drum system controls and tracked running gear.

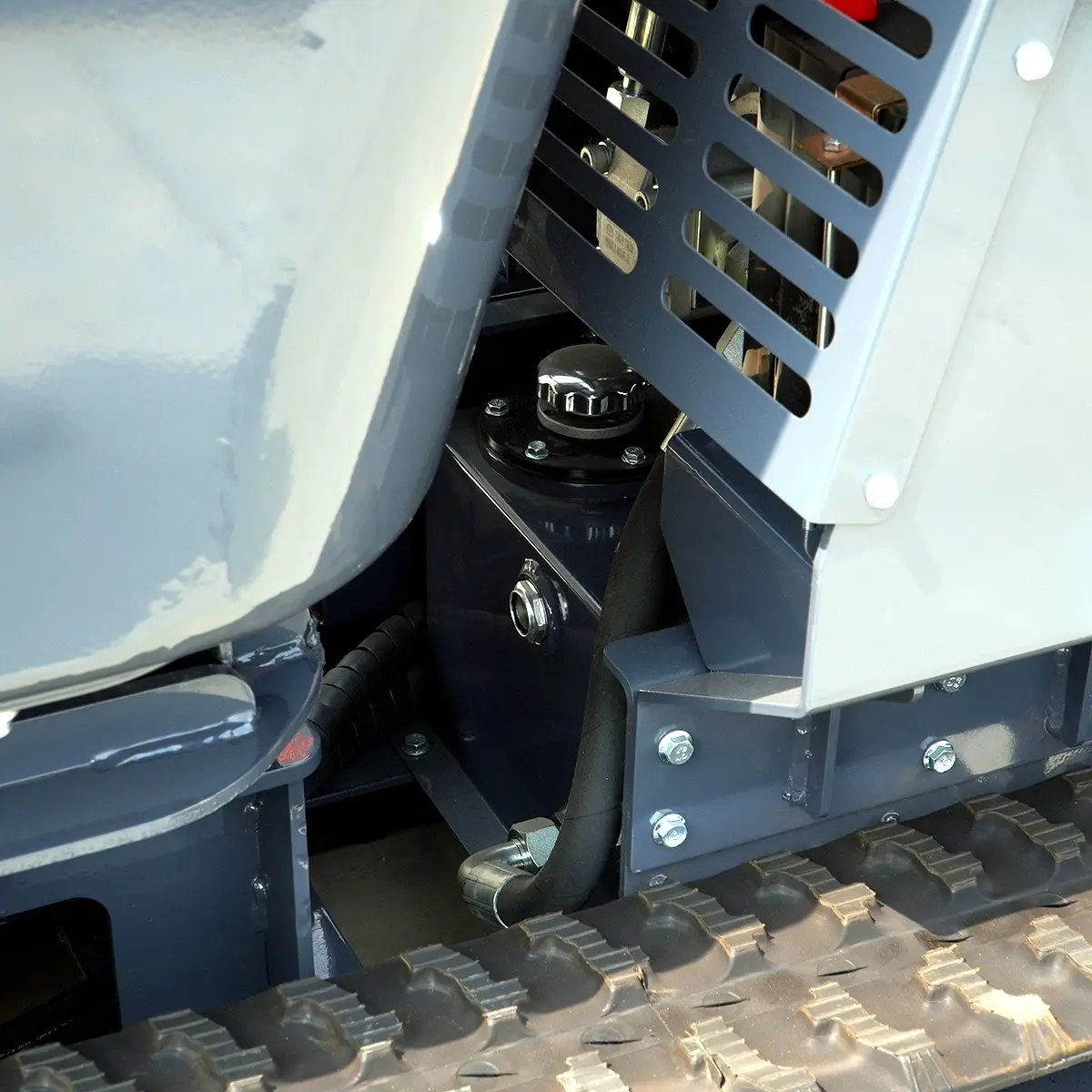

Engine Side Guard
Side guard shields the engine and provides ventilation openings for cooling and service access.

General information

Product Introduction: +BL-750 +Engine Model: Briggs&Stratton 25T2 +Engine Type: Single-cylinder Air-cooled Four-stroke+Total Displacement: 420CC+Rated Power: 13.5HP/3600rpm+Net Weight: 774kg+Max Load Capacity: 750kg+Tank Volume: 300dm³+Tipping Method: Hydraulic Self-unloading+Tipping Angle: 90°+Bucket Length: 820mm+Travel Speed: 5km/h+Track Center Distance: 670mm+Gradeability: 20°
Standard color: Yellow and black color scheme
Feature Overview: High-mobility tracked chassis adapts to muddy, rugged, and other complex working conditions. Comes with a self-loading bucket and a professional mixing device, integrating concrete mixing, transport, and dumping into one machine for efficient all-in-one operation – saving labor and cost, improving efficiency.
Standard product configuration: Briggs & Stratton 13.5HP gasoline engine + electronic control switch system + driveline assembly Hydraulic pump + control valve + control console Mixing drum + hydraulic shovel Folding step + rubber track chassis
Configuration upgrade: Changchai 192 China Stage II Diesel Engine Koop 192 Euro V Diesel Engine Honda GX390 EPA Certified Gasoline Engine
Container loading quantity: 20GP/6set 40HQ/22set （Load 11 iron racks ）
Assignment scenario: Rural infrastructure applications: Designed for rural self-built homes, road paving, and small construction sites, it addresses the challenges of concrete delivery and premature setting caused by confined spaces and poor road conditions. By mixing on‑the‑go, it ensures concrete quality without requiring additional mixing equipment, enabling efficient project completion. Mountain and Slope‑Protection Projects: Suitable for mountain‑area construction, slope stabilization, and landscape engineering, these projects tackle muddy slopes and rugged terrain. Crawler vehicles ensure unimpeded mobility, while integrated operations minimize manual material handling and enable access to sites beyond the reach of conventional concrete mixers. Special operating conditions: Construction in complex environments such as underground mines, tunnels, and swamps—addressing the challenge of large mixer trucks being unable to access these sites, enabling simultaneous transport and mixing to prevent concrete segregation, ensuring stable material delivery, and maintaining continuous operations.
