Wide hopper carries loose soil, gravel and debris for site transport.
Muddy soil hauling across uneven groundBL-1000 Site Material Handling
Tracked Hauling and Hydraulic Dumping

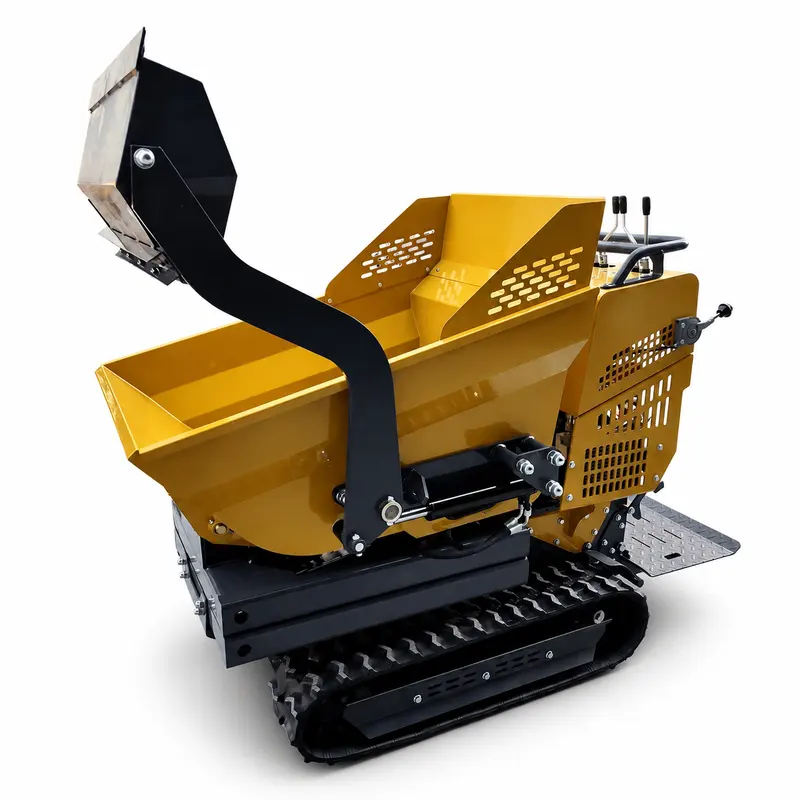

The BL-1000 moves soil, gravel and debris across muddy routes, narrow worksites and uneven ground. Its tracked chassis delivers stable traction, while the hydraulic hopper lifts and tips material accurately for efficient loading, transport and controlled discharge.
- Drainage Gravel Dump
- Farm Track Repair

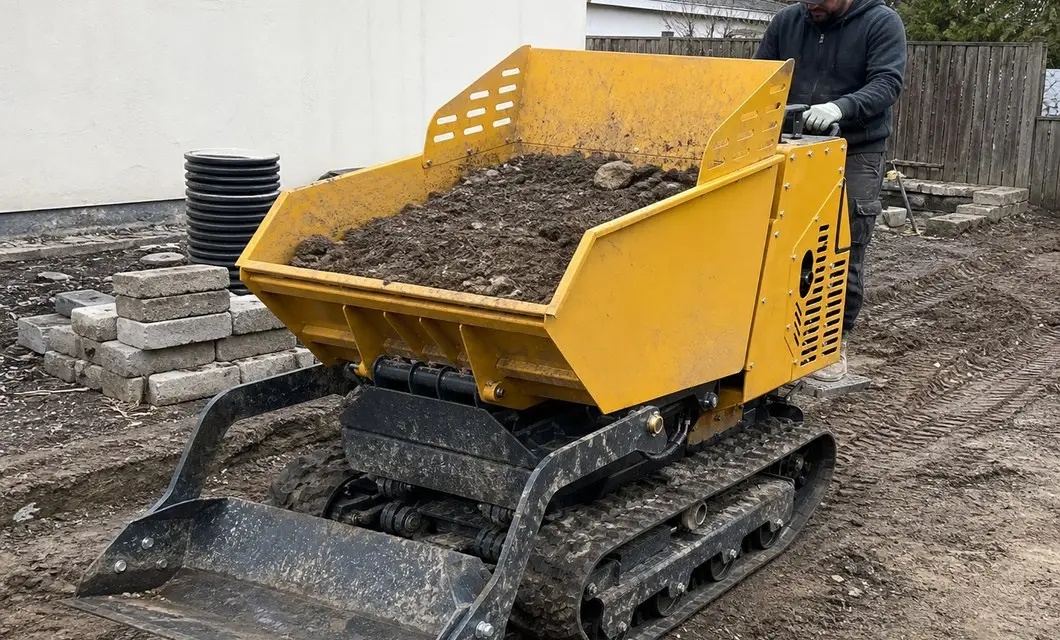

- Muddy Soil Haul
- Road Base Delivery

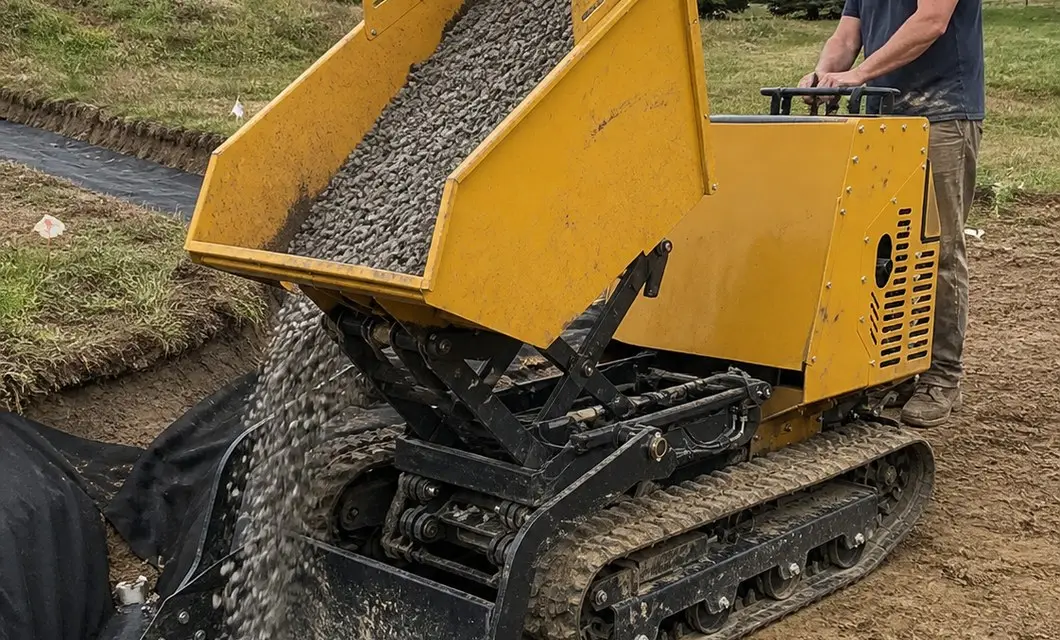

Gravel dumping beside drainage trenches for fill
Farm track repair with soil and base material haulMuddy soil hauling across uneven ground

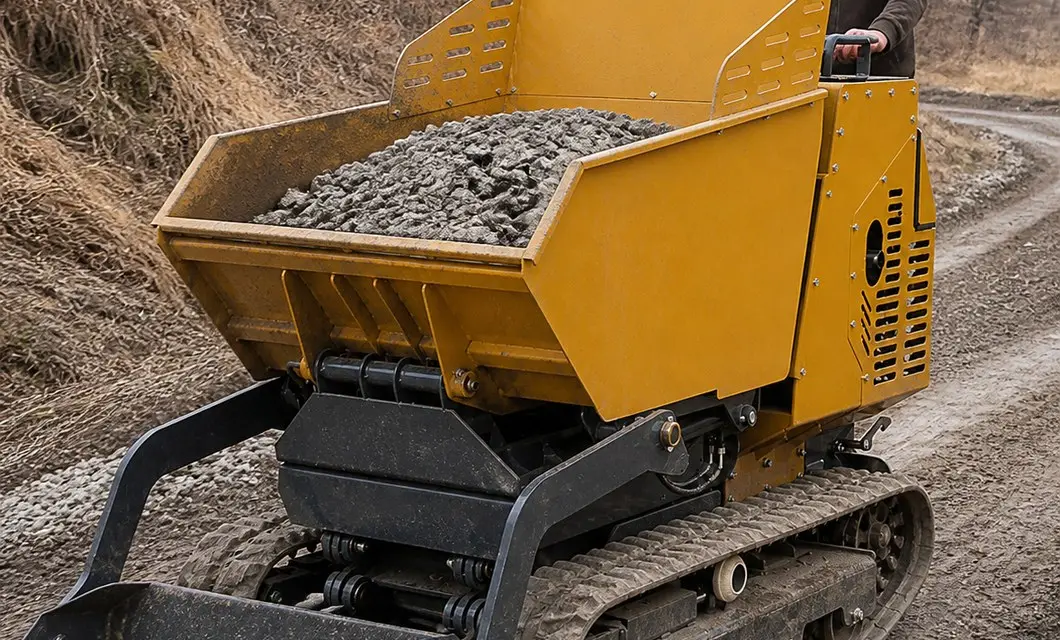

Road base delivery for roadside repair workGravel dumping beside drainage trenches for fillFarm track repair with soil and base material haulProduct Advantages

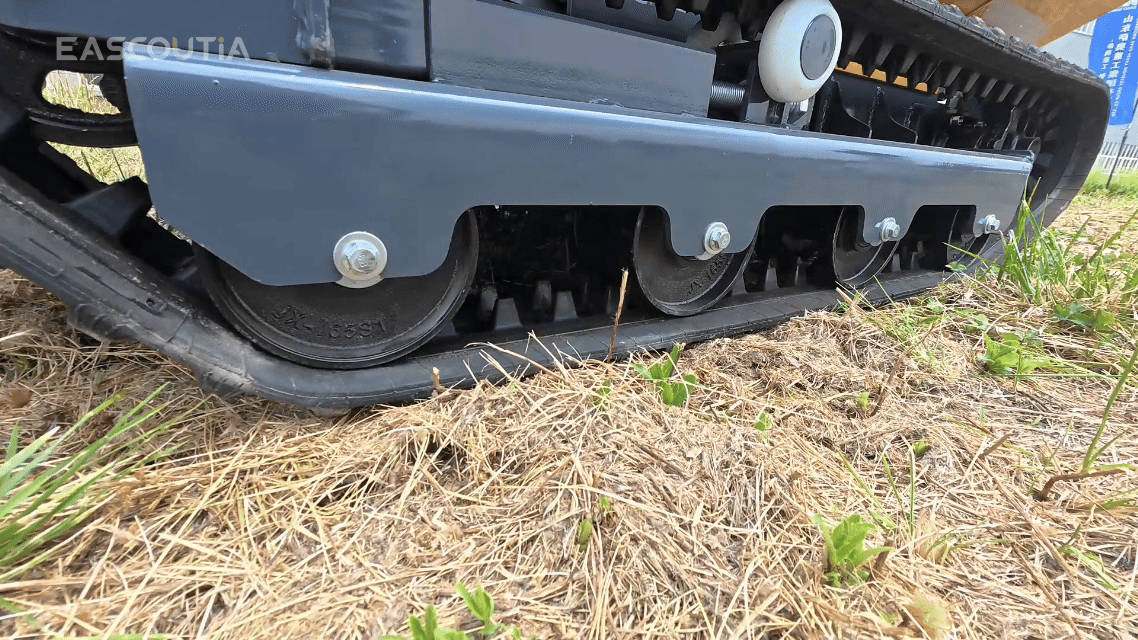

1000 track walking
Specifications & Structural Decomposition

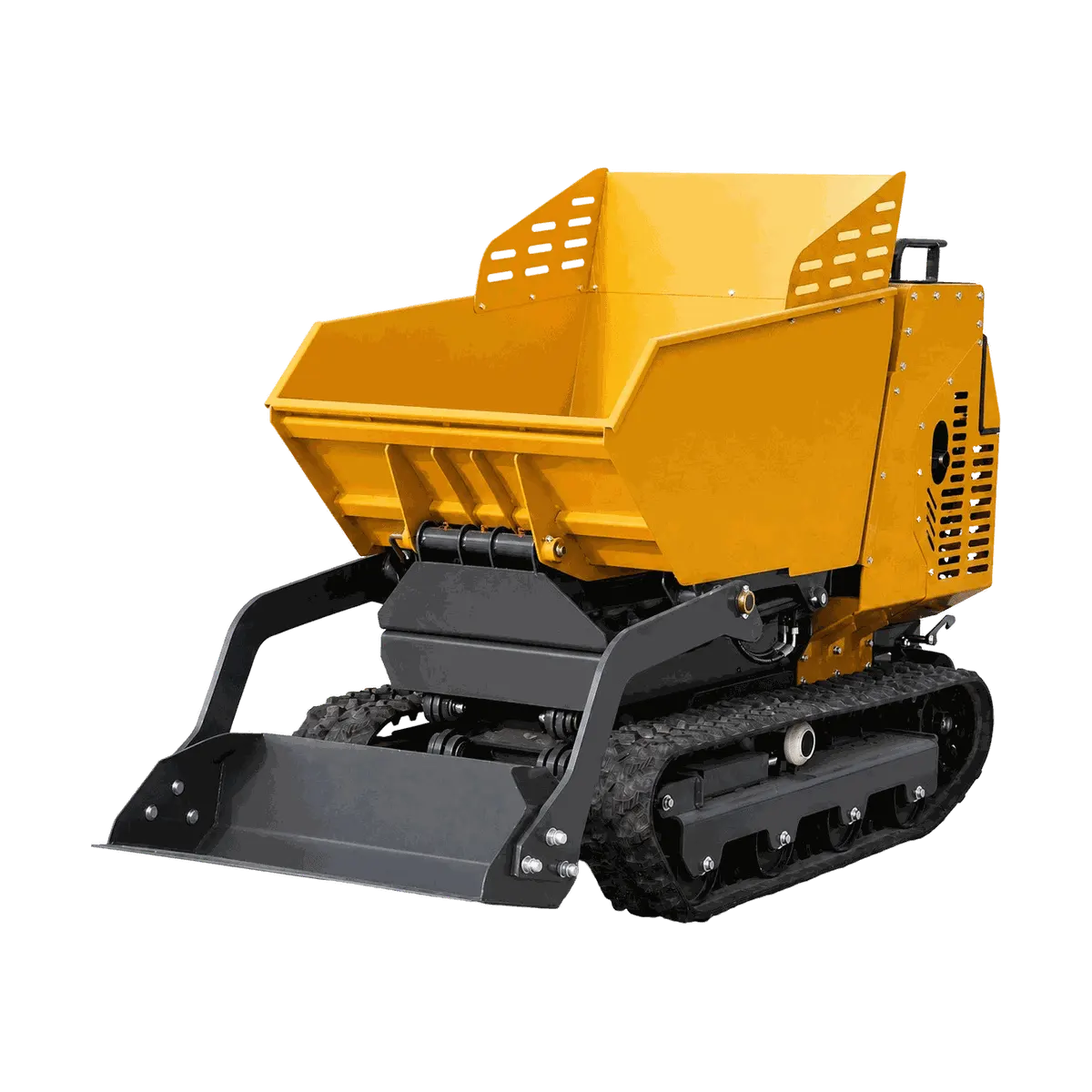

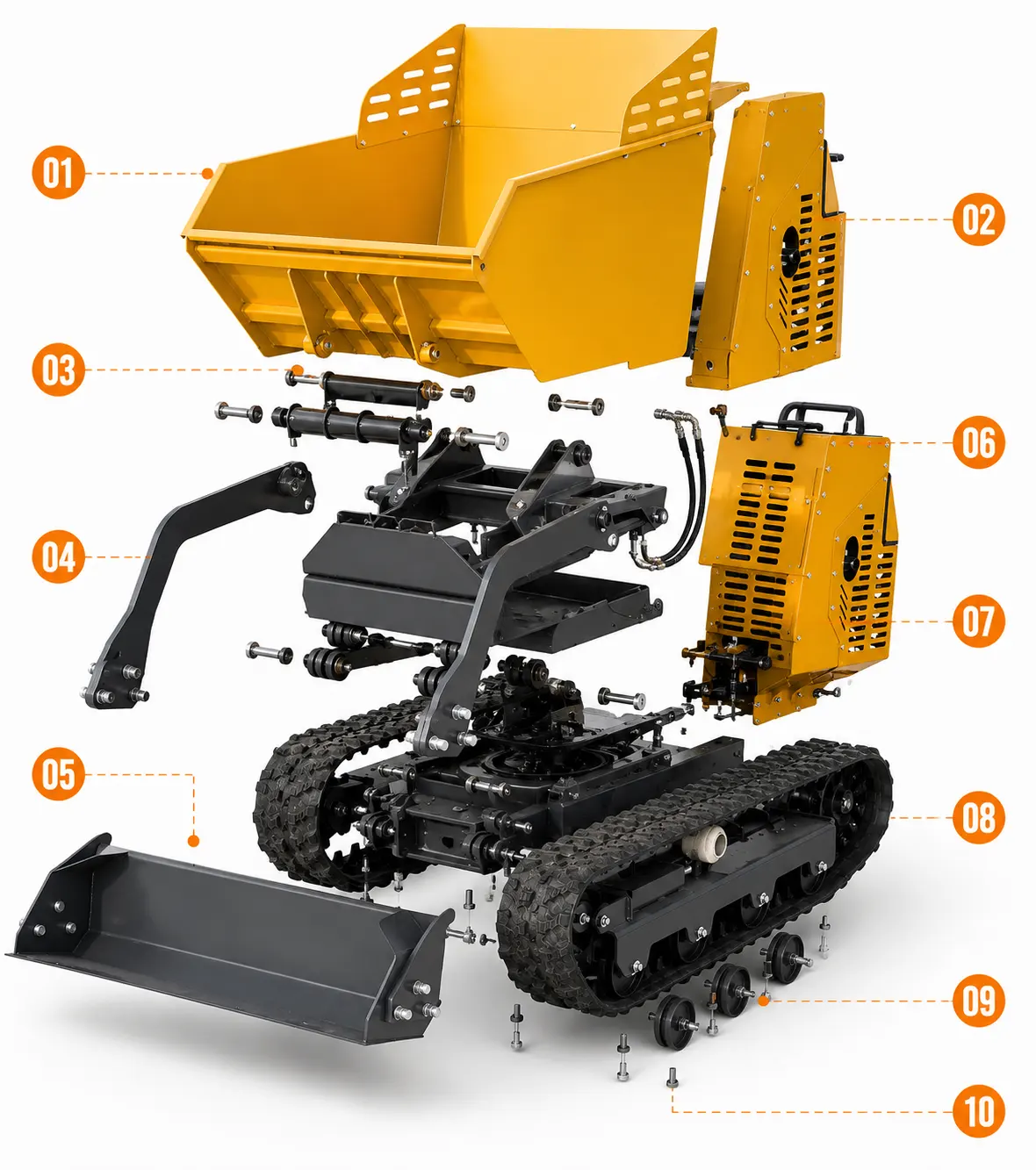

Product Structure Diagram

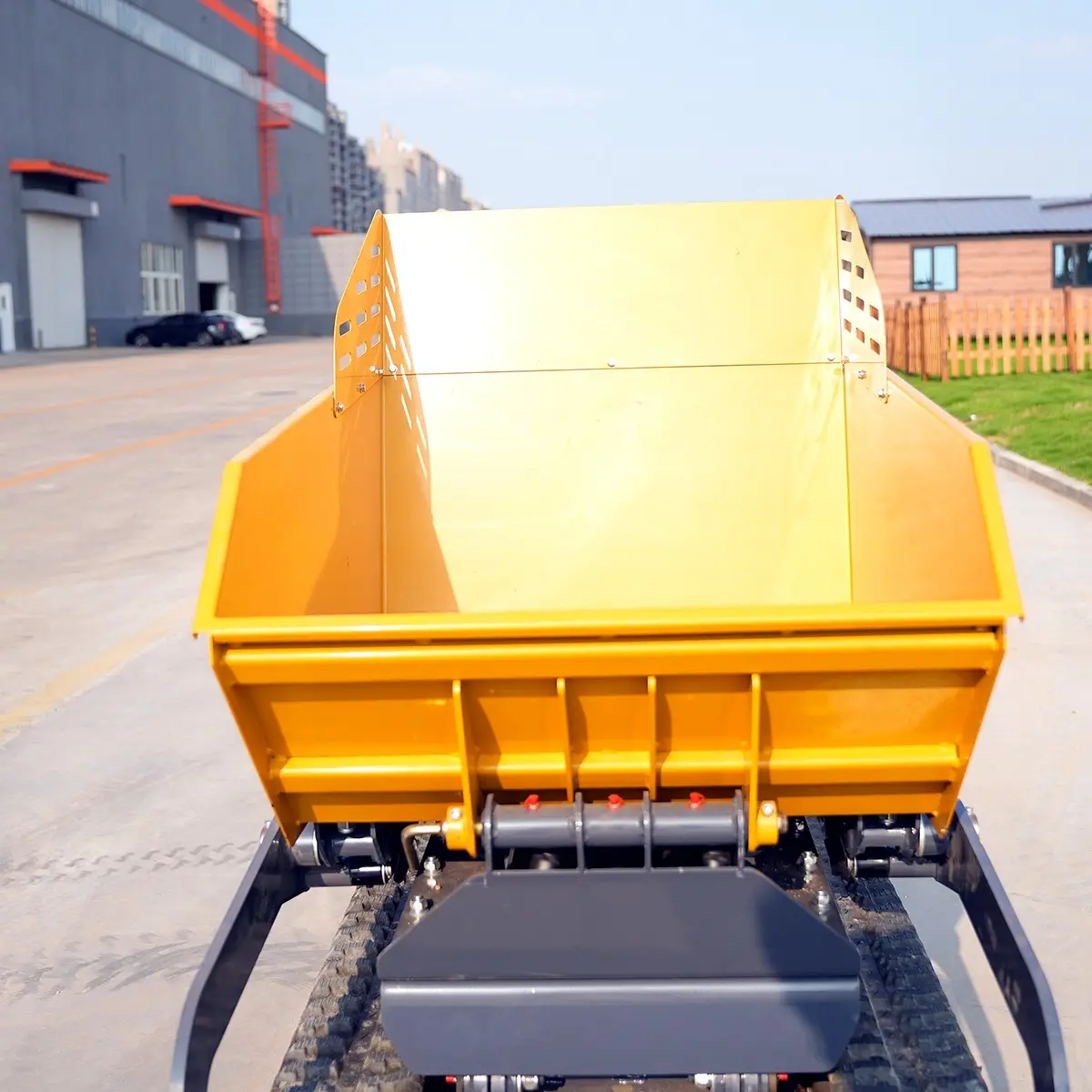

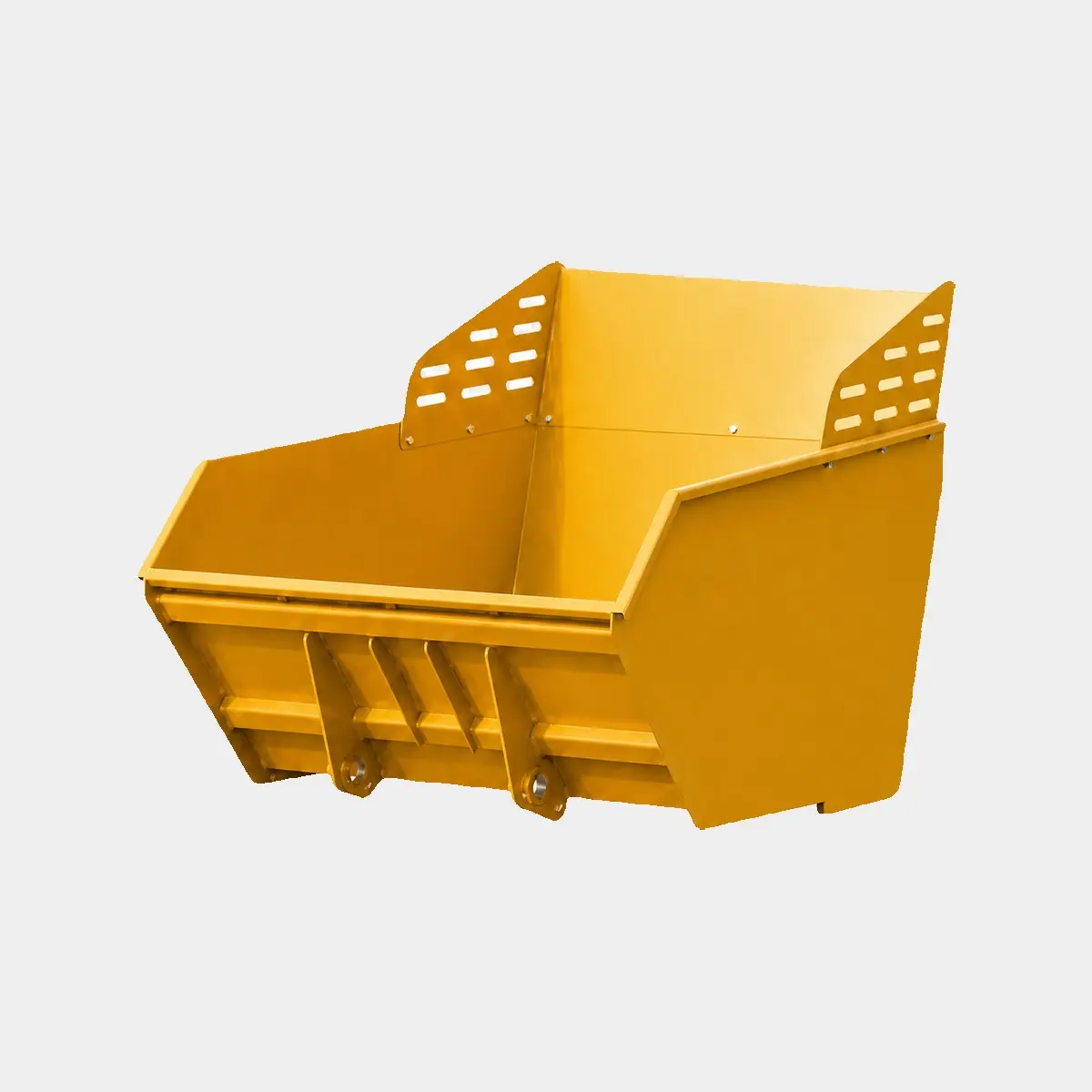

- Dump Hopper

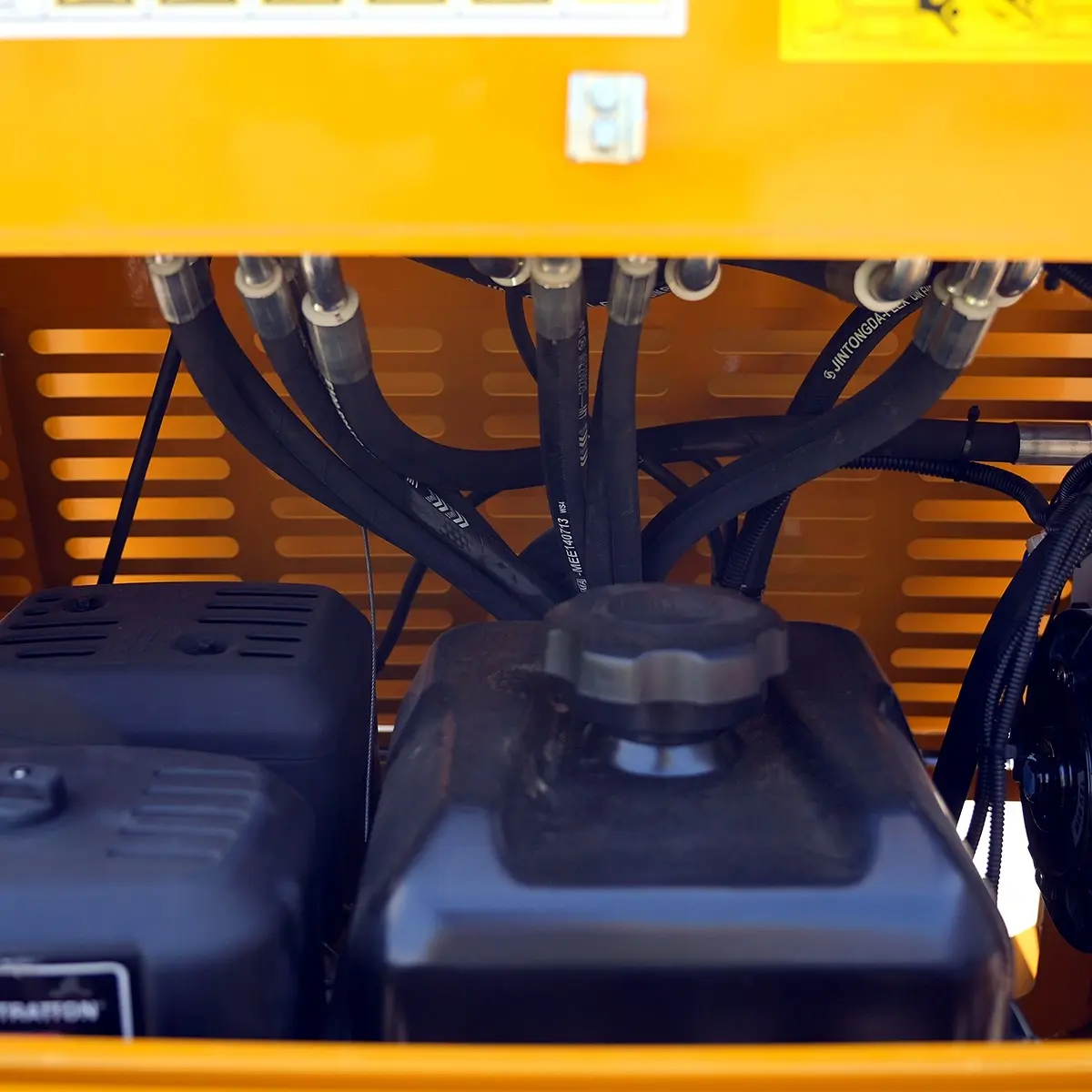

- Engine Cover
Protective cover shields the engine while allowing service access.

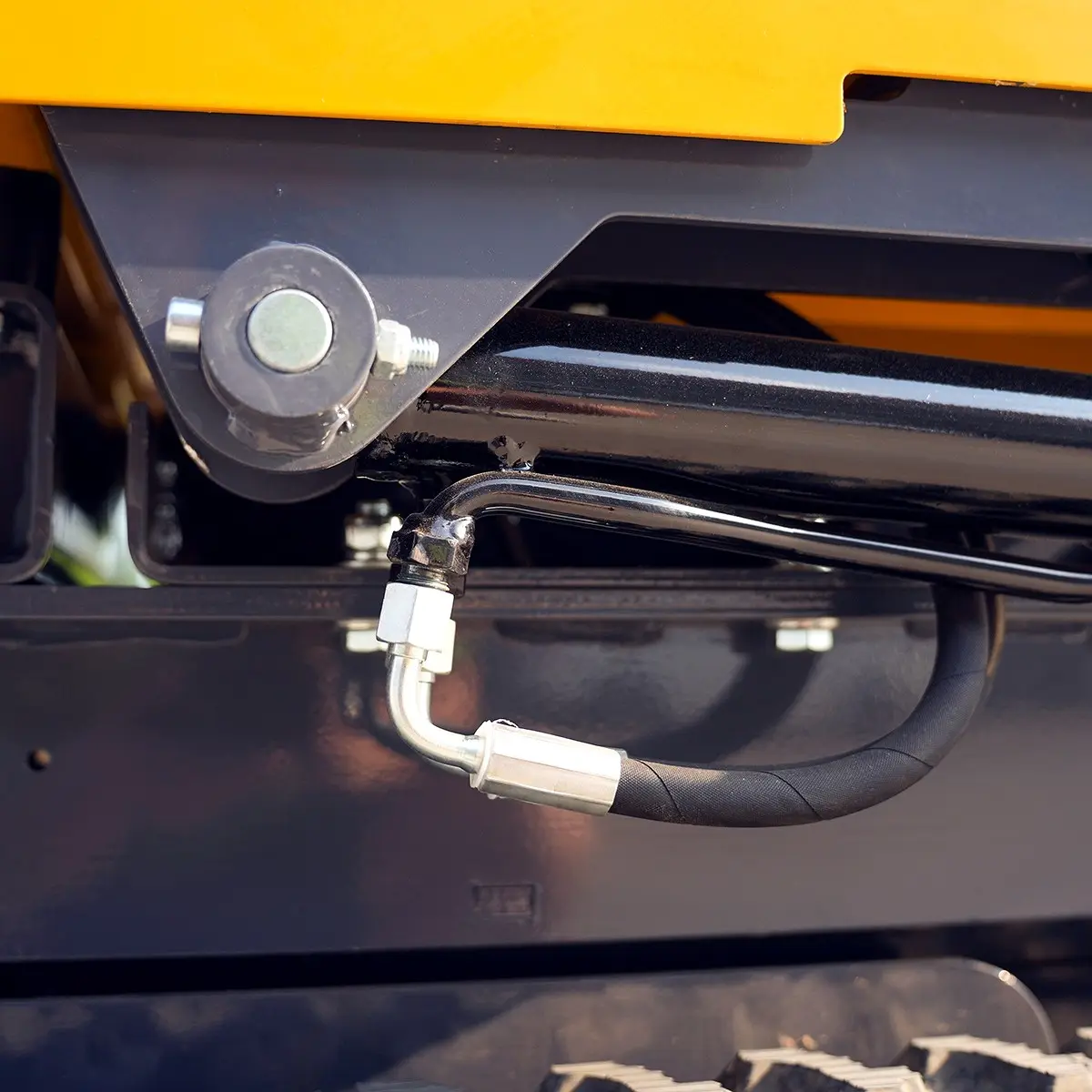

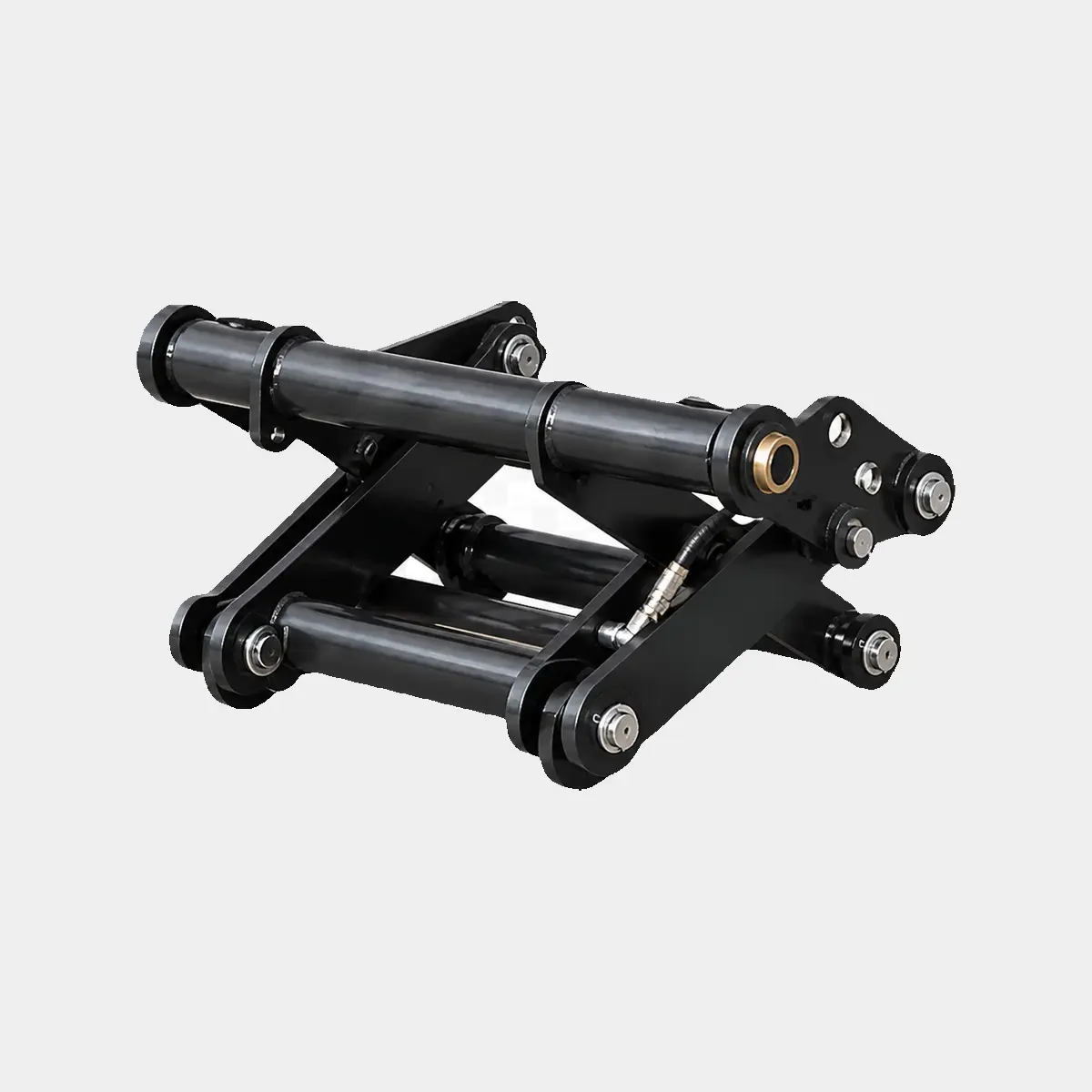

- Hydraulic Lift Cylinder
Cylinder powers smooth hopper lifting and controlled tipping.

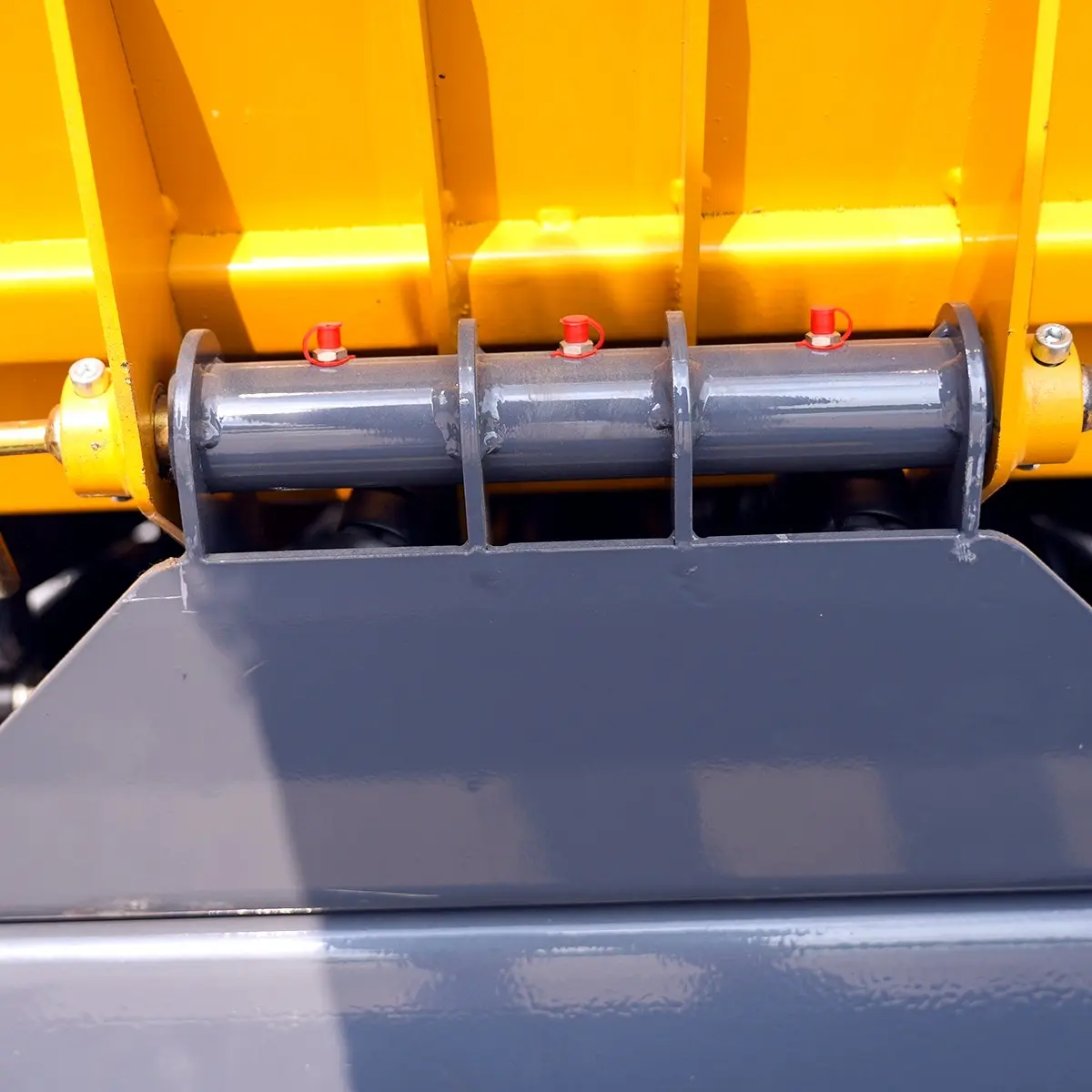

- Hopper Lift Linkage
Linkage connects hopper and chassis for stable raising motion.

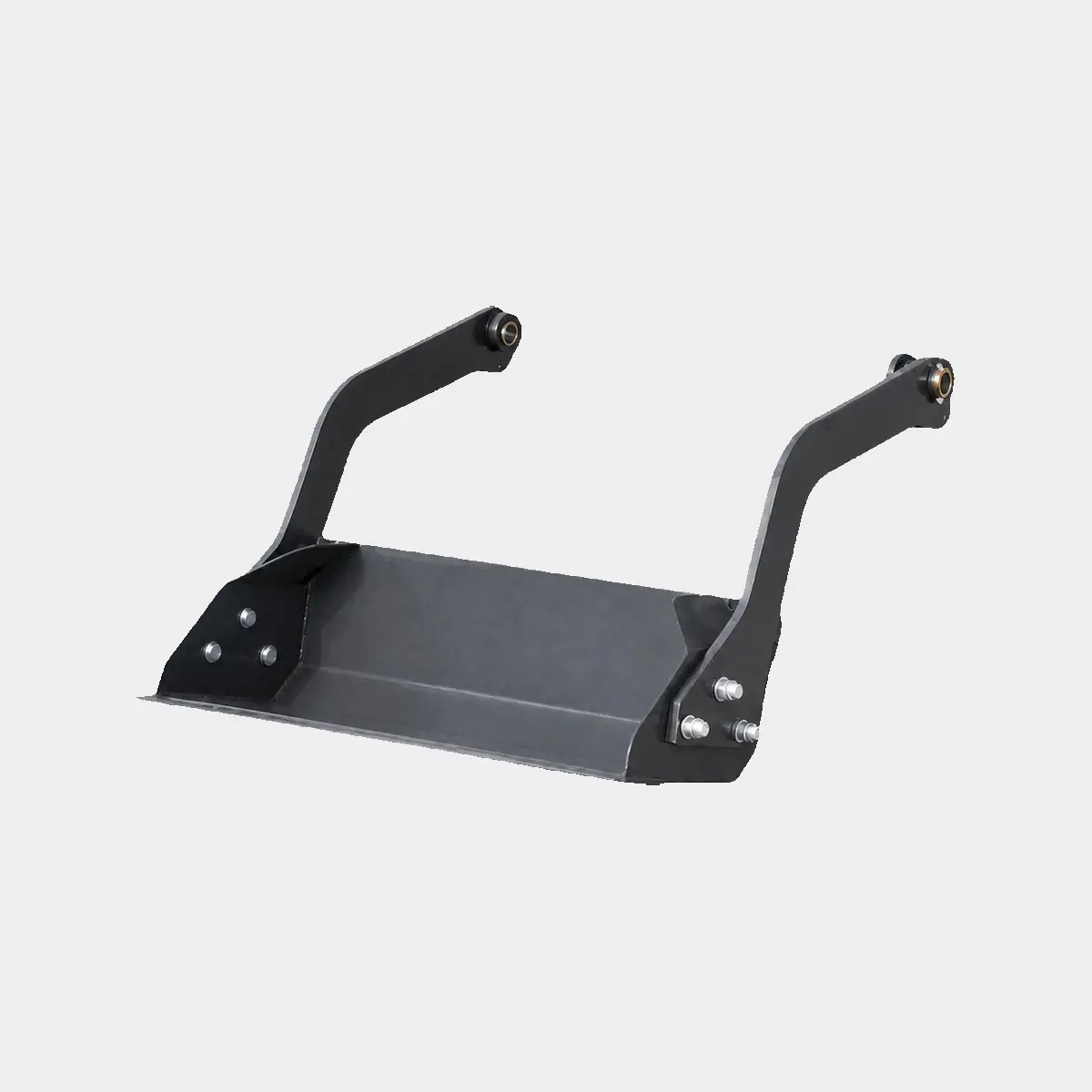

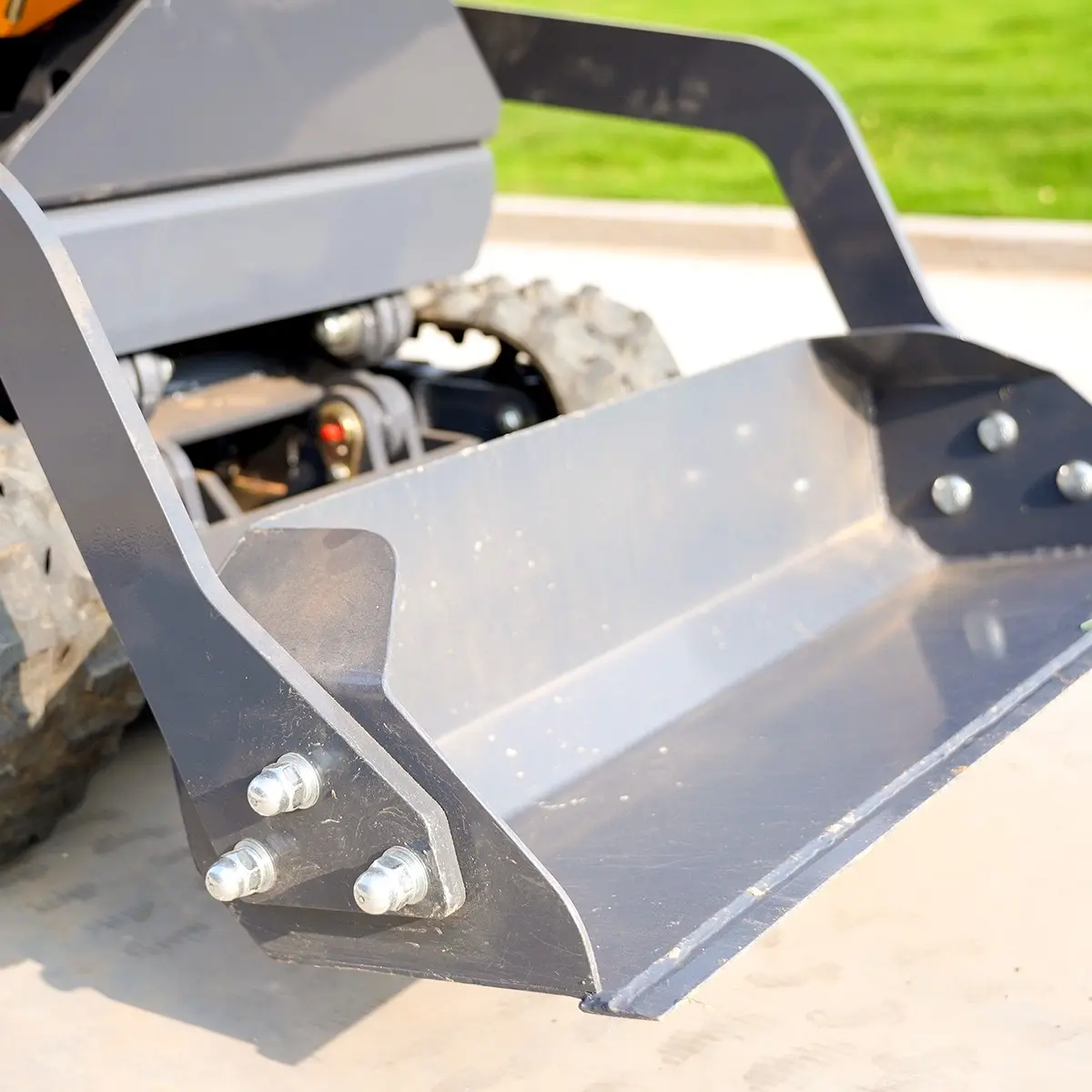

- Front Loading Bucket
Front bucket scoops, pushes and loads loose material efficiently.

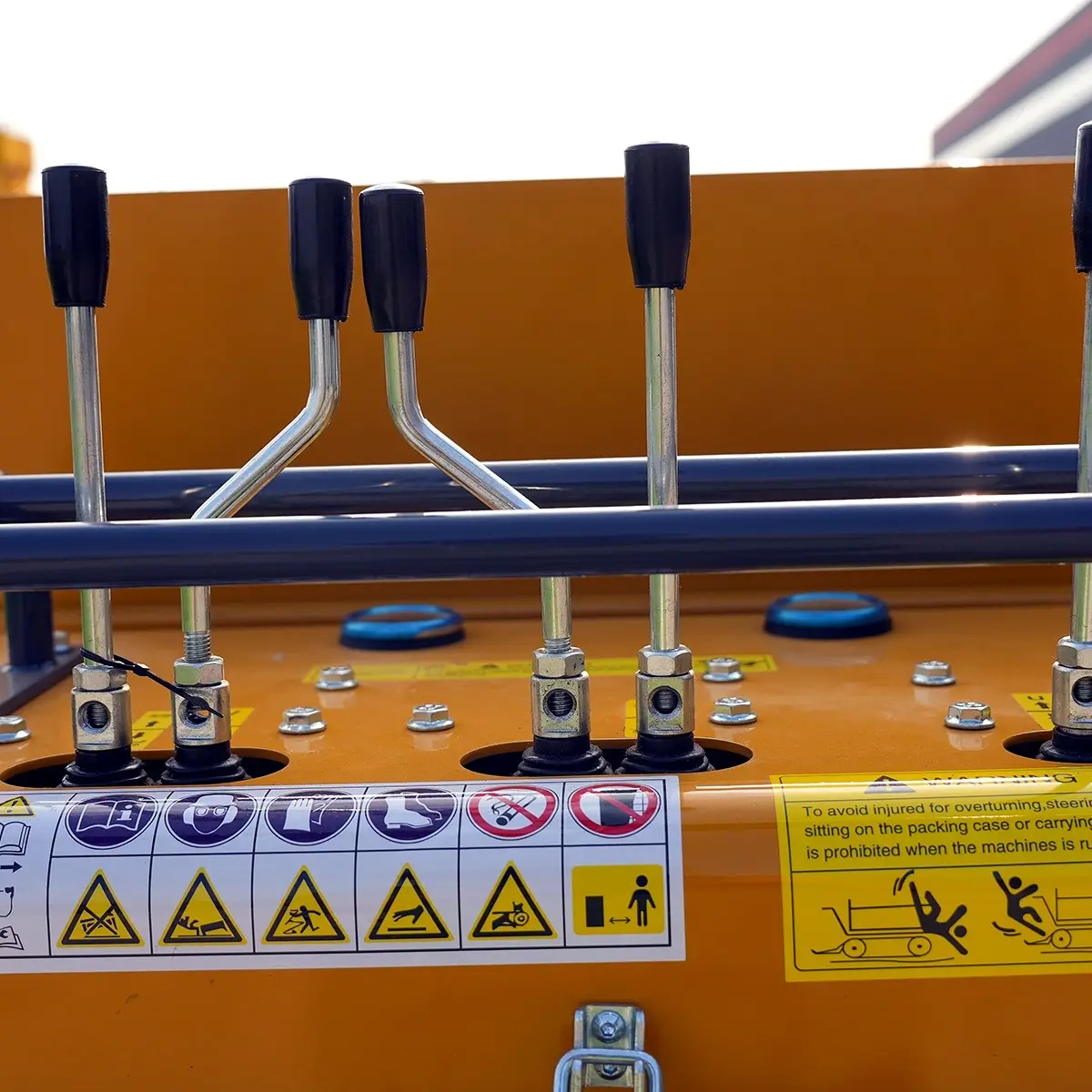

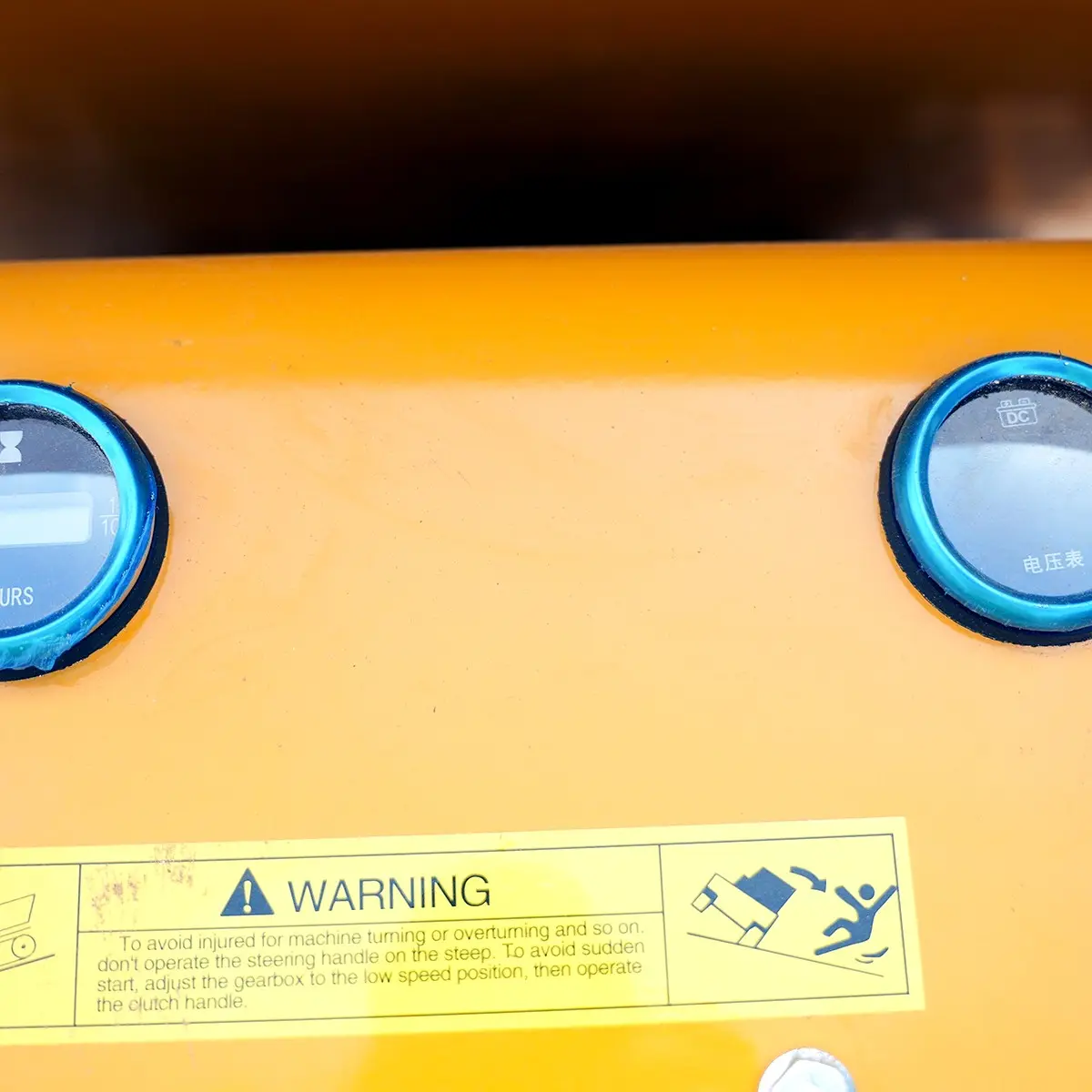

- Operator Control Station
Controls manage travel, steering, lifting and tipping functions.

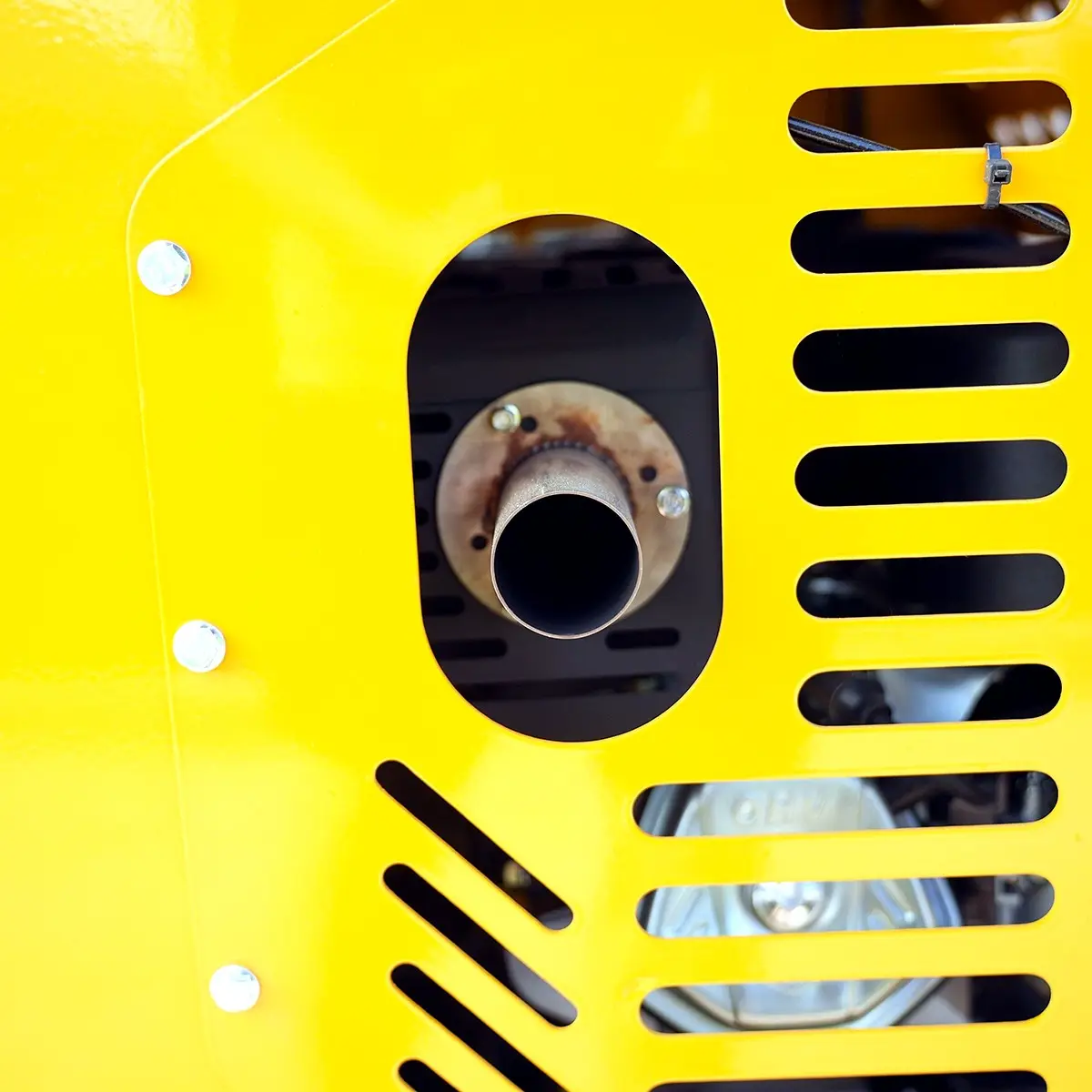

- Engine Side Guard
Side guard protects powertrain components and supports ventilation.
General information
- Product Introduction
- +BL-1000 +Engine Model: Briggs&Stratton 25T2 +Engine Type: Single-cylinder Air-cooled Four-stroke+Total Displacement: 420CC+Rated Power: 13.5HP/3600rpm+Net Weight: 880kg+Max Load Capacity: 1000kg+Cargo Box Capacity: 450dm³+Tipping Method: Hydraulic Self-unloading+Tipping Angle: 90°+Max Lifting Height: 1500mm+Travel Speed: 5km/h+Track Center Distance: 670mm+Gradeability: 20°
- Standard color
- Yellow and black color scheme
- Feature Overview
- High-mobility tracked chassis adapts to complex terrains. Features a self-loading bucket – no auxiliary equipment required. Paired with a hydraulic lifting self-unloading system, the adjustable discharge height easily reaches platforms, enabling integrated efficient operation from loading to high-position dumping – saving labor and cost, improving efficiency.
- Standard product configuration

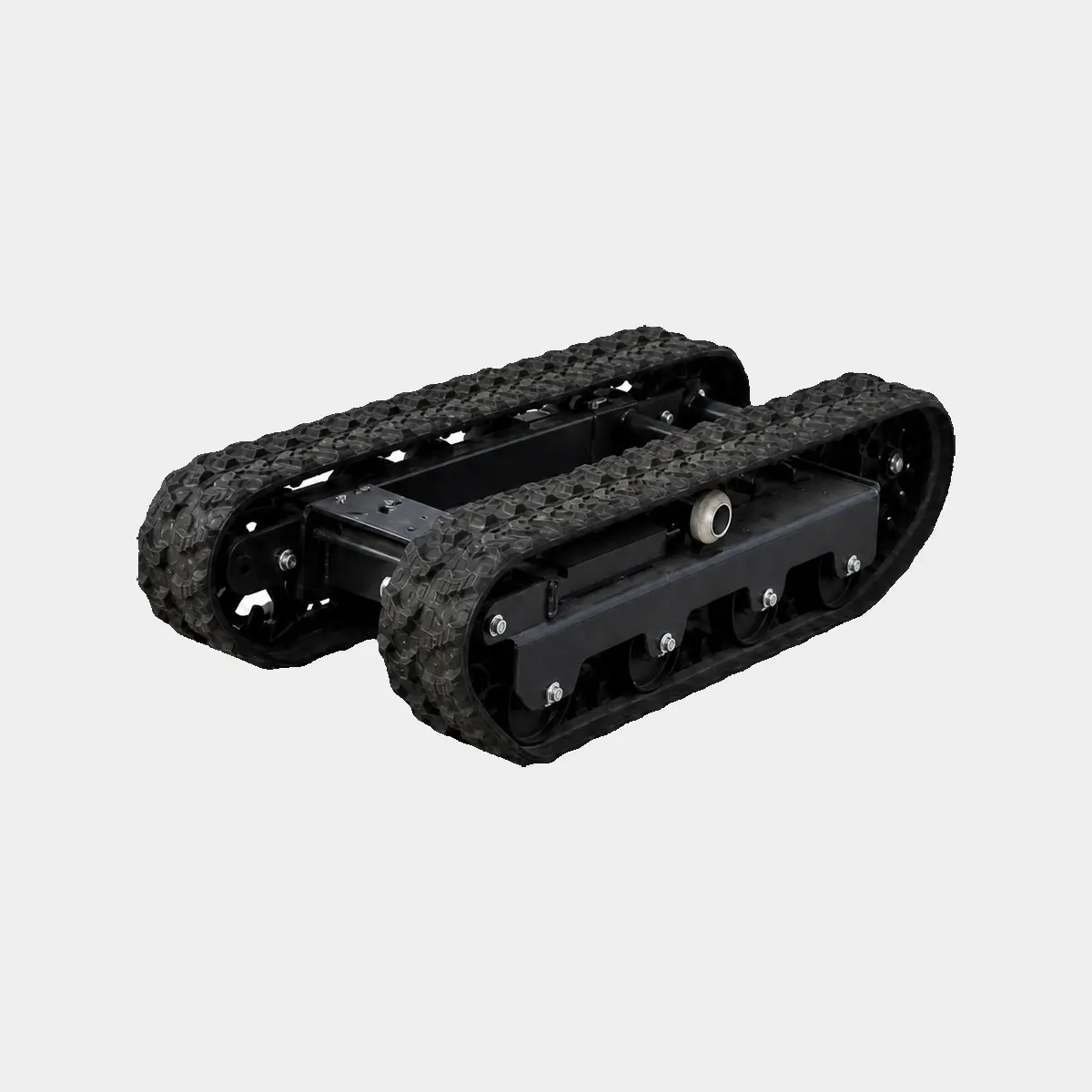

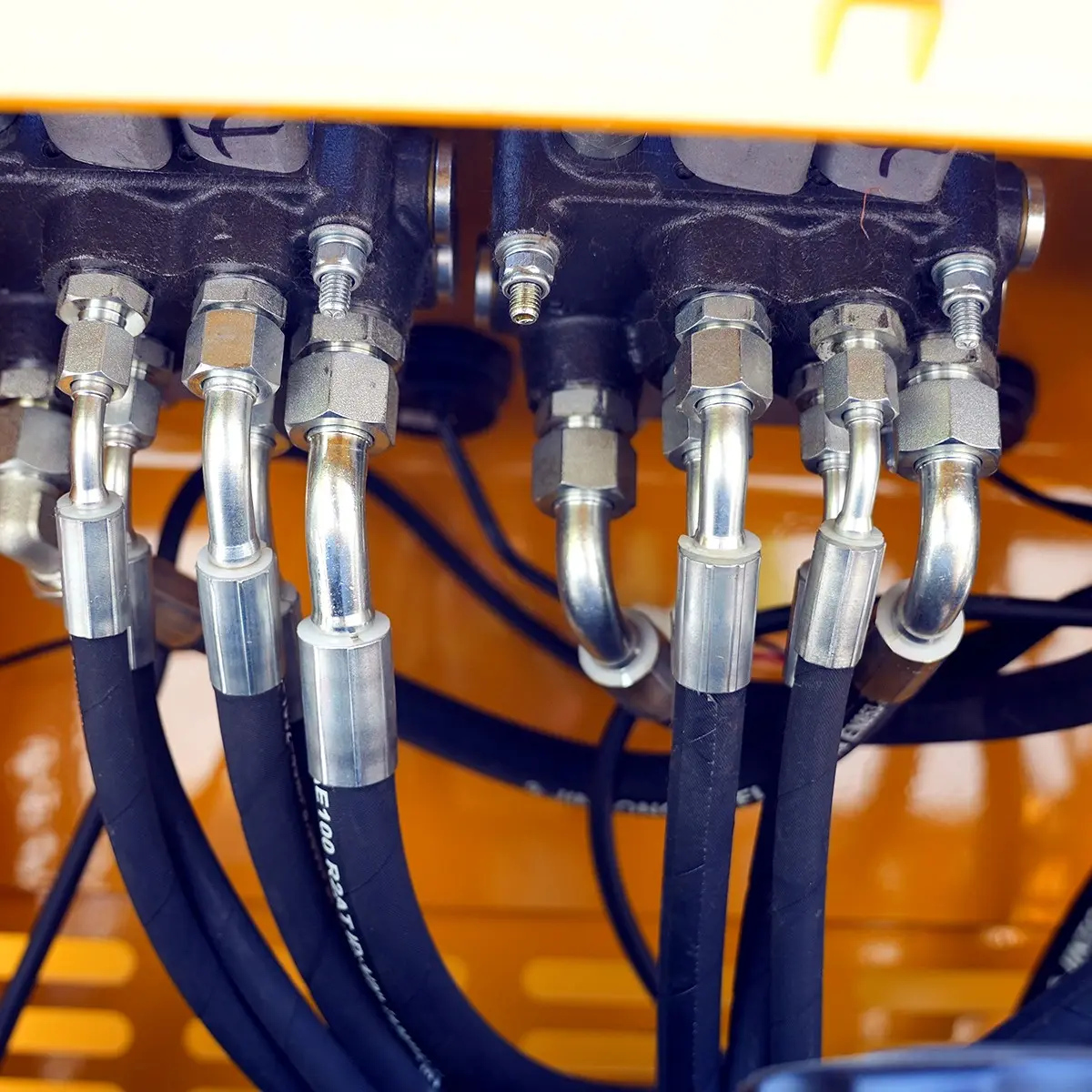

- Briggs & Stratton 13.5HP gasoline engine + electronic control switch system + driveline assembly Hydraulic pump + control valve + control console Hydraulic hopper + removable hopper guard + hydraulic shovel Folding step + rubber track chassis Hydraulic lifting device
- Configuration upgrade
- Changchai 192 China Stage II Diesel Engine Koop 192 Euro V Diesel Engine Honda GX390 EPA Certified Gasoline Engine
- Container loading quantity
- 20GP/6set+ 6set500Model 40HQ/22set （Load 11 iron racks ）
- Assignment scenario
- Agricultural and forestry applications: Suited for orchards, forest farms, and livestock operations. The tracked chassis effortlessly handles muddy slopes and uneven terrain, enabling direct connection with trucks and feed towers/high‑level feed silos for unloading, eliminating the need for manual secondary handling and ensuring efficient transport of fruits and vegetables, feed, and timber. Small‑scale construction scenarios: Ideal for rural infrastructure, road maintenance, and landscaping. These machines can navigate tight job sites while seamlessly connecting to dump trucks and high‑level material silos to transport sand, gravel, and excavated spoil, eliminating the need for intermediate transloading. Special operating conditions: Designed for small-scale mines, underground operations, and waste‑handling facilities, it handles challenging terrain while seamlessly interfacing with mine haulers and transfer vehicles for unloading, addressing the pain points of material handling on sites with significant elevation differences and minimizing manual contact with materials.
General instructions
Simplified explanationProduct Attachments or Core Configurations
Product Video
BL-1000 Yellow Lifting Dump Trailer – Exterior Display
BL-1000 Yellow Lifting Dump Trailer – Exterior Display. Full exterior view of the yellow dump trailer with sturdy frame and neat body. Fine workmanship and durable structure deliver excellent load-bearing performance and stylish look.
BL-1000 Yellow Lifting Dump Trailer – Exterior Display
00:37BL-1000 Yellow Lifting Dump Trailer – Exterior Display. Full exterior view of the yellow dump trailer with sturdy frame and neat body. Fine workmanship and durable structure deliver excellent load-bearing performance and stylish look.
BL-1000 Yellow Lifting Dump Bucket – Dynamic Demonstration
01:23BL-1000 Yellow Lifting Dump Bucket – Dynamic Demonstration. Real shot of working process. Fast hydraulic lifting and smooth unloading. Stable operation and easy control, suitable for material transport and dumping on construction sites.
Product packaging
00:48Product packaging. Standard packaging for BL-1000 yellow lifting dump bucket. Separate protection for main body and spare parts. Shockproof and moisture-proof wrapping prevents damage and ensures intact delivery.
Container loading video
00:18Container loading video. Real container loading scene of BL-1000 yellow lifting dump bucket. Standard placement and firm strapping resist shipping vibration, ensuring safe and undamaged delivery.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
What model is being offered?
This offer covers model BL-1000. Confirm the product label, selected configuration, and written order details before purchase.
Which setup is included?
The included setup follows the supplied material for this product. Confirm optional items, accessories, and delivery scope in writing.
What site conditions apply?
Use this product only in the applications and site conditions shown in its supplied materials, with adequate access and working clearance.
What checks are required?
Before use or installation, check the visible structure, connections, supplied parts, working area, and applicable product instructions.
How is delivery arranged?
Confirm access width, loading method, restraint points, delivery address, and receiving conditions before shipment is arranged.
