Wide hopper carries soil, gravel and rubble for efficient site transport.

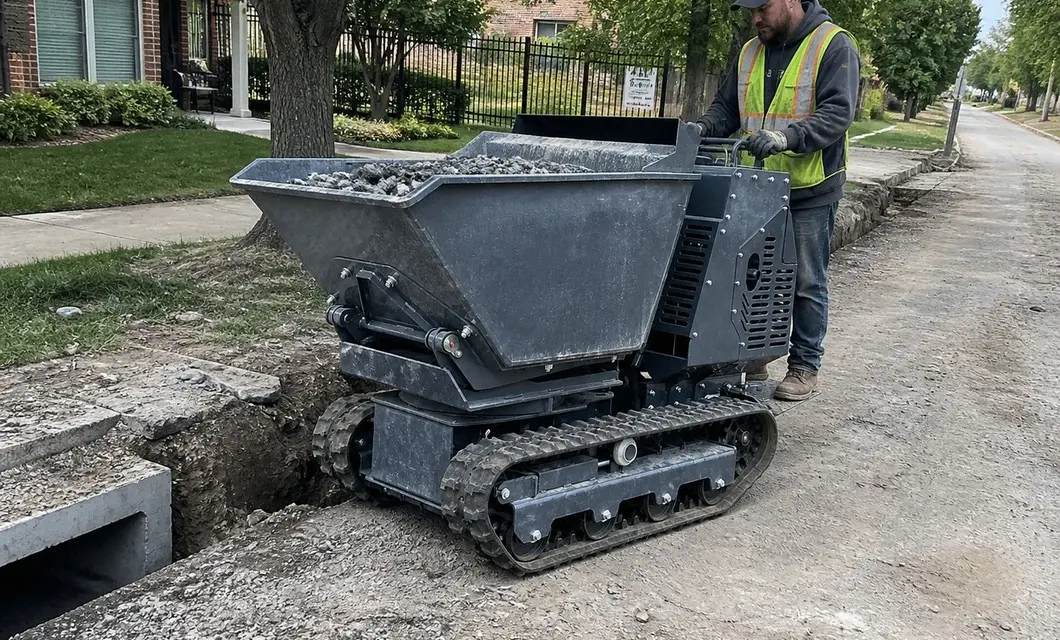

Municipal trench backfill with controlled dumpingBL-1200 Rotary Dump Transport
Tracked hauling with controlled side discharge
The BL-1200 carries loose material across industrial yards, narrow worksites and uneven routes. Its tracked undercarriage supports stable travel, while the rotary hopper directs loads accurately for efficient placement and controlled unloading.
- Industrial Yard Transfer
- Narrow-Site Side Dumping
- Municipal Trench Backfill

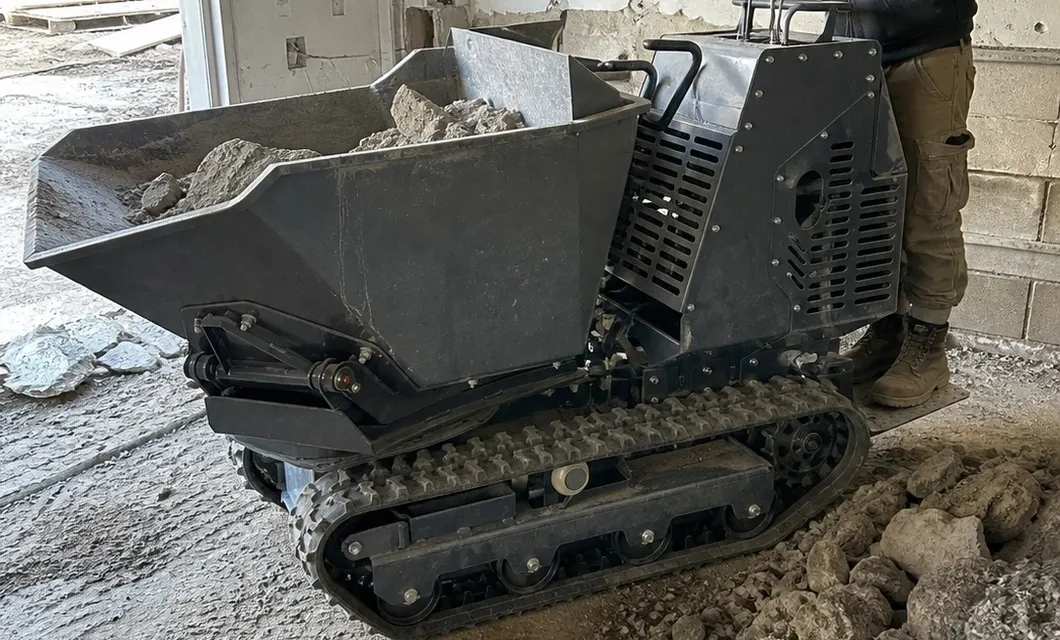

- Road Base Placement
Bulk material transfer across greenhouse work lanes
Side dumping in narrow construction areasMunicipal trench backfill with controlled dumping
Road base placement for access route repairsBulk material transfer across greenhouse work lanesSide dumping in narrow construction areasProduct Advantages

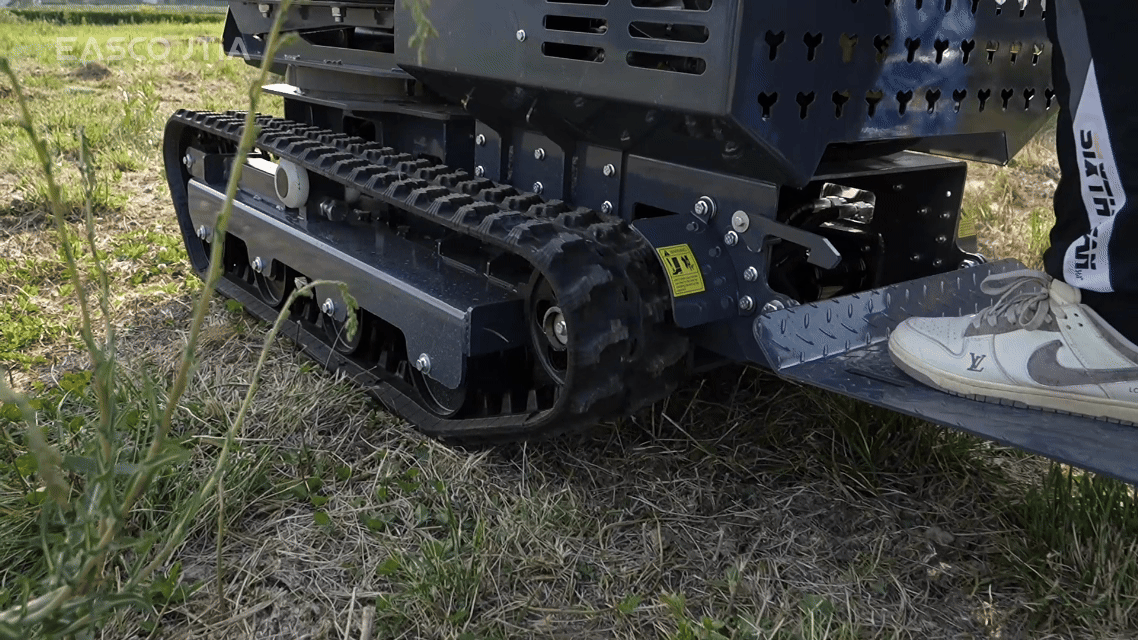

1200 Grass Walk
Specifications & Structural Decomposition

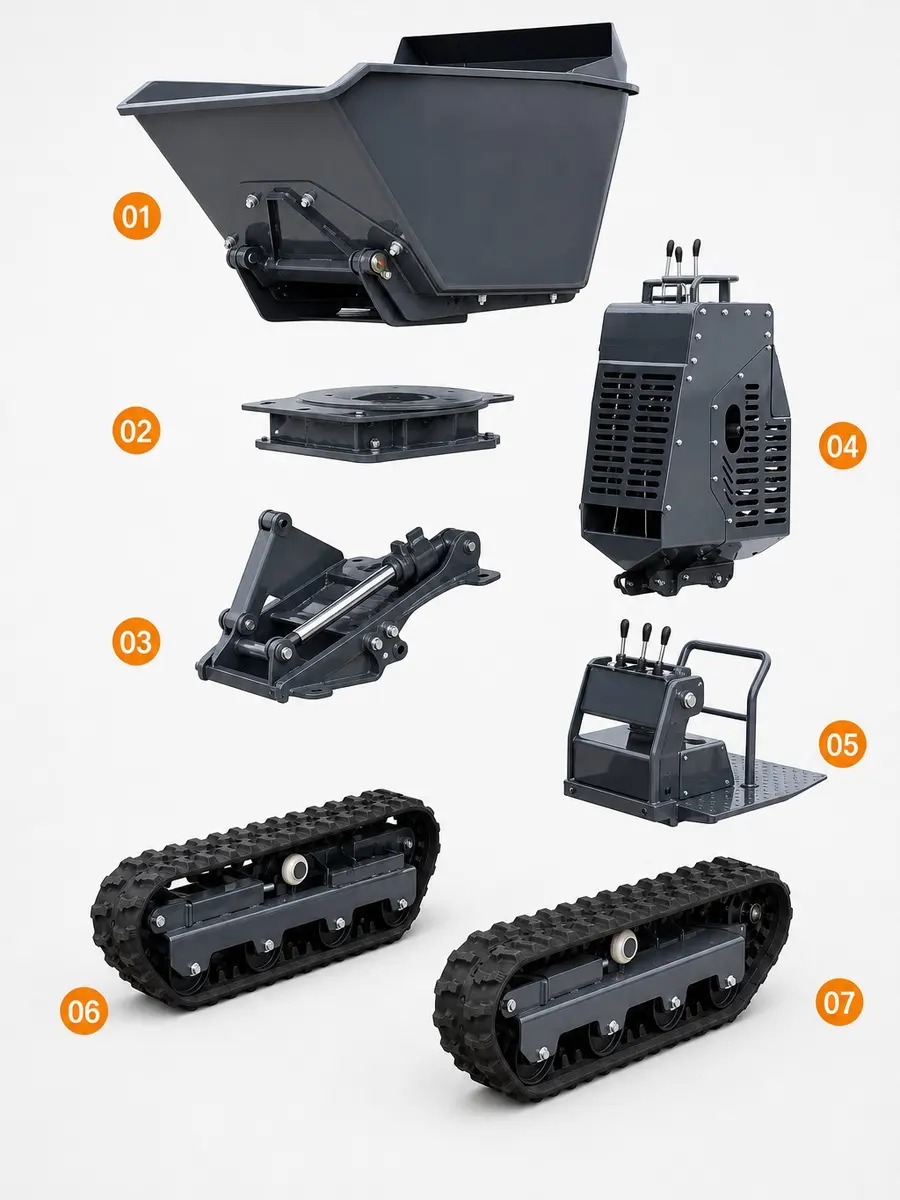

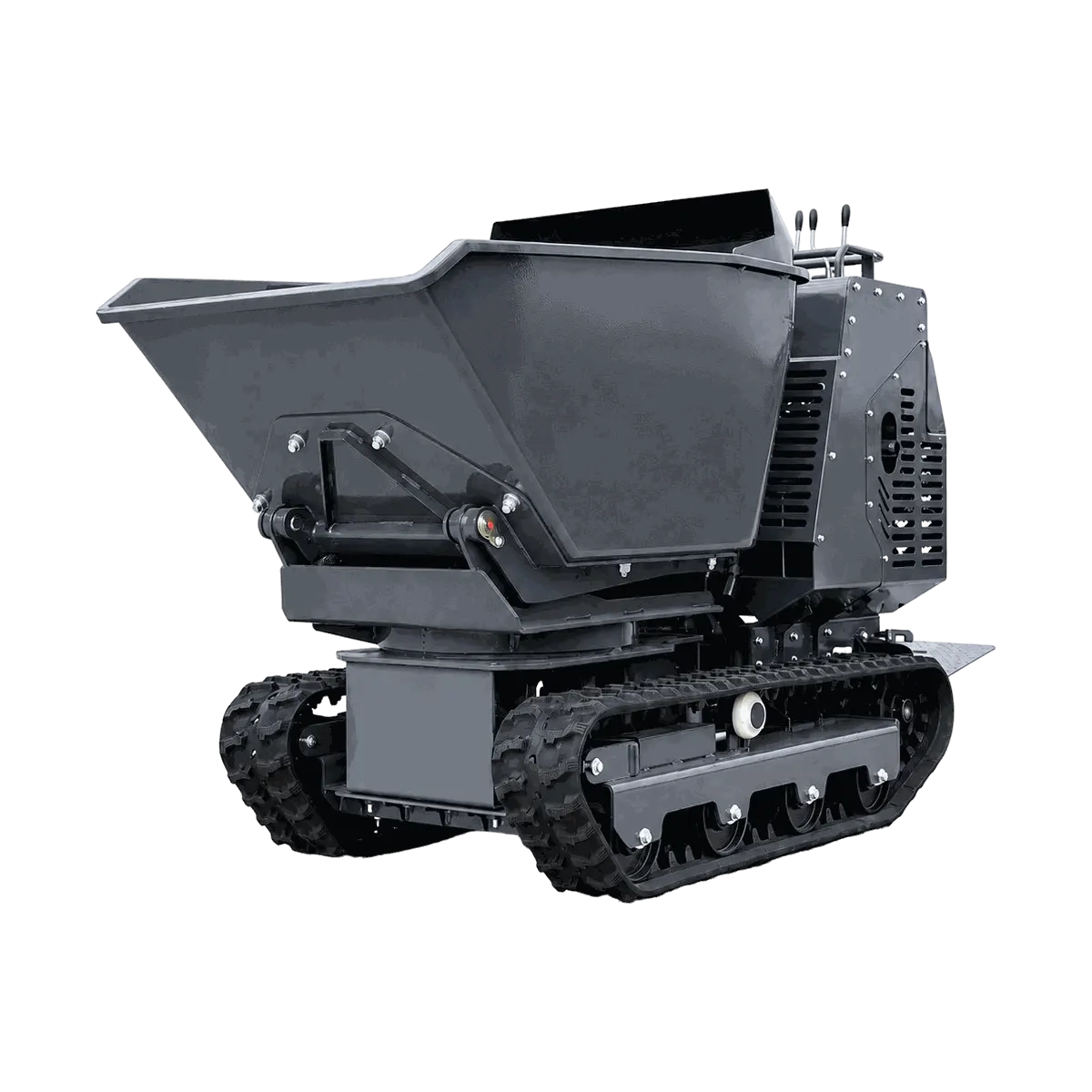

Product Structure Diagram

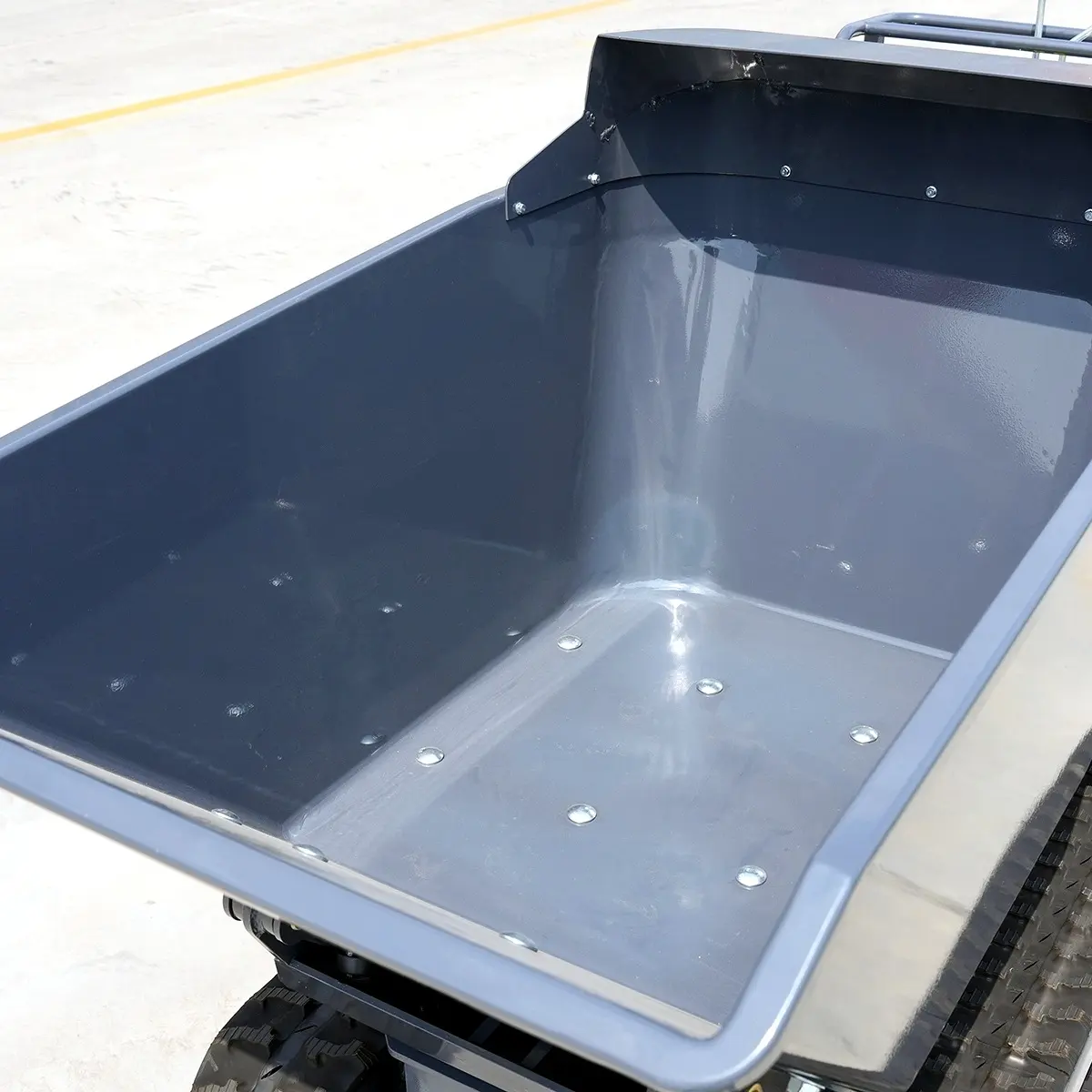

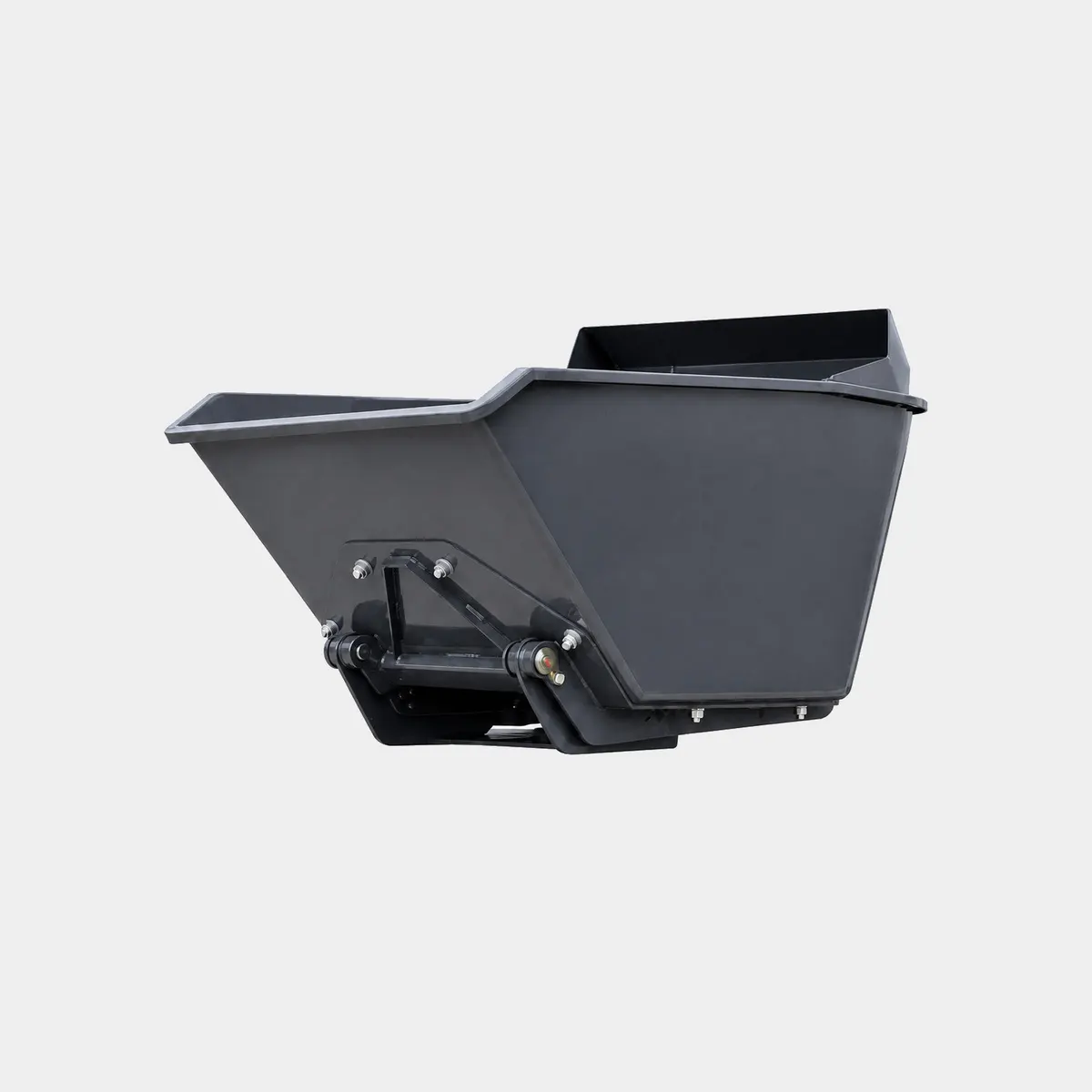

- Large-Capacity Hopper

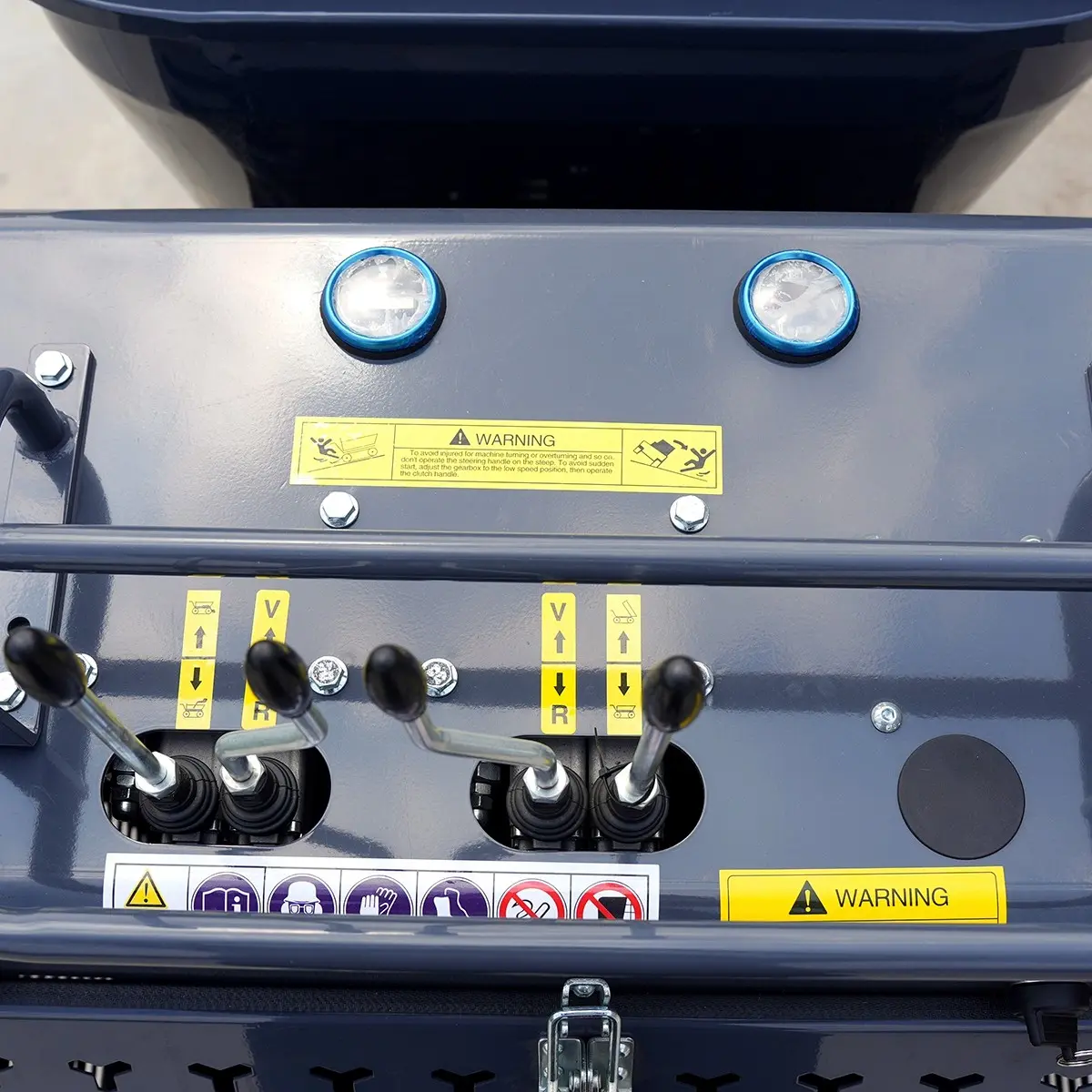

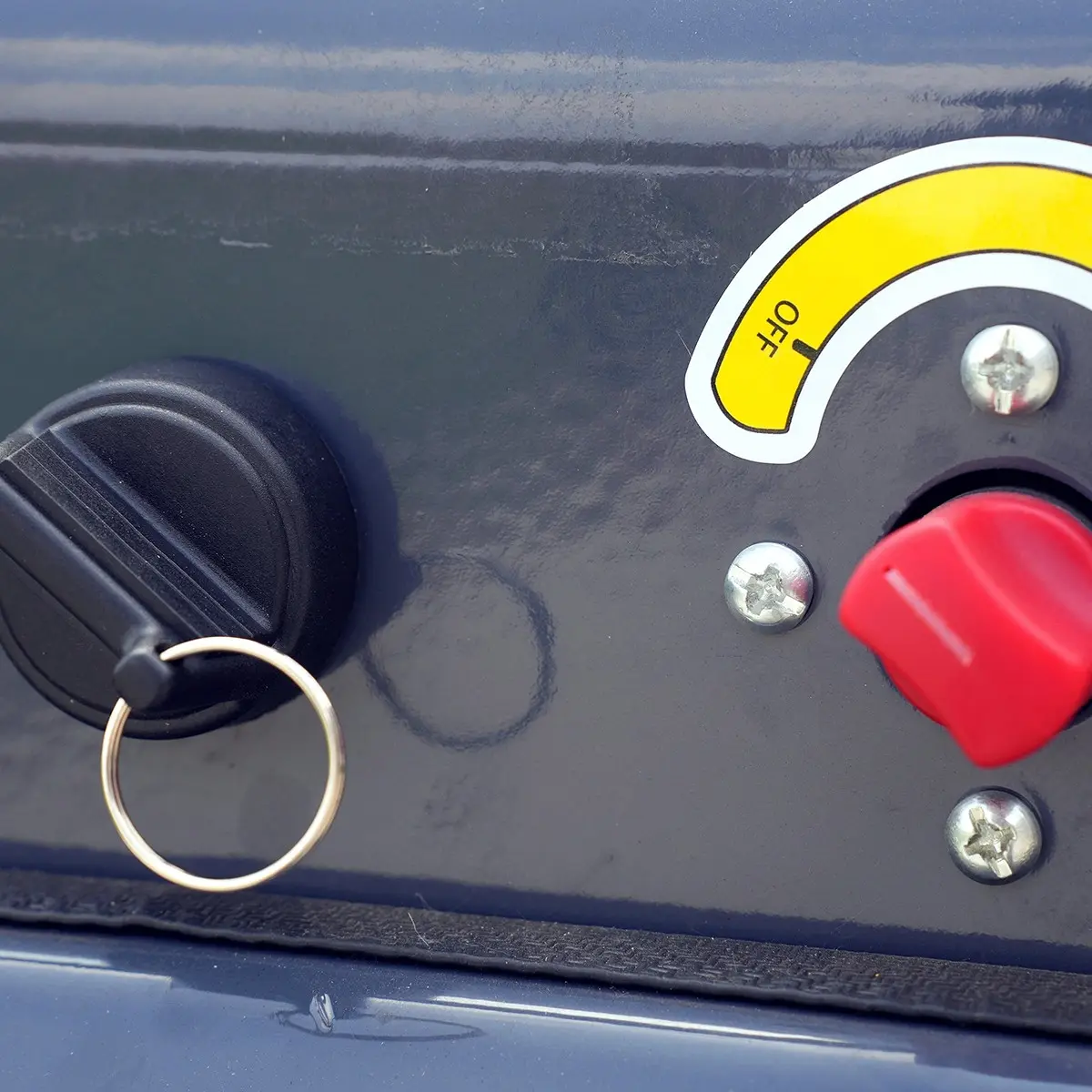

- Operator Control Handles
Grouped handles provide direct control of travel, steering, lifting and tipping.

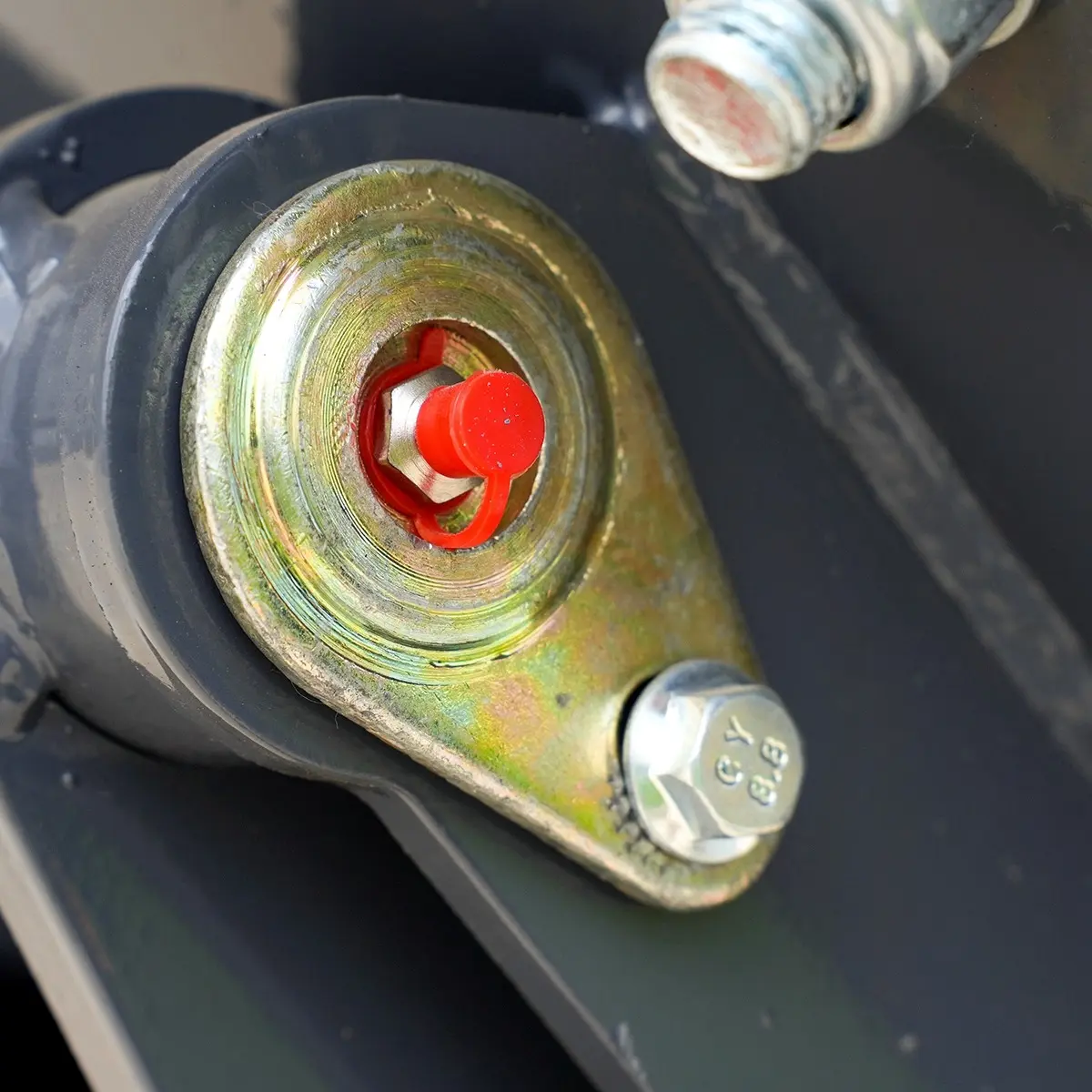

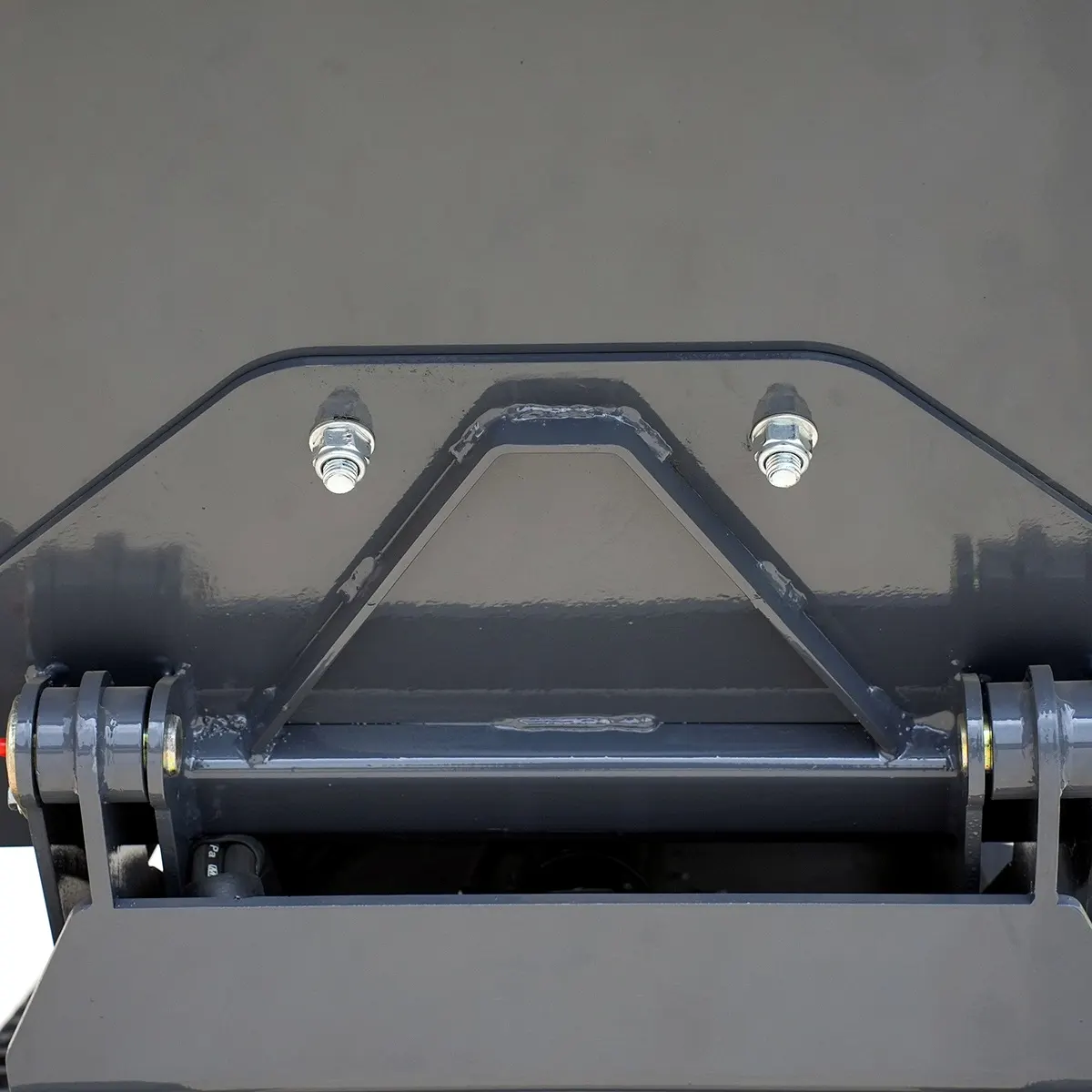

- Hopper Lift Linkage
Linkage connects the hopper and chassis for smooth, stable lifting motion.

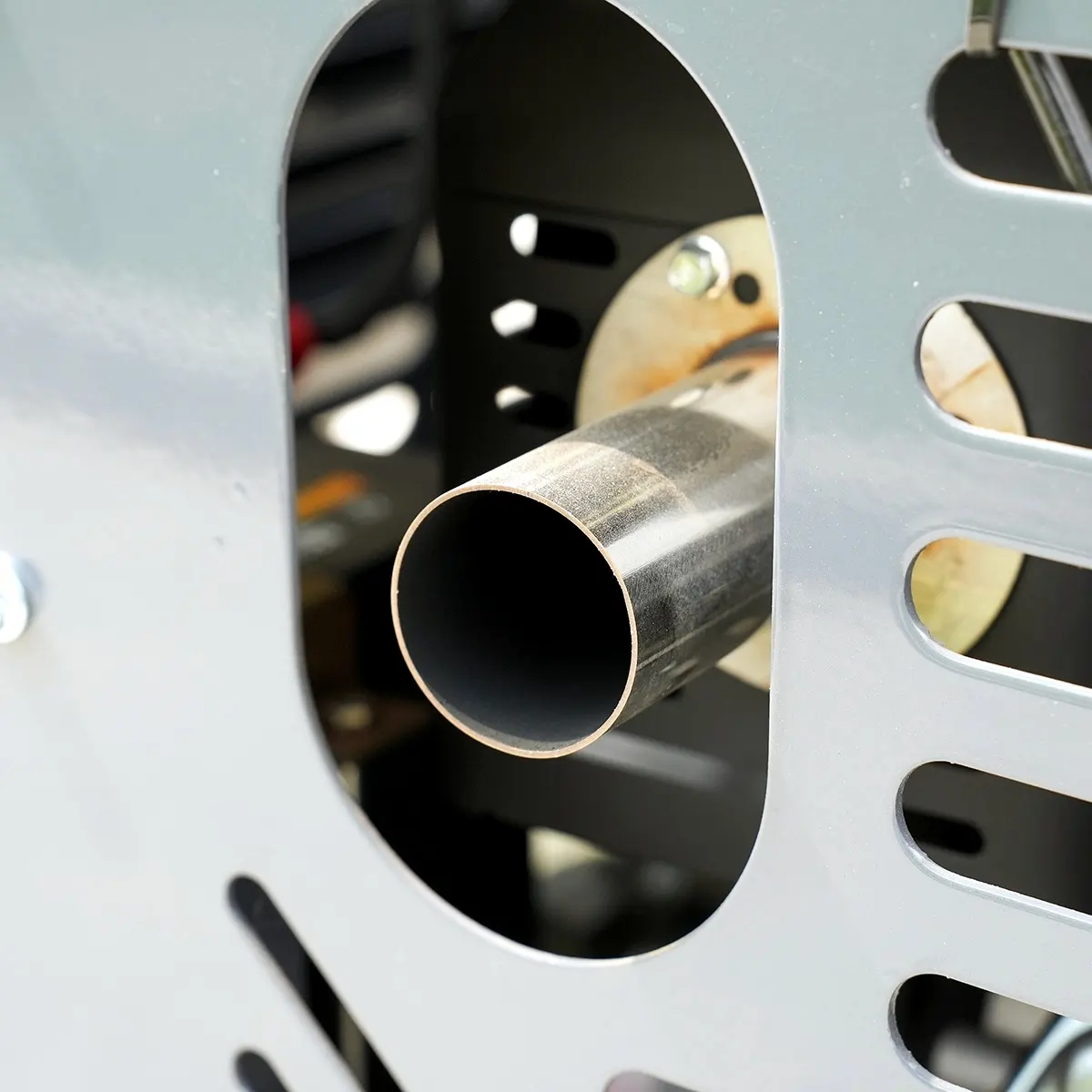

- Engine Side Guard
Ventilated guard protects powertrain components and supports service access.
- Hydraulic Hose Manifold
Manifold routes hydraulic flow for responsive lifting, tipping and travel functions.

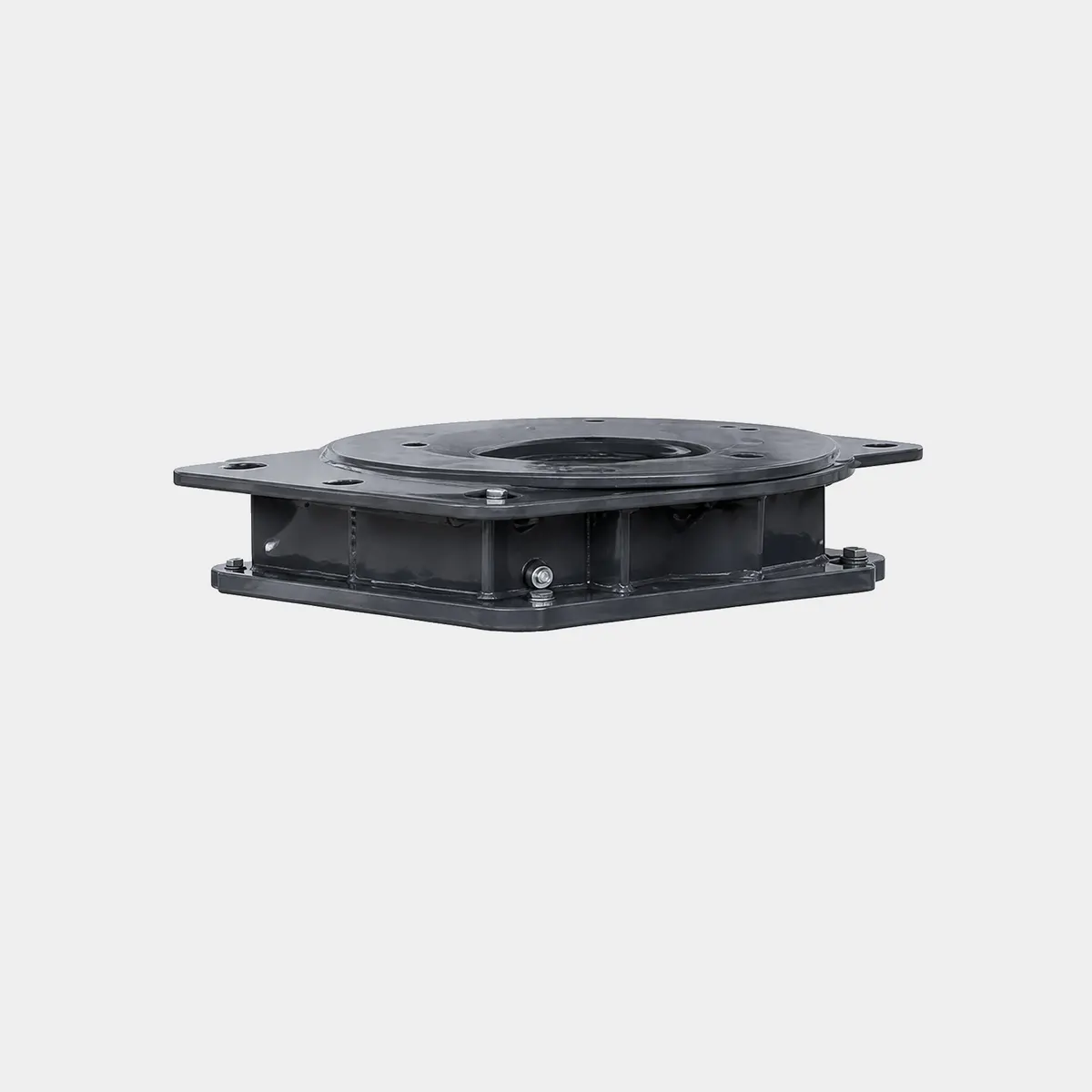

- Rotary Platform and Bearing
Rotary support connects the upper hopper and lower chassis for directional discharge.
- Main Chassis Frame
Steel frame supports the hopper, powertrain, rotary platform and tracked undercarriage.
General information
- Product Introduction
- +BL-1200 +Engine Model: Briggs&Stratton 25T2 +Engine Type: Single-cylinder Air-cooled Four-stroke+Total Displacement: 420CC+Rated Power: 13.5HP/3600rpm+Net Weight: 700kg+Max Load Capacity: 1200kg+Cargo Box Capacity: 594dm³+Tipping Method: Hydraulic Self-unloading+Tipping Angle: 90°+Max Rotation Angle: 180°+Rotation Method: Hydraulic Rotation+Travel Speed: 5km/h+Track Center Distance: 670mm+Gradeability: 20°
- Standard color
- Yellow and black color scheme
- Feature Overview
- High-mobility tracked chassis adapts to complex terrains. Equipped with a 360° rotating tipper mechanism and a hydraulic lifting self-unloading system, it enables precise multi-directional dumping without frequently moving the machine – achieving integrated efficient operation from loading to multi-angle dumping – saving labor and cost, improving efficiency.
- Standard product configuration

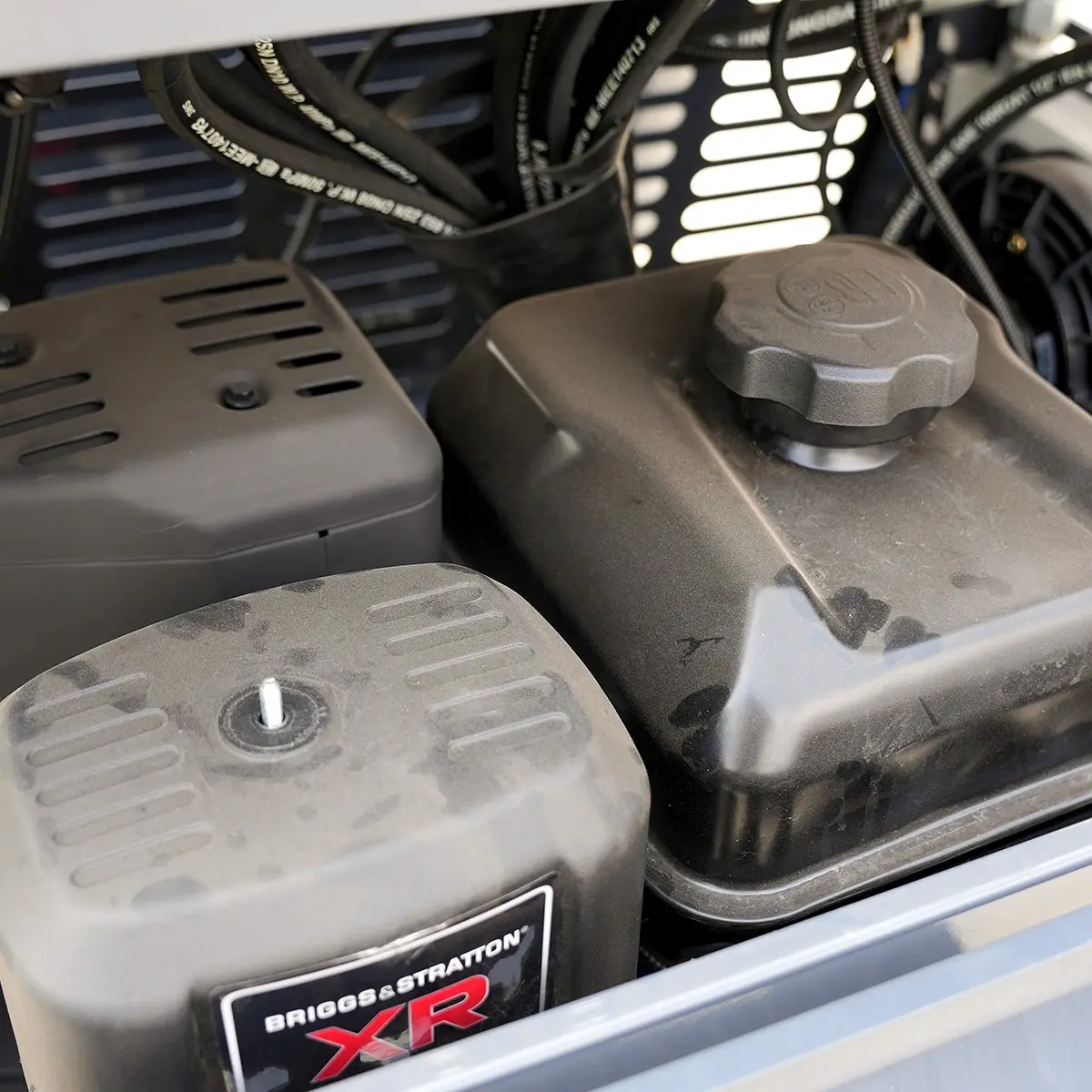

- Briggs & Stratton 13.5HP gasoline engine + electronic control switch system + driveline assembly Hydraulic pump + control valve + control console 180° rotating chassis + hydraulic hopper + hydraulic shovel Folding step + rubber track chassis
- Configuration upgrade
- Changchai 192 China Stage II Diesel Engine Koop 192 Euro V Diesel Engine Honda GX390 EPA Certified Gasoline Engine
- Container loading quantity
- 20GP/6set+ 6set500Model 40HQ/22set （Load 11 iron racks ）
- Assignment scenario
- Narrow site scene: suitable for rural infrastructure and tunnel construction, limited site/many obstacles, no need to adjust the body can be multi-directional accurate unloading, reduce site occupation, improve operation efficiency, adapt to complex construction layout. Garden/orchard scene: garden construction, fruit and vegetable transportation, crawler does not damage the site/crops, rotating unloading can directly unload materials to different corners, without repeatedly moving the body, and efficiently complete the transportation operation. Mine/underground scene: small mines, underground operations, poor road conditions and narrow sites, rotary unloading can accurately connect the silo/tramcar, reduce the frequency of body adjustment, reduce the risk of car trapping, and ensure the continuity of operations. Municipal maintenance scenario: road maintenance, municipal engineering, limited operating space, rotary unloading does not need to occupy the road to turn around, reduce the impact on traffic, efficient completion of sand/muck transfer.
General instructions
Simplified explanationProduct Attachments or Core Configurations
Product Video

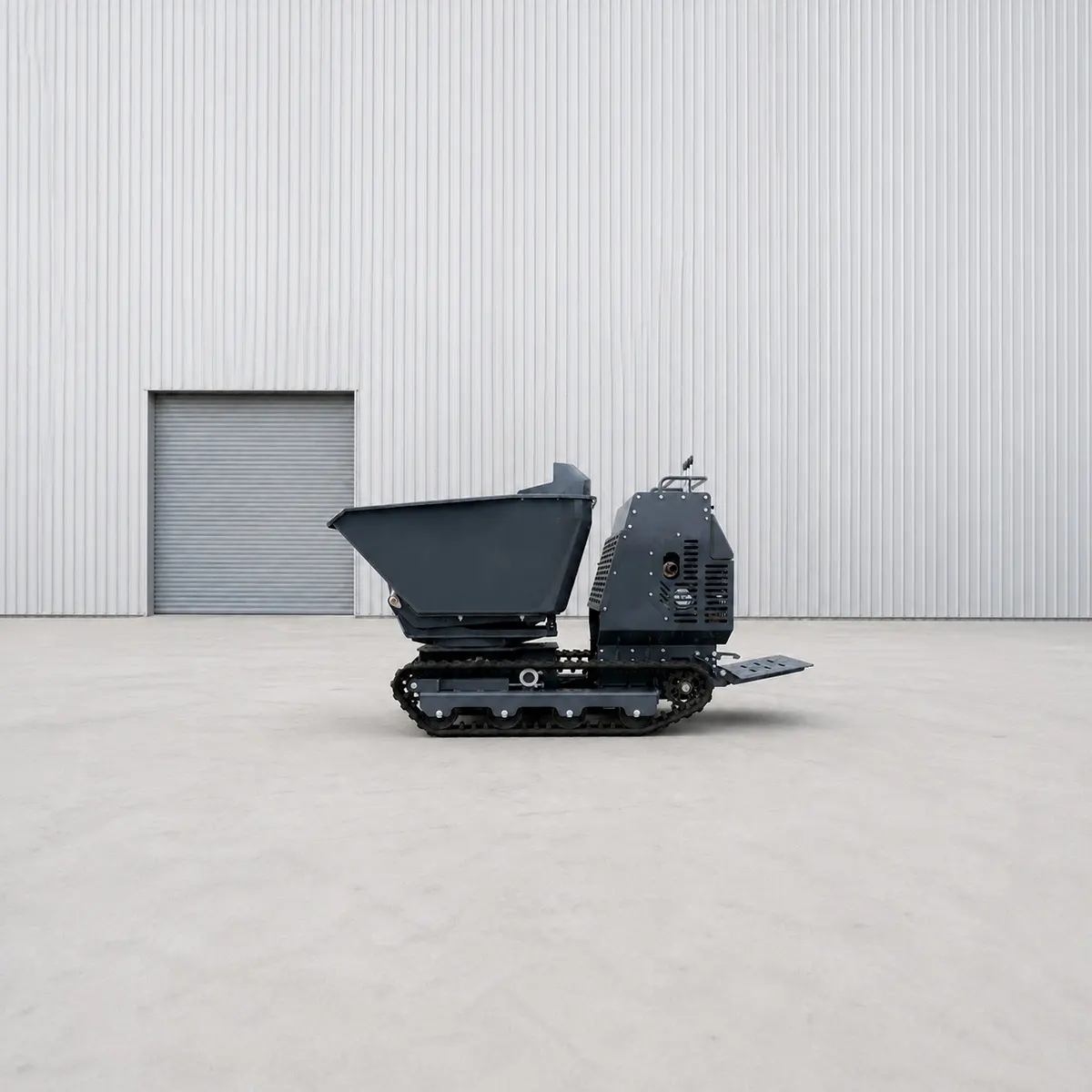

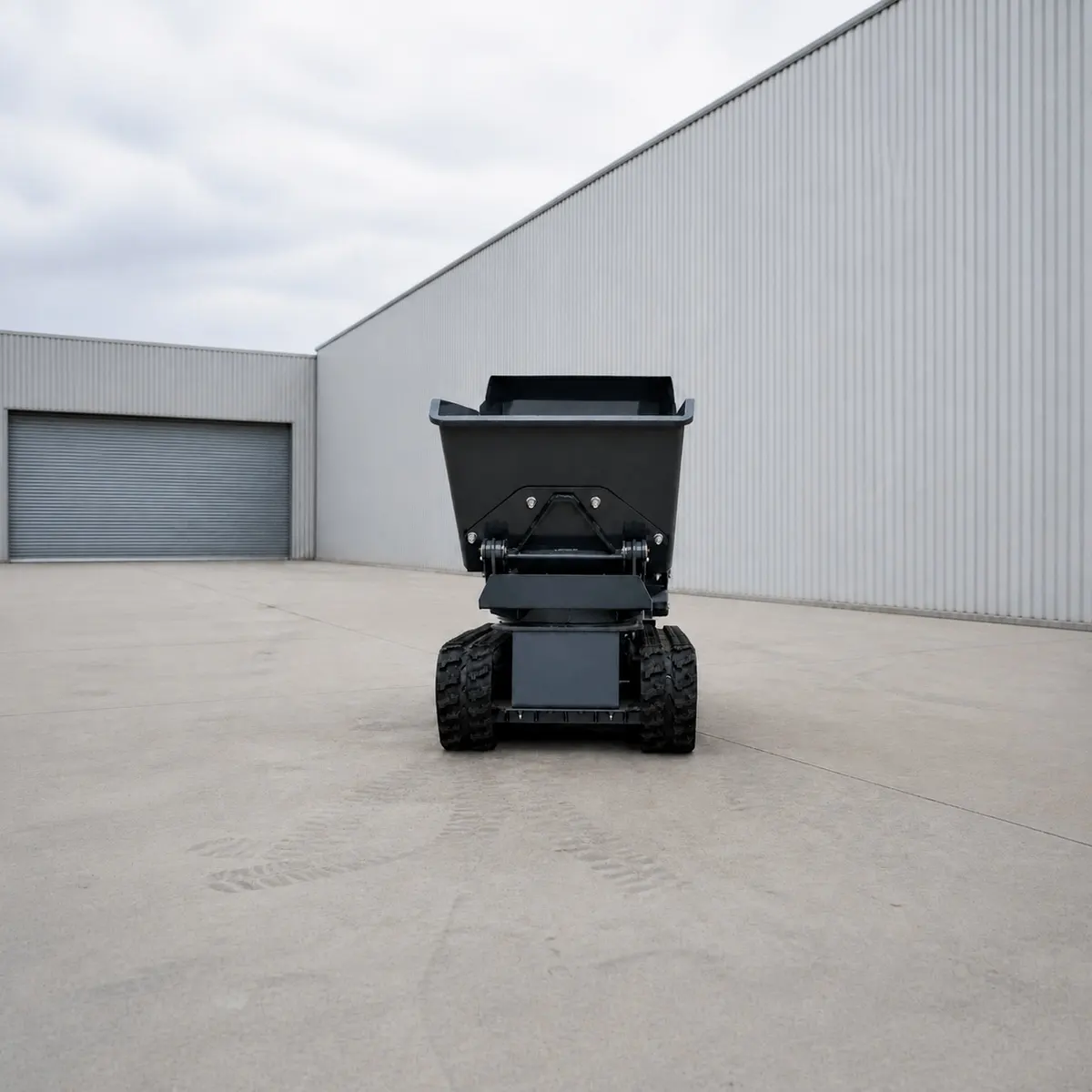

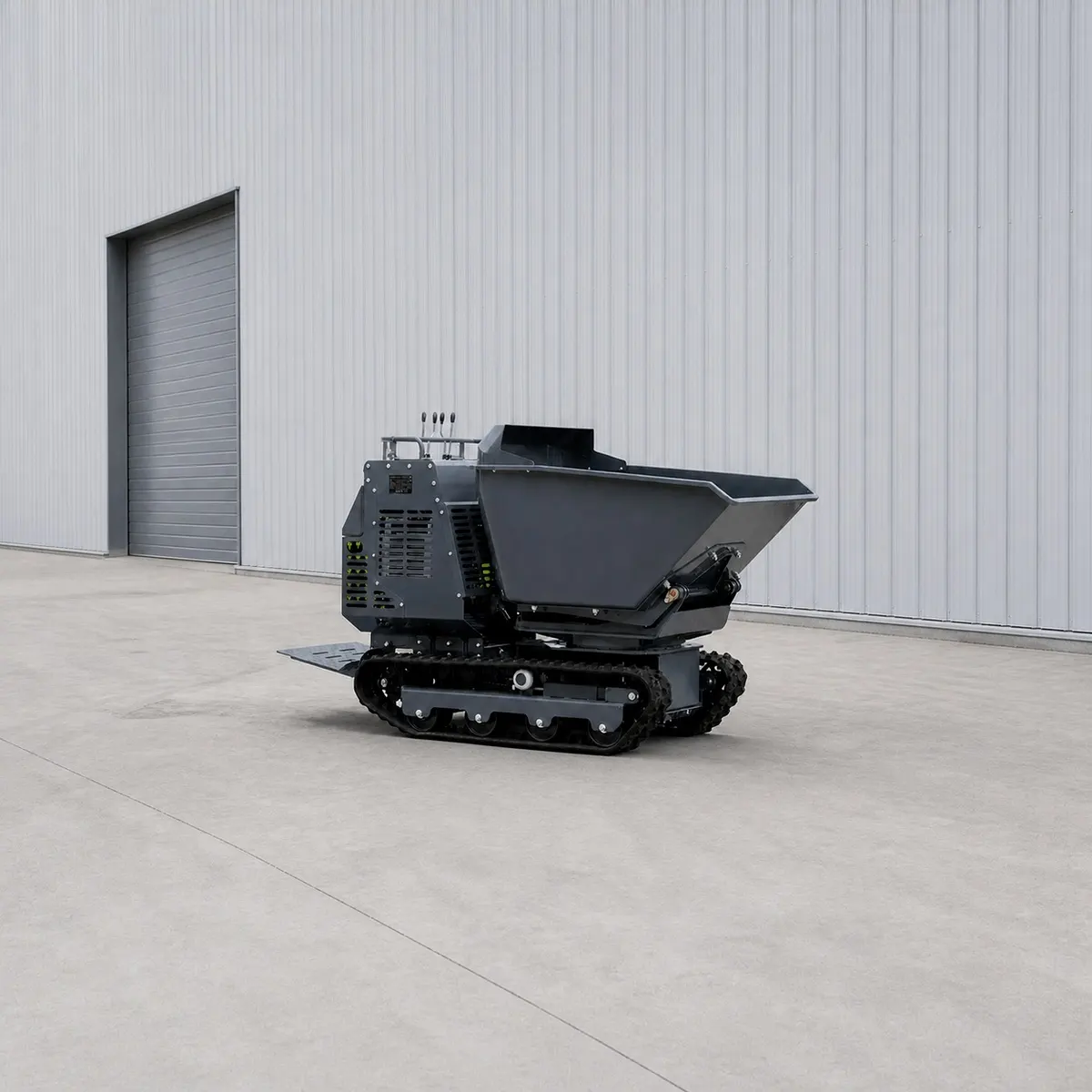

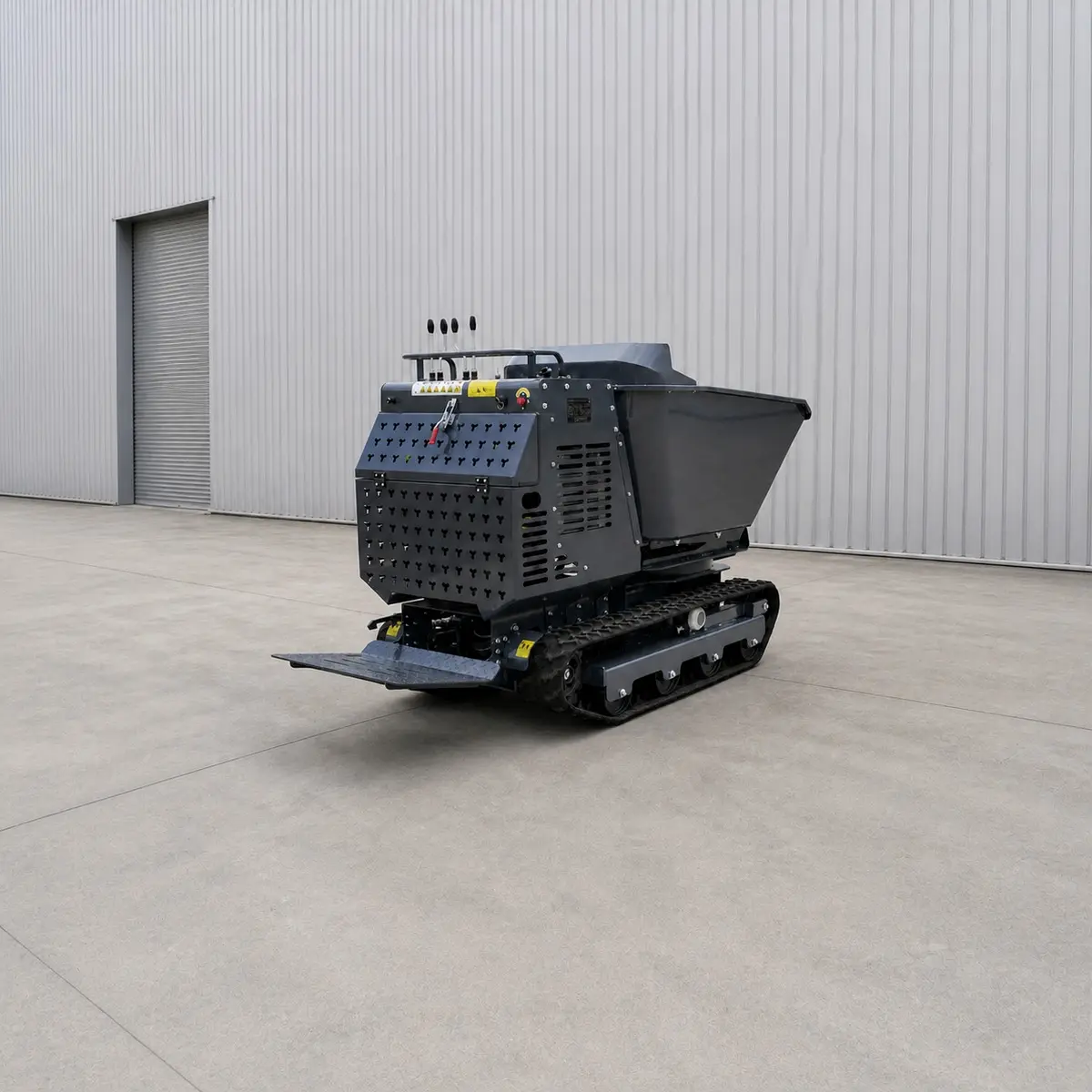

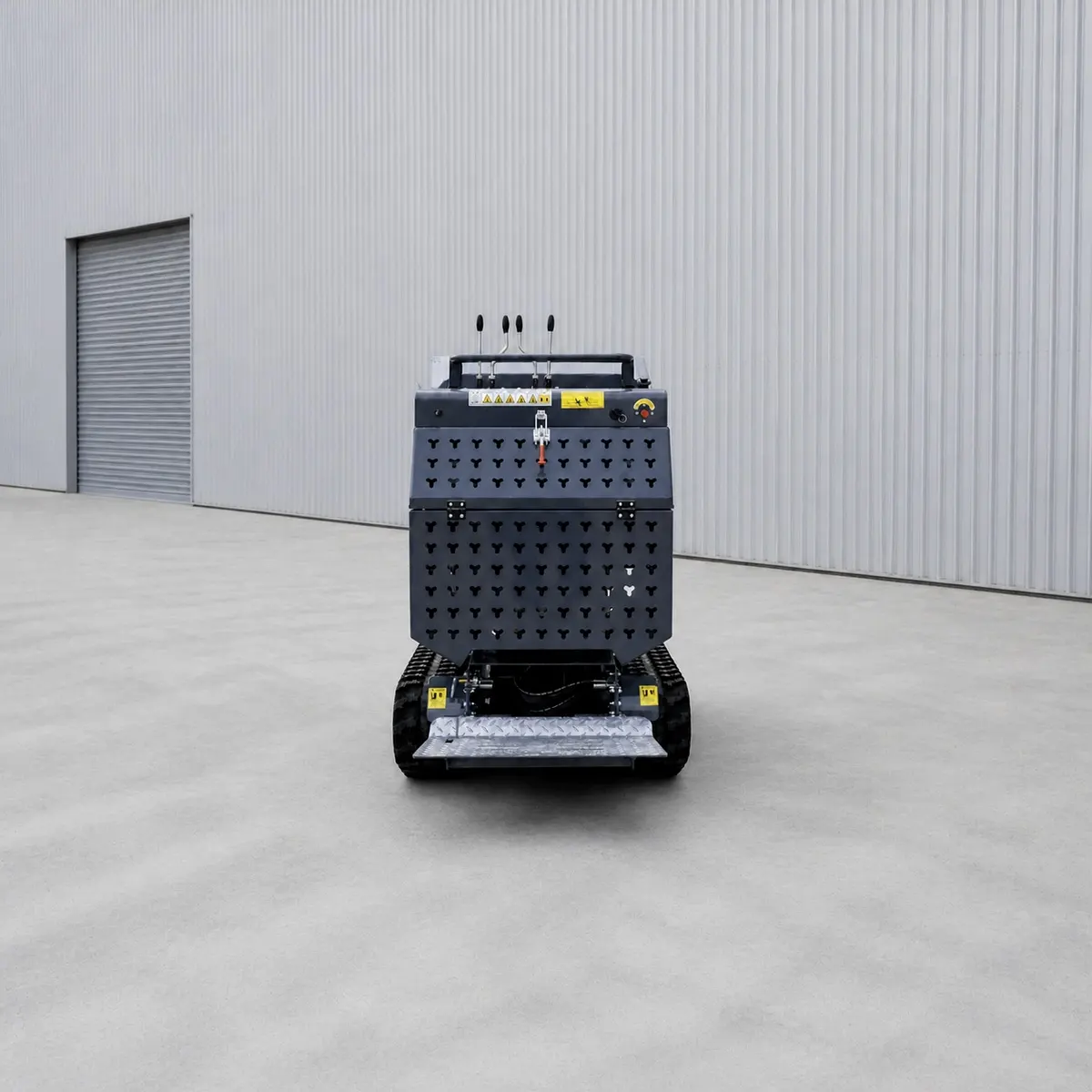

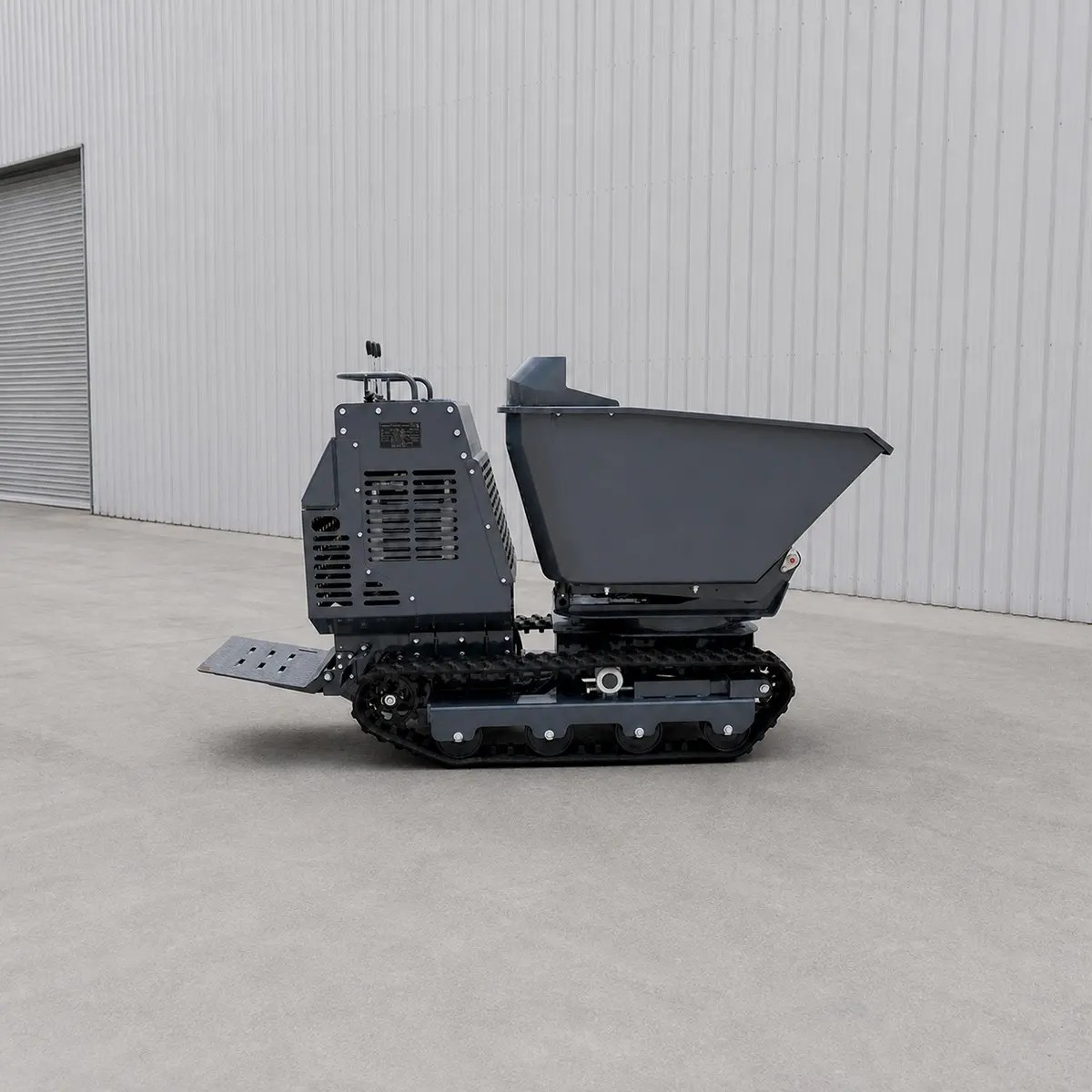

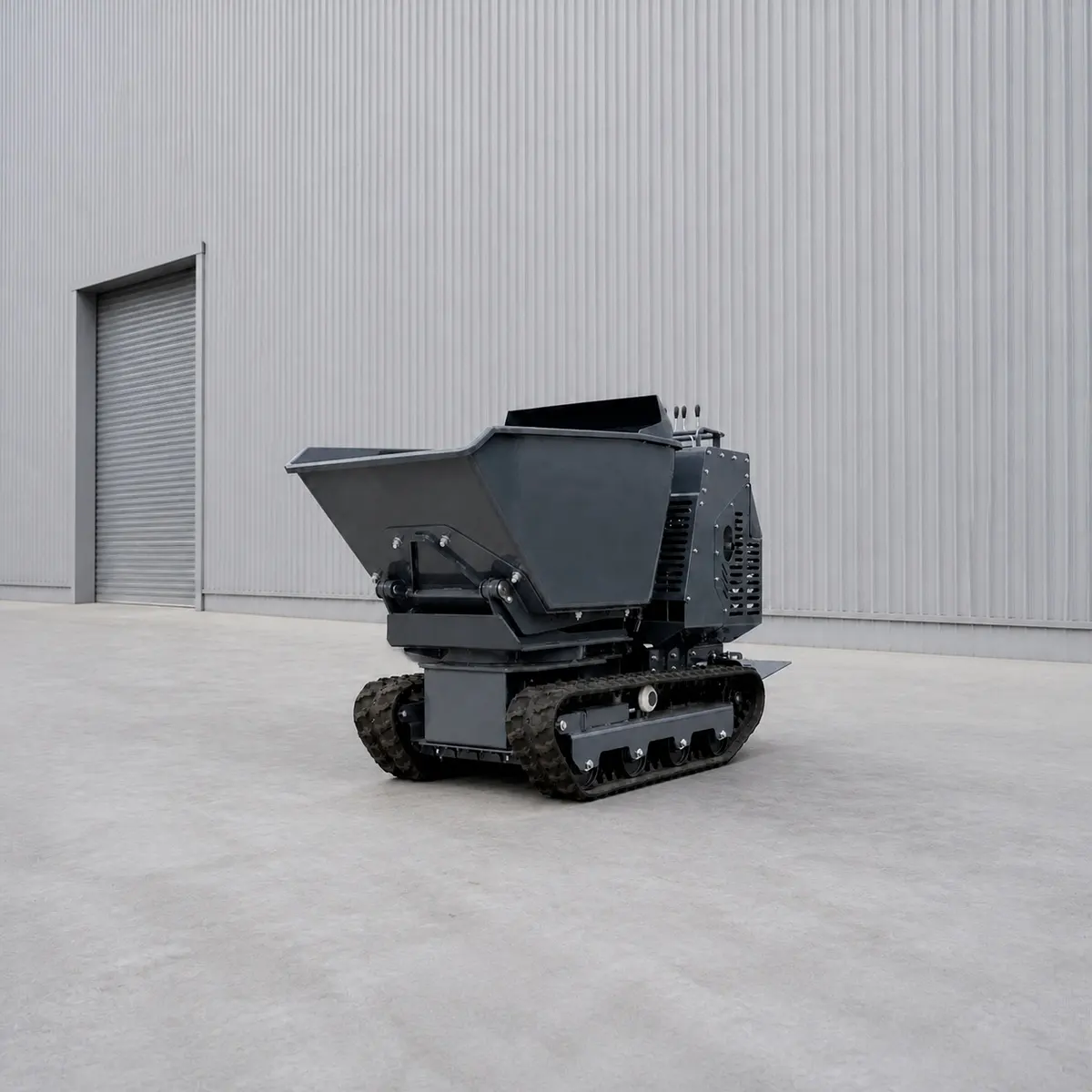

BL-1200 Static Product View
Static view of the BL-1200 rotary hopper, tracked chassis and operator layout.
BL-1200 Static Product View
00:17Static view of the BL-1200 rotary hopper, tracked chassis and operator layout.
BL-1200 Dynamic Rotary Dump Demo
00:40Dynamic demonstration of tracked travel, hopper rotation and controlled material discharge.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
Where is the BL-1200 typically used?
It is suited to industrial yards, logistics routes, construction worksites and managed fleet operations where controlled side discharge is required.
How do I choose the right model?
Match payload, hopper capacity, rotary reach, track specification, powertrain and route conditions to the planned workload.
What should be confirmed before ordering?
Confirm model, hopper configuration, color, payload, track specification and optional equipment, then verify delivery timing and site requirements.
How should it be installed and maintained?
Check structure, hydraulic connections, track tension and safety controls before use; follow the supplied manual for operation and routine maintenance.
