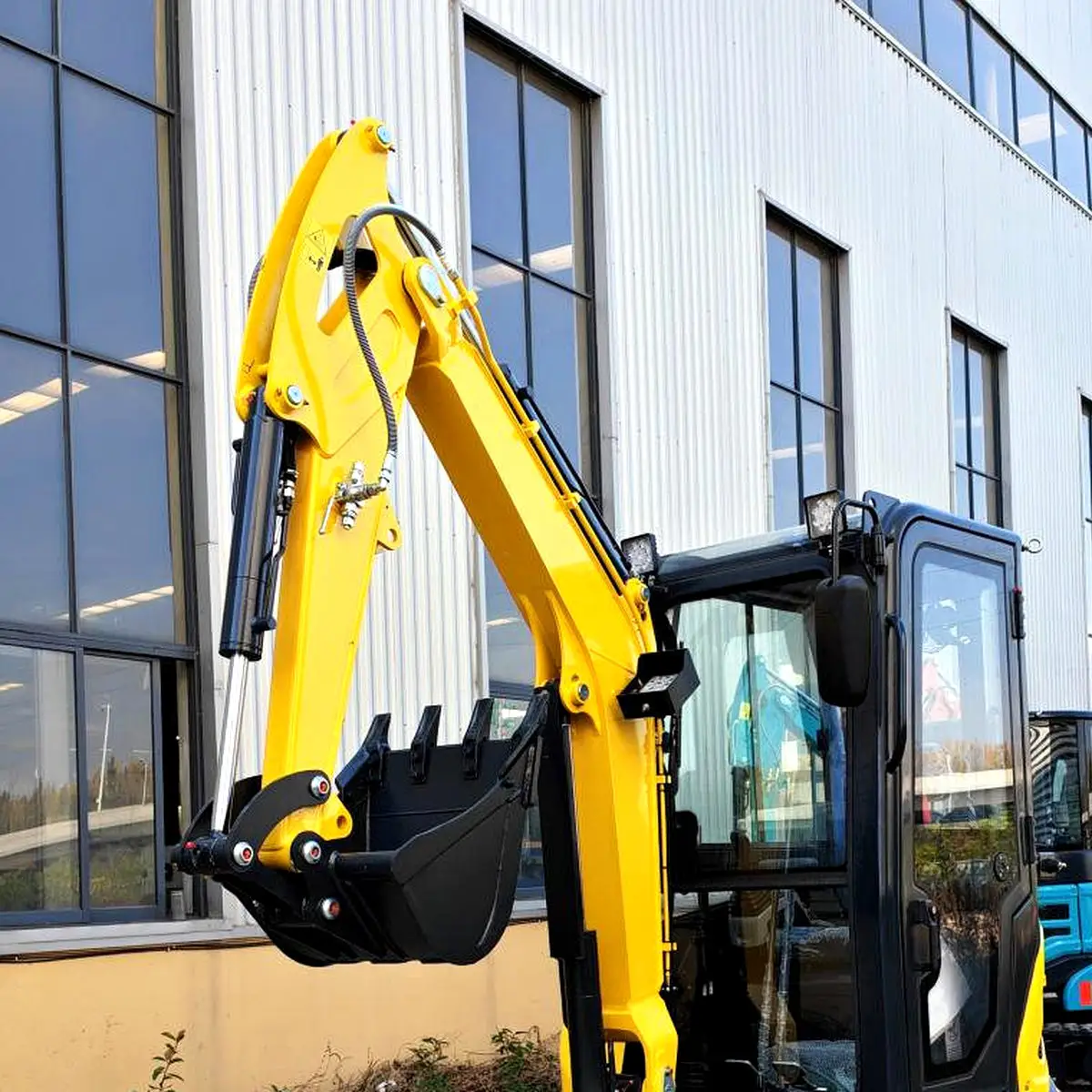

Front bucket and pivot linkage form the working end for loading and controlled excavation.
Narrow Utility ExcavationGW30 Mini Crawler Excavator
Compact excavation for planned site work
The four scenes show drainage trenching, landscape-bed shaping, narrow utility excavation and shallow foundation-edge preparation. The compact tracked layout is placed close to each work edge, while the articulated bucket works directly with loose soil in daylit outdoor conditions.
- Drainage Trench Excavation

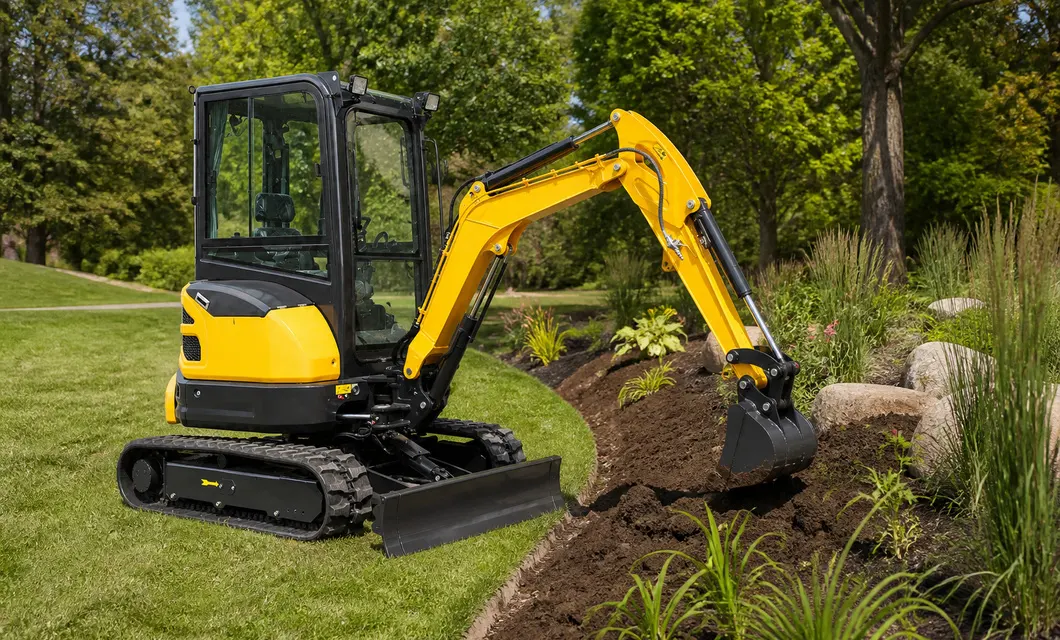

- Landscape Bed Shaping

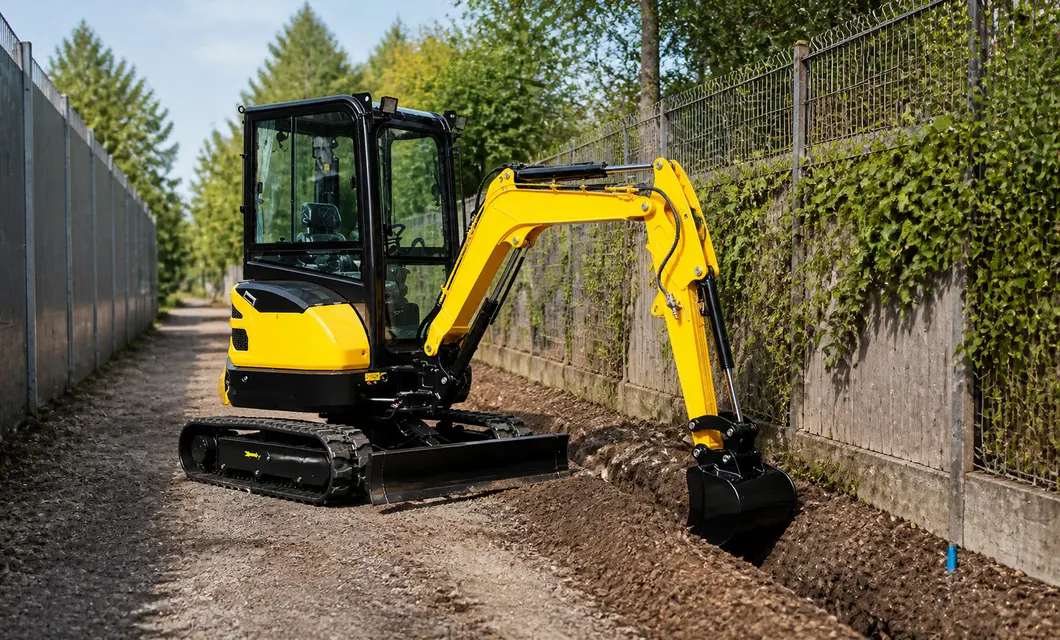

- Narrow Utility Excavation

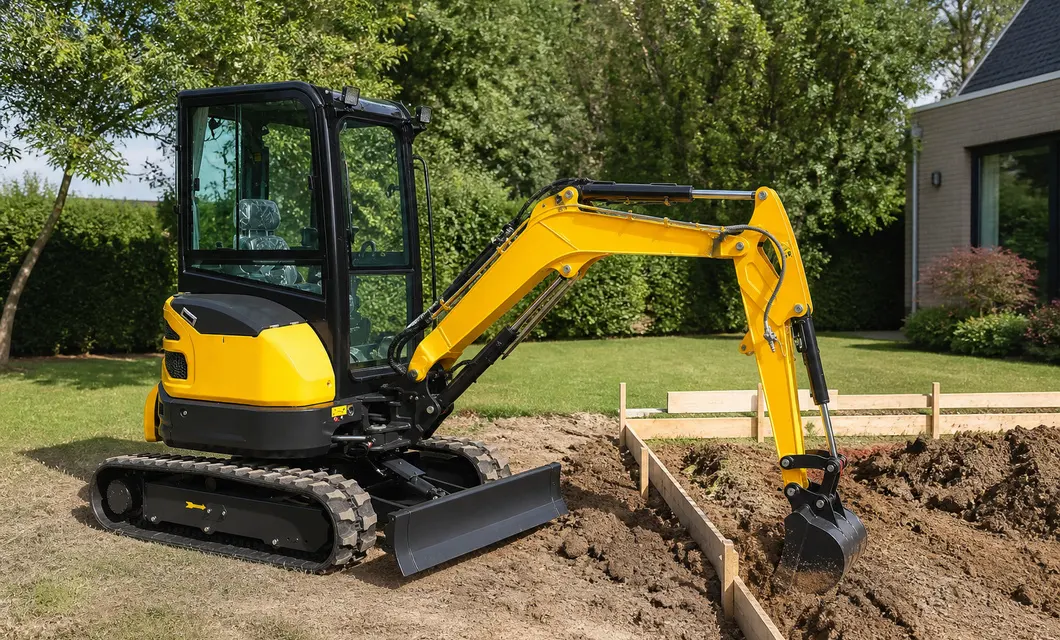

- Foundation Edge Preparation

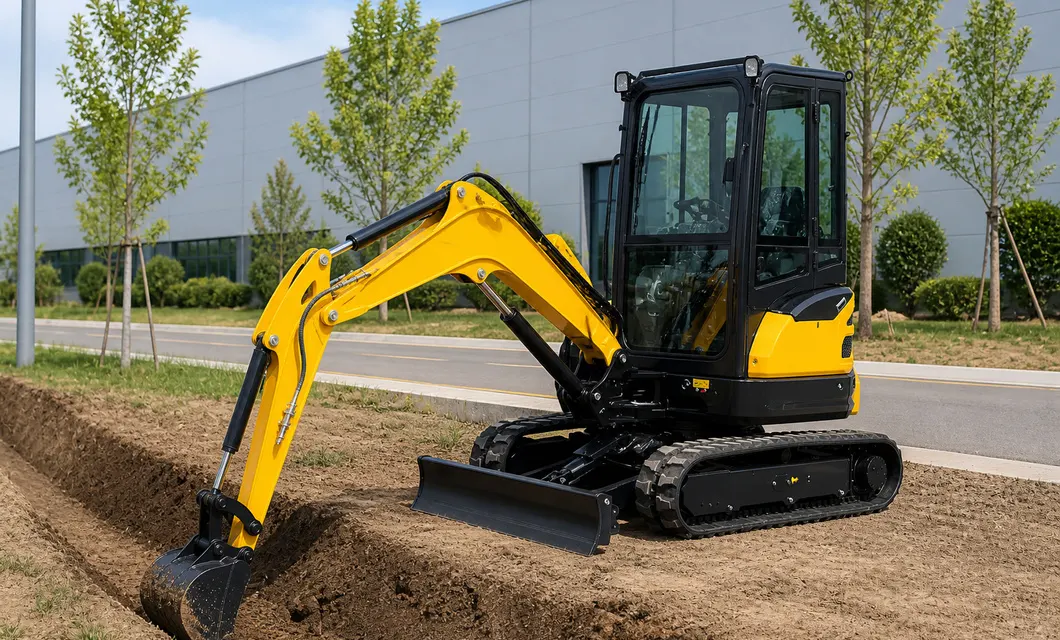

Drainage Trench Excavation
Landscape Bed ShapingNarrow Utility Excavation
Foundation Edge PreparationDrainage Trench ExcavationLandscape Bed ShapingSpecifications & Structural Decomposition

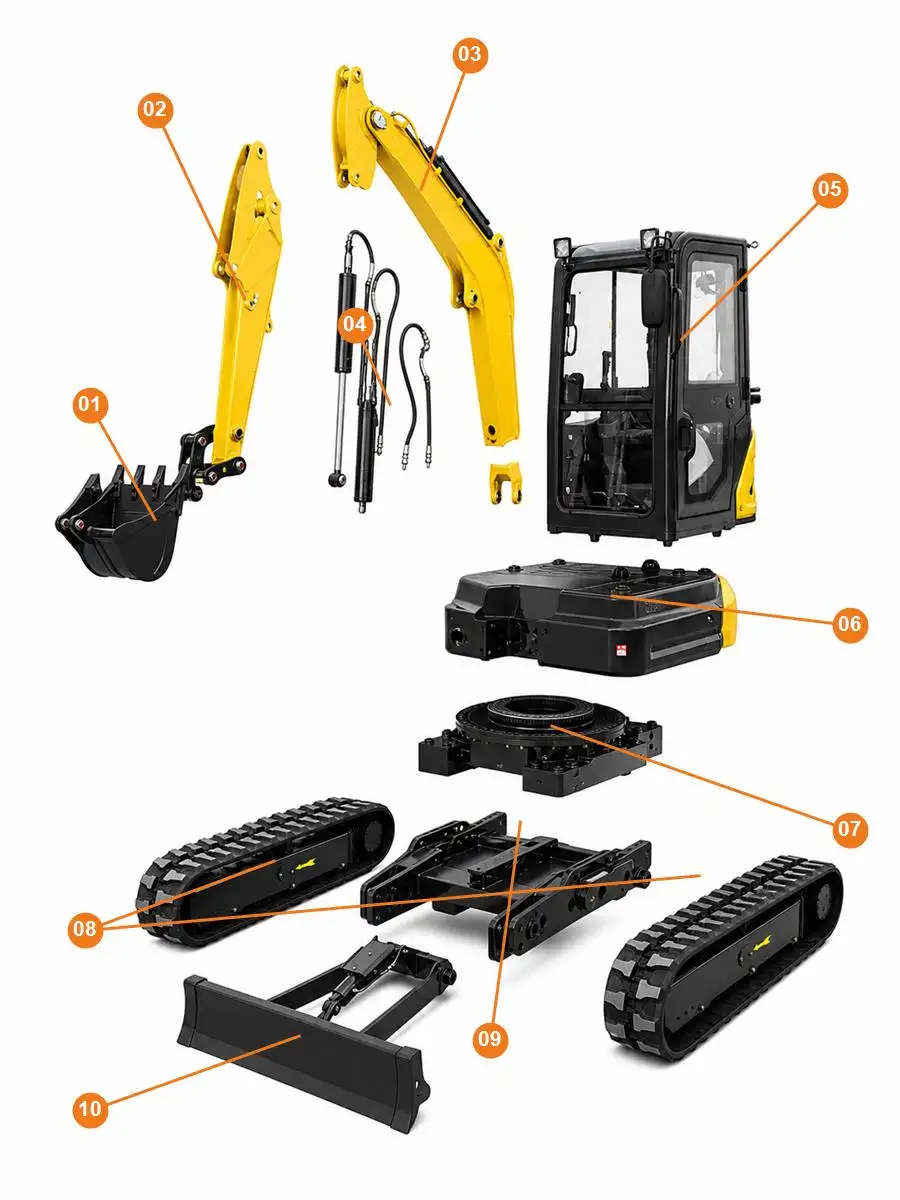

Product Structure
- Bucket and Linkage
- Dipper Arm
Forward arm carries bucket linkage and transfers hydraulic force for reach and digging control.
- Boom
Main boom raises and positions the arm, preserving the machine reach shown in the white reference.
- Hydraulic Cylinder and Hoses
Visible cylinders and hoses drive boom, arm and bucket joints for coordinated hydraulic motion.

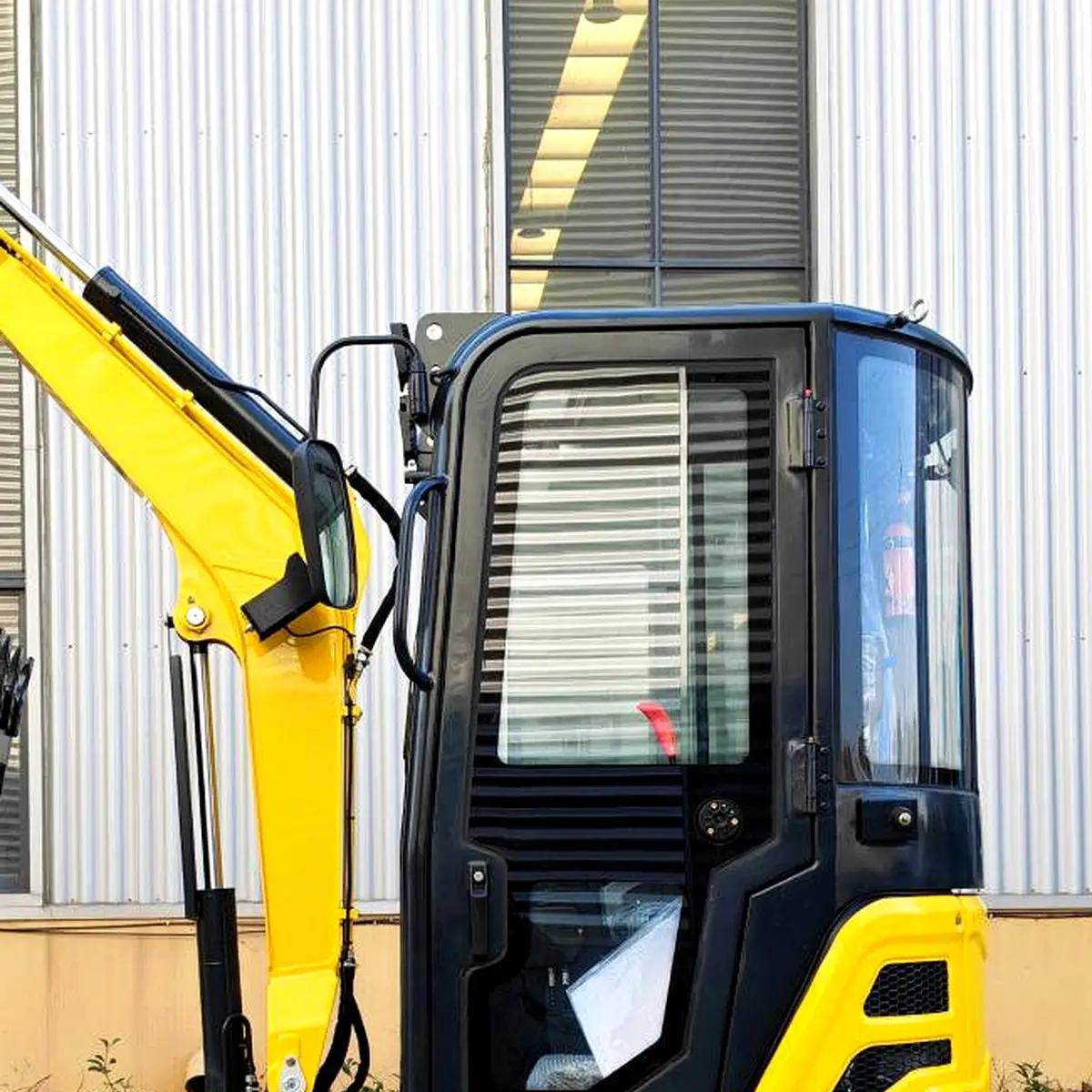

- Enclosed Operator Cab
Glazed cab surrounds seat and controls, giving the operator a protected, clear work station.

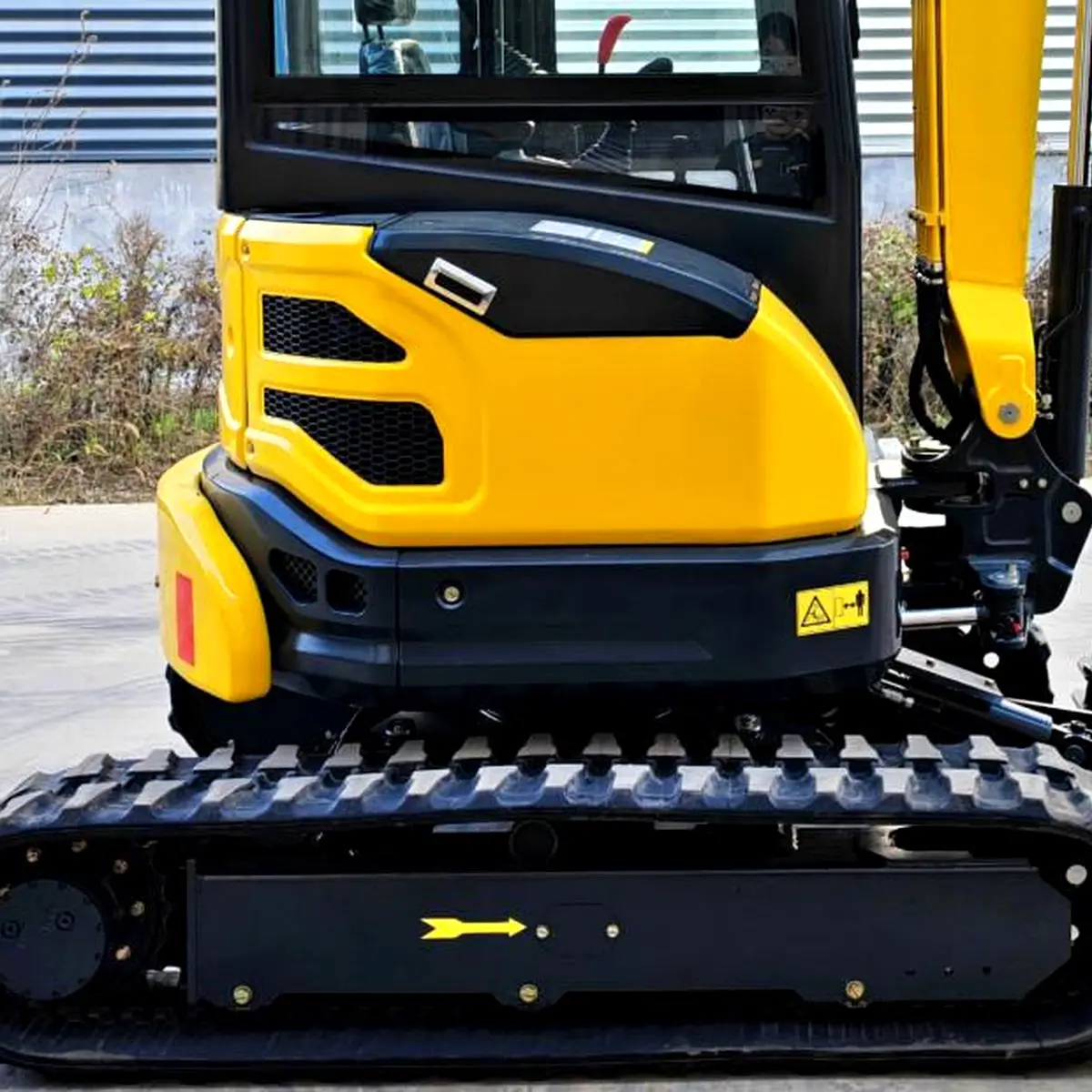

- Upper Counterweight Body
Black upper body houses rear equipment and balances the front attachment during operation.
- Swing Base
Circular swing base links upper body to lower frame for controlled upper-structure rotation.
General information
- Product Basic Information
- Miniature crawler excavator
- Operating weight/tonnage
- 2.78 tons
- Product Introduction
- Backhoe-type mini crawler excavator
- Standard engine model
- 3TNV80F
- Power
- 15.2 kW / 2500 rpm
- Track type
- rubber track
- Cab type
- Driving shed
General instructions
Simplified explanationCore Component Details
Certifications
Qualification Documents
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions
Which tasks suit this excavator?
It is suited to localized digging, soil shaping and shallow trench work where a compact tracked machine can be positioned close to the intended work edge.
How is the digging end controlled?
The enclosed operator station contains the visible control layout used to coordinate the articulated boom, dipper and bucket through their existing pivots.
What supports stable work placement?

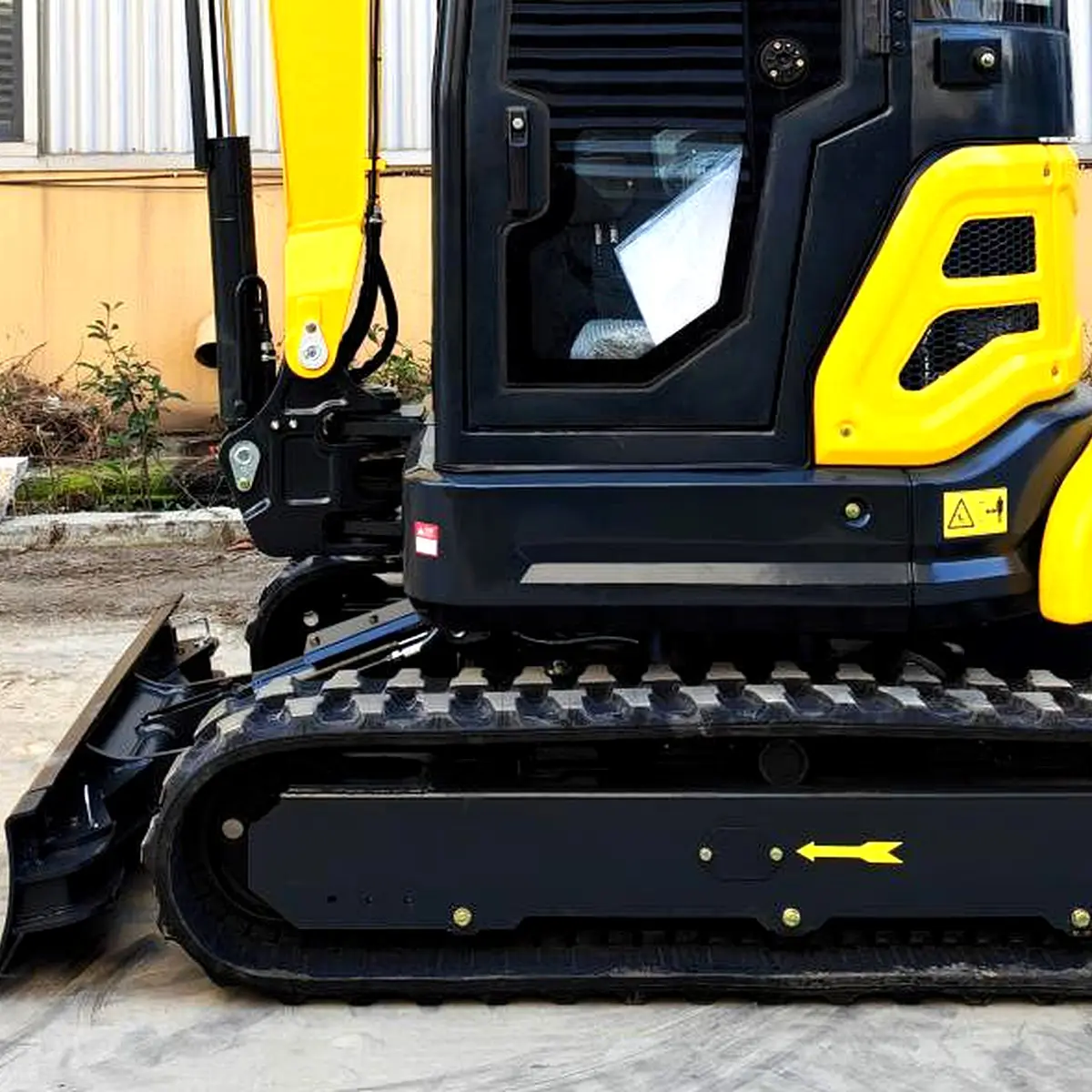

The crawler undercarriage provides broad ground contact, while the front blade can assist with orderly material grading and work-area setup.
Can it work near finished surfaces?
The compact layout supports careful placement near planting areas, utility routes and prepared surfaces when the work area is assessed before operation.
What should be confirmed before ordering?
Confirm the intended task, required access space, preferred configuration and the actual ground conditions so the machine can be matched to the planned work.
