The yellow steel bed forms the main load body and separates upward and slightly rearward.

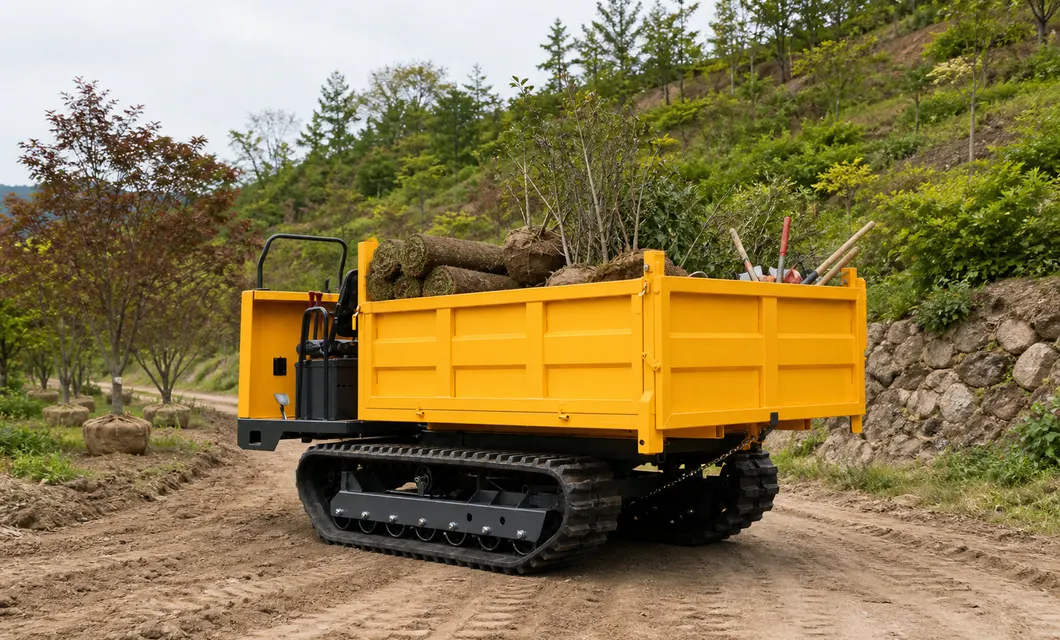

hillside-landscaping-workRide-On Tracked Cargo Carrier
Reliable Product Support for Site Work

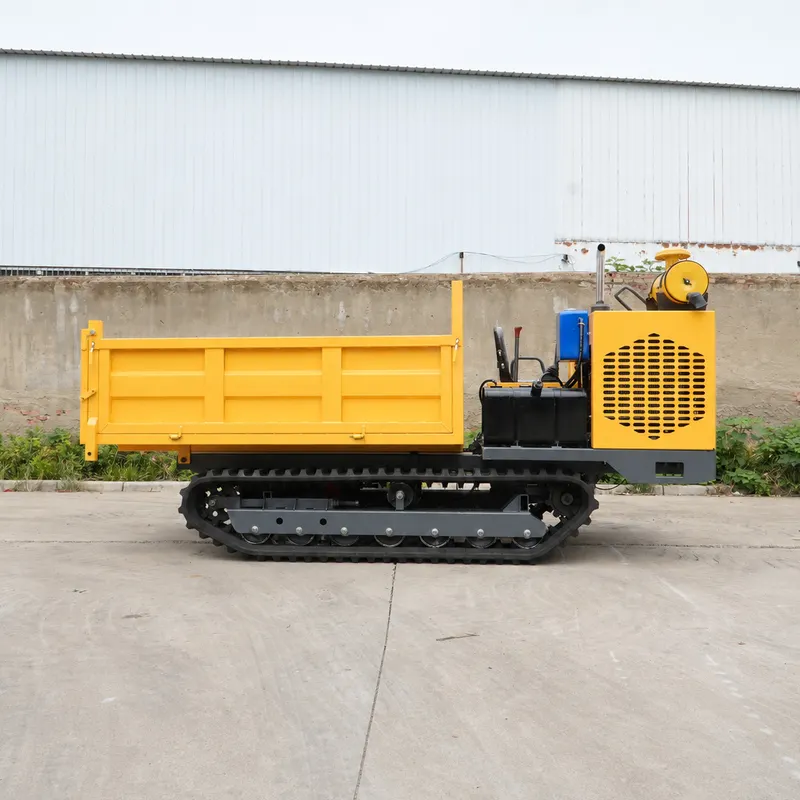

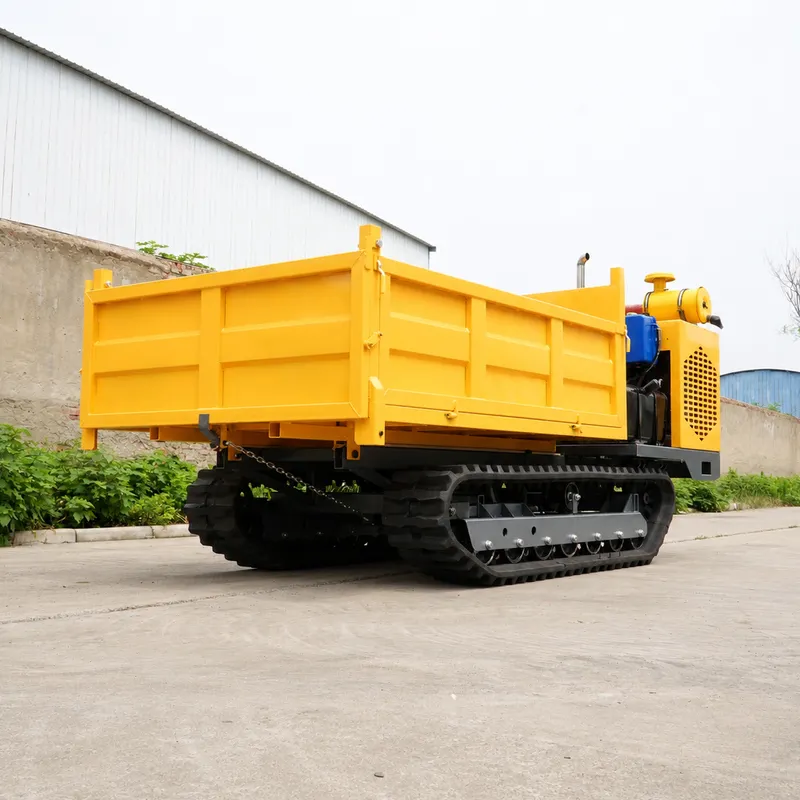

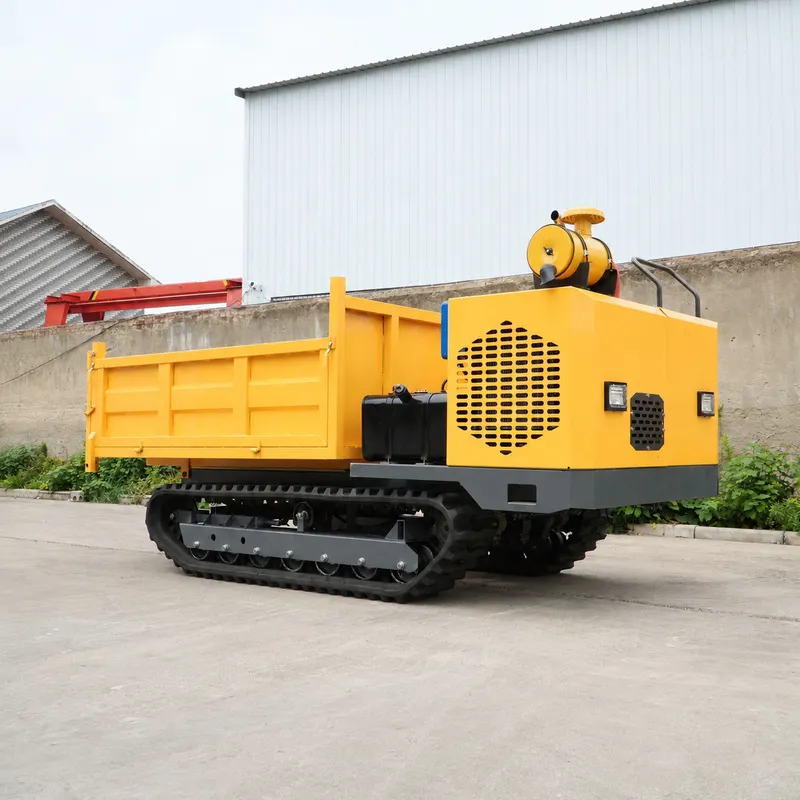

This ride-on tracked cargo carrier moves farm, landscaping and site materials with a ribbed cargo bed, dual tracks and seated controls.
- Five-Ton Payload
- Ride-On Operation
- Engineering Tracks
- Large Cargo Bed
construction-material-haul

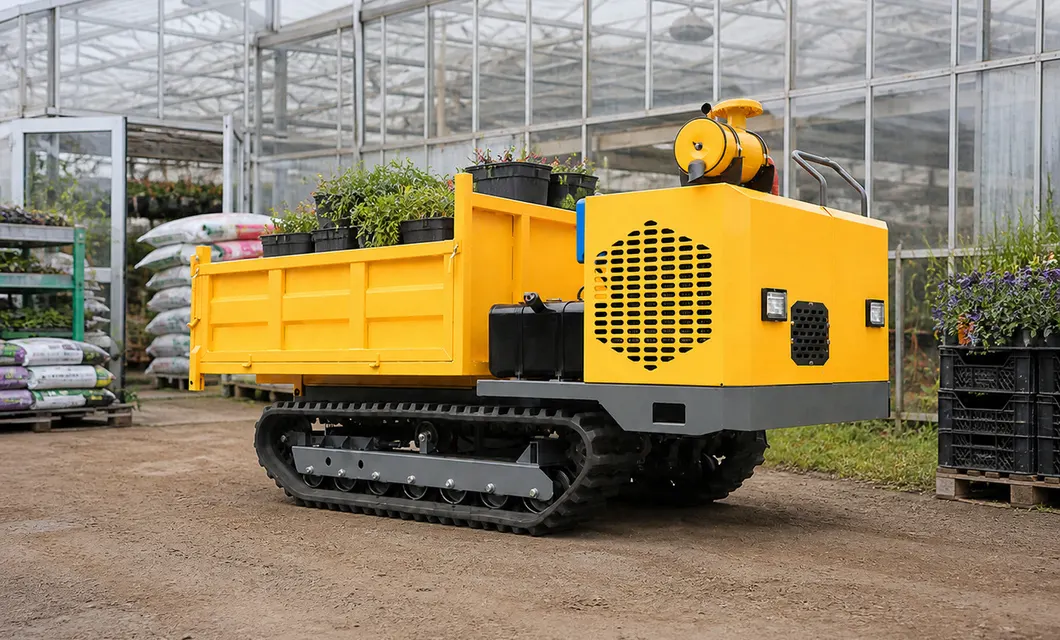

greenhouse-supply-transferhillside-landscaping-work

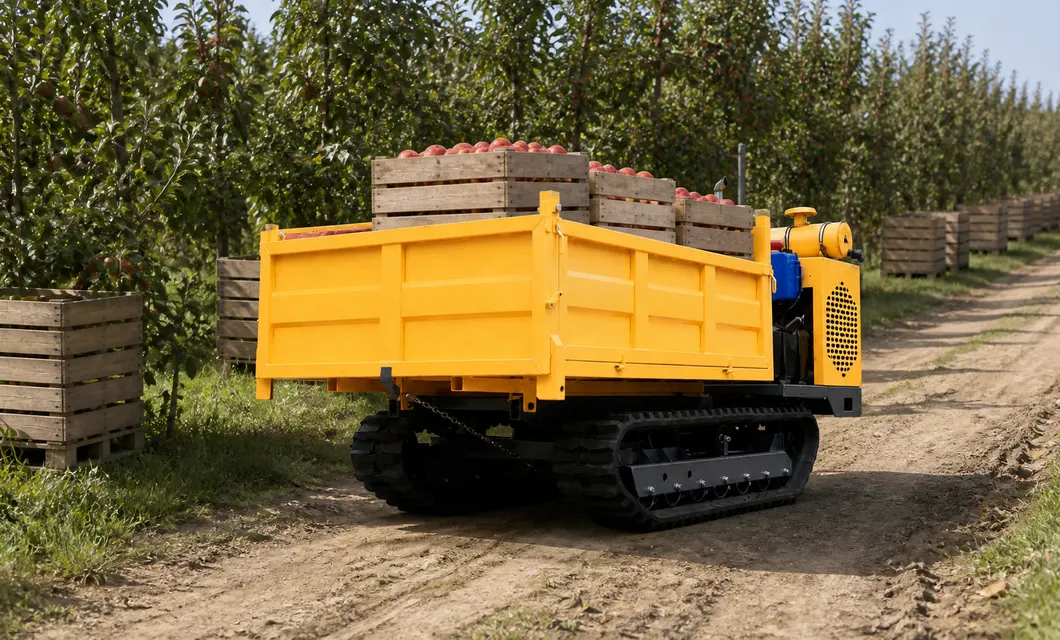

orchard-harvest-transportconstruction-material-haulgreenhouse-supply-transferProduct Advantages

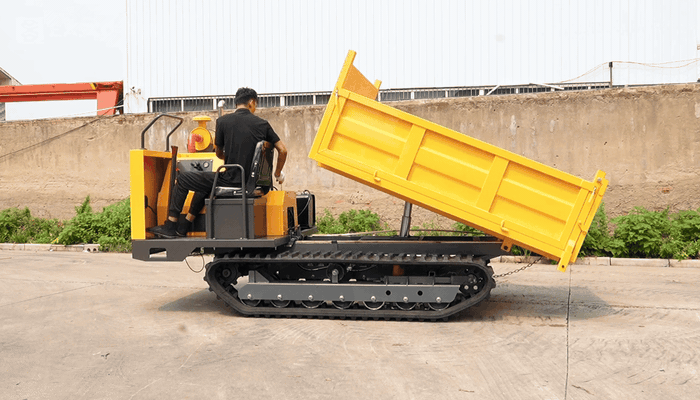

5-ton vehicle - Test - Tipping
Specifications & Structural Decomposition
Product Structure Diagram
- Cargo Bed Body Assembly
- Rear Tailgate Assembly
The confirmed yellow rear gate closes the bed and separates rearward along its hinge line.

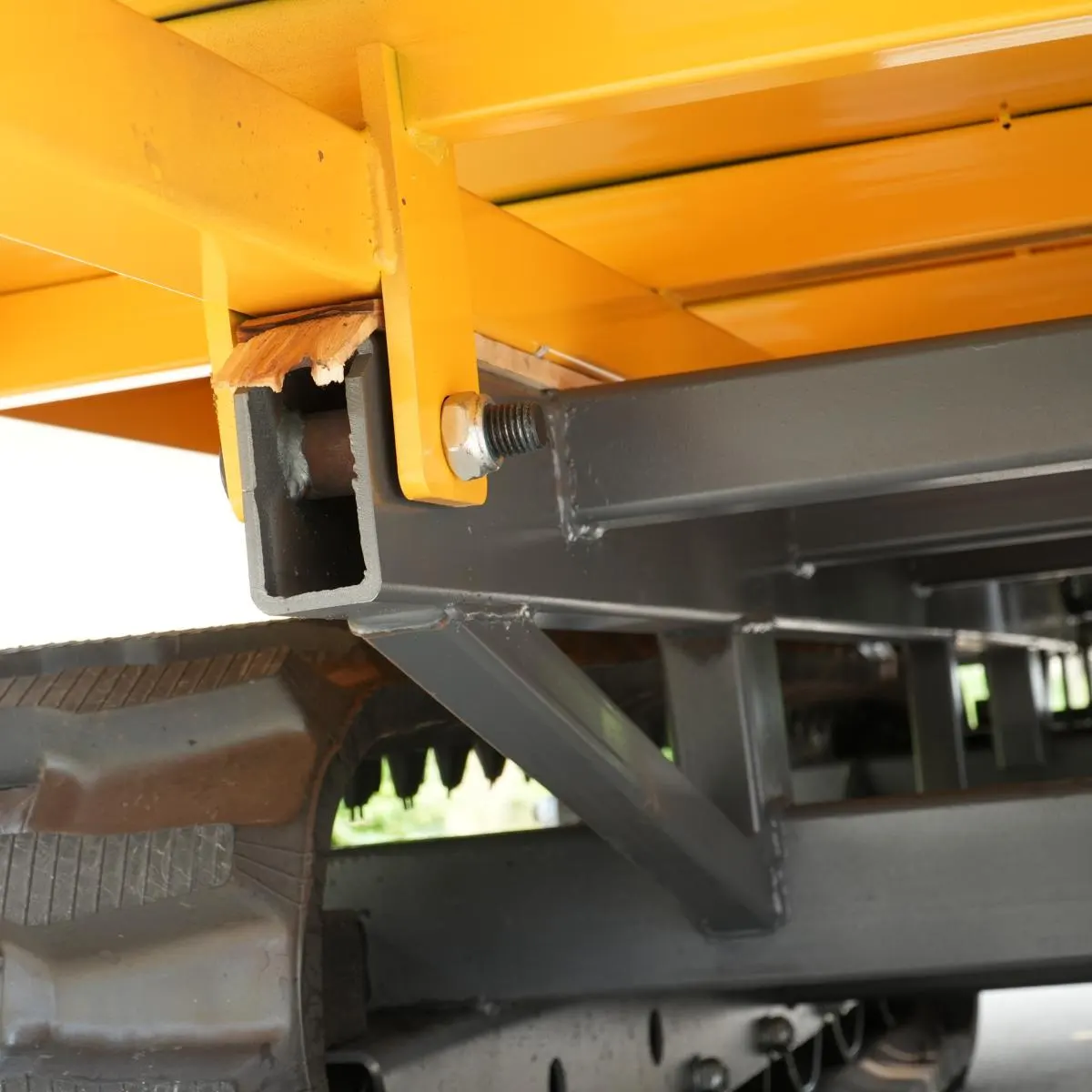

- Cargo Bed Tipping Subframe
The visible subframe supports the heavy bed above the chassis and keeps its tipping geometry.
- Operator Seat and Control Station
The black seat, platform and visible control levers form one confirmed operator station.

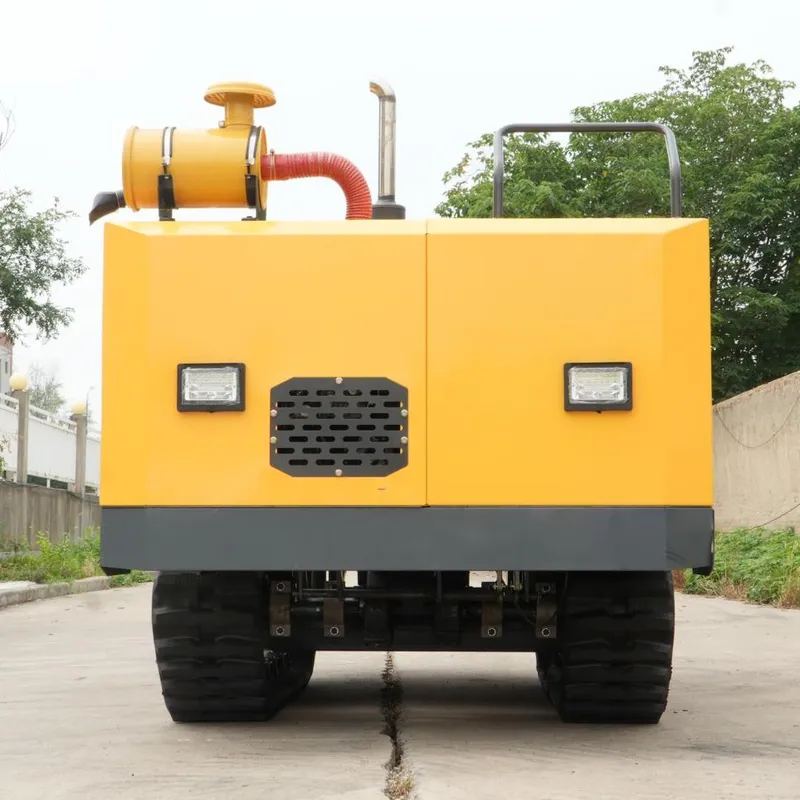

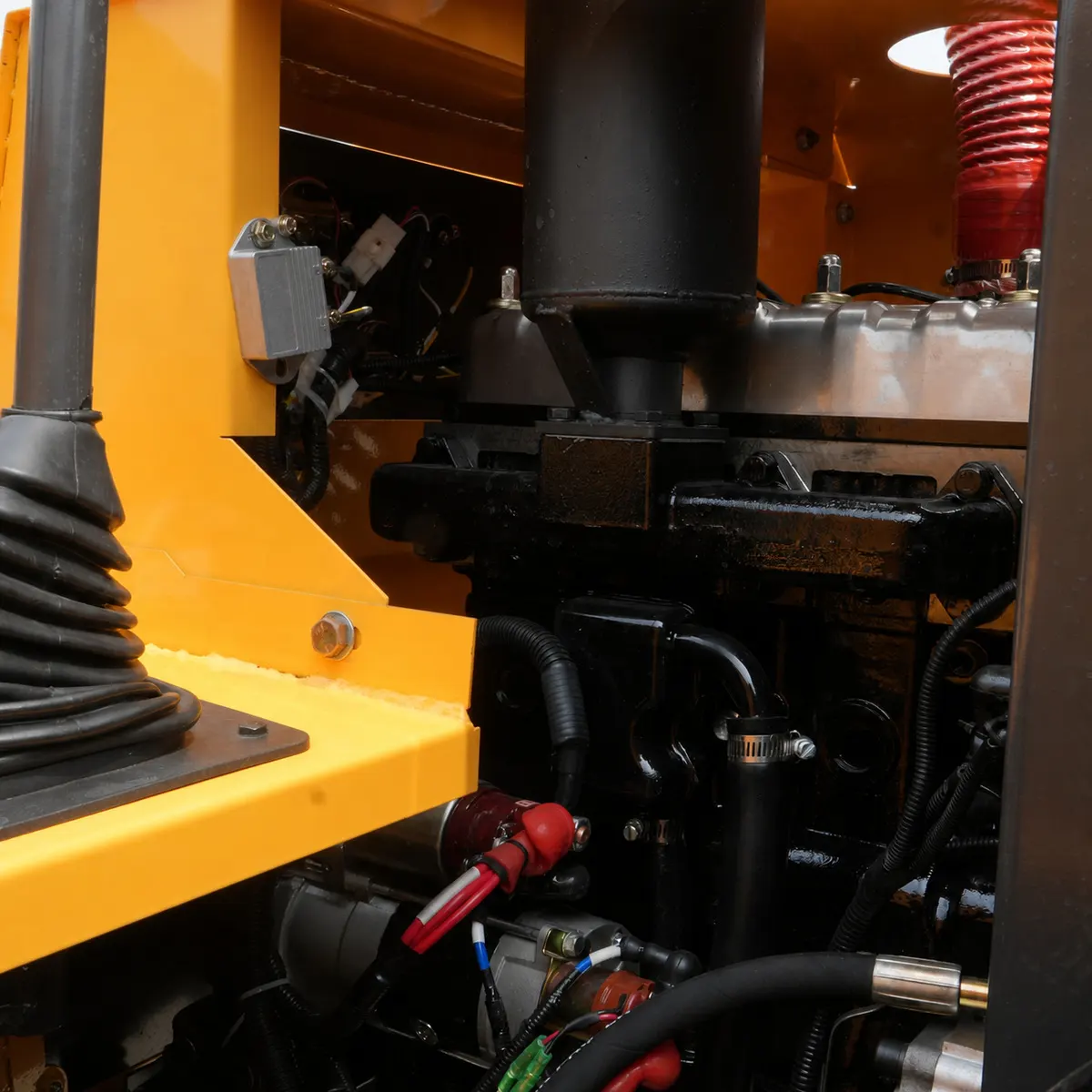

- Front Power/Hood Assembly
The yellow hood, intake-exhaust fittings and visible power casing remain one front assembly.
- Main Chassis Frame
The bare heavy chassis rails connect upper assemblies without engine or crawler parts.
- Paired Rubber-Track Undercarriage
The paired wide rubber tracks support travel and separate laterally as one numbered assembly.
General information
- Product Model
- 5-ton ride-on vehicle
- Vehicle dimensions
- 35550*1700*1580mm
- Car dimensions
- 2200*1600*550 single item
- Engine nameplate
- Huichai 490
- Engine model
- Four-cylinder 490
- Battery specifications
- Tianenergy/Huafeng – Two-battery nationwide warranty
- Power
- 42kw/57.2Ps
General instructions
Simplified explanationProduct Video
5-ton vehicle display
5-ton vehicle display. Robust structure, large load capacity, ideal for heavy transport on site.
5-ton vehicle display
00:205-ton vehicle display. Robust structure, large load capacity, ideal for heavy transport on site.
Operation of a 5-ton vehicle
00:41Operation of a 5-ton vehicle. Sufficient power, stable load, efficient for heavy cargo handling on construction sites.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00

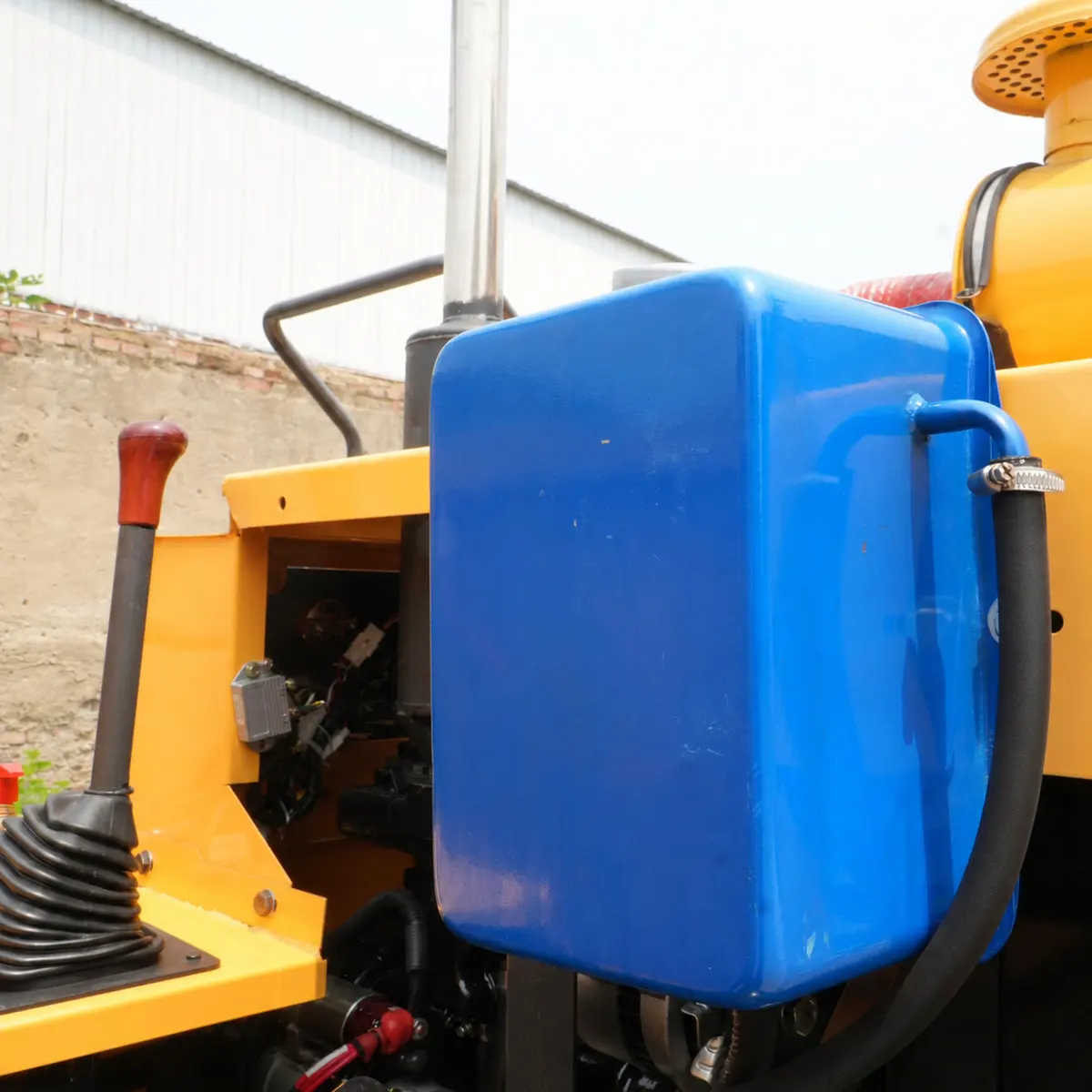

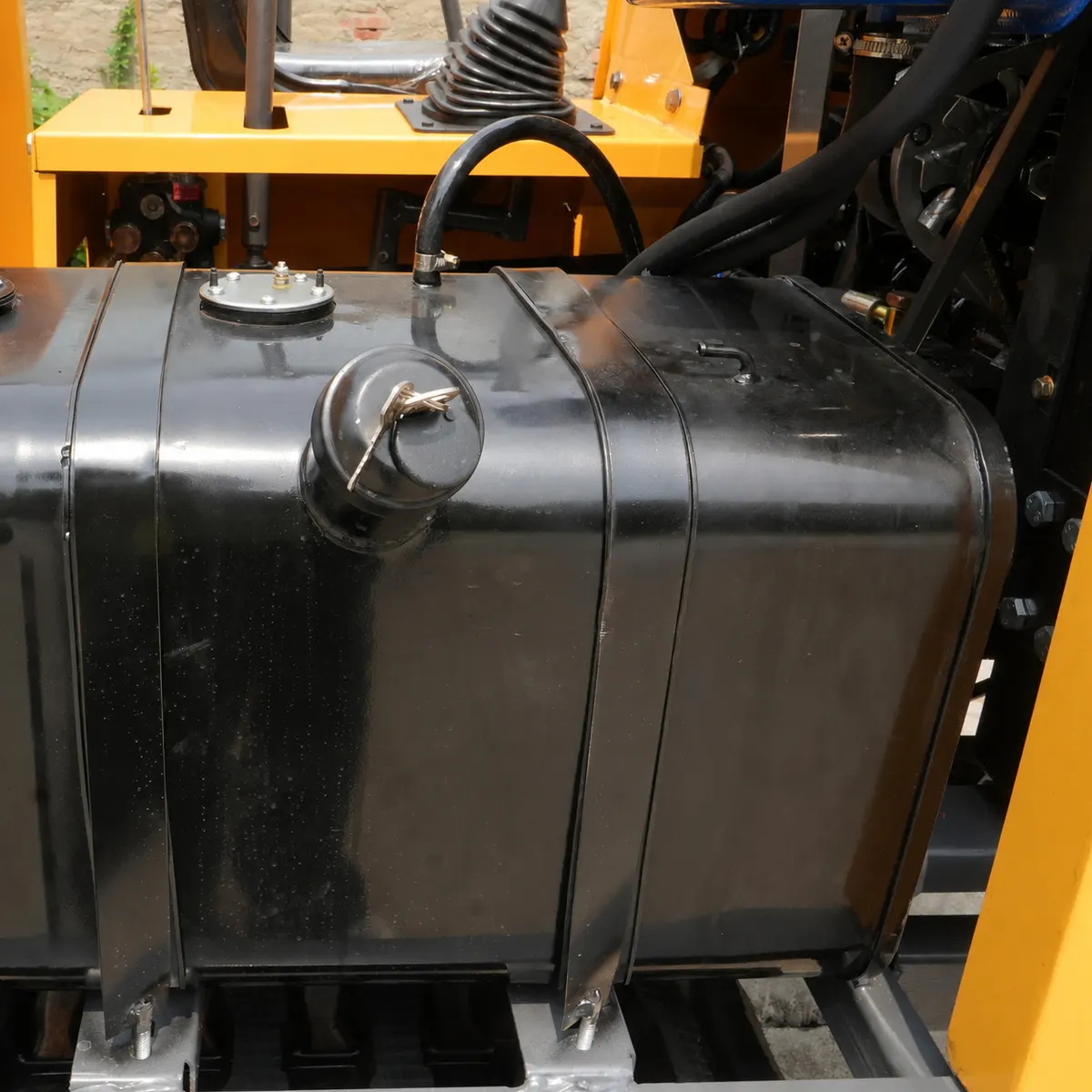

Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
1. Where is 5-ton tracked transport vehicle typically used?
1. It is commonly used for industrial parks, logistics routes, worksites and managed fleet operations, subject to the selected model and site conditions.
2. How do I choose the right model?
2. Match payload, dimensions, axle or tire specification, powertrain, route and regulatory requirements to the actual workload and operating environment.
3. What should be confirmed before ordering?
3. Confirm model, color, payload, axle or tire specification and optional equipment, then verify the response time and any special requirements.
4. How should it be installed and maintained?
4. Prepare delivery inspection, approved registration where applicable and scheduled tire, brake and fluid checks; follow the manual for operation, inspection and routine maintenance.
