High-strength steel structure protects the operator area during normal handling operations.

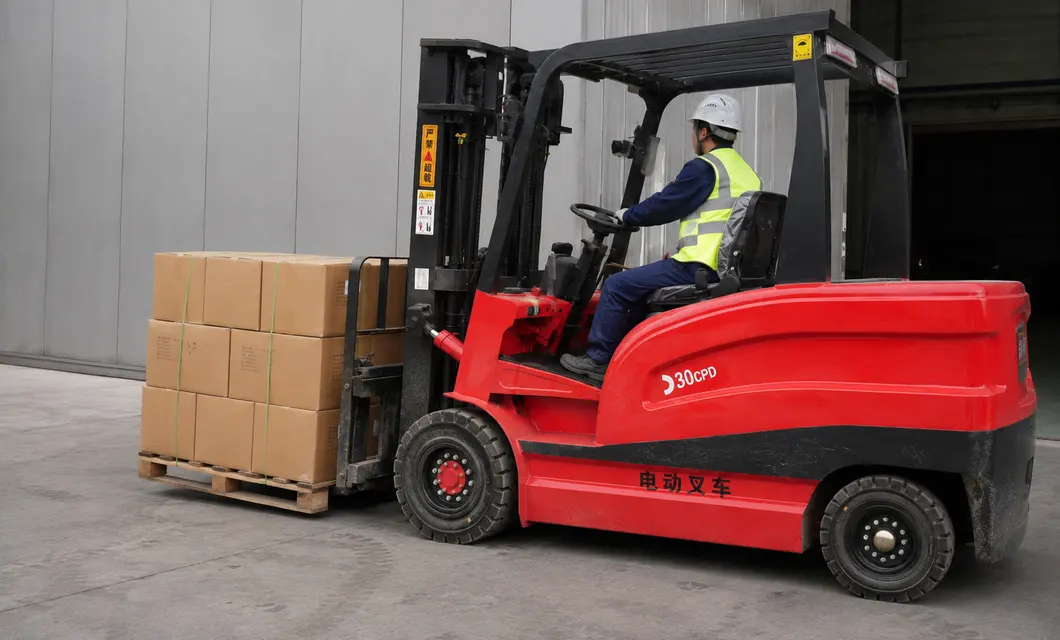

Warehouse Red Forklift Pallet LoadingYD-CPD-301 Electric Forklift
Electric Forklift for Warehouse and Plant Handling

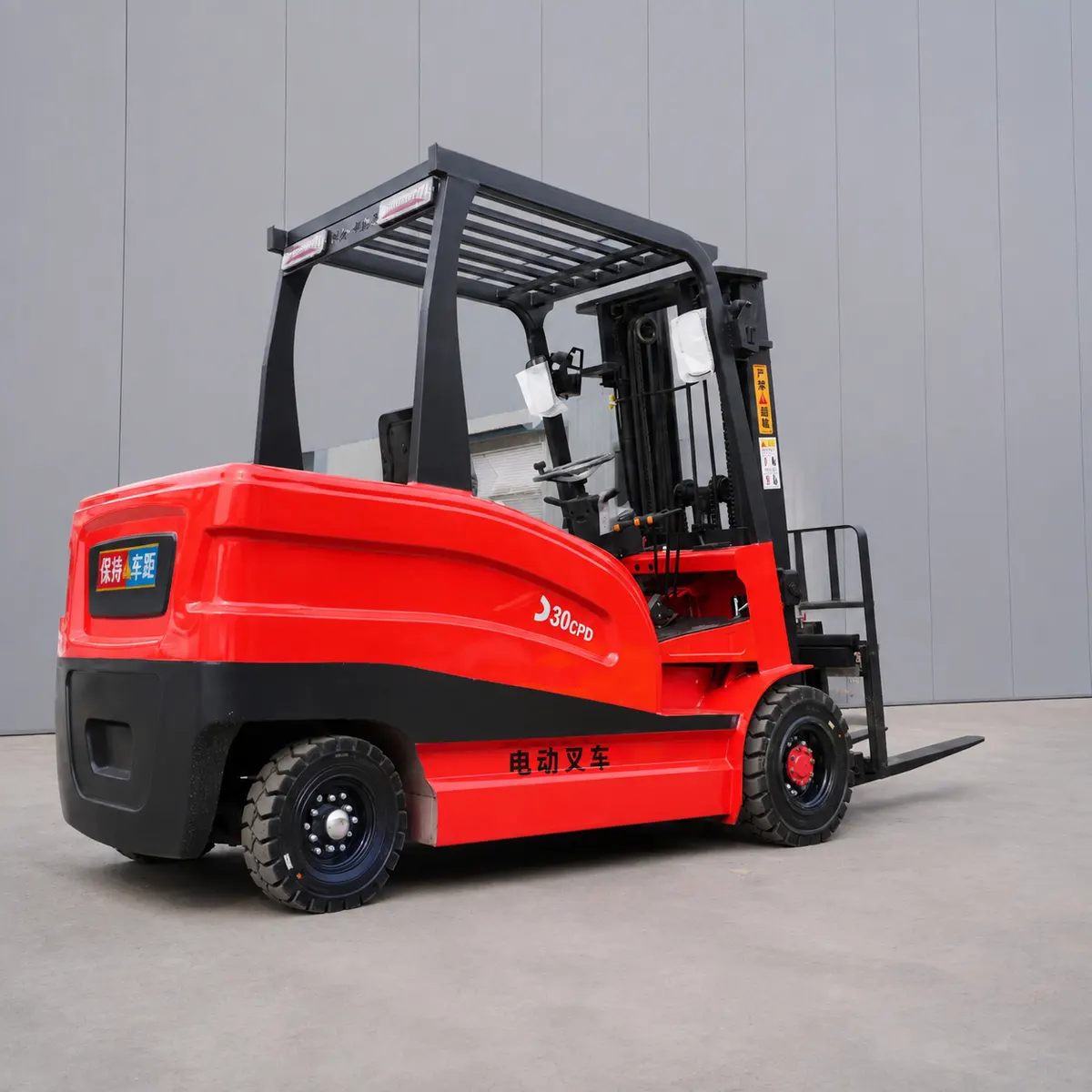

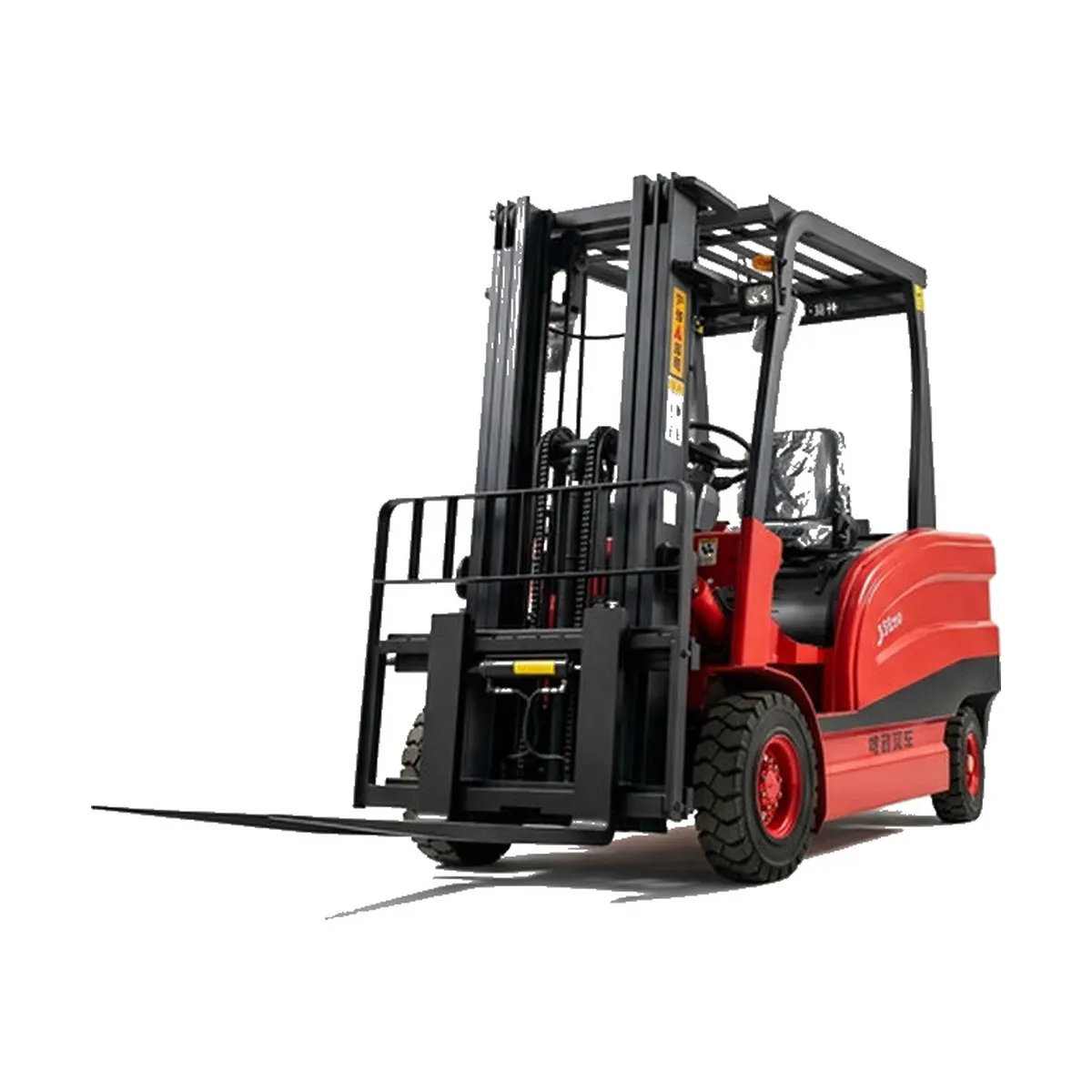

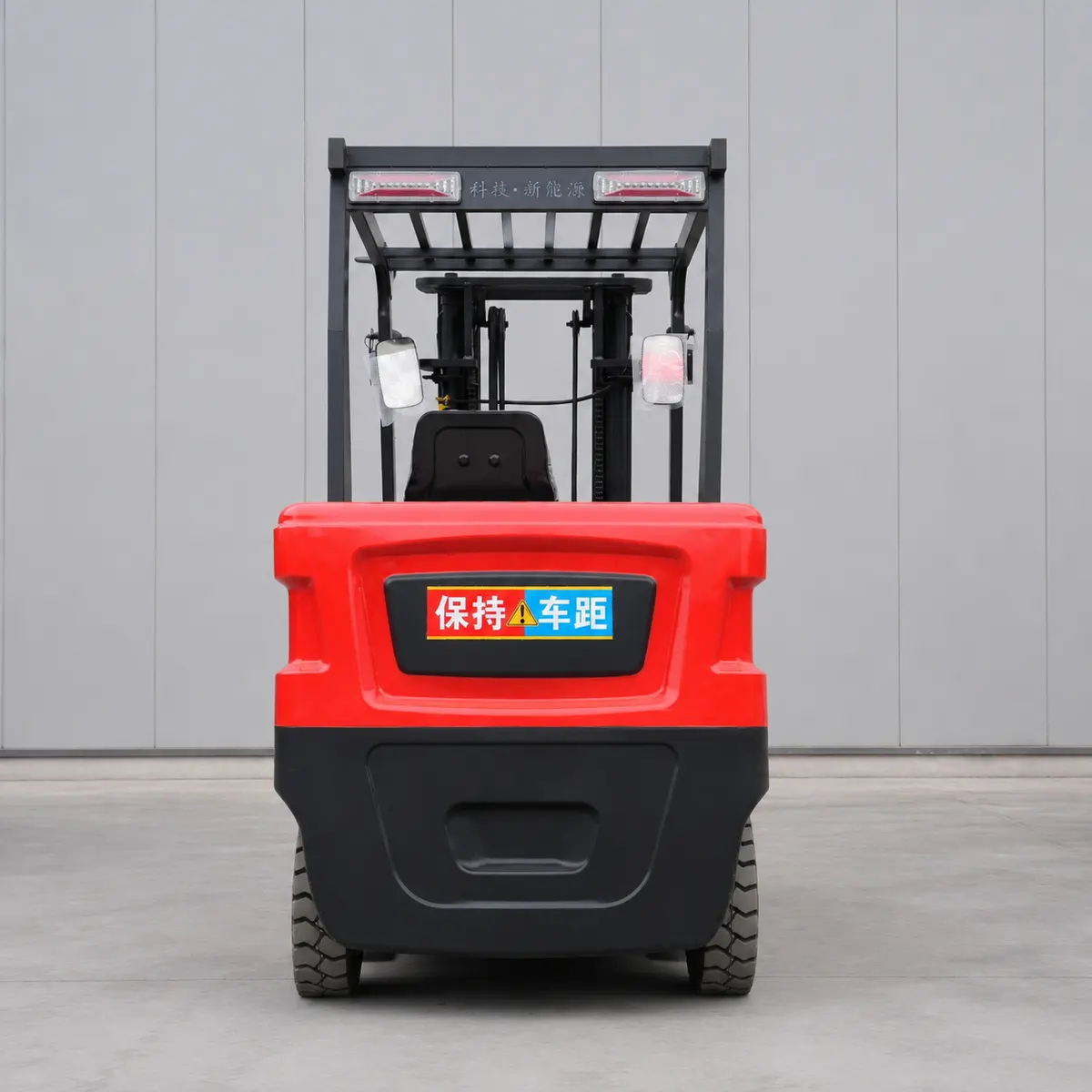

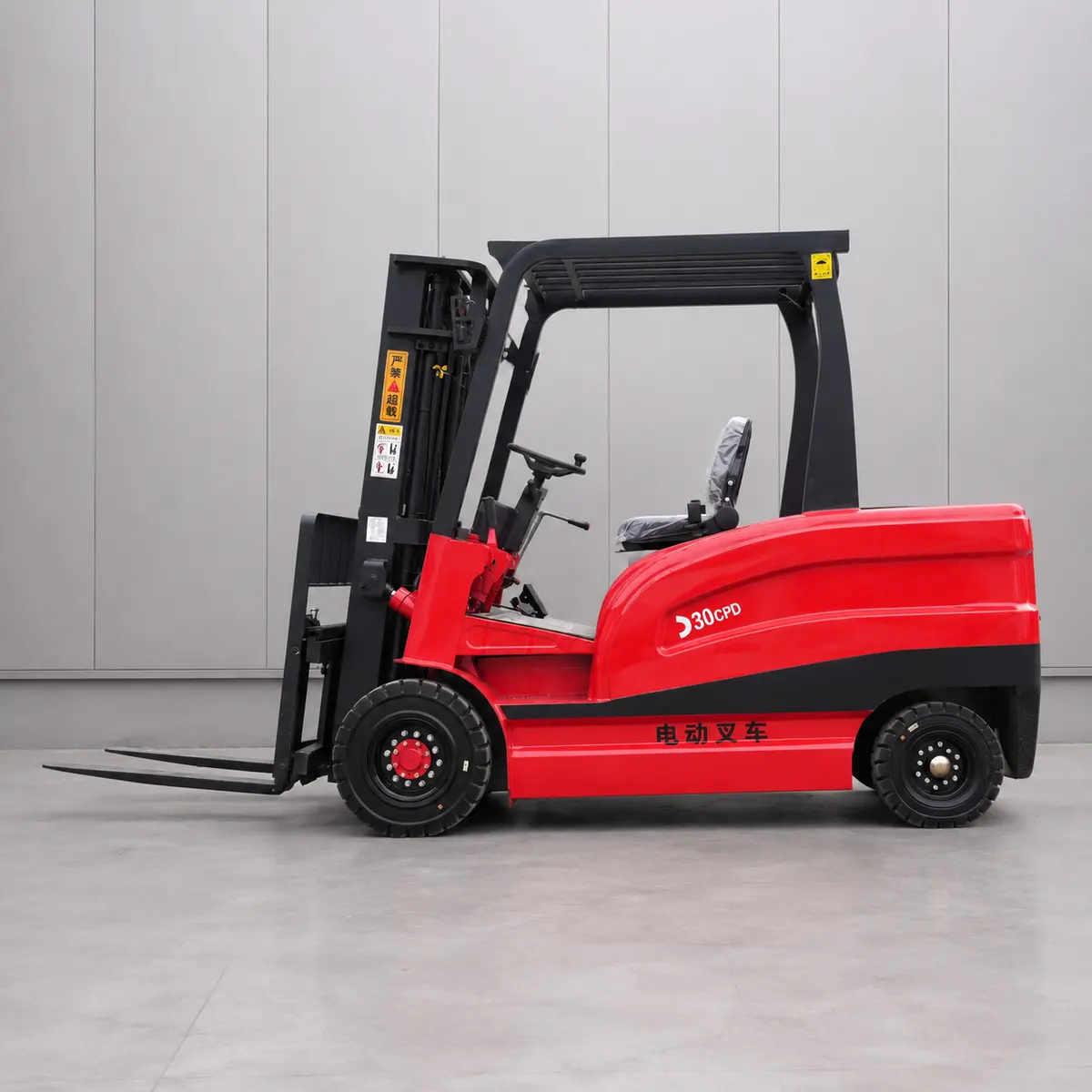

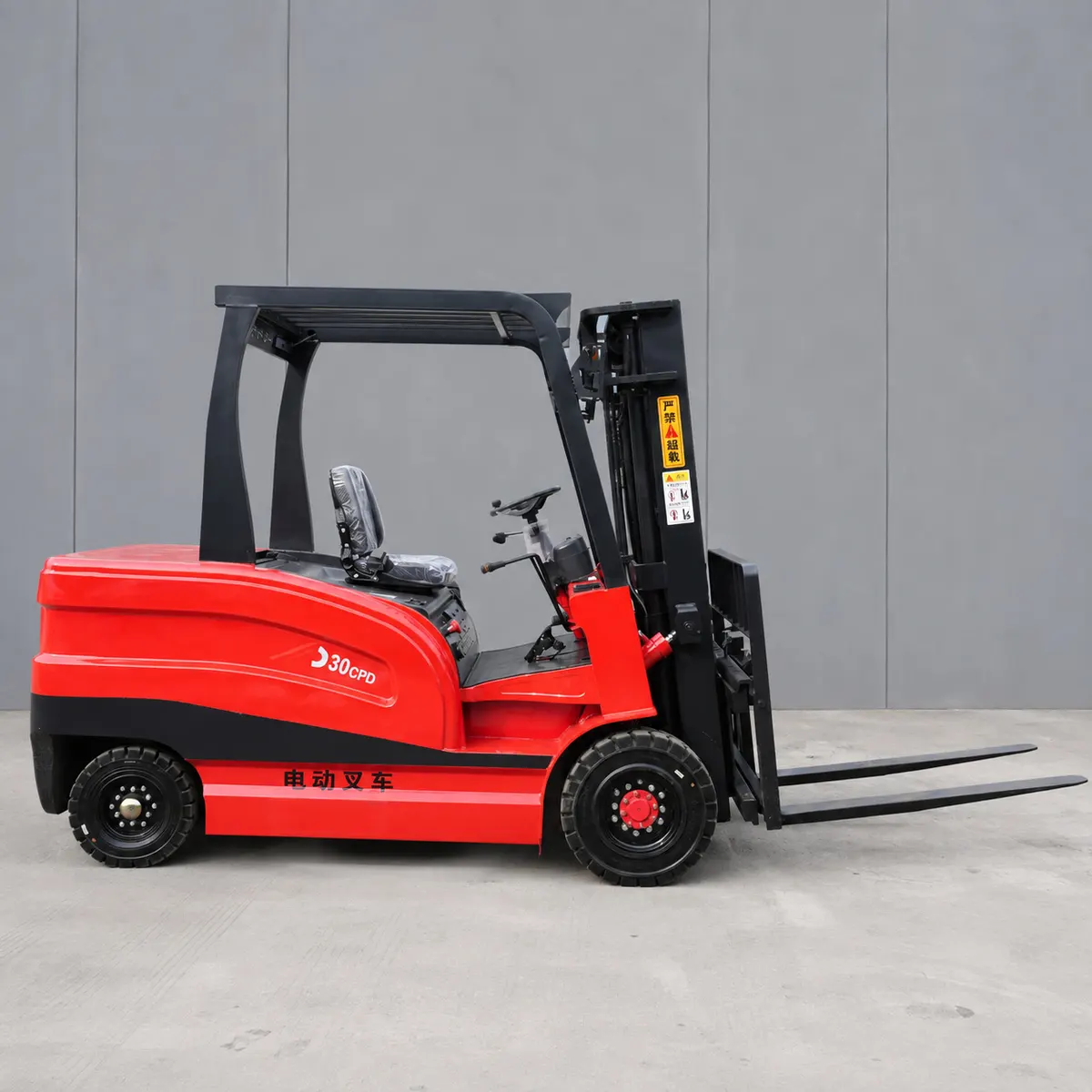

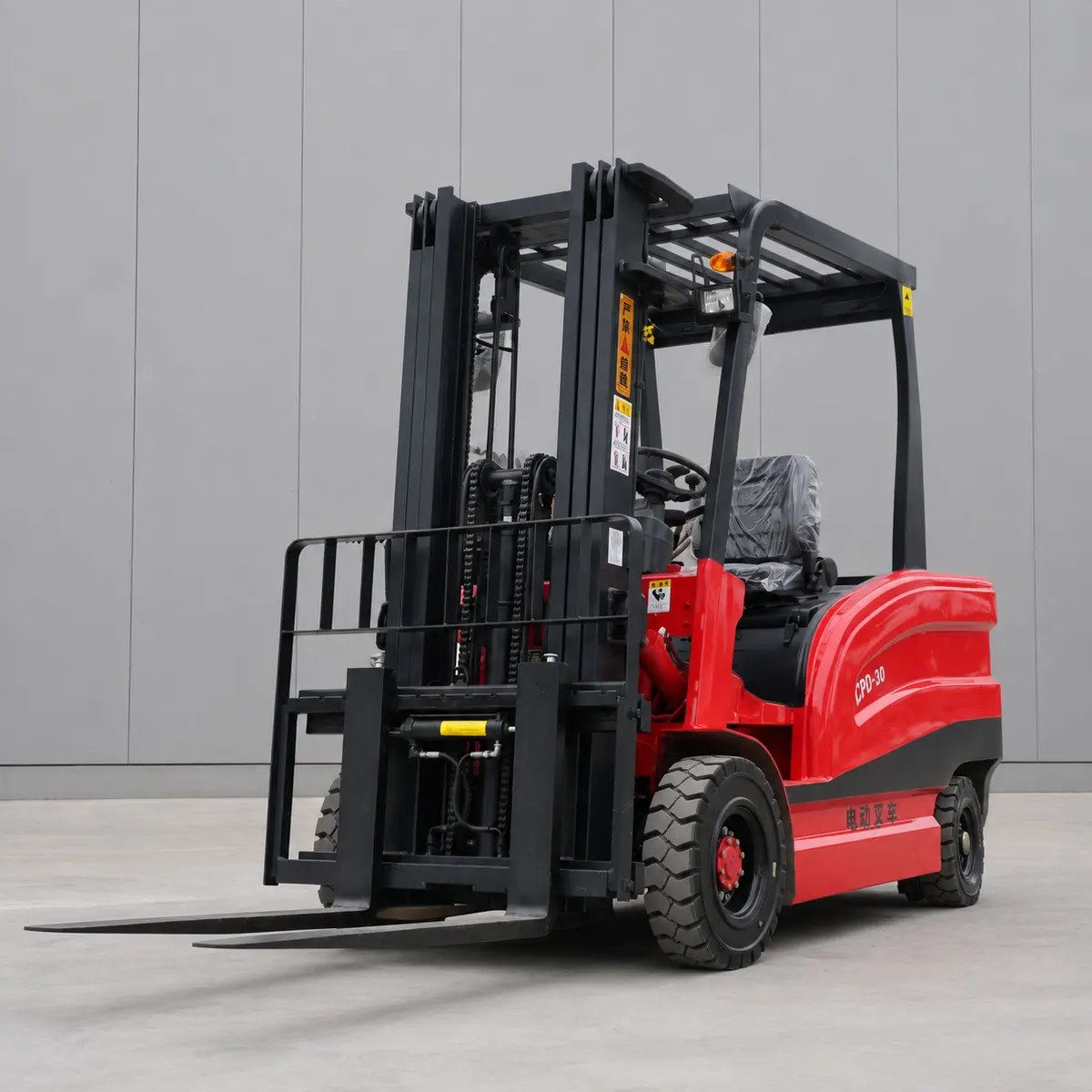

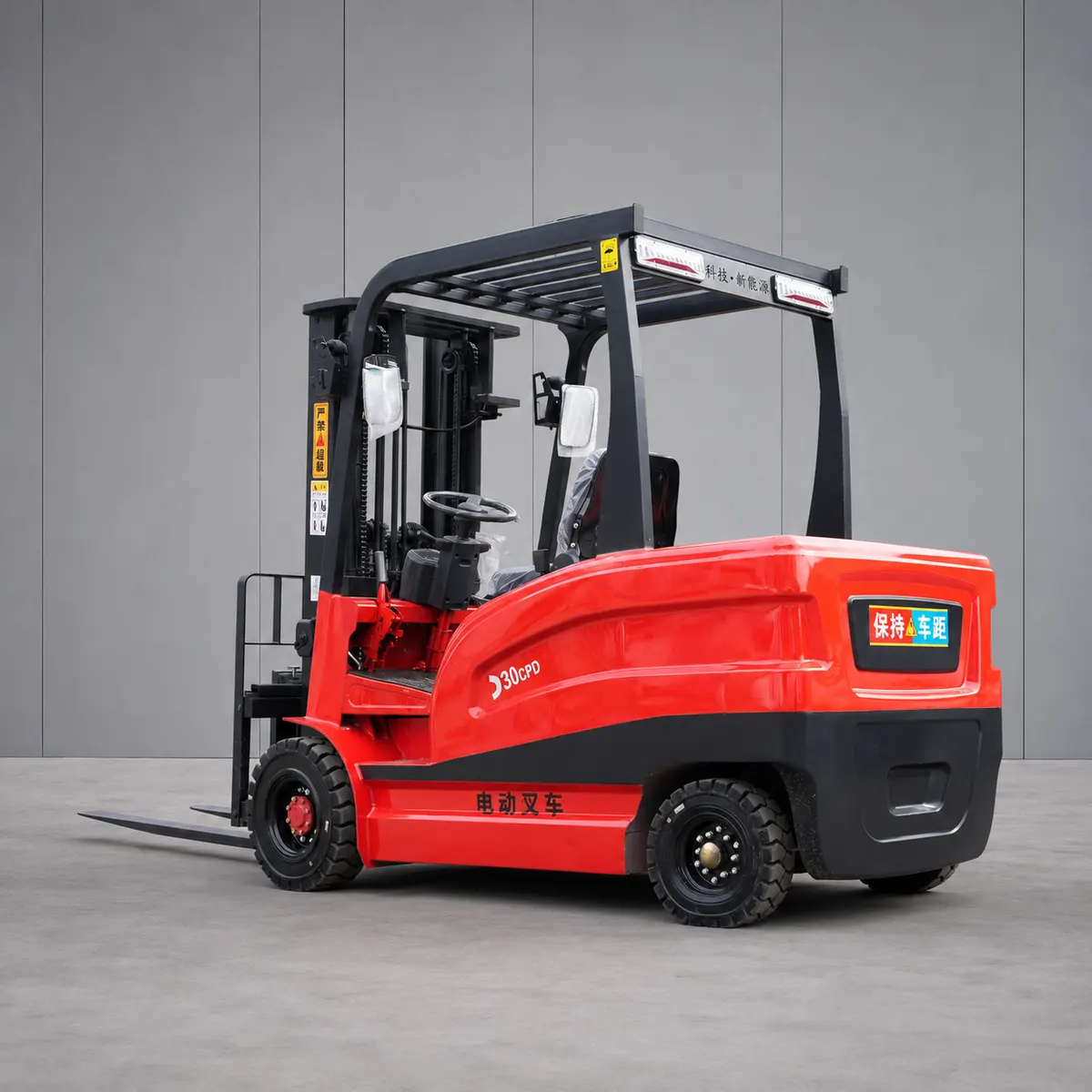

YD-CPD-301 is an electric forklift for plant, warehouse and loading operations. The current model sheet confirms a rated capacity of 3000 kg, overall dimensions of 2.7 m (forks excluded), 1.2 m and 2.15 m, a two-stage mast and a lifting height of 3 m (two-stage mast). The reference images show a seated operator layout, front mast, forks and hydraulic lifting system, with a rear counterweight and drive section. The specified version is red rounded rear cover and standard forks. Its AC traction.
- Covered Yard Red Forklift Rear Operation

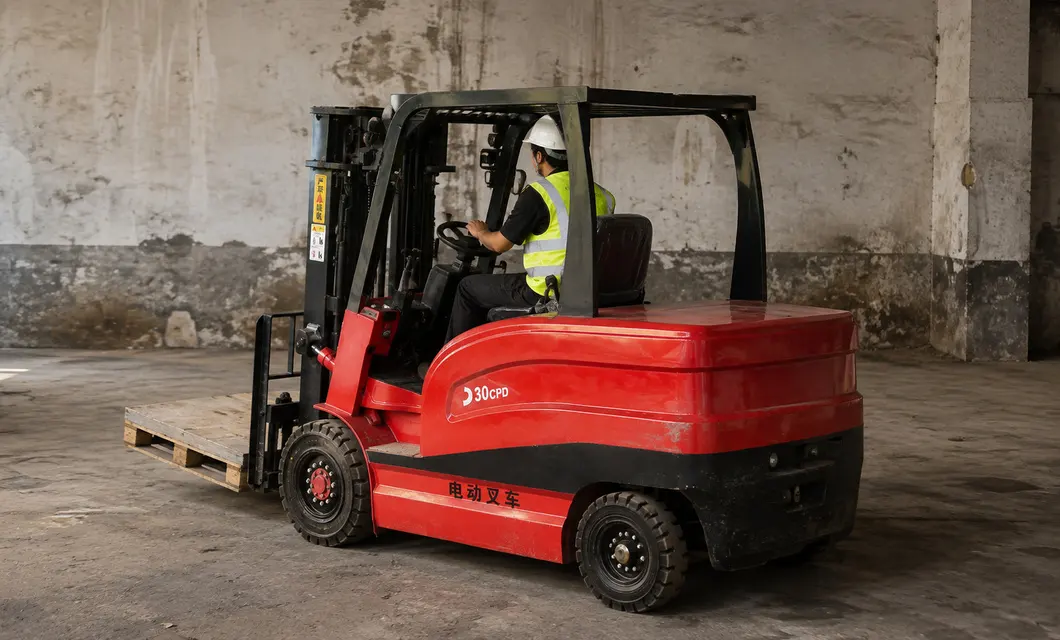

- Front Warehouse Red Forklift Handling
- Warehouse Red Forklift Pallet Loading
- Warehouse Red Forklift Pallet Loading
Covered Yard Red Forklift Rear Operation
Front Warehouse Red Forklift HandlingWarehouse Red Forklift Pallet Loading
Warehouse Red Forklift Pallet LoadingCovered Yard Red Forklift Rear OperationFront Warehouse Red Forklift HandlingSpecifications & Structural Decomposition

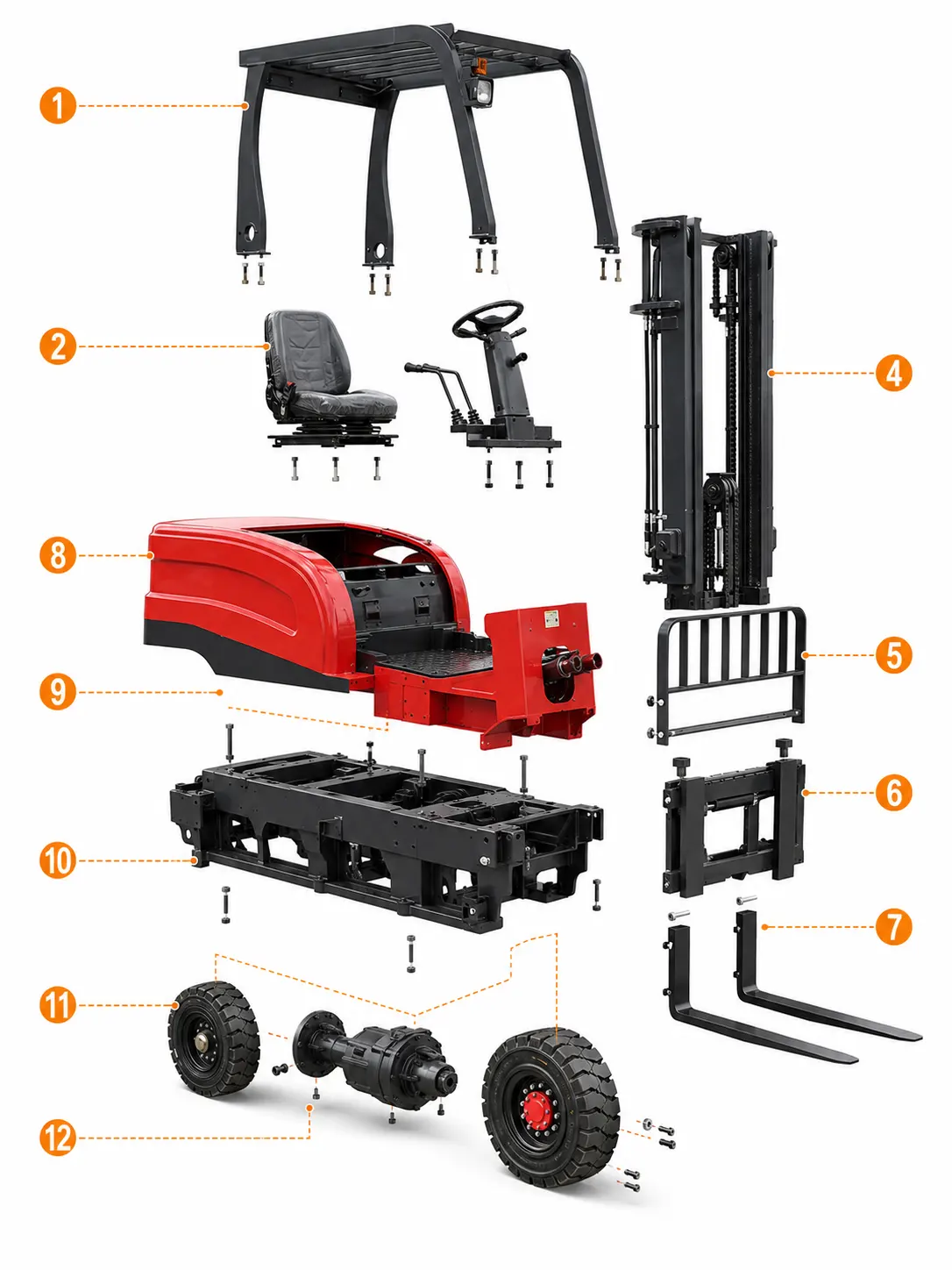

Exploded Structure Diagram

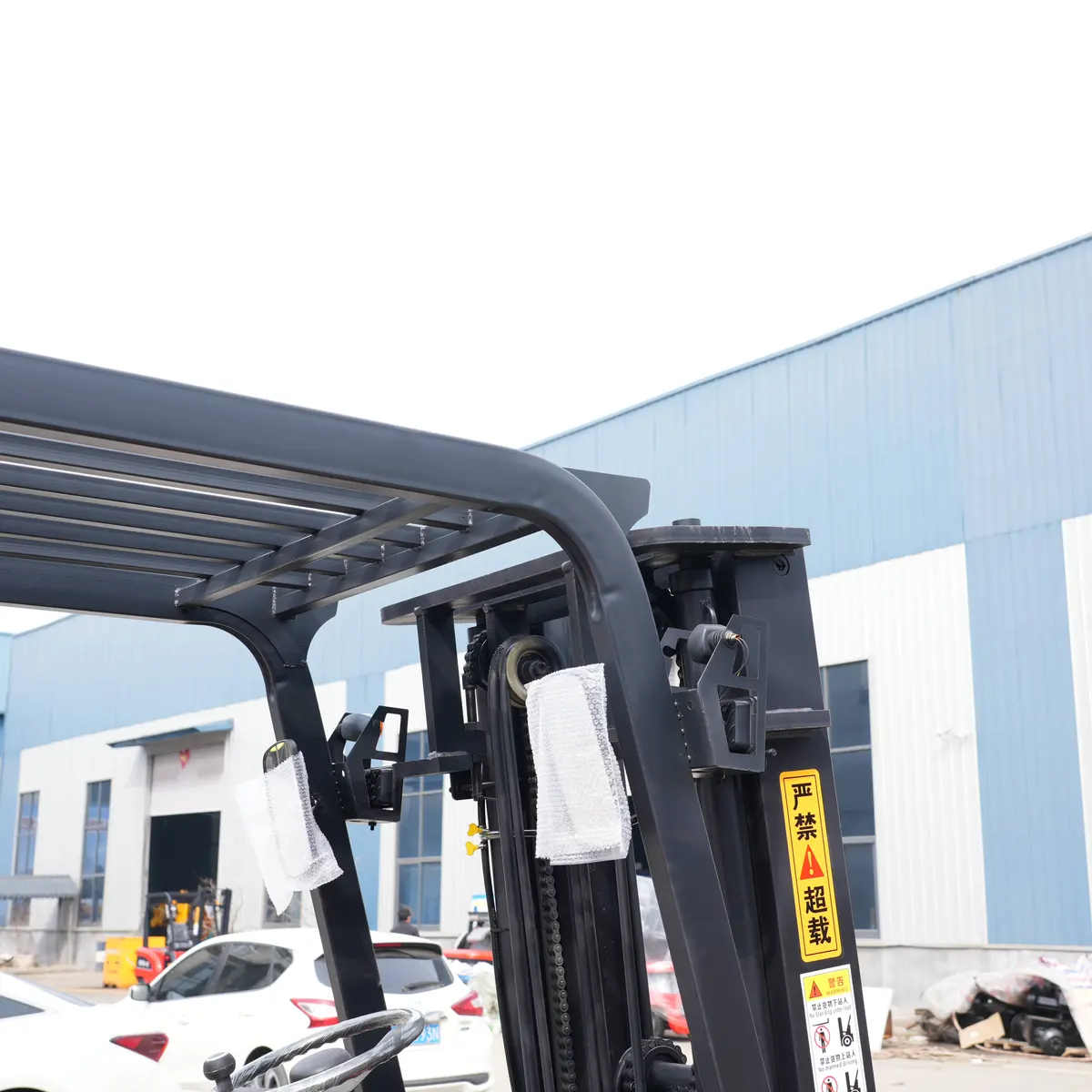

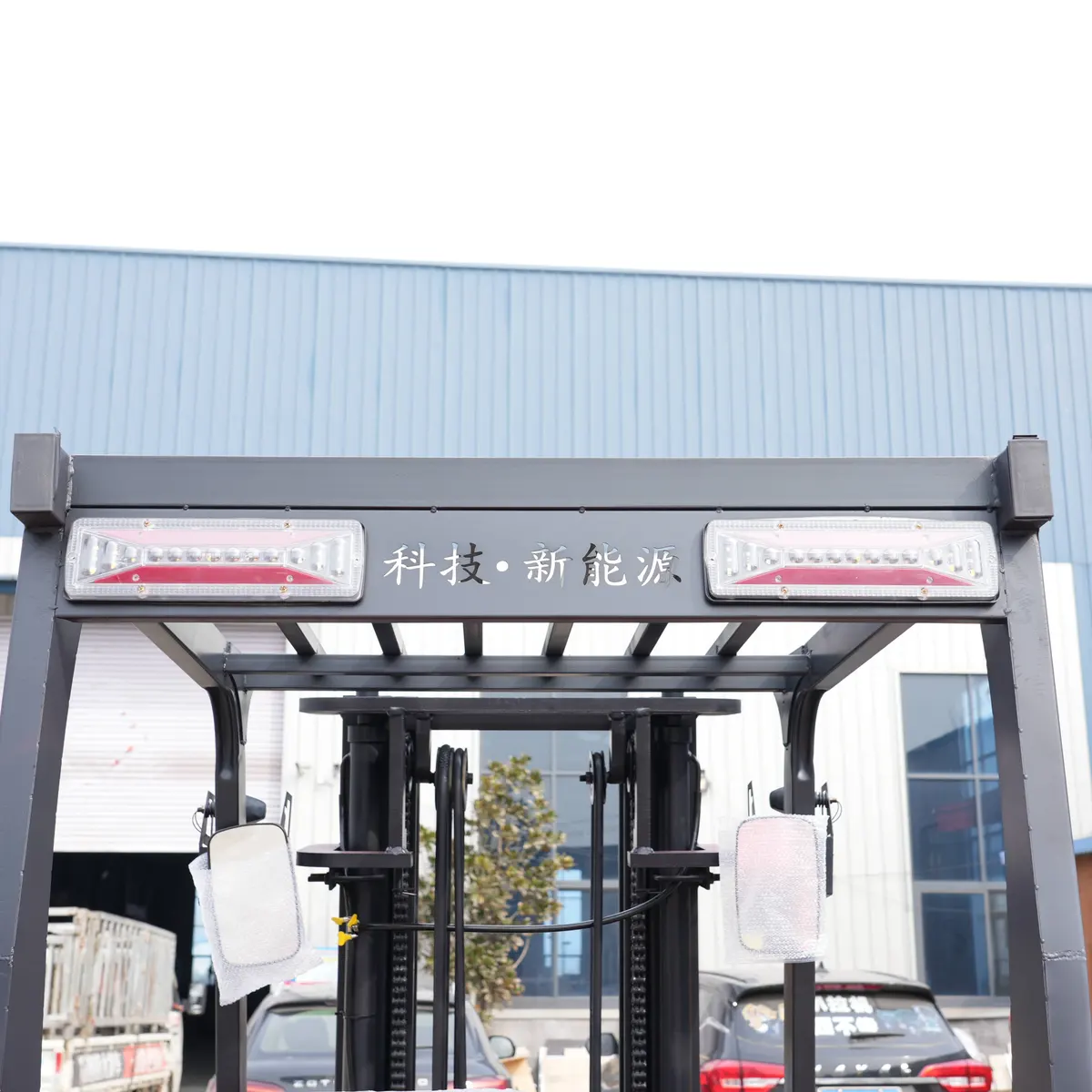

- Overhead Guard
- Operator Seat
Padded seat provides stable support and helps reduce fatigue during extended operation.

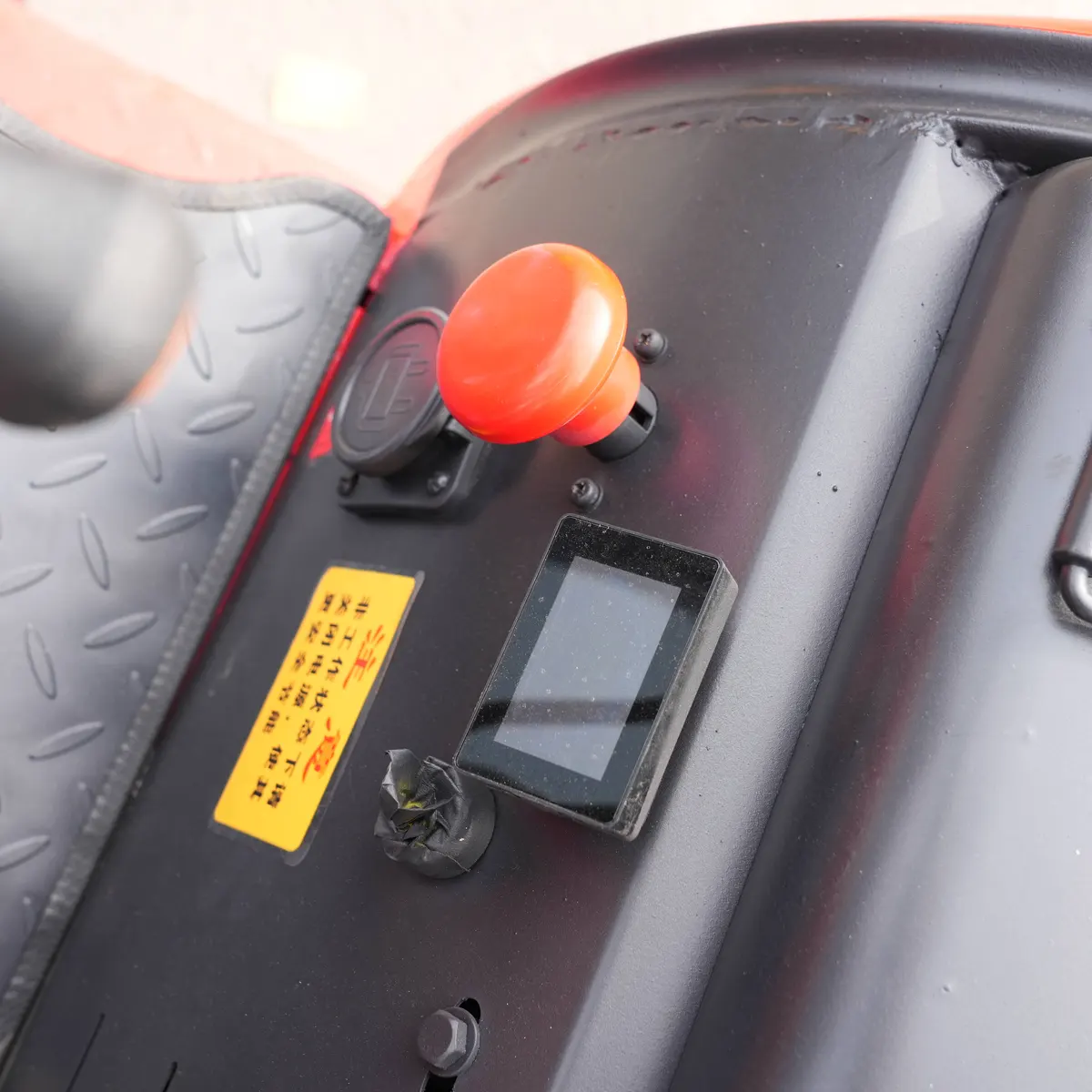

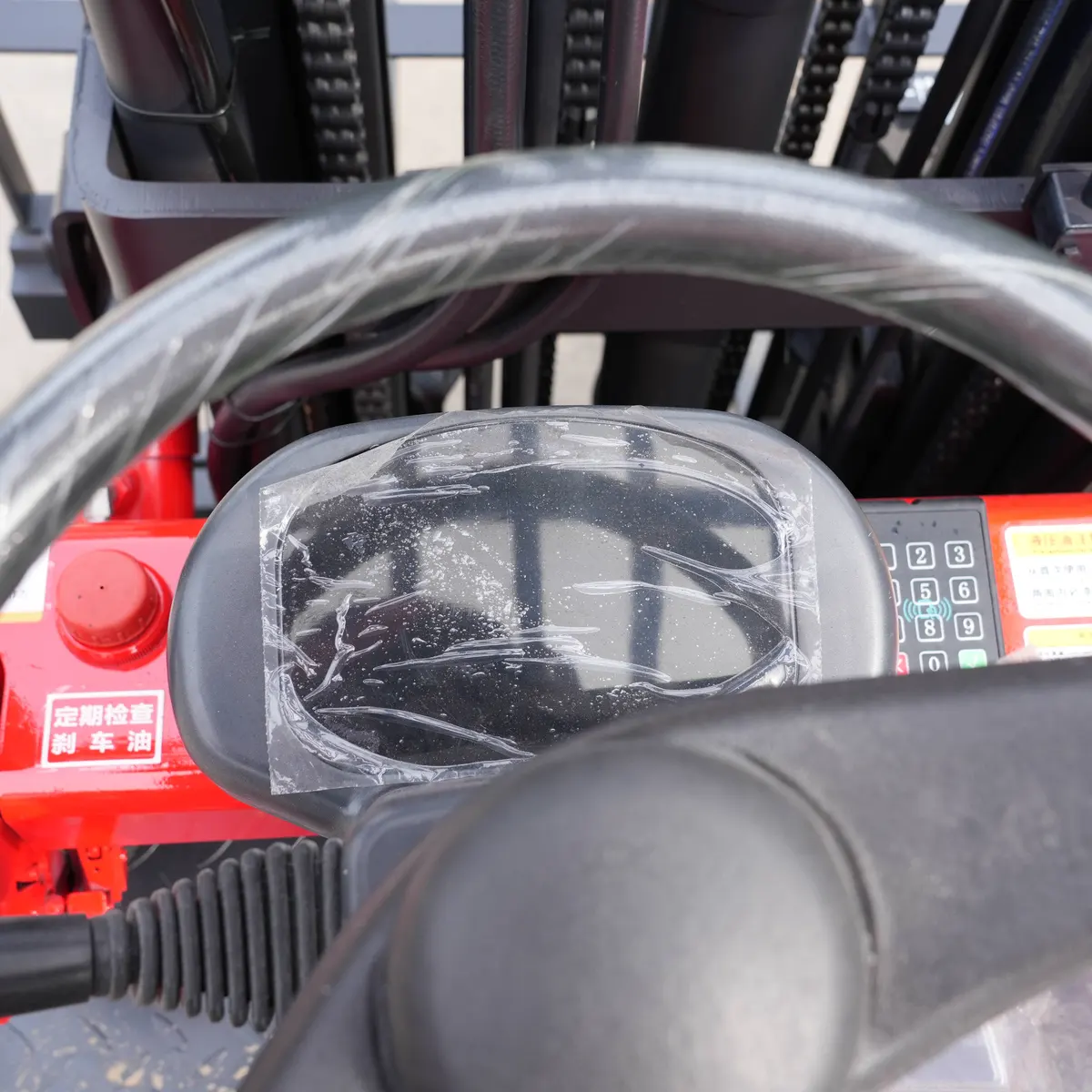

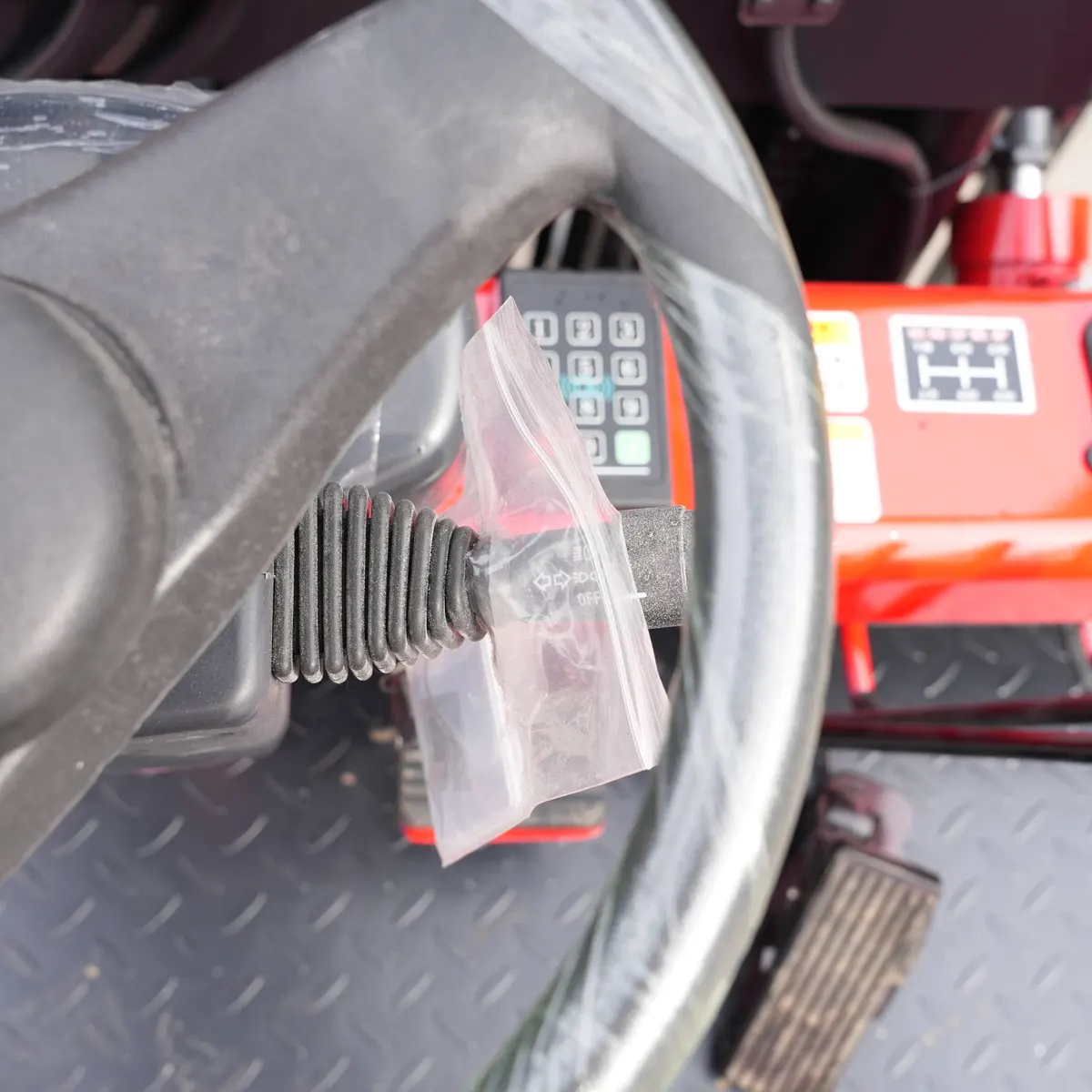

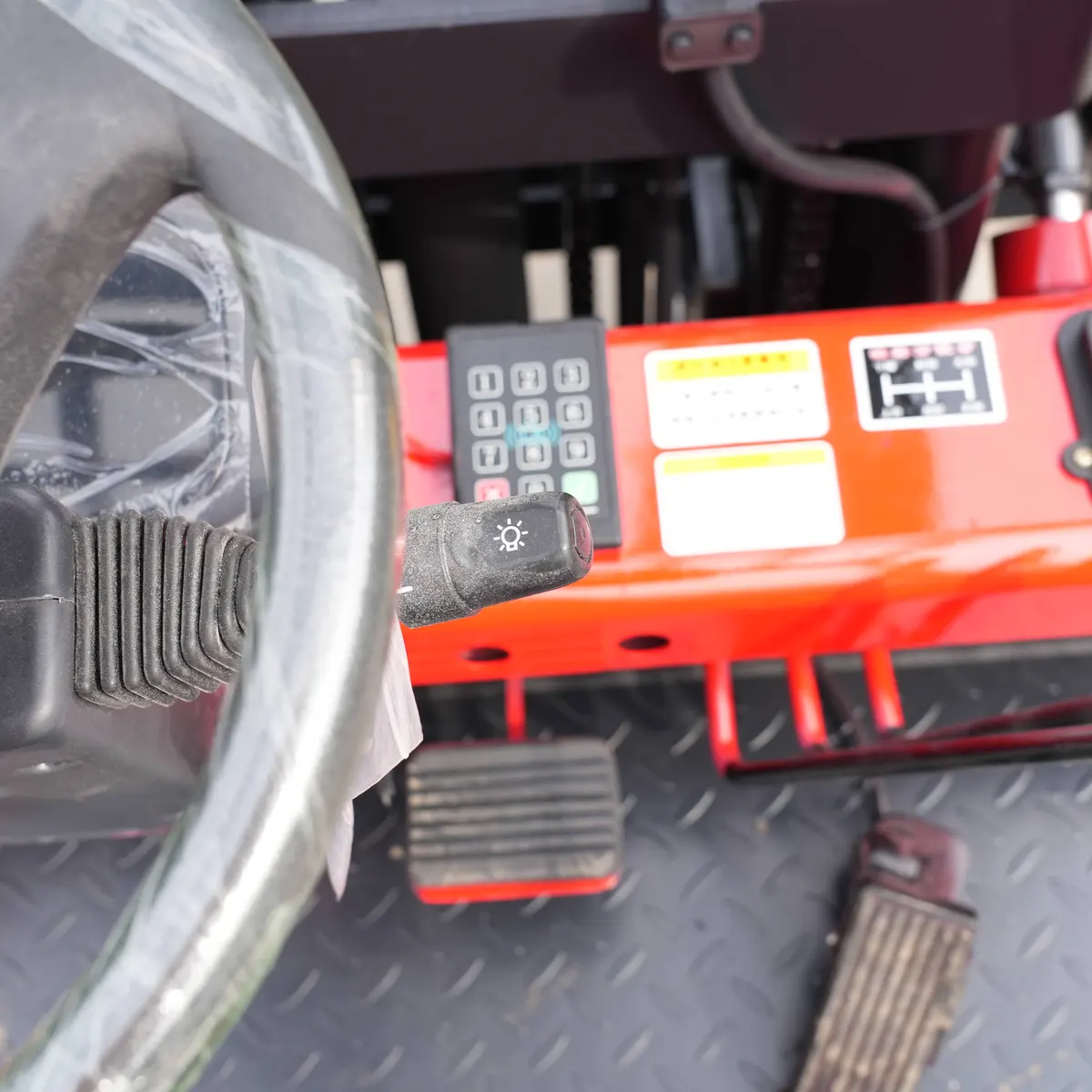

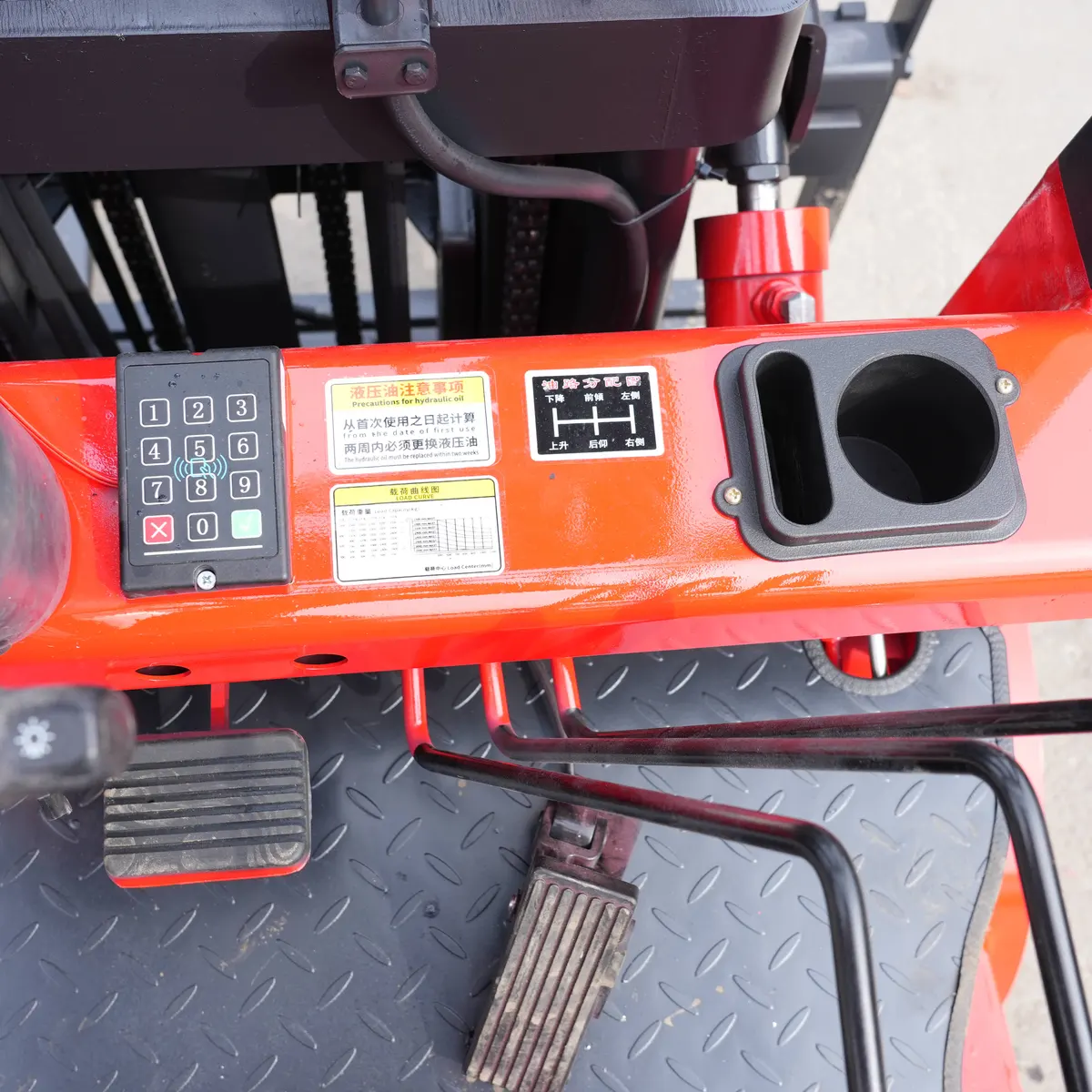

- Control Assembly
Integrated steering wheel and control levers support clear, accurate machine control.
- Body Cover
Streamlined metal panels protect internal systems and maintain a clean exterior.
- Traction Battery
High-capacity battery supplies stable power for routine material handling.
- Main Chassis
High-strength welded chassis supports the primary components and working loads.
- Lift Mast
Dual-rail mast and chain drive guide loads through controlled vertical movement.
General information
- Door frame material
- 160-grade steel for forklifts
- tire

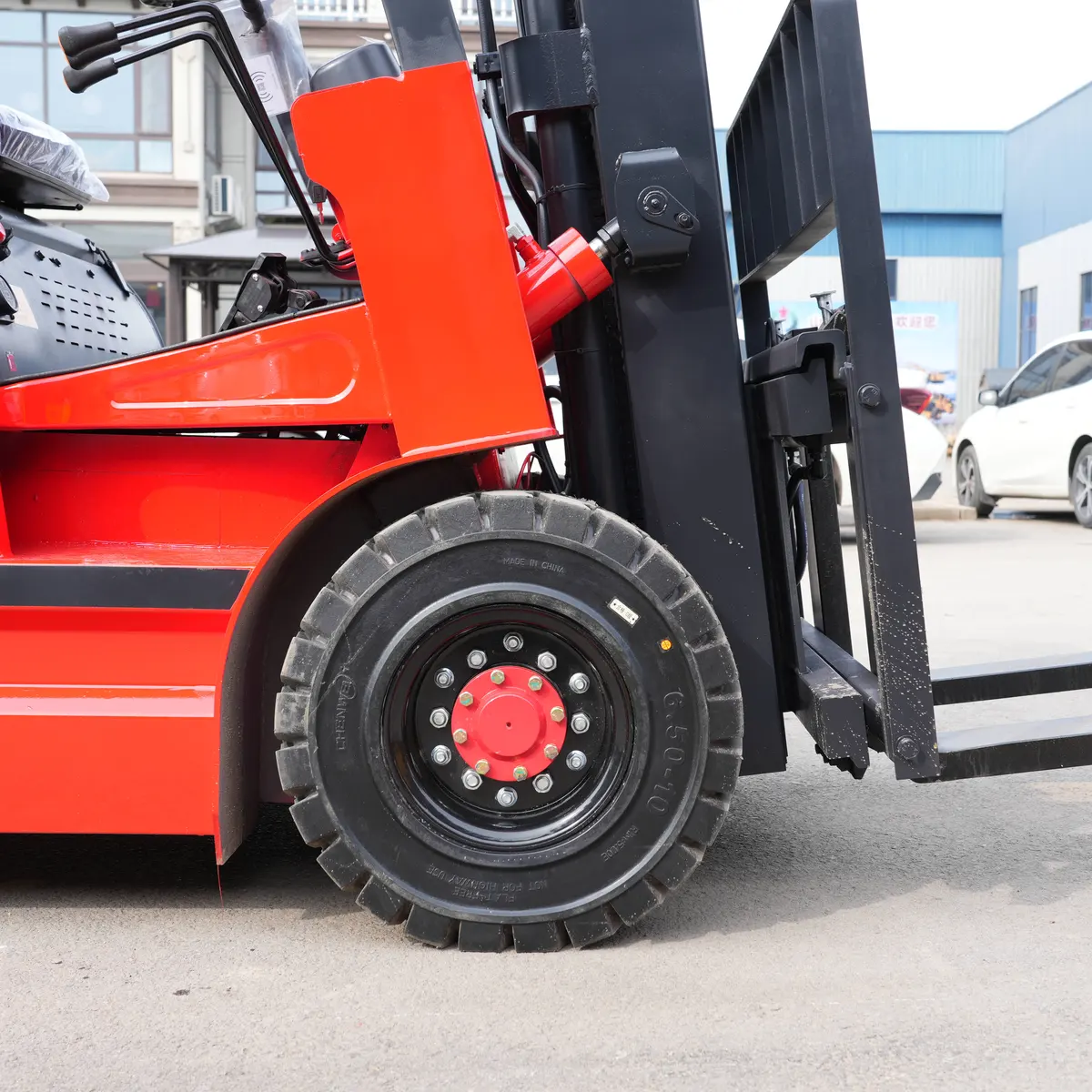

- Front tire: 23×9-10; Rear tire: 18×7-8
- Braking method
- Handbrake braking, hydraulic system braking
- Rated lifting capacity
- 3000kg
- Vehicle curb weight (including battery)
- 3700kg
- Front tire specification
- 23×9-10
- Rear tire specification
- 18×7-8
General instructions

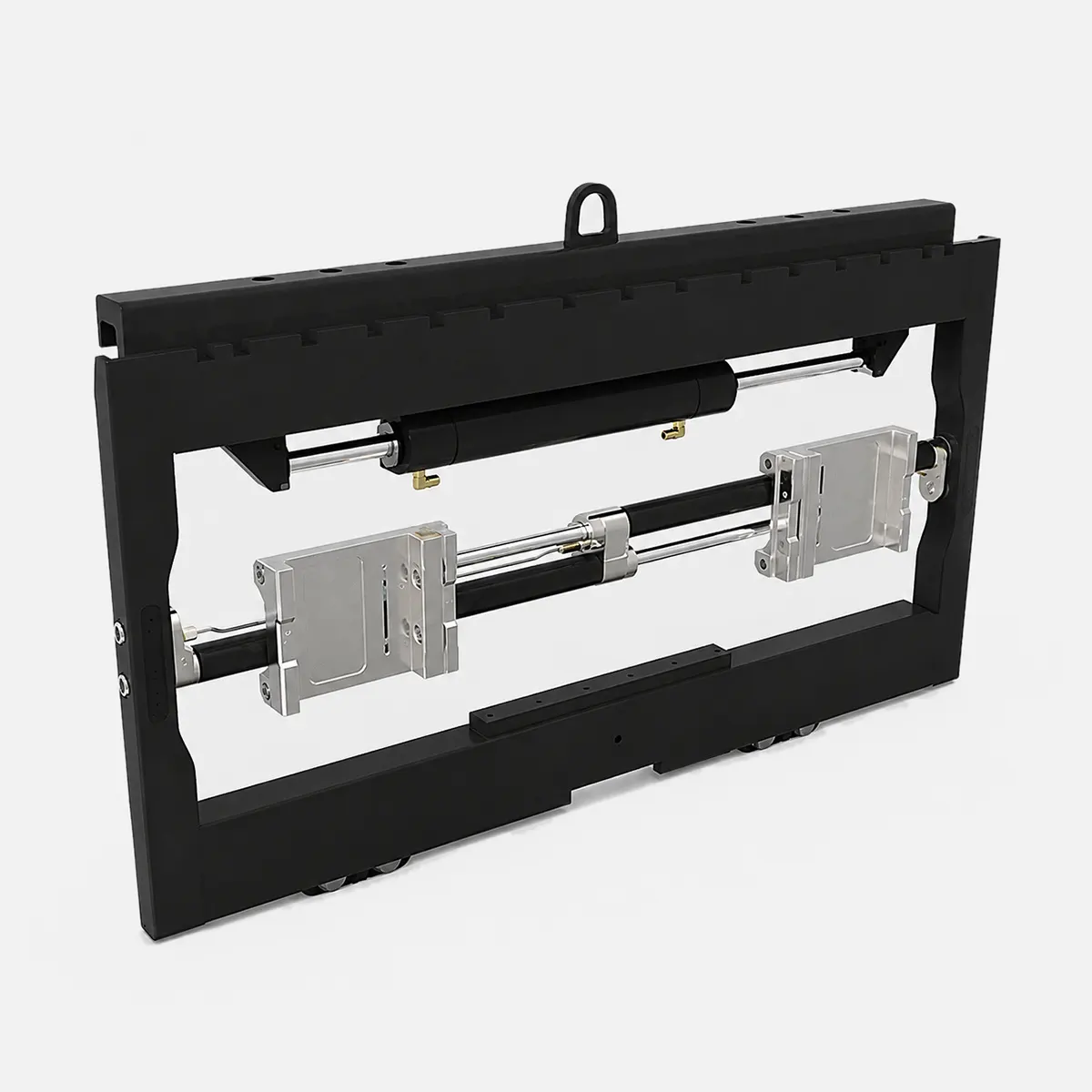

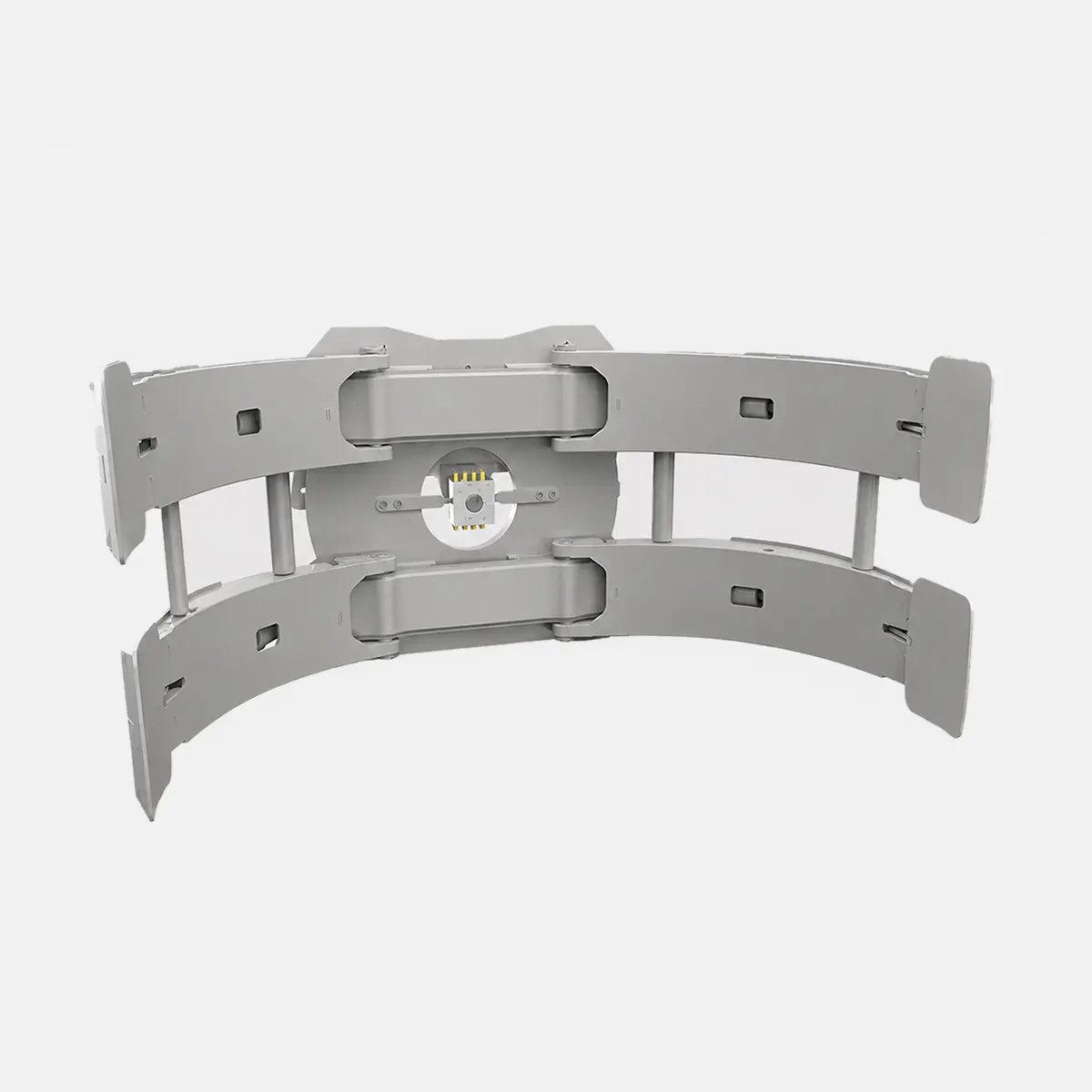

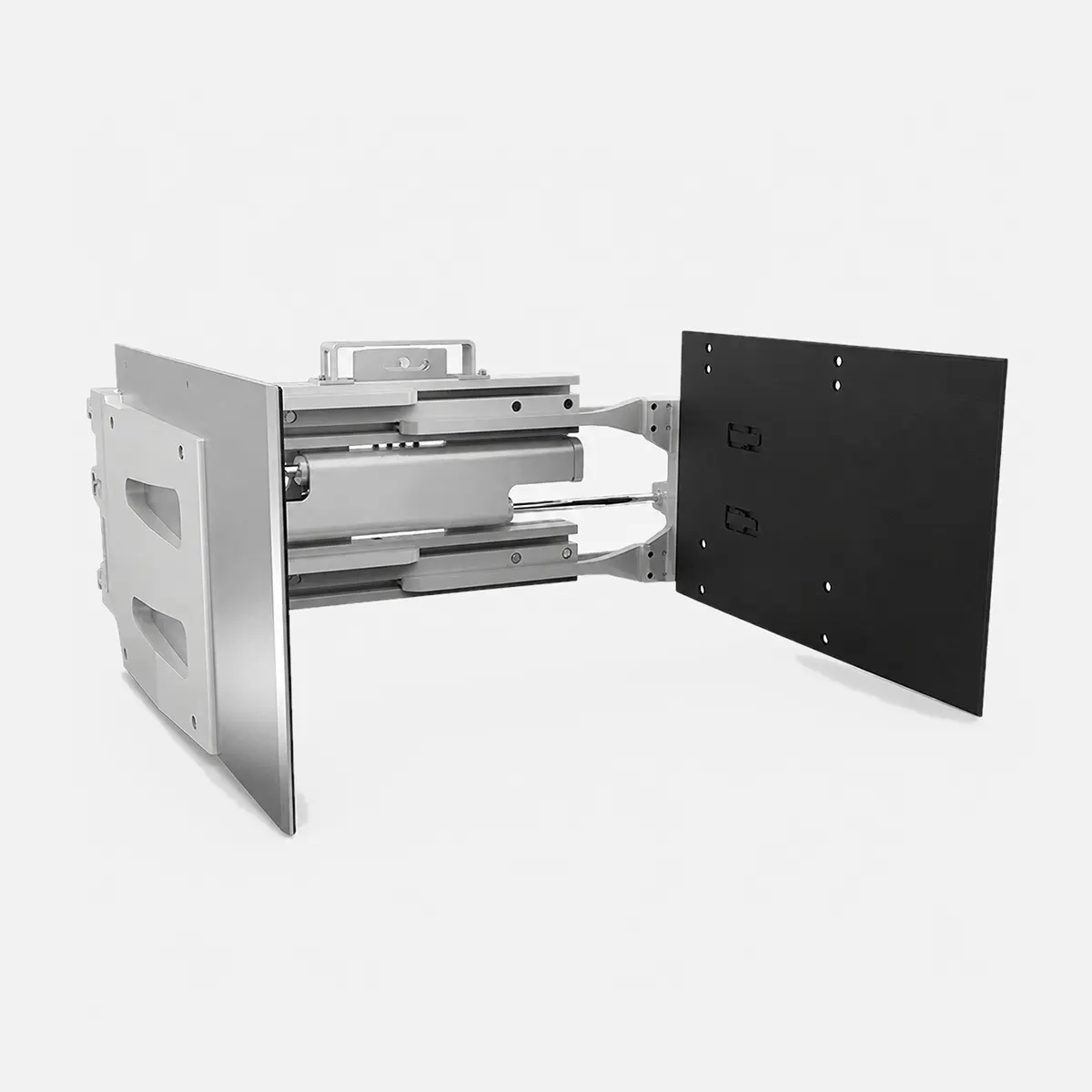

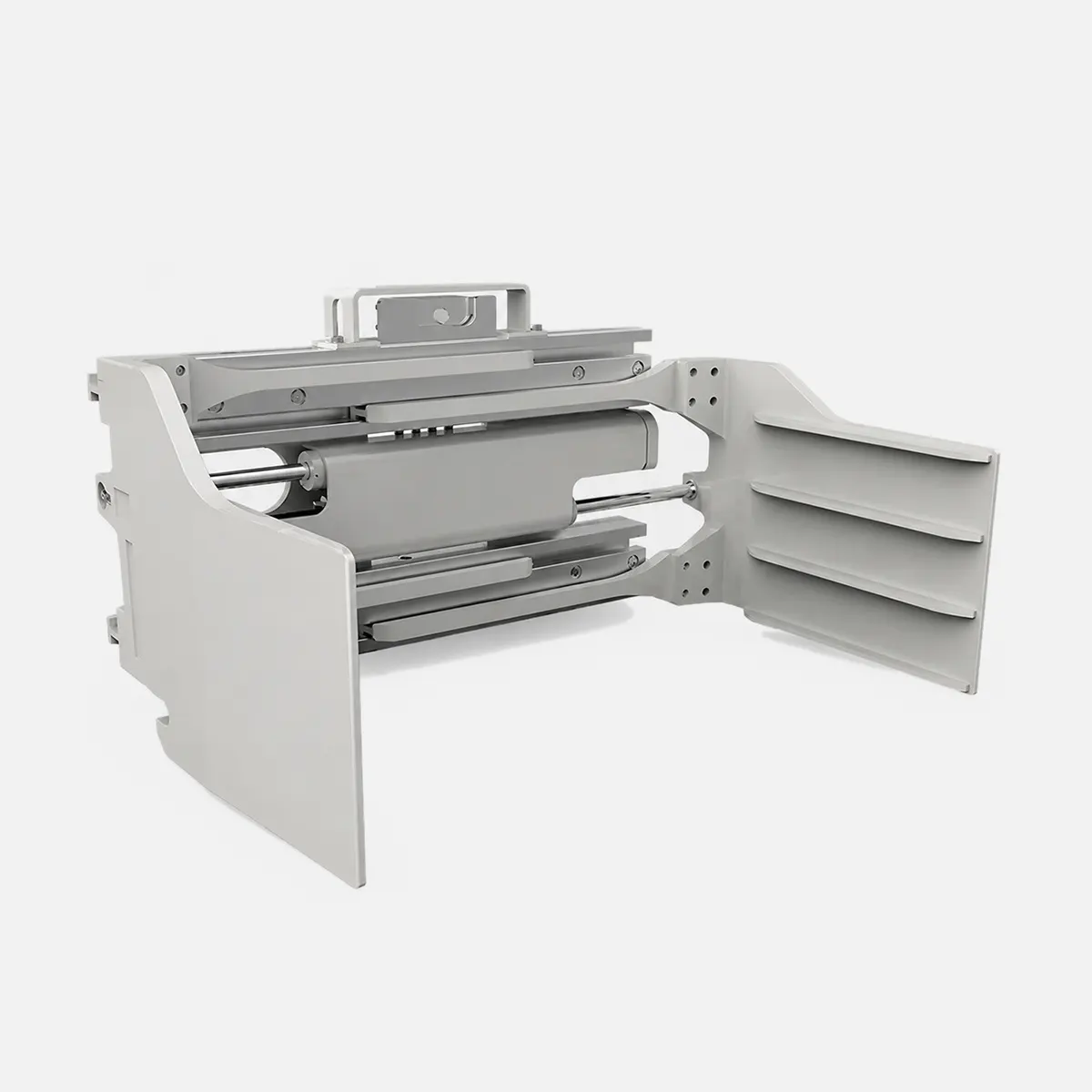

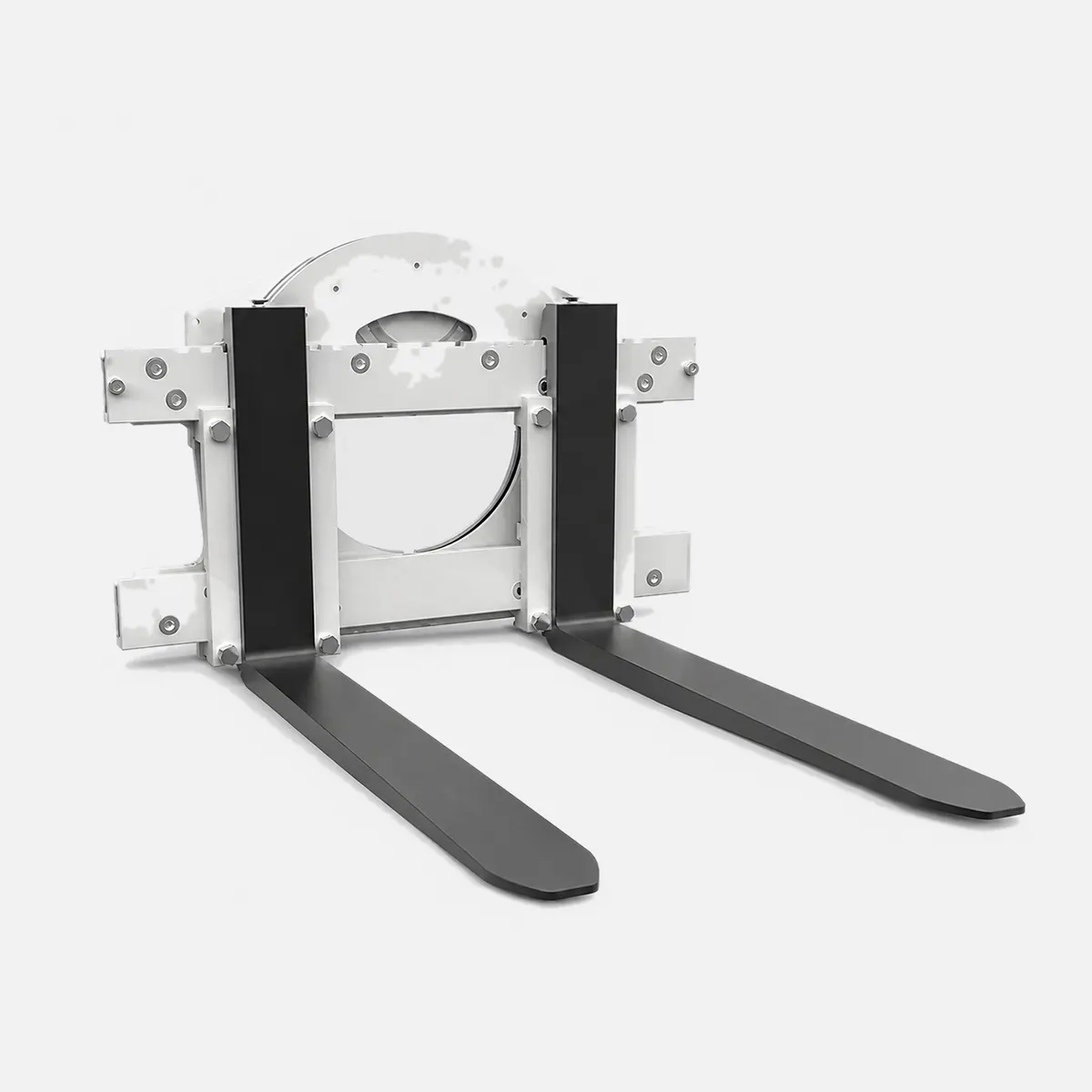

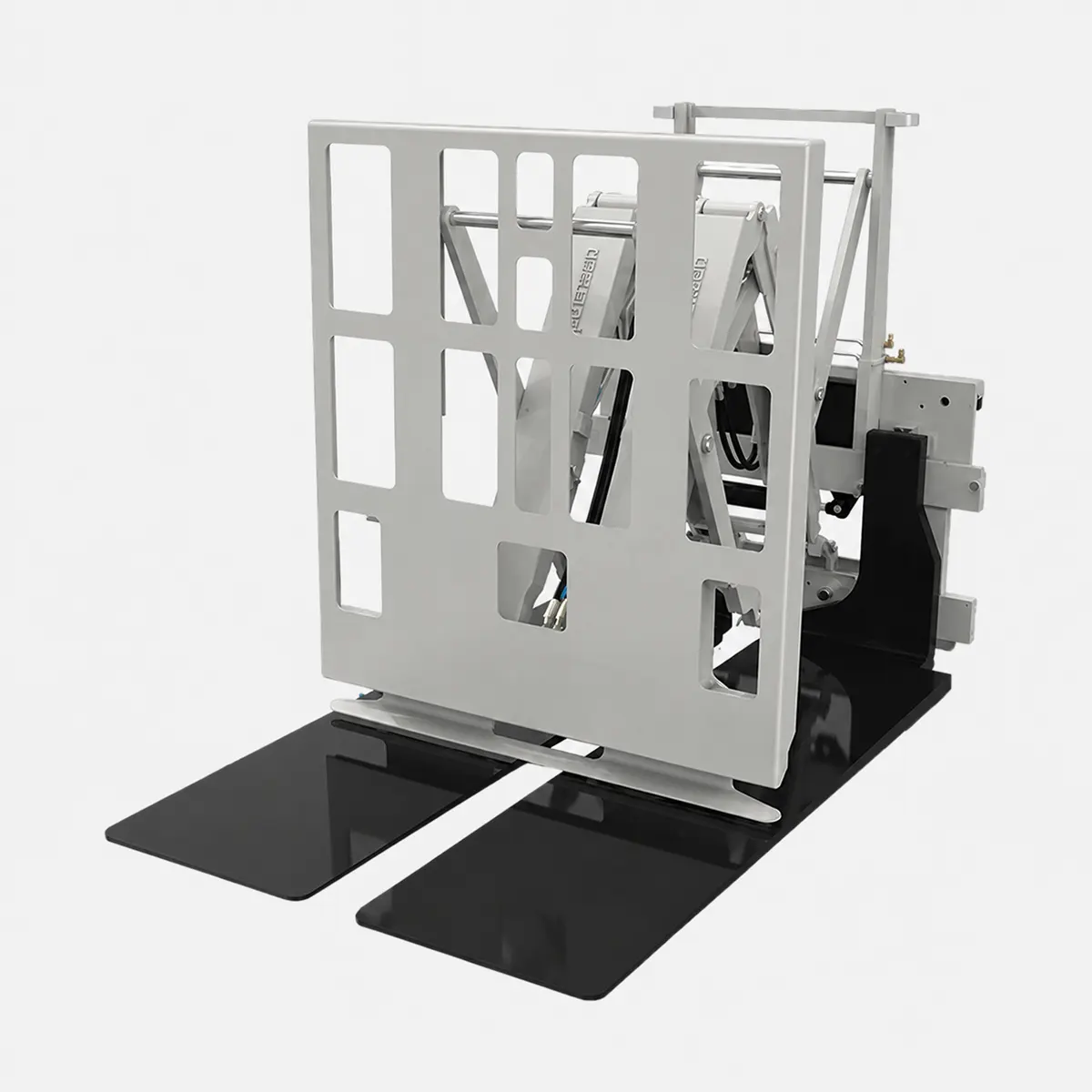

Simplified explanationCompatible Forklift Attachments
Product Video
Product container loading
Product container loading
01:24
Product container loading 2
01:24
Product container loading 3
01:24
Product packaging
01:24
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Procurement Confirmation Points
What work is the YD-CPD-301 designed for?
It is intended for pallet, carton and general material handling in warehouses, production areas, loading docks and plant yards with hard floors. Confirm the final use against the load and aisle conditions.
What are the key specifications?
The current sheet lists a rated capacity of 3000 kg, dimensions of 2.7 m (forks excluded), 1.2 m and 2.15 m, operating weight of 3700 kg and lift height of 3 m (two-stage mast). Other configuration details follow the formal specification and purchase order.
What structure or attachment does it use?
It uses a seated driving layout, front two-stage mast and red rounded rear cover and standard forks. The attachment field states that attachments are optional. Confirm the final attachment scope before ordering.
What is checked before delivery?
The inspection covers the nameplate, exterior fasteners, mast and chains, forks or attachment, hydraulics, travel and steering, brakes, tires and axles, electrical and charging system, and delivery accessories.
What should be confirmed when purchasing?
Confirm load and load center, aisle width, lift height, tire specification, 60 V (customizable), motor, charging conditions, forks or attachment and delivery accessories. Final details follow the purchase order.
