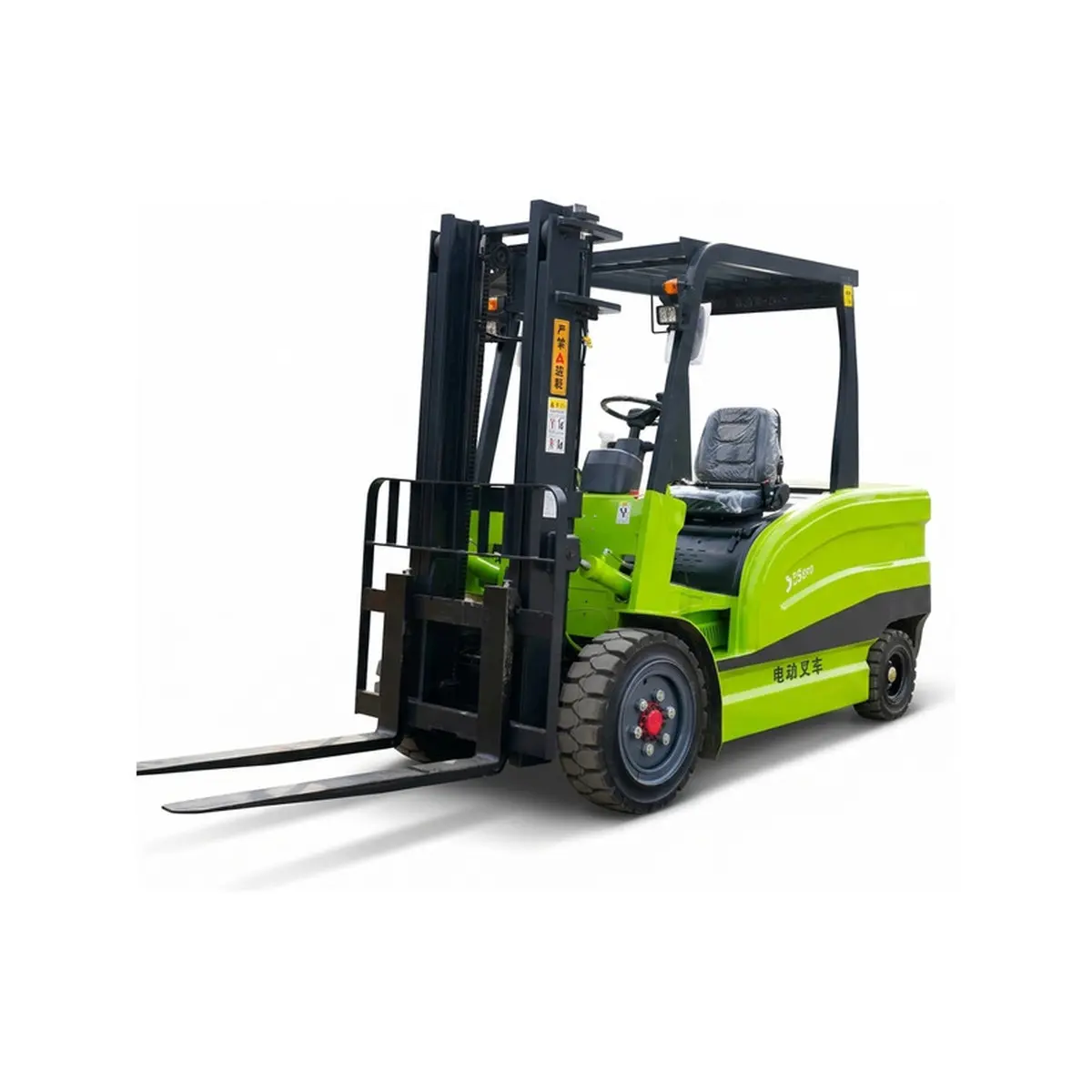

Electric forklift
Product VideoManual
  • Electric Drive
  • 3500 kg Capacity
  • Hydraulic Steering
  • Coordinated Mast and Lift System

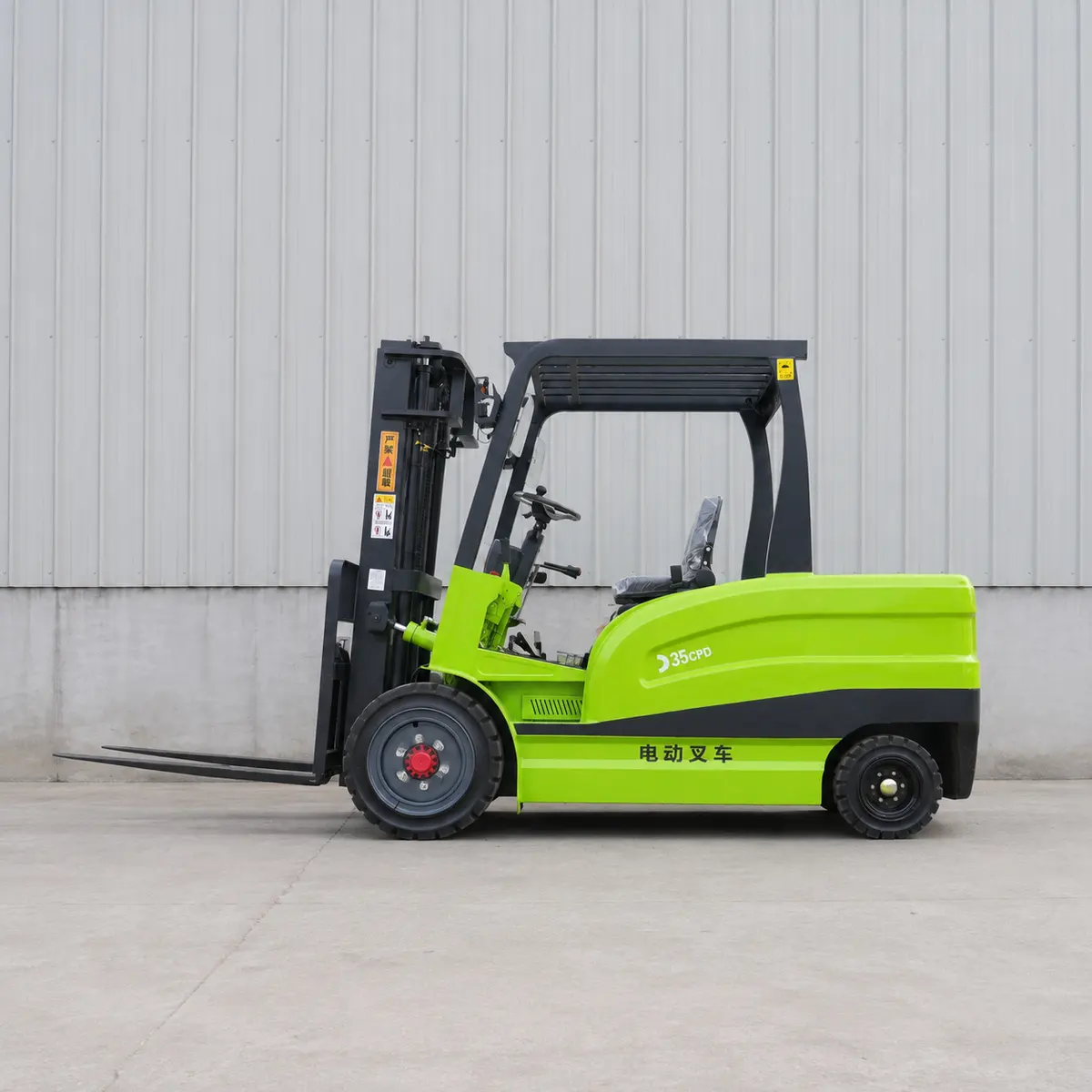

YD-CPD-35 Electric Forklift

Electric Forklift for Warehouse and Plant Handling

YD-CPD-35 is an electric forklift for plant, warehouse and loading operations. The current model sheet confirms a rated capacity of 3500 kg, overall dimensions of 2.7 m (forks excluded), 1.2 m and 2.15 m, a two-stage mast and a lifting height of 3 m (two-stage mast). The reference images show a seated operator layout, front mast, forks and hydraulic lifting system, with a rear counterweight and drive section. The specified version is standard fork configuration. Its AC traction drive and.

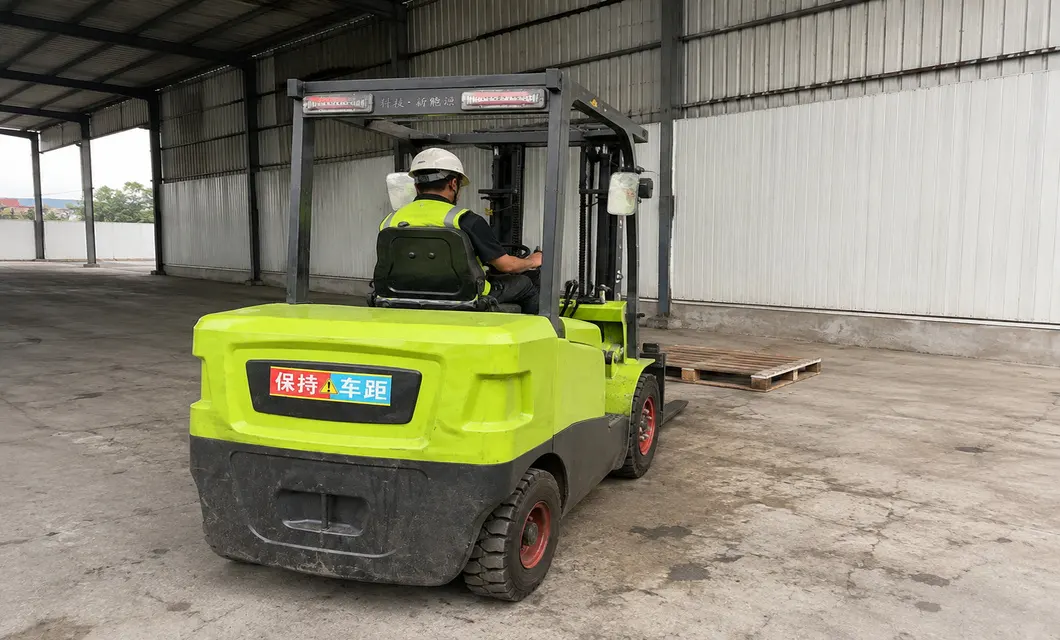

  • Covered Yard Lime Forklift Rear Staging

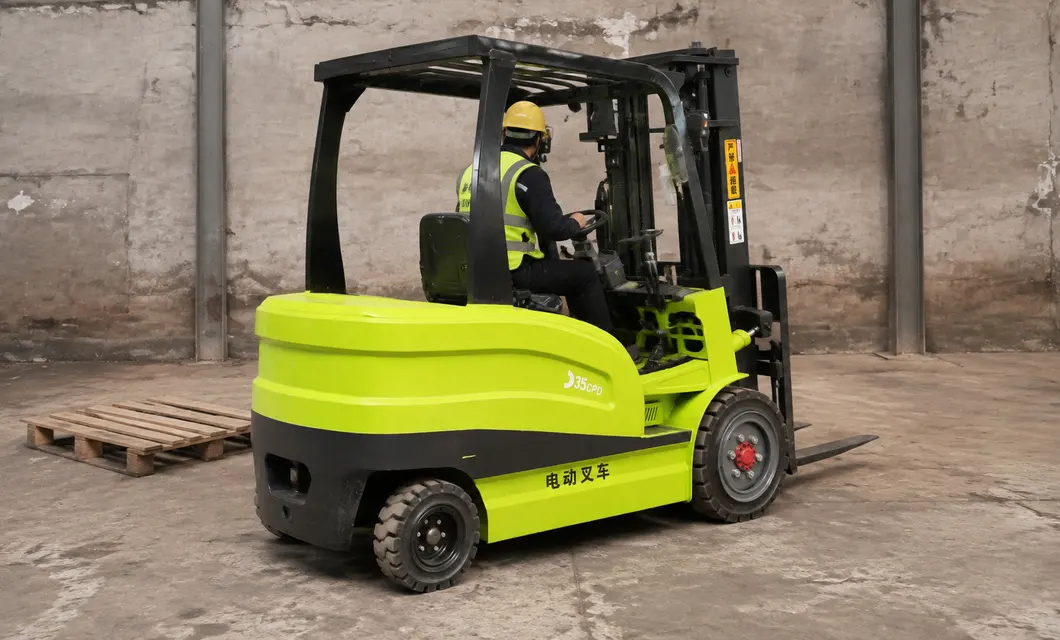

  • Factory Workshop Lime Forklift Handling

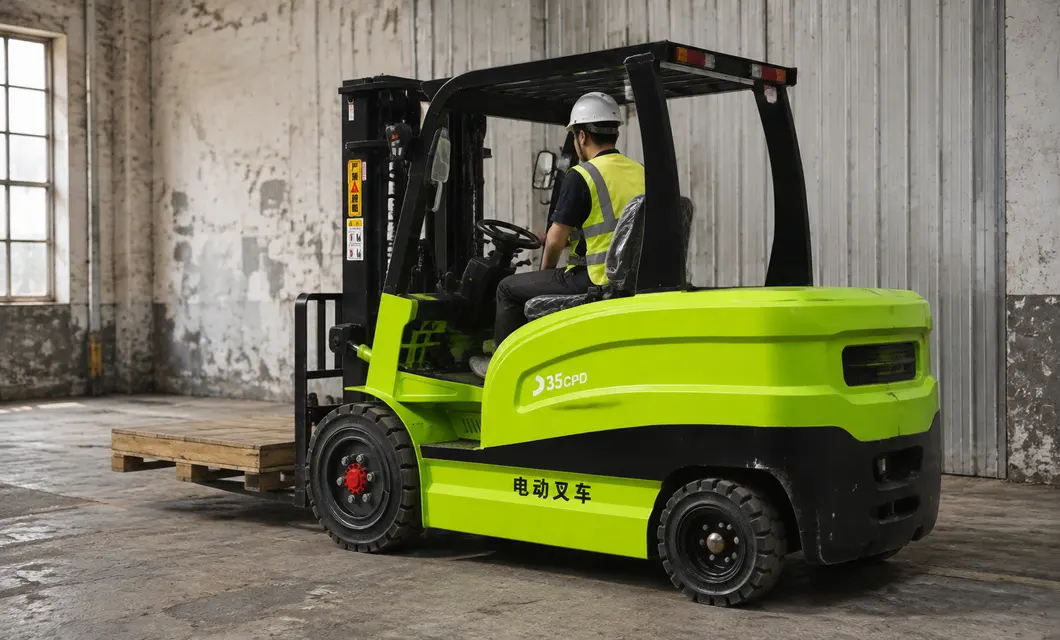

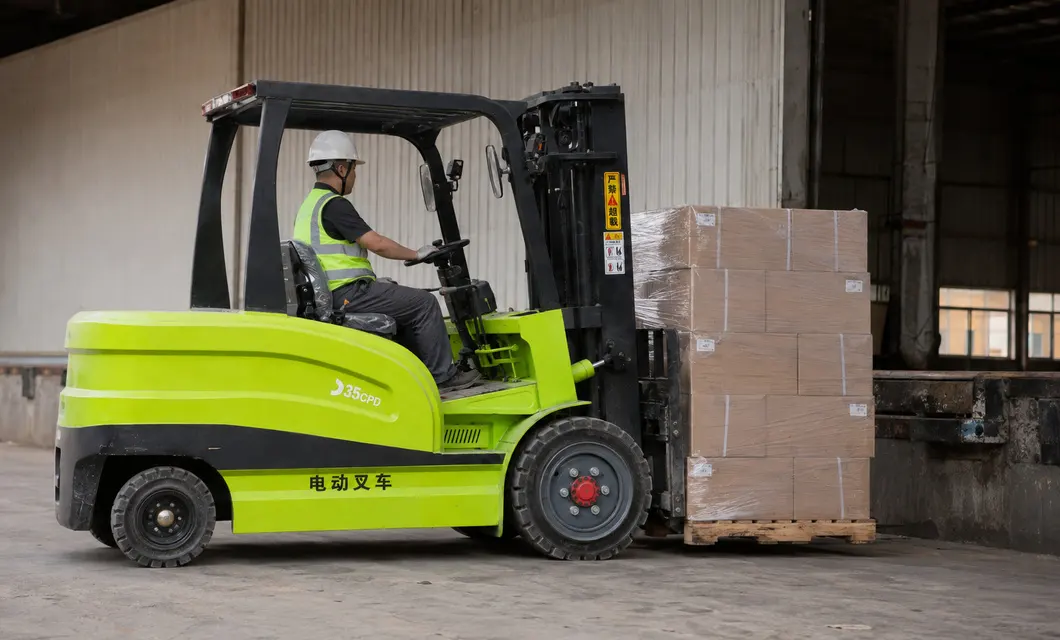

  • Warehouse Lime Forklift Pallet Transfer
  • Warehouse Lime Forklift Pallet Transfer
Warehouse Lime Forklift Pallet TransferWarehouse Lime Forklift Pallet Transfer
Warehouse Lime Forklift Pallet TransferWarehouse Lime Forklift Pallet Transfer
Covered Yard Lime Forklift Rear StagingCovered Yard Lime Forklift Rear Staging
Factory Workshop Lime Forklift HandlingFactory Workshop Lime Forklift Handling
Warehouse Lime Forklift Pallet TransferWarehouse Lime Forklift Pallet Transfer
Warehouse Lime Forklift Pallet TransferWarehouse Lime Forklift Pallet Transfer
Covered Yard Lime Forklift Rear StagingCovered Yard Lime Forklift Rear Staging
Factory Workshop Lime Forklift HandlingFactory Workshop Lime Forklift Handling

Product Advantages

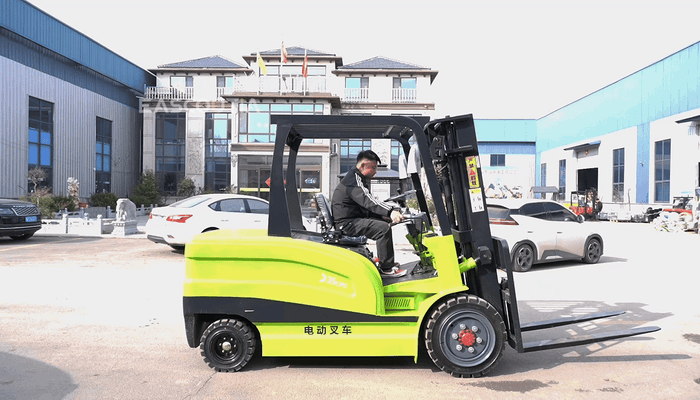

Fork tilt holds loads steady for precise, safe dumping.

Fork tilt holds loads steady for precise, safe dumping.

Specifications & Structural Decomposition

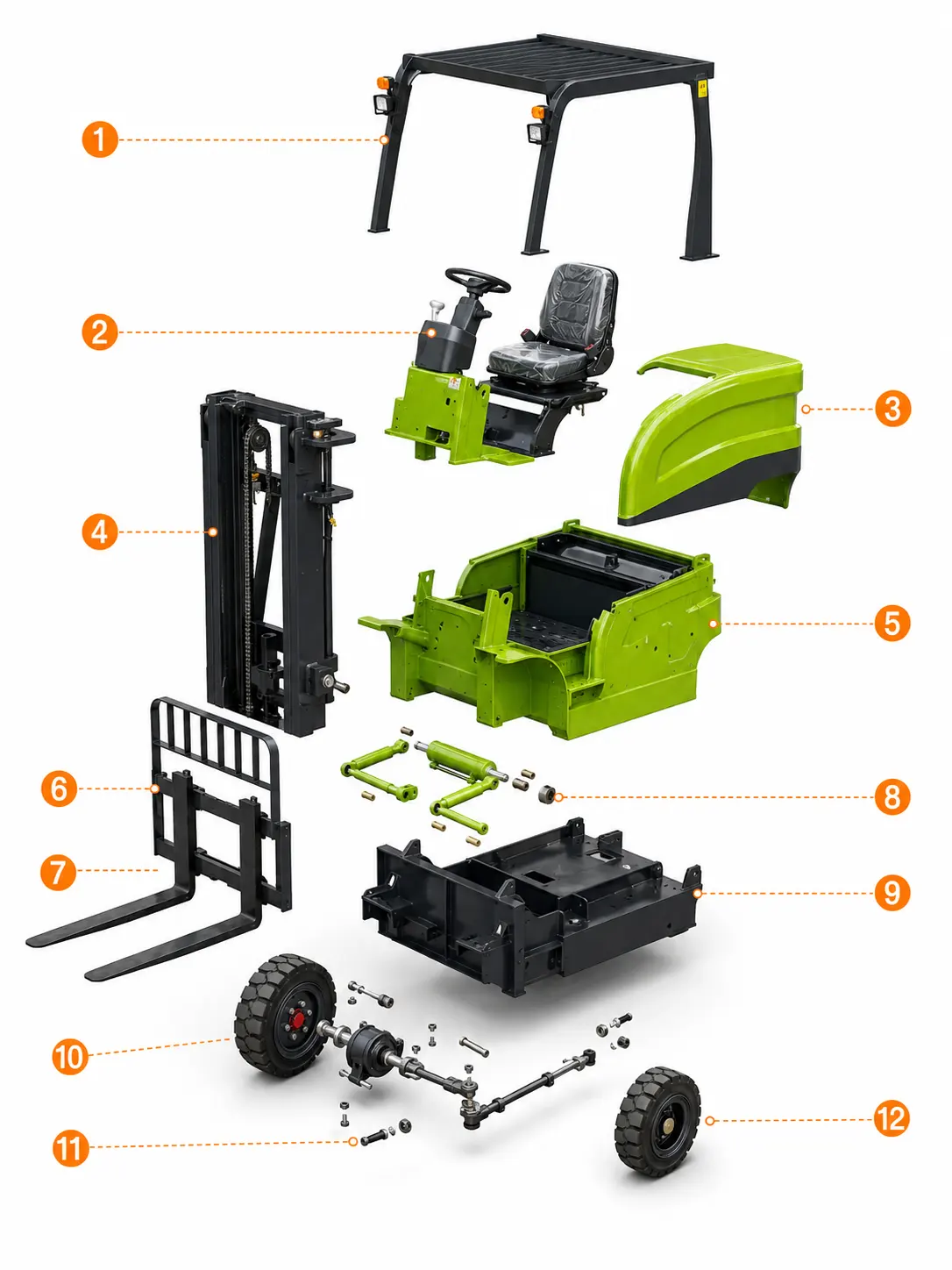

Exploded Structure Diagram

Exploded Structure Diagram
  1. Overhead Guard

    High-strength steel structure protects the operator area during normal handling operations.

  2. Operator Seat

    Padded seat provides stable support and helps reduce fatigue during extended operation.

  3. Control Assembly

    Integrated steering wheel and control levers support clear, accurate machine control.

  4. Body Cover

    Streamlined metal panels protect internal systems and maintain a clean exterior.

  5. Traction Battery

    High-capacity battery supplies stable power for routine material handling.

  6. Main Chassis

    High-strength welded chassis supports the primary components and working loads.

  7. Lift Mast

    Dual-rail mast and chain drive guide loads through controlled vertical movement.

General information

Electric forklift
Door frame material
160-grade steel for forklifts
tire
Front wheel 23 × 9-15; rear wheel 650-10
Braking method
Handbrake braking, hydraulic system braking
Rated lifting capacity
3500kg
Vehicle curb weight (including battery)
4500kg
Front tire specification
23×9-15
Rear tire specification
650-10

General instructions

Simplified explanation

Compatible Forklift Attachments

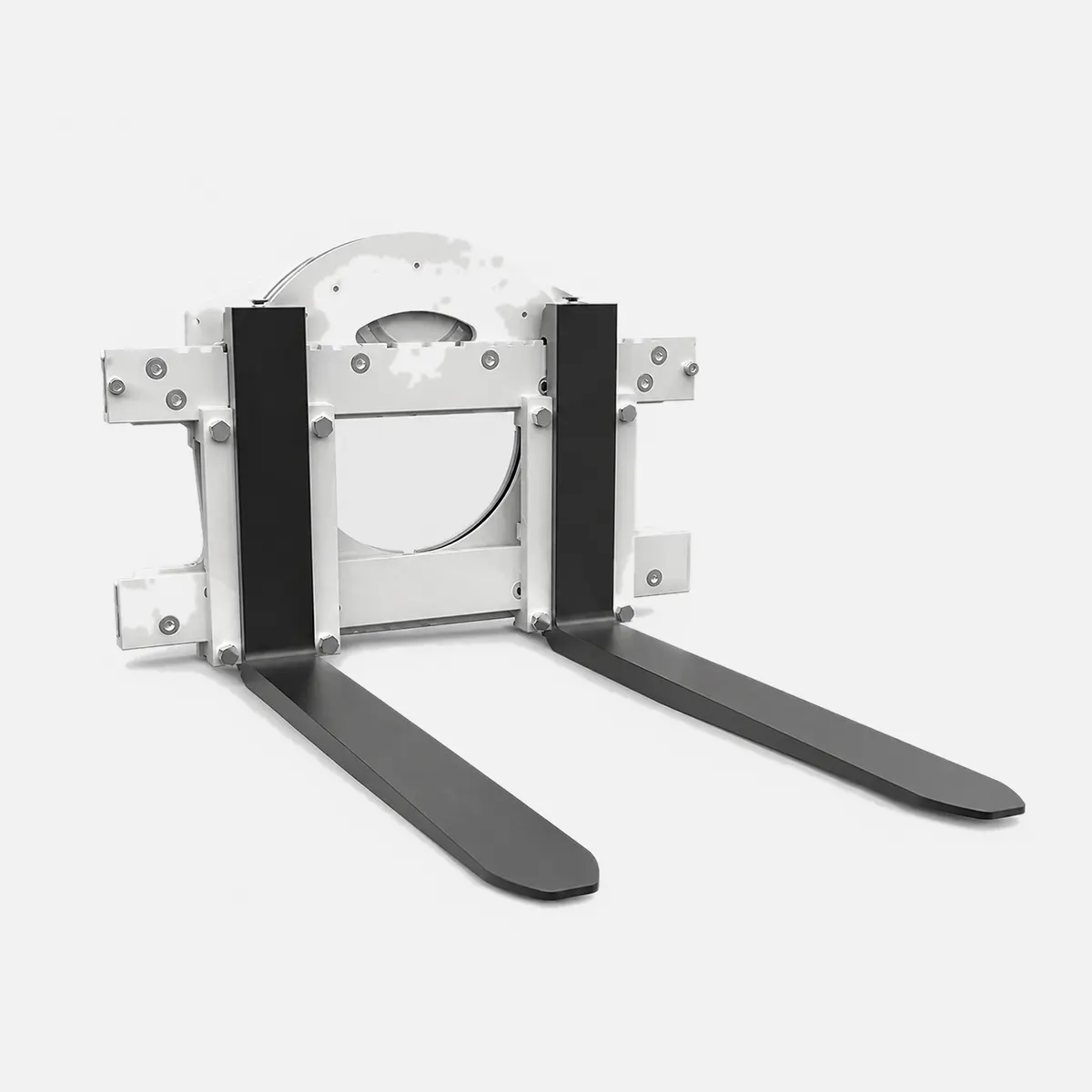

Rotator

Rotator

The hydraulic rotator turns compatible loads for controlled emptying or repositioning.

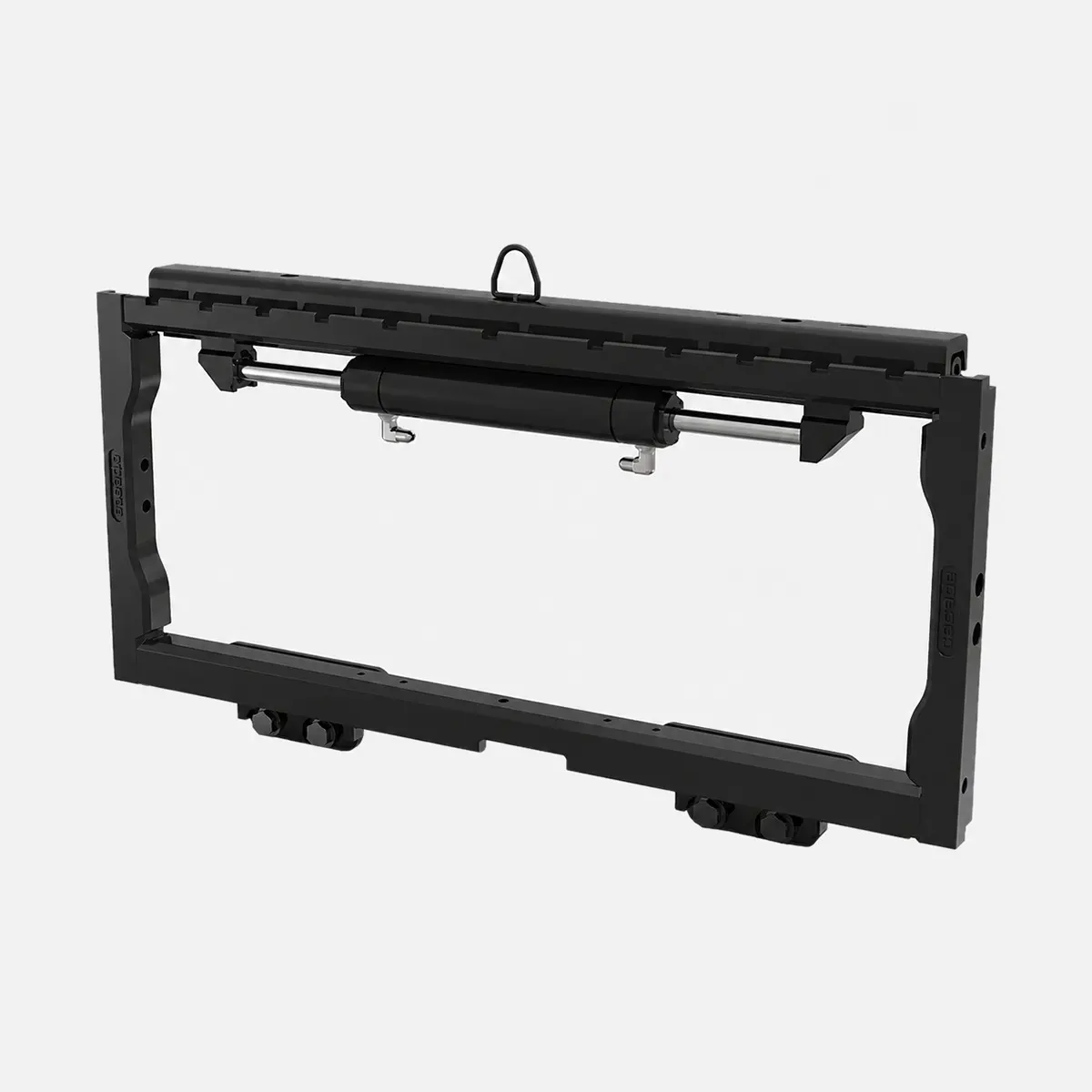

Side Shifter

Side Shifter

Hydraulic lateral fork movement supports accurate pallet alignment without repositioning the truck.

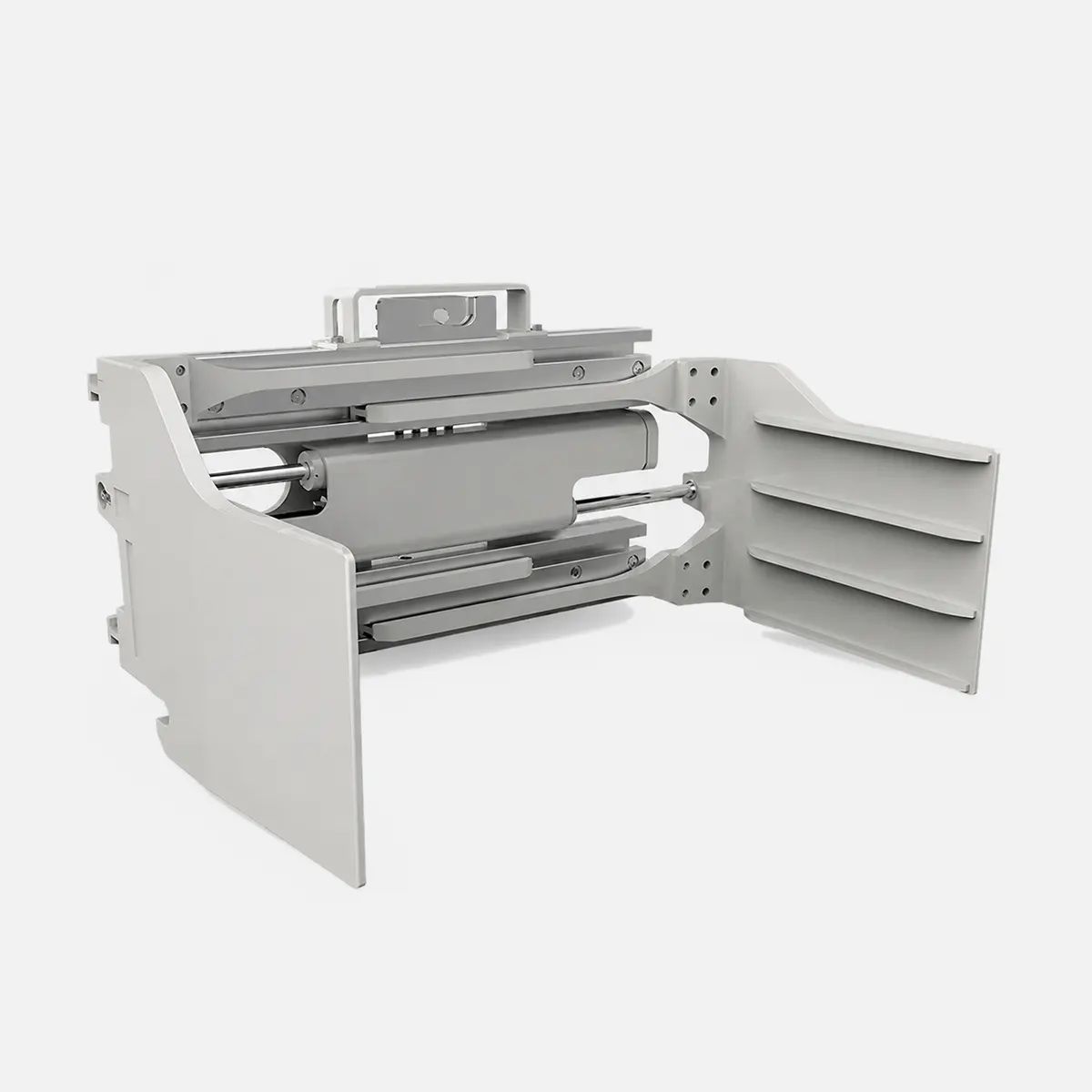

Bale Clamp

Bale Clamp

Hydraulic clamp arms secure suitable compressed bales for controlled lifting, transport and stacking.

Carpet Pole

Carpet Pole

A tapered pole supports suitable carpet, textile and material rolls for controlled lifting and placement.

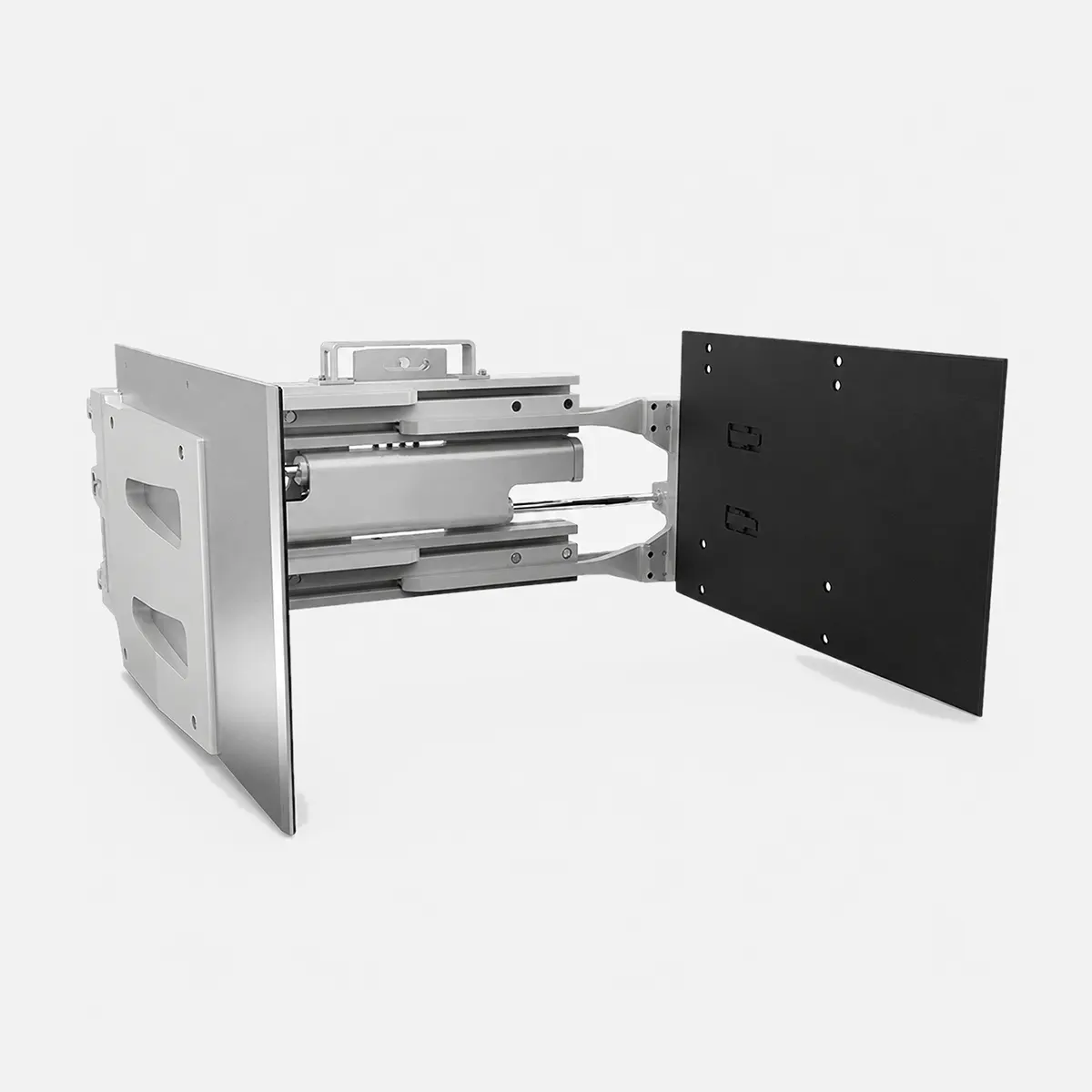

Carton Clamp

Carton Clamp

Wide padded clamp arms handle suitable cartons and boxed goods without pallets.

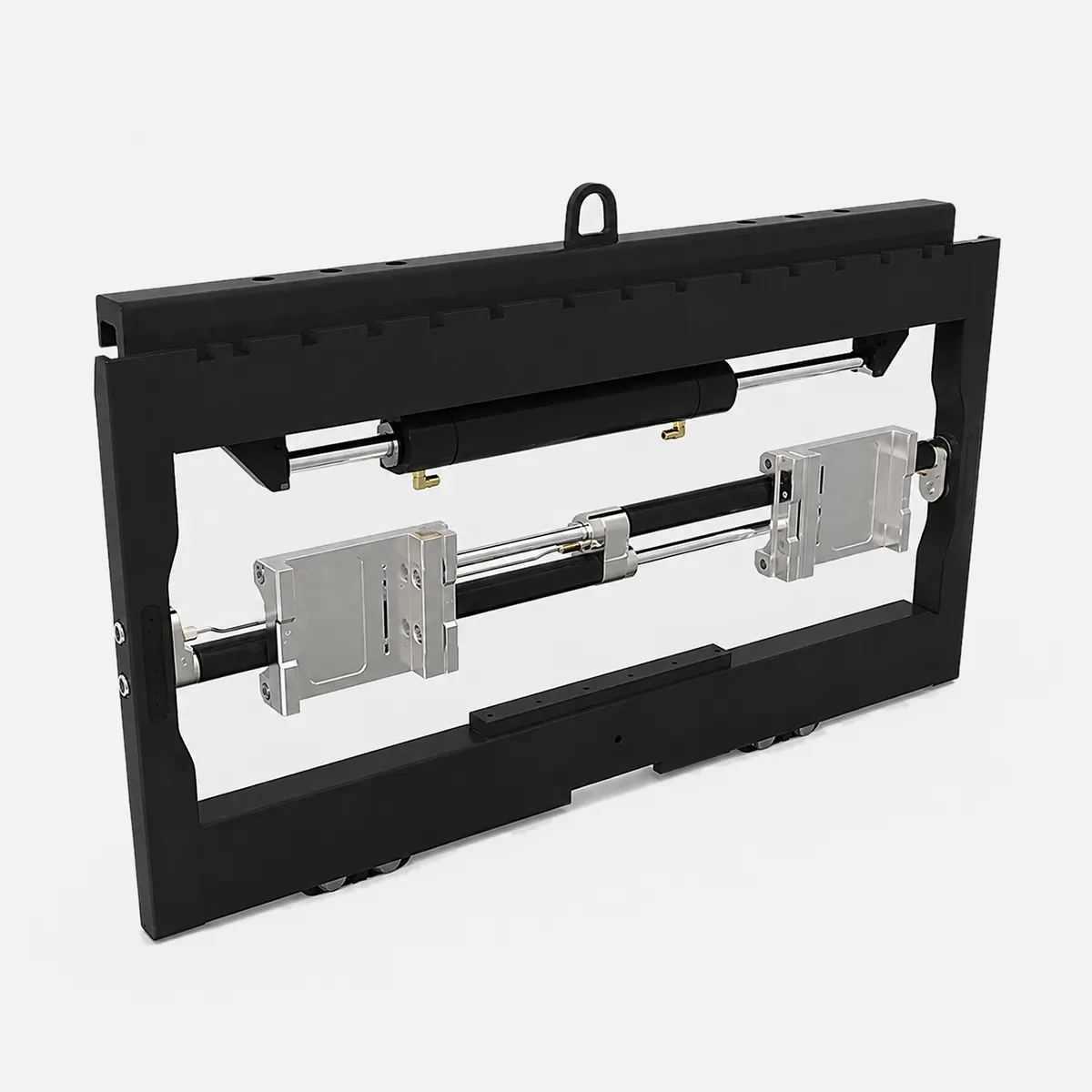

Fork Positioner

Fork Positioner

Hydraulic fork adjustment changes fork spacing to suit different pallet and load widths.

Multiple Load Handler

Multiple Load Handler

Multiple fork pairs support efficient handling of suitable palletized loads.

Push & Pull

Push & Pull

The push-pull attachment handles suitable slip-sheet loads using a gripping face and platen.

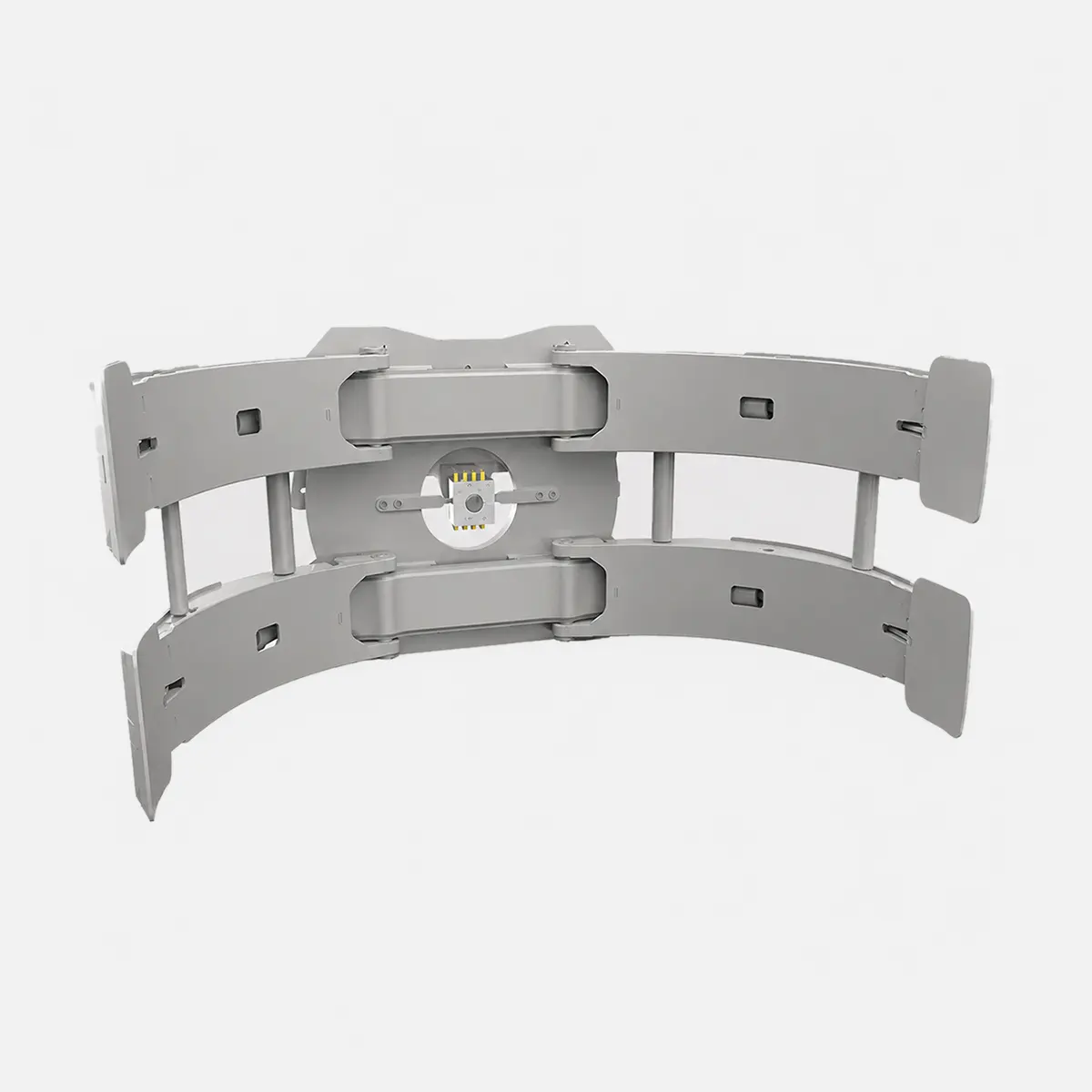

Roll Clamp

Roll Clamp

Rotating clamp arms grip suitable paper or material rolls for controlled handling.

Rotator

Rotator

The hydraulic rotator turns compatible loads for controlled emptying or repositioning.

Side Shifter

Side Shifter

Hydraulic lateral fork movement supports accurate pallet alignment without repositioning the truck.

Bale Clamp

Bale Clamp

Hydraulic clamp arms secure suitable compressed bales for controlled lifting, transport and stacking.

Carpet Pole

Carpet Pole

A tapered pole supports suitable carpet, textile and material rolls for controlled lifting and placement.

Product Video

00:22

YD-CPD-35 Display

YD-CPD-35 real product display, strong load capacity and solid construction.

YD-CPD-35 Display

00:22YD-CPD-35 real product display, strong load capacity and solid construction.

YD-CPD-35 Operation

00:39YD-CPD-35 operation demonstration, fast response and stable operation under heavy load.

Product loading into containers

01:26Real shot of product loading into containers, proper stacking to ensure safe transportation

Packaging video

00:40Real shot of full packaging process, tight protection for ocean export

Forklift packing and container loading

00:33Forklift for packing and container loading, stable placement and high loading efficiency

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory real scene

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

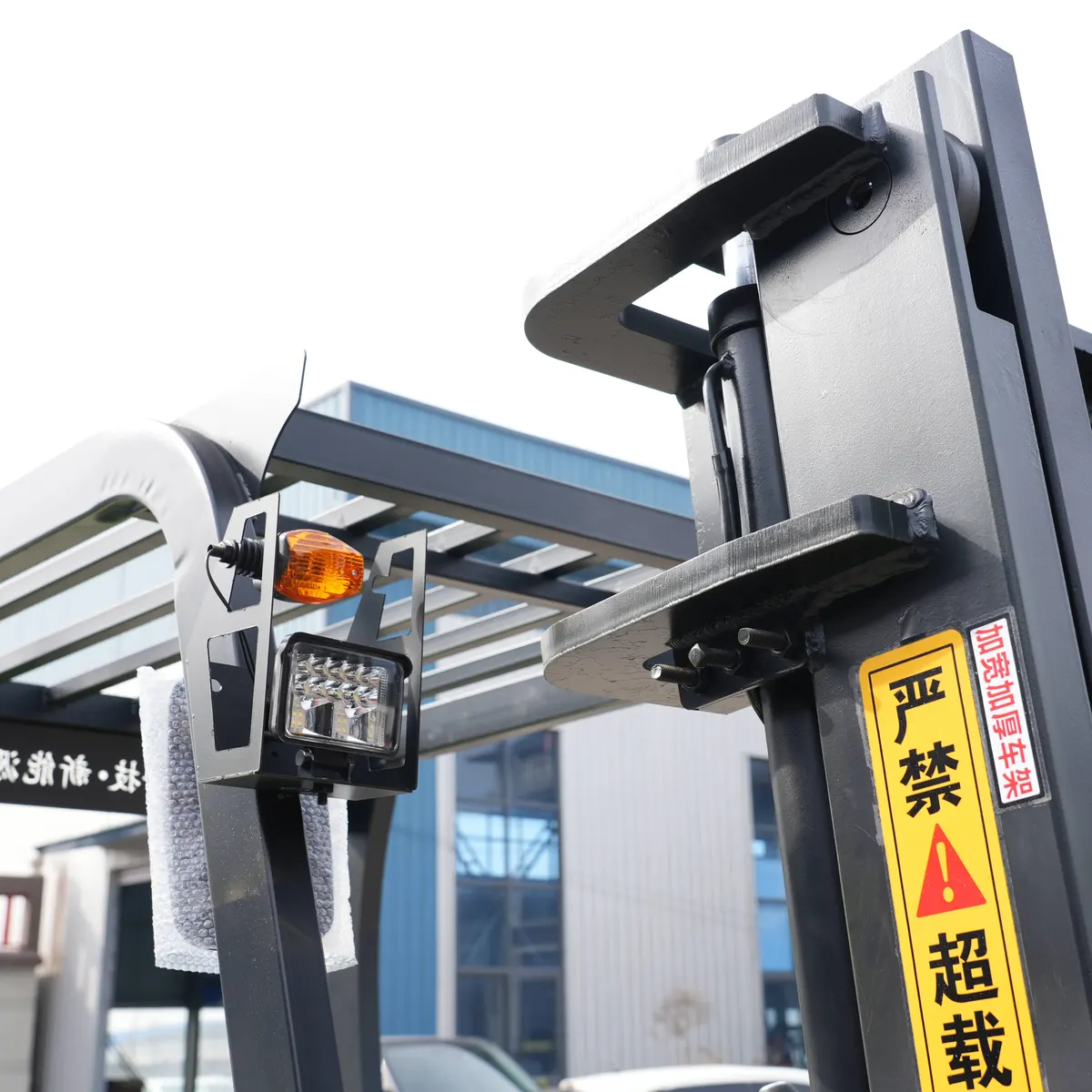

CPD-35 – Detail Drawing – Headlight and Turn Signal

CPD-35 – Detail Drawing – Front Wheel

CPD-35 – Detail Drawing – Front Wheel 2

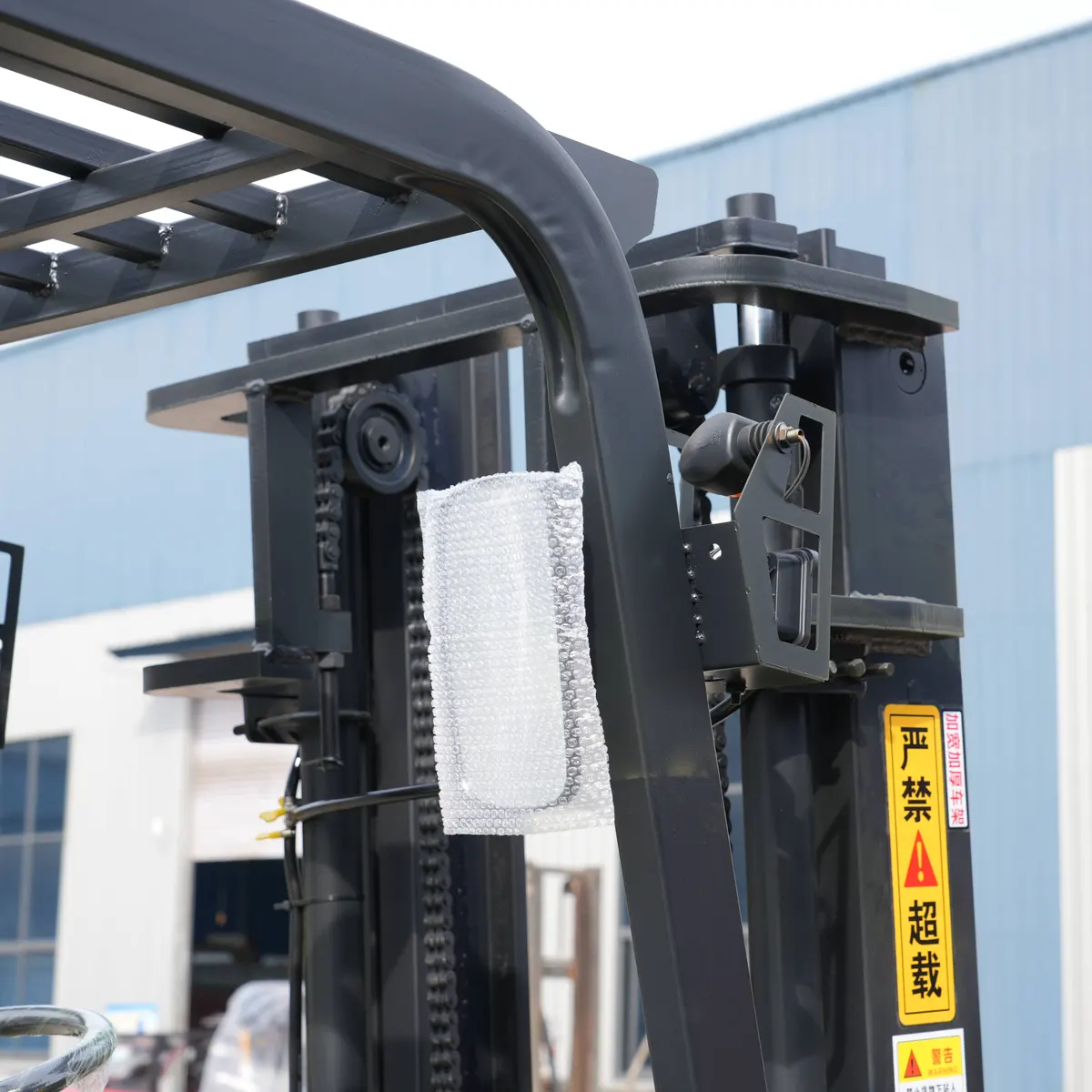

CPD-35 – Detail Drawing – Rearview Mirror

CPD-35 – Detail Drawing – Rearview Mirror 2

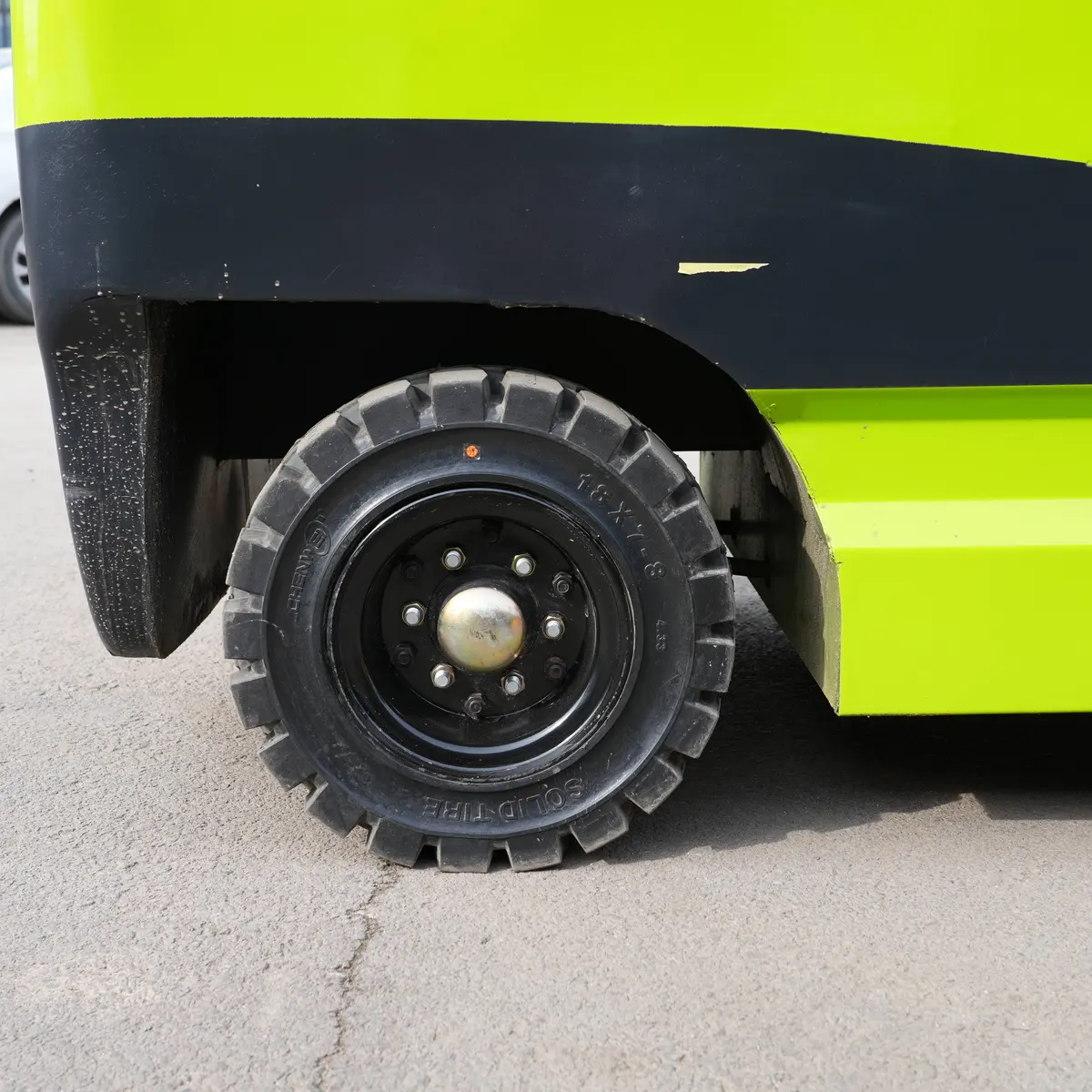

CPD-35 – Detail Drawing – Rear Wheel

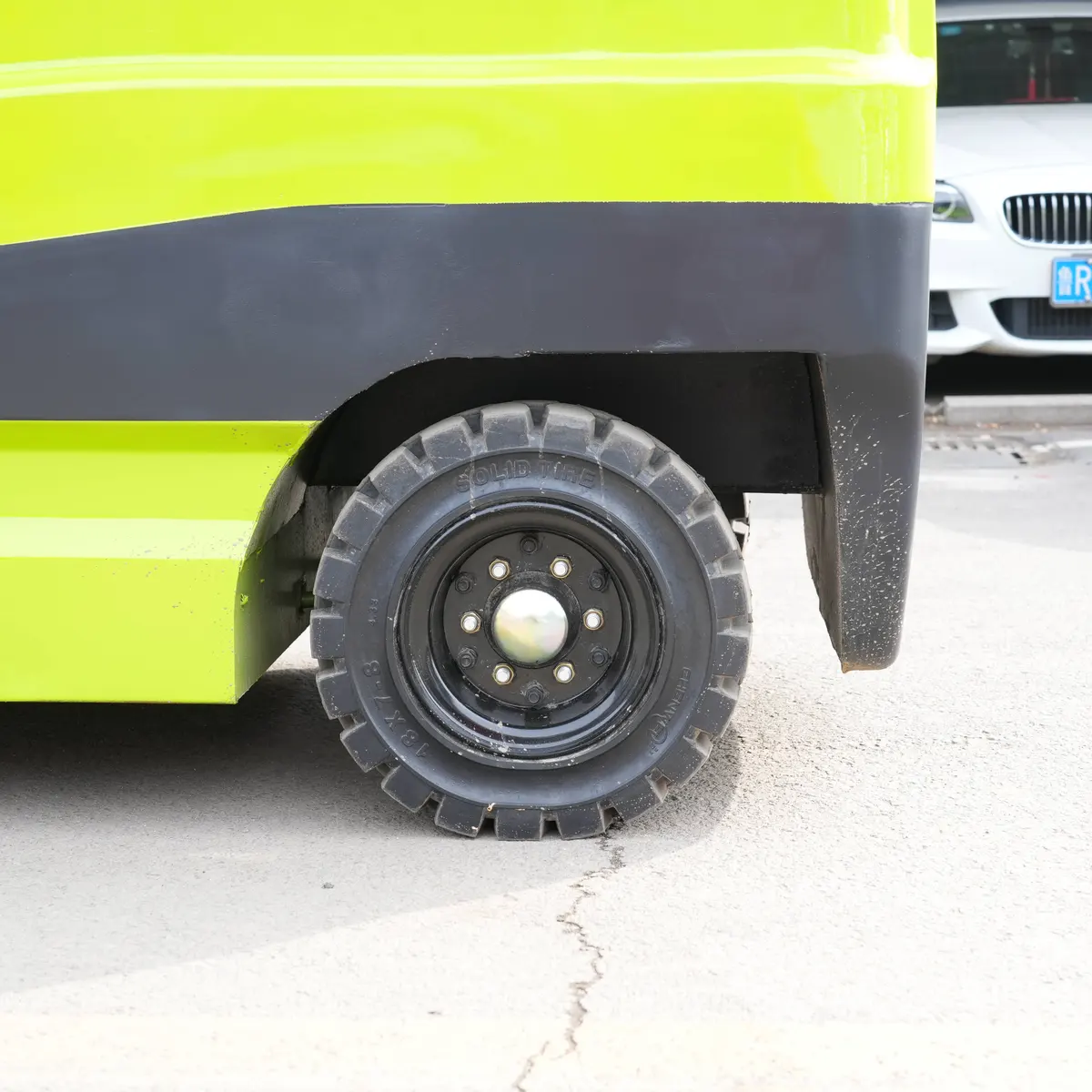

CPD-35 – Detail Drawing – Rear Wheel 2

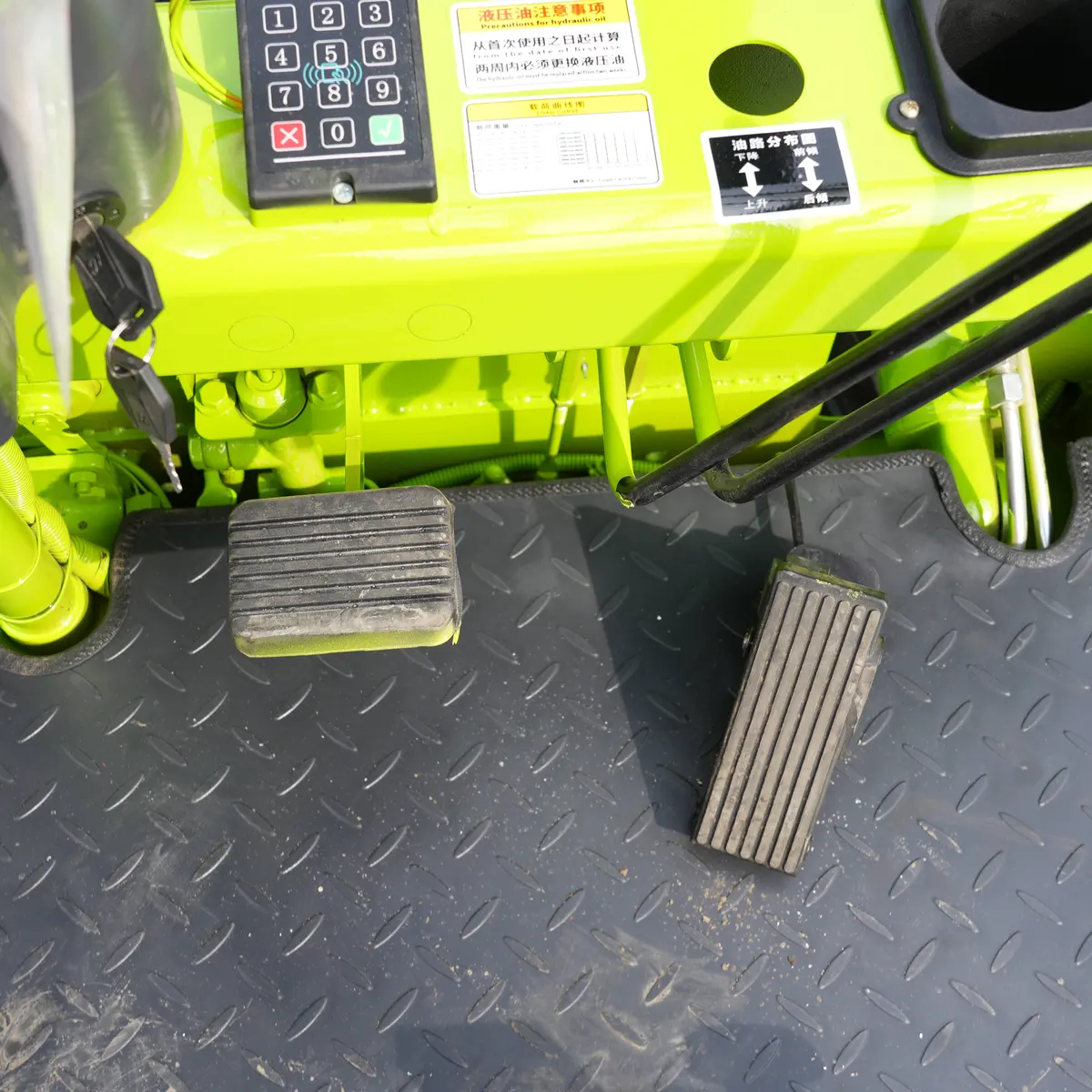

CPD-35 – Detail Drawing – Password Activation Panel and Pedal

CPD-35 – Detail Drawing – Emergency Stop Switch

CPD-35 – Detail Drawing – Overhead Guard Frame

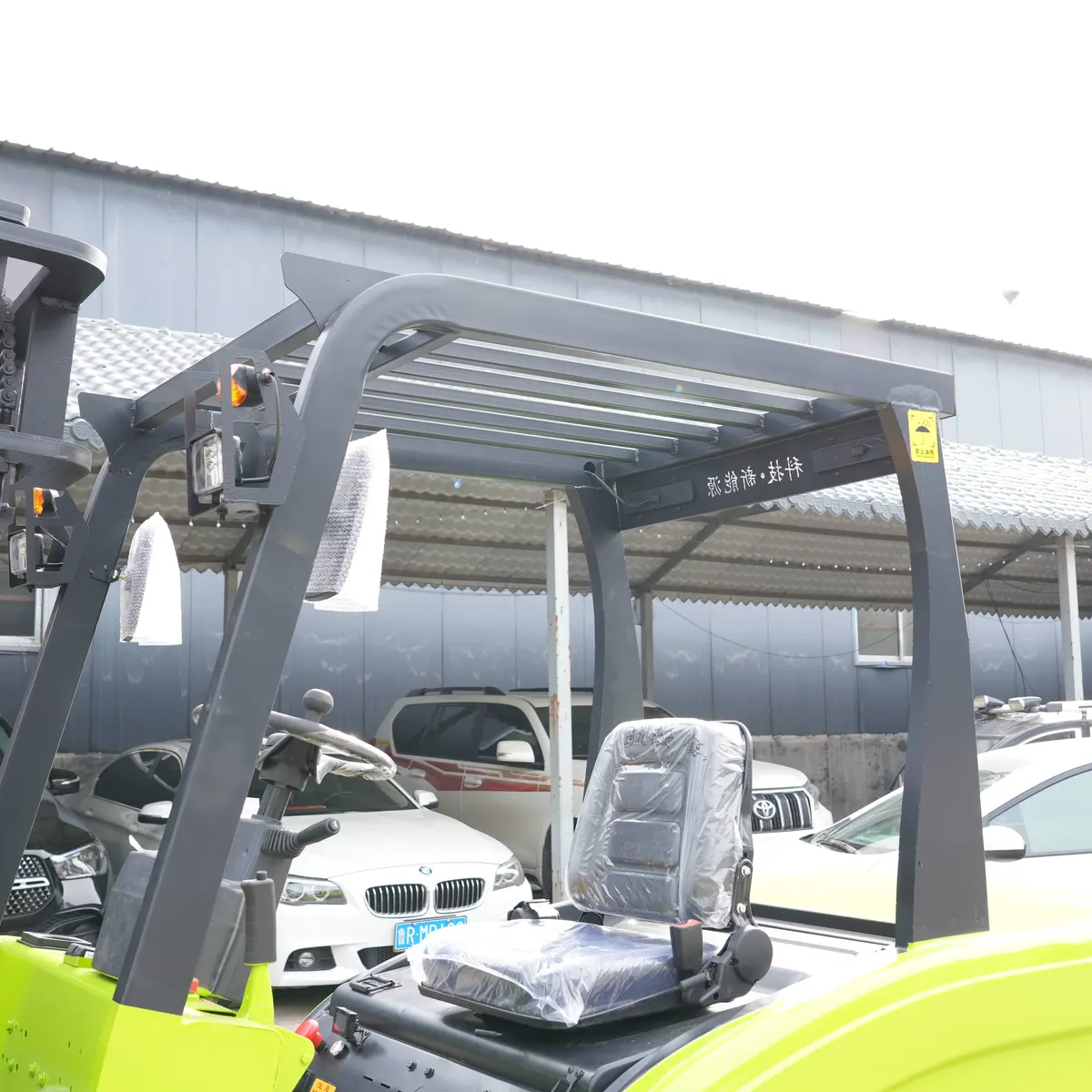

CPD-35 – Detail Drawing – Protective Roof Frame 2

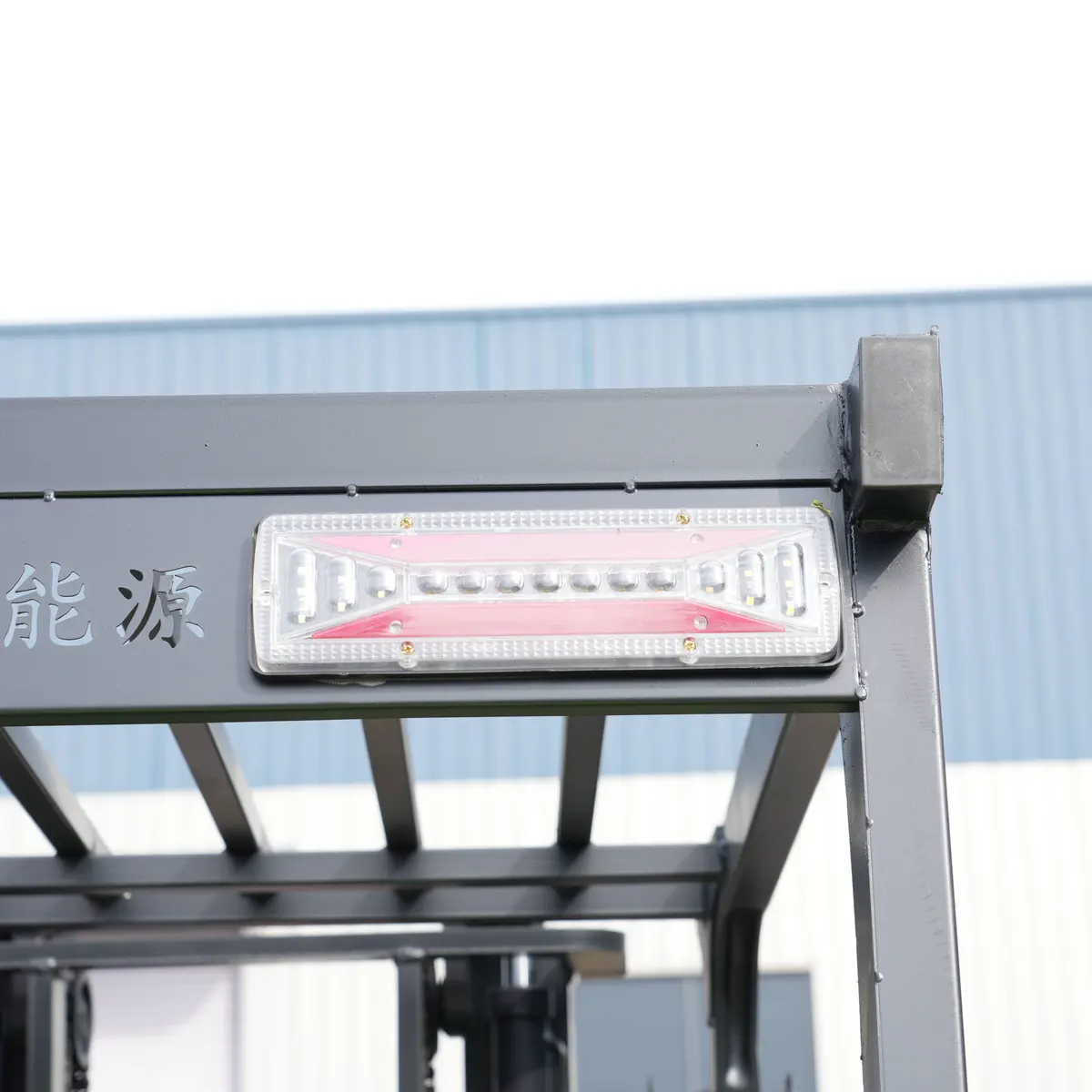

CPD-35 – Detail Drawing – Roof Rail Lighting Fixture

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Procurement Confirmation Points

What work is the YD-CPD-35 designed for?

It is intended for pallet, carton and general material handling in warehouses, production areas, loading docks and plant yards with hard floors. Confirm the final use against the load and aisle conditions.

What are the key specifications?

The current sheet lists a rated capacity of 3500 kg, dimensions of 2.7 m (forks excluded), 1.2 m and 2.15 m, operating weight of 4500 kg and lift height of 3 m (two-stage mast). Other configuration details follow the formal specification and purchase order.

What structure or attachment does it use?

It uses a seated driving layout, front two-stage mast and standard fork configuration. The attachment field states that attachments are optional. Confirm the final attachment scope before ordering.

What is checked before delivery?

The inspection covers the nameplate, exterior fasteners, mast and chains, forks or attachment, hydraulics, travel and steering, brakes, tires and axles, electrical and charging system, and delivery accessories.

What should be confirmed when purchasing?

Confirm load and load center, aisle width, lift height, tire specification, 60 V (customizable), motor, charging conditions, forks or attachment and delivery accessories. Final details follow the purchase order.
