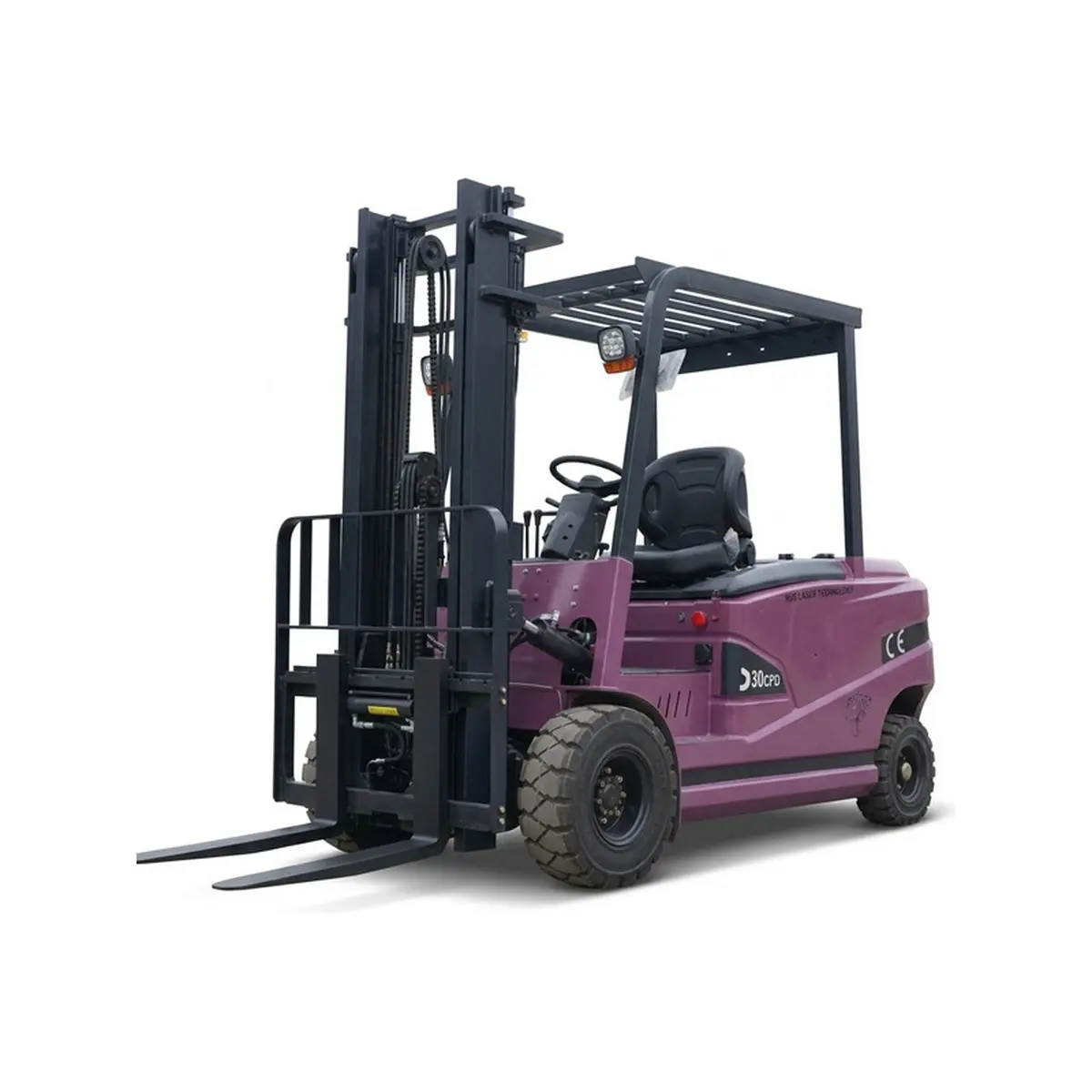

Electric forklift
Product VideoManual
  • Electric Drive
  • 3000 kg Capacity
  • Hydraulic Steering
  • Coordinated Mast and Lift System

YD-CPD-30 Purple Electric Forklift

Electric Forklift for Warehouse and Plant Handling

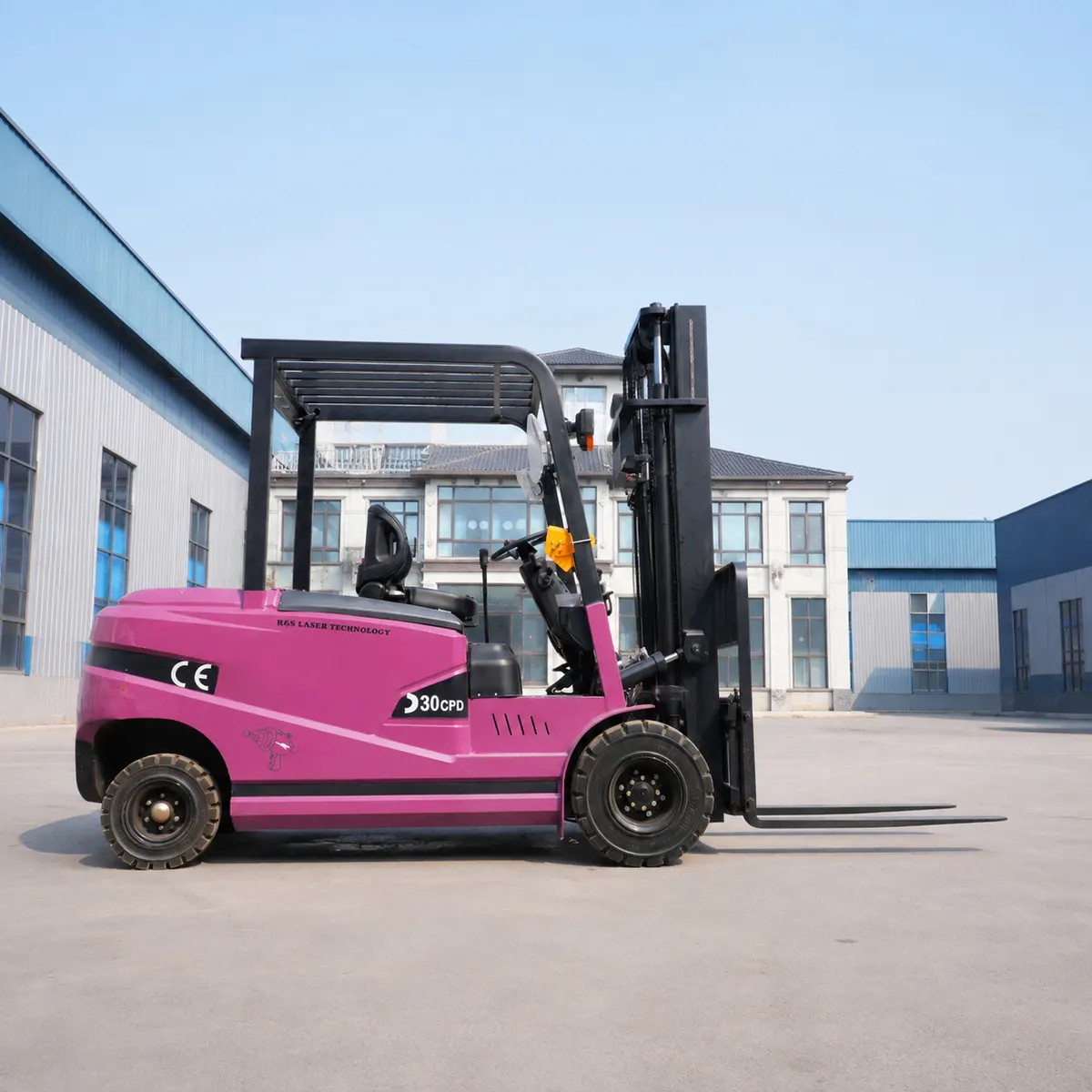

YD-CPD-30 Purple is an electric forklift for plant, warehouse and loading operations. The current model sheet confirms a rated capacity of 3000 kg, overall dimensions of 2.7 m (forks excluded), 1.2 m and 2.15 m, a two-stage mast and a lifting height of 3 m (two-stage mast). The reference images show a seated operator layout, front mast, forks and hydraulic lifting system, with a rear counterweight and drive section. The specified version is purple body, open overhead guard and standard forks. Its A.

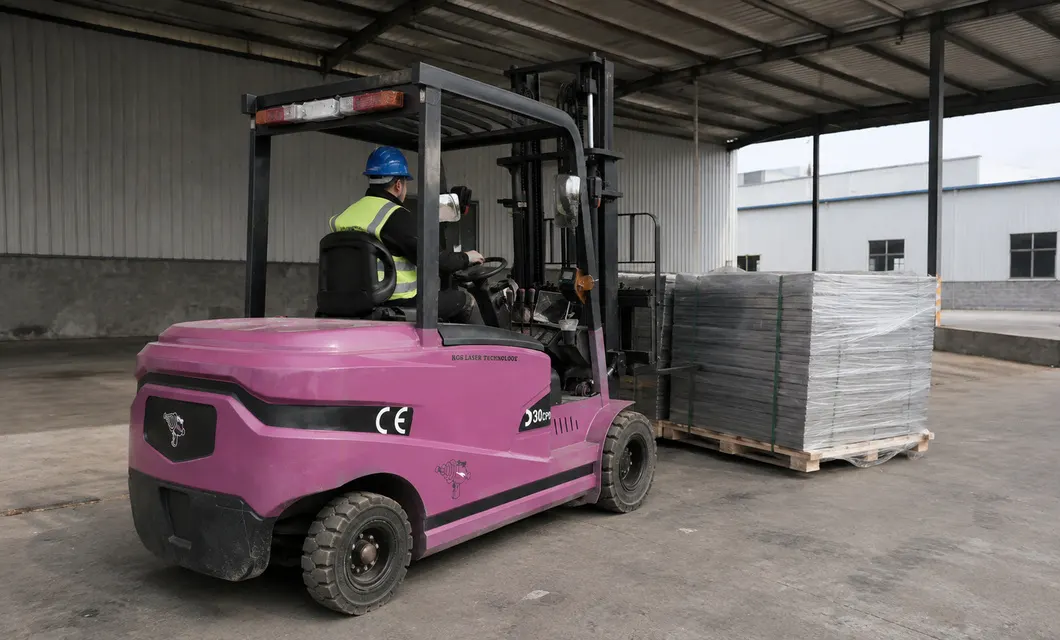

  • Covered Yard Purple Forklift Rear Handling

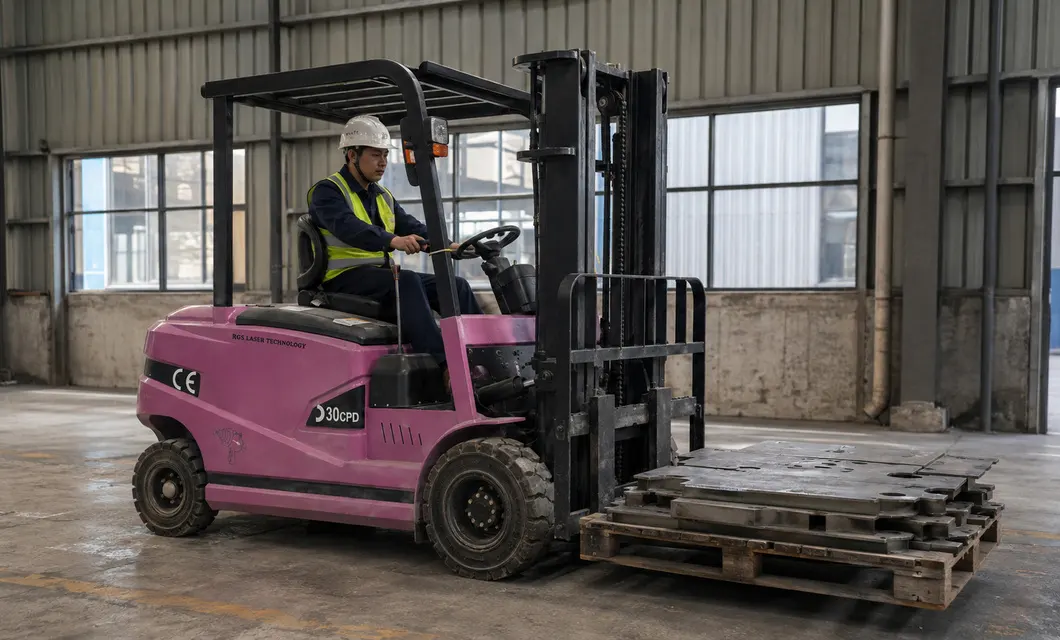

  • Front Warehouse Purple Pallet Handling

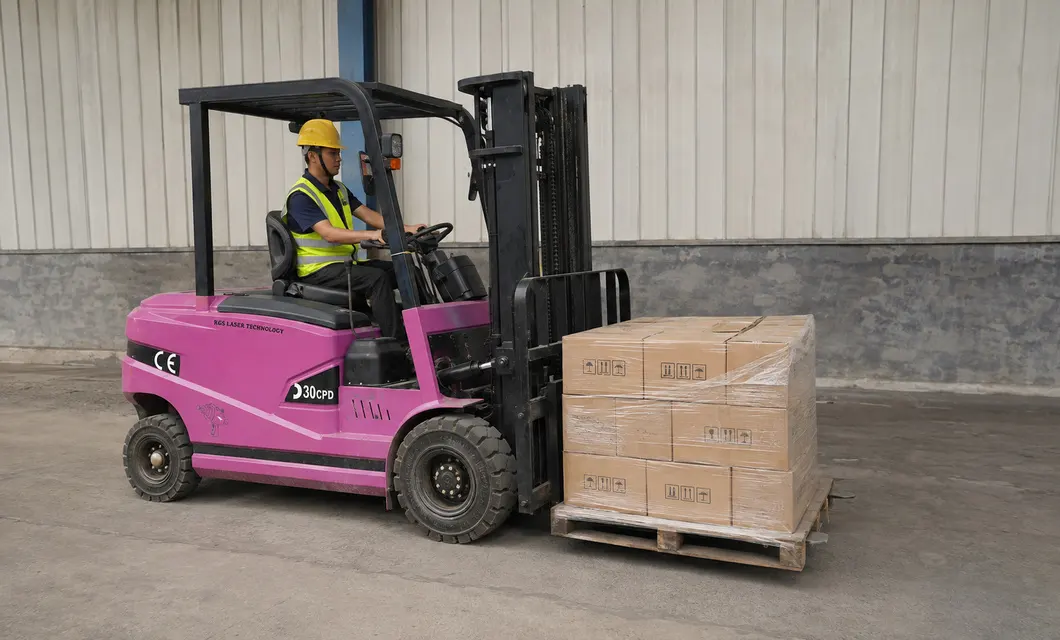

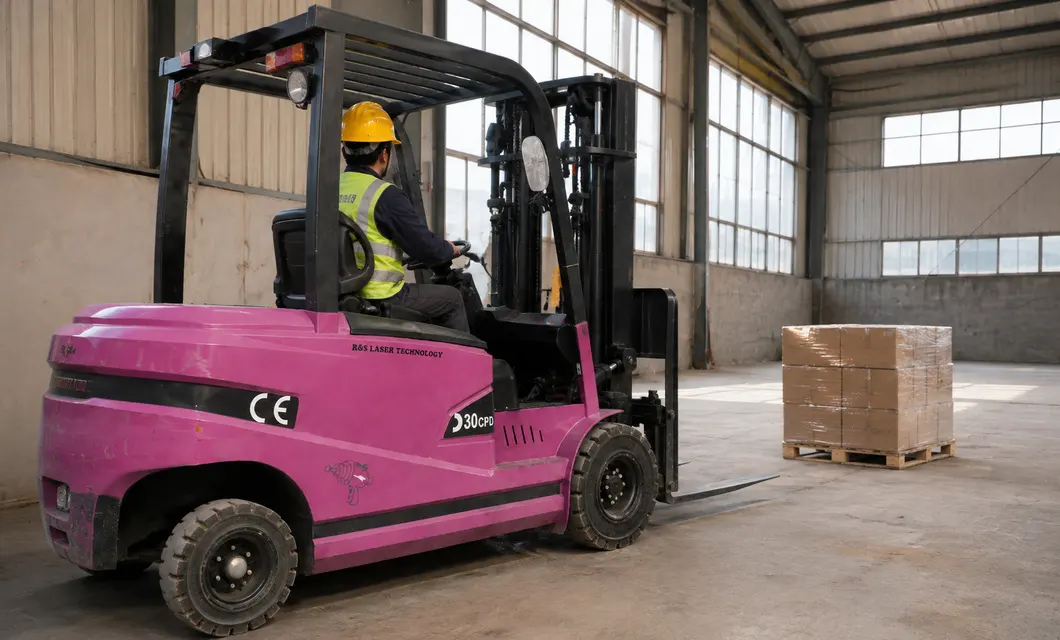

  • Warehouse Purple Forklift Pallet Transfer
  • Warehouse Purple Forklift Pallet Transfer
Warehouse Purple Forklift Pallet TransferWarehouse Purple Forklift Pallet Transfer
Warehouse Purple Forklift Pallet TransferWarehouse Purple Forklift Pallet Transfer
Covered Yard Purple Forklift Rear HandlingCovered Yard Purple Forklift Rear Handling
Front Warehouse Purple Pallet HandlingFront Warehouse Purple Pallet Handling
Warehouse Purple Forklift Pallet TransferWarehouse Purple Forklift Pallet Transfer
Warehouse Purple Forklift Pallet TransferWarehouse Purple Forklift Pallet Transfer
Covered Yard Purple Forklift Rear HandlingCovered Yard Purple Forklift Rear Handling
Front Warehouse Purple Pallet HandlingFront Warehouse Purple Pallet Handling

Product Advantages

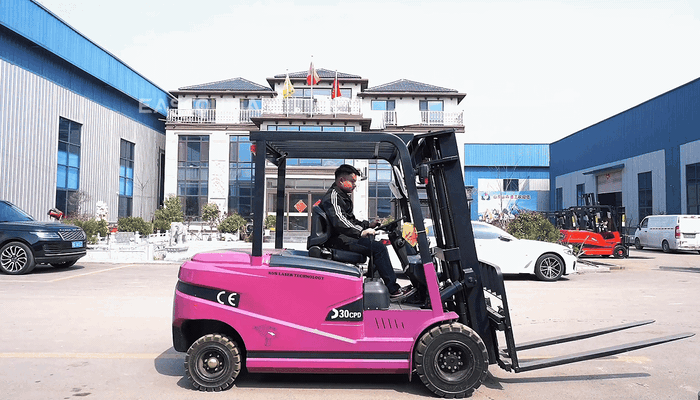

Controlled, steady reversing with clear rearward visibility.

Controlled, steady reversing with clear rearward visibility.

Specifications & Structural Decomposition

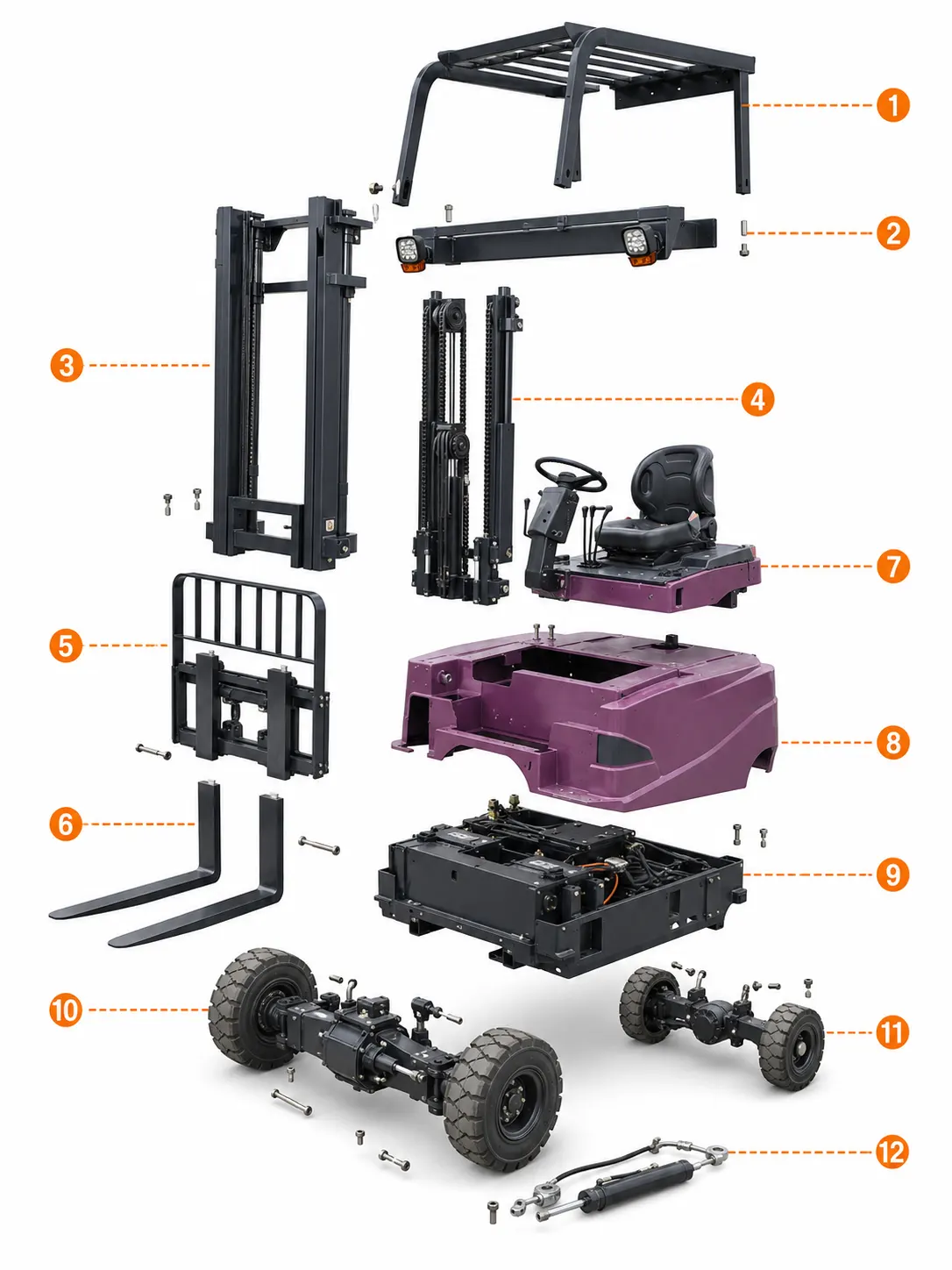

Exploded Structure Diagram

Exploded Structure Diagram
  1. Overhead Guard

    High-strength steel structure protects the operator area during normal handling operations.

  2. Operator Seat

    Padded seat provides stable support and helps reduce fatigue during extended operation.

  3. Control Assembly

    Integrated steering wheel and control levers support clear, accurate machine control.

  4. Body Cover

    Streamlined metal panels protect internal systems and maintain a clean exterior.

  5. Traction Battery

    High-capacity battery supplies stable power for routine material handling.

  6. Main Chassis

    High-strength welded chassis supports the primary components and working loads.

  7. Lift Mast

    Dual-rail mast and chain drive guide loads through controlled vertical movement.

General information

Electric forklift
Door frame material
160-grade steel for forklifts
tire
Front tire: 23×9-10; Rear tire: 18×7-8
Braking method
Handbrake braking, hydraulic system braking
Rated lifting capacity
3000kg
Vehicle curb weight (including battery)
3700kg
Front tire specification
23×9-10
Rear tire specification
18×7-8

General instructions

Simplified explanation

Compatible Forklift Attachments

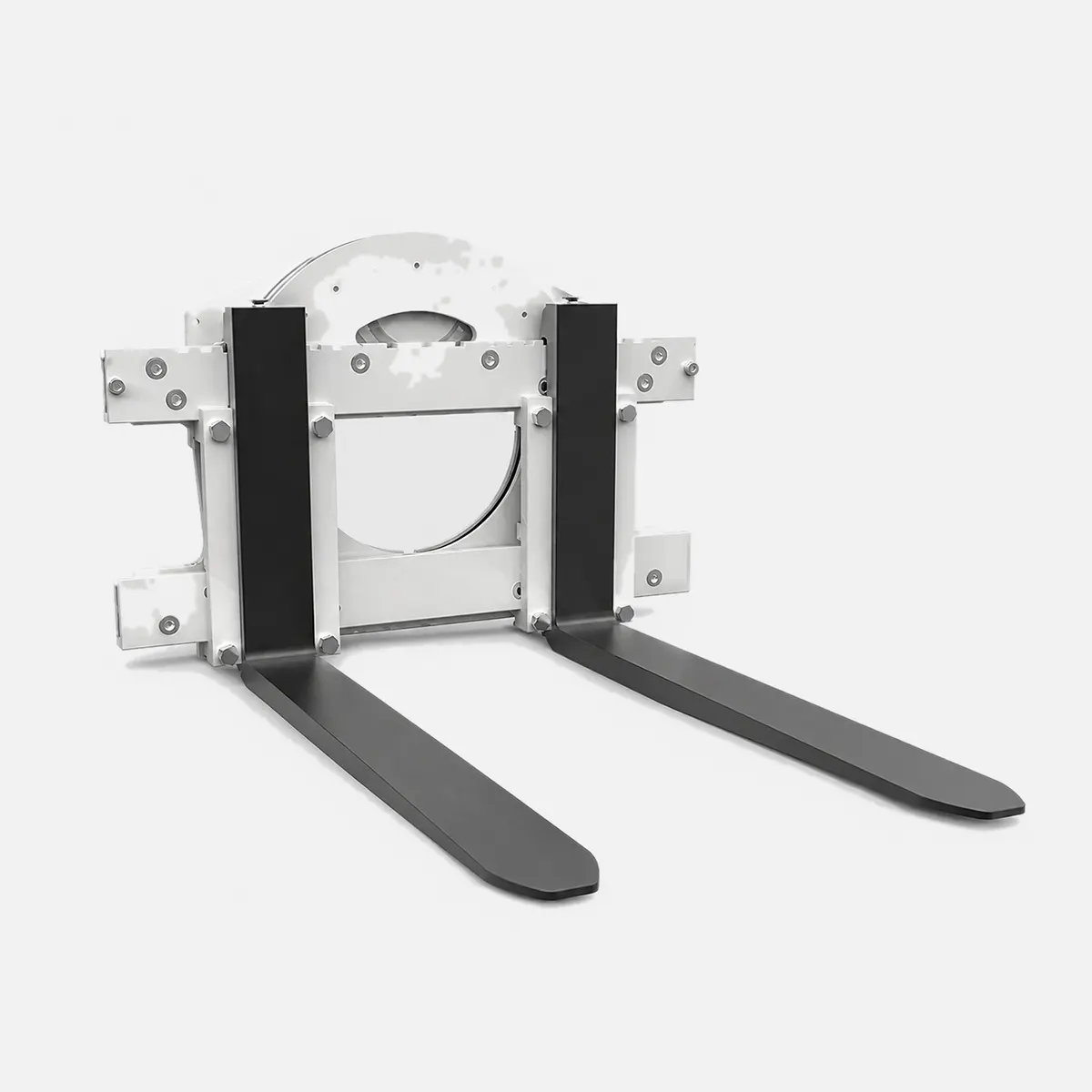

Rotator

Rotator

The hydraulic rotator turns compatible loads for controlled emptying or repositioning.

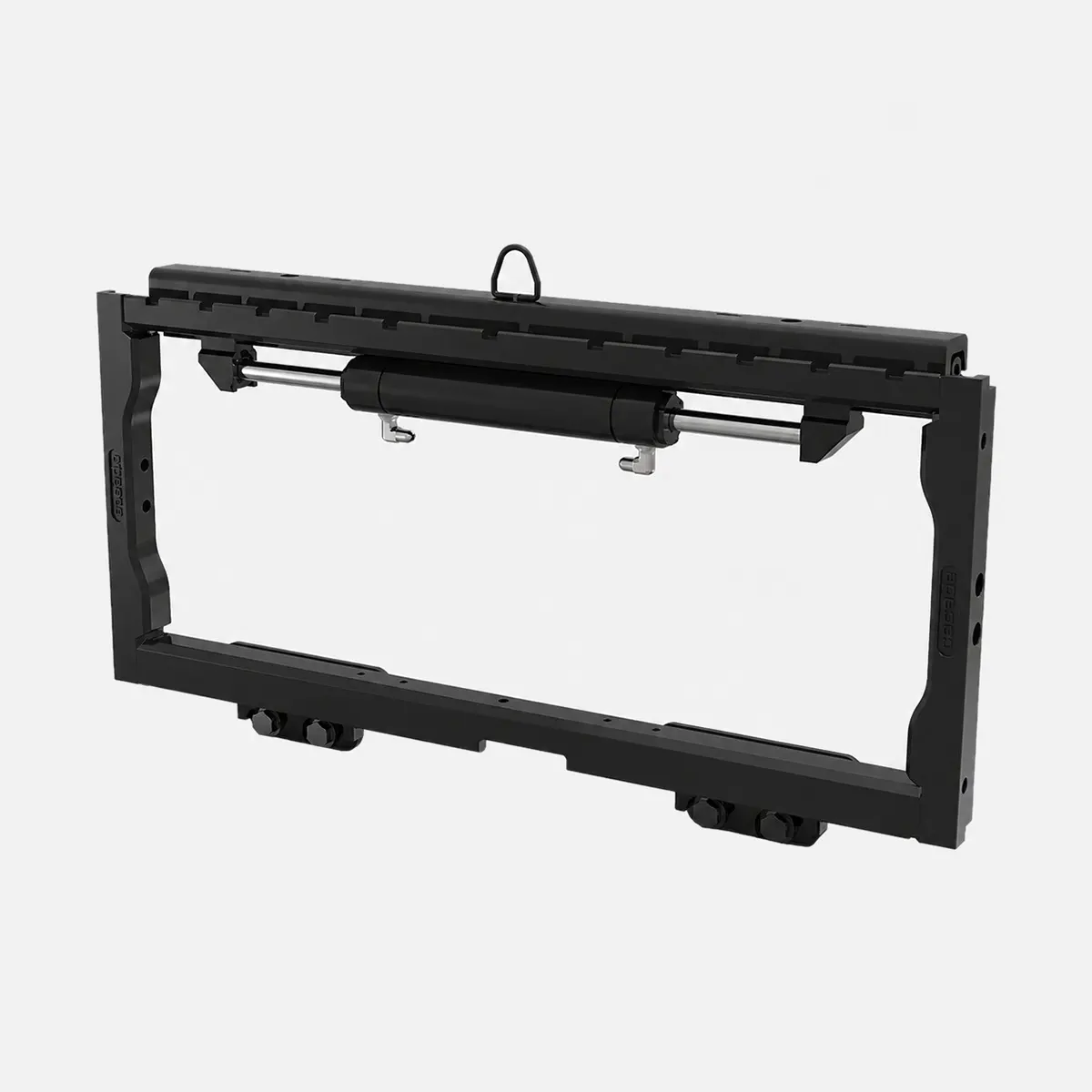

Side Shifter

Side Shifter

Hydraulic lateral fork movement supports accurate pallet alignment without repositioning the truck.

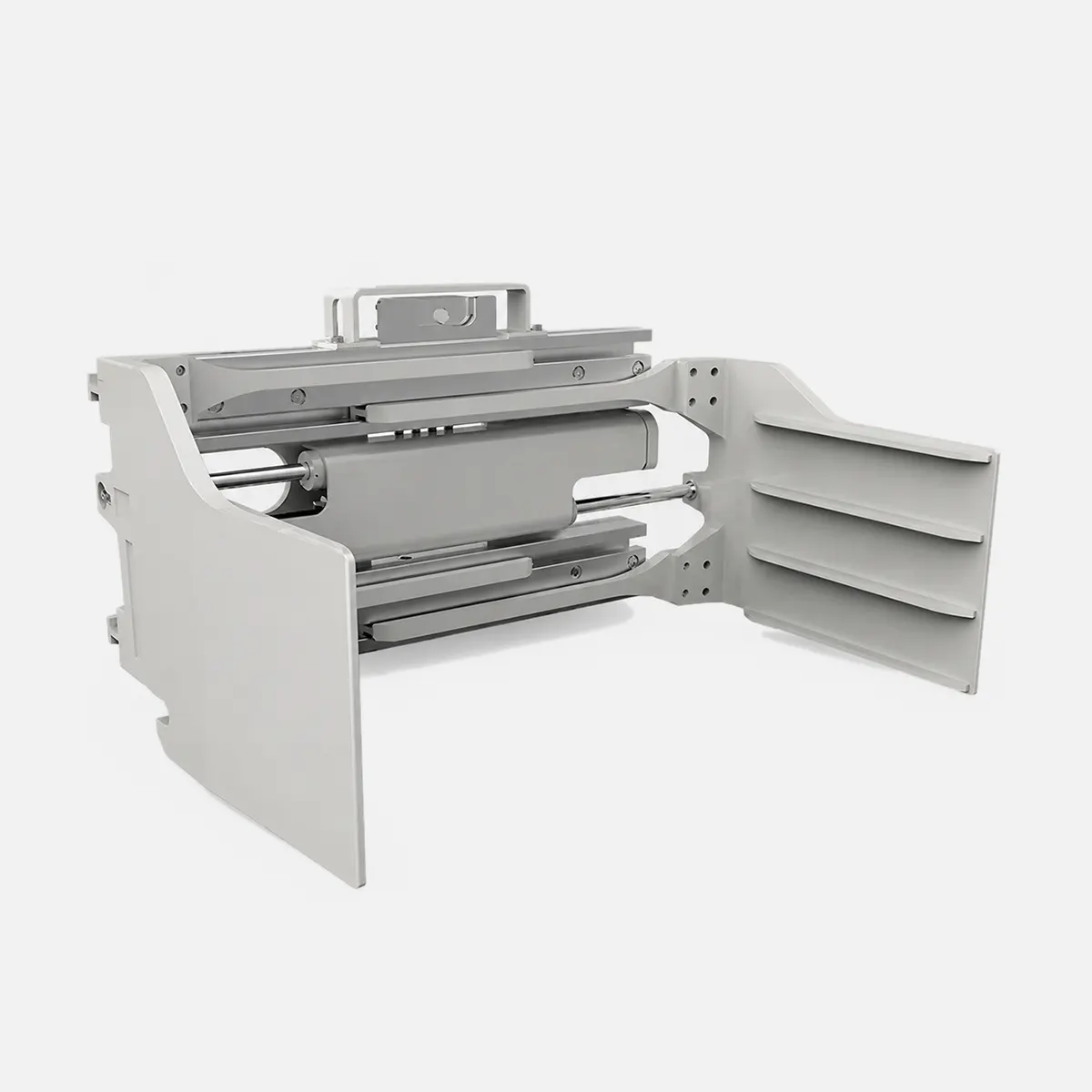

Bale Clamp

Bale Clamp

Hydraulic clamp arms secure suitable compressed bales for controlled lifting, transport and stacking.

Carpet Pole

Carpet Pole

A tapered pole supports suitable carpet, textile and material rolls for controlled lifting and placement.

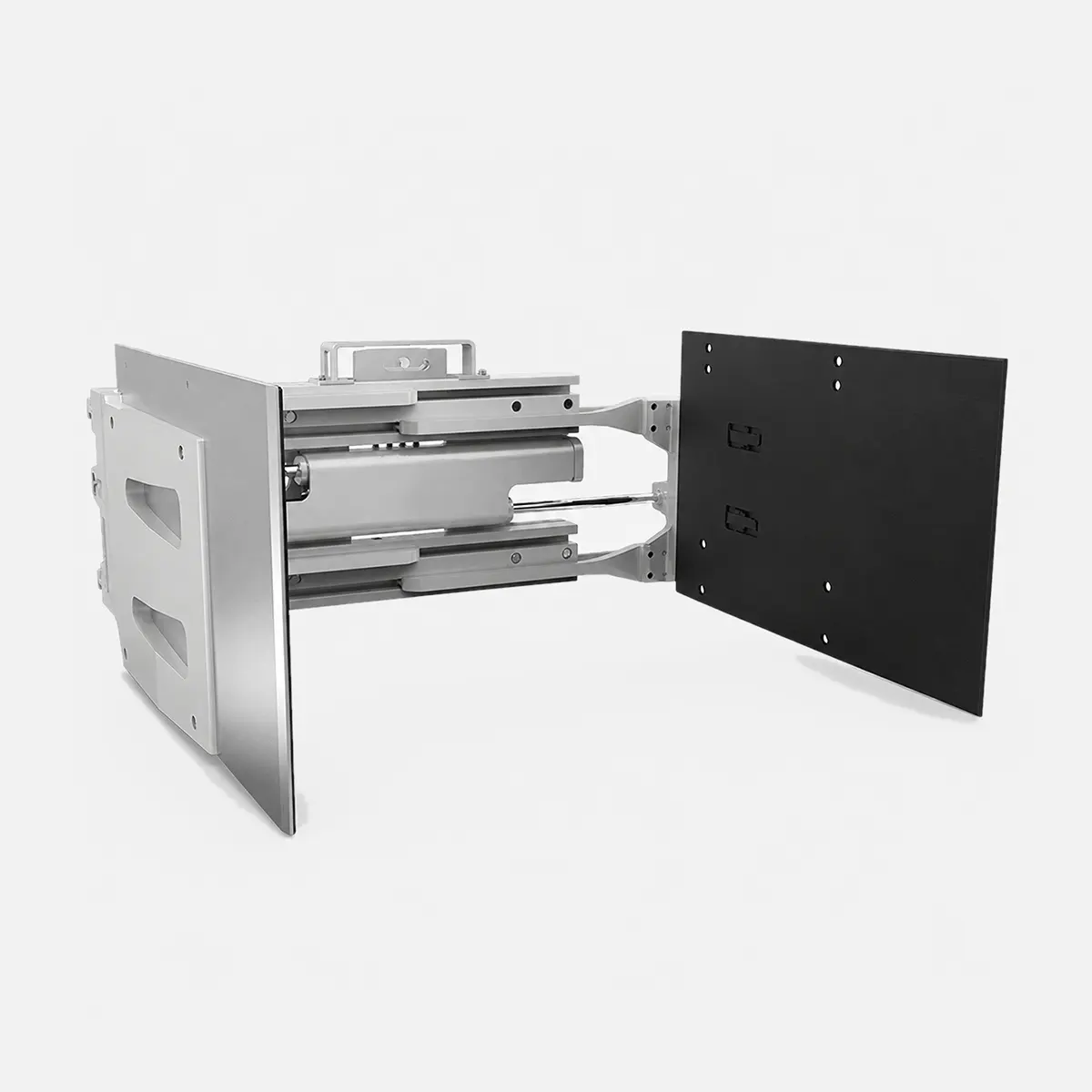

Carton Clamp

Carton Clamp

Wide padded clamp arms handle suitable cartons and boxed goods without pallets.

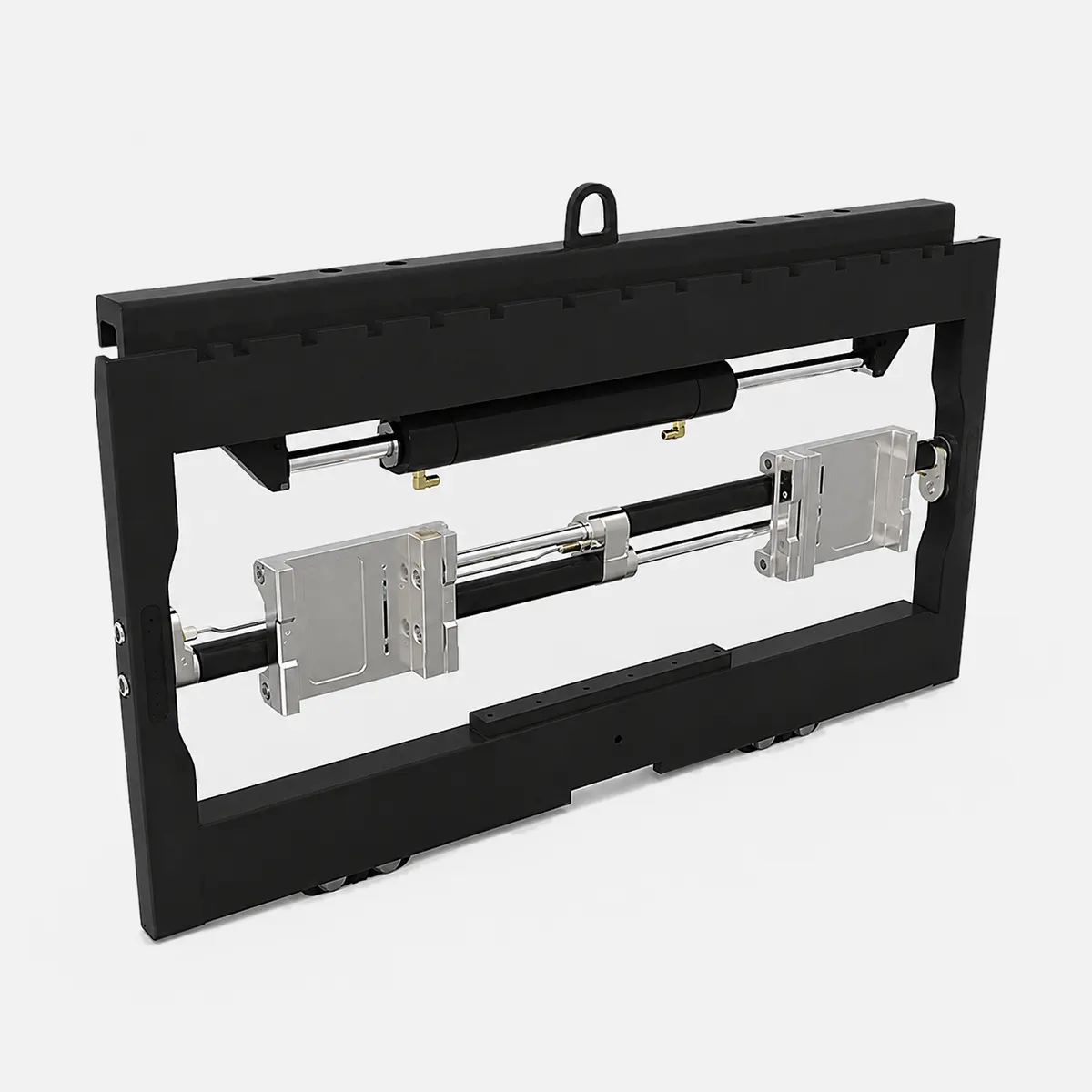

Fork Positioner

Fork Positioner

Hydraulic fork adjustment changes fork spacing to suit different pallet and load widths.

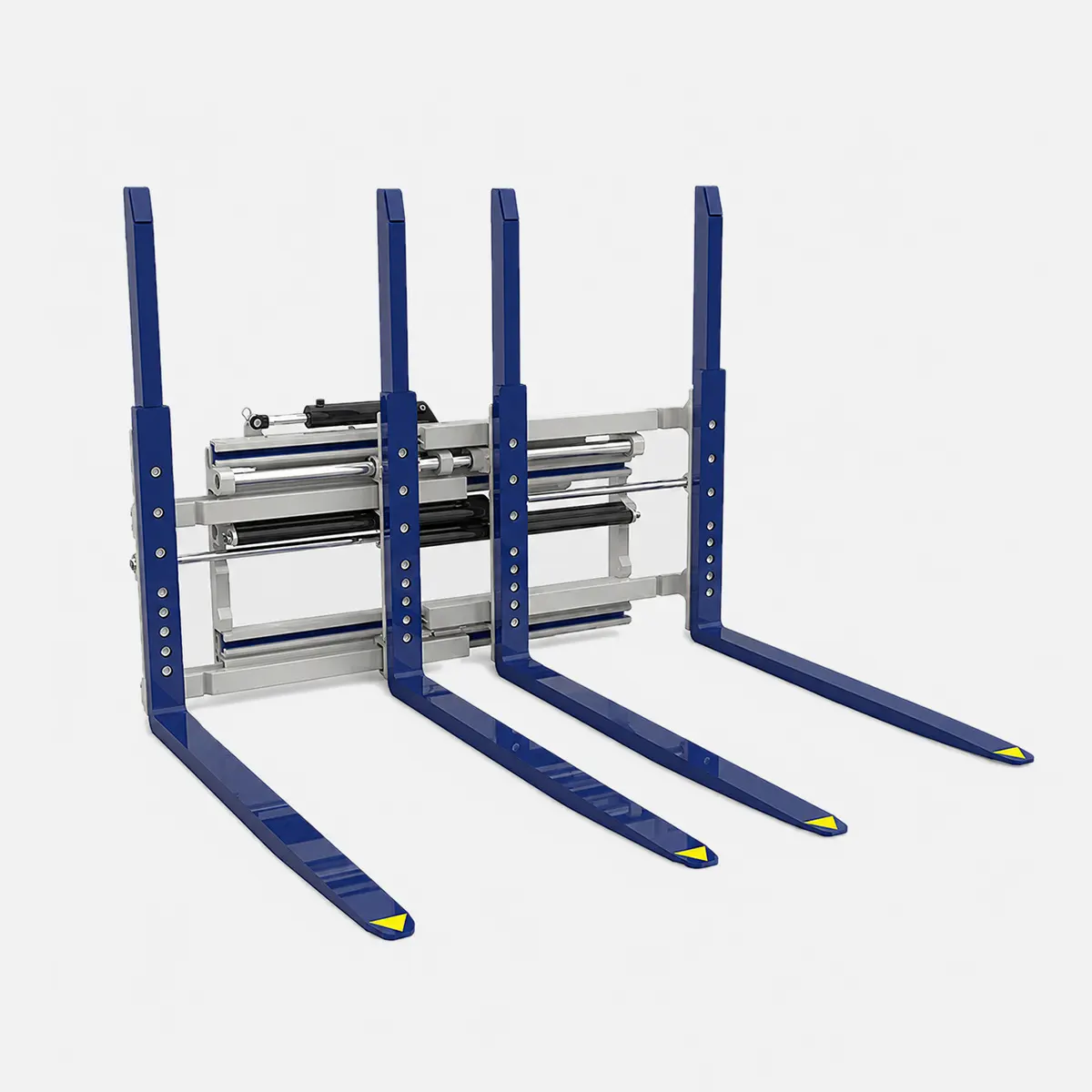

Multiple Load Handler

Multiple Load Handler

Multiple fork pairs support efficient handling of suitable palletized loads.

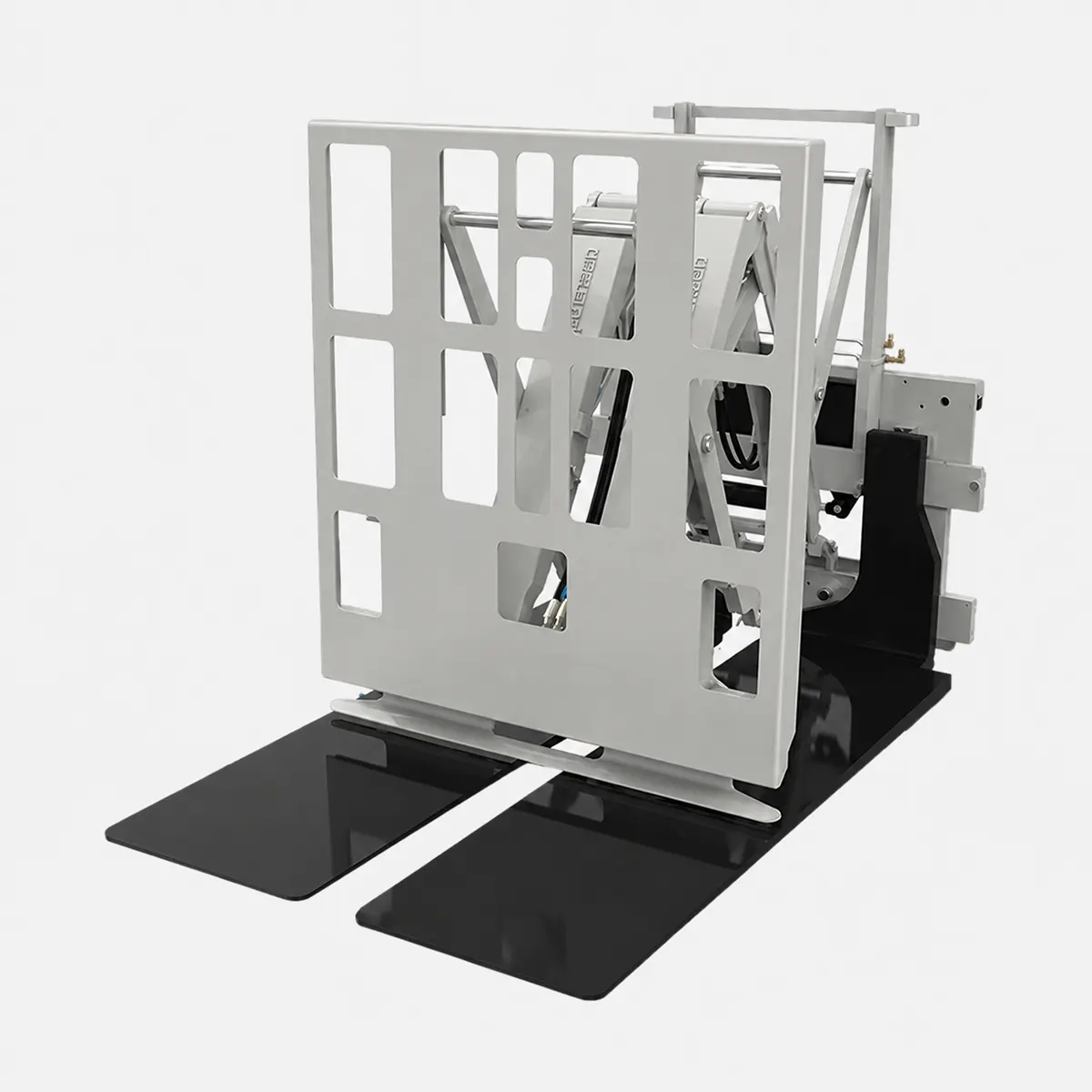

Push & Pull

Push & Pull

The push-pull attachment handles suitable slip-sheet loads using a gripping face and platen.

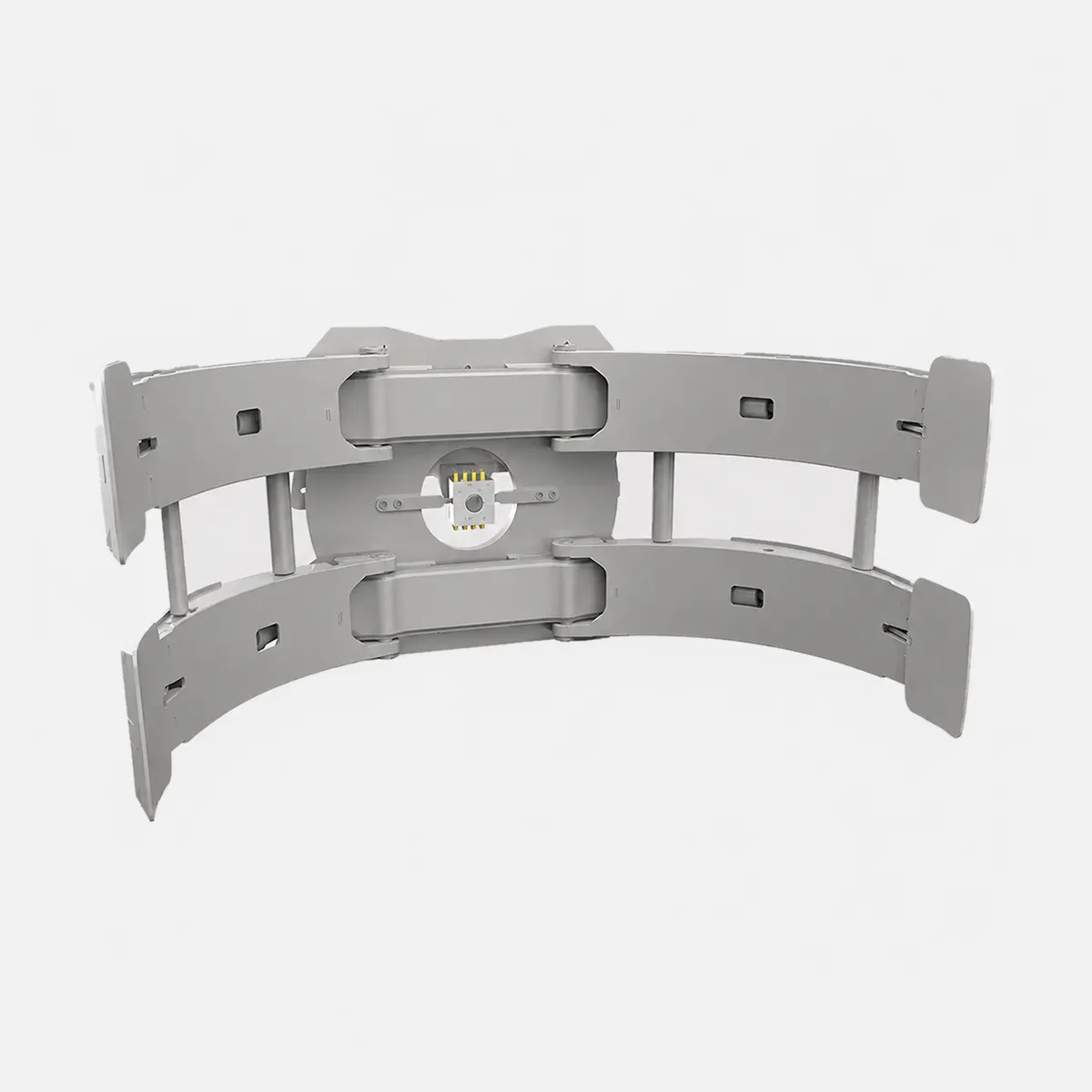

Roll Clamp

Roll Clamp

Rotating clamp arms grip suitable paper or material rolls for controlled handling.

Rotator

Rotator

The hydraulic rotator turns compatible loads for controlled emptying or repositioning.

Side Shifter

Side Shifter

Hydraulic lateral fork movement supports accurate pallet alignment without repositioning the truck.

Bale Clamp

Bale Clamp

Hydraulic clamp arms secure suitable compressed bales for controlled lifting, transport and stacking.

Carpet Pole

Carpet Pole

A tapered pole supports suitable carpet, textile and material rolls for controlled lifting and placement.

Product Video

00:18

YD-CPD-30-Purple Display

YD-CPD-30-Purple real product display, attractive appearance and stable performance.

YD-CPD-30-Purple Display

00:18YD-CPD-30-Purple real product display, attractive appearance and stable performance.

YD-CPD-30-Purple Operation

00:49YD-CPD-30-Purple operation demonstration, easy control and stable operation.

Product loading into containers

01:26Product loading into containers, neat stacking for safe shipment

Packaging video

00:40Real shot of product packaging, multi-layer reinforcement to prevent transit damage

Forklift packing and container loading

00:33Forklift packing and container loading, stable placement for efficient export loading

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory real scene

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

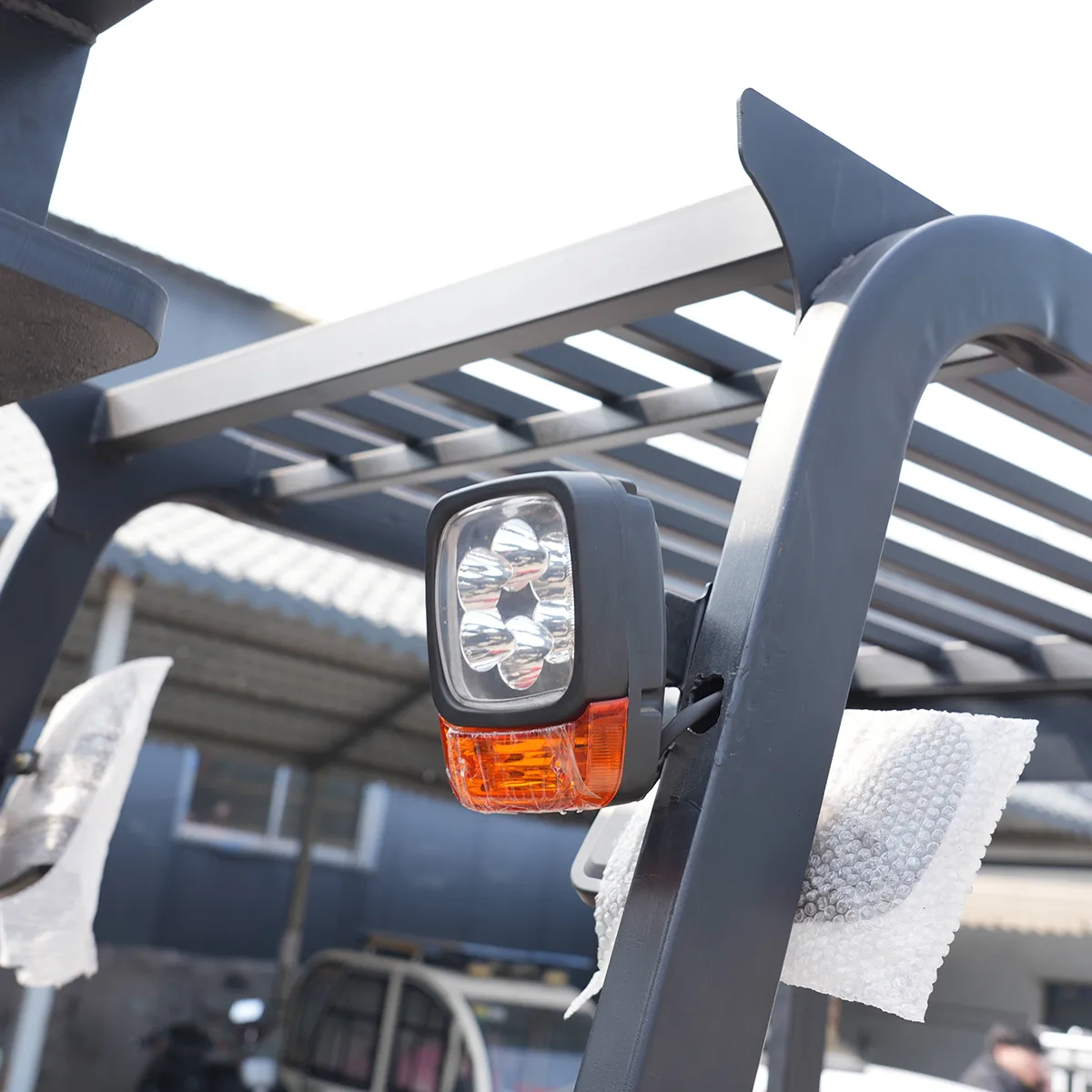

CPD-30 – Purple – Detail View – Headlight and Turn Signal

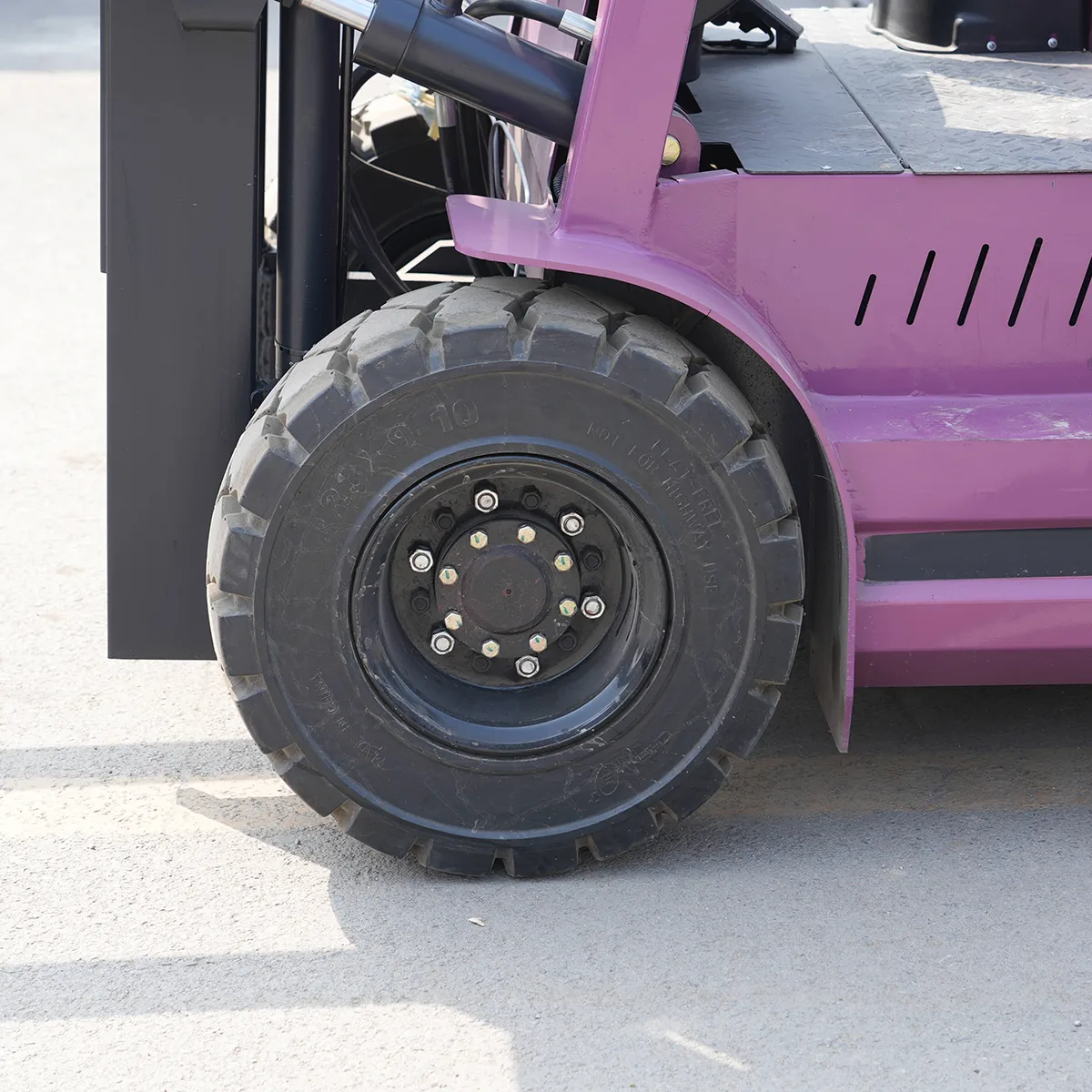

CPD-30—Purple—Detail View—Front Wheel

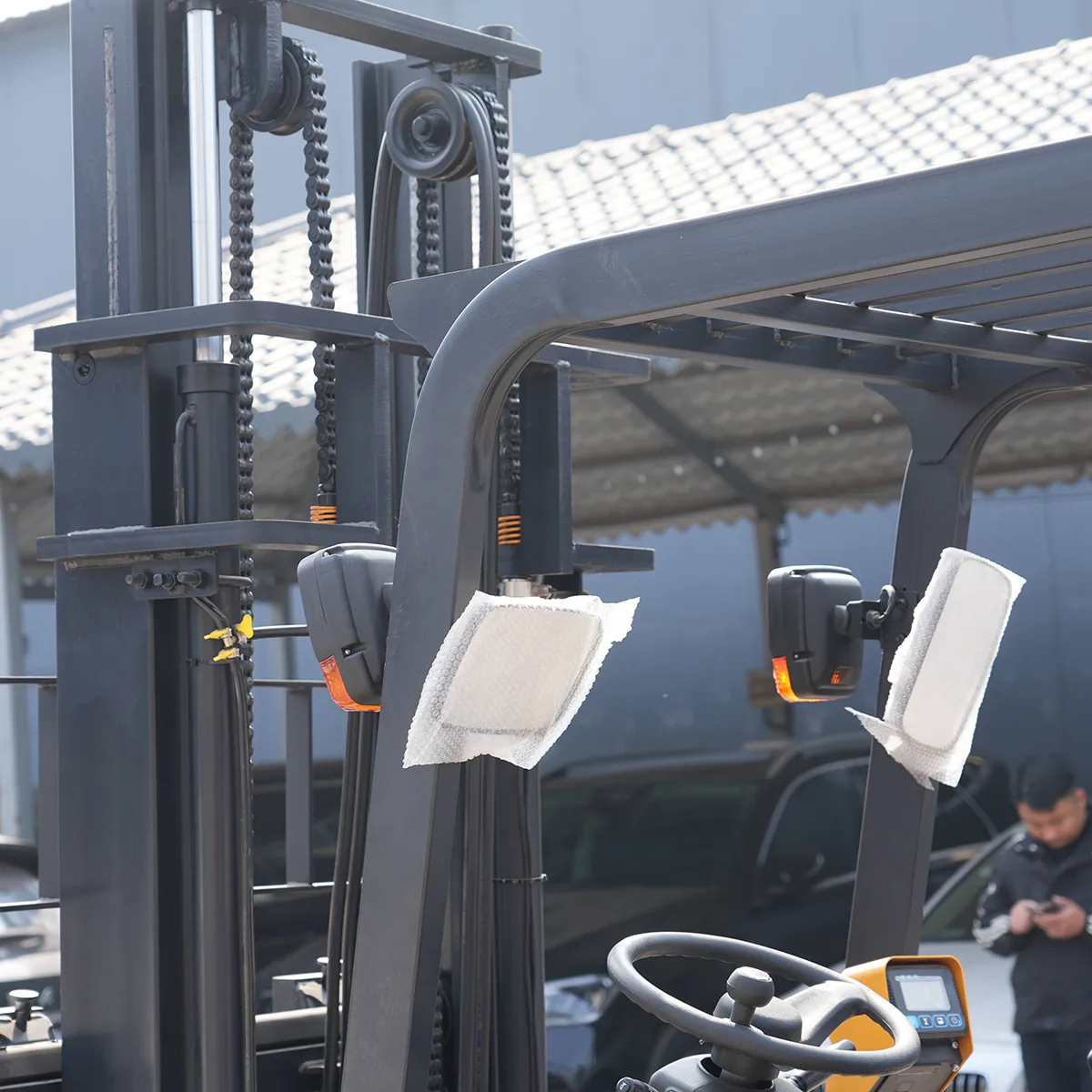

CPD-30-Purple-Detail View-Rearview Mirror

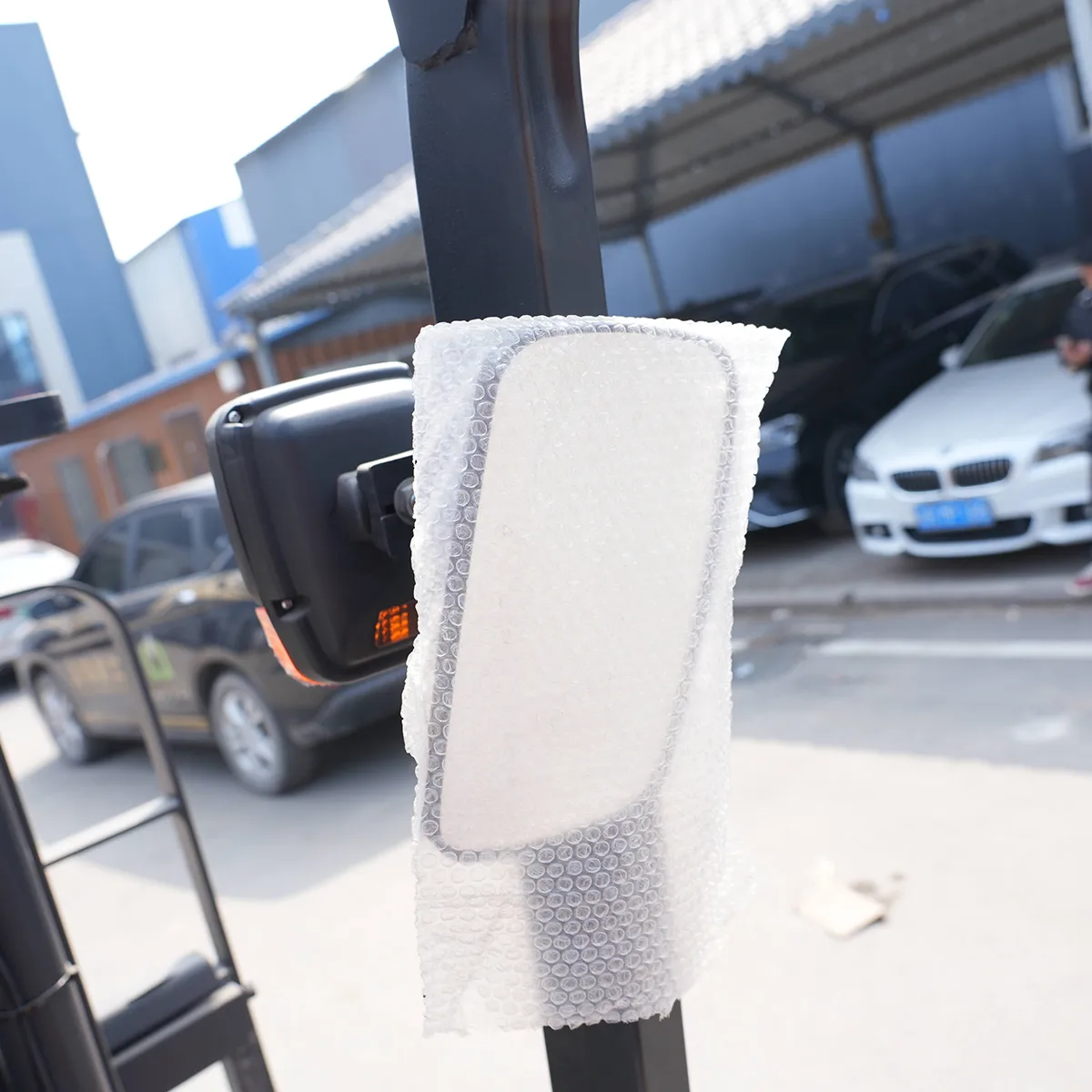

CPD-30-Purple-Detail View-Rearview Mirror 2

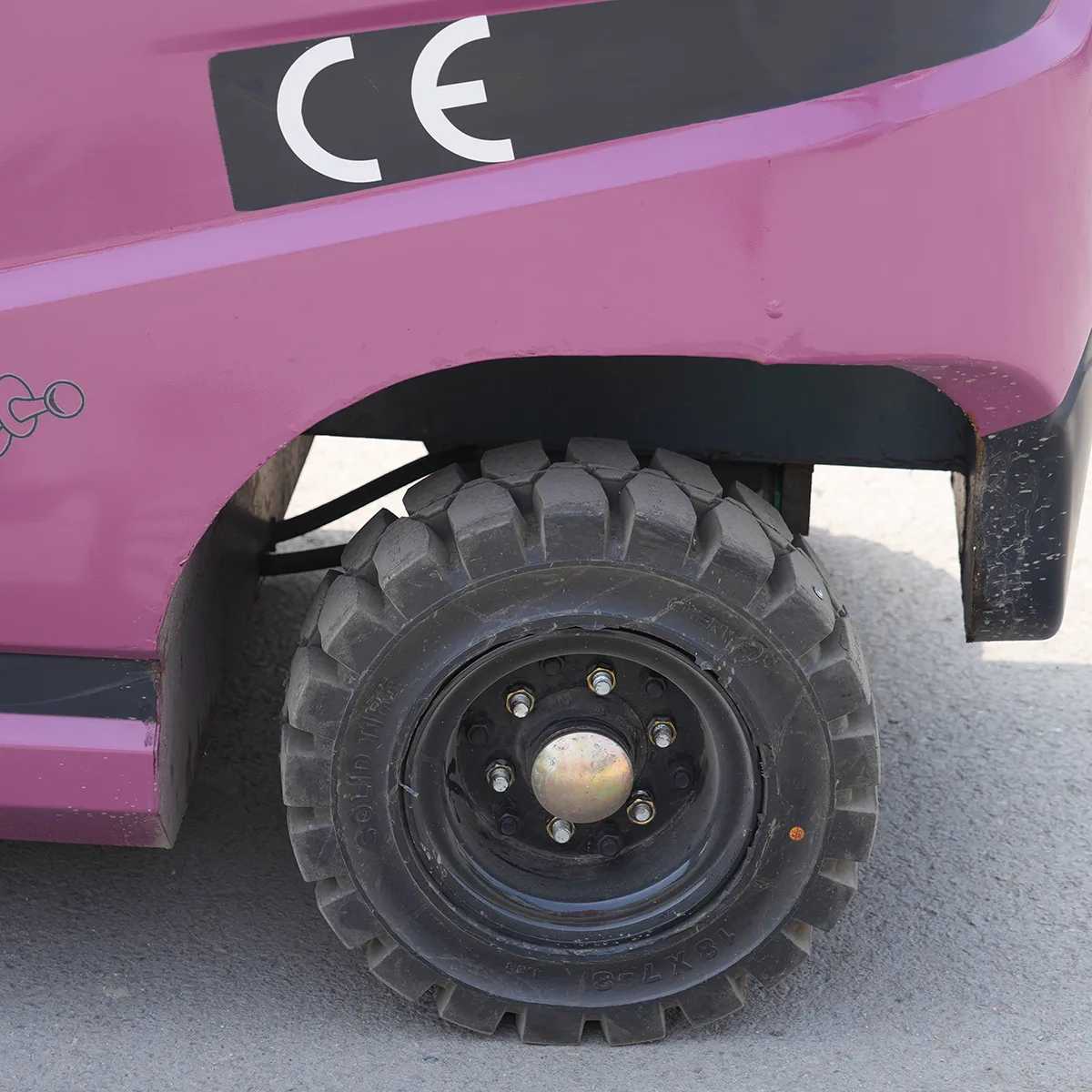

CPD-30 – Purple – Detail View – Rear Wheel

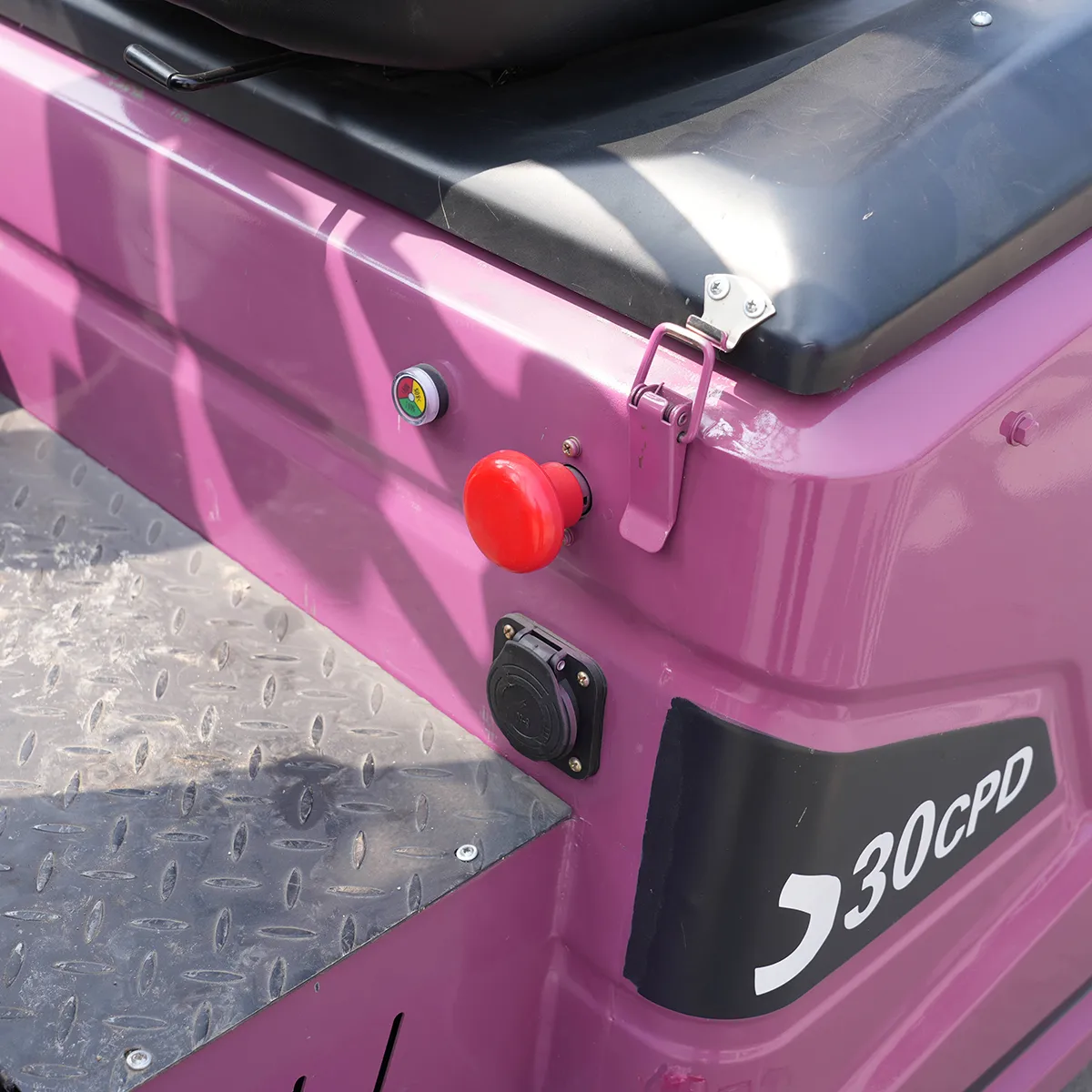

CPD-30 – Purple – Detail View – Emergency Stop Switch and Charging Port

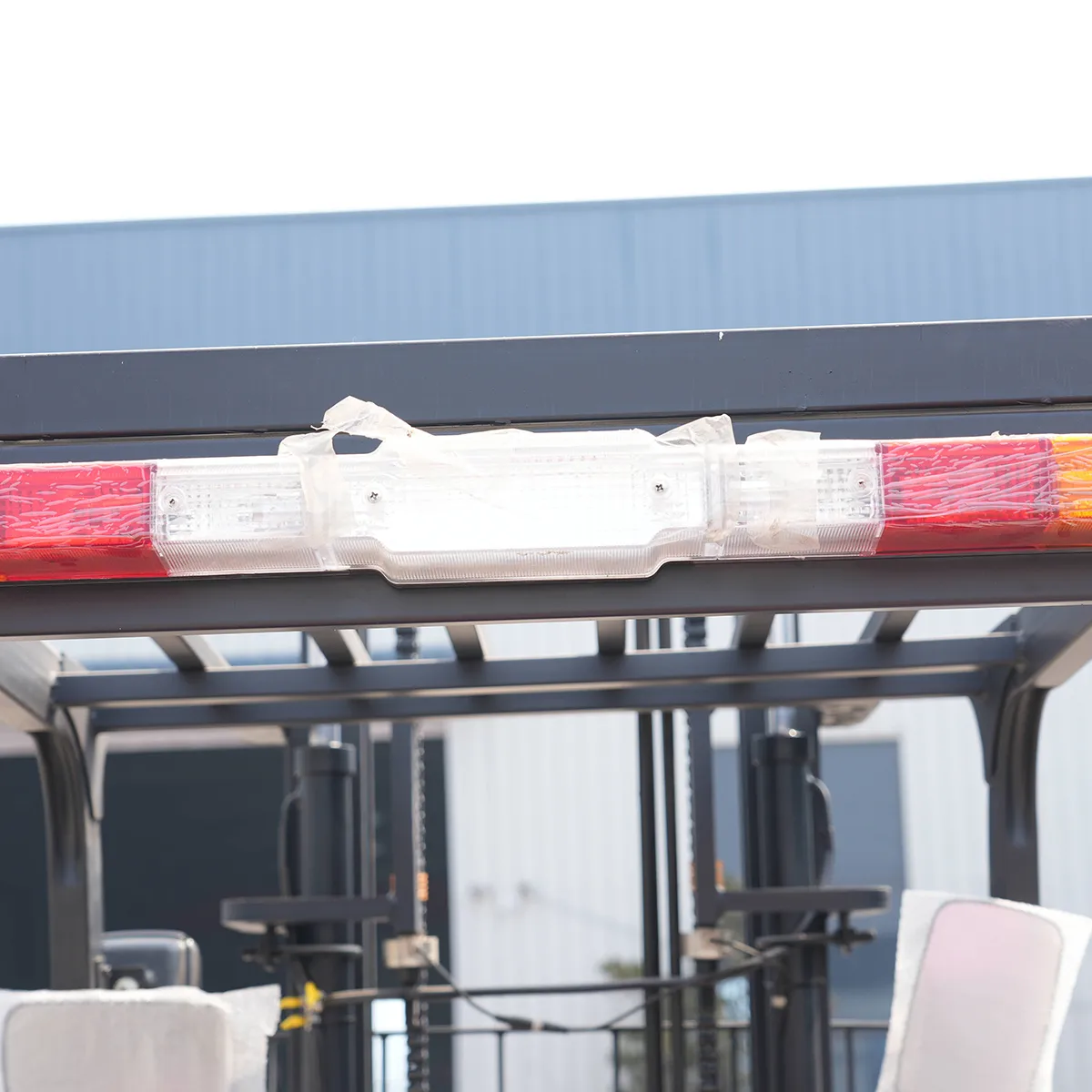

CPD-30—Purple—Detail View—Roof-Rack Lighting Fixture

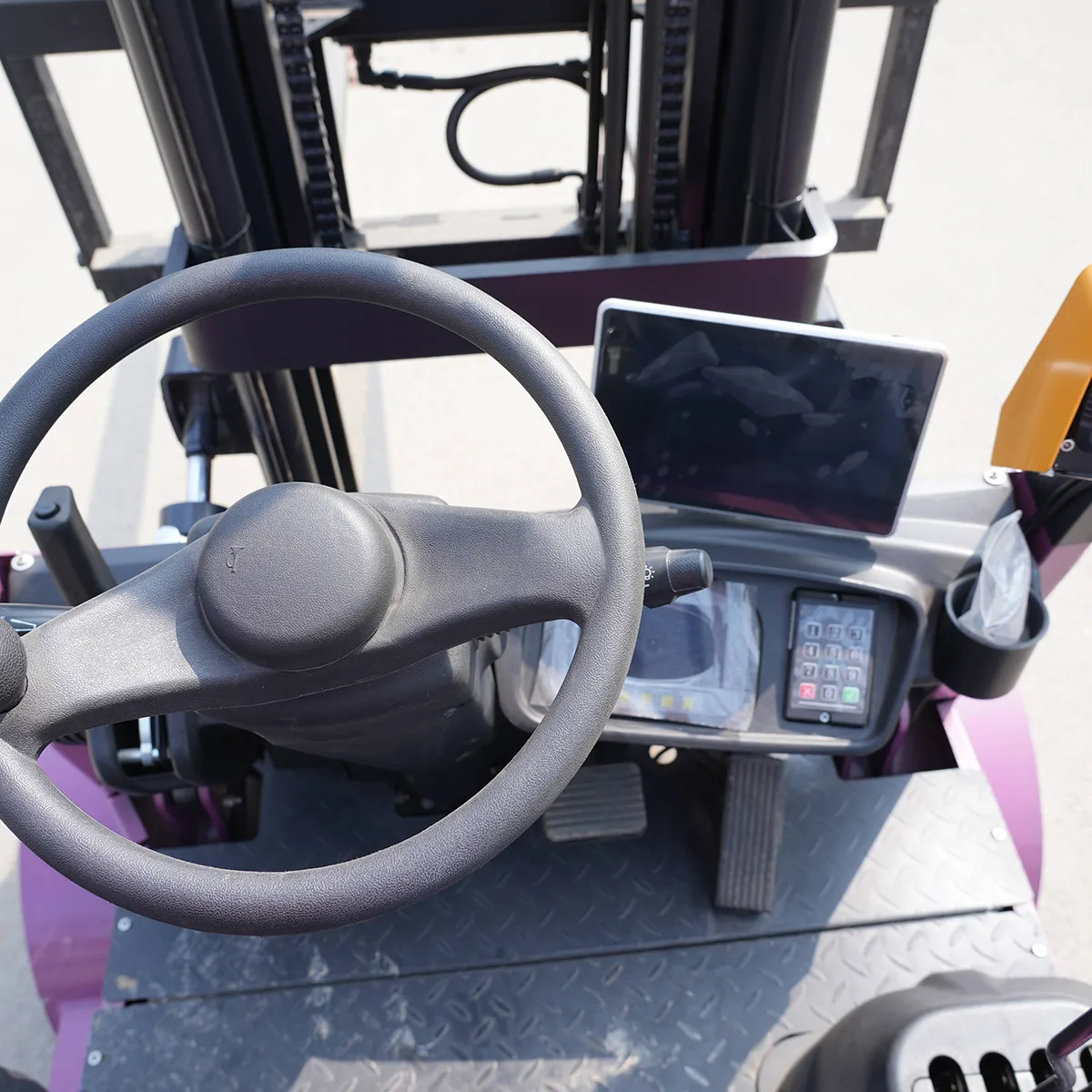

CPD-30—Purple—Detail View—Steering Wheel and Instrument Panel

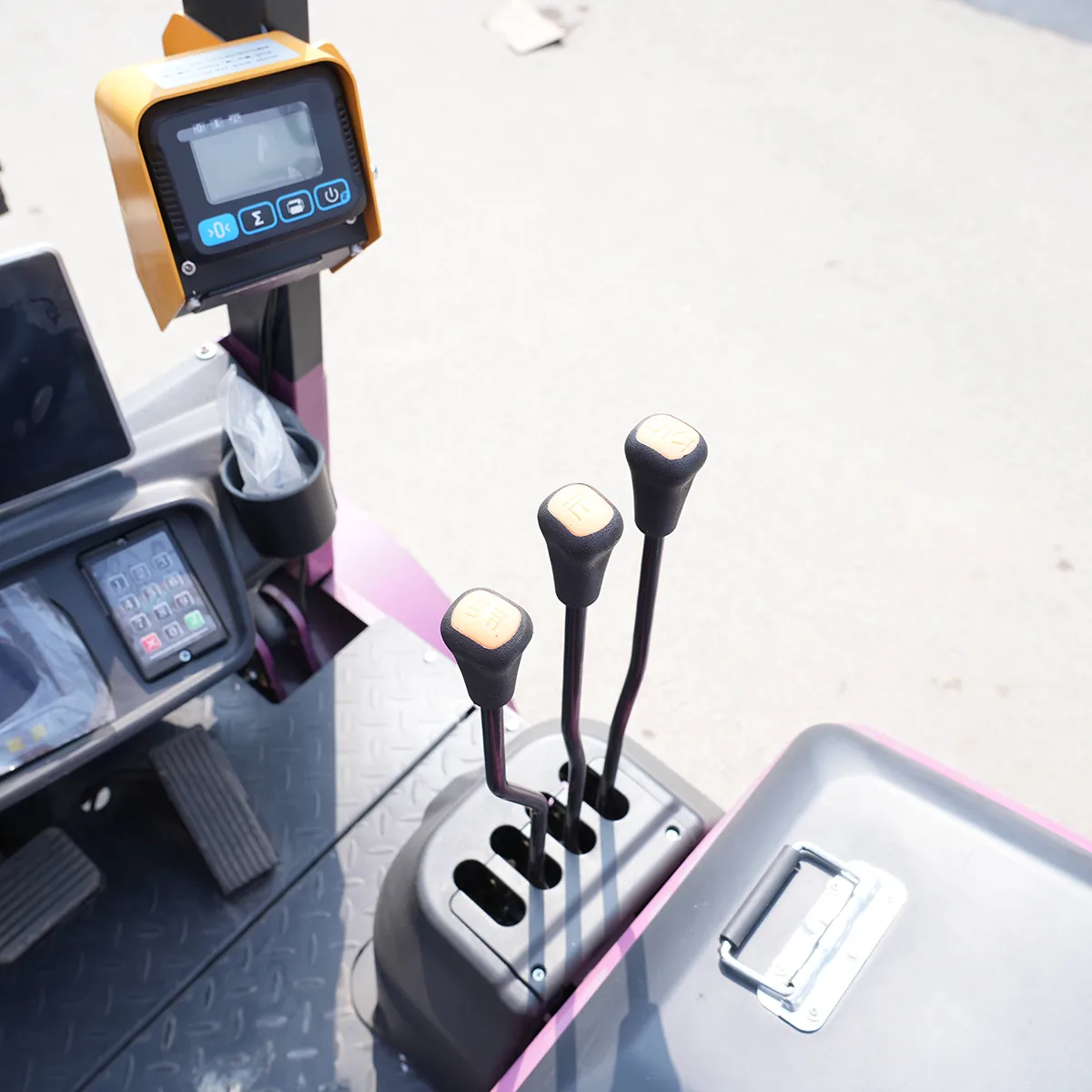

CPD-30—Purple—Detail View—Hydraulic Joystick

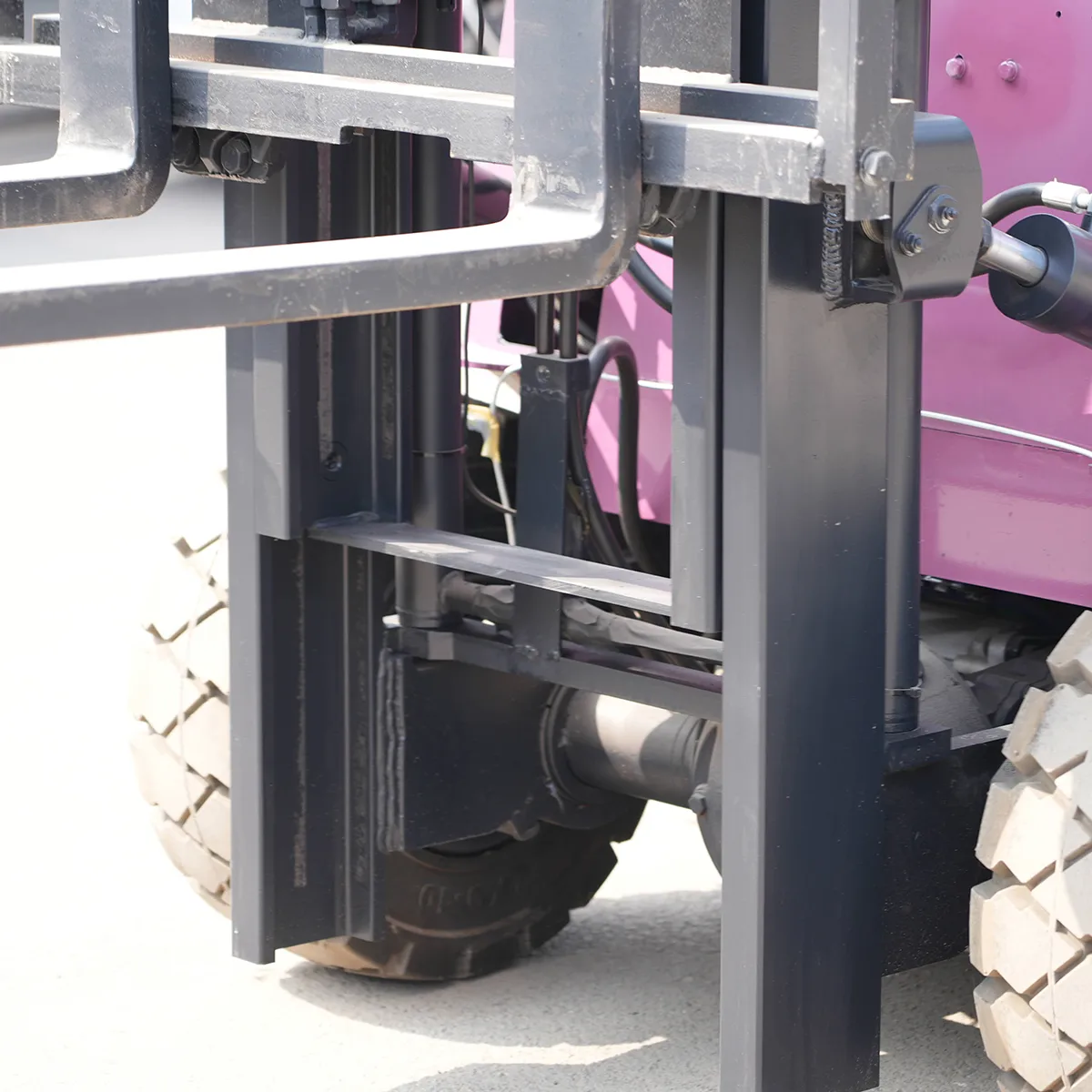

CPD-30—Purple—Detail View—Fork and Front Wheel

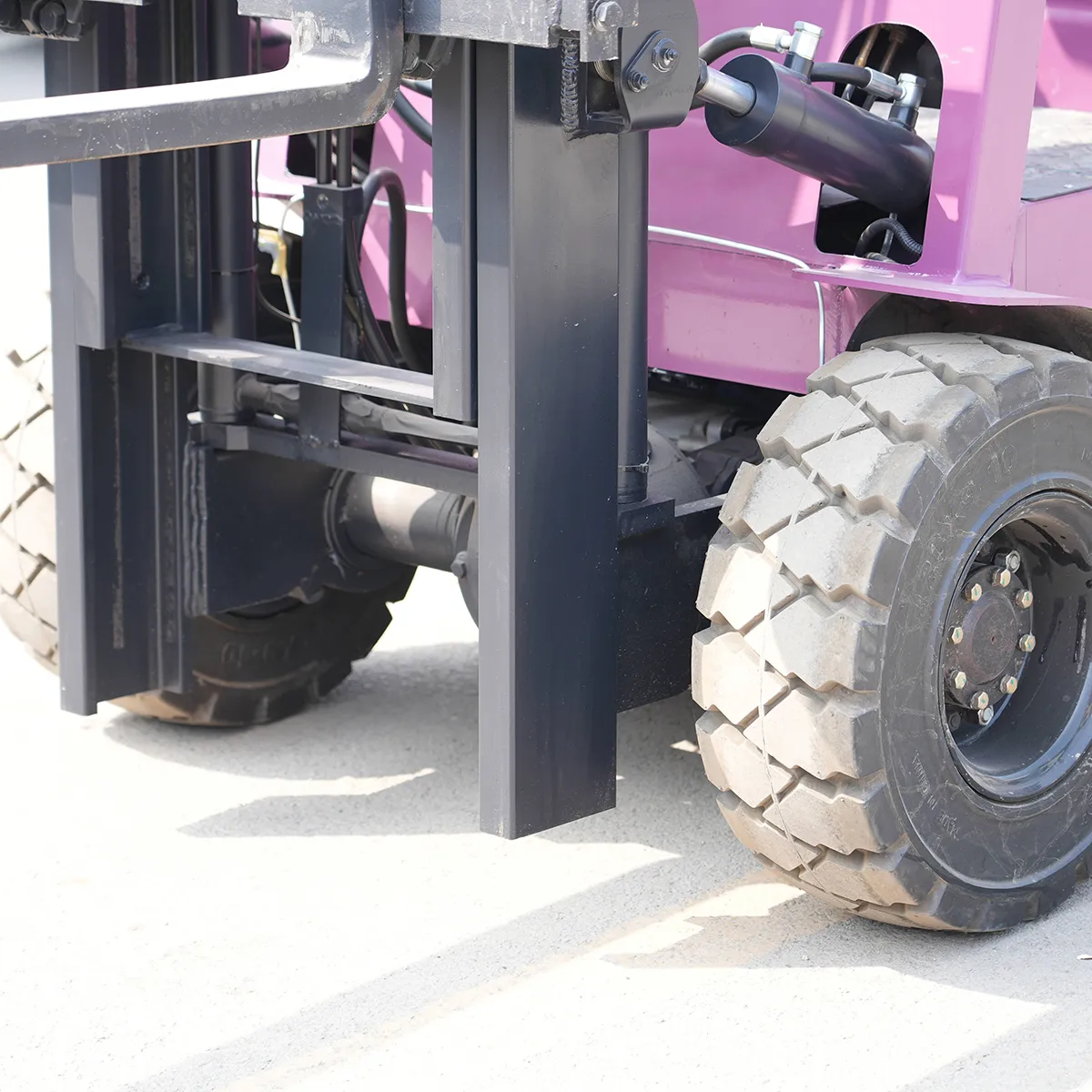

CPD-30—Purple—Detail View—Fork and Front Wheel 2

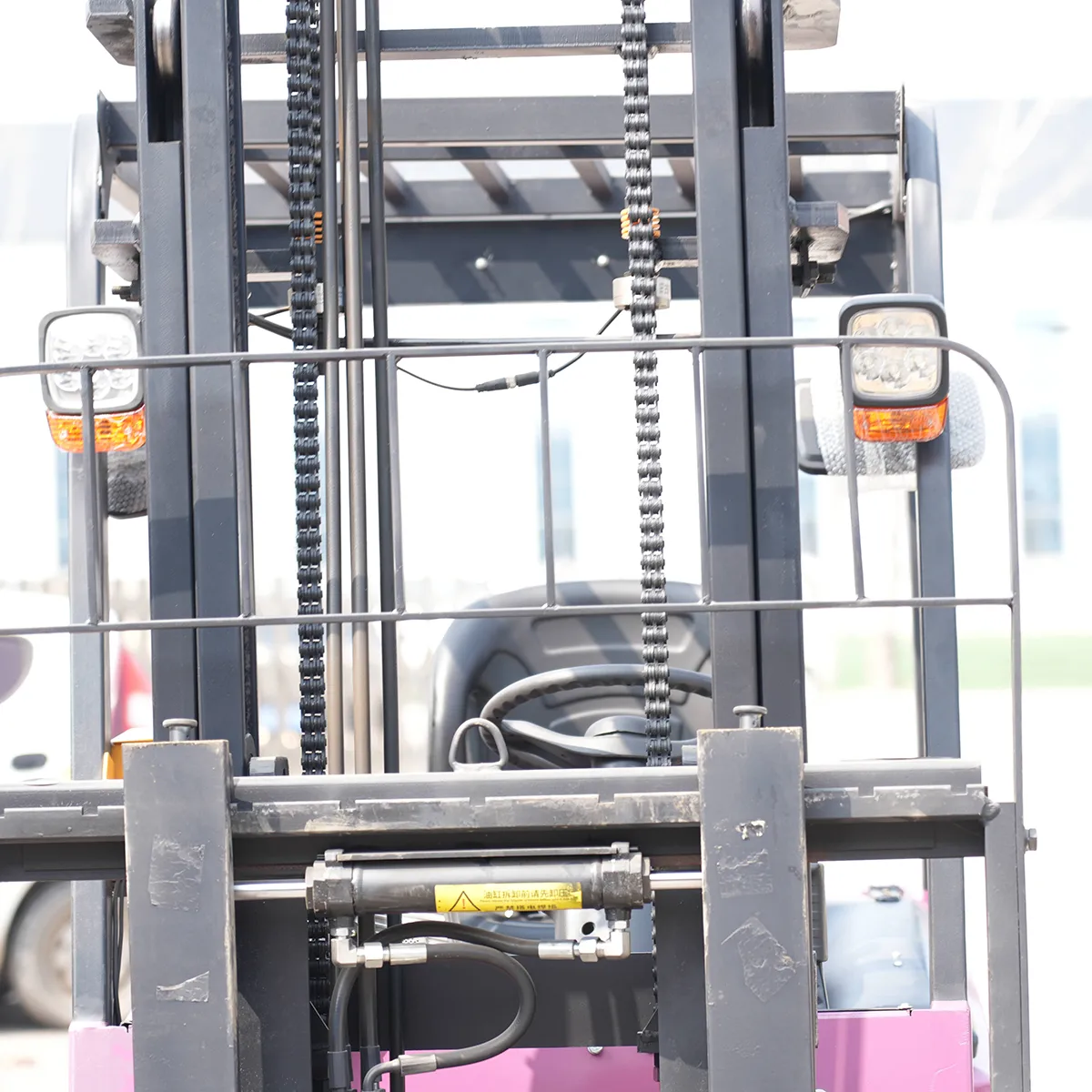

CPD-30 – Purple – Detail View – Fork Carriage

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Procurement Confirmation Points

What work is the YD-CPD-30 Purple designed for?

It is intended for pallet, carton and general material handling in warehouses, production areas, loading docks and plant yards with hard floors. Confirm the final use against the load and aisle conditions.

What are the key specifications?

The current sheet lists a rated capacity of 3000 kg, dimensions of 2.7 m (forks excluded), 1.2 m and 2.15 m, operating weight of 3700 kg and lift height of 3 m (two-stage mast). Other configuration details follow the formal specification and purchase order.

What structure or attachment does it use?

It uses a seated driving layout, front two-stage mast and purple body, open overhead guard and standard forks. The attachment field states that attachments are optional. Confirm the final attachment scope before ordering.

What is checked before delivery?

The inspection covers the nameplate, exterior fasteners, mast and chains, forks or attachment, hydraulics, travel and steering, brakes, tires and axles, electrical and charging system, and delivery accessories.

What should be confirmed when purchasing?

Confirm load and load center, aisle width, lift height, tire specification, 60 V (customizable), motor, charging conditions, forks or attachment and delivery accessories. Final details follow the purchase order.
