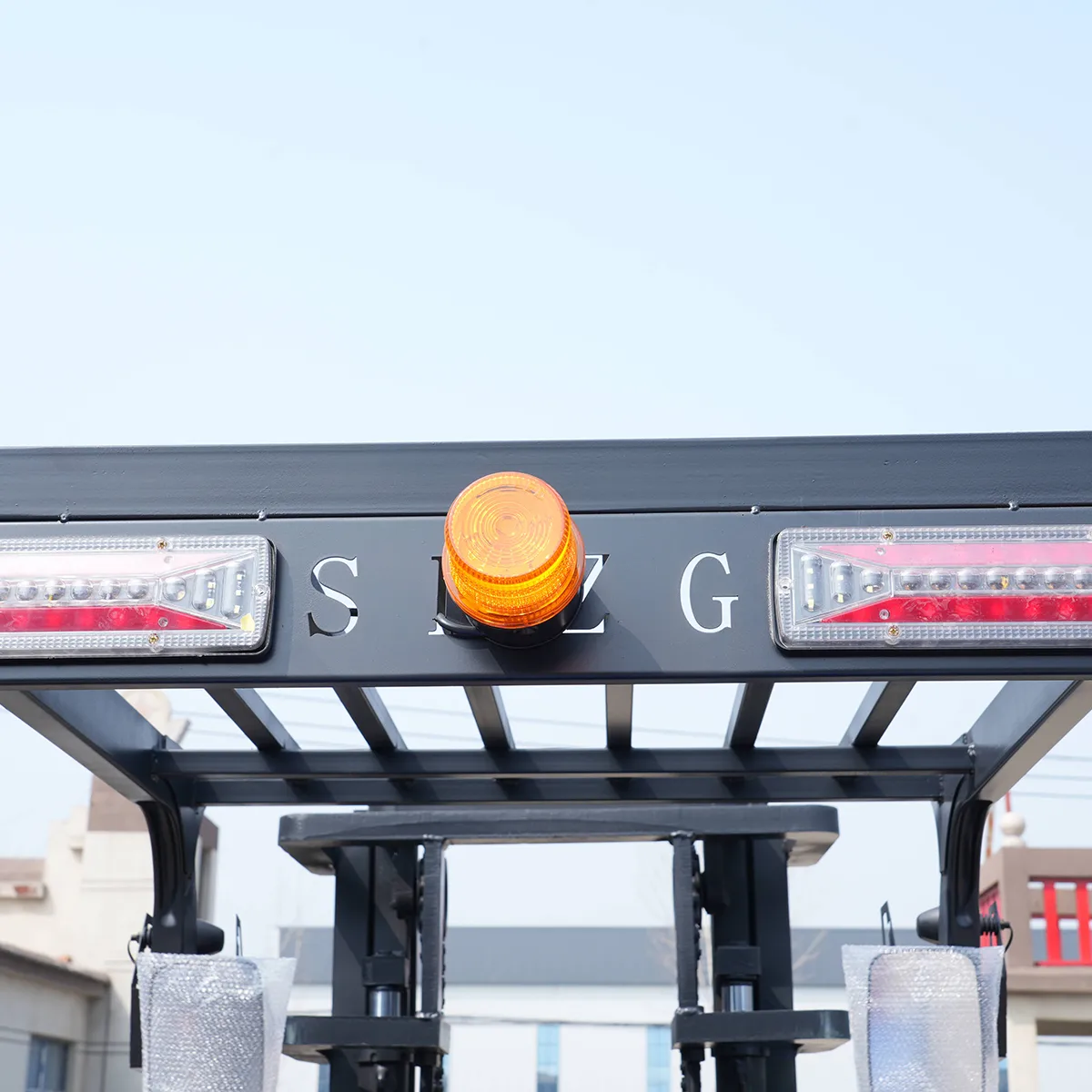

High-strength steel structure protects the operator area during normal handling operations.
Warehouse Blue Forklift Pallet TransferYD-CPD-50 Electric Forklift
Electric Forklift for Warehouse and Plant Handling

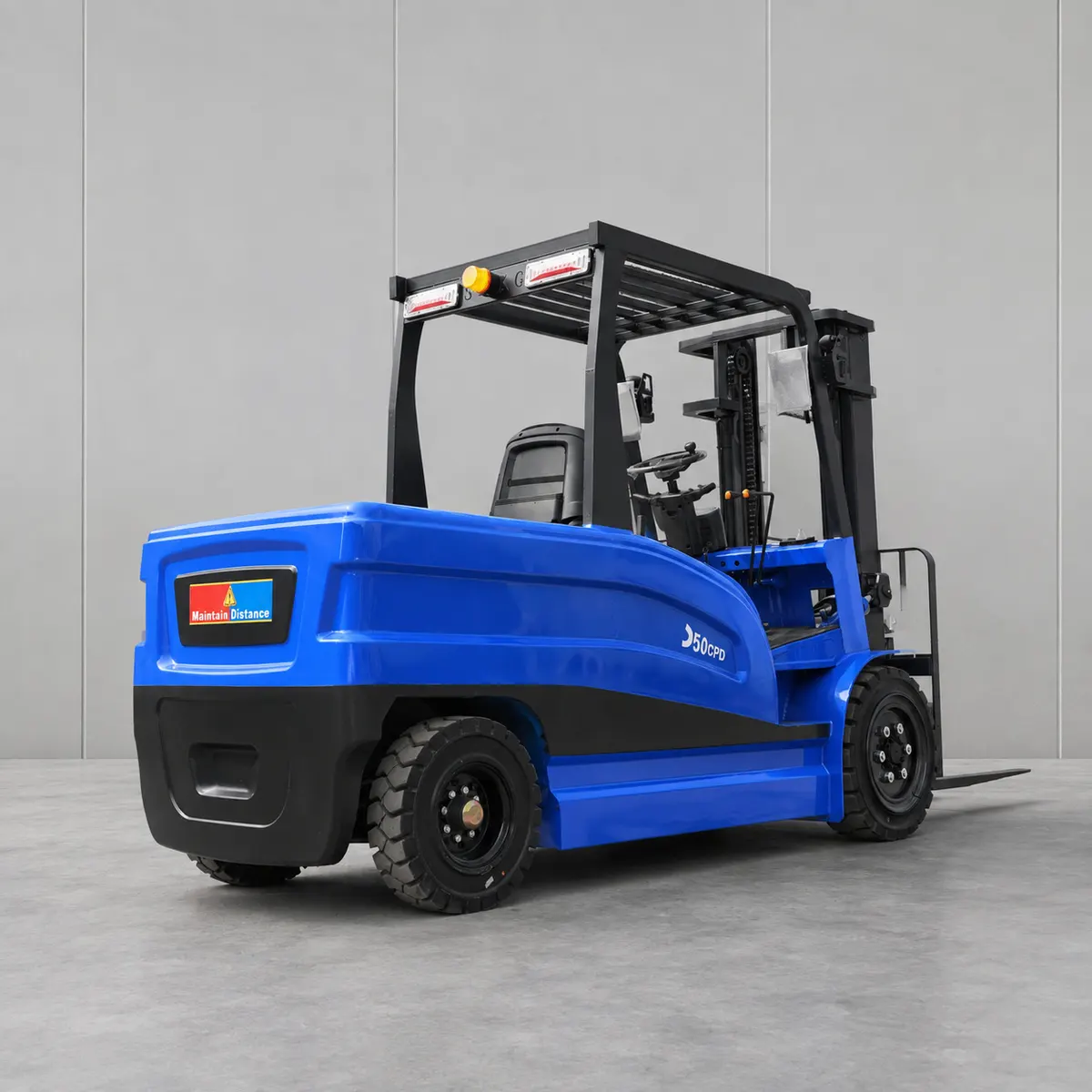

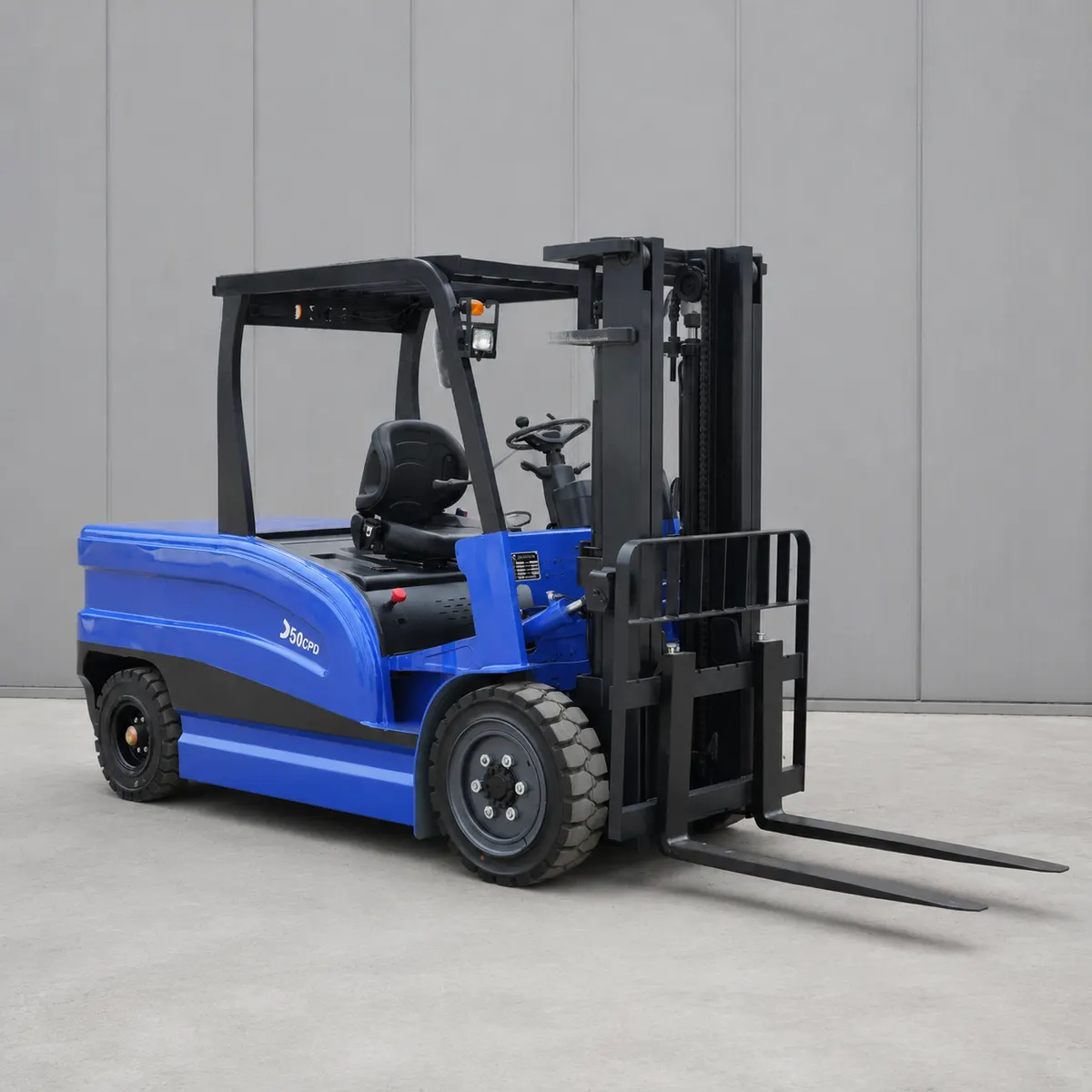

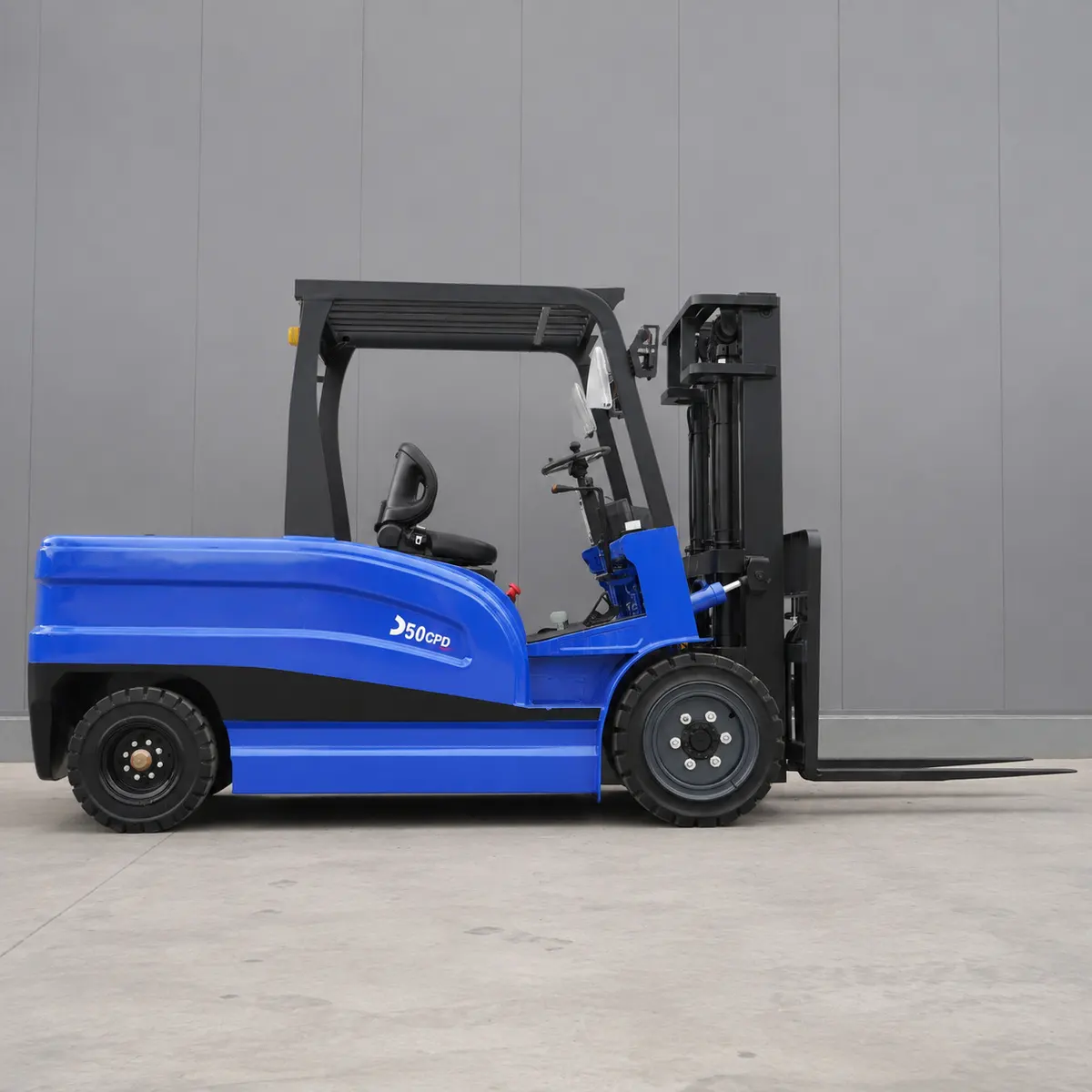

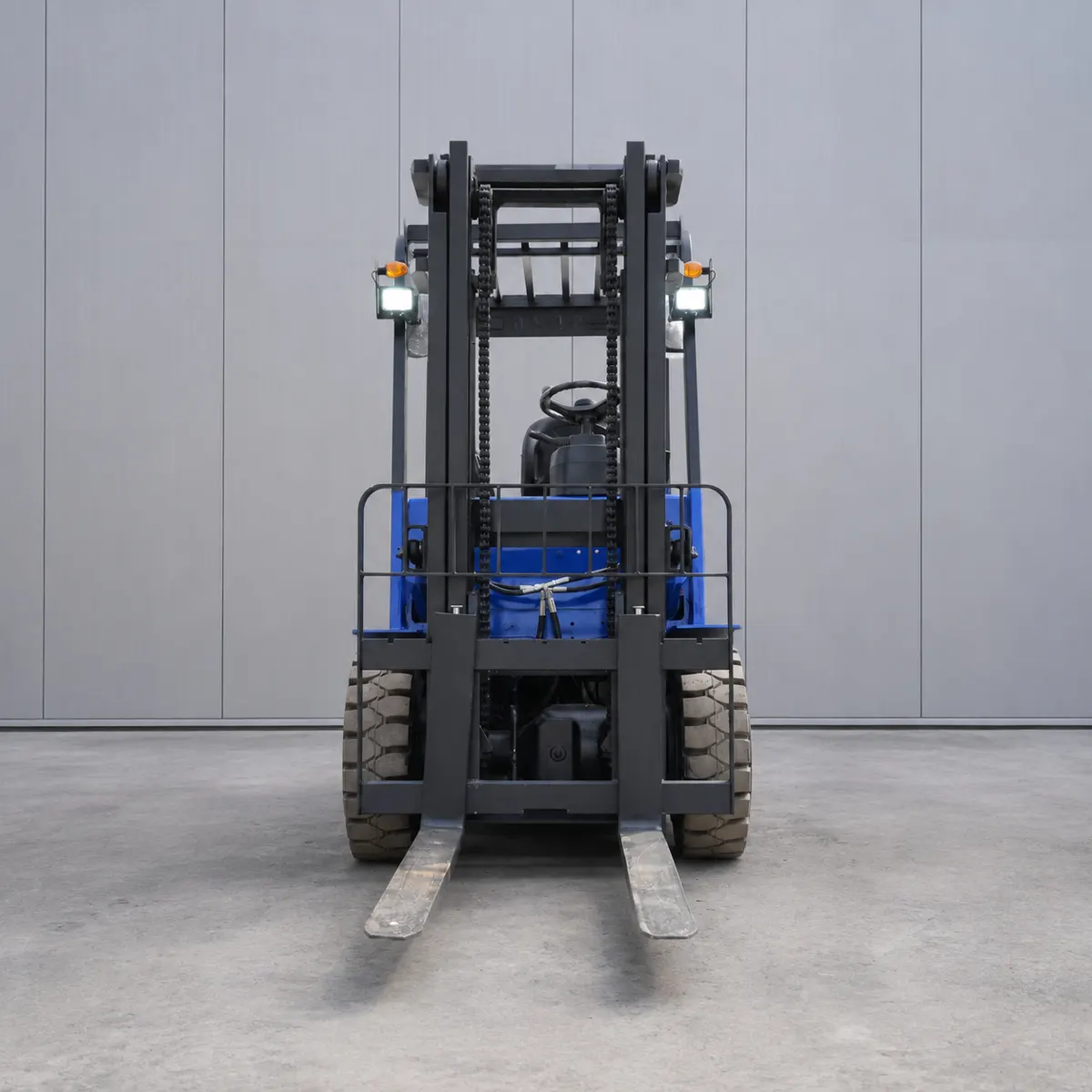

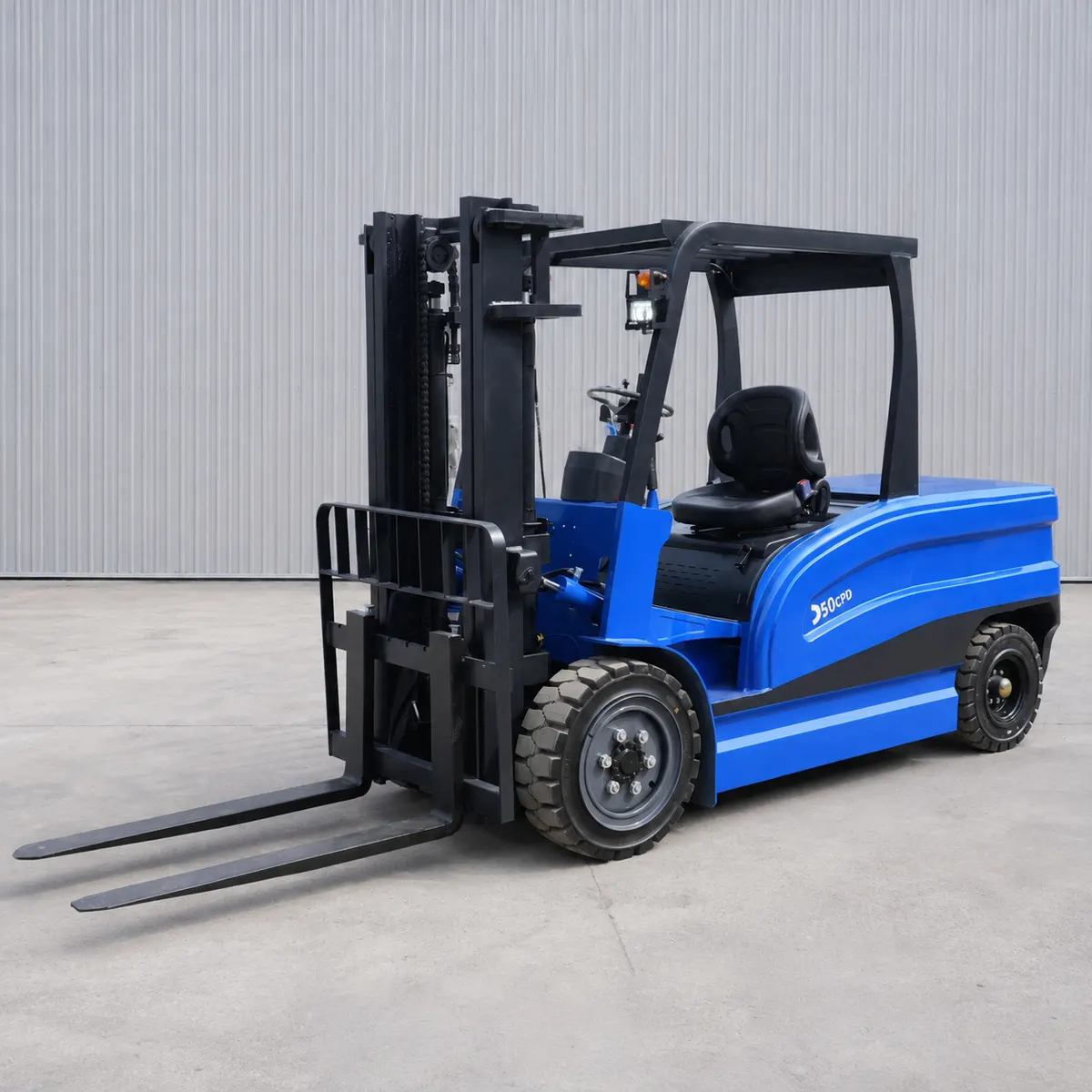

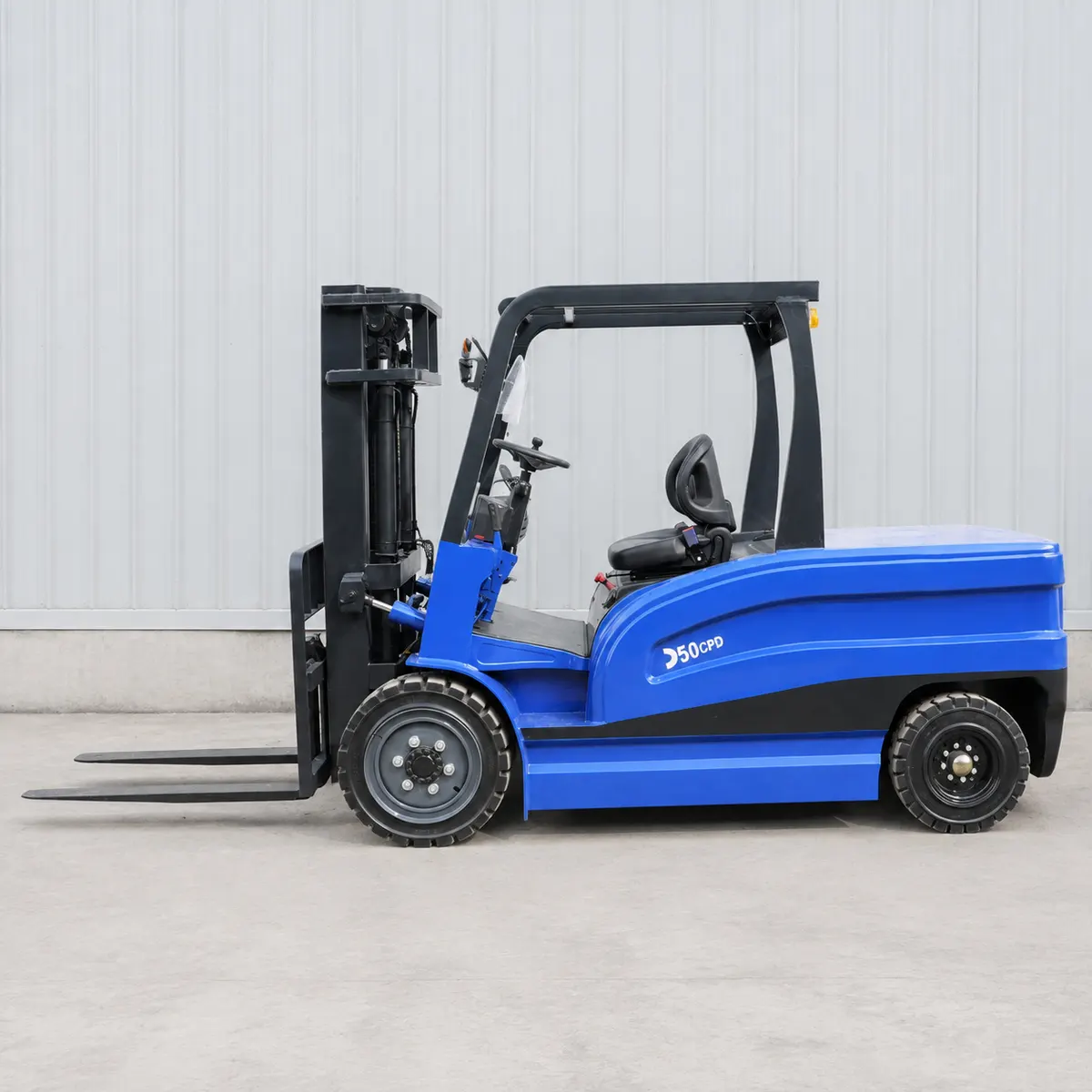

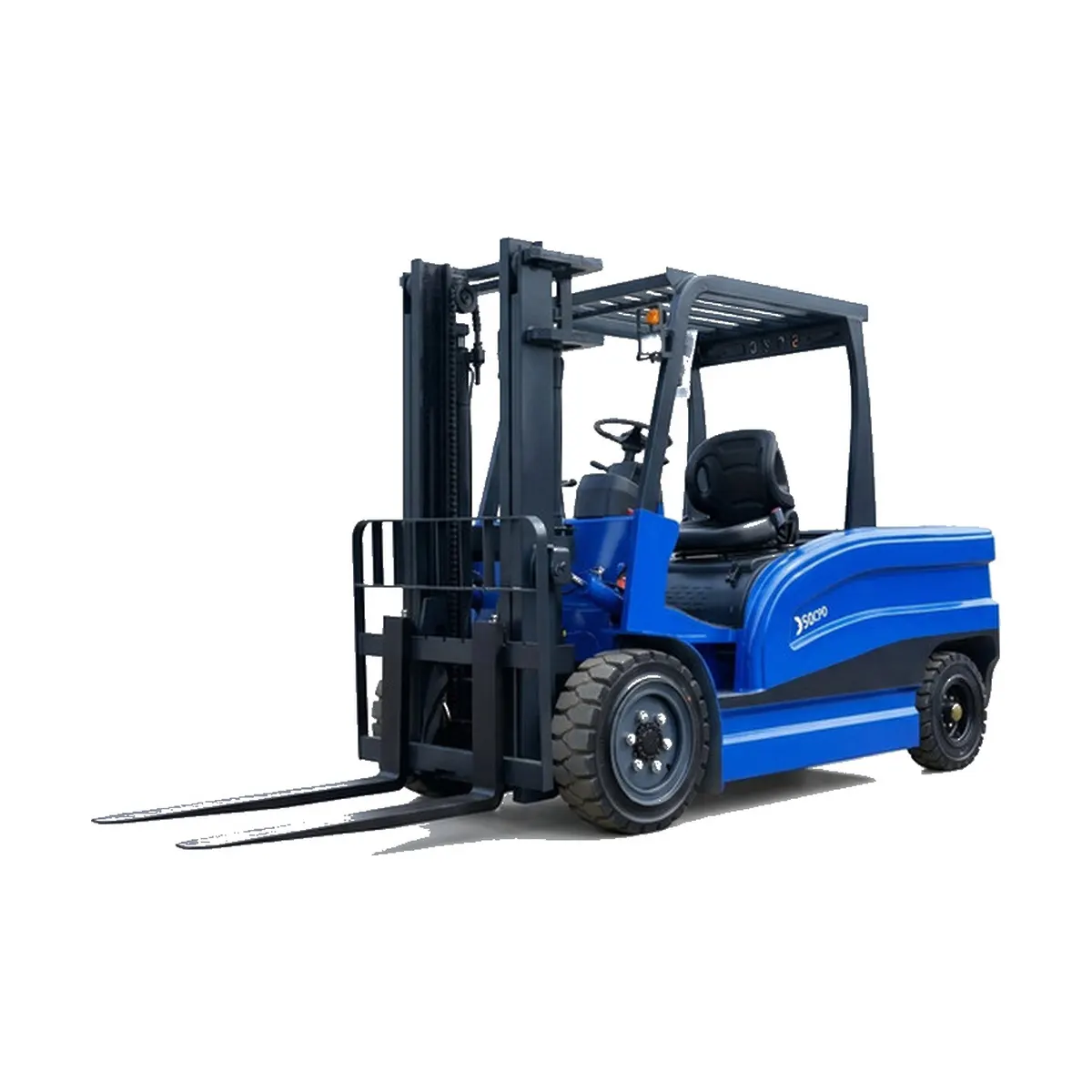

YD-CPD-50 is an electric forklift for plant, warehouse and loading operations. The current model sheet confirms a rated capacity of 5000 kg, overall dimensions of 3.15 m (forks excluded), 1.2 m and 2.15 m, a two-stage mast and a lifting height of 3 m (two-stage mast). The reference images show a seated operator layout, front mast, forks and hydraulic lifting system, with a rear counterweight and drive section. The specified version is standard fork configuration. Its AC traction drive and.
- Covered Yard Blue Forklift Rear Staging

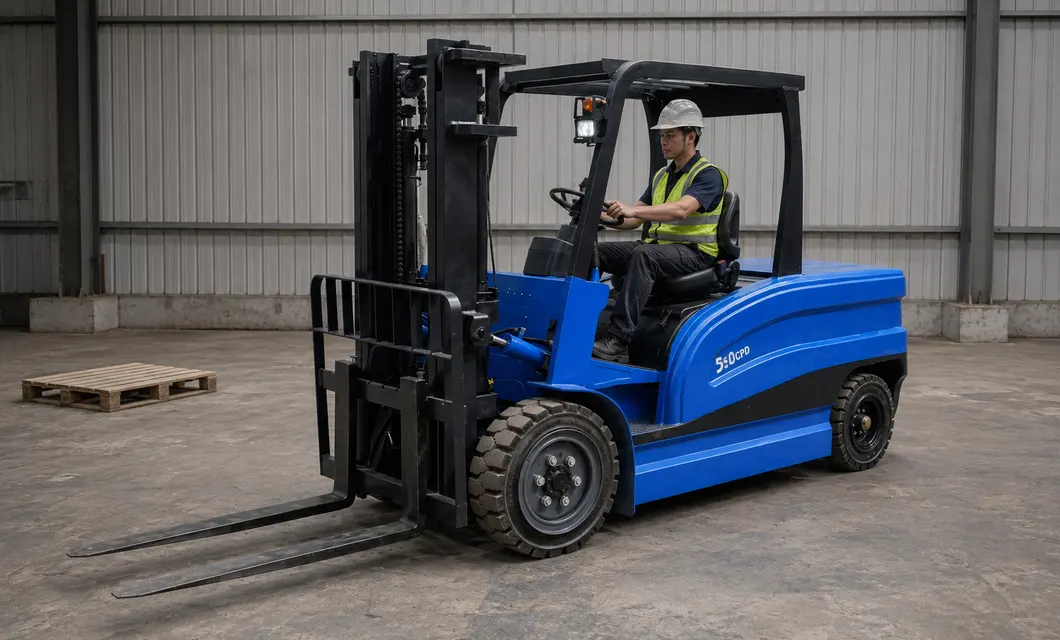

- Factory Workshop Blue Forklift Operation

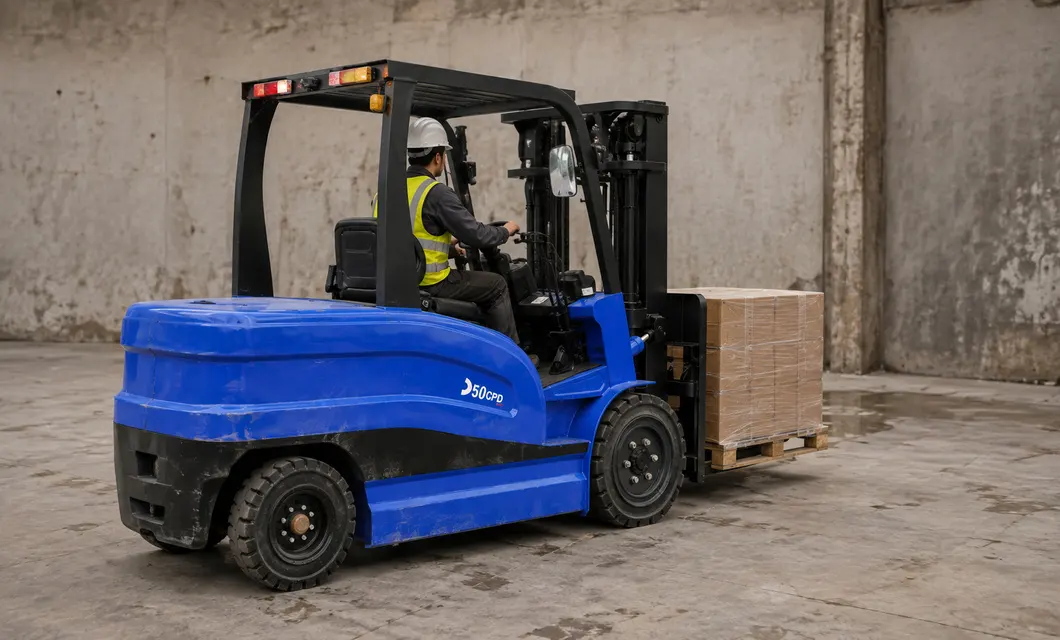

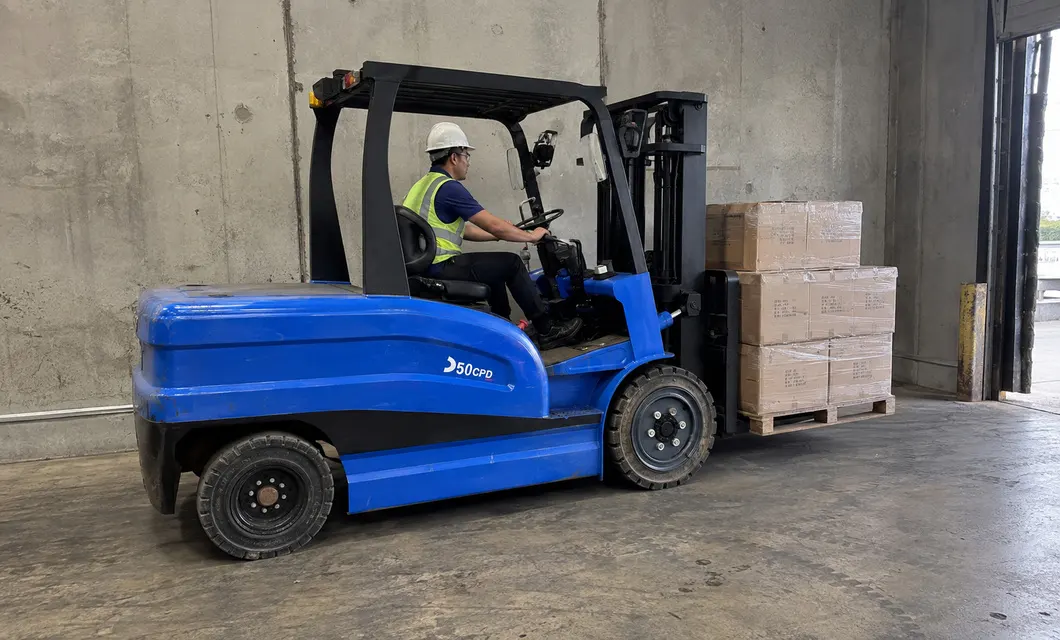

- Warehouse Blue Forklift Pallet Transfer
- Warehouse Blue Forklift Pallet Transfer

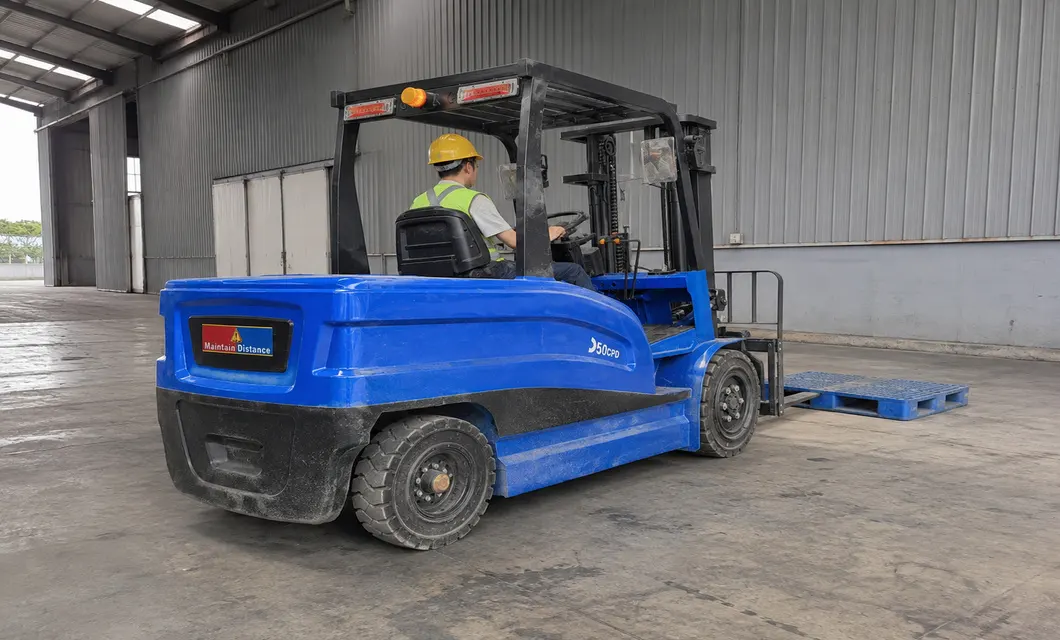

Covered Yard Blue Forklift Rear Staging
Factory Workshop Blue Forklift OperationWarehouse Blue Forklift Pallet Transfer
Warehouse Blue Forklift Pallet TransferCovered Yard Blue Forklift Rear StagingFactory Workshop Blue Forklift OperationSpecifications & Structural Decomposition

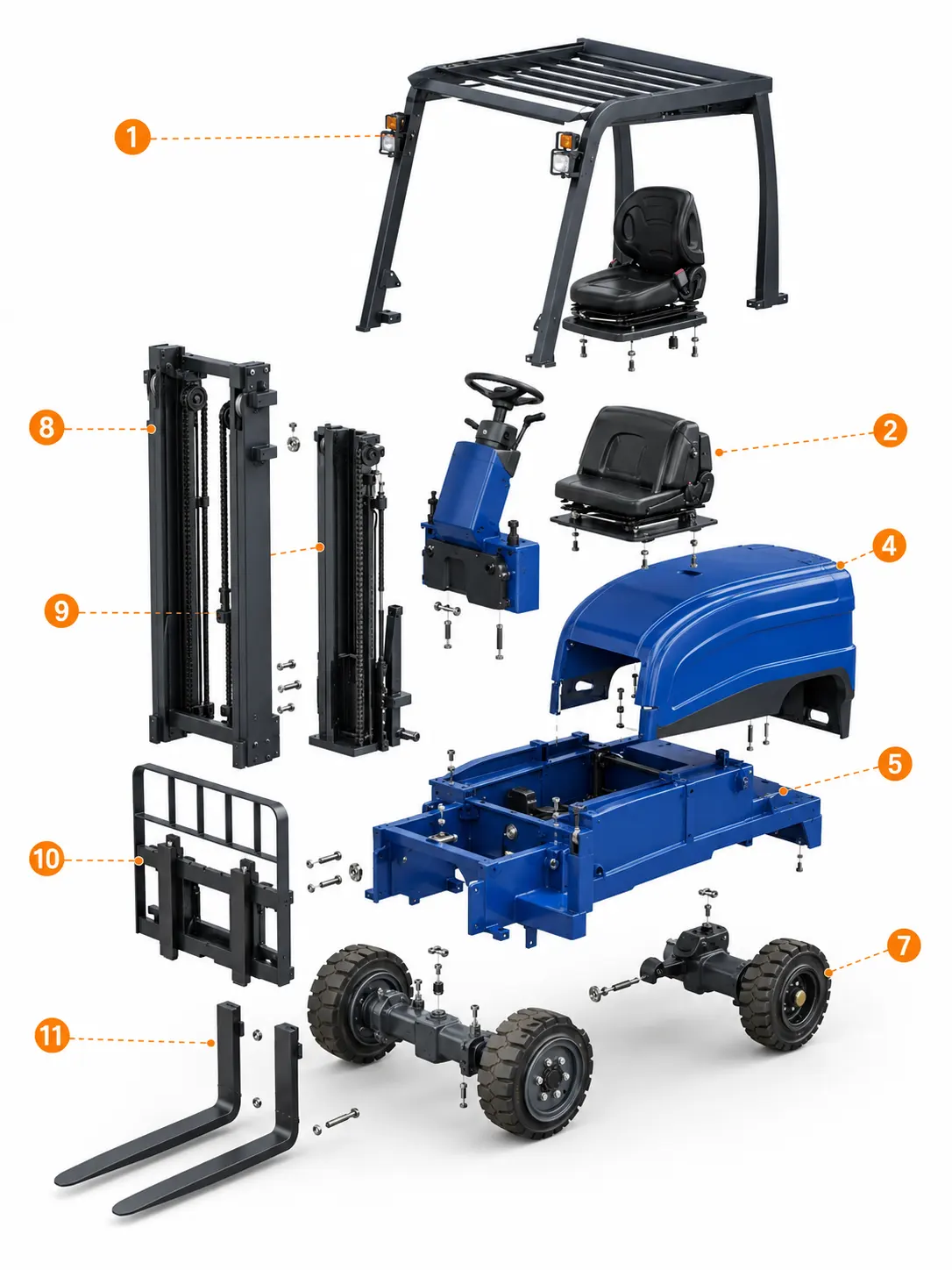

Exploded Structure Diagram
- Overhead Guard
- Operator Seat
Padded seat provides stable support and helps reduce fatigue during extended operation.

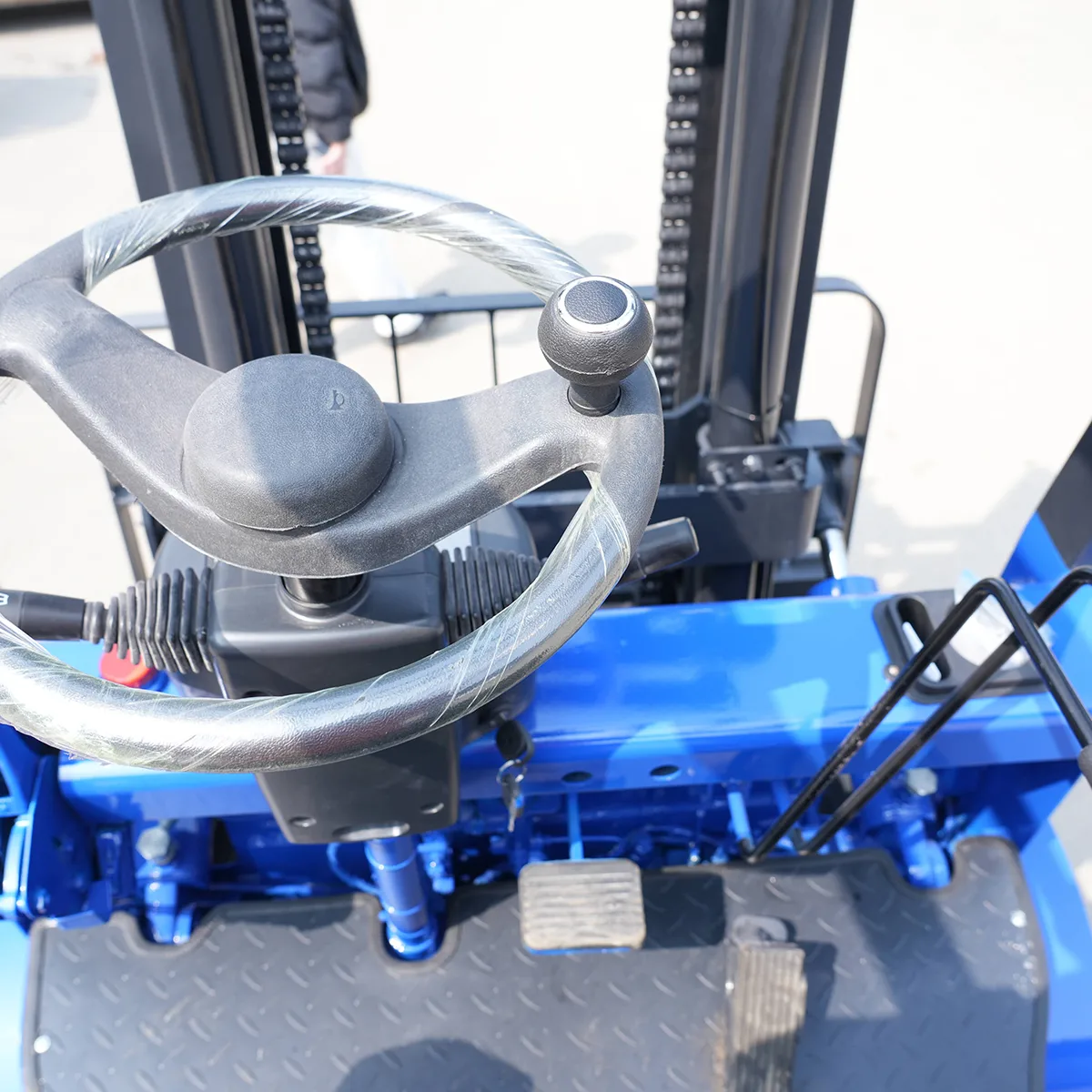

- Control Assembly
Integrated steering wheel and control levers support clear, accurate machine control.
- Body Cover
Streamlined metal panels protect internal systems and maintain a clean exterior.
- Traction Battery
High-capacity battery supplies stable power for routine material handling.
- Main Chassis
High-strength welded chassis supports the primary components and working loads.

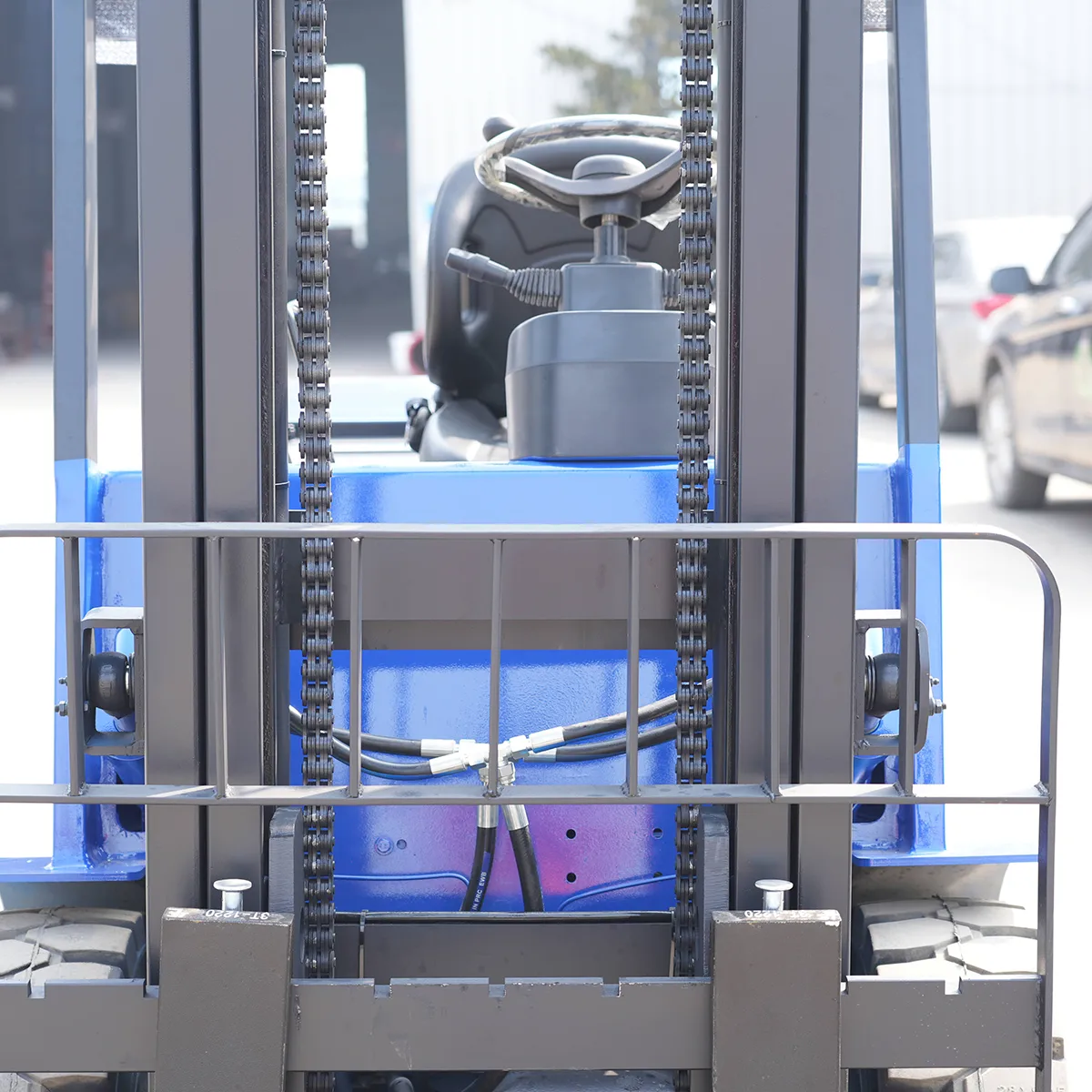

- Lift Mast
Dual-rail mast and chain drive guide loads through controlled vertical movement.
General information
- Door frame material
- 160-grade steel for forklifts
- tire
- Front tire: 28×9-15; Rear tire: 650-10
- Braking method
- Handbrake braking, hydraulic system braking
- Rated lifting capacity
- 5000kg
- Vehicle curb weight (including battery)
- 5600kg
- Front tire specification
- 28×9-15
- Rear tire specification
- 650-10
General instructions

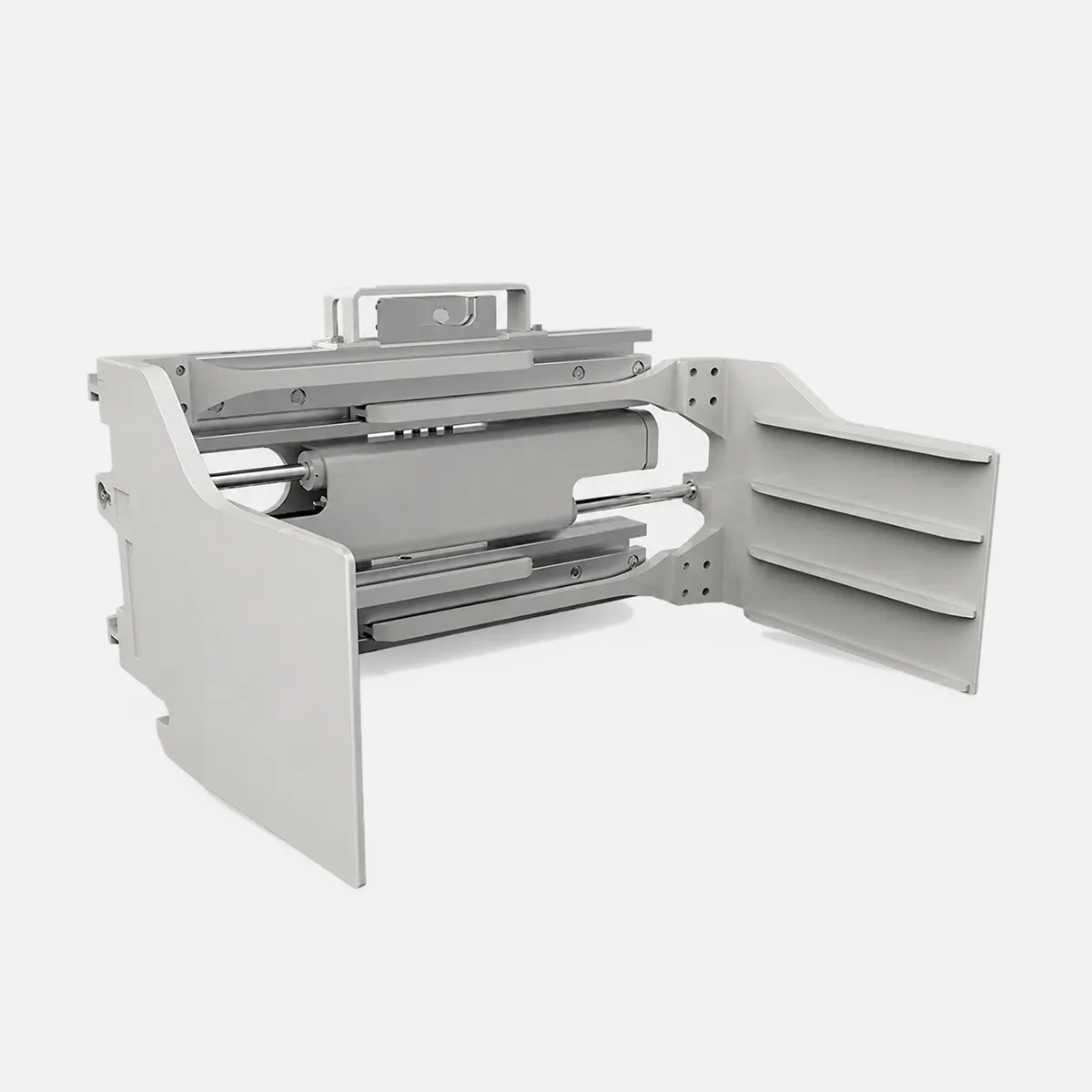

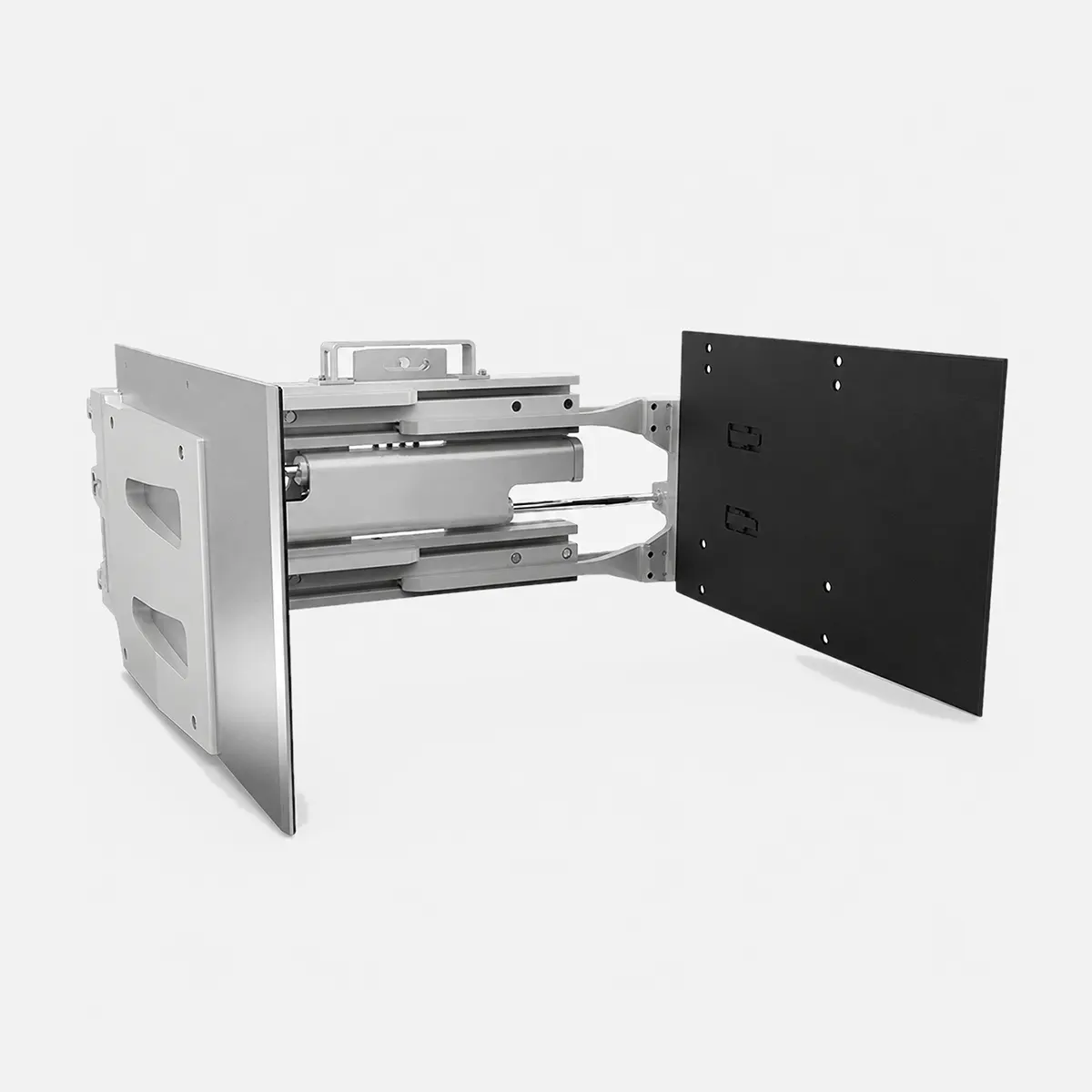

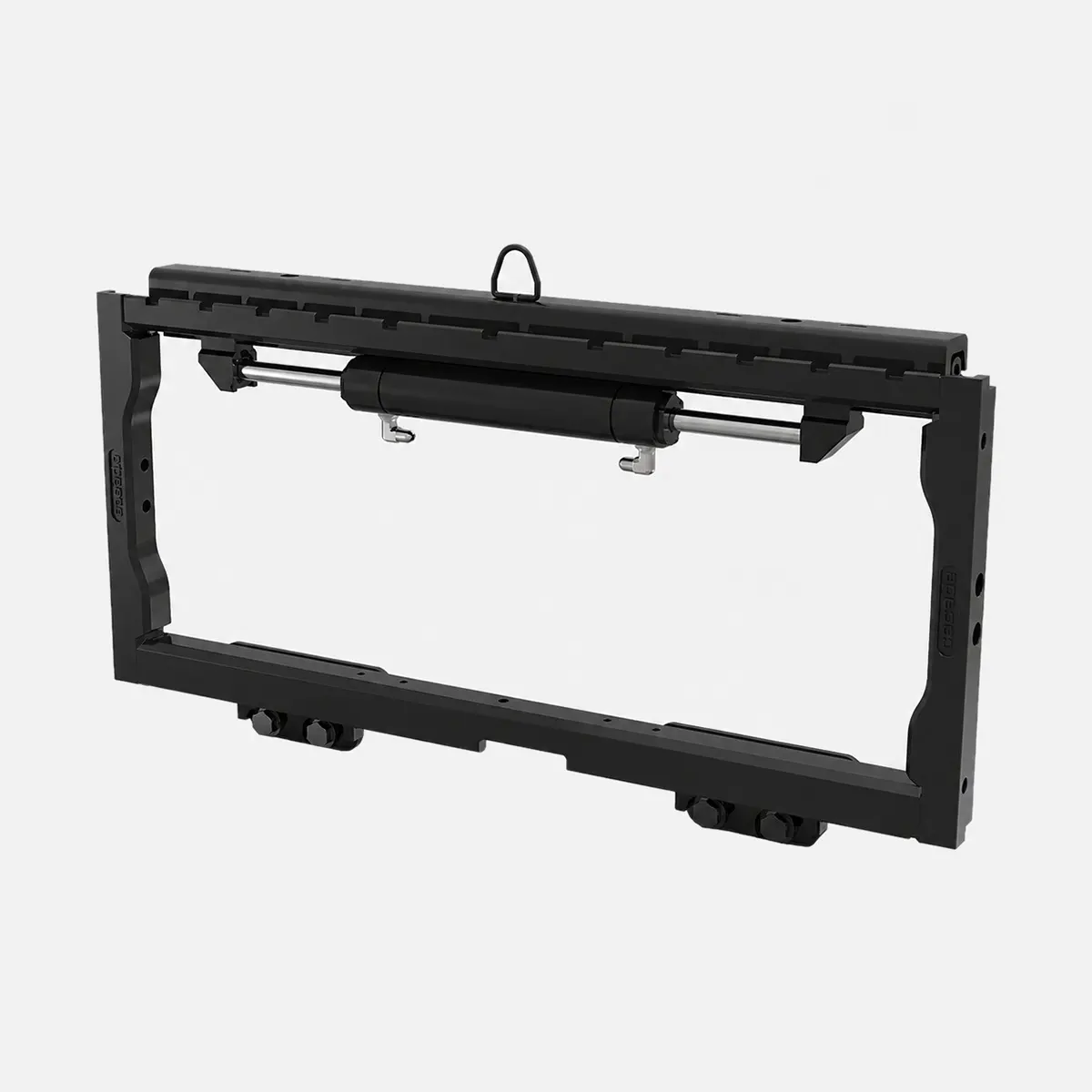

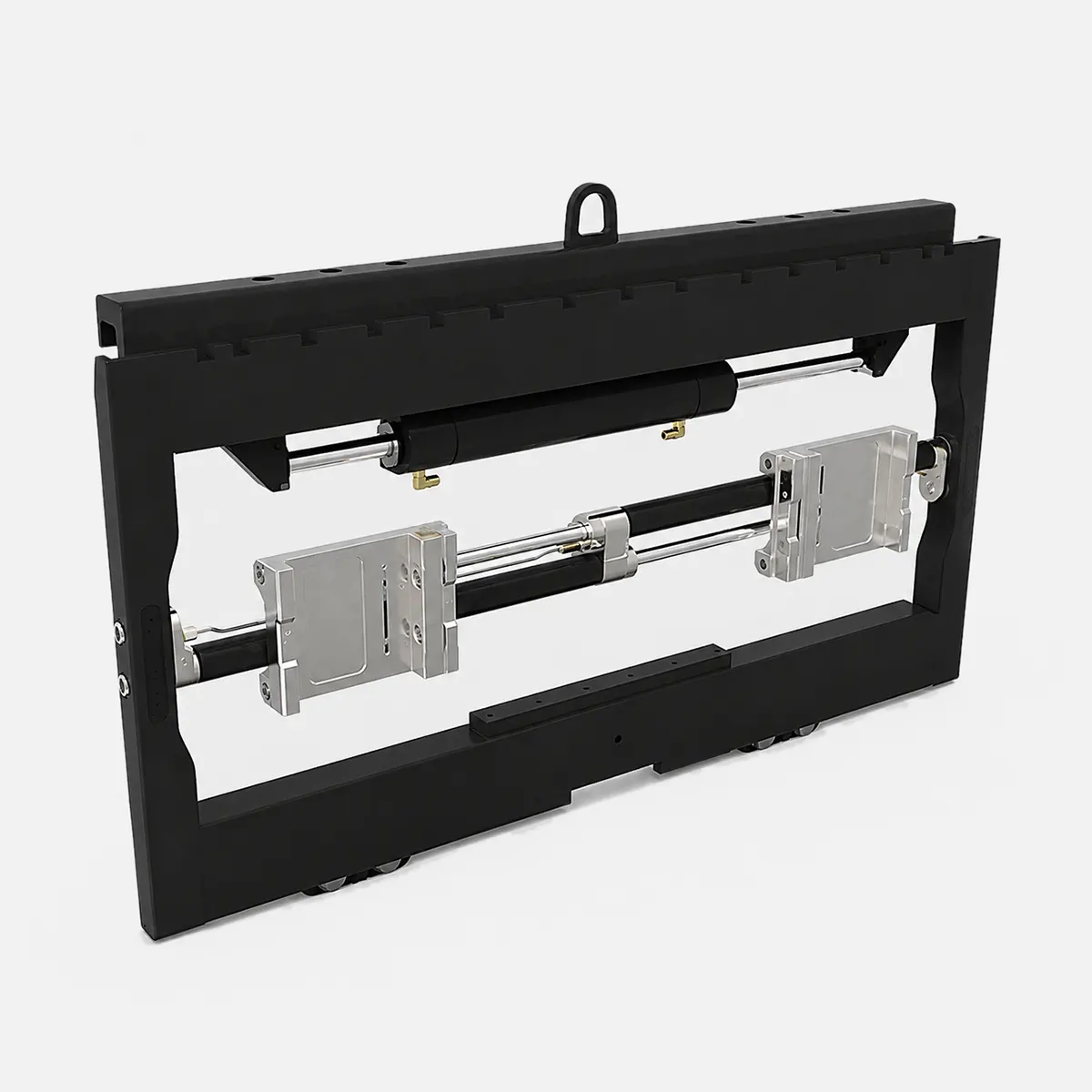

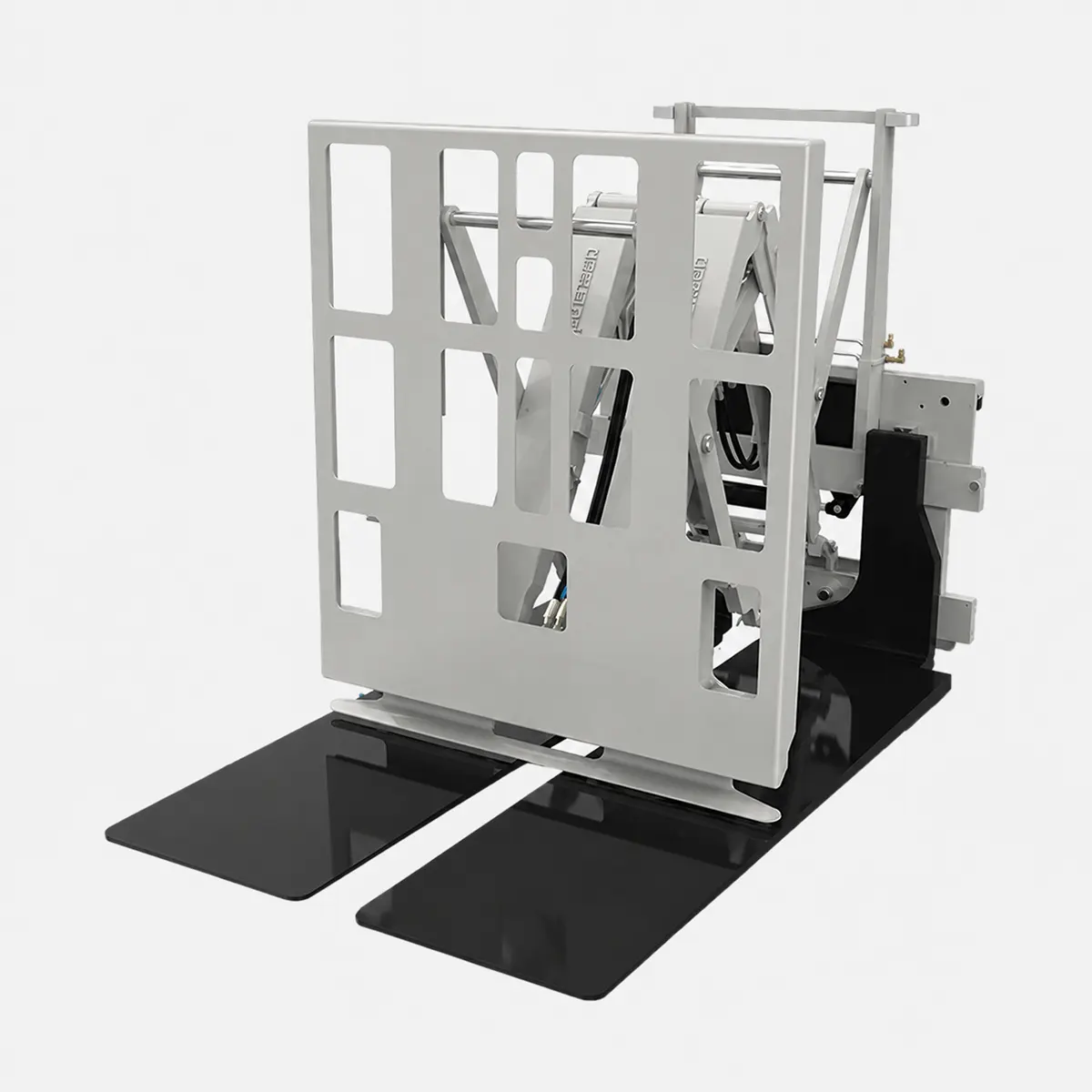

Simplified explanationCompatible Forklift Attachments
Product Video
Product container loading
Product container loading
01:24
Product container loading 2
01:24
Product container loading 3
01:24
Product packaging
01:24

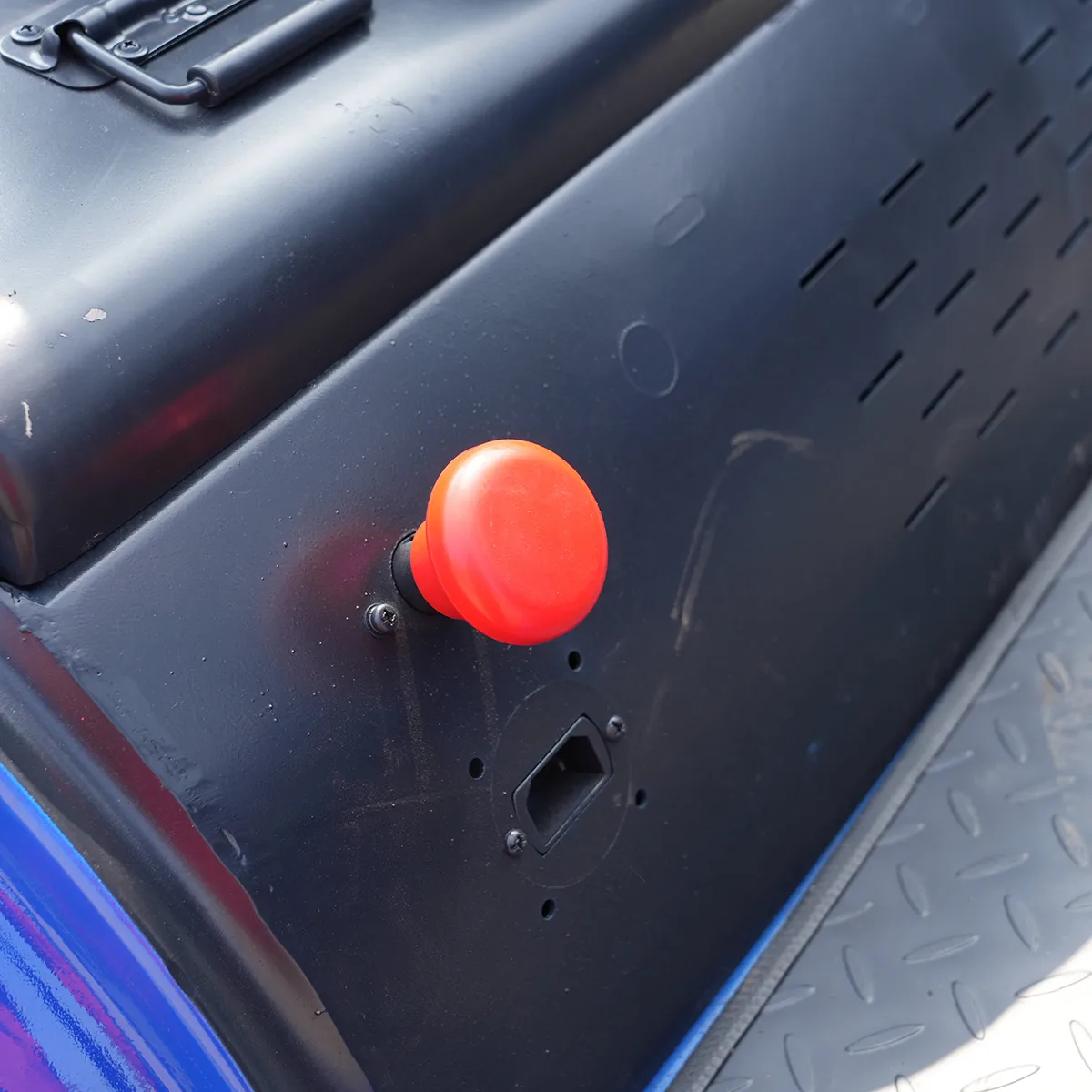

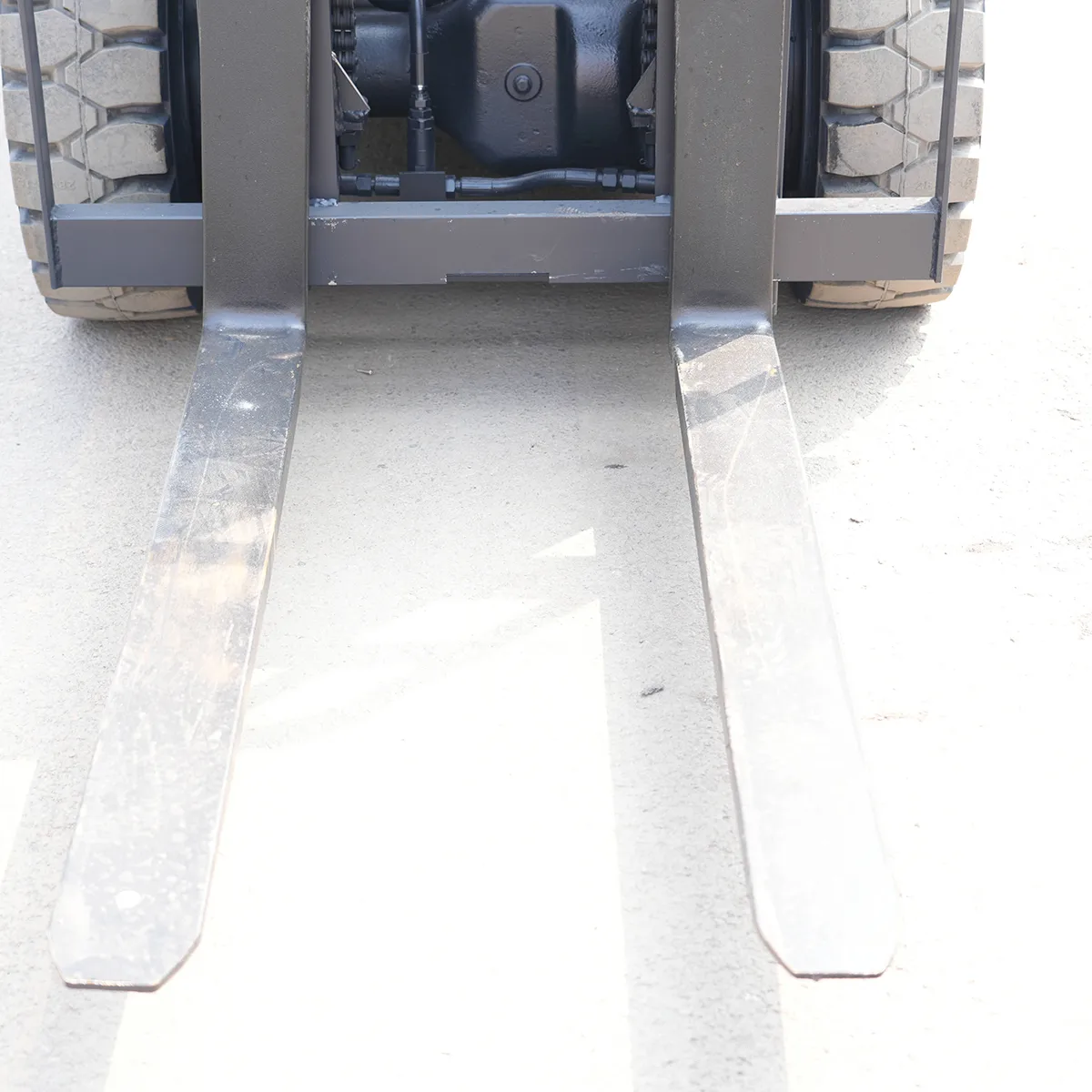

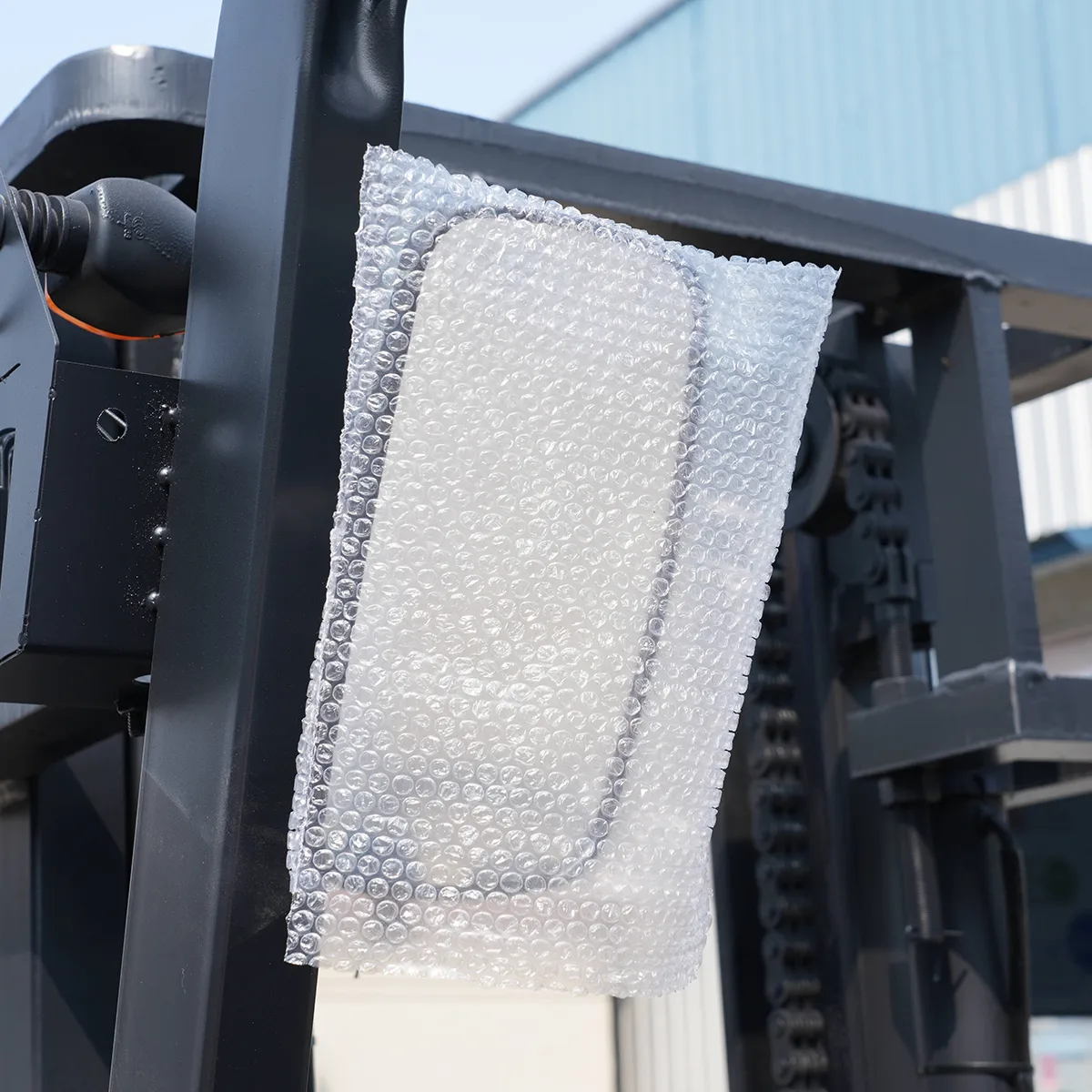

Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Procurement Confirmation Points
What work is the YD-CPD-50 designed for?
It is intended for pallet, carton and general material handling in warehouses, production areas, loading docks and plant yards with hard floors. Confirm the final use against the load and aisle conditions.
What are the key specifications?
The current sheet lists a rated capacity of 5000 kg, dimensions of 3.15 m (forks excluded), 1.2 m and 2.15 m, operating weight of 5600 kg and lift height of 3 m (two-stage mast). Other configuration details follow the formal specification and purchase order.
What structure or attachment does it use?
It uses a seated driving layout, front two-stage mast and standard fork configuration. The attachment field states that attachments are optional. Confirm the final attachment scope before ordering.
What is checked before delivery?
The inspection covers the nameplate, exterior fasteners, mast and chains, forks or attachment, hydraulics, travel and steering, brakes, tires and axles, electrical and charging system, and delivery accessories.
What should be confirmed when purchasing?
Confirm load and load center, aisle width, lift height, tire specification, 80 V (customizable), motor, charging conditions, forks or attachment and delivery accessories. Final details follow the purchase order.
