The guarded deck and entry gate form the elevated work area, keeping personnel and task equipment within the platform boundary.

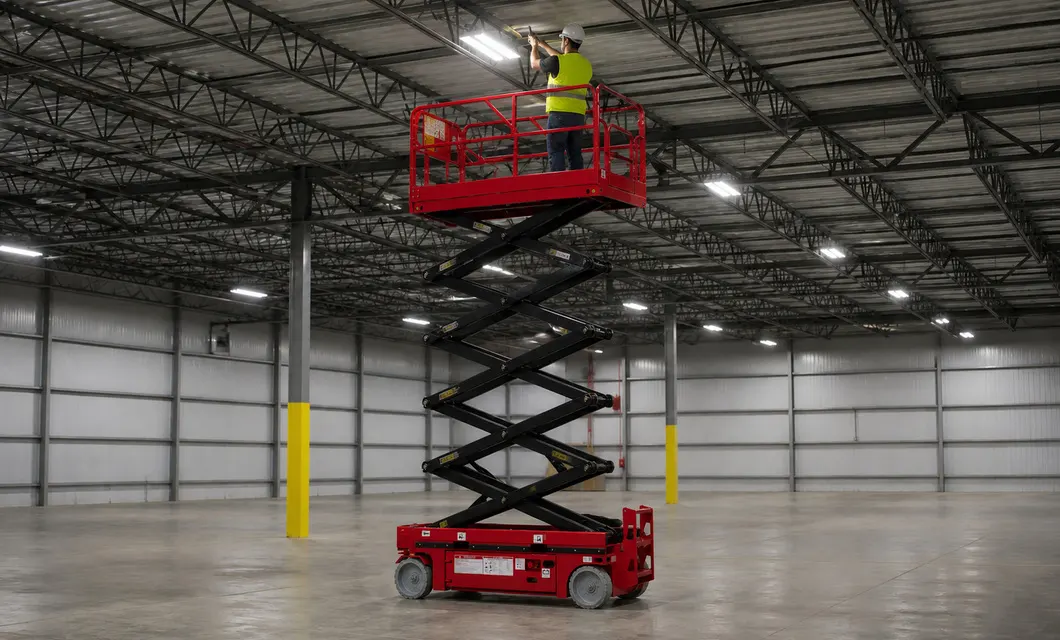

High Reach for Warehouse Lighting ServiceHigher Reach for Facility Maintenance
Elevated Access for Lighting and Utilities
Built for high-level maintenance in public interiors, production utility corridors, warehouse lighting zones and logistics canopies. The 12 m working-height class extends access to higher fixtures, while the wide guarded deck and mobile electric chassis support planned movement between service locations.
- Public Interior Systems
- Production Utilities
- Warehouse Lighting
- Logistics Canopies

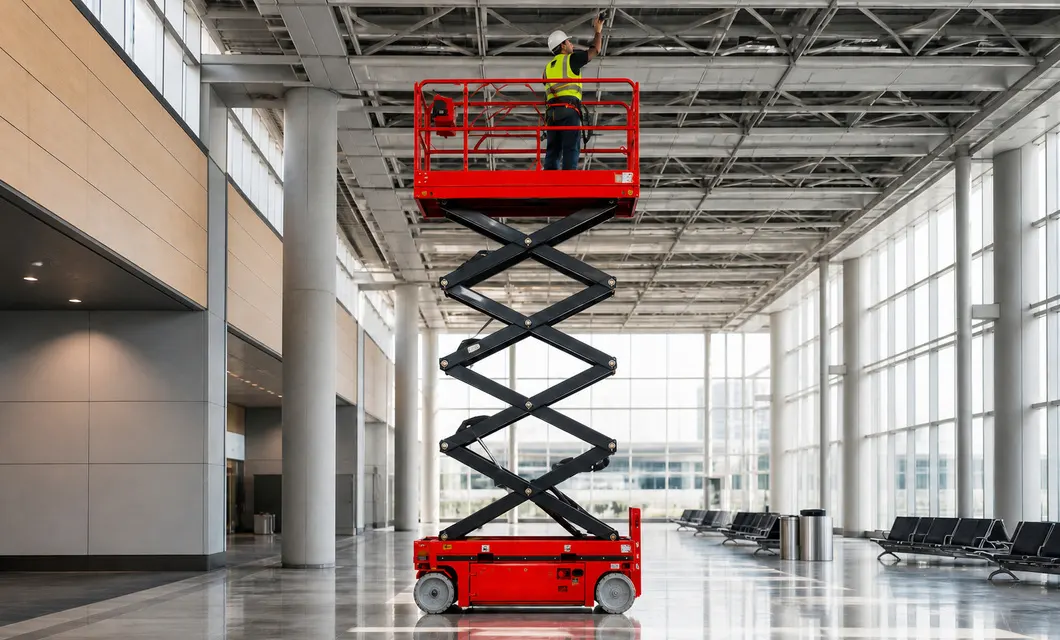

Elevated Maintenance Across Public Interiors

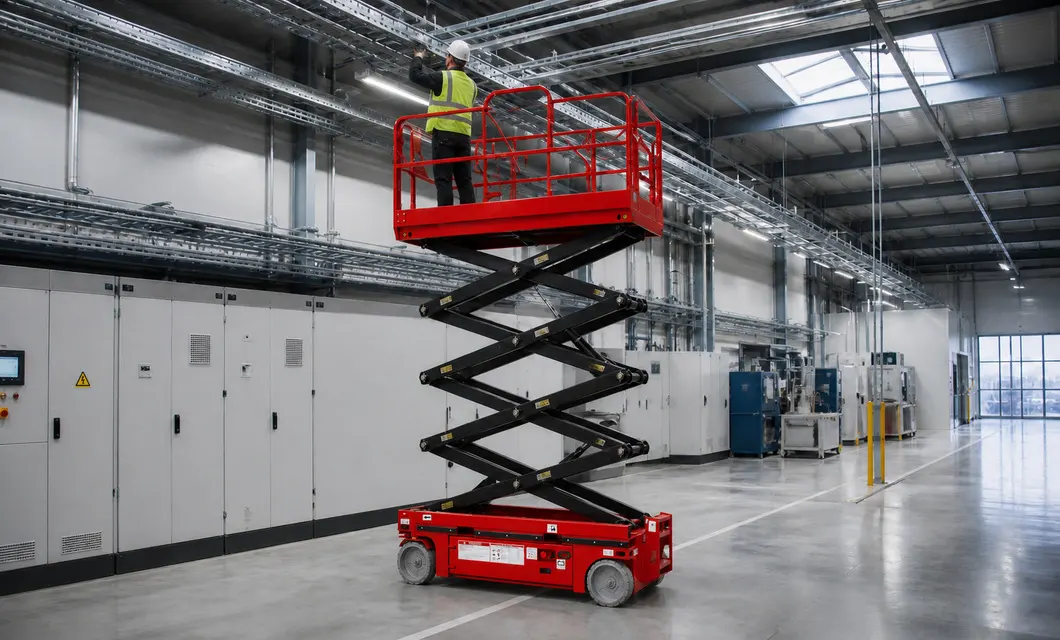

Five-Stage Access Along Production UtilitiesHigh Reach for Warehouse Lighting Service

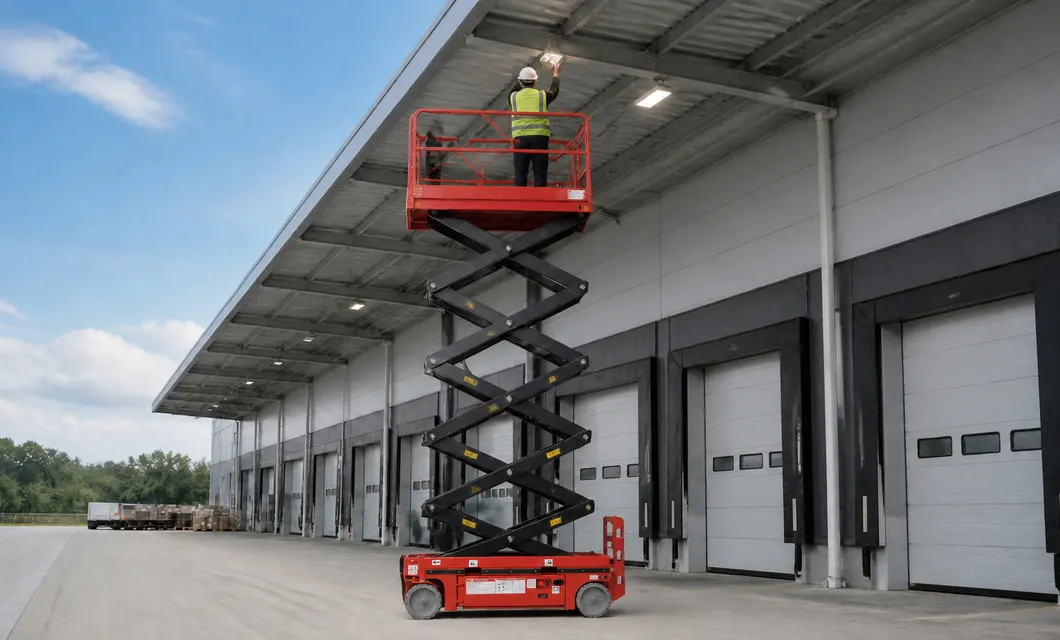

Outdoor Service for Logistics CanopiesElevated Maintenance Across Public InteriorsFive-Stage Access Along Production UtilitiesSpecifications & Structural Decomposition

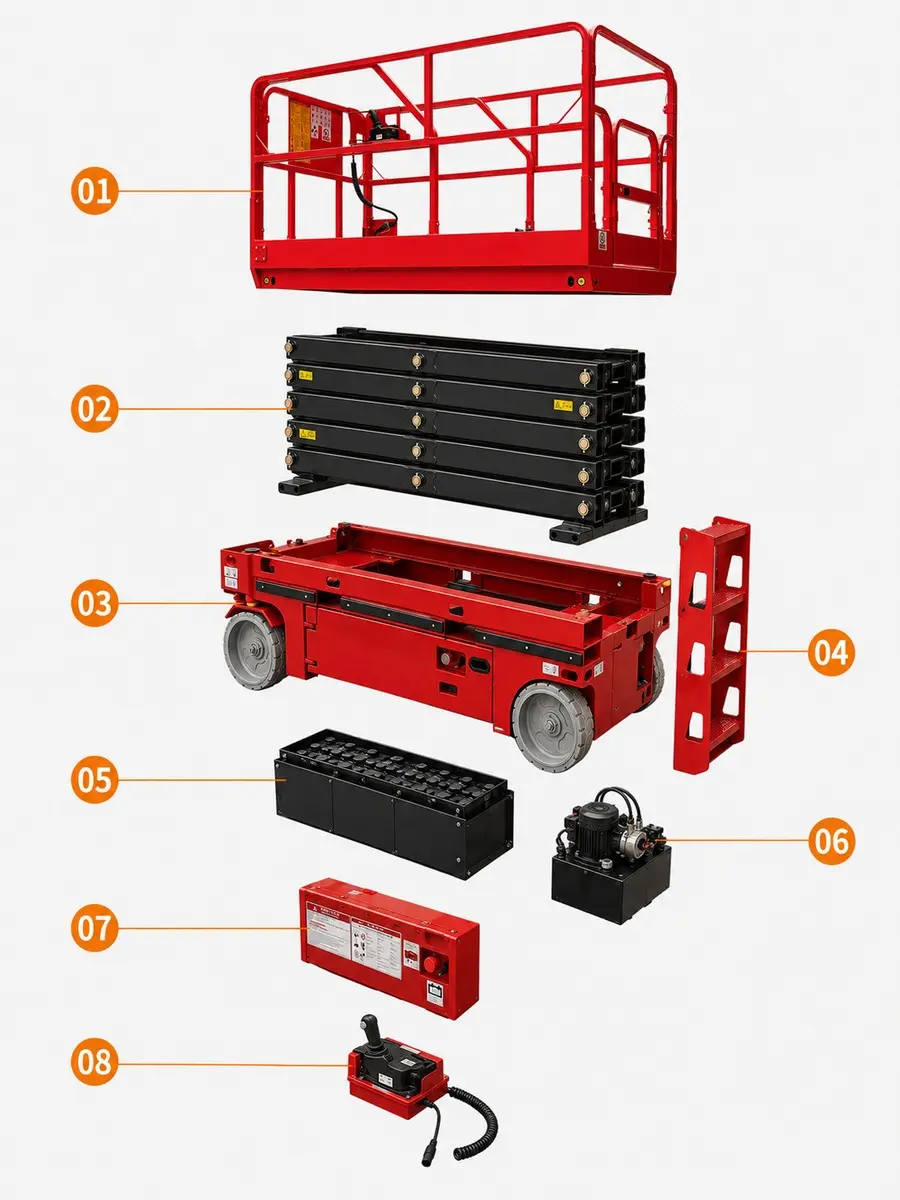

Product Structure Diagram
- Guarded Work Platform Assembly
- Scissor Lift Stack
The visible five-stage scissor stack links the chassis to the platform and guides controlled vertical movement.
- Main Chassis Frame
The main chassis frame supports the lift stack, running gear and service panels that house the machine operating systems.
- Rear Access Steps
The rear access structure supports entry and service access at the chassis end while remaining separate from the central frame.
- Battery Pack Assembly
The visible battery tray groups the traction batteries in a removable chassis assembly for the electric drive system.

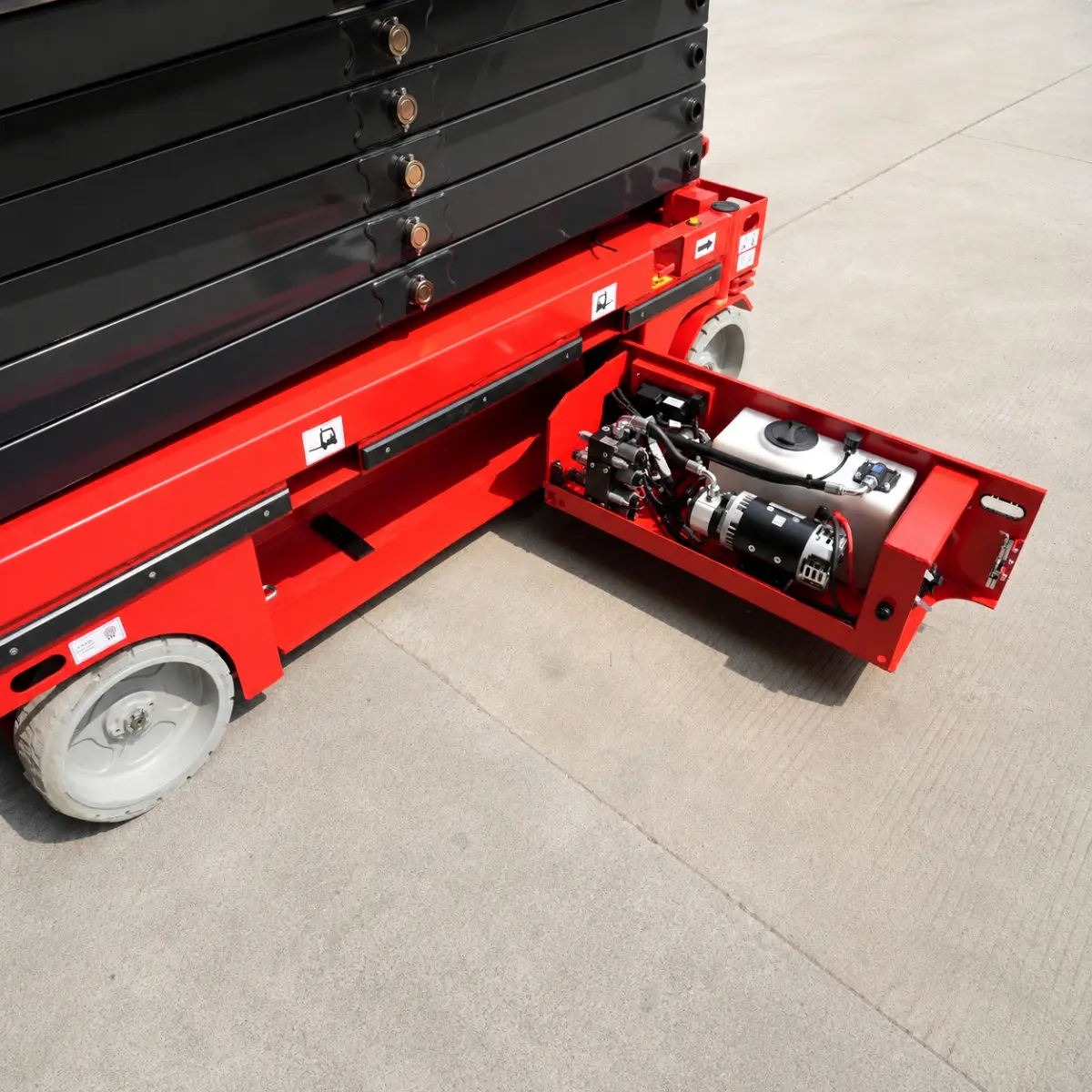

- Hydraulic Power Unit

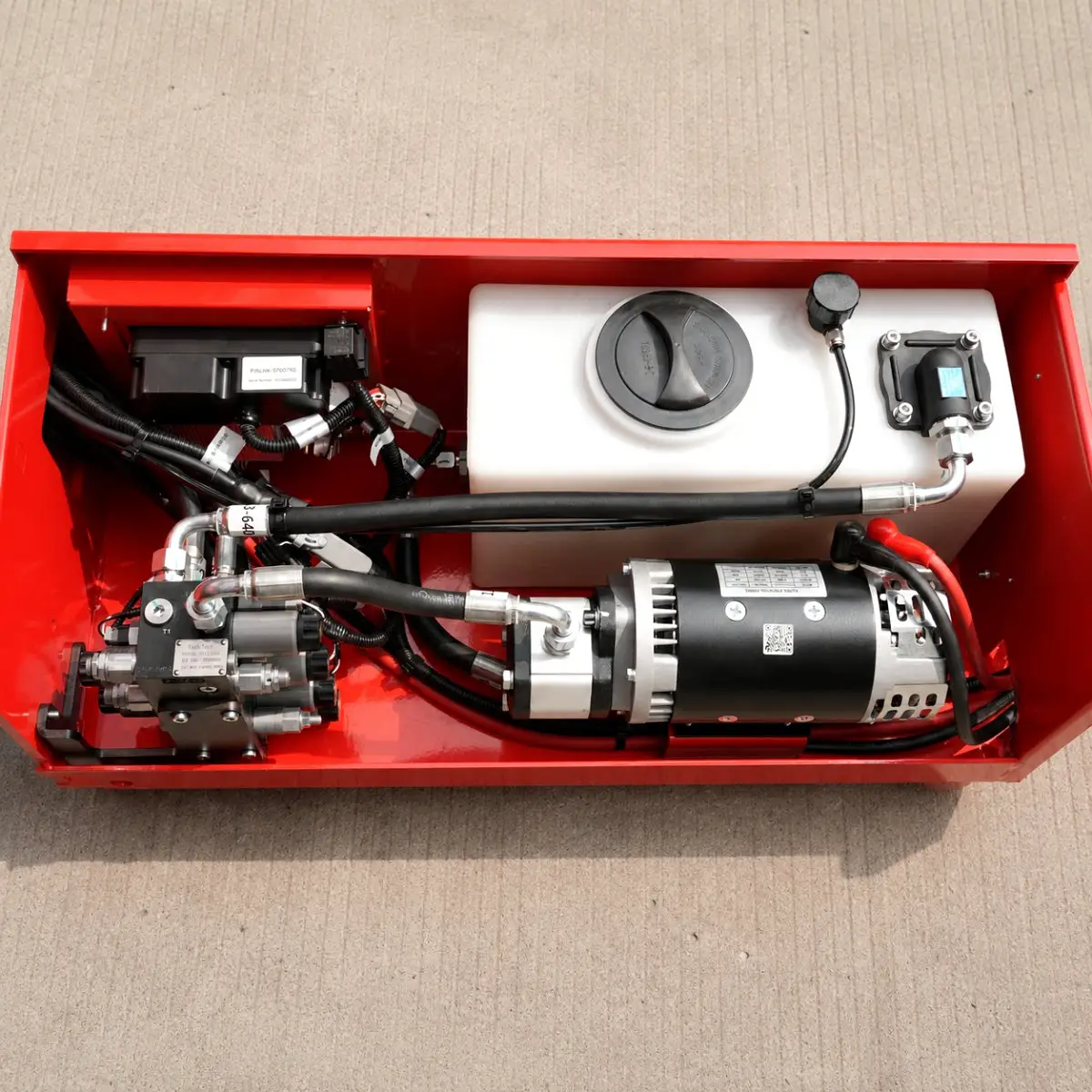

The motor, pump, reservoir and valve group supplies hydraulic power for platform elevation and controlled lowering.

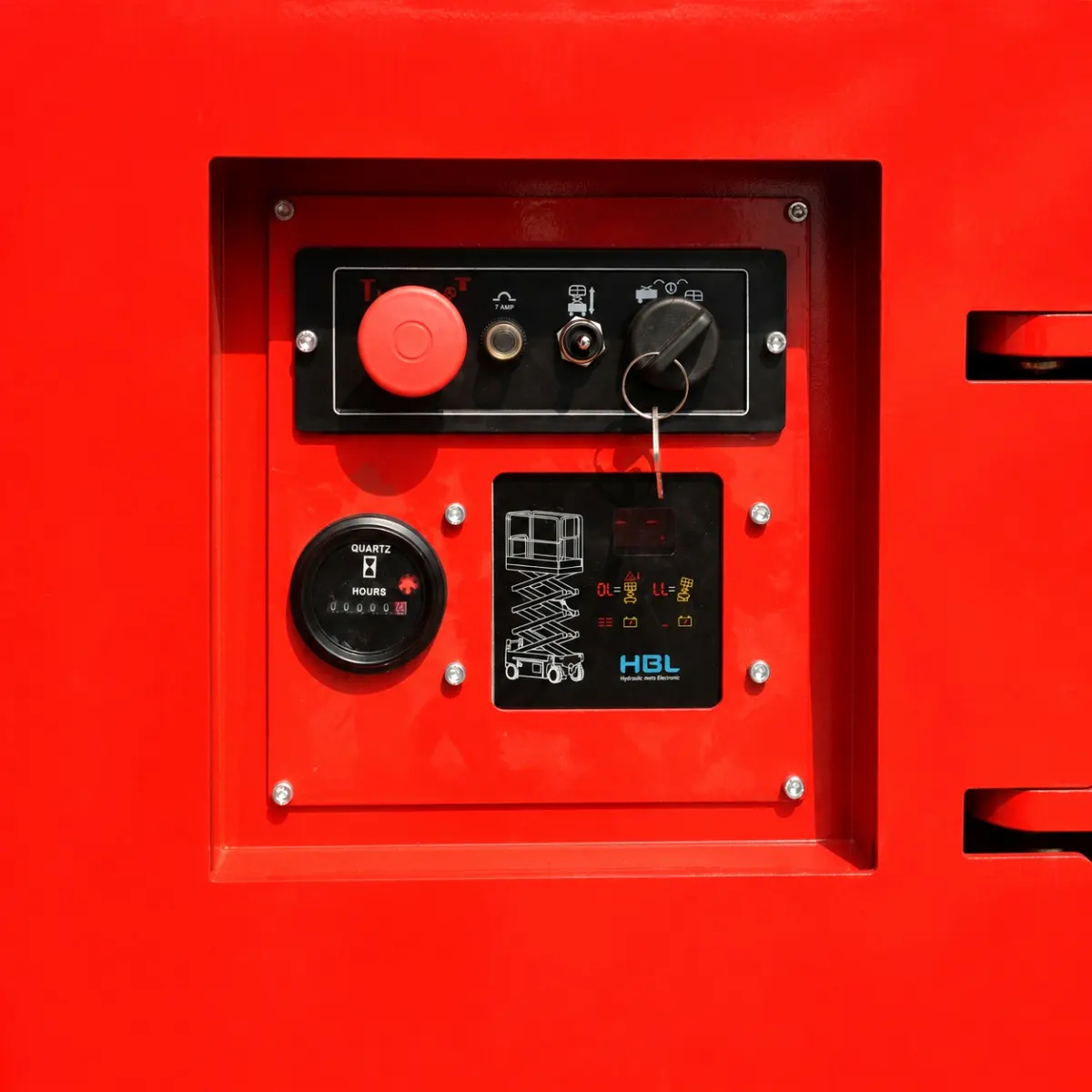

- Ground Control Panel
The ground panel groups the chassis-side emergency stop, power and status controls used from the lower operating position.
General information
- Maximum working height
- 12m
- Maximum platform height
- 10m
- Overall length (collapsed state)
- 2.41m
- Overall width (in the stowed position)
- 1.18m
- Overall height (fence not folded)
- 2.44m
- Work platform dimensions
- 2.26*1.14*1.1m
- Platform extension dimensions
- 0.9m
General instructions
Simplified explanationProduct Video

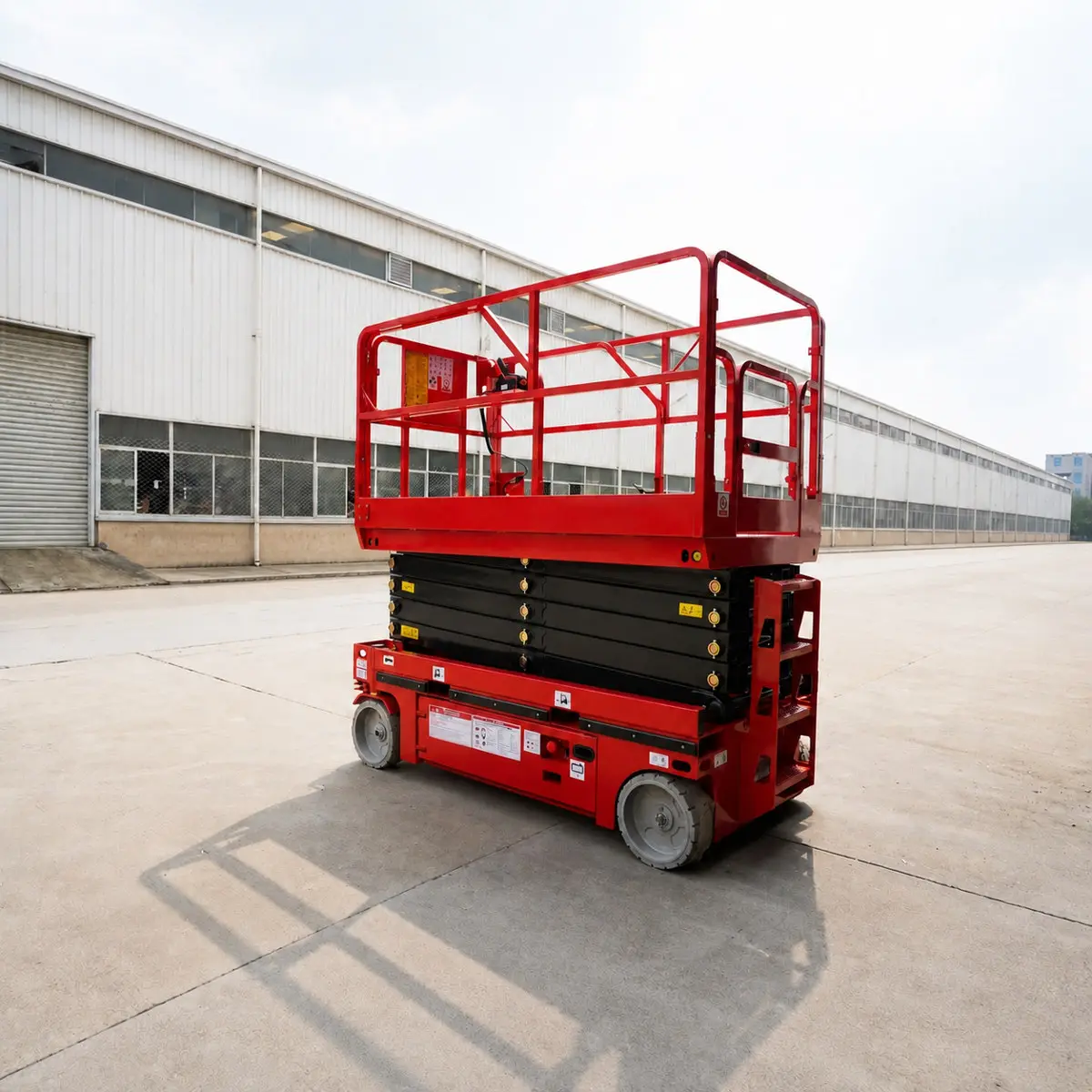

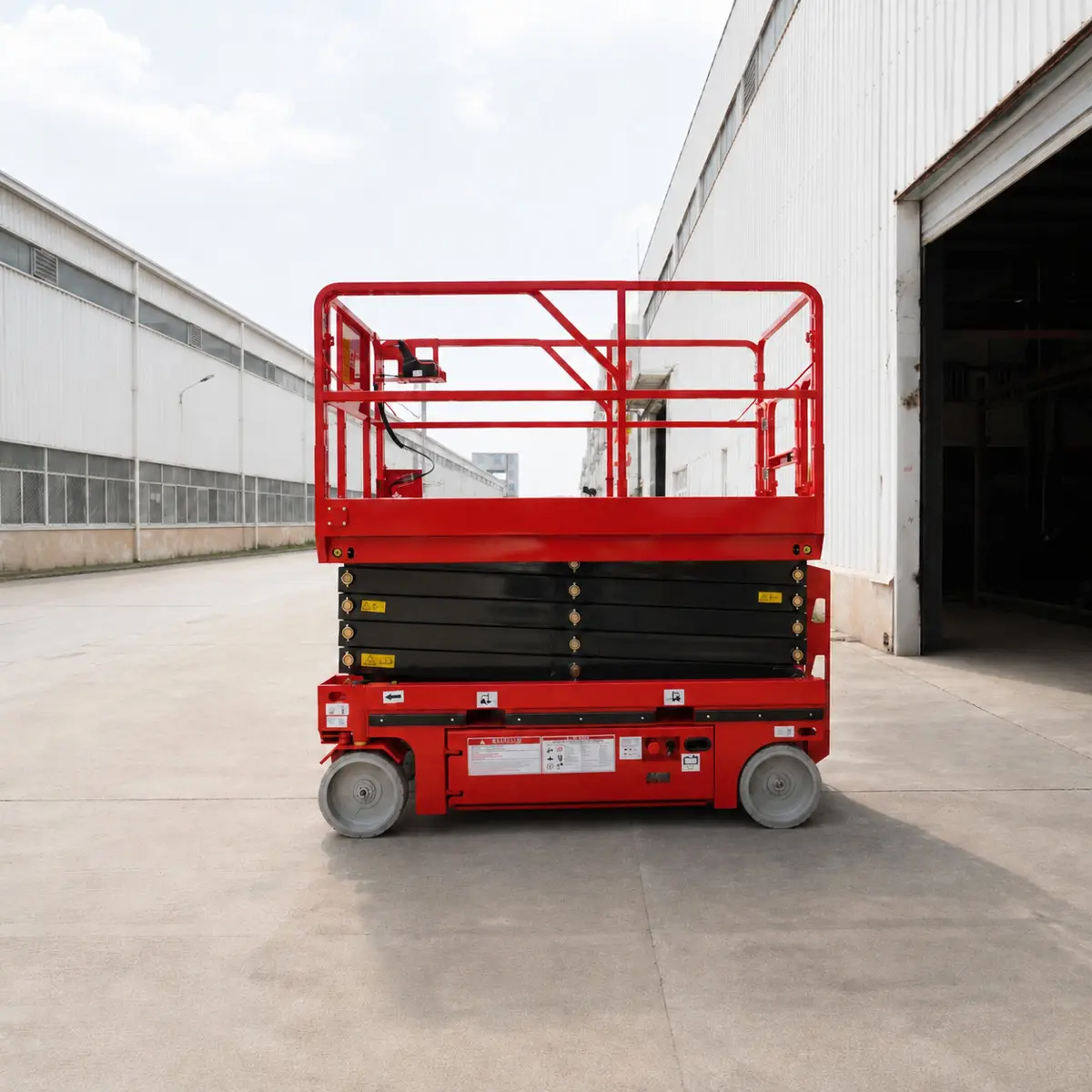

GTJZ-10- Appearance Display
GTJZ-10 appearance display: a neat, compact structure with even paintwork and clear markings; solid platform and guardrails with tidy wiring and routing — quality visible in every detail
GTJZ-10- Appearance Display
00:19GTJZ-10 appearance display: a neat, compact structure with even paintwork and clear markings; solid platform and guardrails with tidy wiring and routing — quality visible in every detail
GTJZ-10 operation
01:31GTJZ-10 in operation: smooth, reliable one-touch lifting with controlled platform speed; agile travel and steering, simple intuitive controls — safe, efficient work at height
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00

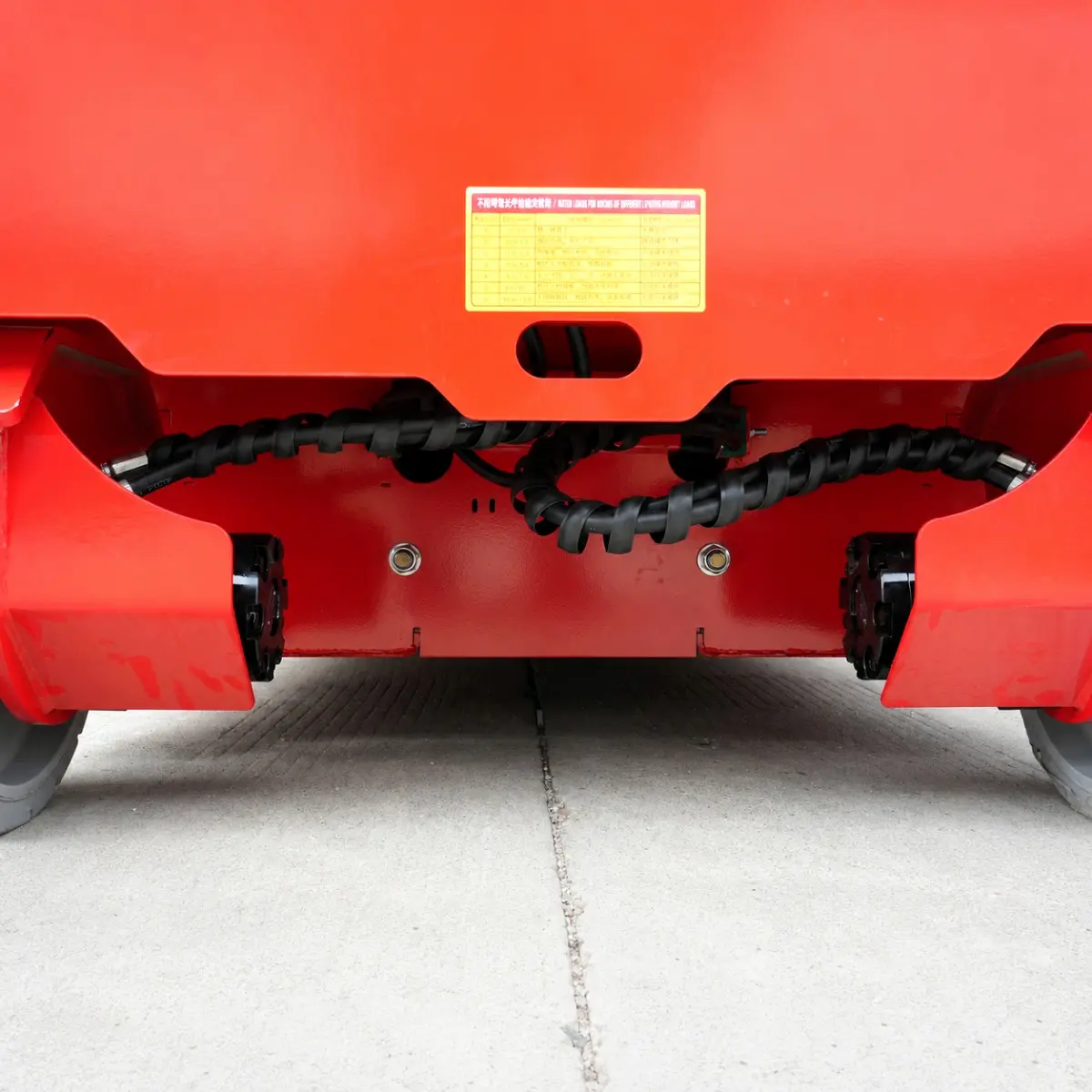

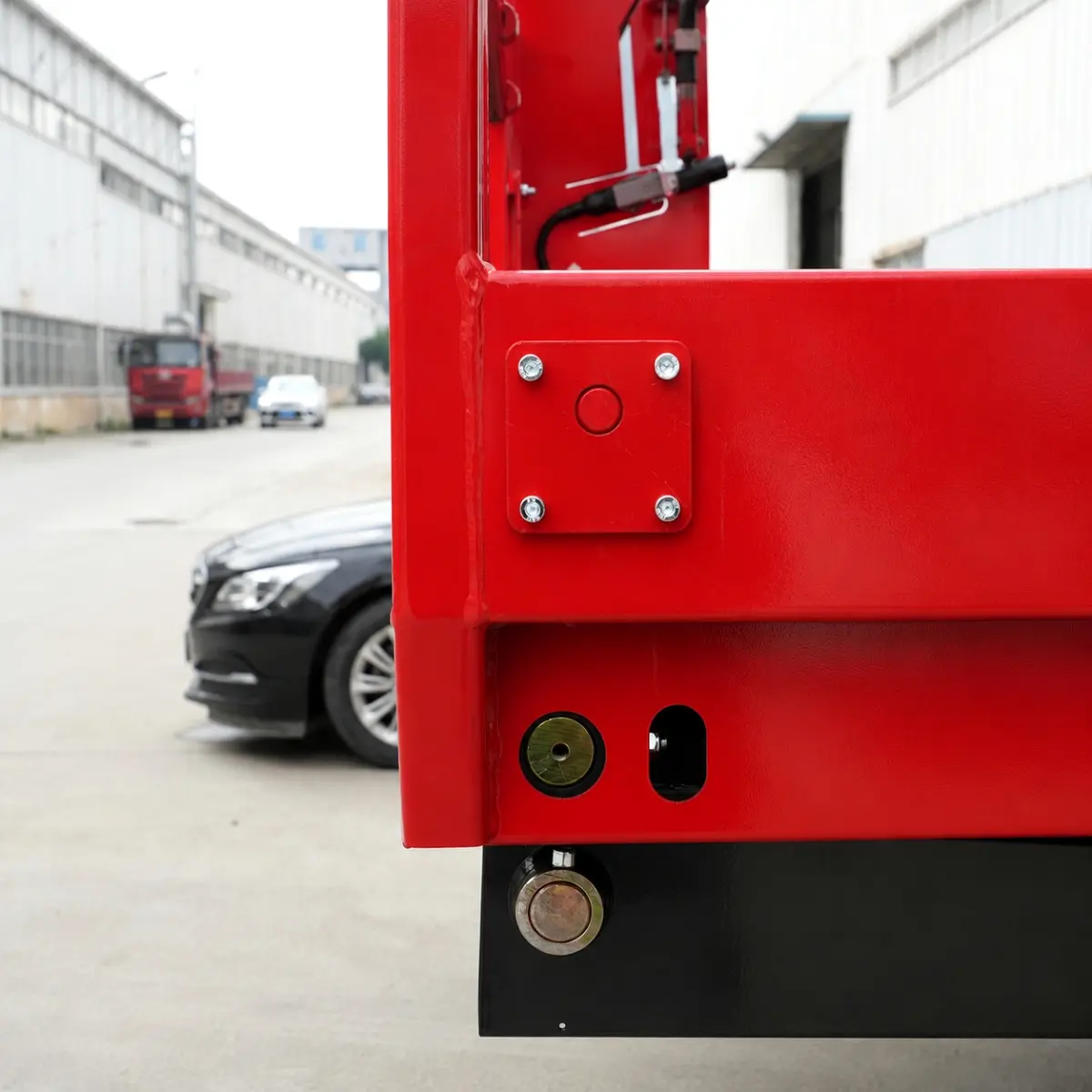

Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
What maximum reach is specified?
The verified maximum working height is 12 m, with a maximum platform height of 10 m.
What is the rated platform load?
The main platform is rated for 320 kg, and the extension section has a separate verified 100 kg rating.
What are the stowed dimensions?
The supplied overall dimensions are 2.41 x 1.18 x 2.44 m for route and storage planning.
How large is the guarded deck?
The verified platform dimensions are 2.26 x 1.14 x 1.1 m, including the stated guardrail height.
What must be confirmed for use?
Confirm the required reach, deck load, access route, prepared surface and permitted operating slope for the worksite.
