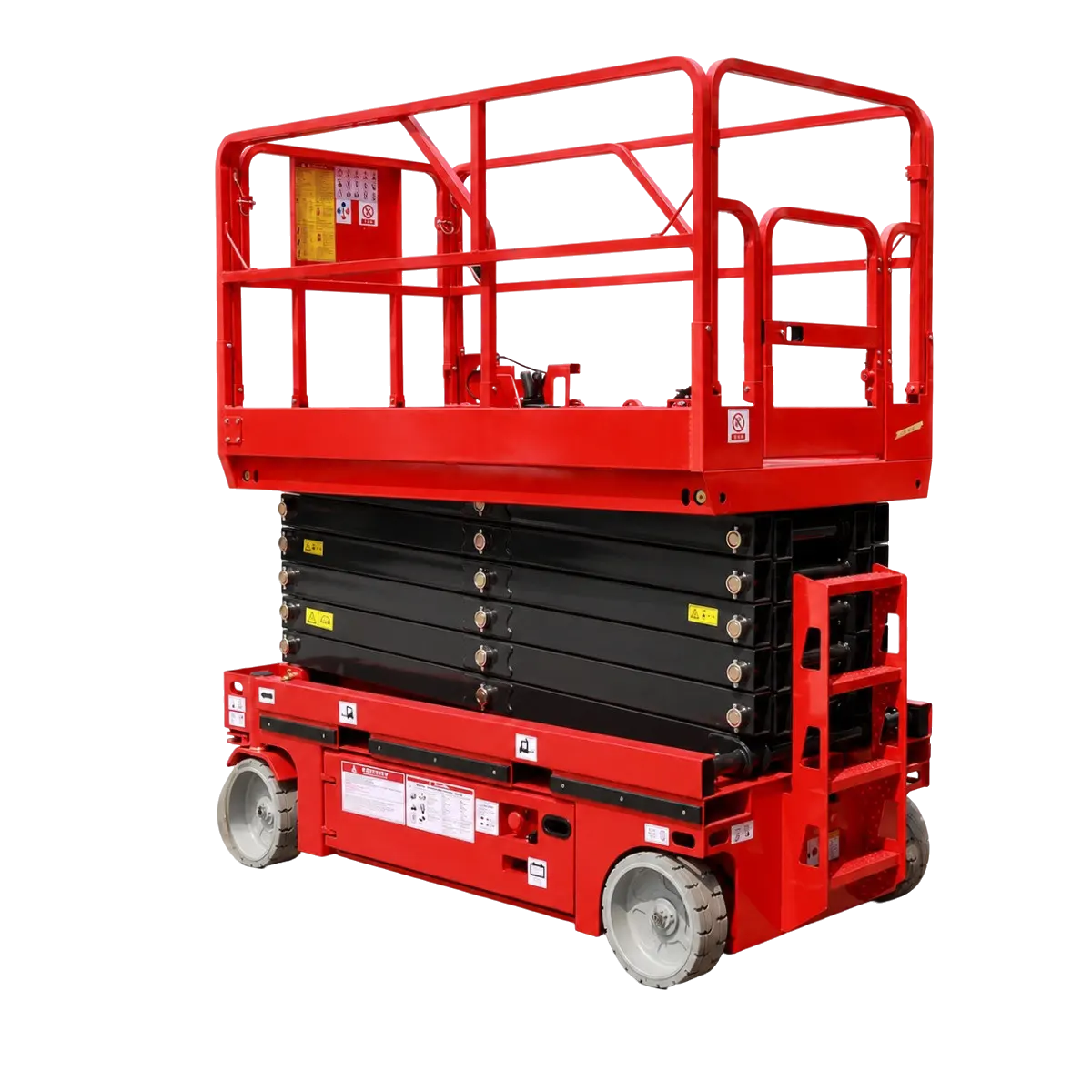

Self-Propelled Electric Scissor Lift
Product Video
  • Electric Drive
  • Strong Capacity
  • Easy Control
  • Stable Handling

Material Handling and Elevated Work with 12-metre electric self-propelled cutting-off...

12-metre electric self-propelled cutting-off high-altitude operating platform is suited to warehouses, factories, yards, construction sites and maintenance operations. It supports loading, stacking, transfer or elevated access within rated capacity and site limits. Before deployment, confirm rated load, lift height, reach, aisle width, power type, tire type and ground condition.

  • Warehouses
  • Factories
  • Yards
  • Maintenance Ops

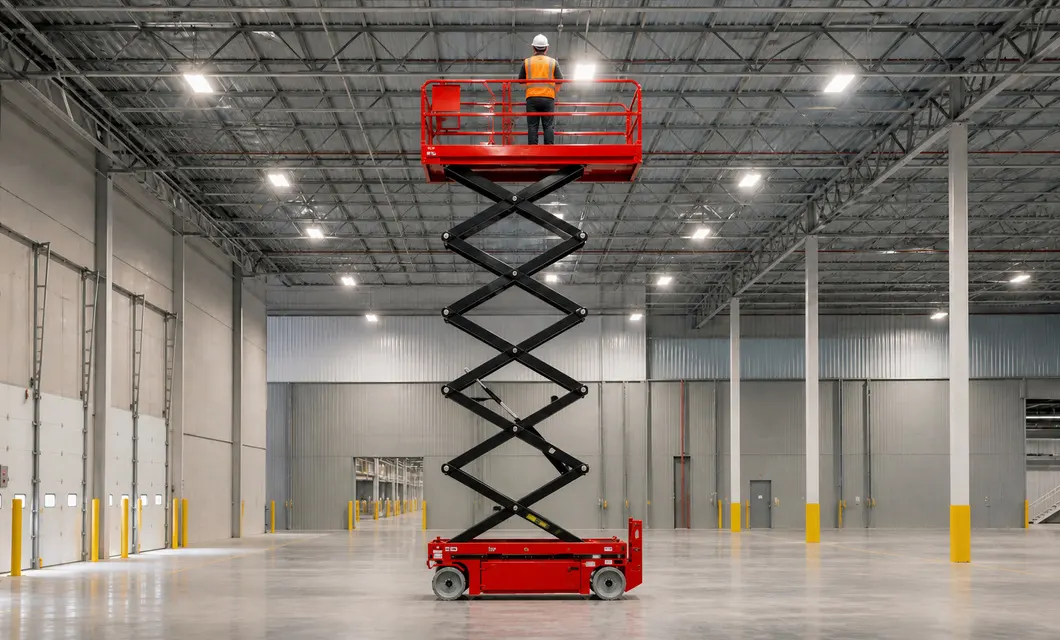

Six-Stage Reach for High-Bay LightingSix-Stage Reach for High-Bay Lighting
Tall Outdoor Reach for Logistics CanopiesTall Outdoor Reach for Logistics Canopies
Elevated Service for Large Interior SystemsElevated Service for Large Interior Systems

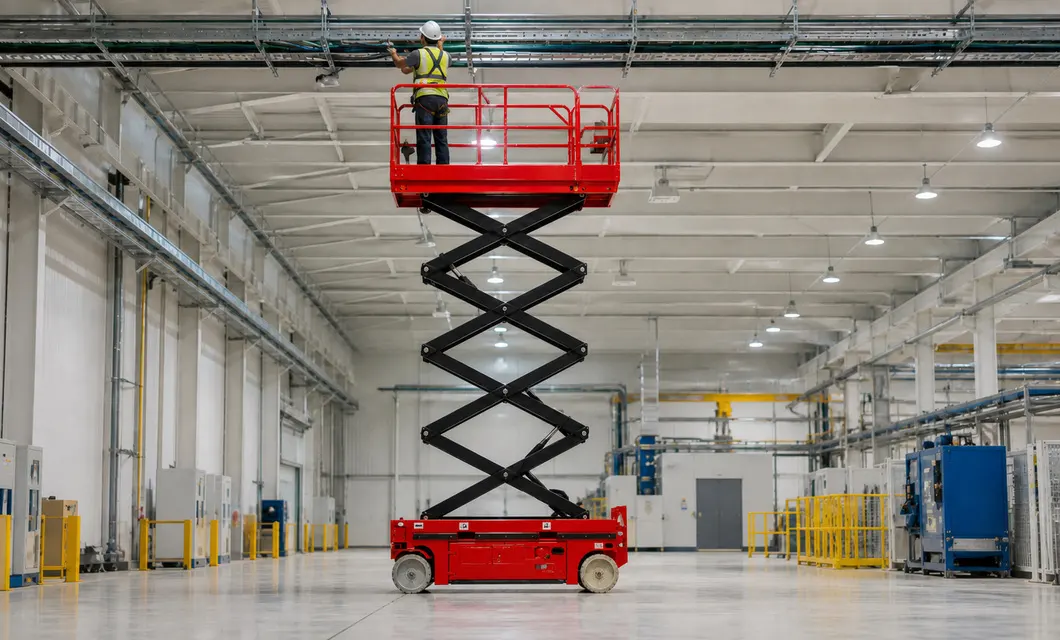

High Access Along Production Utility LinesHigh Access Along Production Utility Lines
Six-Stage Reach for High-Bay LightingSix-Stage Reach for High-Bay Lighting
Tall Outdoor Reach for Logistics CanopiesTall Outdoor Reach for Logistics Canopies
Elevated Service for Large Interior SystemsElevated Service for Large Interior Systems
High Access Along Production Utility LinesHigh Access Along Production Utility Lines

Product Advantages

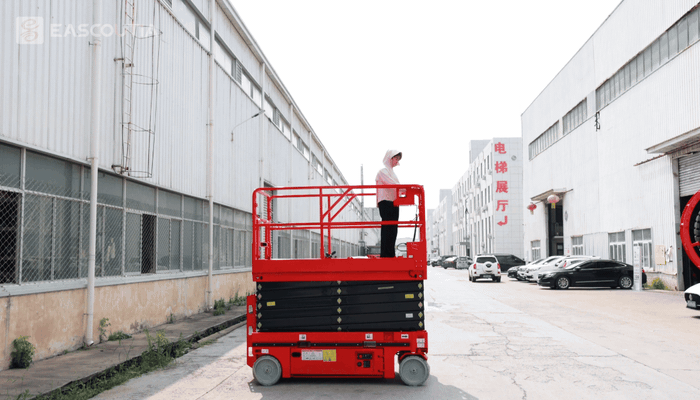

GTJZ-12 - Raising and Lowering

GTJZ-12 - Raising and Lowering

Specifications & Structural Decomposition

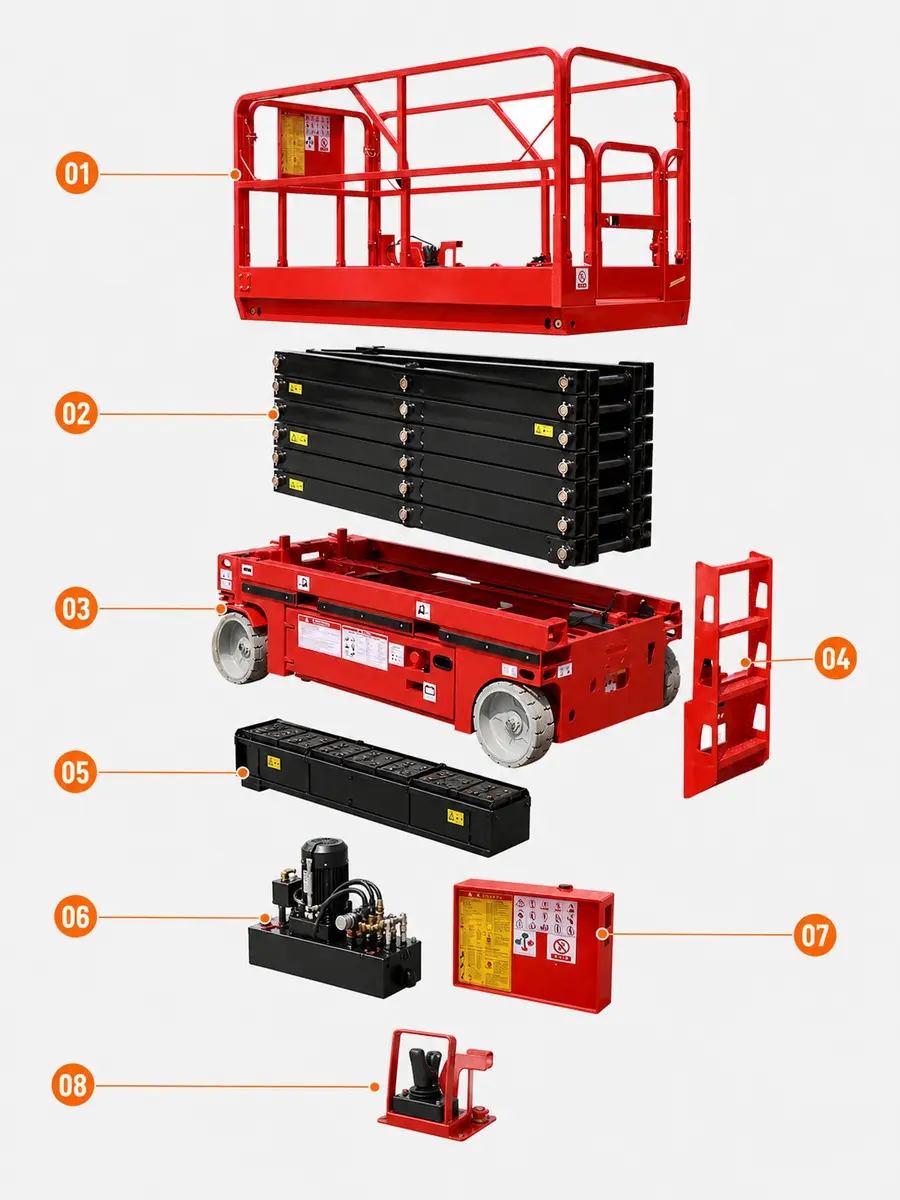

Product Structure Diagram

Product Structure Diagram
  1. Guarded Work Platform Assembly

    The guarded deck and entry gate form the elevated work area, keeping personnel and task equipment within the platform boundary.

  2. Scissor Lift Stack

    The visible six-stage scissor stack links the chassis to the platform and guides controlled vertical movement.

  3. Main Chassis Frame

    The main chassis frame supports the lift stack, running gear and service panels that house the machine operating systems.

  4. Rear Access Steps

    The rear access structure supports entry and service access at the chassis end while remaining separate from the central frame.

  5. Battery Pack Assembly

    The visible battery tray groups the traction batteries in a removable chassis assembly for the electric drive system.

  6. Hydraulic Power Unit

    The motor, pump, reservoir and valve group supplies hydraulic power for platform elevation and controlled lowering.

  7. Ground Control Panel

    The ground panel groups the chassis-side emergency stop, power and status controls used from the lower operating position.

General information

Self-Propelled Electric Scissor Lift
Maximum working height
12m
Maximum platform height
10m
Safe working load
320kg
Extended platform safety working load
100kg
Maximum number of workers
2 people indoors/1 person outdoors
Overall length (collapsed state)
2.41m
Overall width (in the stowed position)
1.18m

General instructions

Simplified explanation

Product Video

00:38

GTJZ-12-Static Display-1

GTJZ-12 static demonstration video, showcasing the overall appearance, structural details, and equipment status.

GTJZ-12-Static Display-1

00:38GTJZ-12 static demonstration video, showcasing the overall appearance, structural details, and equipment status.

GTJZ-10-Operation Video -1

01:24GTJZ-10 operation video, demonstrating equipment movement, lifting and lowering, and the actual operating process.

container loading

00:28Machines neatly stacked and secured with straps, with buffer protection to avoid collision damage in sea transit.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory real scene

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

Battery Drawer

Chassis Side Service Layout

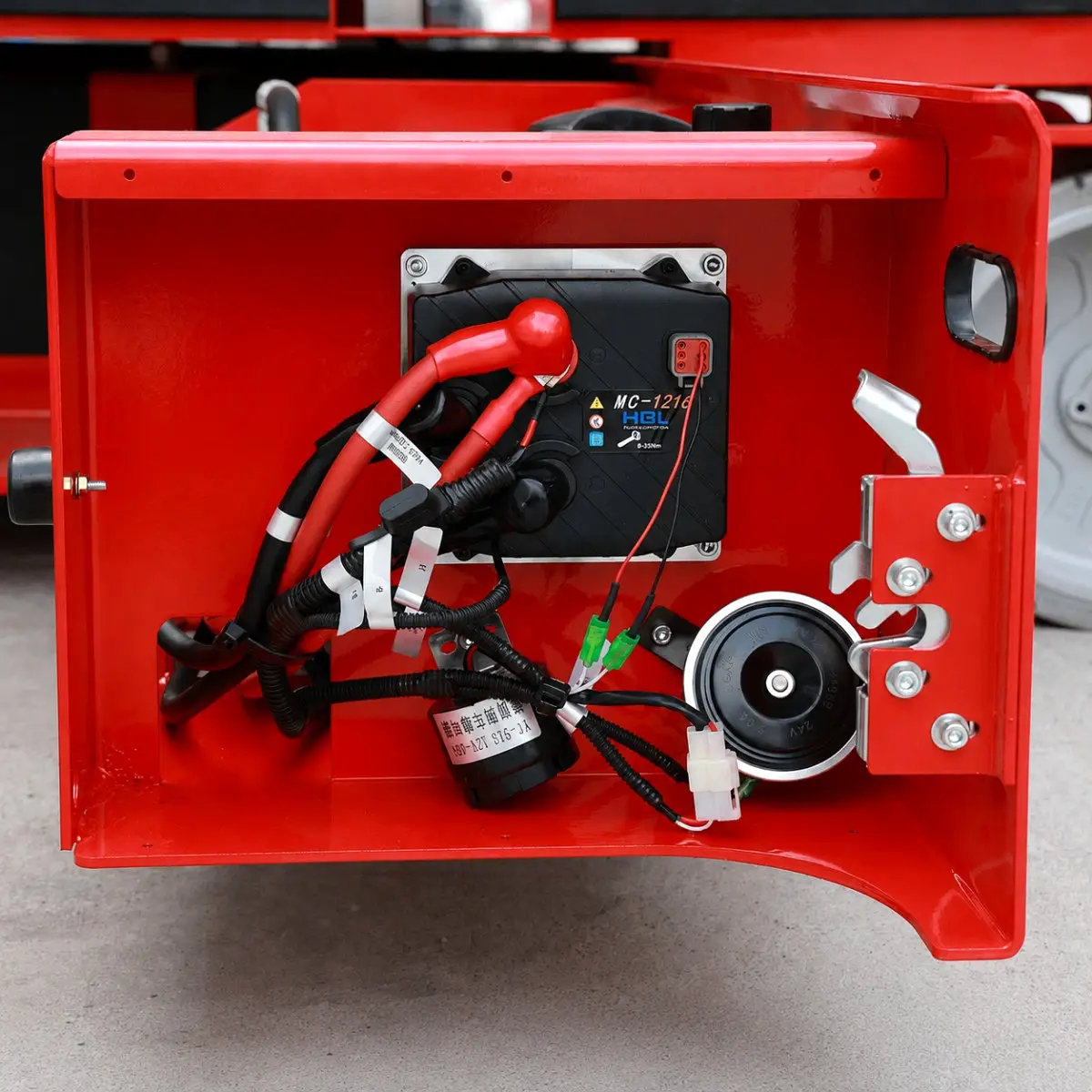

Drive Controller and Horn Compartment

Drive Wheel Assembly

Electrical Control Module

Emergency Lowering and Main Power Switch

Ground Control Panel Closeup

Guardrail Gate and Entry

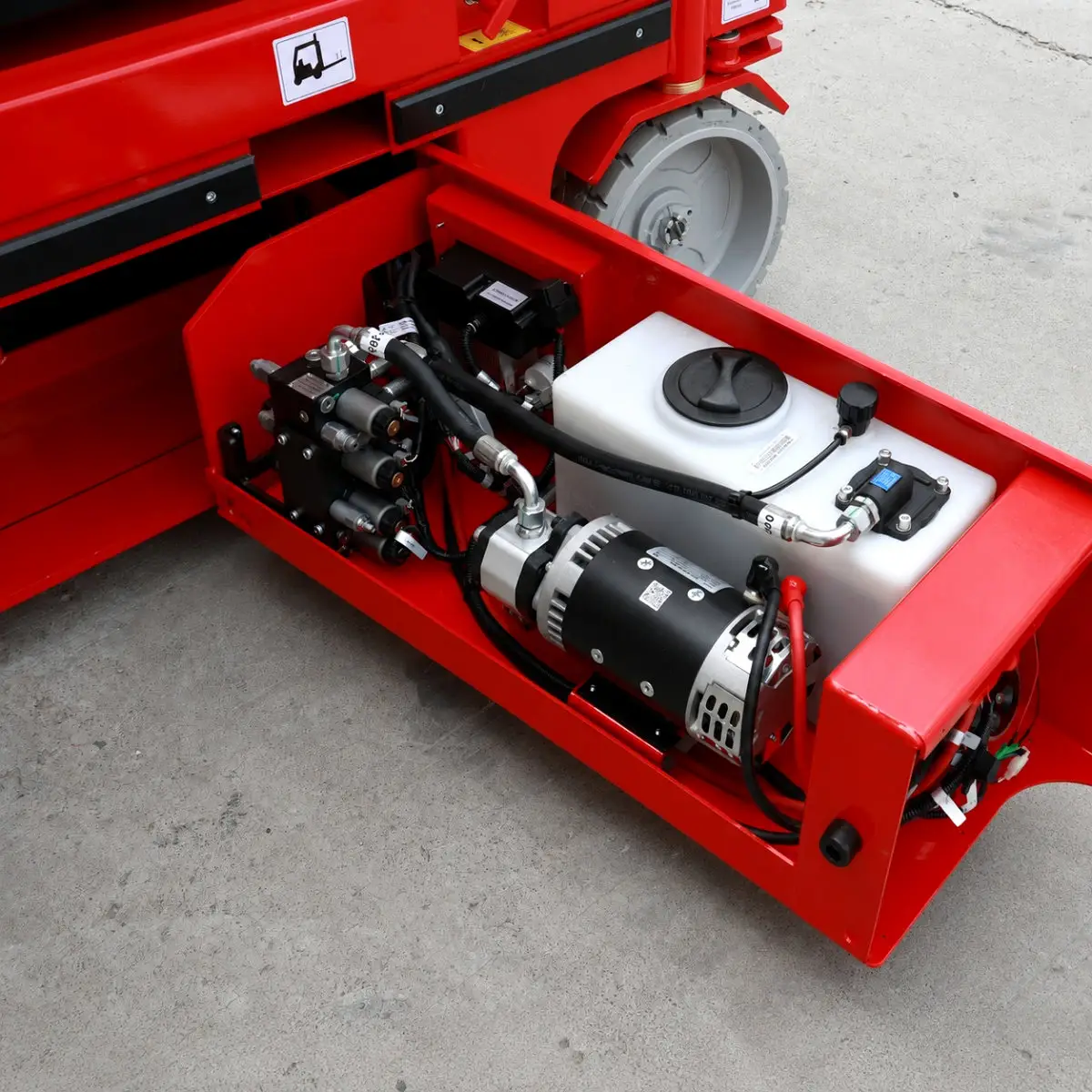

Hydraulic Power Drawer

Platform Control Console

Platform Extension Lock Pedal

Scissor Stack and Base Assembly

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

1. Where is 12-metre electric self-propelled cutting-off... typically used?

1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.

2. How do I choose the right model?

2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.

3. What should be confirmed before ordering?

3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.

4. How should it be installed and maintained?

4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
