Self-Propelled Electric Scissor Lift
Product Video
  • Electric Drive
  • Strong Capacity
  • Easy Control
  • Stable Handling

Material Handling and Elevated Work with 7. 9 m narrow electric self-propelled cutting-off...

7. 9 m narrow electric self-propelled cutting-off high-altitude operating platform is suited to warehouses, factories, yards, construction sites and maintenance operations. It supports loading, stacking, transfer or elevated access within rated capacity and site limits. Before deployment, confirm rated load, lift height, reach, aisle width, power type, tire type and ground condition.

  • Warehouses
  • Factories
  • Yards
  • Maintenance Ops

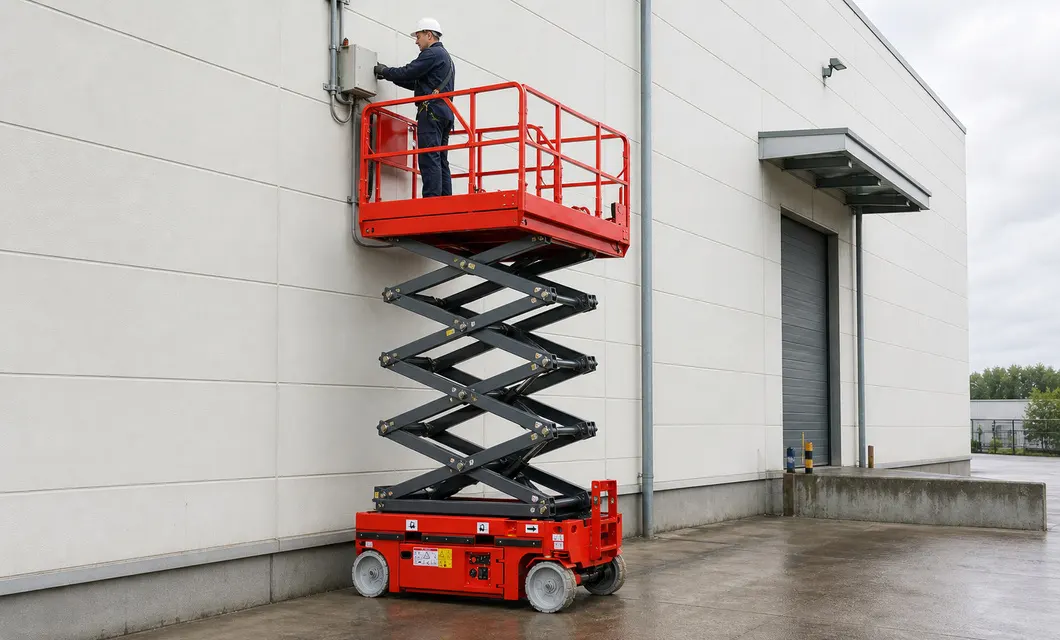

Mobile Access Around Exterior Service AreasMobile Access Around Exterior Service Areas

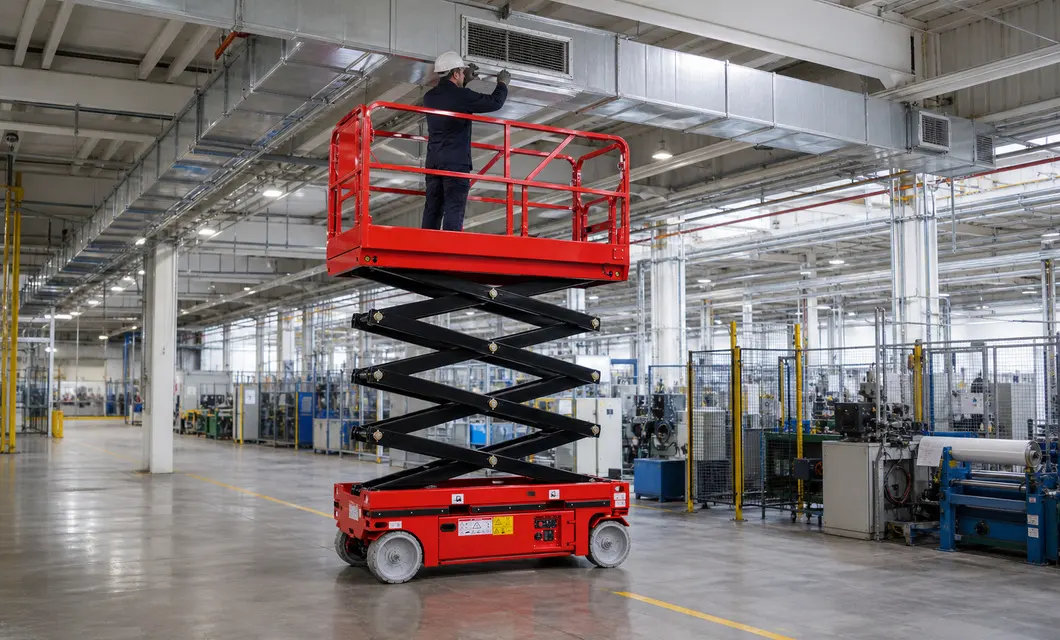

Stable Elevation Beneath Production FixturesStable Elevation Beneath Production Fixtures

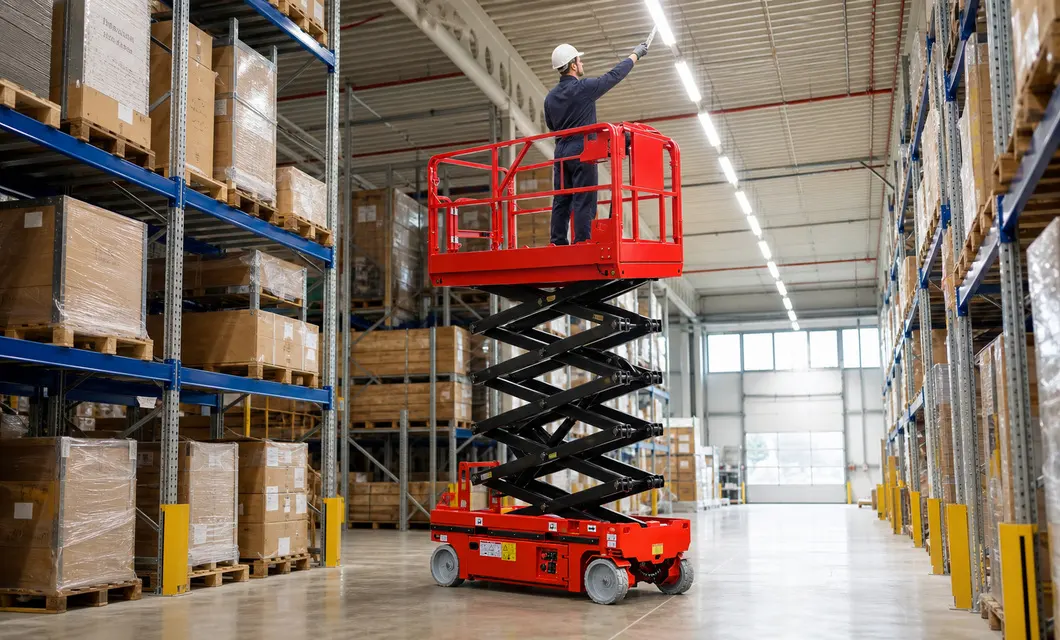

Clear Access Along High Storage AislesClear Access Along High Storage Aisles
Compact Reach for Indoor Ceiling ChecksCompact Reach for Indoor Ceiling Checks
Mobile Access Around Exterior Service AreasMobile Access Around Exterior Service Areas
Stable Elevation Beneath Production FixturesStable Elevation Beneath Production Fixtures
Clear Access Along High Storage AislesClear Access Along High Storage Aisles
Compact Reach for Indoor Ceiling ChecksCompact Reach for Indoor Ceiling Checks

Product Advantages

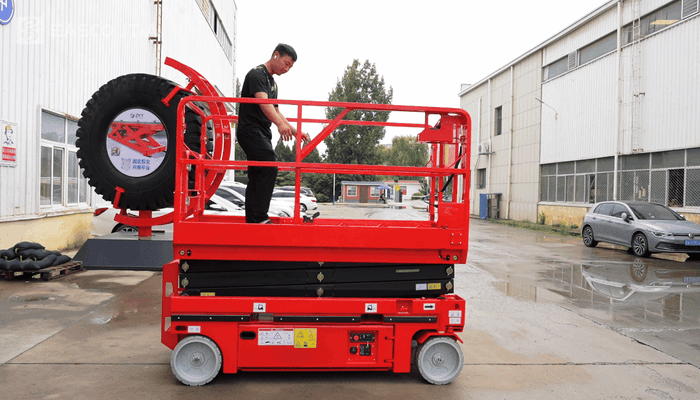

GTJZ-06 - Platform Extension

GTJZ-06 - Platform Extension

Specifications & Structural Decomposition

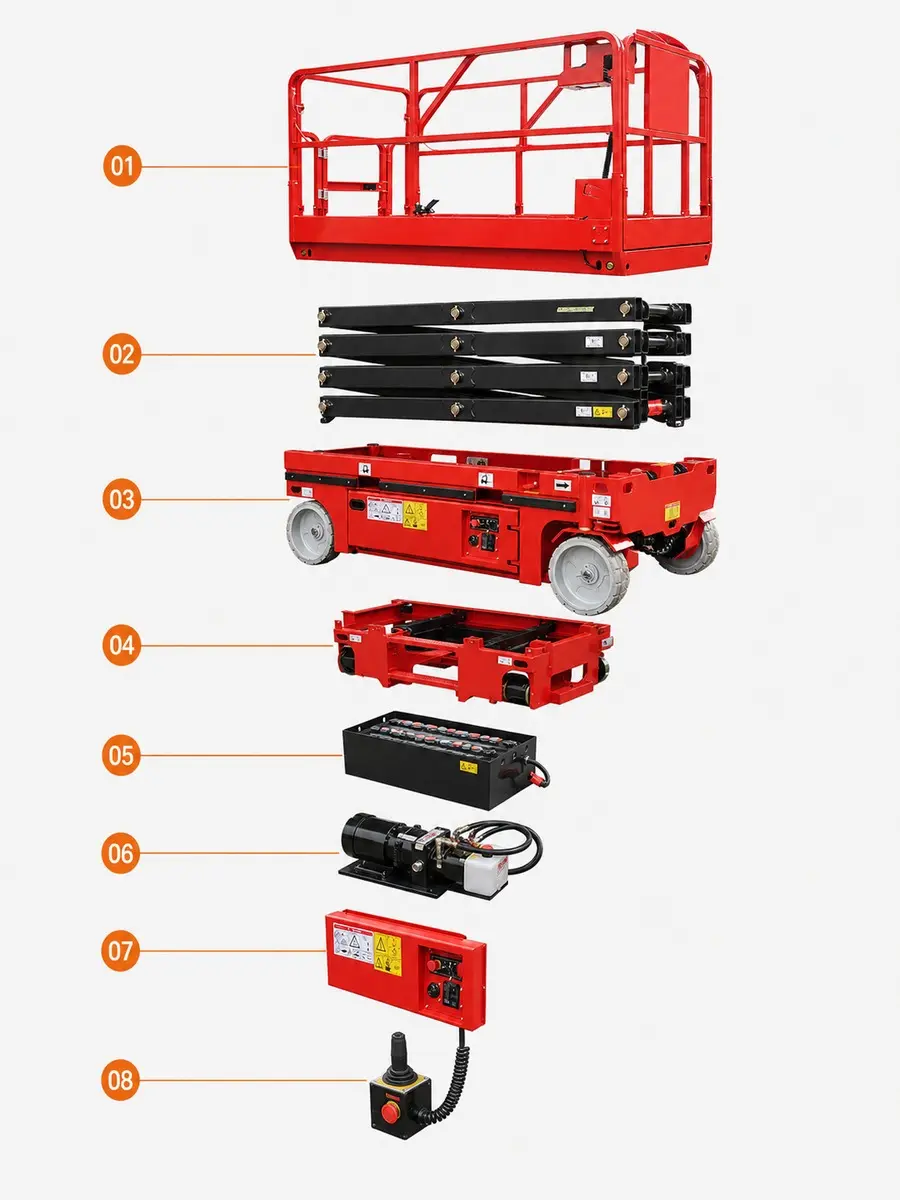

Product Structure Diagram

Product Structure Diagram
  1. Guarded Work Platform Assembly

    The guarded deck and entry gate form the elevated work area, keeping personnel and task equipment within the platform boundary.

  2. Scissor Lift Stack

    The visible four-stage scissor stack links the chassis to the platform and guides controlled vertical movement.

  3. Main Chassis Frame

    The main chassis frame supports the lift stack, running gear and service panels that house the machine operating systems.

  4. Rear Base Assembly

    The rear access structure supports entry and service access at the chassis end while remaining separate from the central frame.

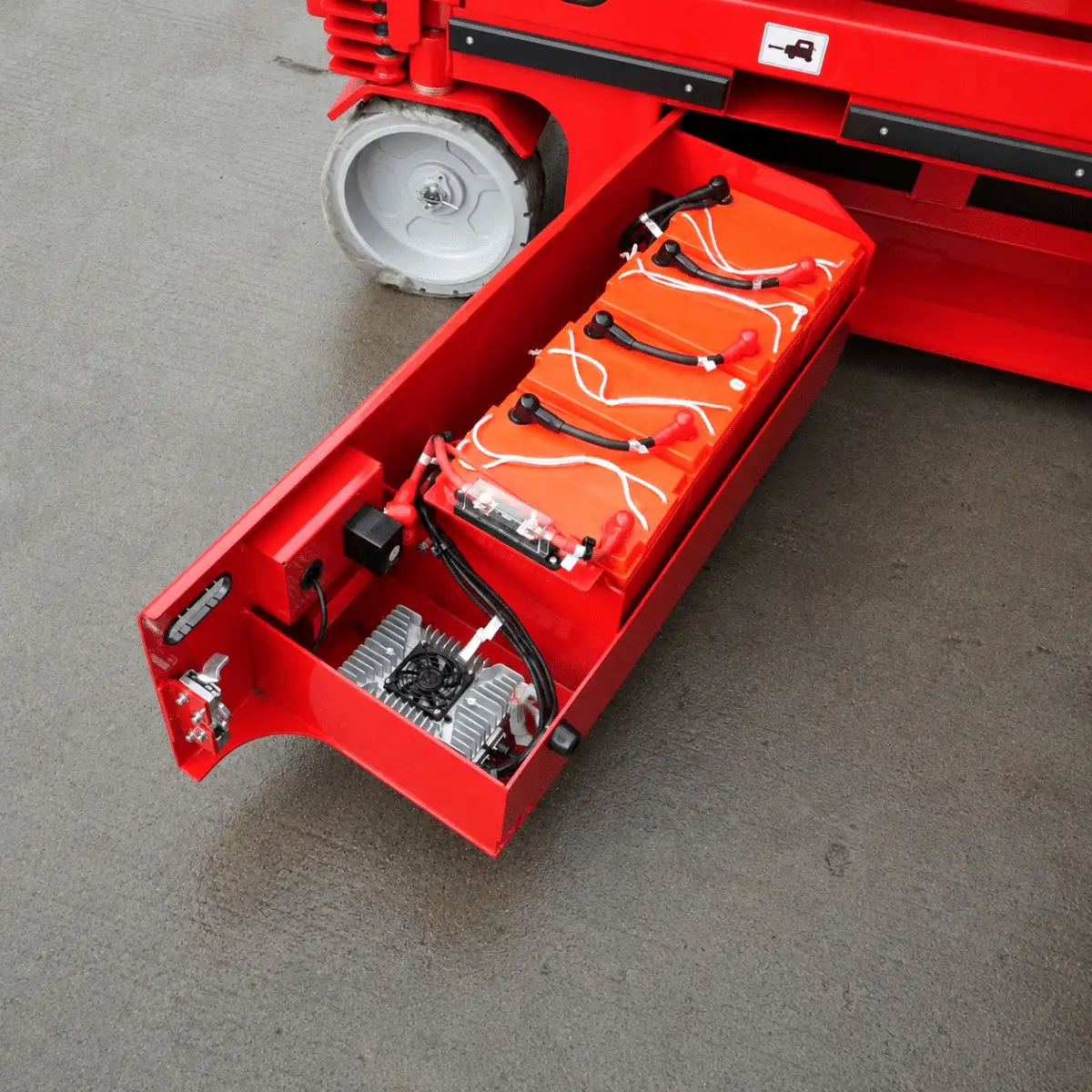

  5. Battery Pack Assembly

    The visible battery tray groups the traction batteries in a removable chassis assembly for the electric drive system.

  6. Hydraulic Power Unit

    The motor, pump, reservoir and valve group supplies hydraulic power for platform elevation and controlled lowering.

  7. Ground Control Panel

    The ground panel groups the chassis-side emergency stop, power and status controls used from the lower operating position.

General information

Self-Propelled Electric Scissor Lift
Maximum working height
7.9m
Maximum platform height
5.9m
Safe working load
230kg
Extended platform safety working load
100kg
Maximum number of workers
2 people indoors/1 person outdoors
Overall length (collapsed state)
1.82m
Overall width (in the stowed position)
0.8m

General instructions

Simplified explanation

Product Video

00:50

GTJZ-06 (Small 6) dynamic plus static

Lift controls are available on the platform and at ground level, allowing height adjustment from either position on the site.

GTJZ-06 (Small 6) dynamic plus static

00:50Lift controls are available on the platform and at ground level, allowing height adjustment from either position on the site.

GTJZ-06 (Small 6) Operation

01:45GTJZ-06 Operation Video: Demonstrates the equipment’s traveling, lifting, and on-site operating procedures.

Container loading

00:28Machines are neatly placed and secured with straps. Proper protection reduces shaking and impact in sea shipment.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory real scene

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

Battery Pack

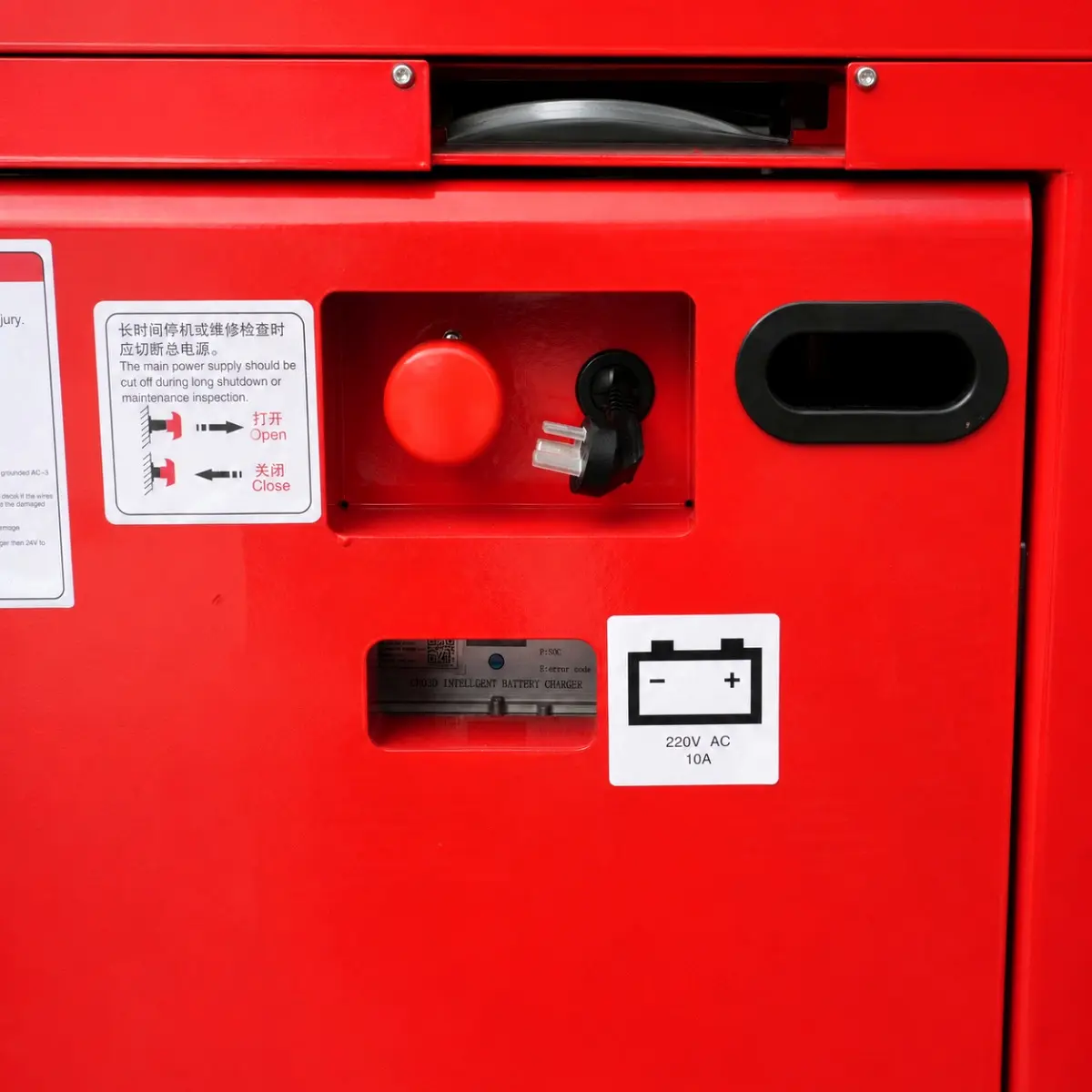

Charging Port and Main Power Switch

Drive Control Joystick

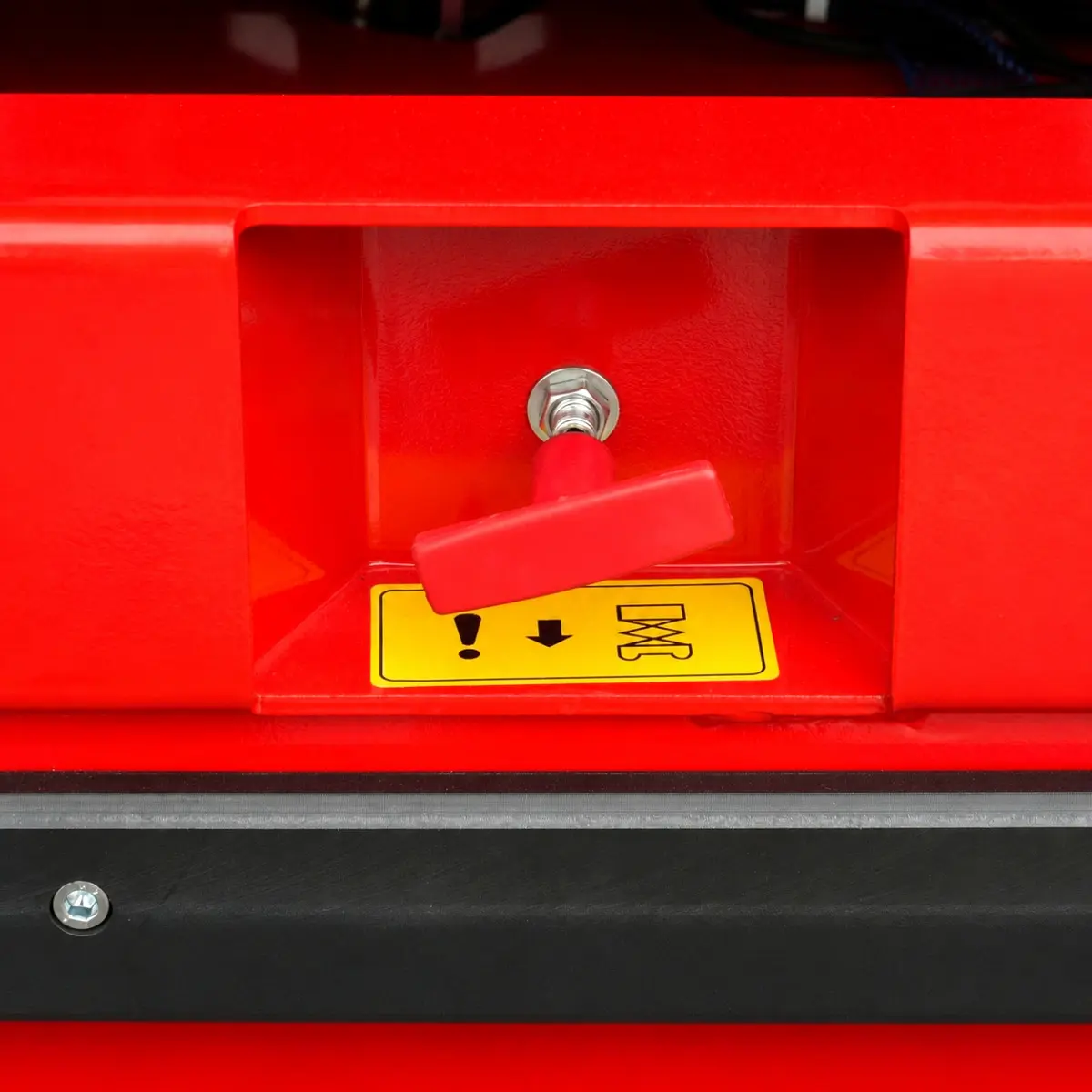

Emergency Lowering Valve

Extension Platform Deck

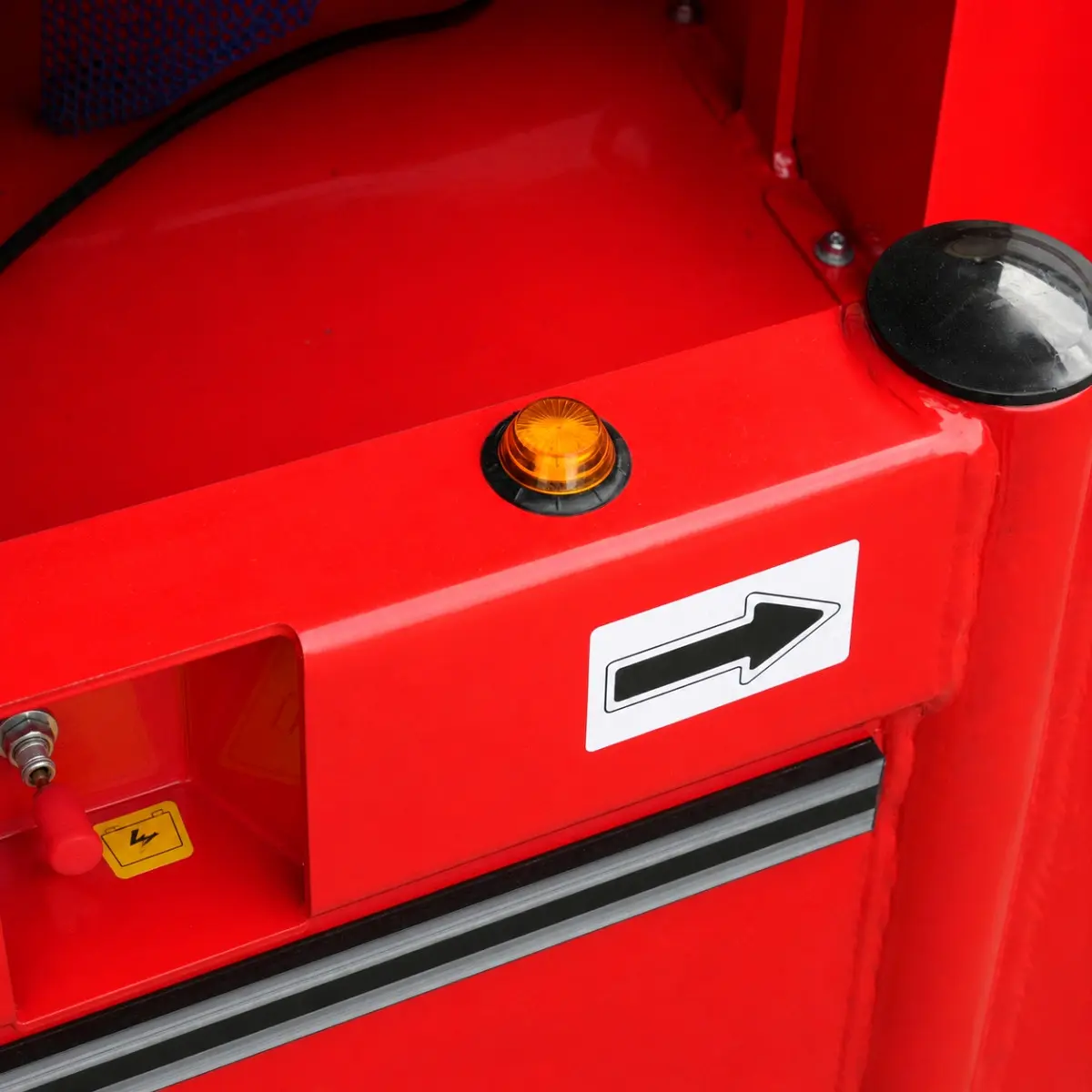

Flashing Warning Beacon

Ground Control Panel

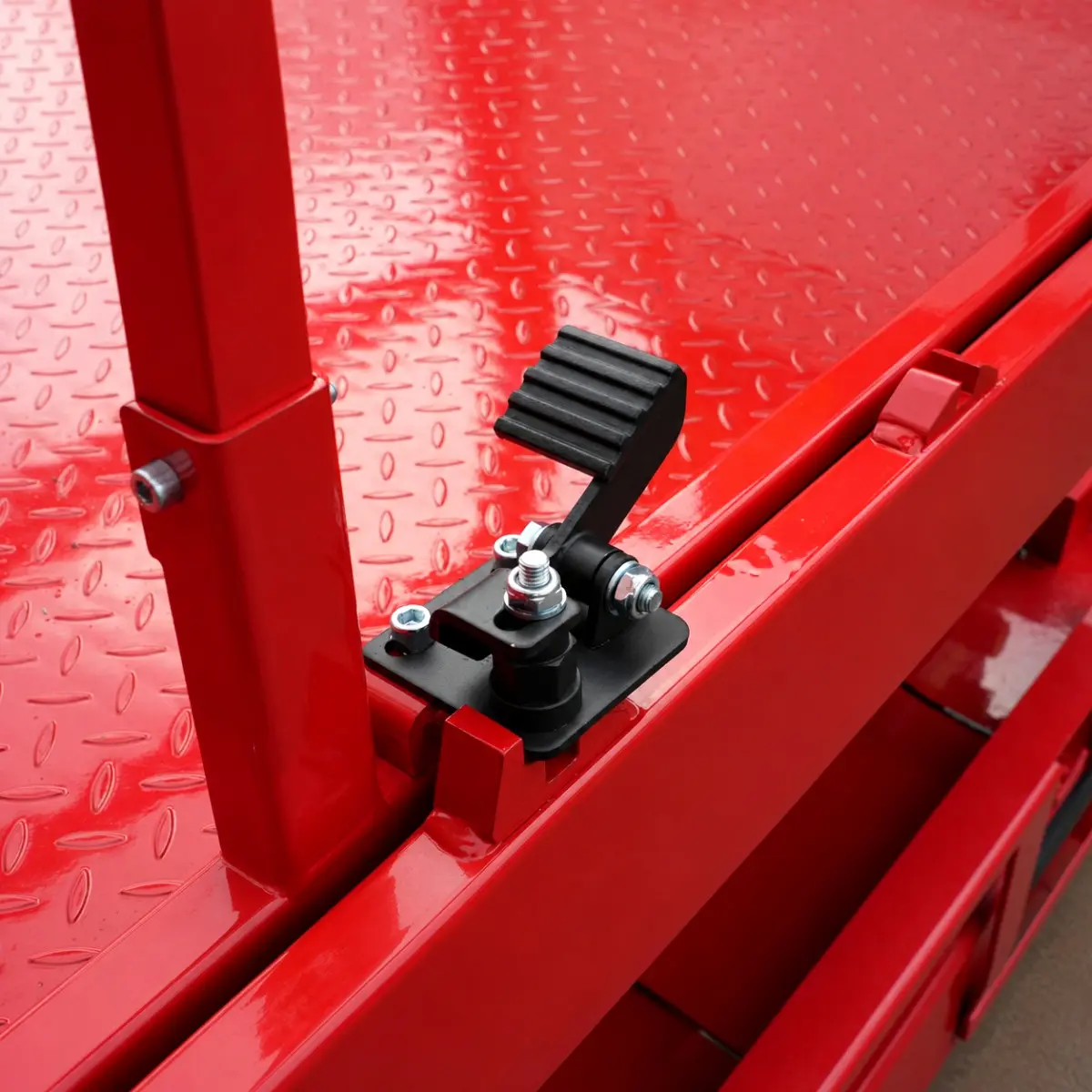

Guardrail Gate Latch

Hydraulic Power Unit

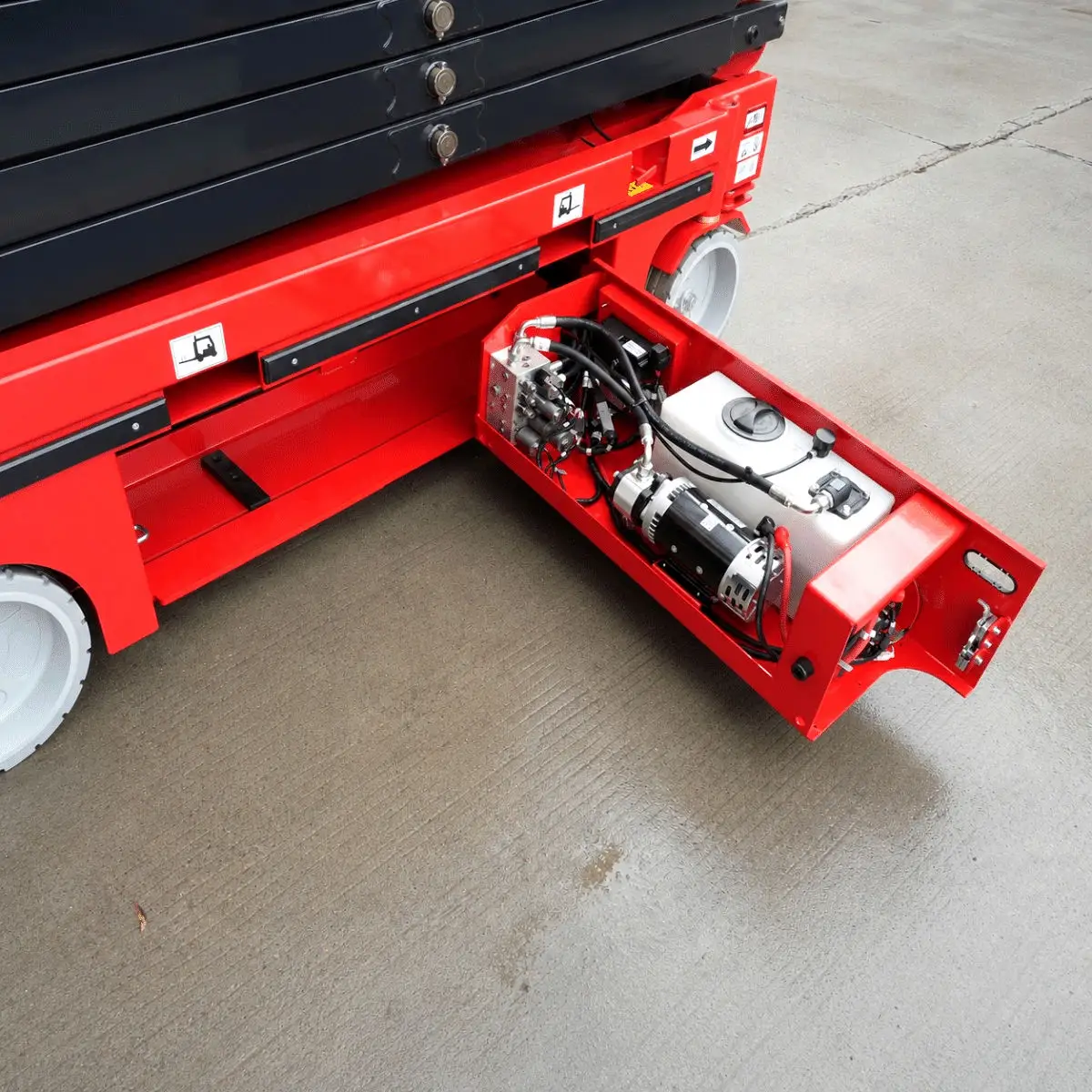

Hydraulic Service Compartment

Platform Control Console

Scissor Arm Pivot Pins

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

1. Where is 7. 9 m narrow electric self-propelled cutting-off... typically used?

1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.

2. How do I choose the right model?

2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.

3. What should be confirmed before ordering?

3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.

4. How should it be installed and maintained?

4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
