Self-Propelled Electric Scissor Lift
Product VideoManual
  • Electric Drive
  • Strong Capacity
  • Easy Control
  • Stable Handling

Material Handling and Elevated Work with Ten metres narrow electric self-propelled cutting-off...

Ten metres narrow electric self-propelled cutting-off high-altitude operating platform is suited to warehouses, factories, yards, construction sites and maintenance operations. It supports loading, stacking, transfer or elevated access within rated capacity and site limits. Before deployment, confirm rated load, lift height, reach, aisle width, power type, tire type and ground condition.

  • Warehouses
  • Factories
  • Yards
  • Maintenance Ops
Precise Access Along Production Utility RoutesPrecise Access Along Production Utility Routes

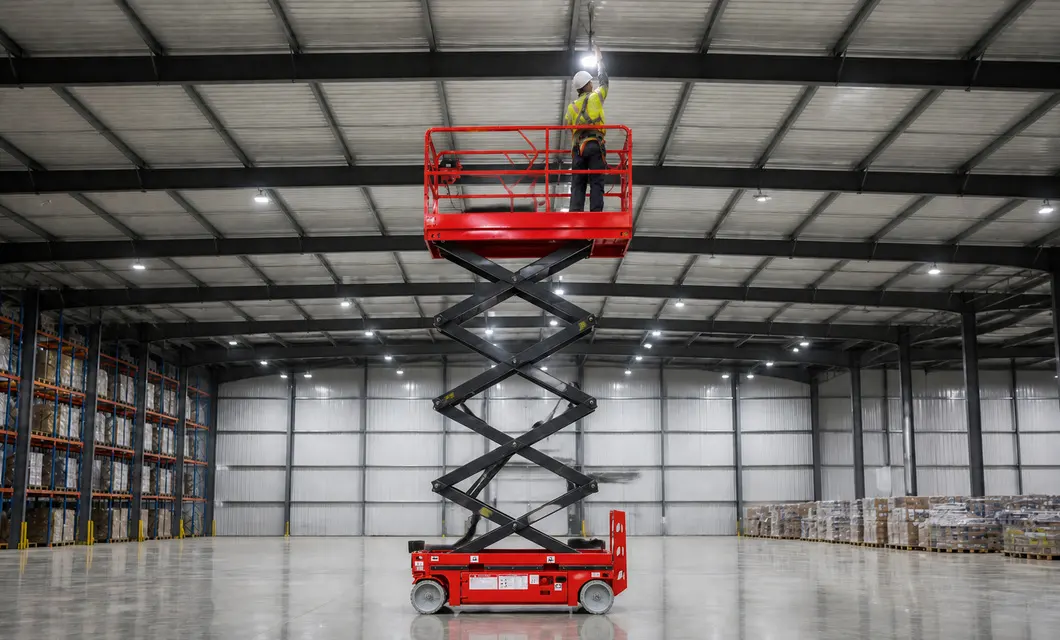

Reliable Reach for High-Bay Lighting ChecksReliable Reach for High-Bay Lighting Checks
Compact Service Access for Finished InteriorsCompact Service Access for Finished Interiors

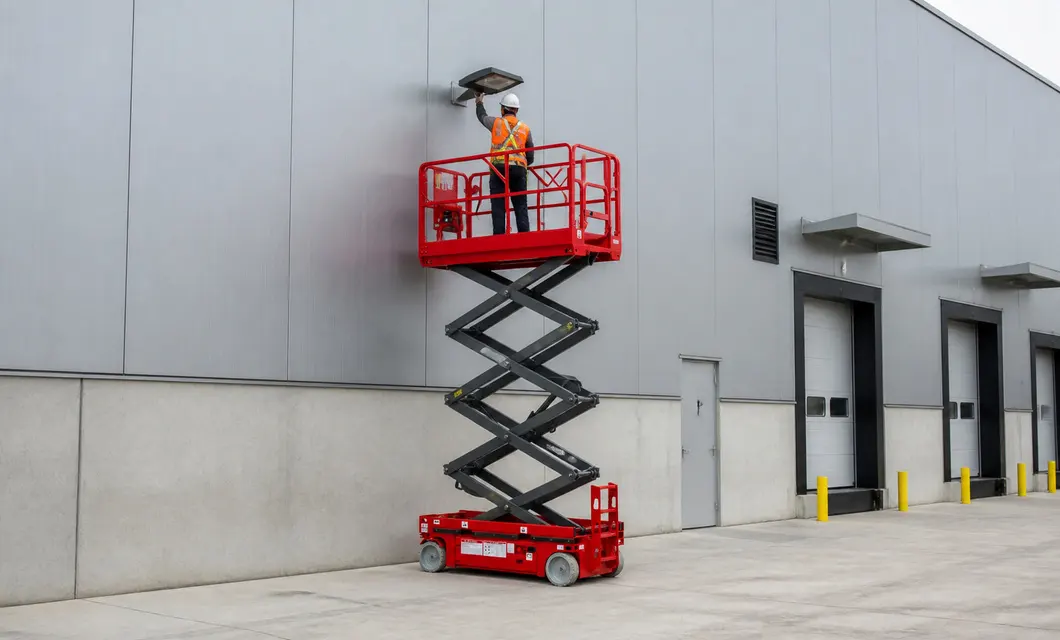

Controlled Elevation at Exterior Loading AreasControlled Elevation at Exterior Loading Areas
Precise Access Along Production Utility RoutesPrecise Access Along Production Utility Routes
Reliable Reach for High-Bay Lighting ChecksReliable Reach for High-Bay Lighting Checks
Compact Service Access for Finished InteriorsCompact Service Access for Finished Interiors
Controlled Elevation at Exterior Loading AreasControlled Elevation at Exterior Loading Areas

Product Advantages

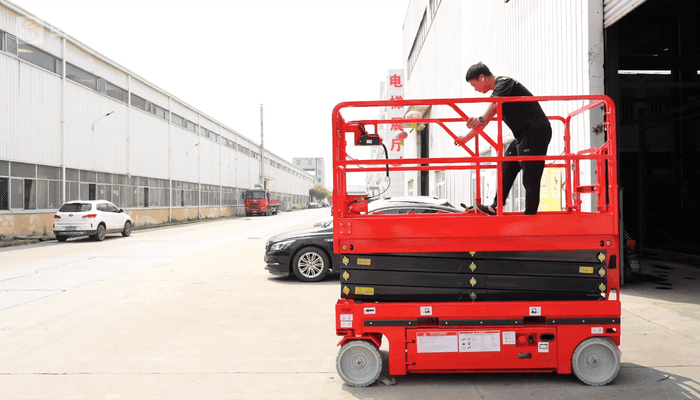

GTJZ-08 - Platform Extension

GTJZ-08 - Platform Extension

Specifications & Structural Decomposition

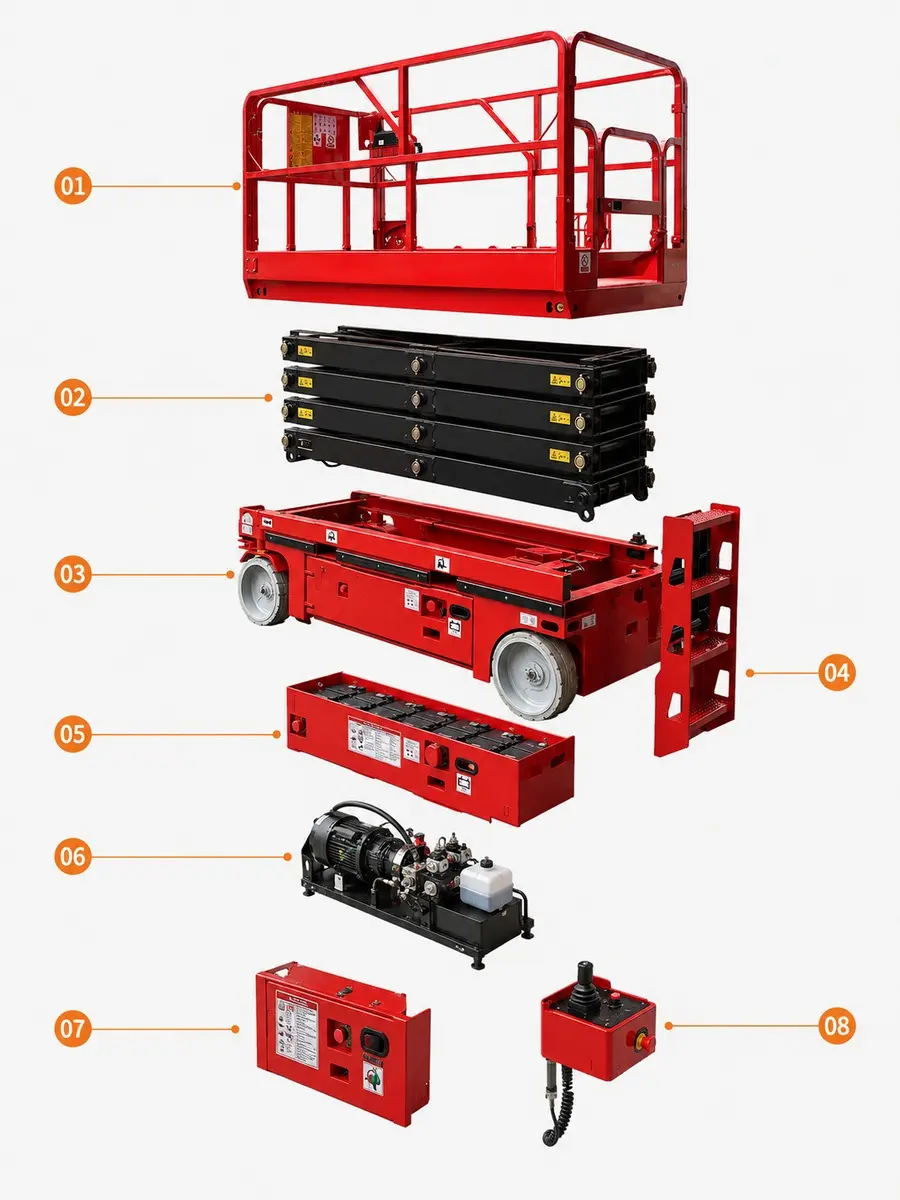

Product Structure Diagram

Product Structure Diagram
  1. Guarded Work Platform Assembly

    The guarded deck and entry gate form the elevated work area, keeping personnel and task equipment within the platform boundary.

  2. Scissor Lift Stack

    The visible four-stage scissor stack links the chassis to the platform and guides controlled vertical movement.

  3. Main Chassis Frame

    The main chassis frame supports the lift stack, running gear and service panels that house the machine operating systems.

  4. Rear Access Steps

    The rear access structure supports entry and service access at the chassis end while remaining separate from the central frame.

  5. Battery Tray Assembly

    The visible battery tray groups the traction batteries in a removable chassis assembly for the electric drive system.

  6. Hydraulic Power Unit

    The motor, pump, reservoir and valve group supplies hydraulic power for platform elevation and controlled lowering.

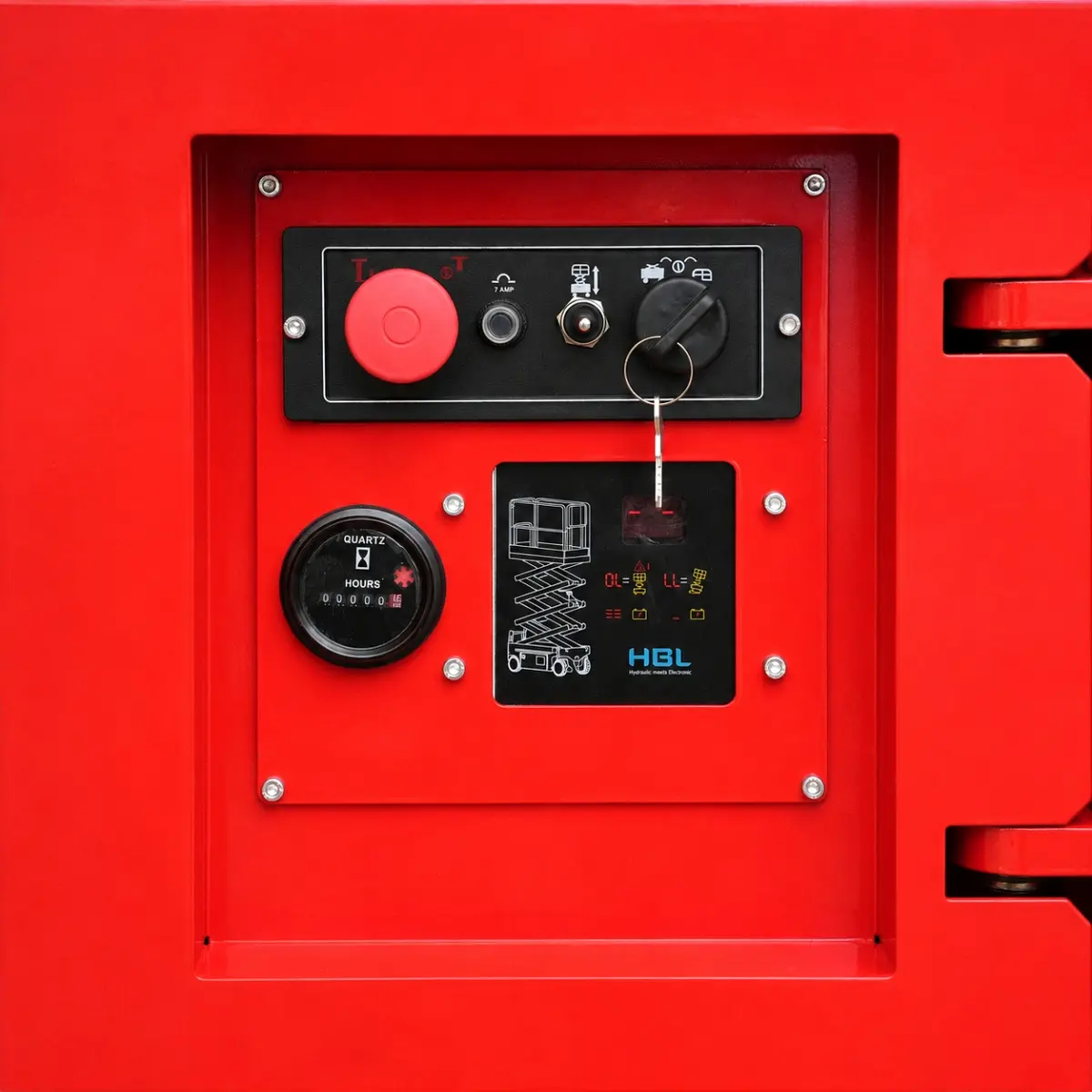

  7. Ground Control Panel

    The ground panel groups the chassis-side emergency stop, power and status controls used from the lower operating position.

General information

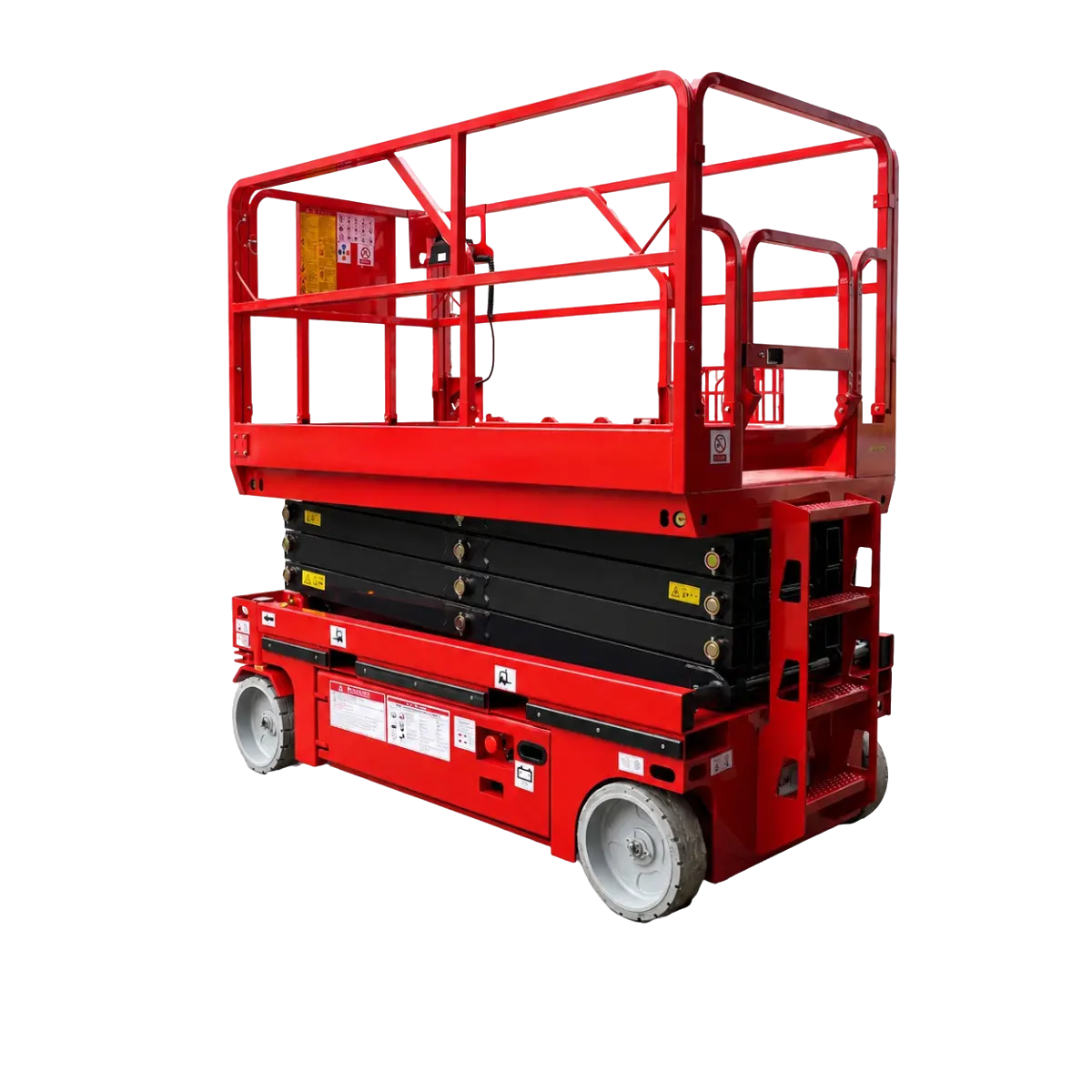

Self-Propelled Electric Scissor Lift
Maximum working height
10m
Maximum platform height
8m
Safe working load
230kg
Extended platform safety working load
100kg
Maximum number of workers
2 people indoors/1 person outdoors
Overall length (collapsed state)
2.41m
Overall width (in the stowed position)
0.81m

General instructions

Simplified explanation

Product Video

00:52

GTJZ-08 Static Display

The battery and hydraulic compartments swing outward, providing access to their components for routine inspection and maintenance of the machine.

GTJZ-08 Static Display

00:52The battery and hydraulic compartments swing outward, providing access to their components for routine inspection and maintenance of the machine.

GTJZ-08 Operation Video

01:07Lift controls are available on the platform and at ground level, allowing height adjustment from either position on the site.

container loading

00:28Machines arranged in order, fastened with straps and cushioned against bumps during sea transport.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory real scene

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

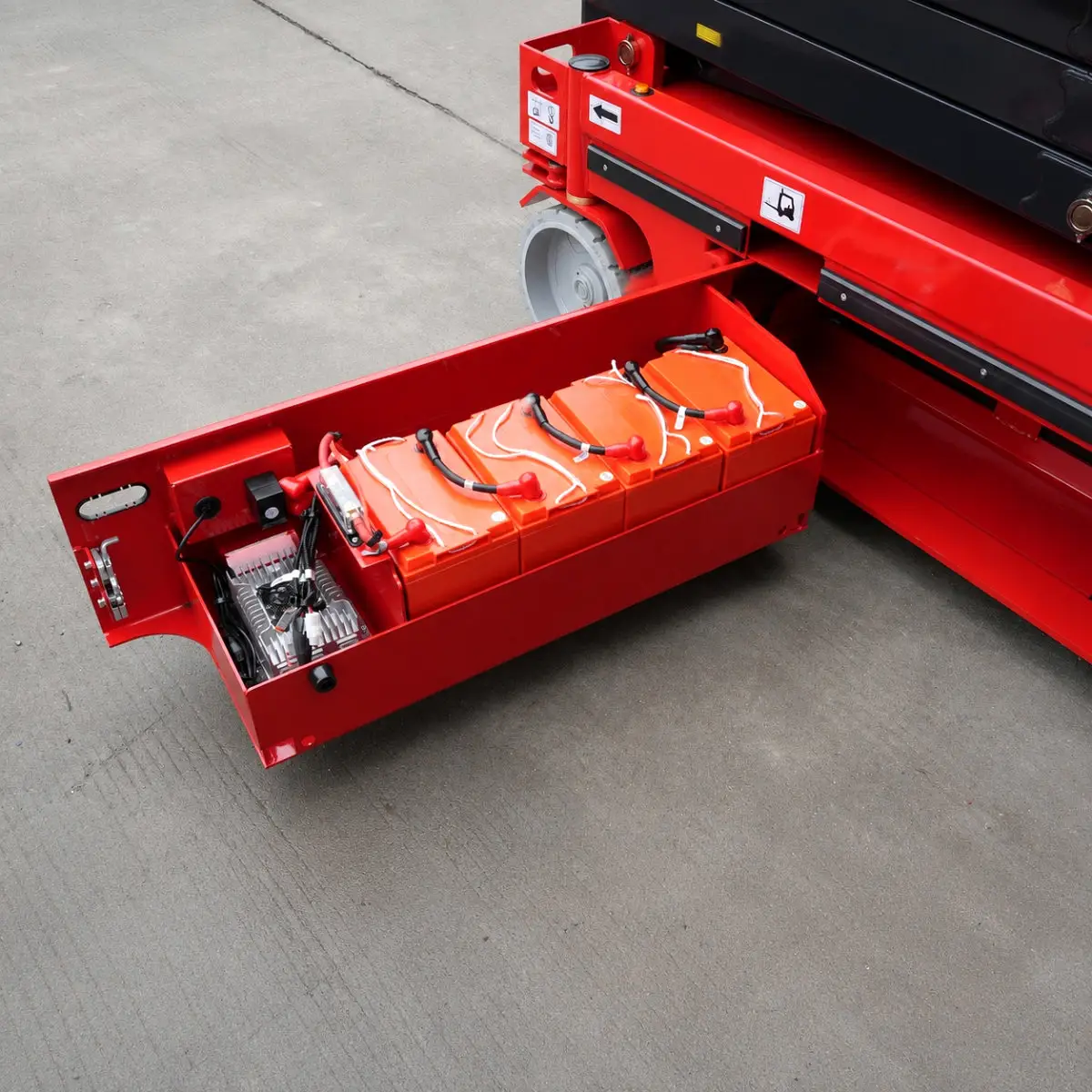

Battery Drawer

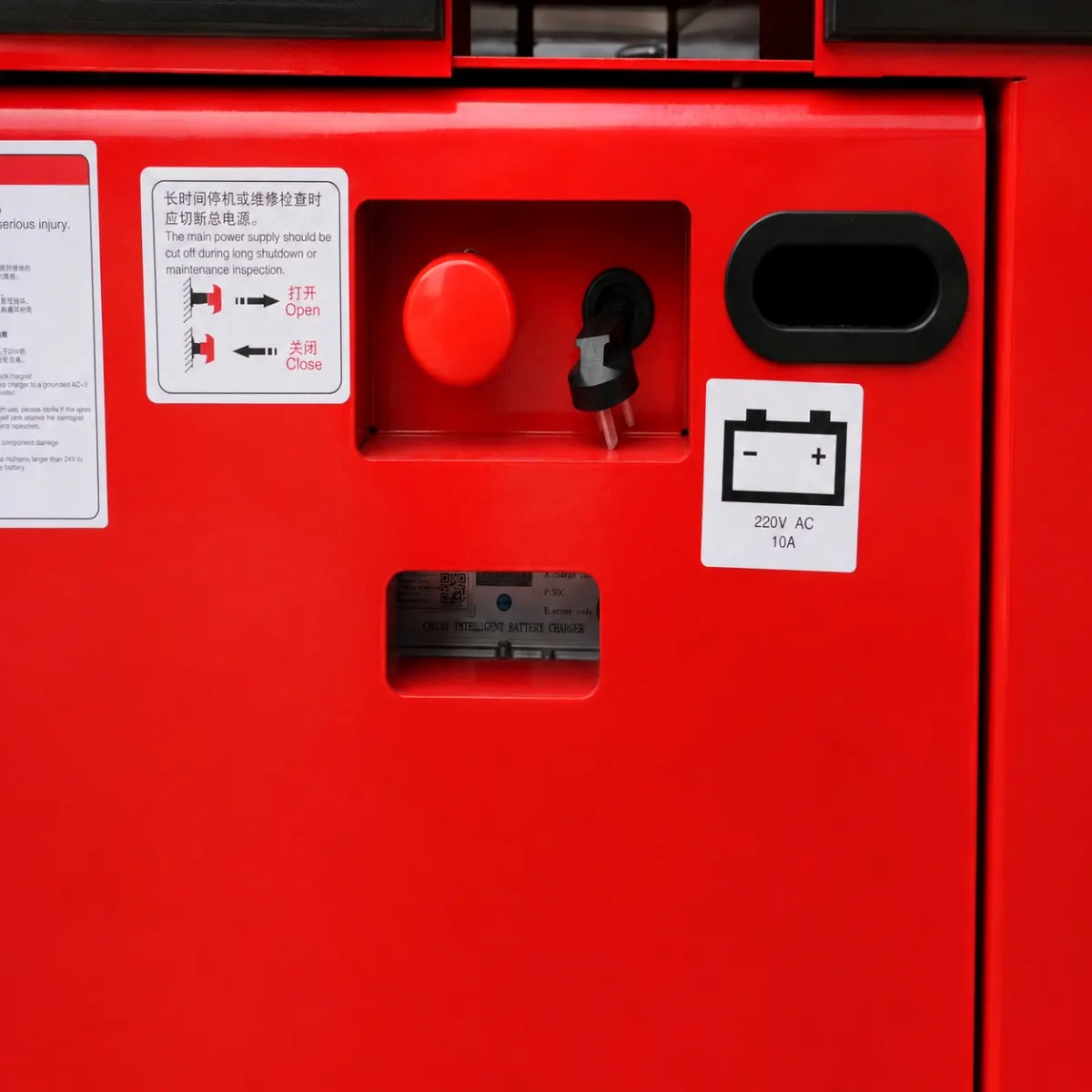

Charging Port and Main Power Switch

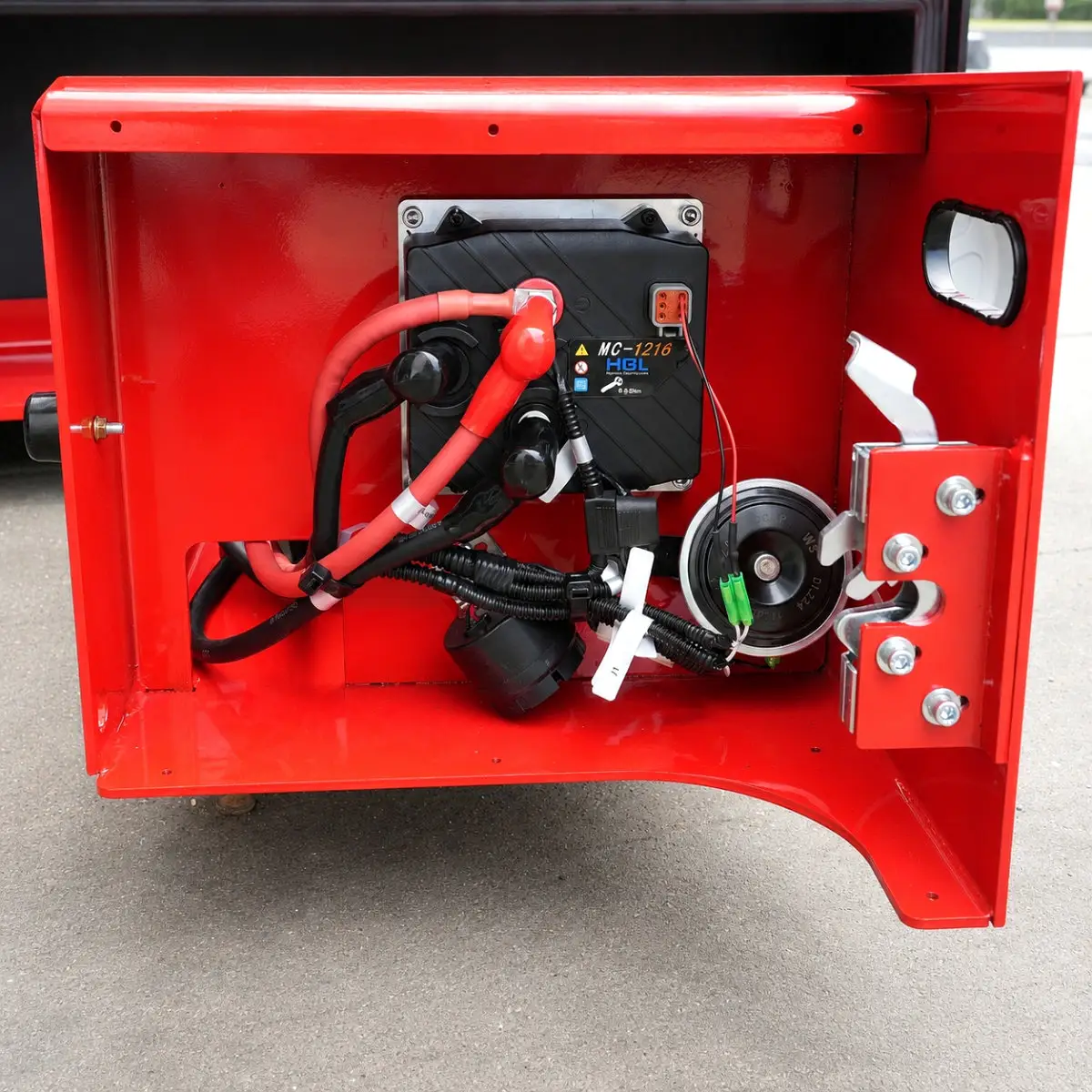

Drive Controller and Horn Compartment

Drive Wheel Assembly

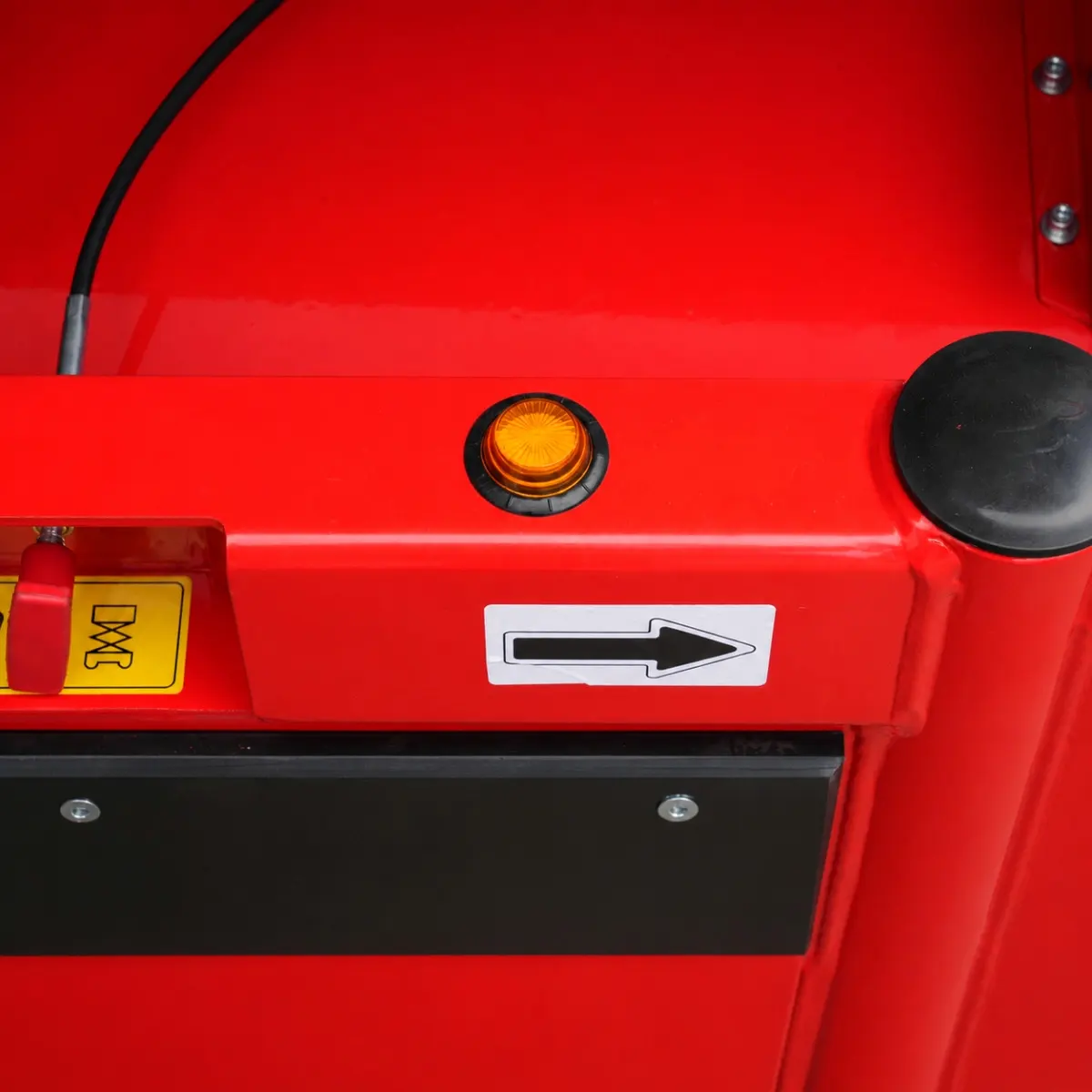

Flashing Warning Beacon

Ground Control Panel Closeup

Guardrail Gate and Entry Step

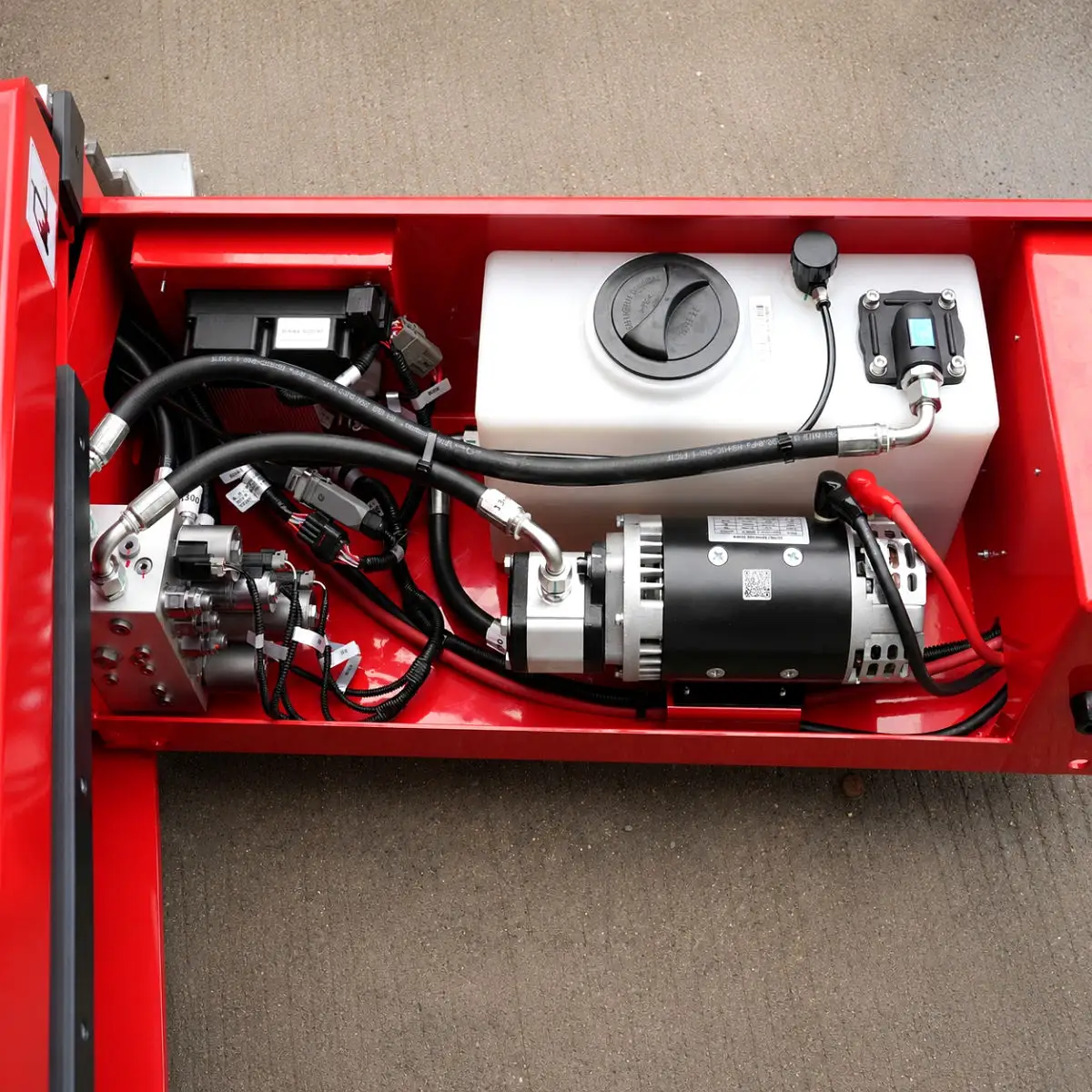

Hydraulic Power Unit

Platform Control Console

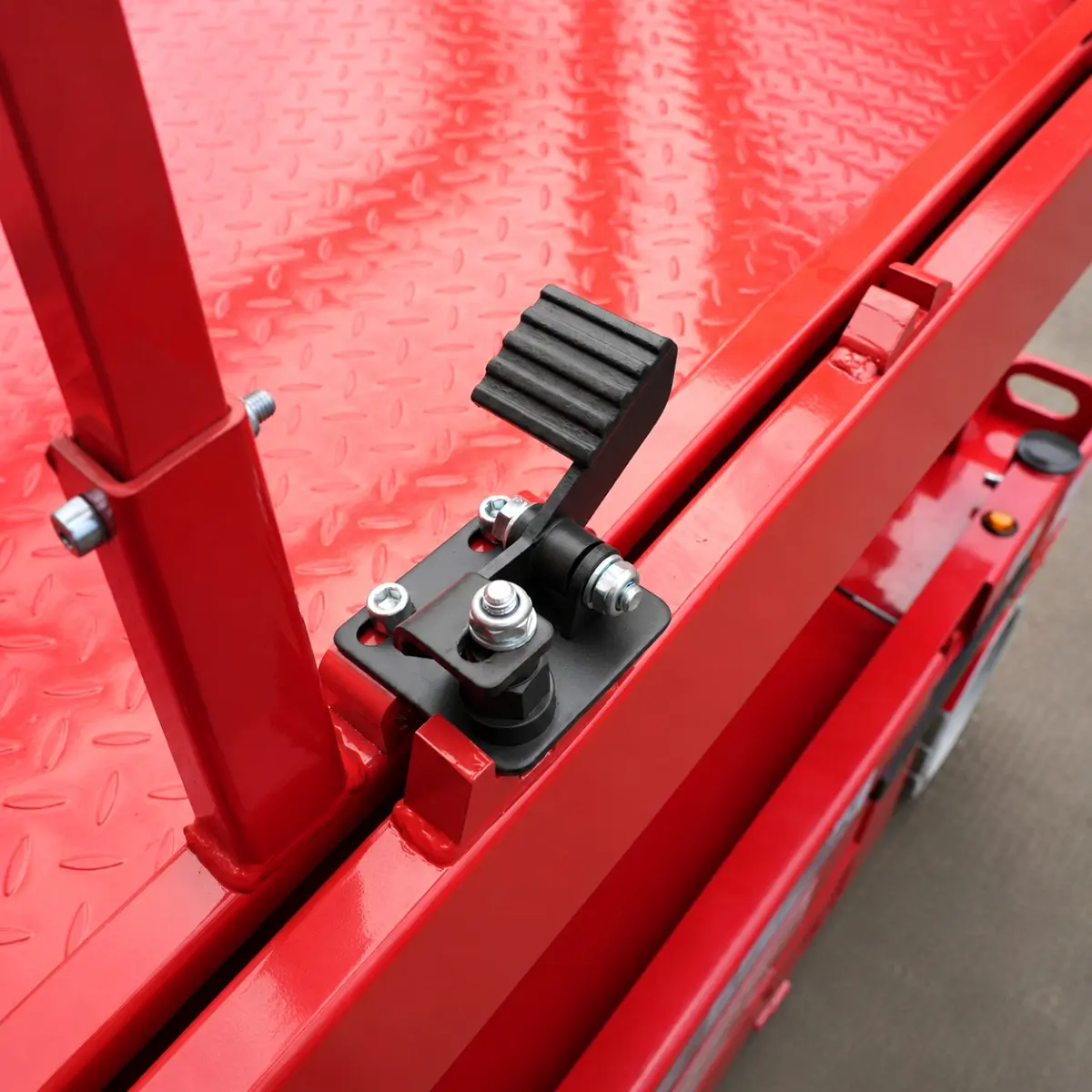

Platform Extension Lock Pedal

Rear Steering Cable Assembly

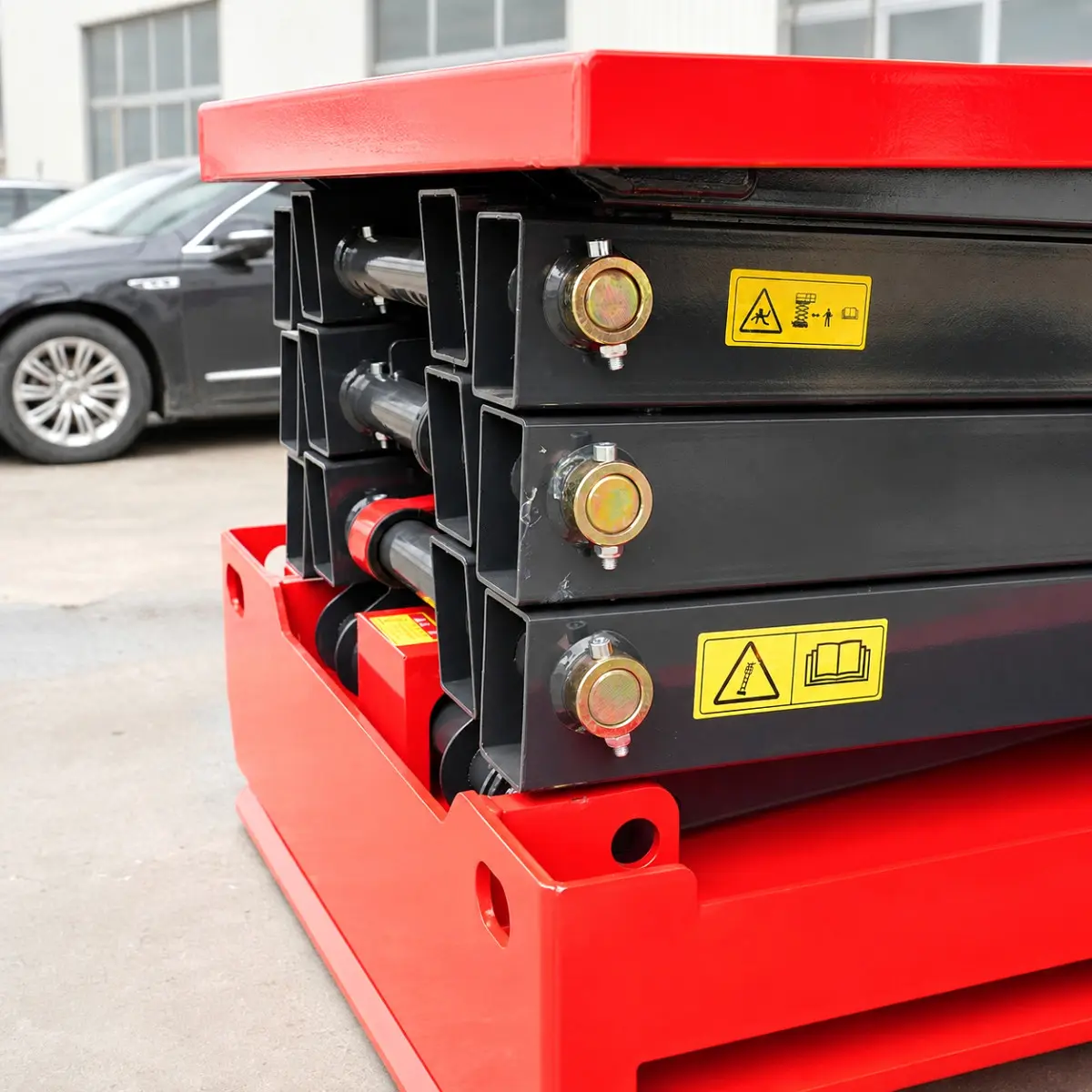

Scissor Arm Pivot Pins

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

1. Where is Ten metres narrow electric self-propelled cutting-off... typically used?

1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.

2. How do I choose the right model?

2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.

3. What should be confirmed before ordering?

3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.

4. How should it be installed and maintained?

4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
