Self-Propelled Electric Scissor Lift
Product Video
  • Electric Drive
  • Strong Capacity
  • Easy Control
  • Stable Handling

Material Handling and Elevated Work with 10 m wide heavy-load electric self-propelled cutting...

10 m wide heavy-load electric self-propelled cutting high-altitude operating platform is suited to warehouses, factories, yards, construction sites and maintenance operations. It supports loading, stacking, transfer or elevated access within rated capacity and site limits. Before deployment, confirm rated load, lift height, reach, aisle width, power type, tire type and ground condition.

  • Warehouses
  • Factories
  • Yards
  • Maintenance Ops
Stable Access Along Production UtilitiesStable Access Along Production Utilities

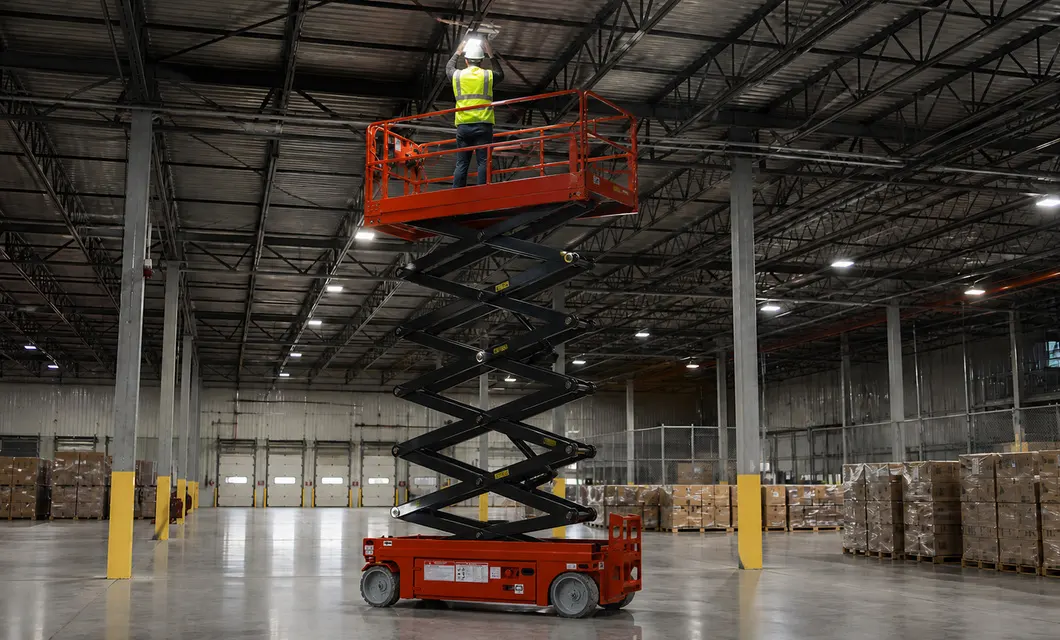

Wide Platform Reach for Warehouse LightingWide Platform Reach for Warehouse Lighting
Elevated Service for Large Public InteriorsElevated Service for Large Public Interiors

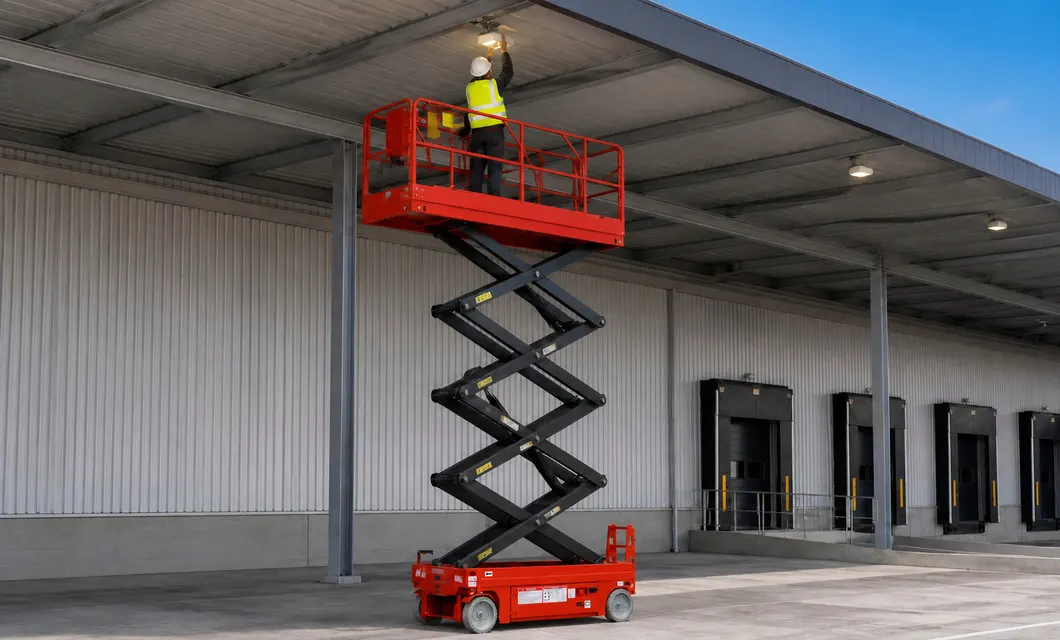

Outdoor Reach for Logistics Canopy CareOutdoor Reach for Logistics Canopy Care
Stable Access Along Production UtilitiesStable Access Along Production Utilities
Wide Platform Reach for Warehouse LightingWide Platform Reach for Warehouse Lighting
Elevated Service for Large Public InteriorsElevated Service for Large Public Interiors
Outdoor Reach for Logistics Canopy CareOutdoor Reach for Logistics Canopy Care

Product Advantages

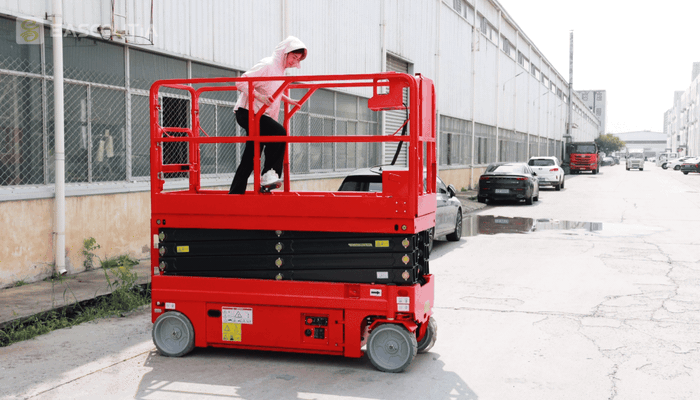

GTJZ-08 (Wide Version) - Platform Extension

GTJZ-08 (Wide Version) - Platform Extension

Specifications & Structural Decomposition

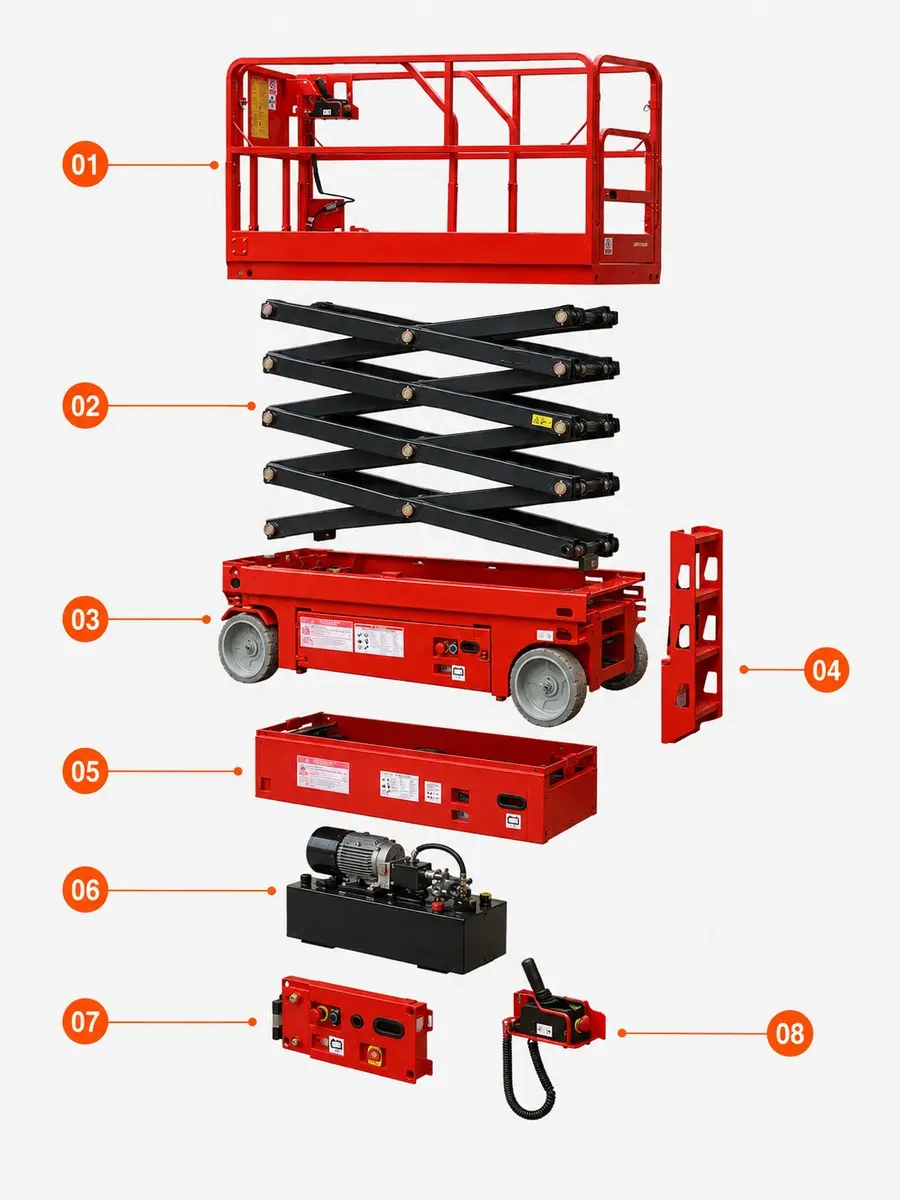

Product Structure Diagram

Product Structure Diagram
  1. Wide Guarded Work Platform

    The guarded deck and entry gate form the elevated work area, keeping personnel and task equipment within the platform boundary.

  2. Scissor Lift Stack

    The visible four-stage scissor stack links the chassis to the platform and guides controlled vertical movement.

  3. Main Chassis Frame

    The main chassis frame supports the lift stack, running gear and service panels that house the machine operating systems.

  4. Rear Access Steps

    The rear access structure supports entry and service access at the chassis end while remaining separate from the central frame.

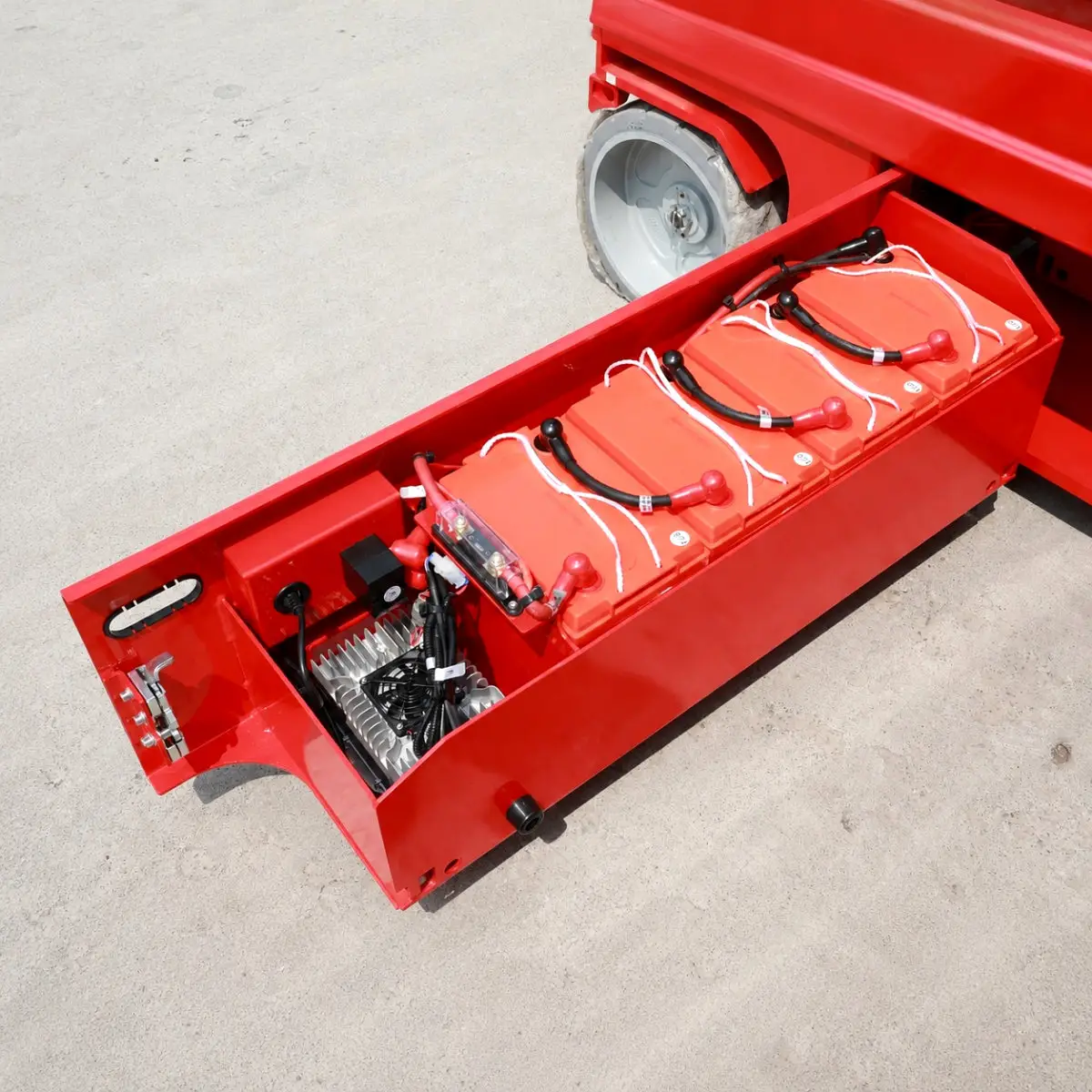

  5. Battery Tray Assembly

    The visible battery tray groups the traction batteries in a removable chassis assembly for the electric drive system.

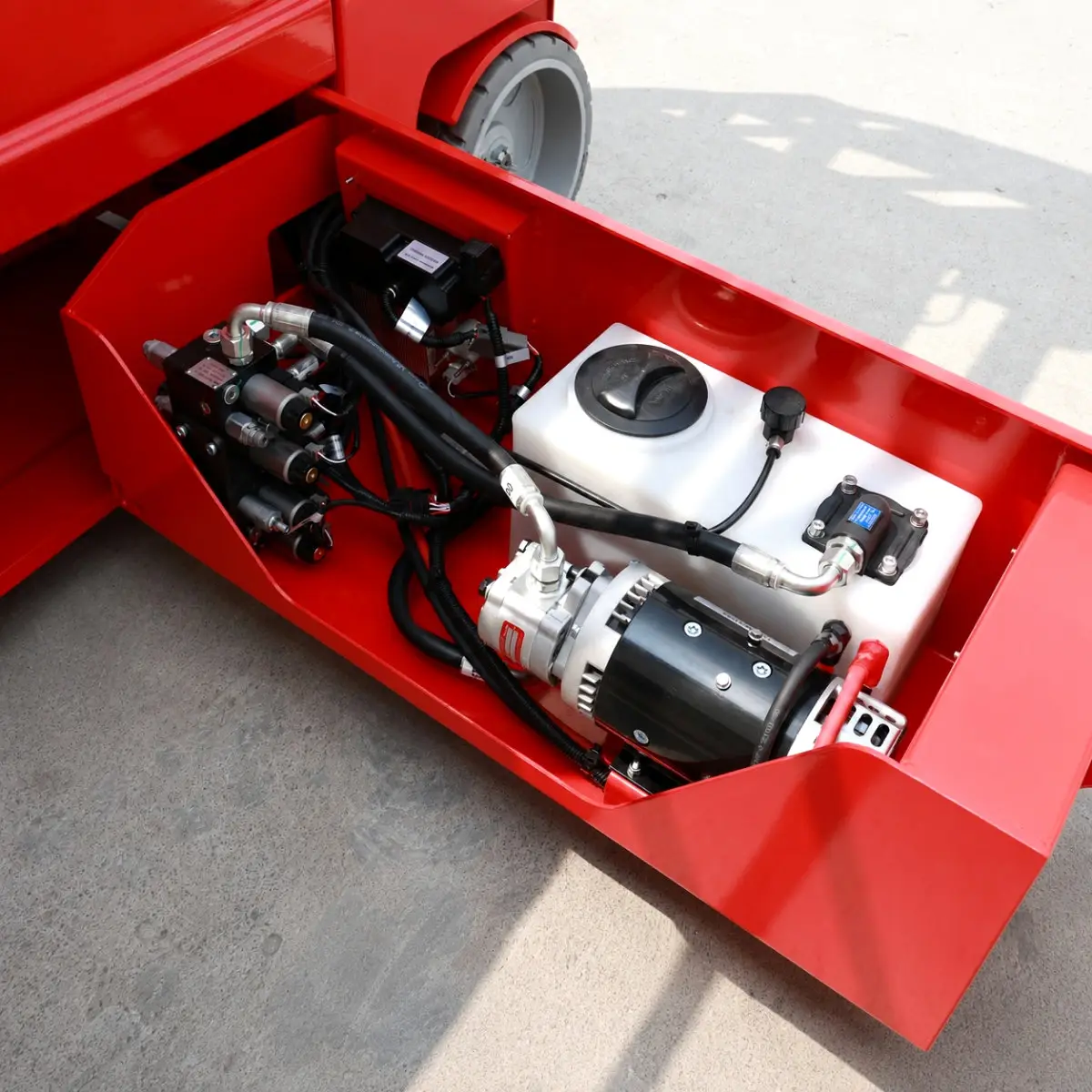

  6. Hydraulic Power Unit

    The motor, pump, reservoir and valve group supplies hydraulic power for platform elevation and controlled lowering.

  7. Ground Control Panel

    The ground panel groups the chassis-side emergency stop, power and status controls used from the lower operating position.

General information

Self-Propelled Electric Scissor Lift
Maximum working height
10m
Maximum platform height
8m
Safe working load
450kg
Extended platform safety working load
100kg
Maximum number of workers
2 people indoors/1 person outdoors
Overall length (collapsed state)
2.41m
Overall width (in the stowed position)
1.18m

General instructions

Simplified explanation

Product Video

00:46

GTJZ-08 (Large 8) – Static Display – 1

GTJZ-08 (Large 8) static demonstration video, showcasing the overall appearance, structural details, and equipment status.

GTJZ-08 (Large 8) – Static Display – 1

00:46GTJZ-08 (Large 8) static demonstration video, showcasing the overall appearance, structural details, and equipment status.

Operation demonstration of GTJZ-08(Big 8)

01:45GTJZ-08 (Large 8) operation video, demonstrating equipment movement, lifting and lowering, and the actual operating procedure.

container loading

00:28Machines stacked neatly, secured by straps with cushion protection to prevent collision damage during sea transit.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory real scene

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

Battery Drawer

Chassis Corner Controls and Labels

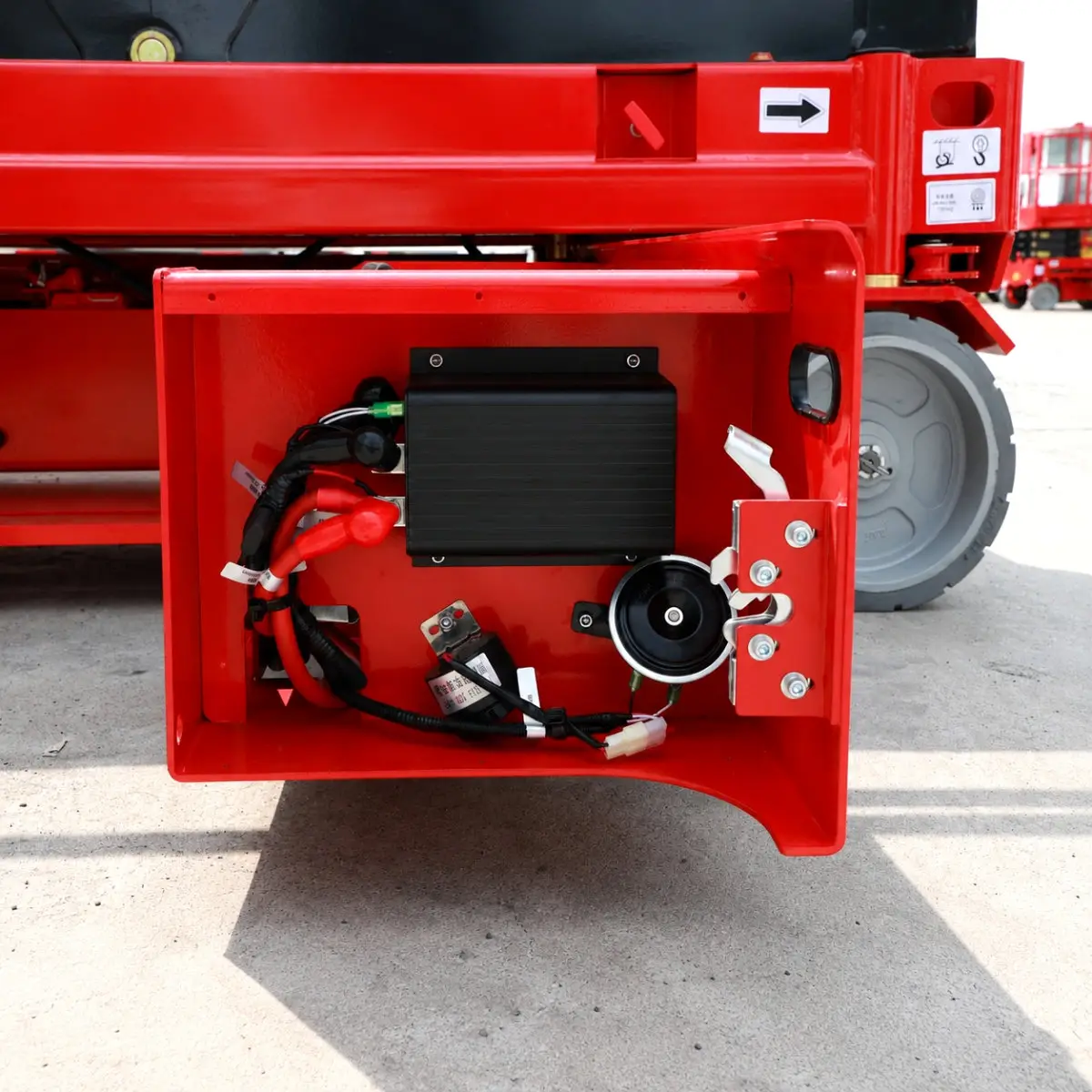

Drive Controller and Horn Compartment

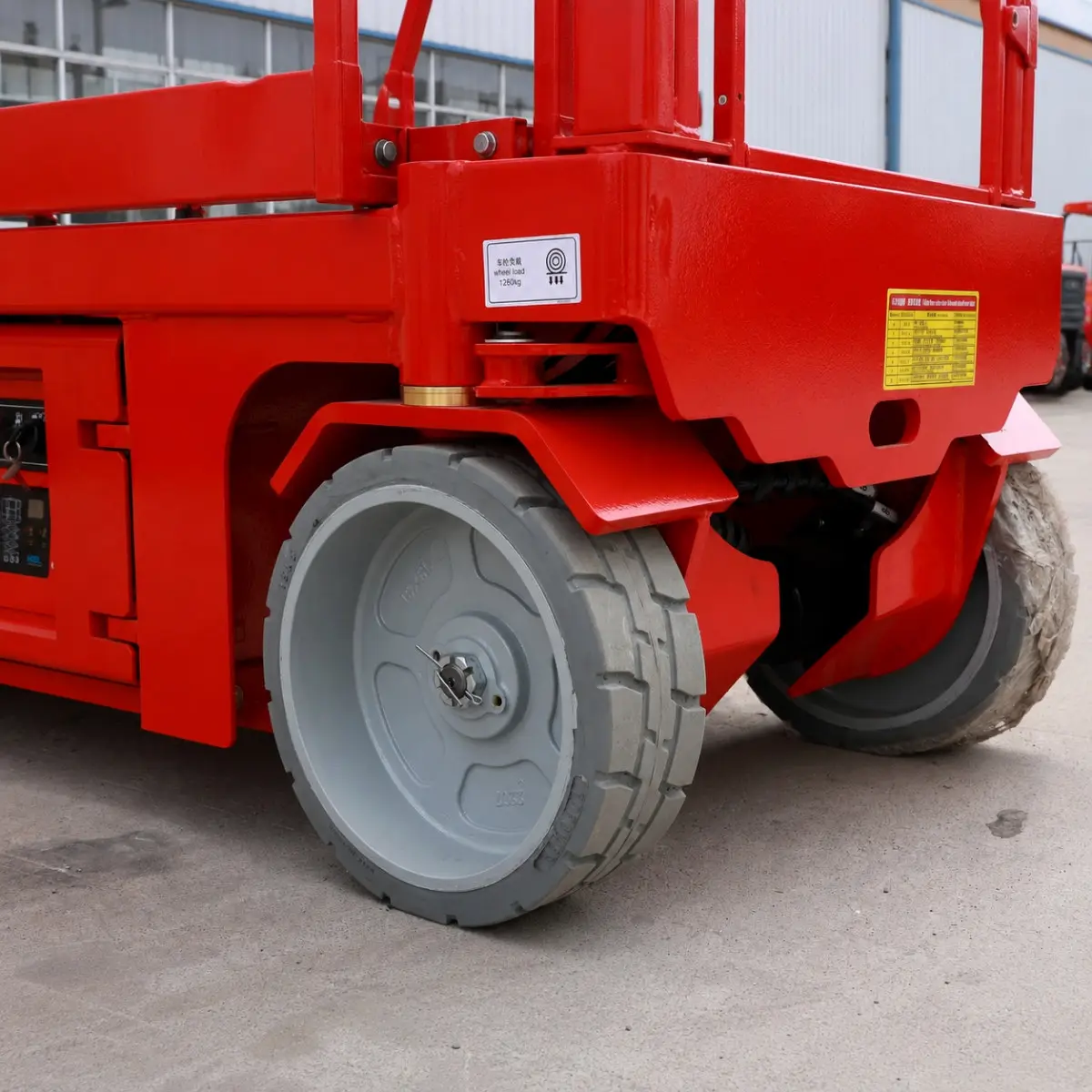

Drive Wheel Assembly

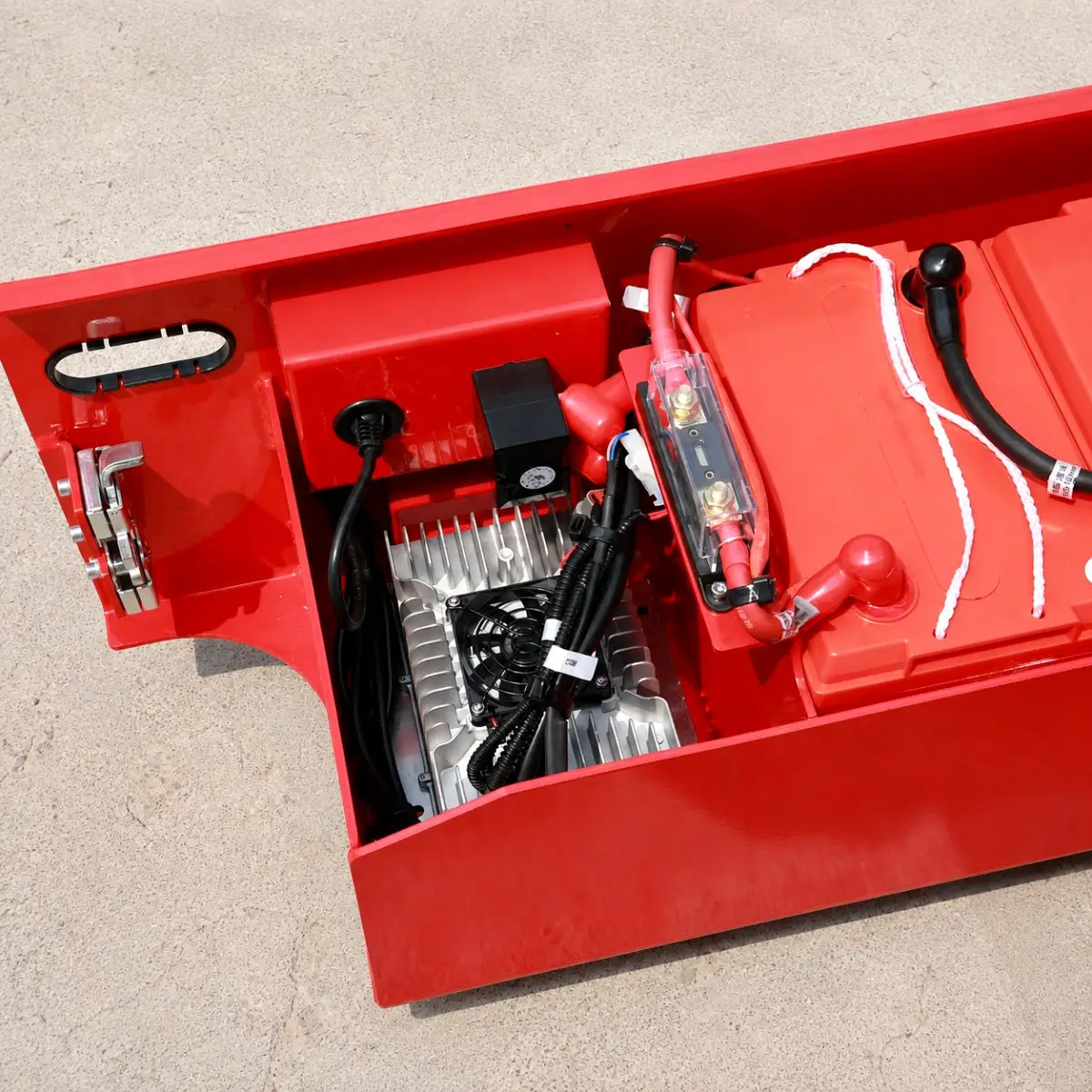

Electrical Control Module

Emergency Stop and Power Control Panel

Ground Control and Status Panel

Guardrail Gate and Entry

Hydraulic Power Unit

Platform Control Console

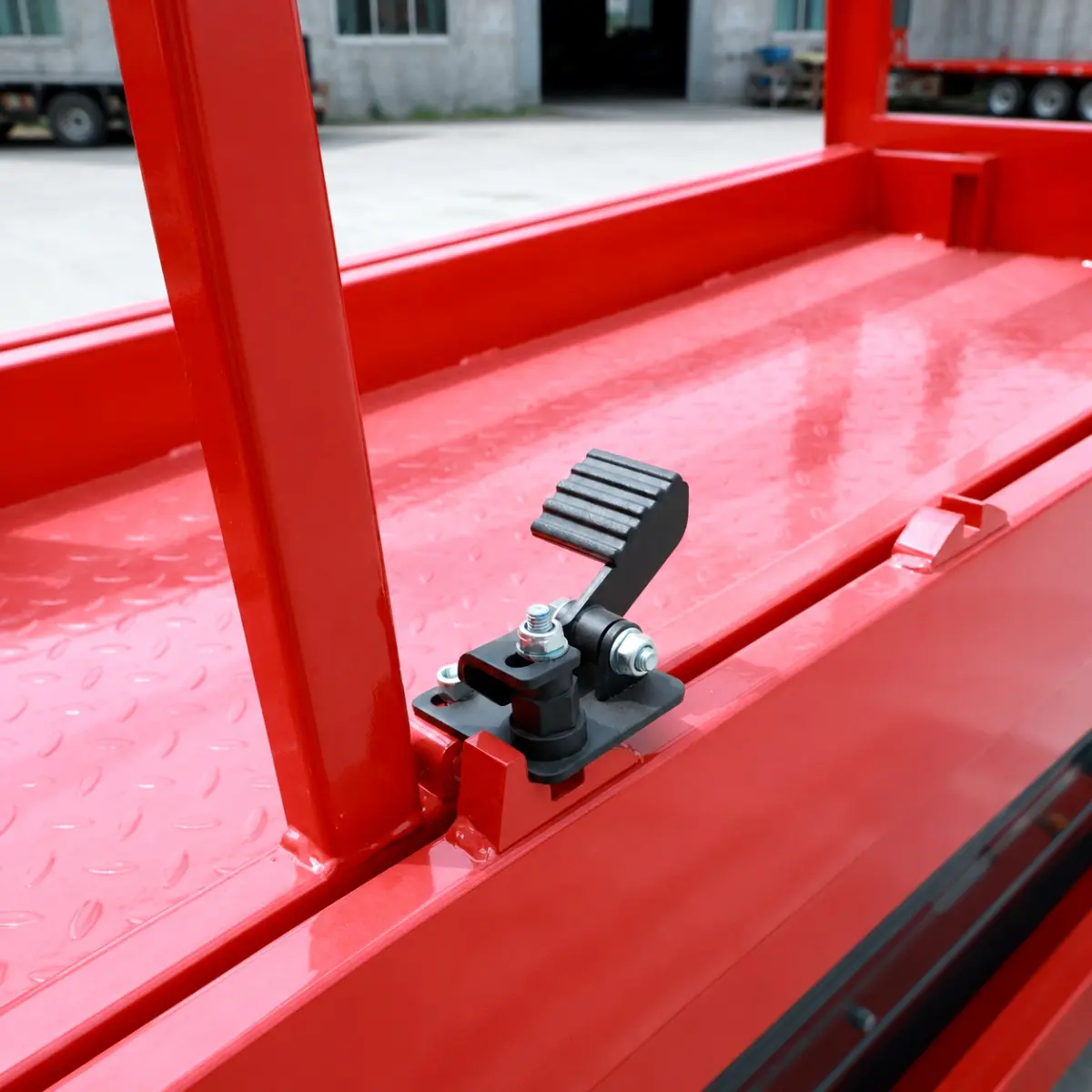

Platform Extension Lock Pedal

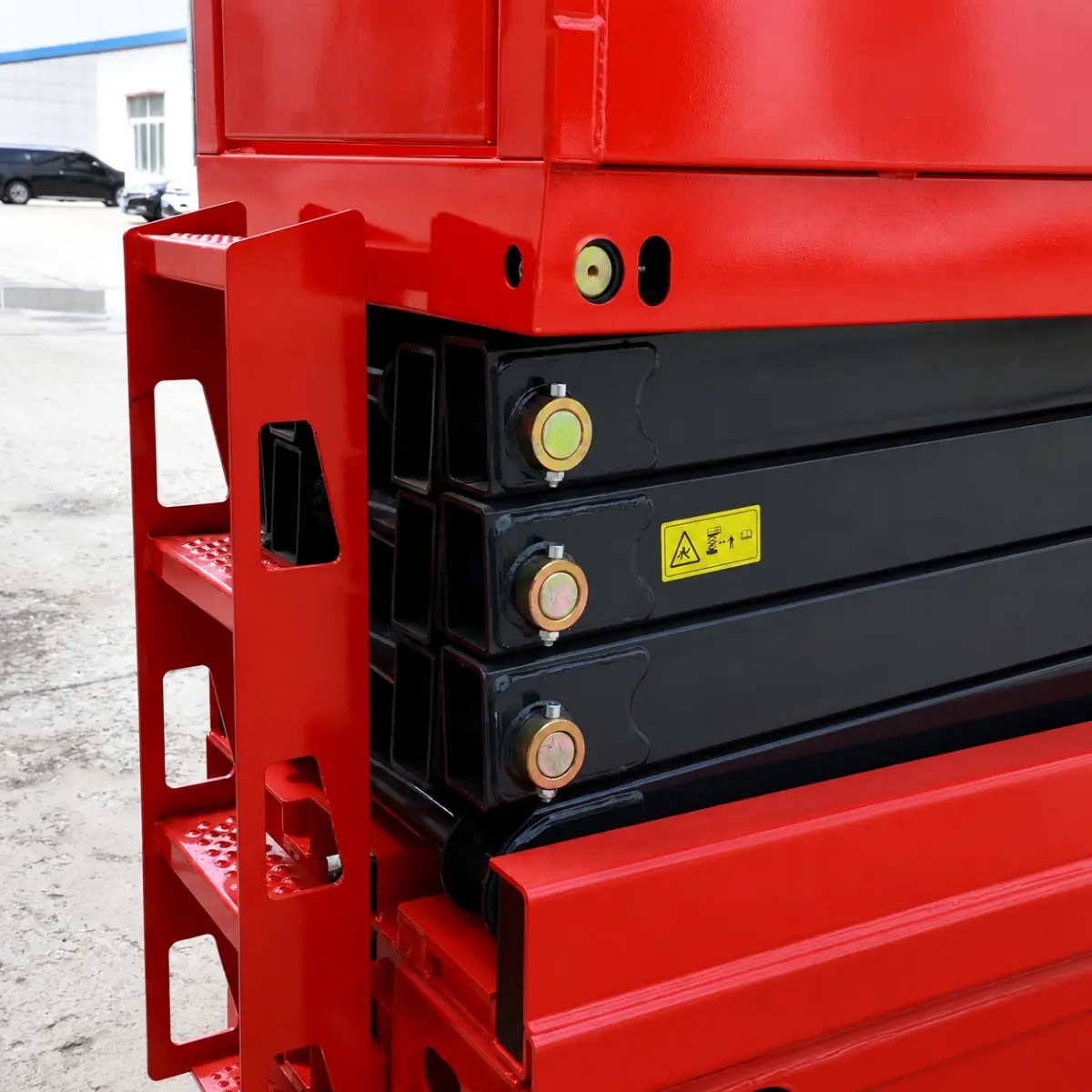

Scissor Arm Pivot Pins

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

1. Where is 10 m wide heavy-load electric self-propelled cutting... typically used?

1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.

2. How do I choose the right model?

2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.

3. What should be confirmed before ordering?

3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.

4. How should it be installed and maintained?

4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
