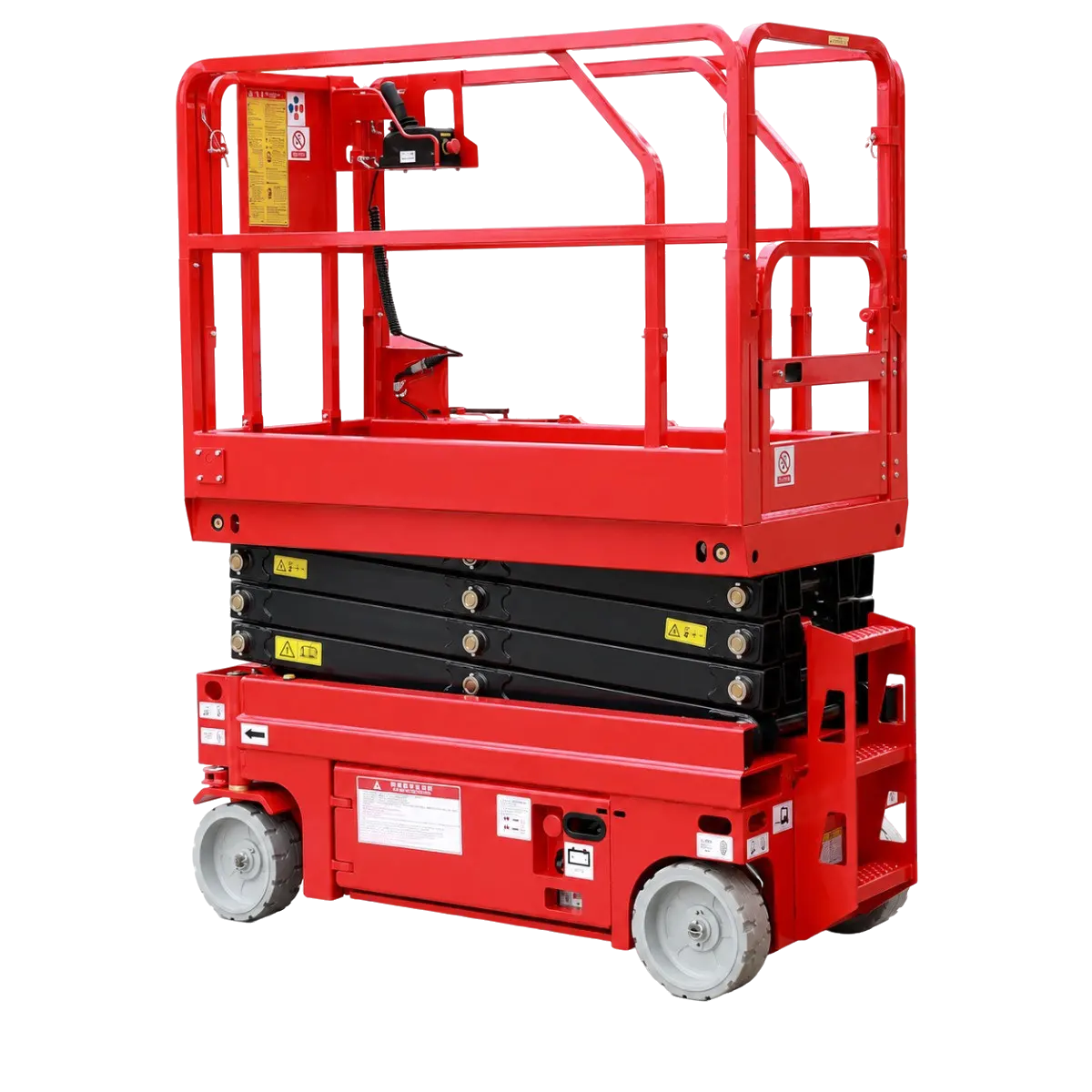

Self-Propelled Electric Scissor Lift
Product Video
  • Electric Drive
  • Strong Capacity
  • Easy Control
  • Stable Handling

Material Handling and Elevated Work with 8 m wide heavy heavy electric self-propelled cutting...

8 m wide heavy heavy electric self-propelled cutting high-altitude operating platform is suited to warehouses, factories, yards, construction sites and maintenance operations. It supports loading, stacking, transfer or elevated access within rated capacity and site limits. Before deployment, confirm rated load, lift height, reach, aisle width, power type, tire type and ground condition.

  • Warehouses
  • Factories
  • Yards
  • Maintenance Ops
Stable Outdoor Reach for Loading Bay MaintenanceStable Outdoor Reach for Loading Bay Maintenance
Wide Platform Support for Production Line ServiceWide Platform Support for Production Line Service

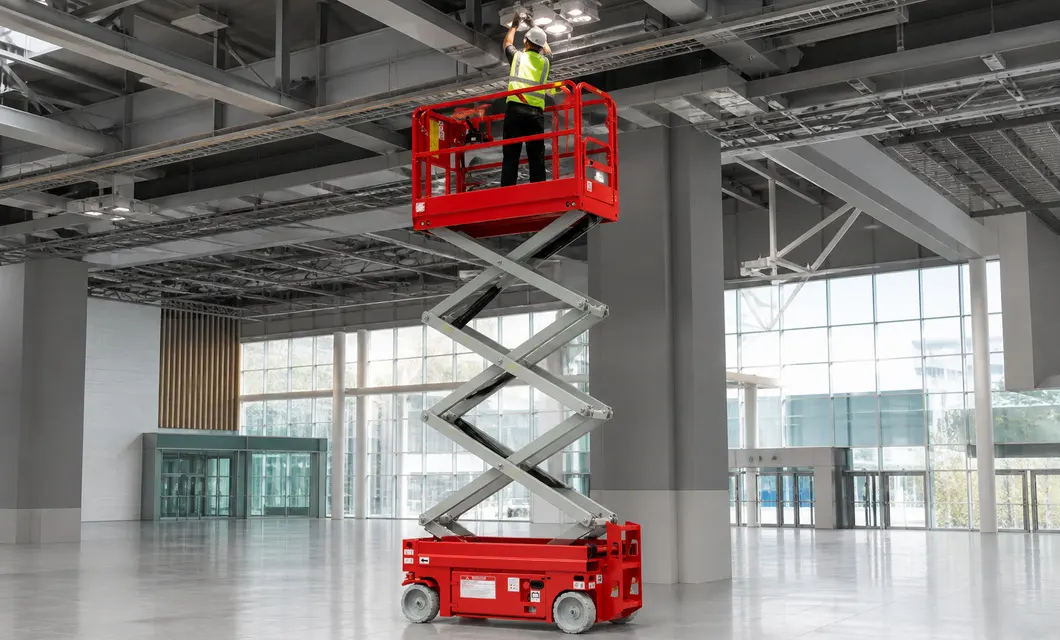

Controlled Access for Large Facility Ceiling CareControlled Access for Large Facility Ceiling Care
Efficient Inspection Across High-Bay StorageEfficient Inspection Across High-Bay Storage
Stable Outdoor Reach for Loading Bay MaintenanceStable Outdoor Reach for Loading Bay Maintenance
Wide Platform Support for Production Line ServiceWide Platform Support for Production Line Service
Controlled Access for Large Facility Ceiling CareControlled Access for Large Facility Ceiling Care
Efficient Inspection Across High-Bay StorageEfficient Inspection Across High-Bay Storage

Product Advantages

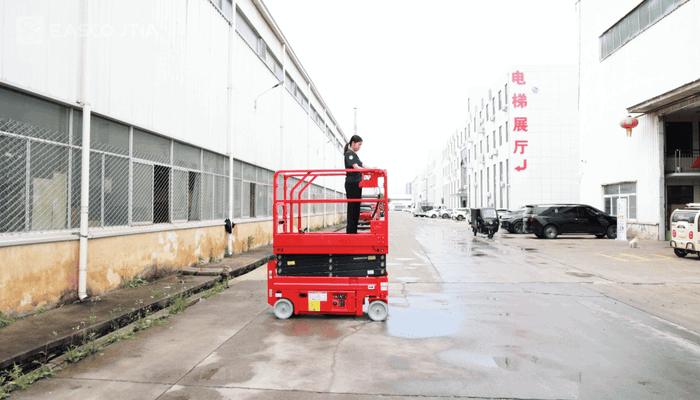

The scissor mechanism raises and lowers the platform, allowing its height to be adjusted to suit different working positions

The scissor mechanism raises and lowers the platform, allowing its height to be adjusted to suit different working positions

Specifications & Structural Decomposition

Product Structure Diagram

Product Structure Diagram
  1. Wide Guarded Work Platform

    The guarded deck and entry gate form the elevated work area, keeping personnel and task equipment within the platform boundary.

  2. Scissor Lift Stack

    The visible three-stage scissor stack links the chassis to the platform and guides controlled vertical movement.

  3. Main Chassis Frame

    The main chassis frame supports the lift stack, running gear and service panels that house the machine operating systems.

  4. Rear Access Steps

    The rear access structure supports entry and service access at the chassis end while remaining separate from the central frame.

  5. Battery Tray Assembly

    The visible battery tray groups the traction batteries in a removable chassis assembly for the electric drive system.

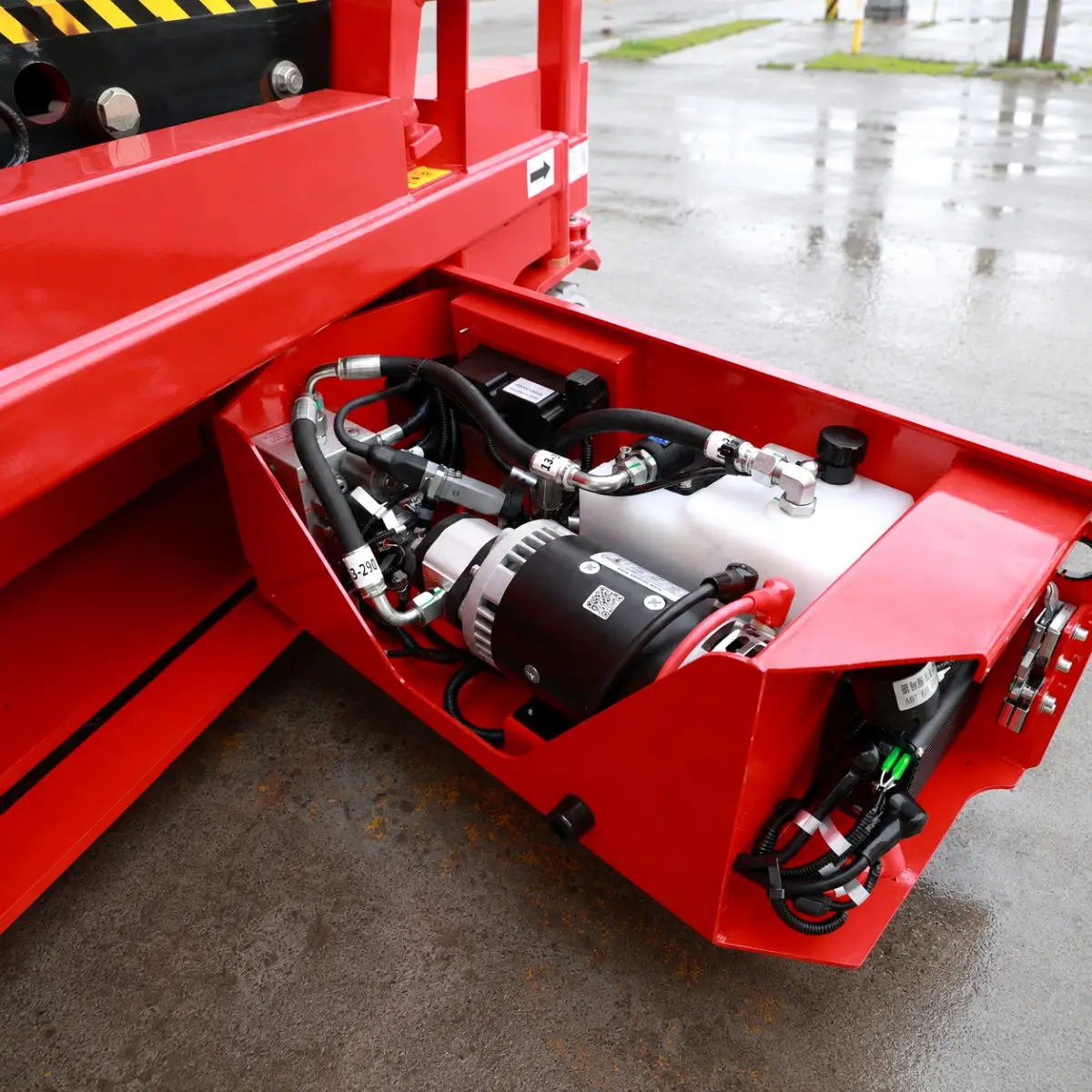

  6. Hydraulic Power Unit

    motor, pump, reservoir and valve group supplies hydraulic power for platform elevation and controlled lowering.

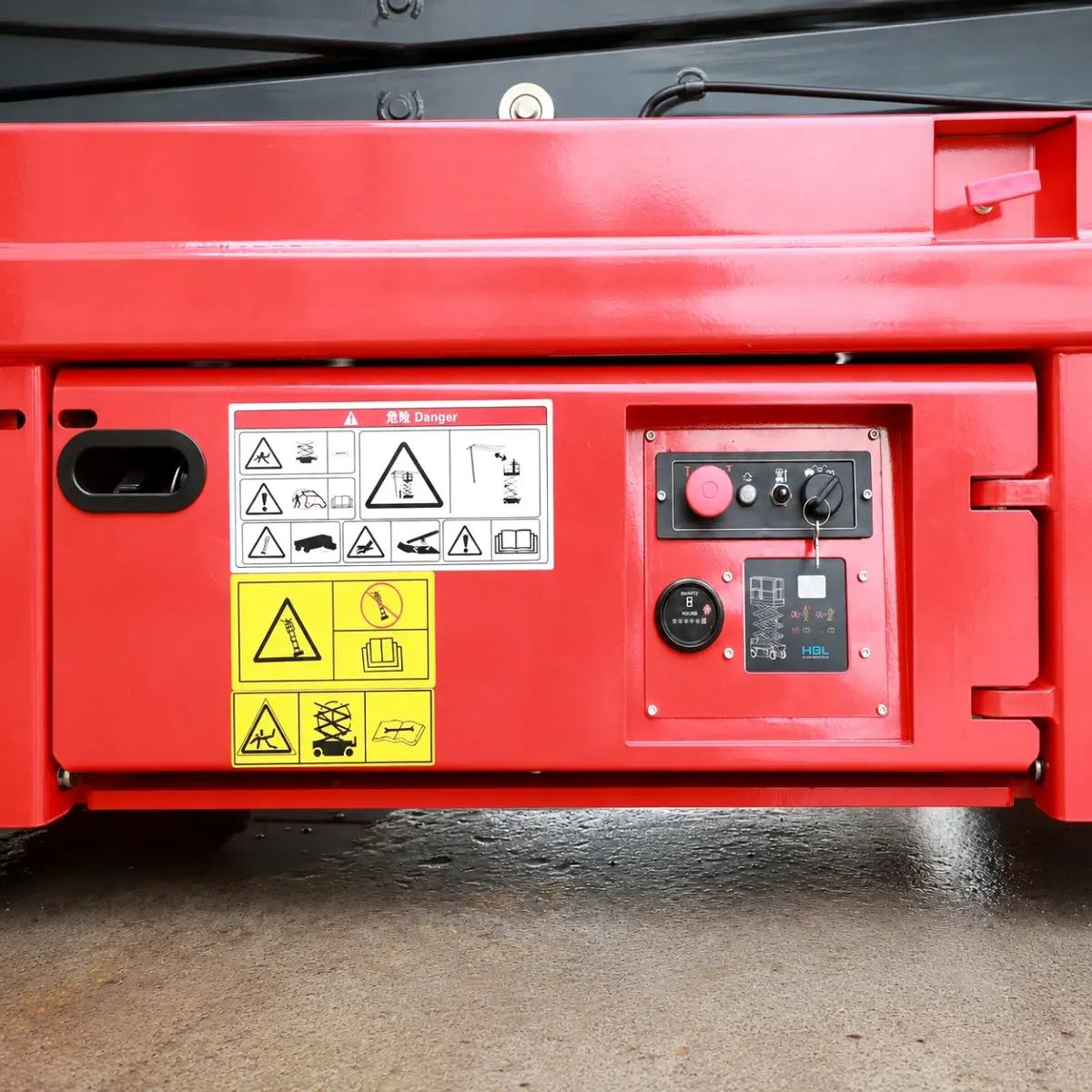

  7. Ground Control Panel

    The ground panel groups the chassis-side emergency stop, power and status controls used from the lower operating position.

General information

Self-Propelled Electric Scissor Lift
Maximum working height
8m
Maximum platform height
6m
Safe working load
480kg
Extended platform safety working load
100kg
Maximum number of workers
2 people indoors/1 person outdoors
Overall length (collapsed state)
2.41m
Overall width (in the stowed position)
1.18m

General instructions

Simplified explanation

Product Video

01:08

GTJZ-06 (Large 6) Static

The battery and hydraulic compartments swing outward, providing access to their components for routine inspection and maintenance of the machine.

GTJZ-06 (Large 6) Static

01:08The battery and hydraulic compartments swing outward, providing access to their components for routine inspection and maintenance of the machine.

GTJZ-06 (Large 6) Dynamics

01:24Lift controls are available on the platform and at ground level, allowing height adjustment from either position on the site.

container loading

00:28Machines are arranged neatly and fastened with straps. Adequate protection avoids damage from shaking during sea transport.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory real scene

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

Battery and Charger Compartment

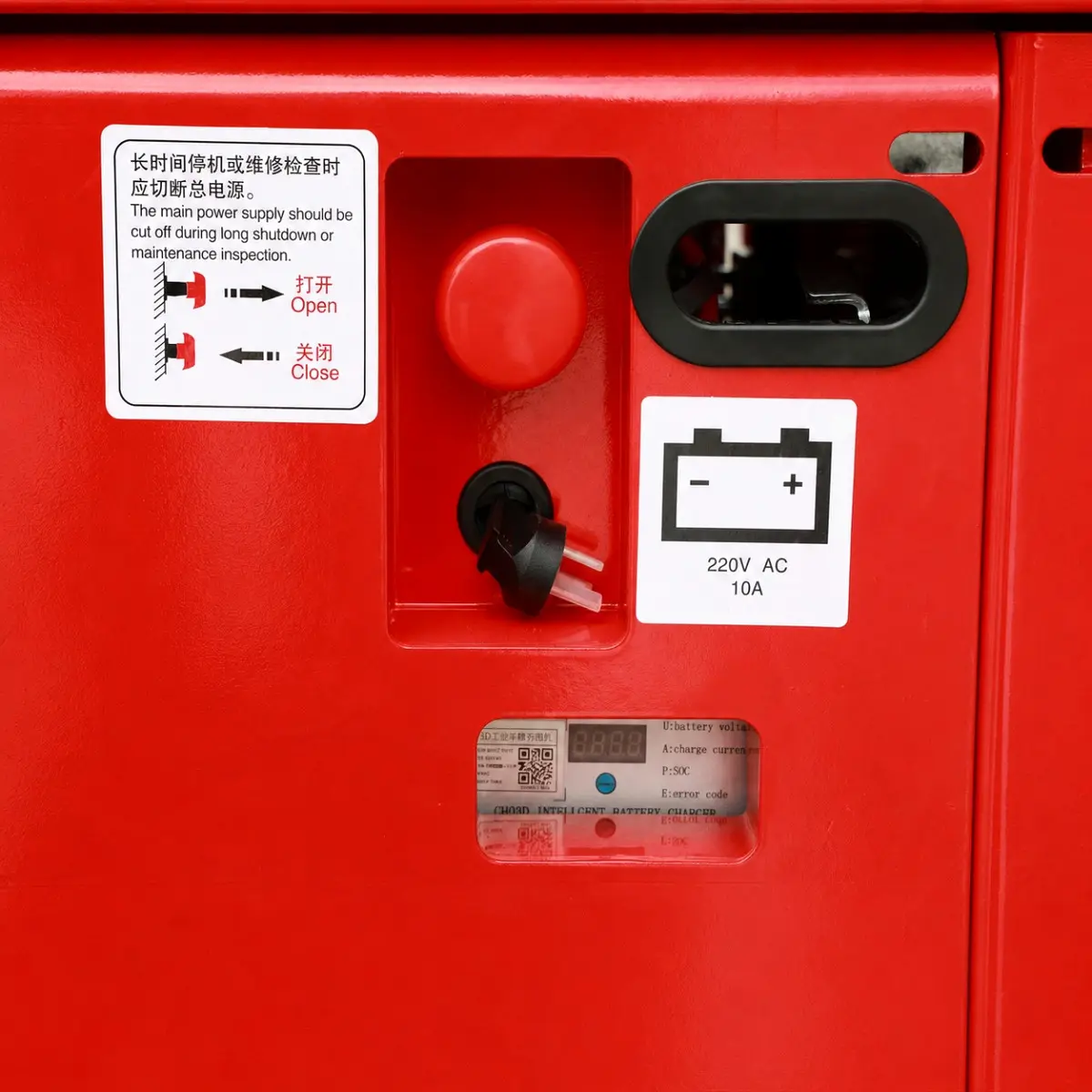

Charging Port and Main Power Switch

Drive Controller and Horn Compartment

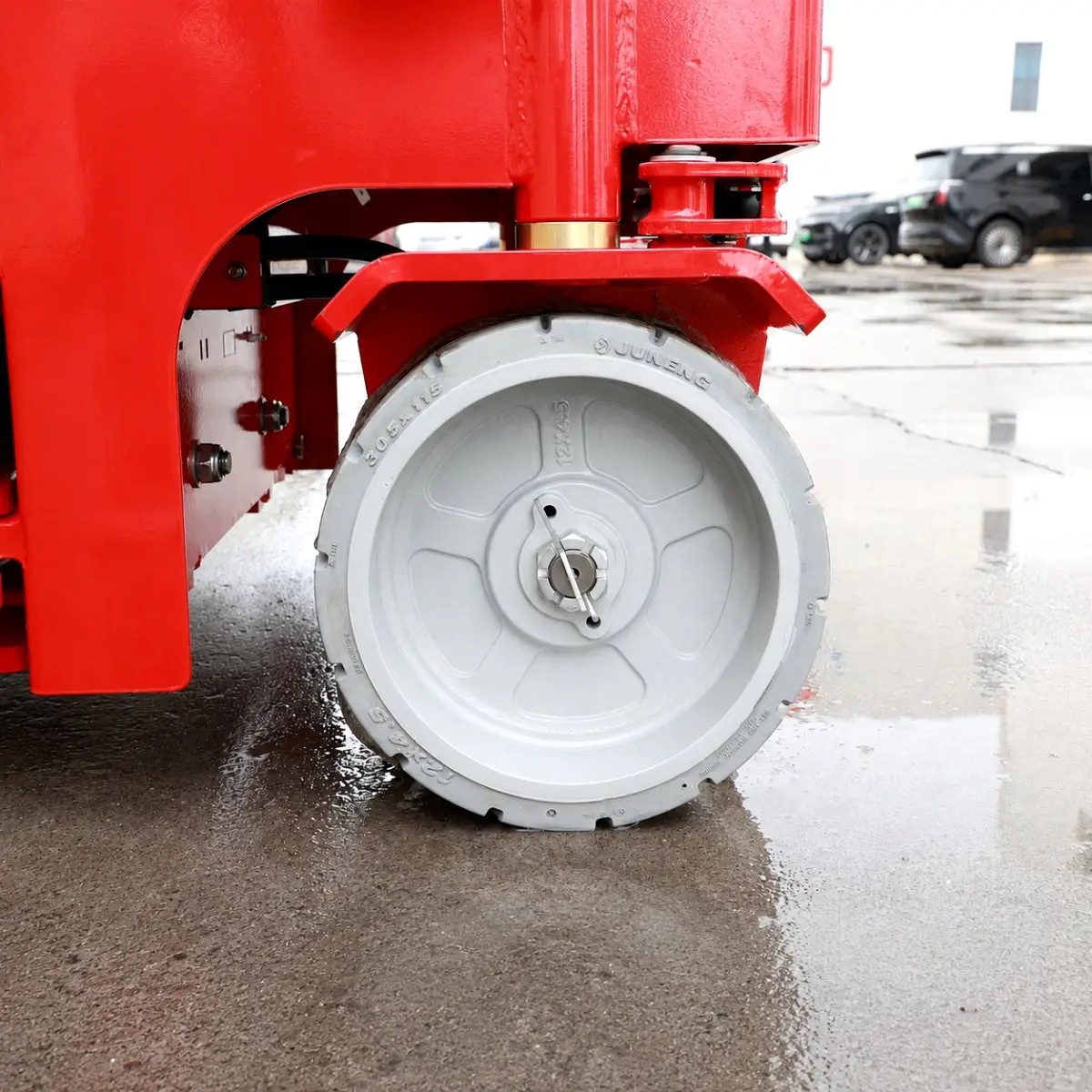

Drive Wheel Assembly

Ground Control and Safety Panel

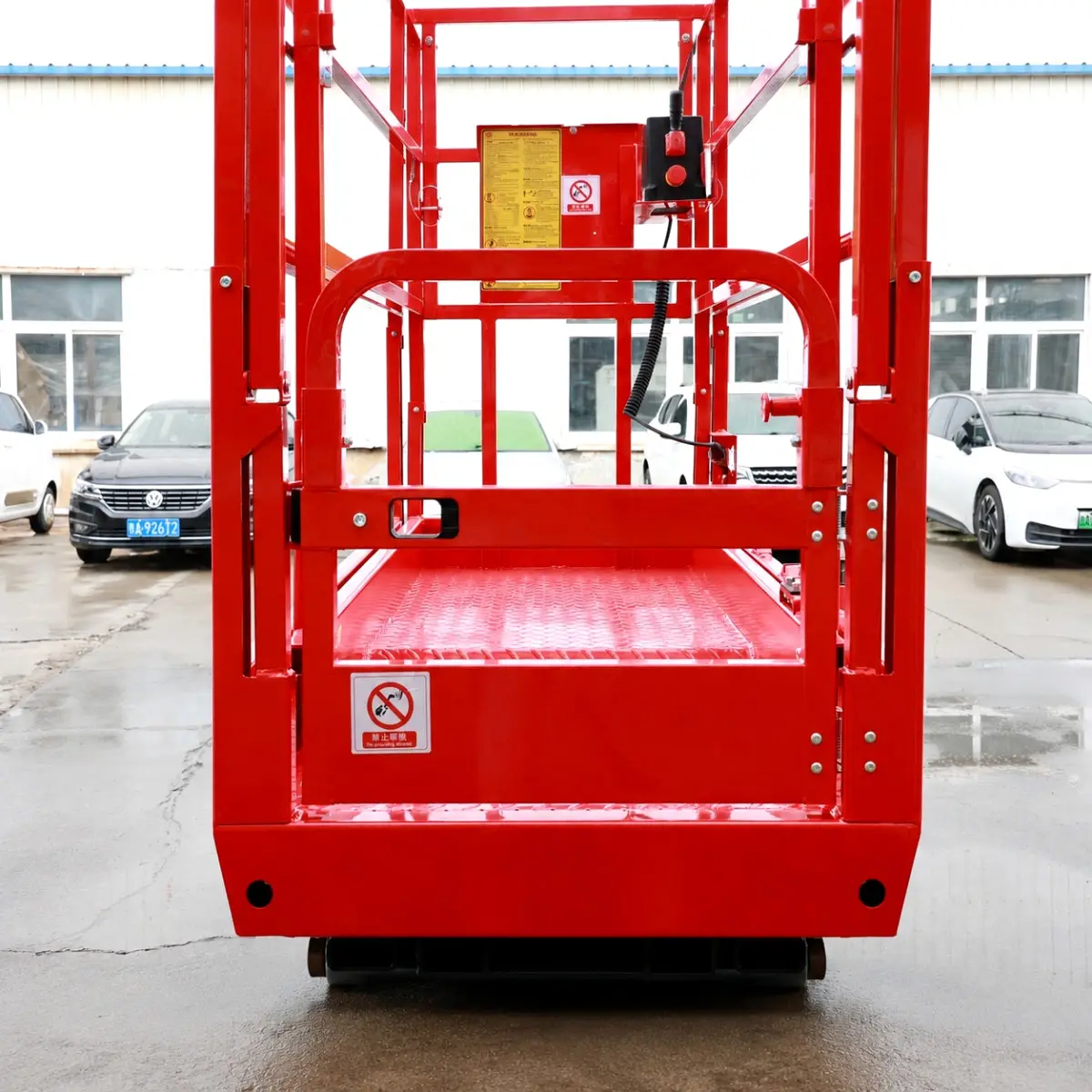

Guardrail Gate and Entry

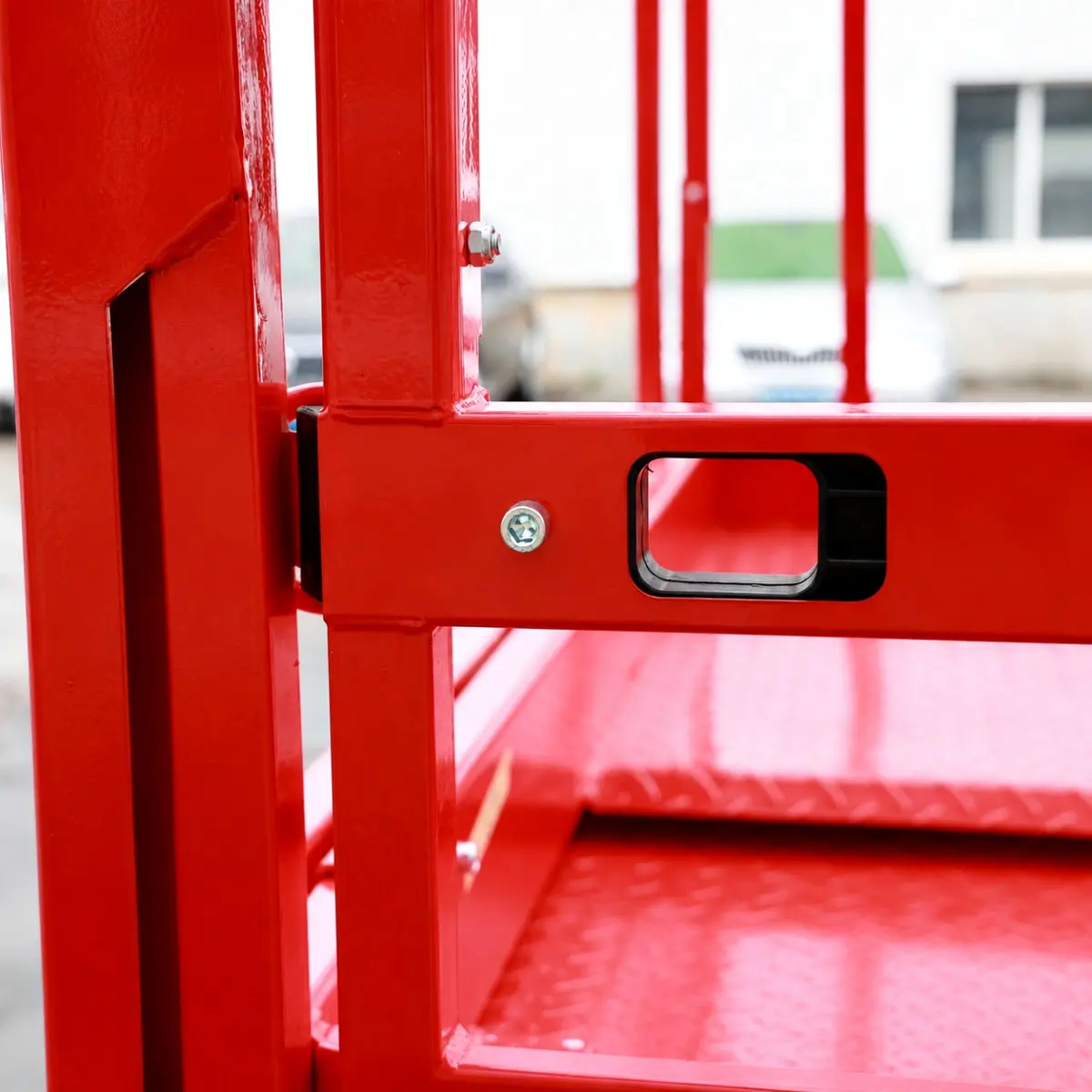

Guardrail Gate Latch

Hydraulic Power Unit

Platform Control Cable Connector

Platform Control Console Closeup

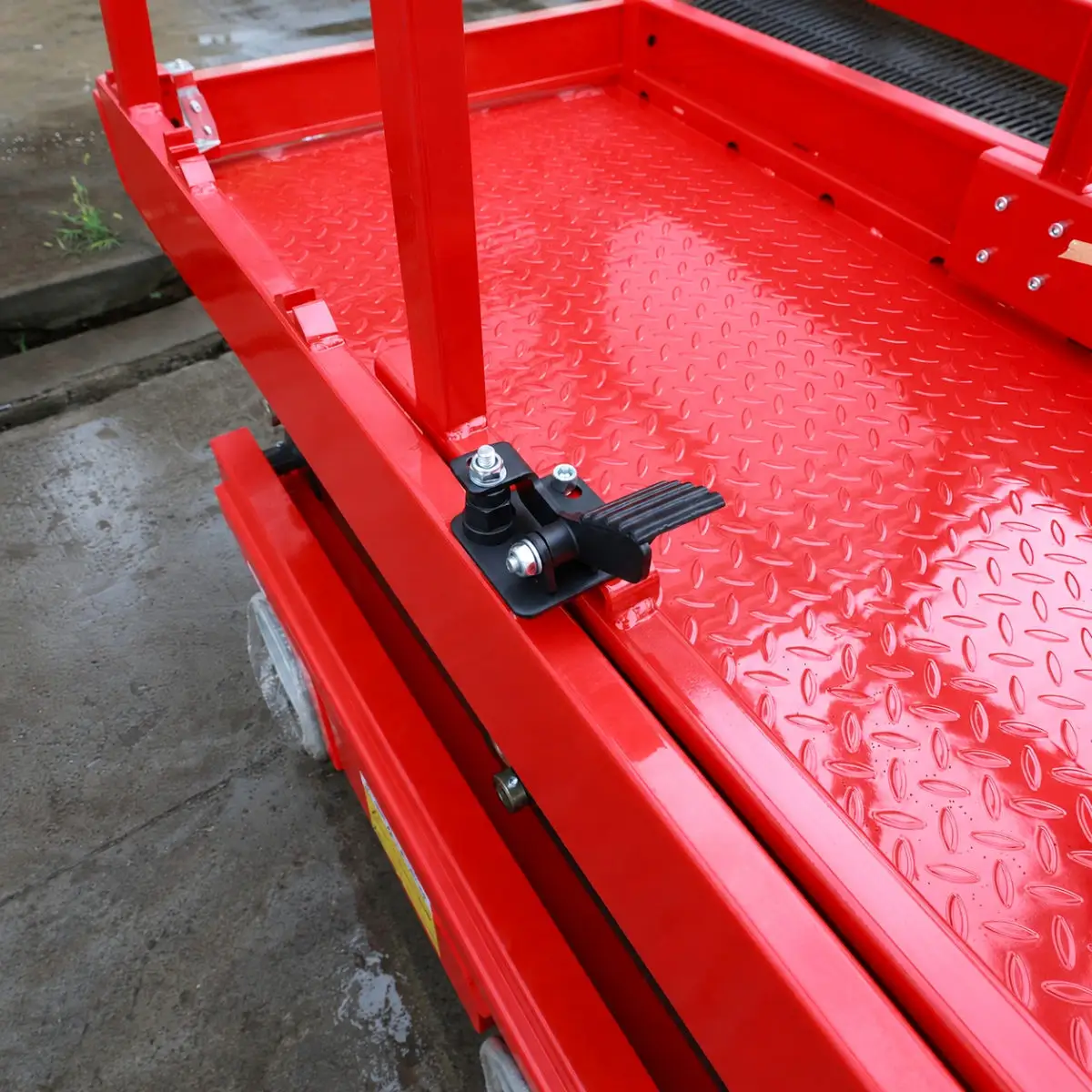

Platform Deck Release Pedal

Scissor Arm Pivot Pins

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

1. Where is 8 m wide heavy heavy electric self-propelled cutting... typically used?

1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.

2. How do I choose the right model?

2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.

3. What should be confirmed before ordering?

3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.

4. How should it be installed and maintained?

4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
