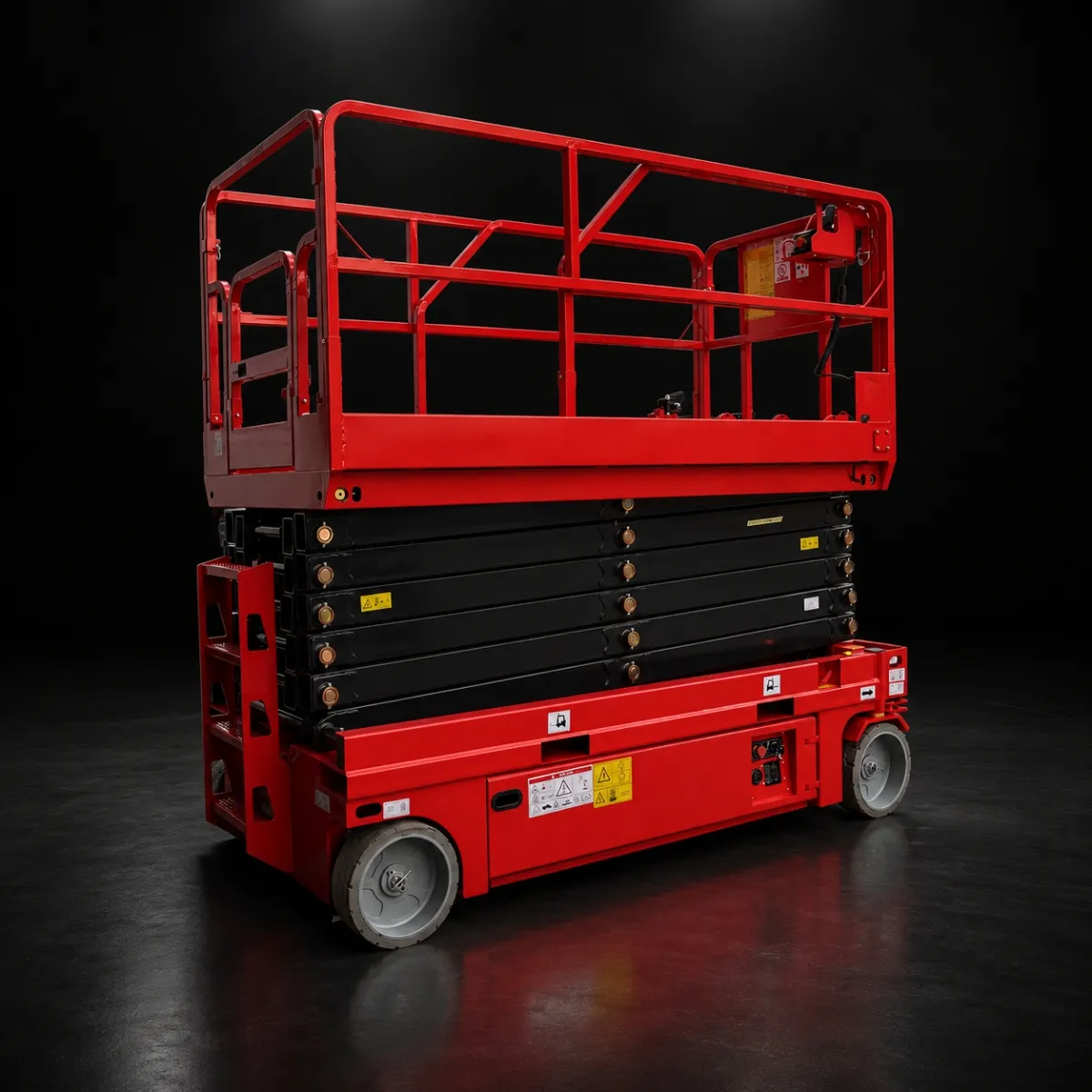

16-meter self-propelled electric scissor lift
Product Video
  • Electric Drive
  • Strong Capacity
  • Easy Control
  • Stable Handling

Material Handling and Elevated Work with 16-metre electric self-propelled cutting-off...

16-metre electric self-propelled cutting-off high-altitude operating platform is suited to warehouses, factories, yards, construction sites and maintenance operations. It supports loading, stacking, transfer or elevated access within rated capacity and site limits. Before deployment, confirm rated load, lift height, reach, aisle width, power type, tire type and ground condition.

  • Warehouses
  • Factories
  • Yards
  • Maintenance Ops
Exhibition booth construction siteExhibition booth construction site

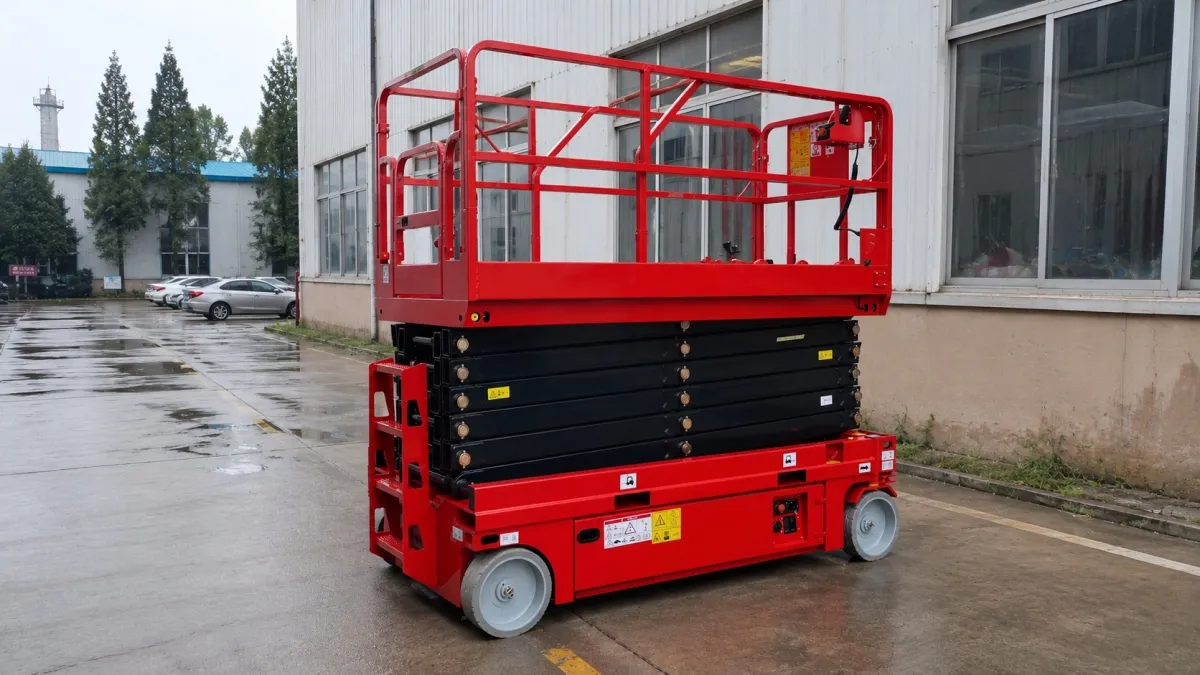

Exterior maintenance site of the plant areaExterior maintenance site of the plant area

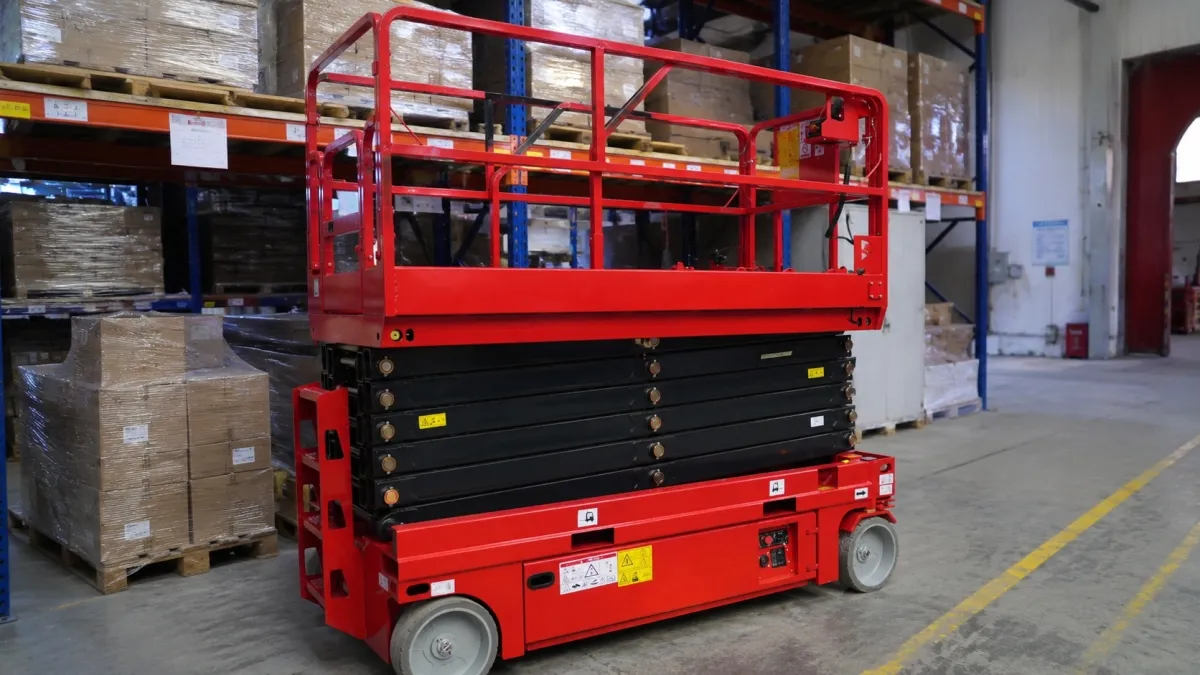

Warehouse logistics operations siteWarehouse logistics operations site

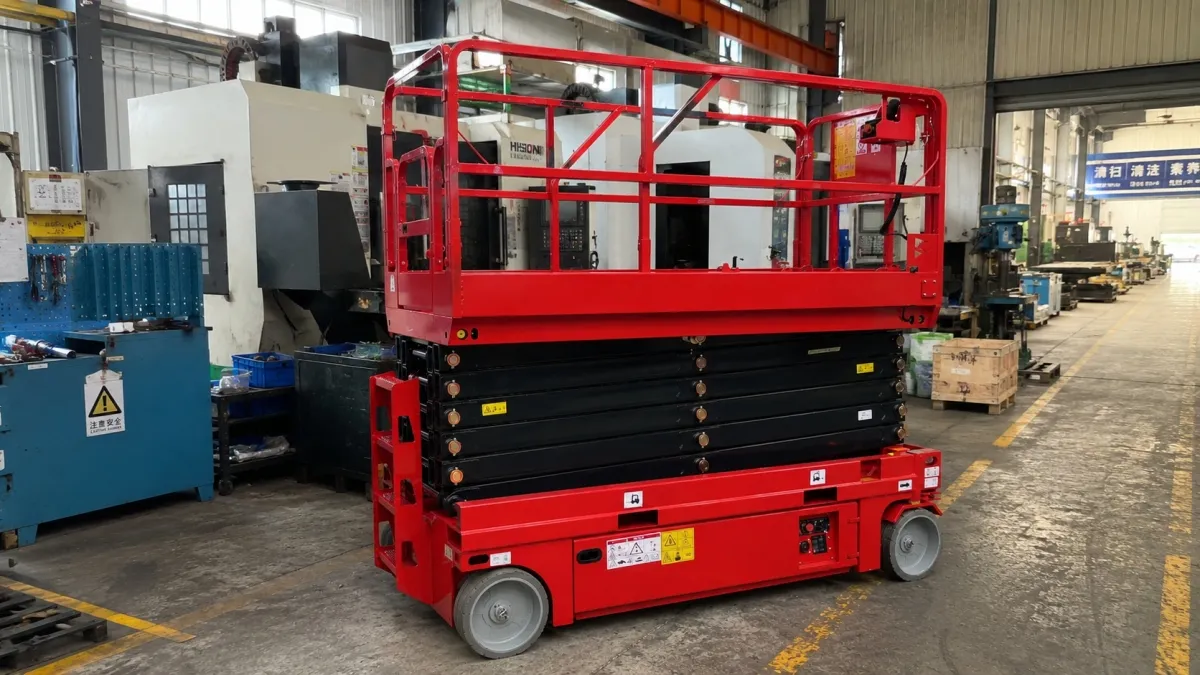

Industrial production workshopIndustrial production workshop

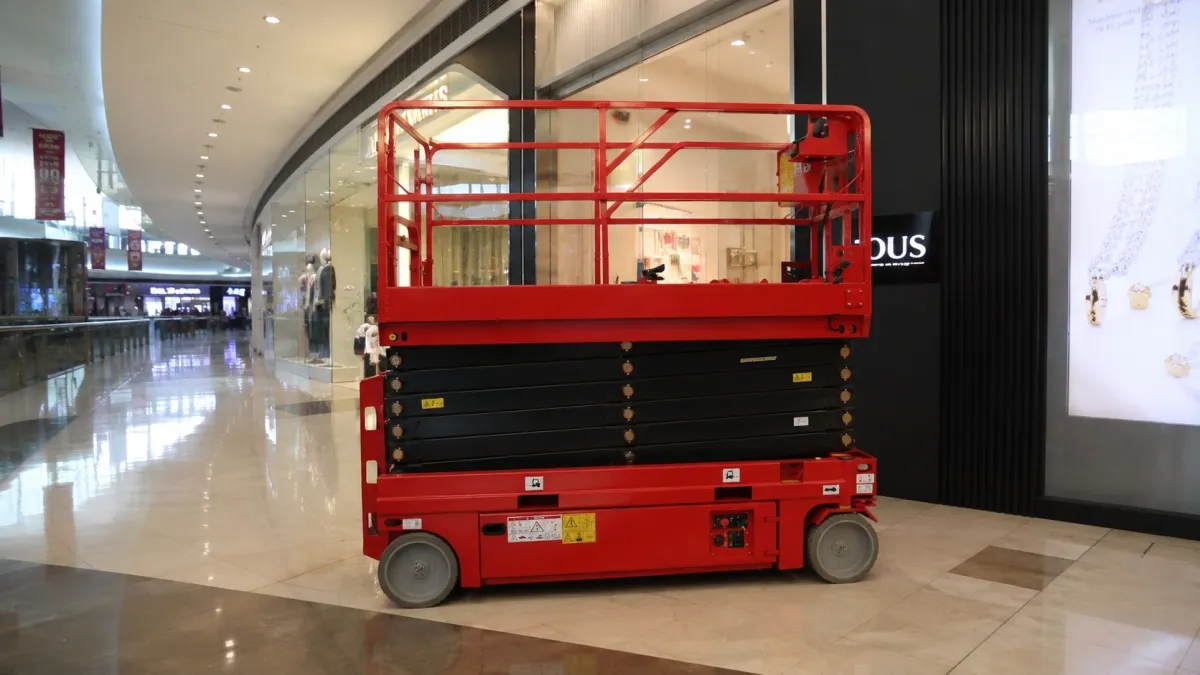

Shopping mall indoor maintenance siteShopping mall indoor maintenance site

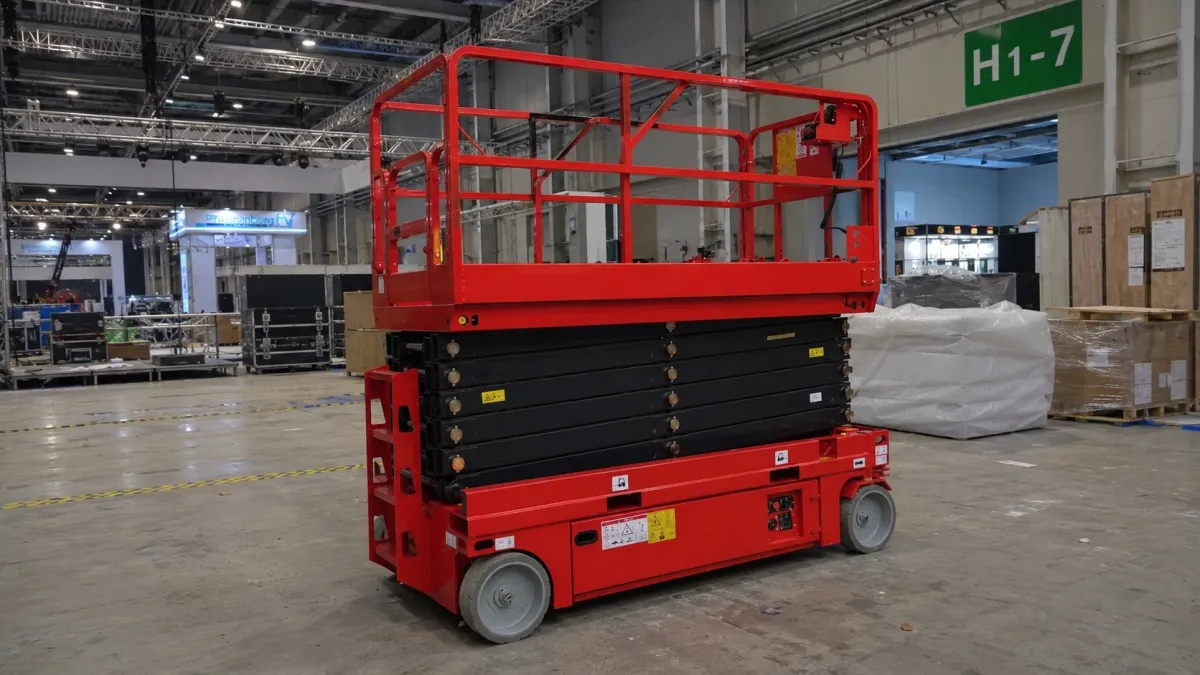

Airport Facilities Maintenance SiteAirport Facilities Maintenance Site
Exhibition booth construction siteExhibition booth construction site
Exterior maintenance site of the plant areaExterior maintenance site of the plant area
Warehouse logistics operations siteWarehouse logistics operations site
Industrial production workshopIndustrial production workshop

Specifications & Structural Decomposition

Product Structure Diagram

Product Structure Diagram
  1. Work platform guardrail assembly

    It forms a perimeter for high-altitude work, ensuring the safety of personnel during standing operations.

  2. Platform floor assembly

    It serves as a working surface for personnel to stand on and for placing tools.

  3. Platform installation framework

    It connects the platform to the scissor mechanism, transfers the upper load, and ensures stability.

  4. Platform entrance and exit barriers

    It facilitates personnel access to and from the platform while ensuring the integrity of the perimeter during operations.

  5. Scissor arm assembly

    The core lifting mechanism of the entire machine ensures the platform’s smooth and stable vertical movement.

  6. Hydraulic Lifting Assembly

    It consists of a hydraulic cylinder and power components, providing the actuating force for lifting and lowering.

  7. Install the bearing plate in the middle.

    It is used to mount the lifting mechanism and connect the superstructure to the chassis.

General information

16-meter self-propelled electric scissor lift
Maximum working height
16m
Maximum platform height
14m
Safe working load
320kg
Extended platform safety working load
100kg
Maximum number of workers
2 people indoors/1 person outdoors
Overall length (collapsed state)
2.78m
Overall width (in the stowed position)
1.28m

General instructions

Simplified explanation

Product Video

01:24

GTJZ-14-Static Display-1

GTJZ-14 static demonstration video, showcasing the overall appearance, structural details, and equipment status.

GTJZ-14-Static Display-1

01:24GTJZ-14 static demonstration video, showcasing the overall appearance, structural details, and equipment status.

GTJZ-14-Static Display-2

01:24GTJZ-14 static demonstration video, showcasing the overall appearance, structural details, and equipment status.

GTJZ-14-Operation Video -1

01:24GTJZ-14 Operation Video, demonstrating equipment movement, lifting, and the actual operating process.

container loading

00:28Machines arranged neatly, fastened with straps and cushioned to avoid collision during sea shipment.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory real scene

0:00 / 0:00

Core Component Details

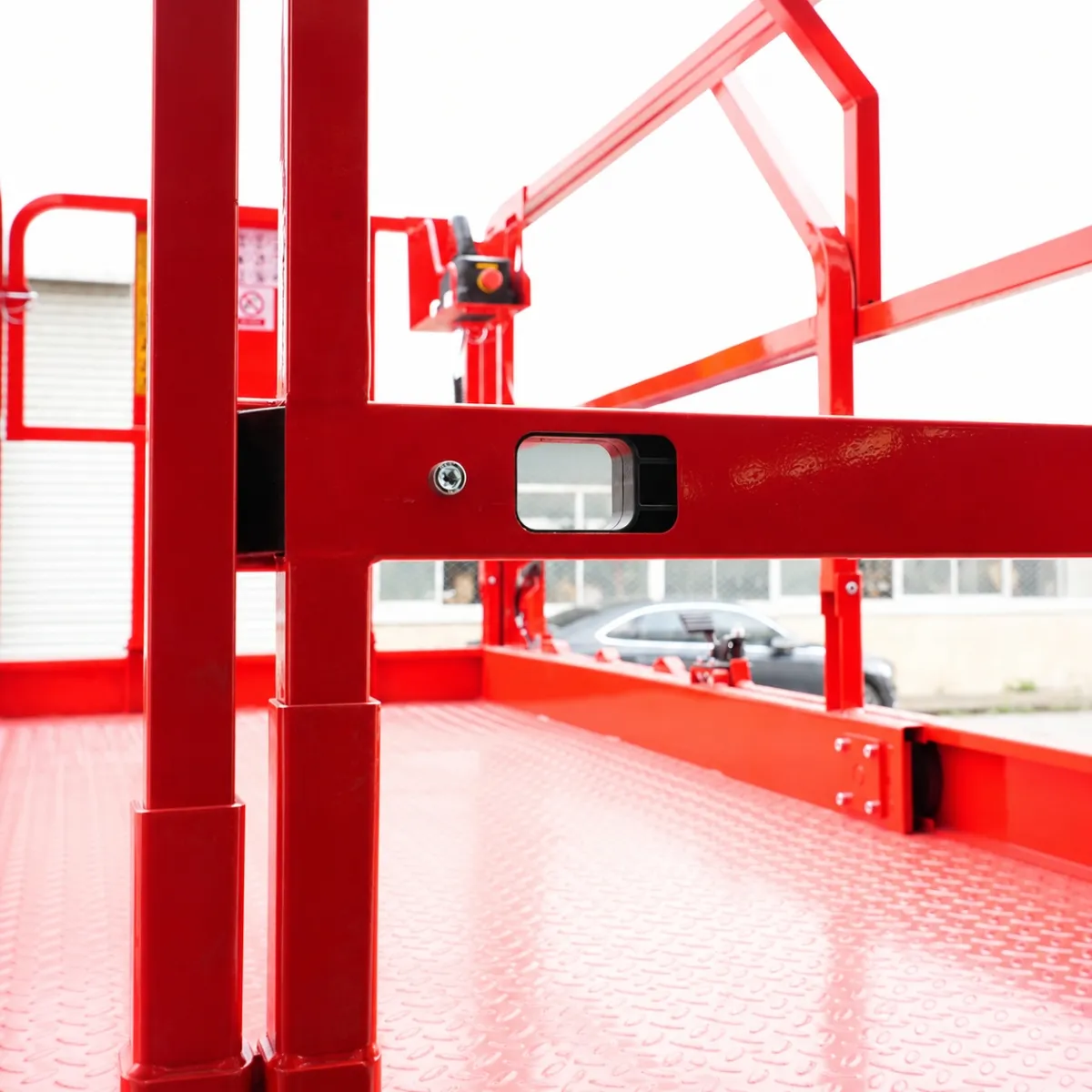

GTJZ-14-Detail (1)

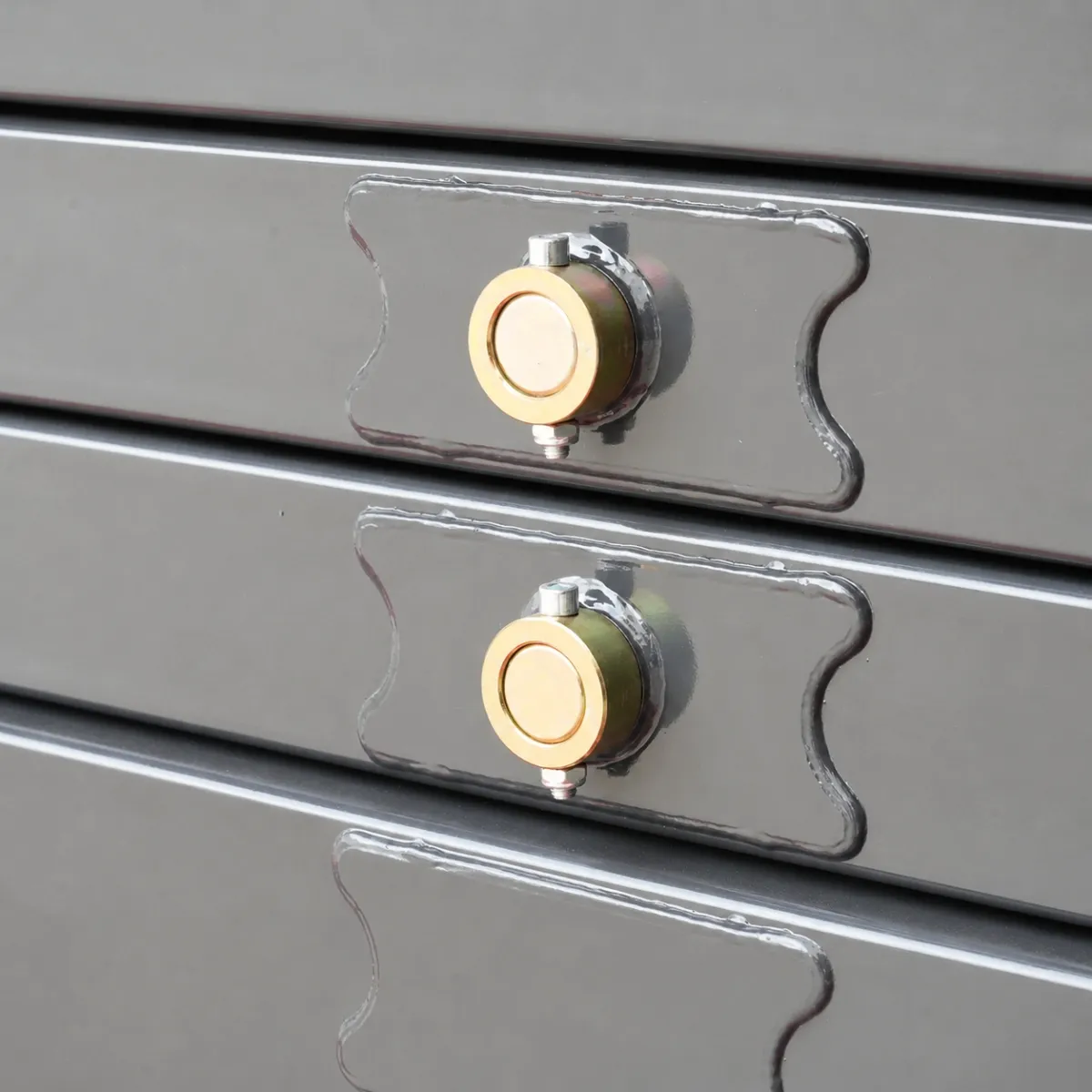

GTJZ-14-Detail (2)

GTJZ-14-Detail (3)

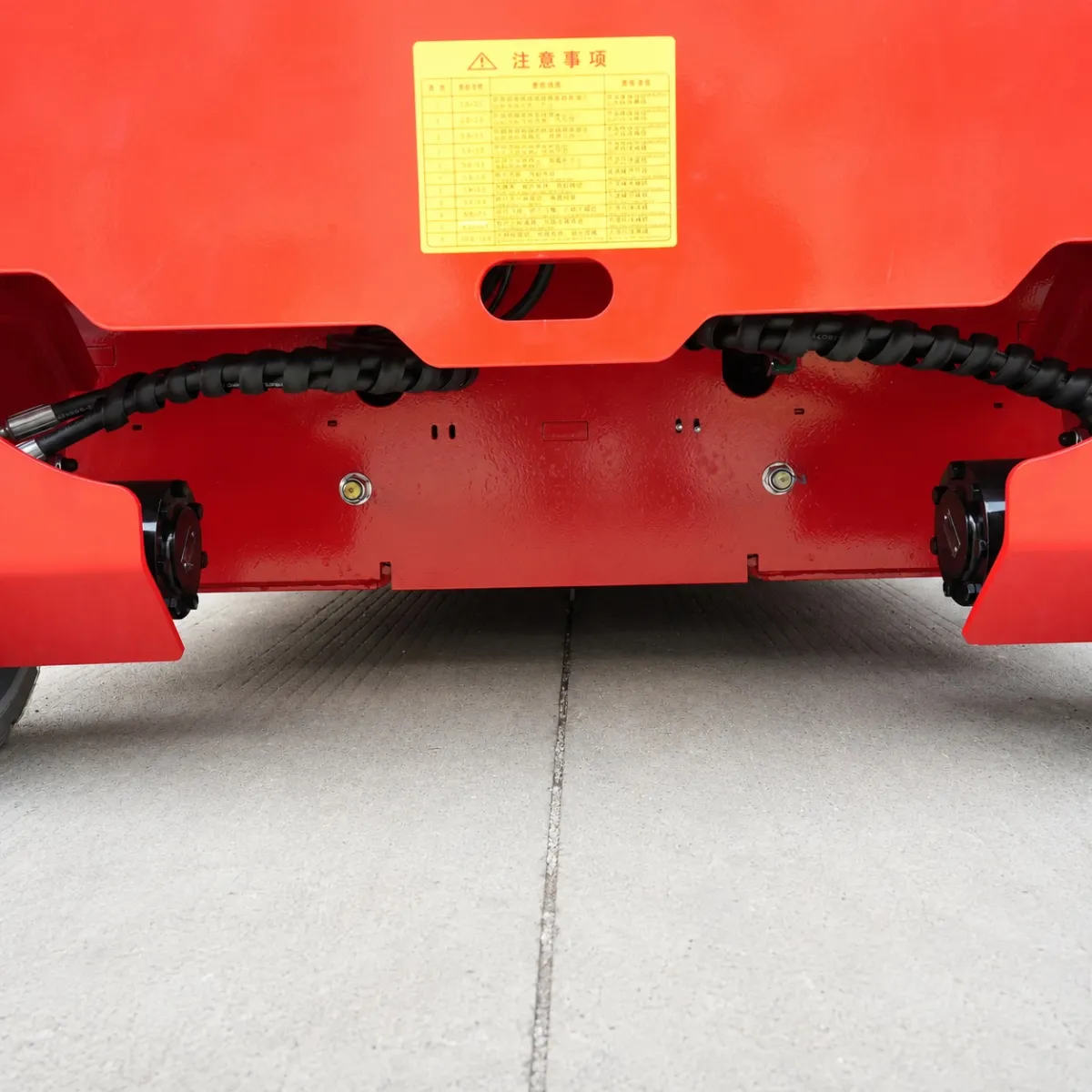

GTJZ-14-Detail (4)

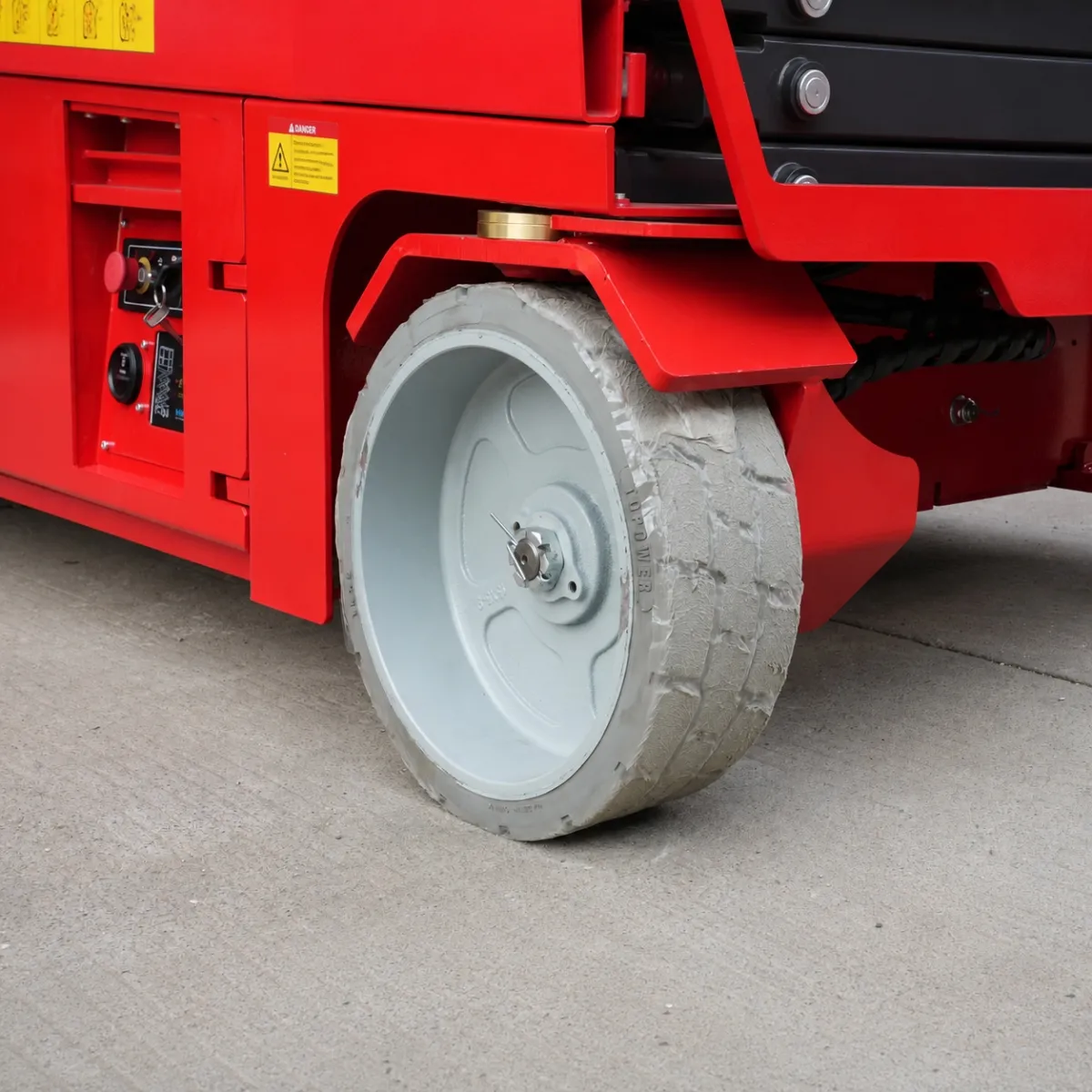

GTJZ-14-Detail (5)

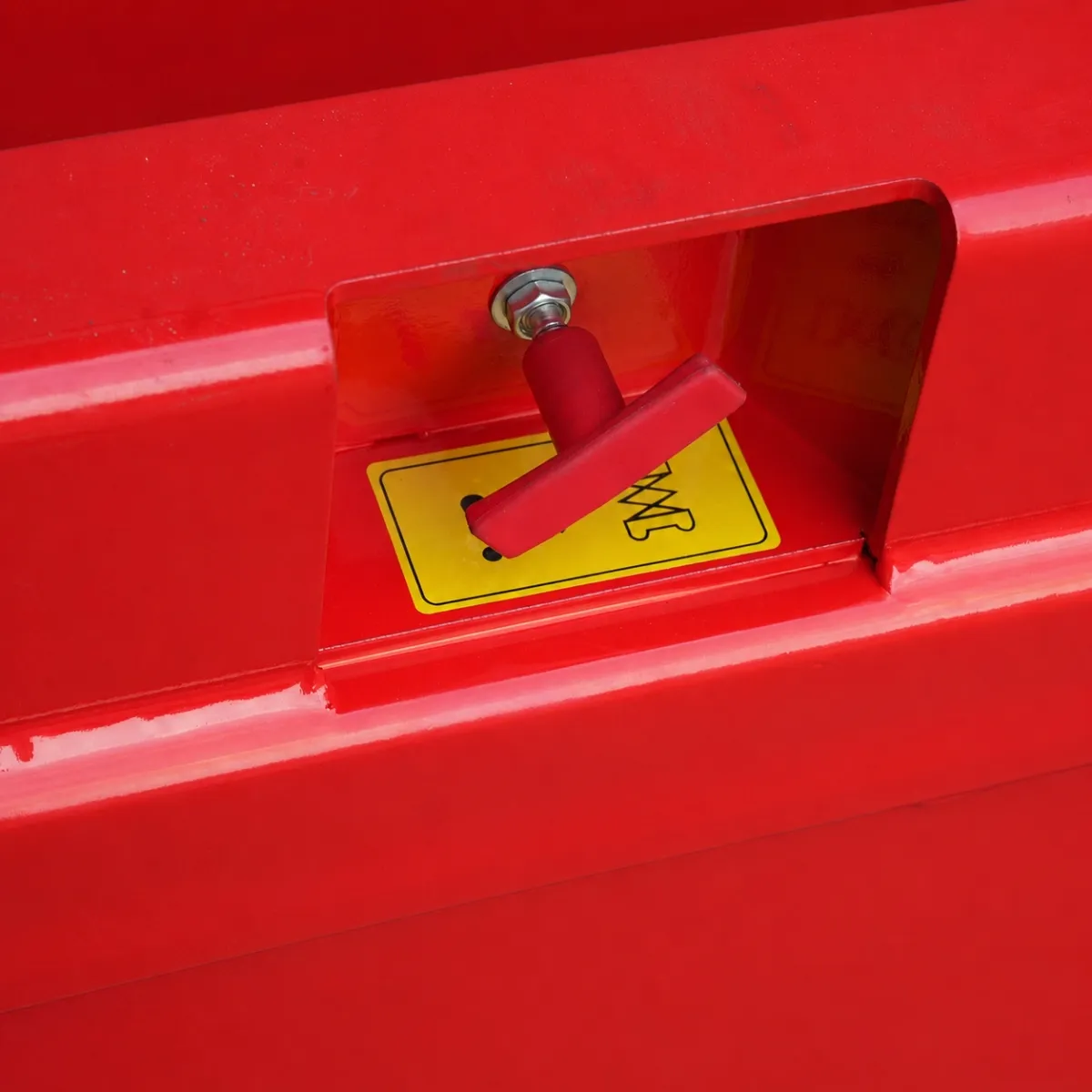

GTJZ-14-Detail (6)

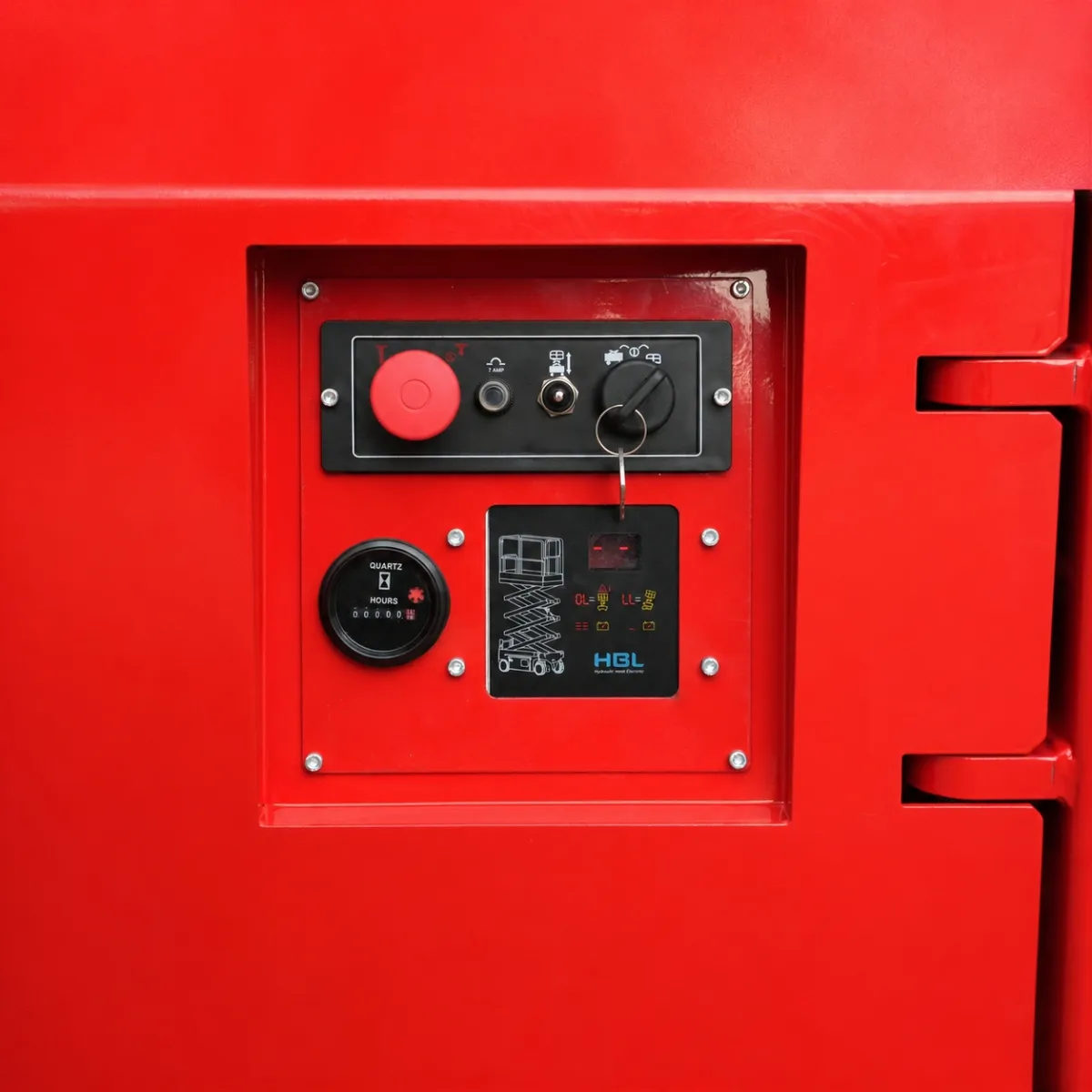

GTJZ-14-Detail (7)

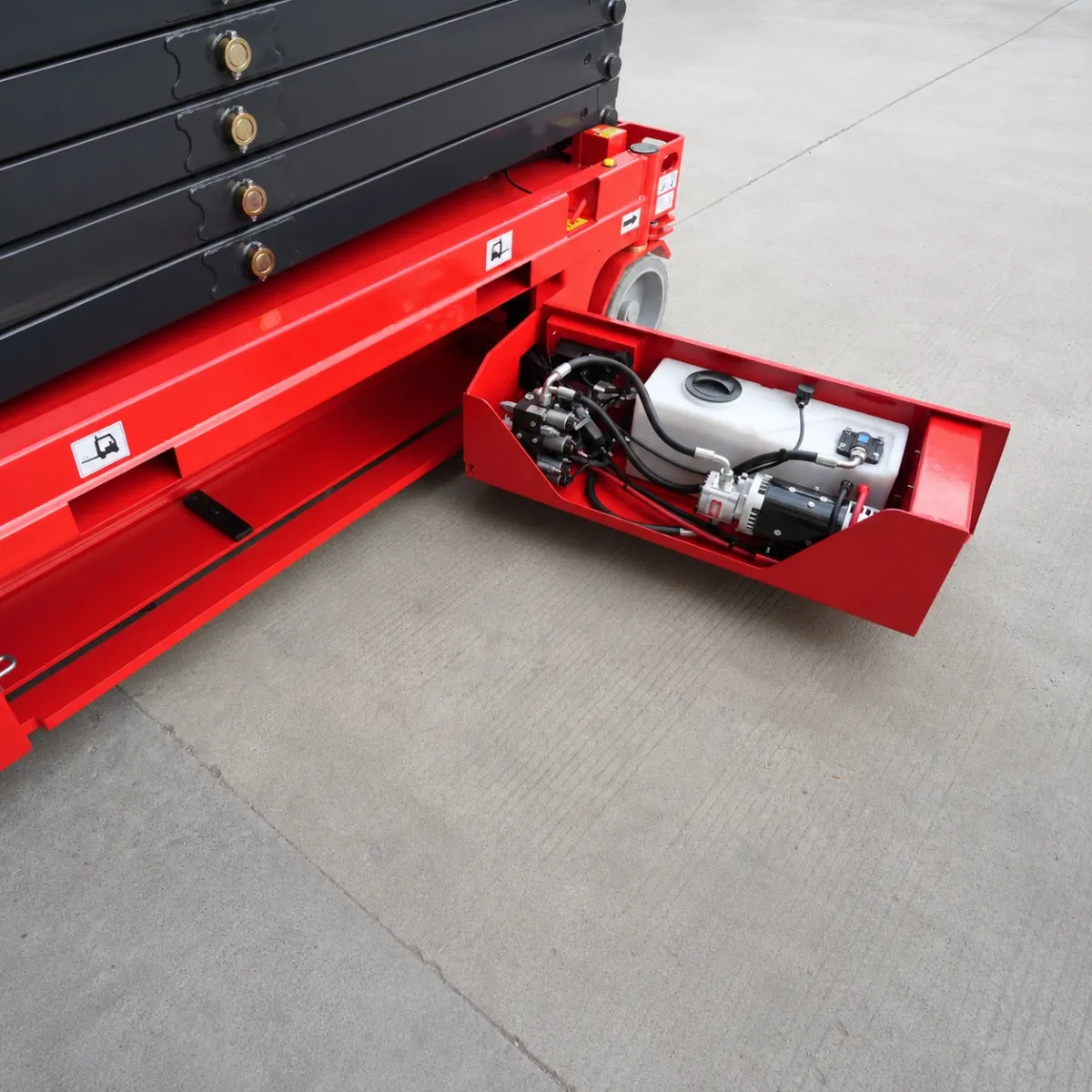

GTJZ-14-Detail (8)

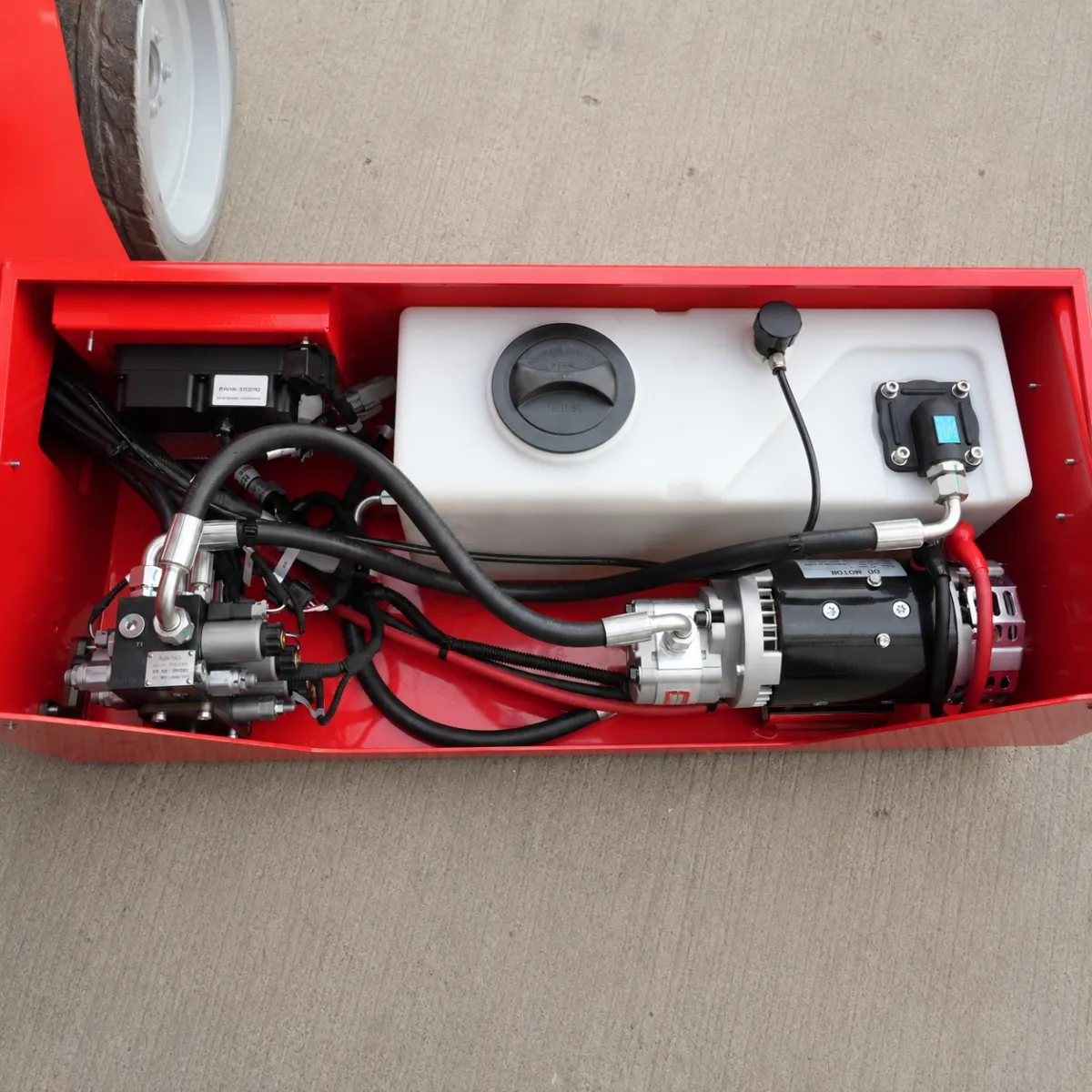

GTJZ-14-Detail (9)

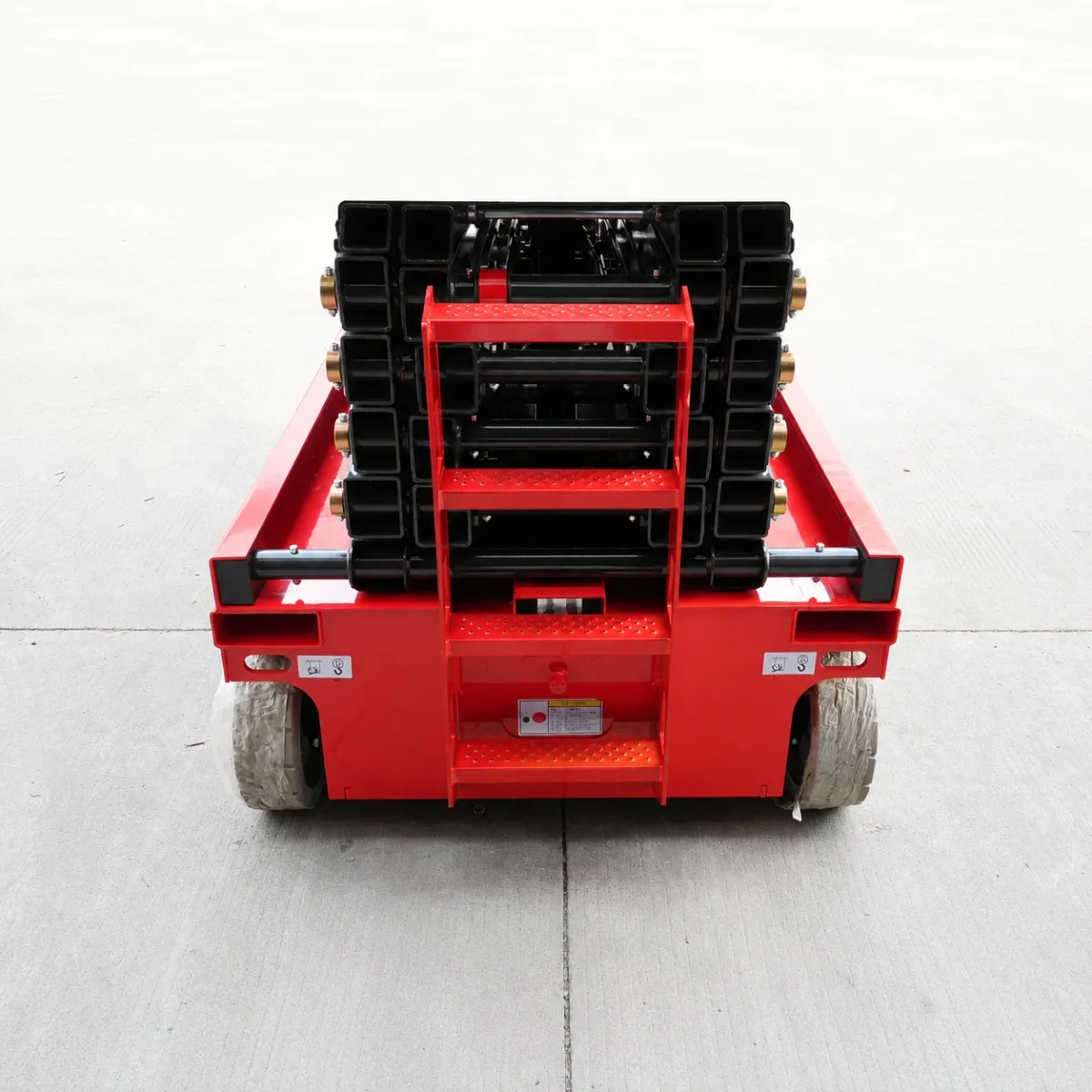

GTJZ-14-Detail (10)

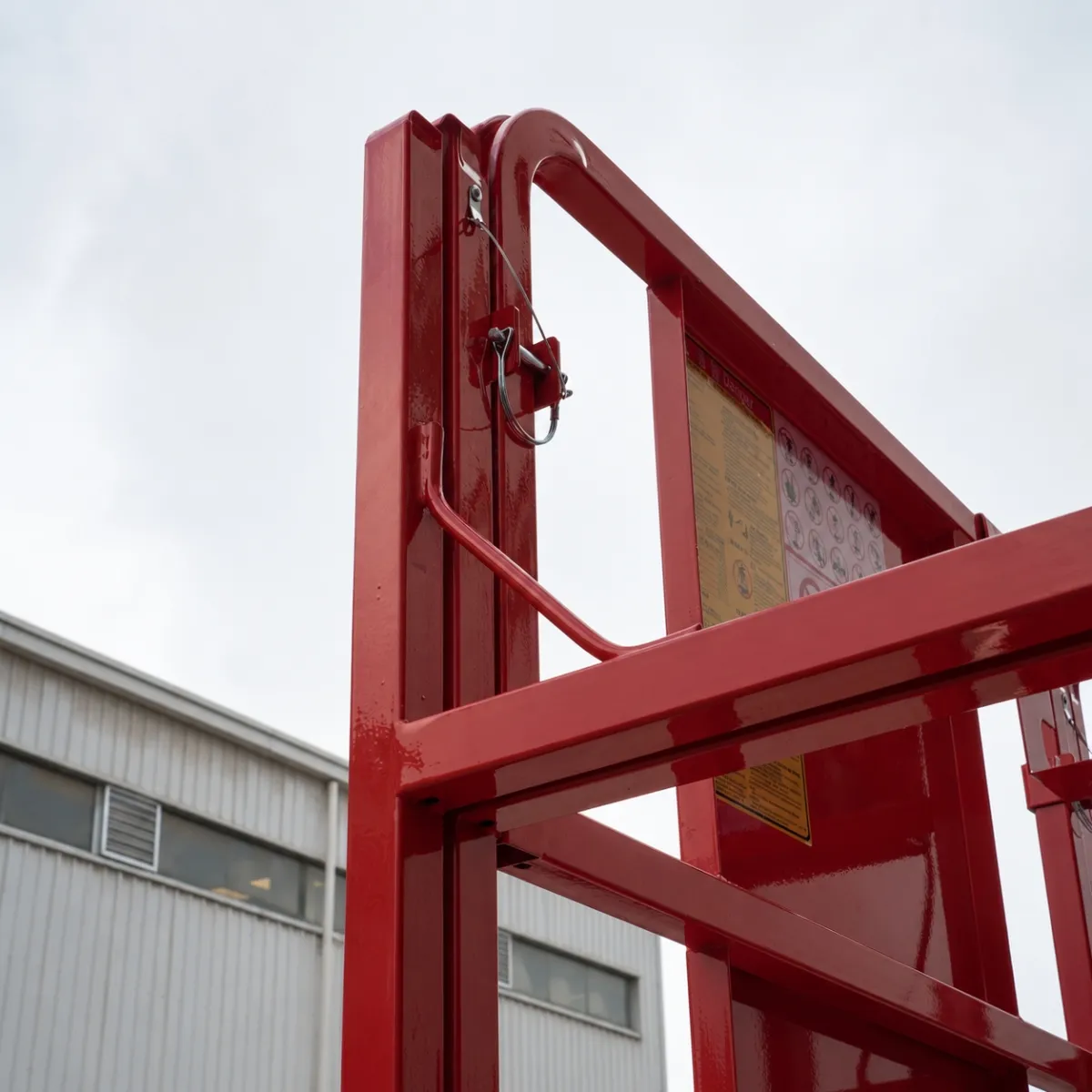

GTJZ-14-Detail (11)

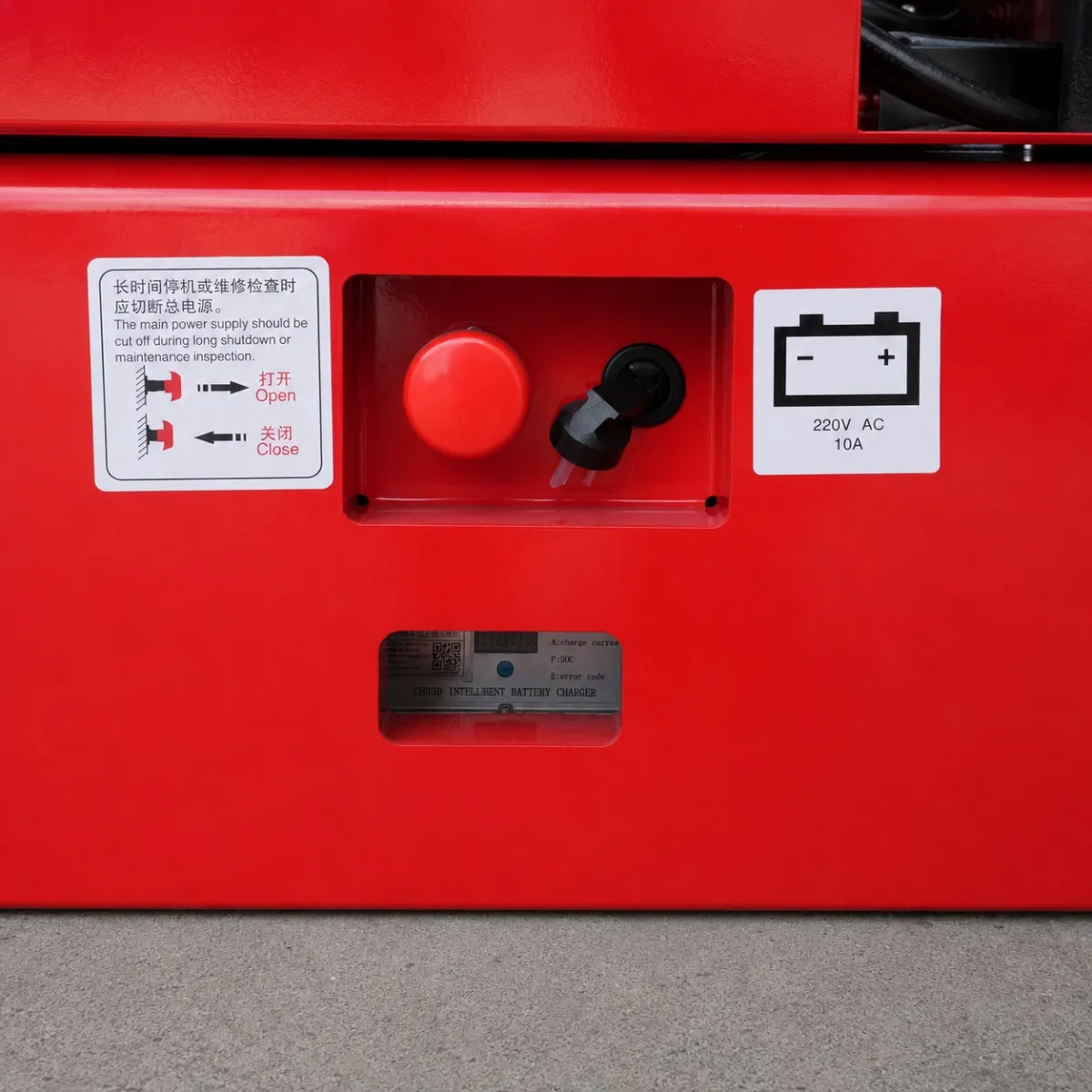

GTJZ-14-Detail (12)

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

1. Where is 16-metre electric self-propelled cutting-off... typically used?

1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.

2. How do I choose the right model?

2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.

3. What should be confirmed before ordering?

3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.

4. How should it be installed and maintained?

4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
