The integrated operating handle and control switch facilitate platform lifting and travel control.

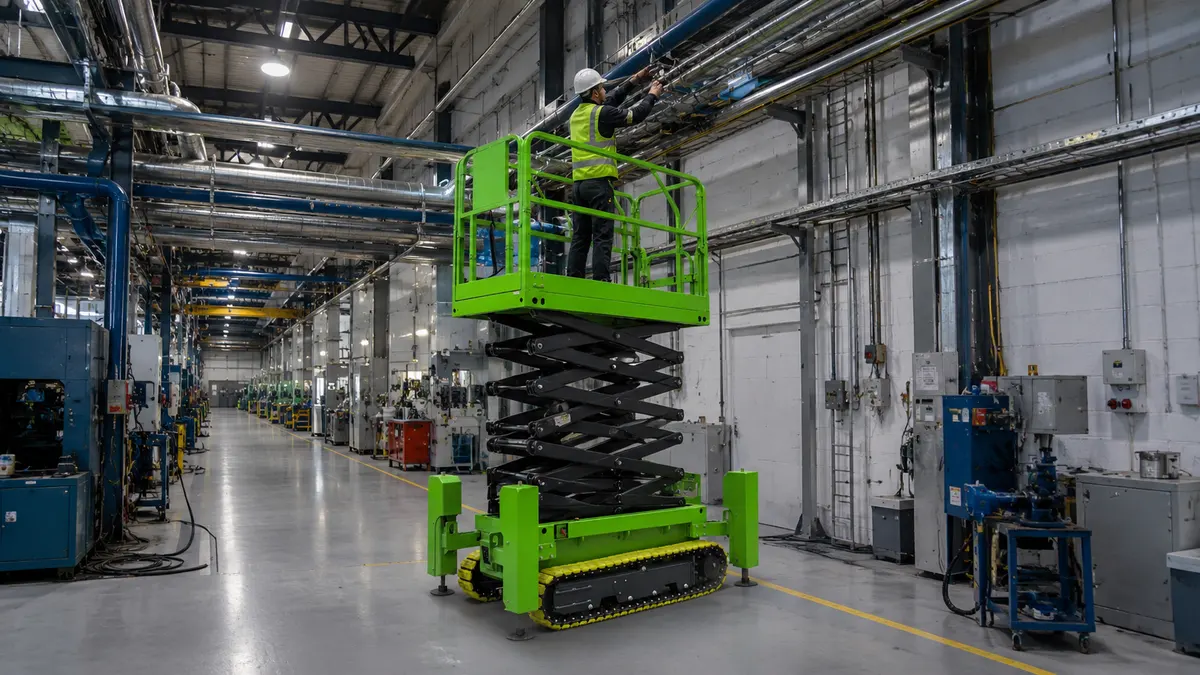

Factory pipeline inspection, repair, and overhead service operationsMaterial Handling and Elevated Work with Self-tracked forklift high-altitude operating platform

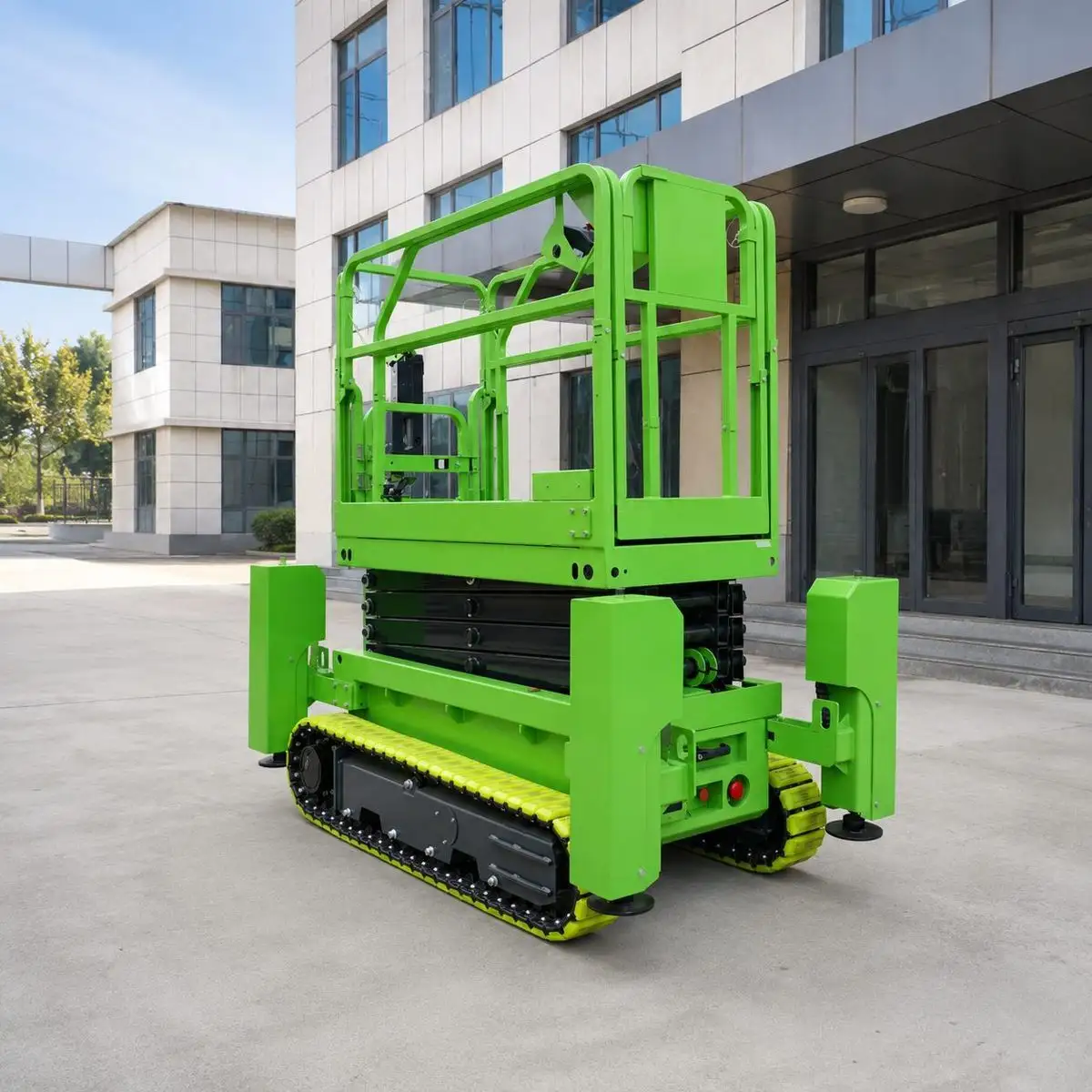

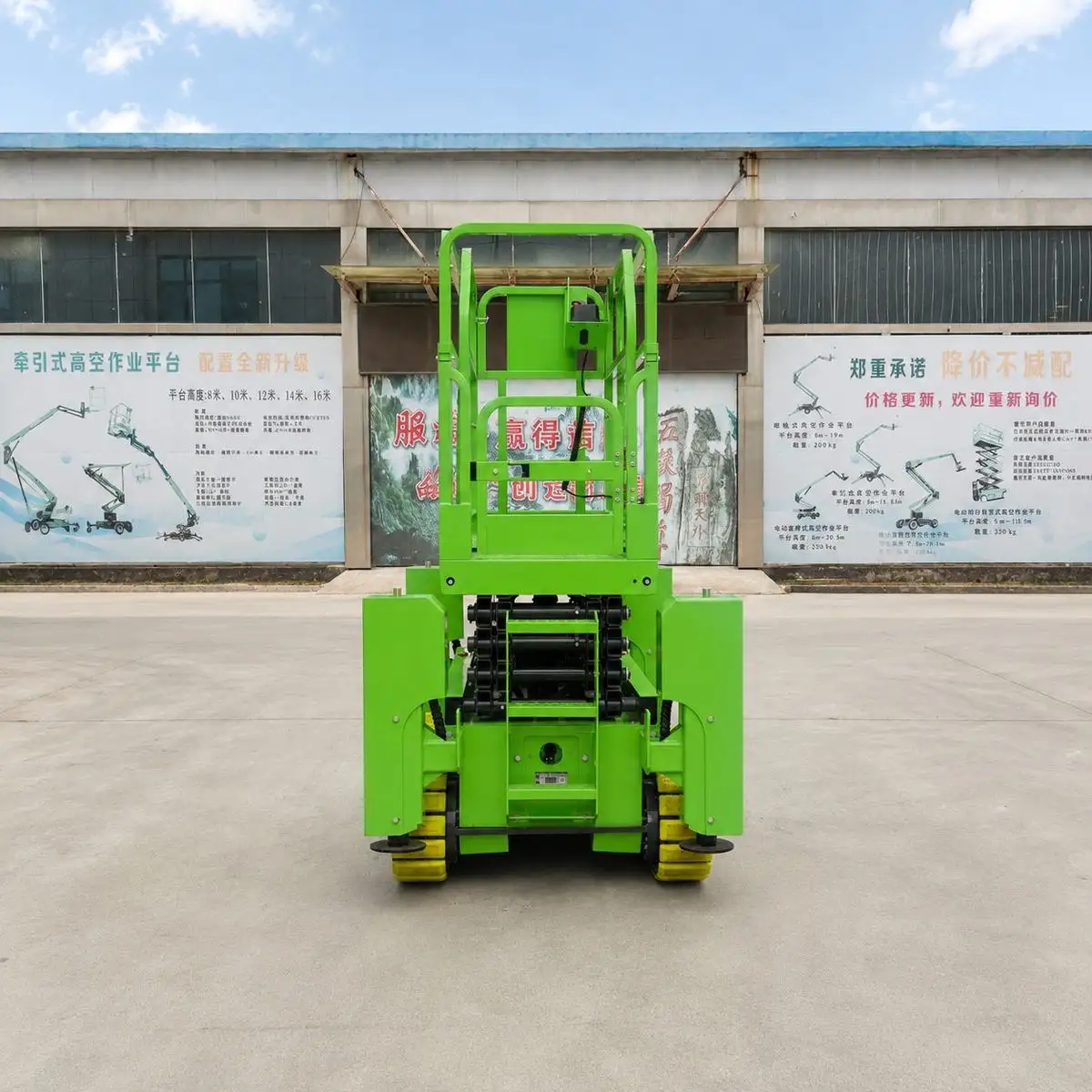

Tracked Scissor Lift Aerial Work Platform
Self-tracked forklift high-altitude operating platform is suited to warehouses, factories, yards, construction sites and maintenance operations. It supports loading, stacking, transfer or elevated access within rated capacity and site limits. Before deployment, confirm rated load, lift height, reach, aisle width, power type, tire type and ground condition.
- Warehouses
- Factories
- Yards
- Maintenance Ops
Construction site exterior wall access and elevated maintenance operationsFactory pipeline inspection, repair, and overhead service operations

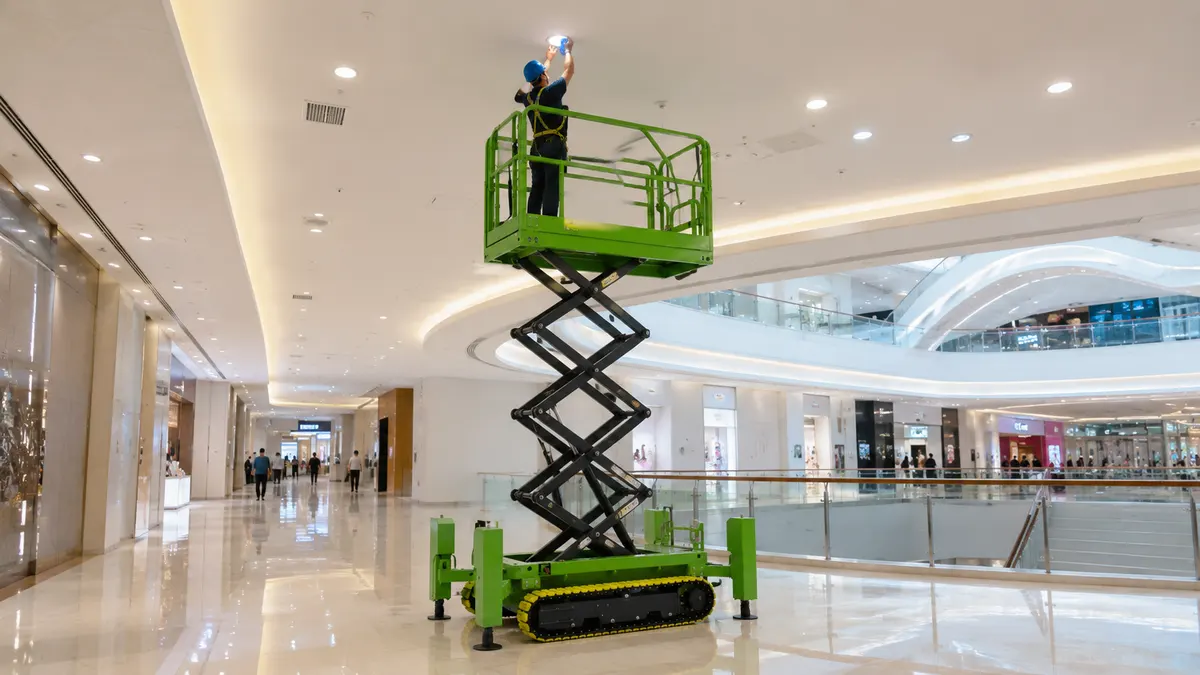

Shopping mall rooftop equipment inspection and maintenance accessConstruction site exterior wall access and elevated maintenance operationsFactory pipeline inspection, repair, and overhead service operationsProduct Advantages

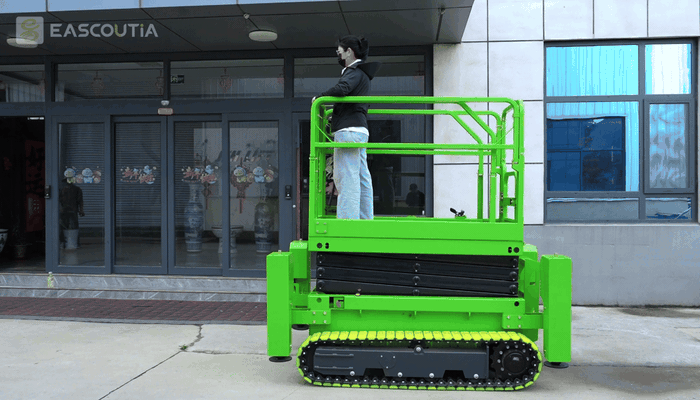

Stable Crawler Mobility
Specifications & Structural Decomposition

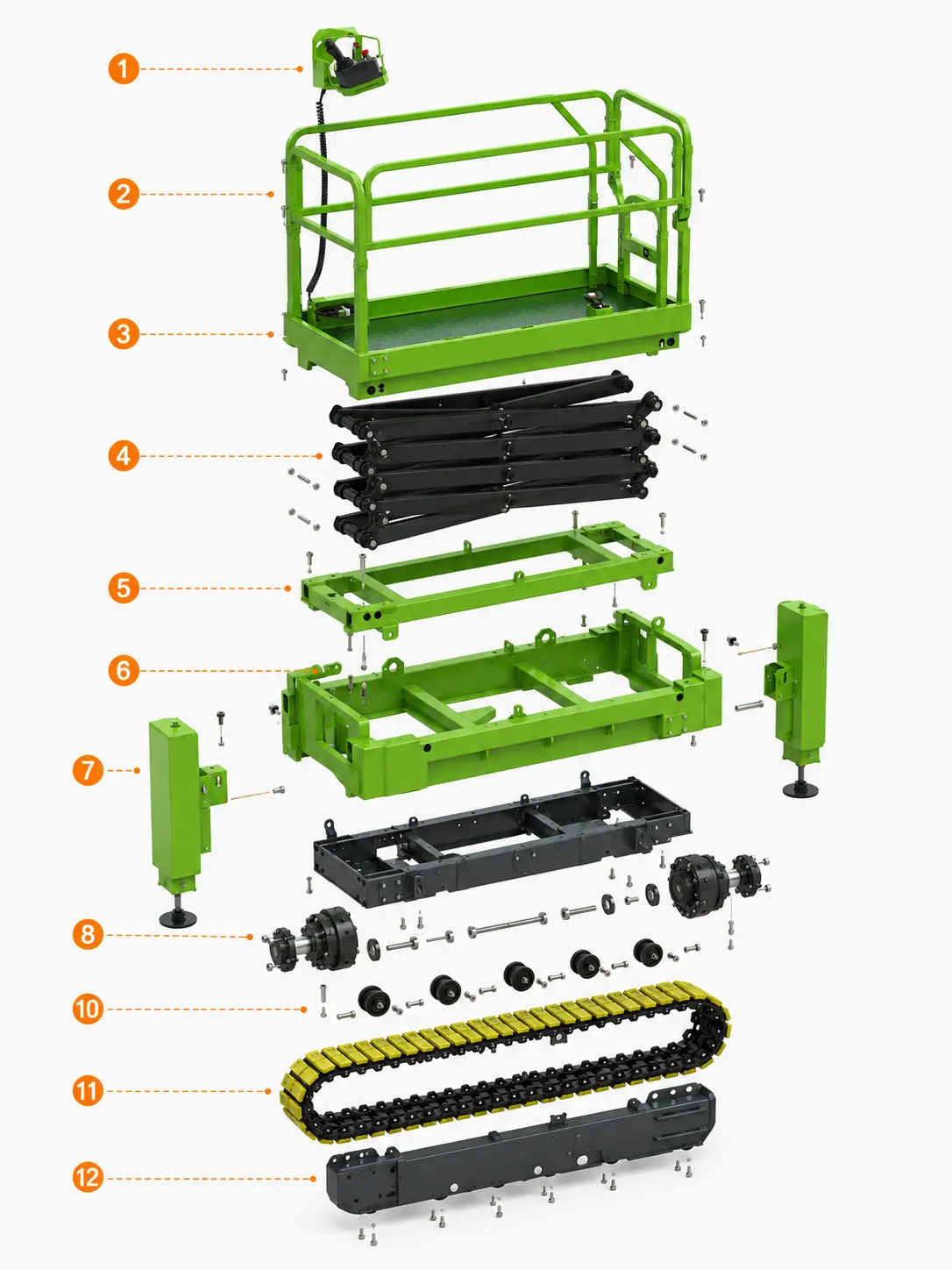

Product Structure Diagram
- Upper Control Box
- Safety Guardrail
Enclose high-altitude work areas to reduce the risk of personnel losing their footing and accidental falls.
- Assignment Hosting Platform
Provides space for personnel and tools, while the non-slip work surface enhances operational stability.

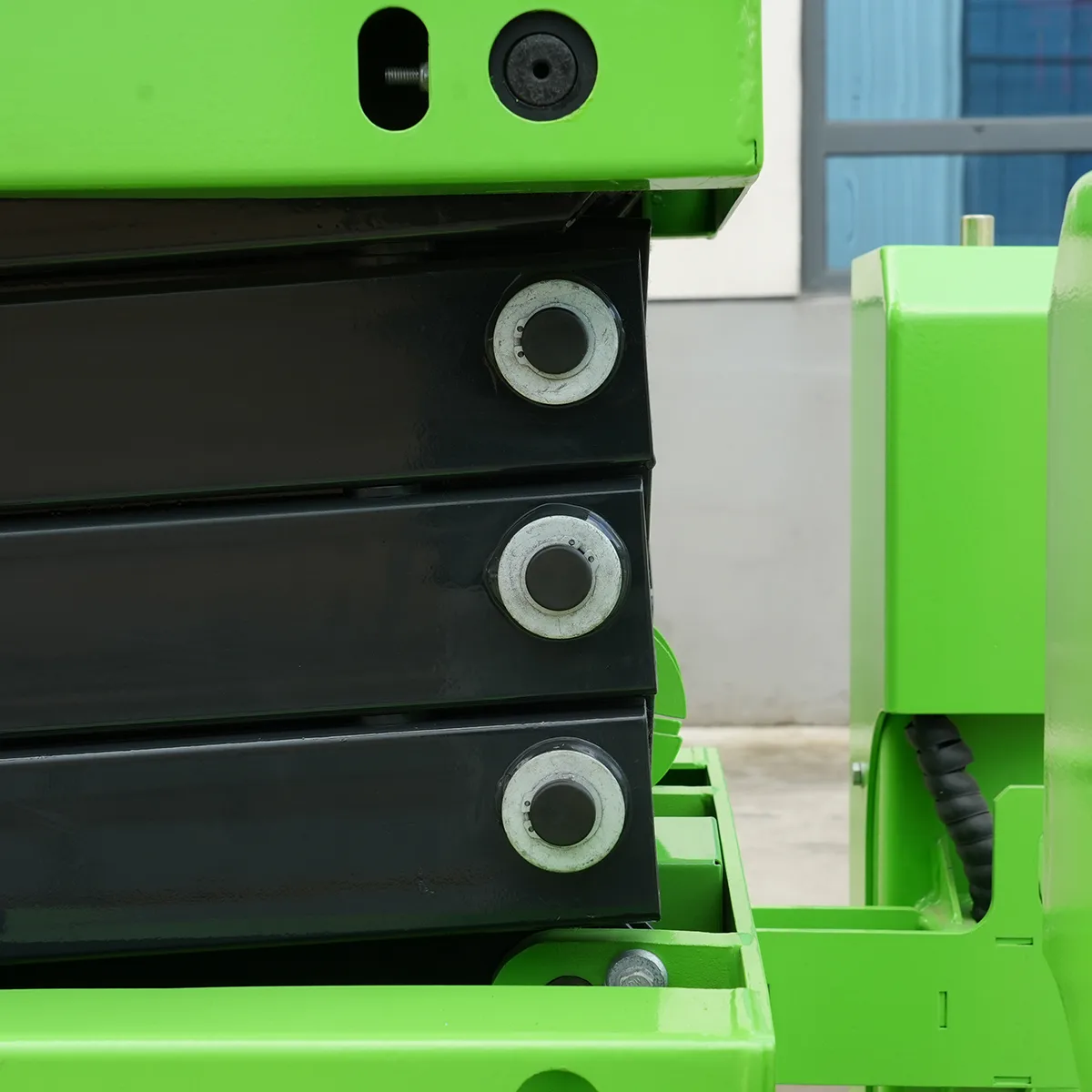

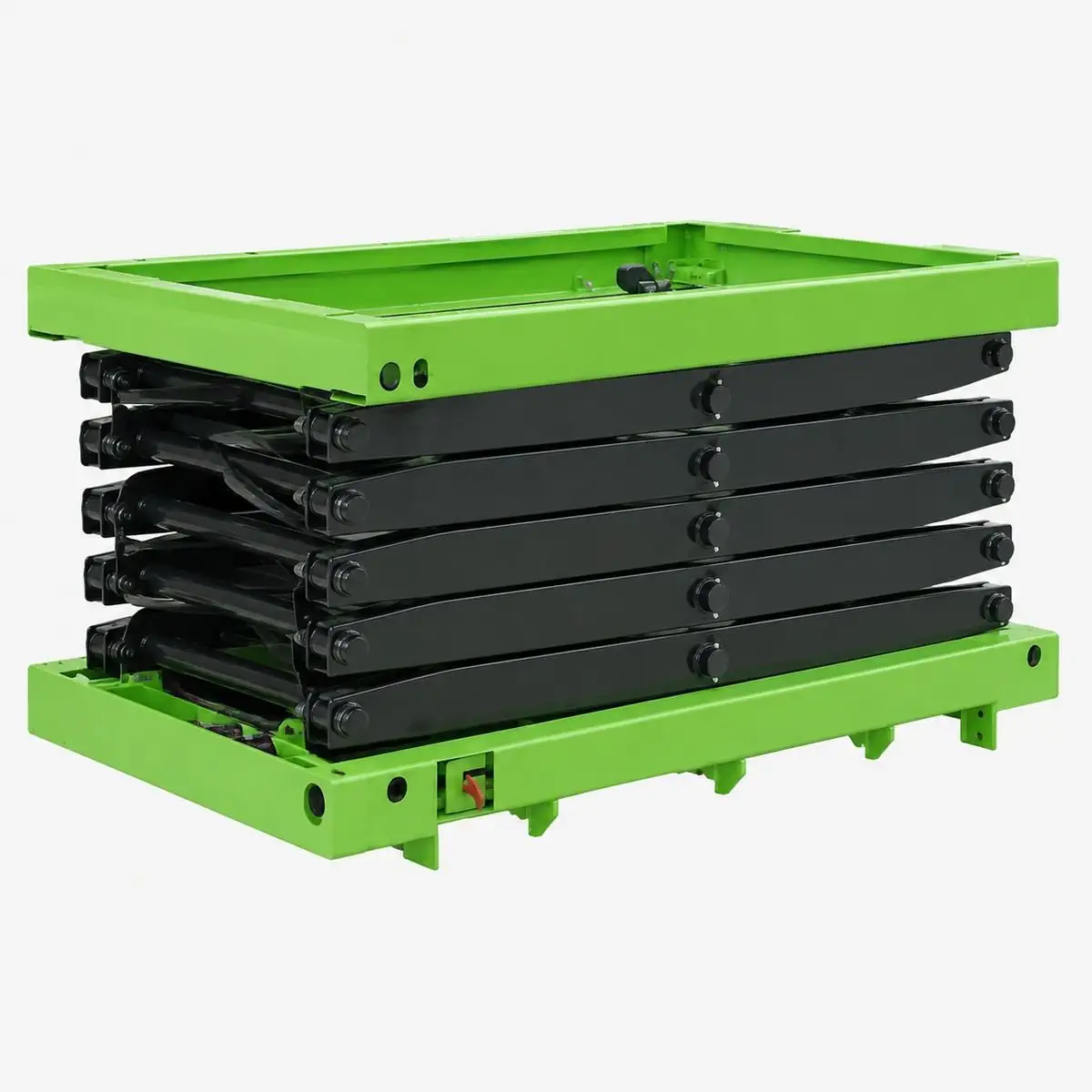

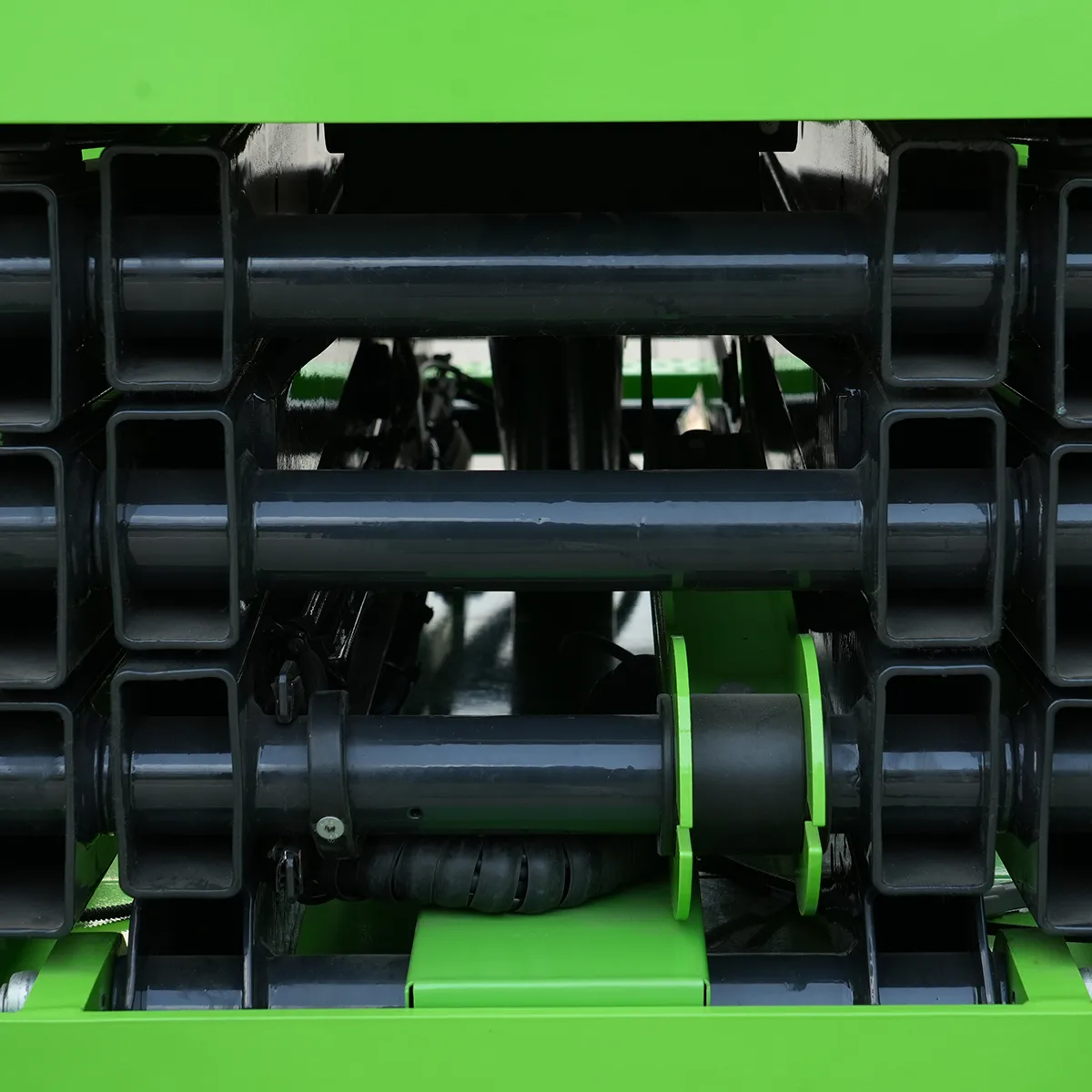

- Scissor Lift Mechanism
Multiple crossed support arms extend in synchronization, enabling smooth vertical lifting and lowering of the platform.
- Upper Connection Frame
It connects the work platform to the scissor mechanism, evenly transmitting the platform’s load-bearing pressure.
- Main Load-Bearing Frame
The support-lifting, power, and track systems constitute the equipment’s core load-bearing structure.

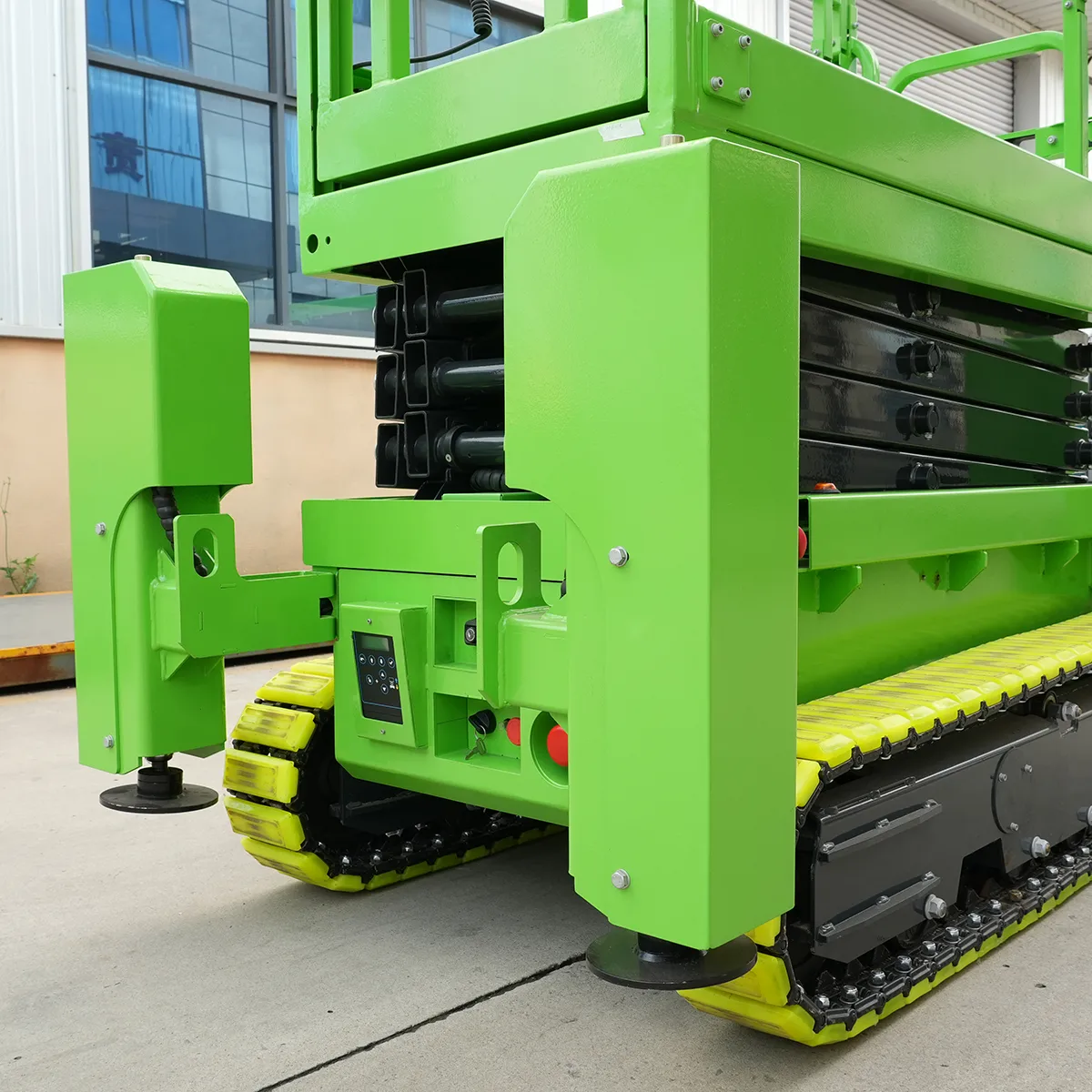

- Hydraulic support leg
When unfolded, it increases the equipment’s support area, enhancing stability during high-altitude operations.
General information
- Maximum working height
- 13.8m
- Maximum platform height
- 11.8m
- Safe working load
- 320kg
- Extended platform safety working load
- 113kg
- Maximum number of workers
- 2 people
- Overall length (collapsed state)
- 2.81m
- Overall width (in the stowed position)
- 1.70m
General instructions
Simplified explanationProduct Attachments or Core Configurations
Product Video
JFH-SLP-12-14L Appearance Showcase

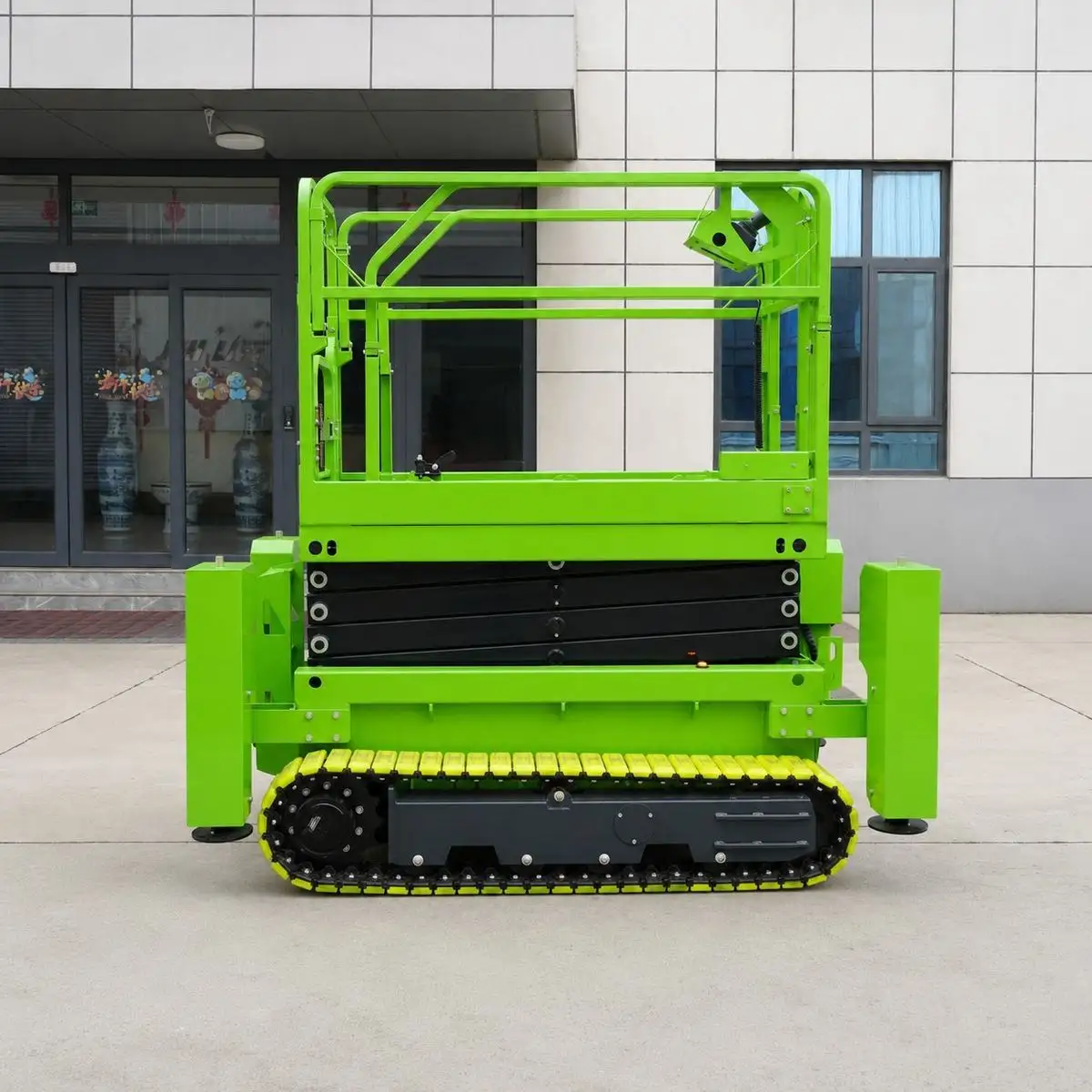

Multiple angles highlight the machine, tracks, scissor lift, outriggers and controls.
JFH-SLP-12-14L Appearance Showcase
00:31Multiple angles highlight the machine, tracks, scissor lift, outriggers and controls.
JFH-SLP-12-14L Full Operation Demo
01:51Shows tracked travel, steering, outrigger deployment and scissor lifting.
Container loading
00:28Container loading. Equipment is neatly arranged and firmly strapped to avoid collision and ensure safe export shipment.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00

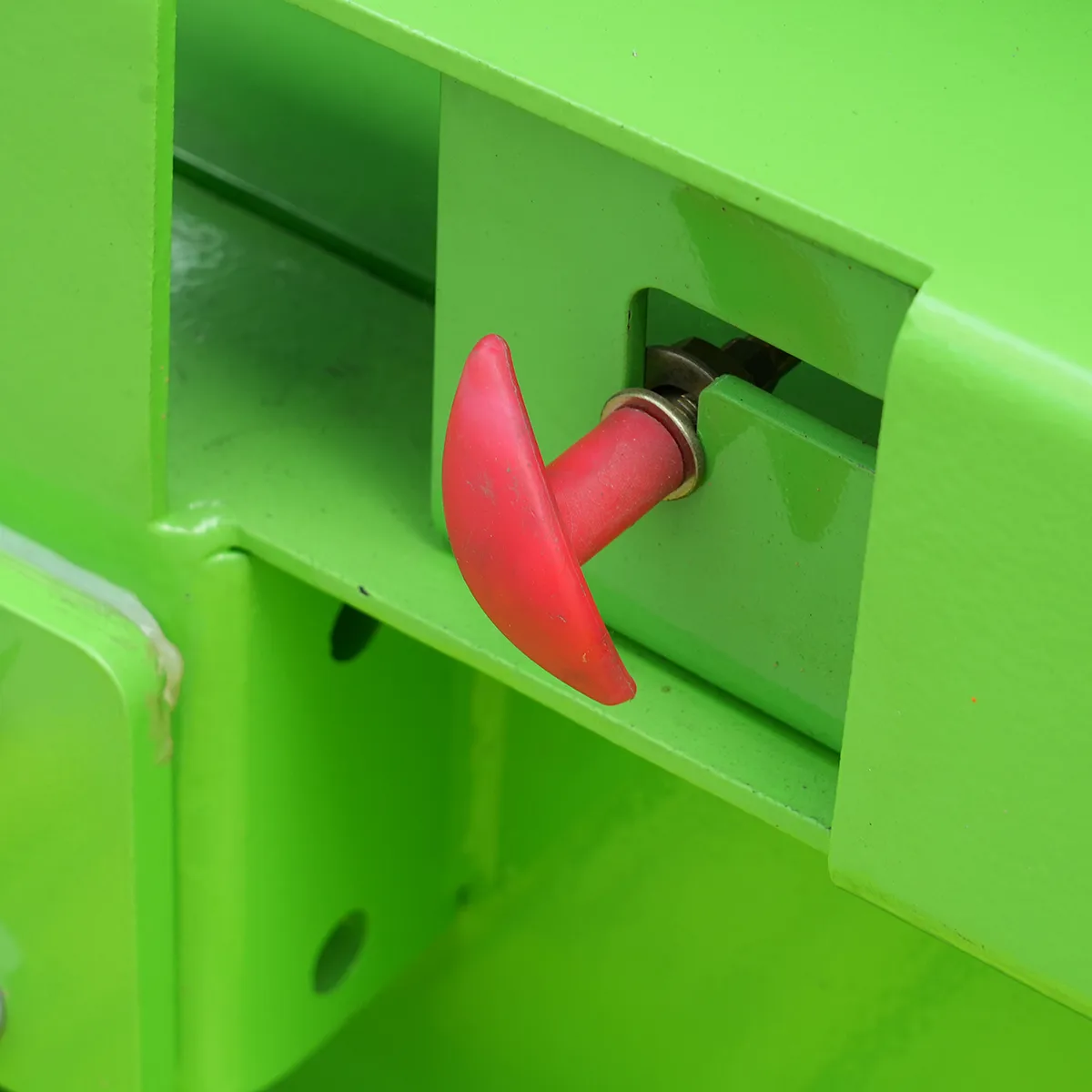

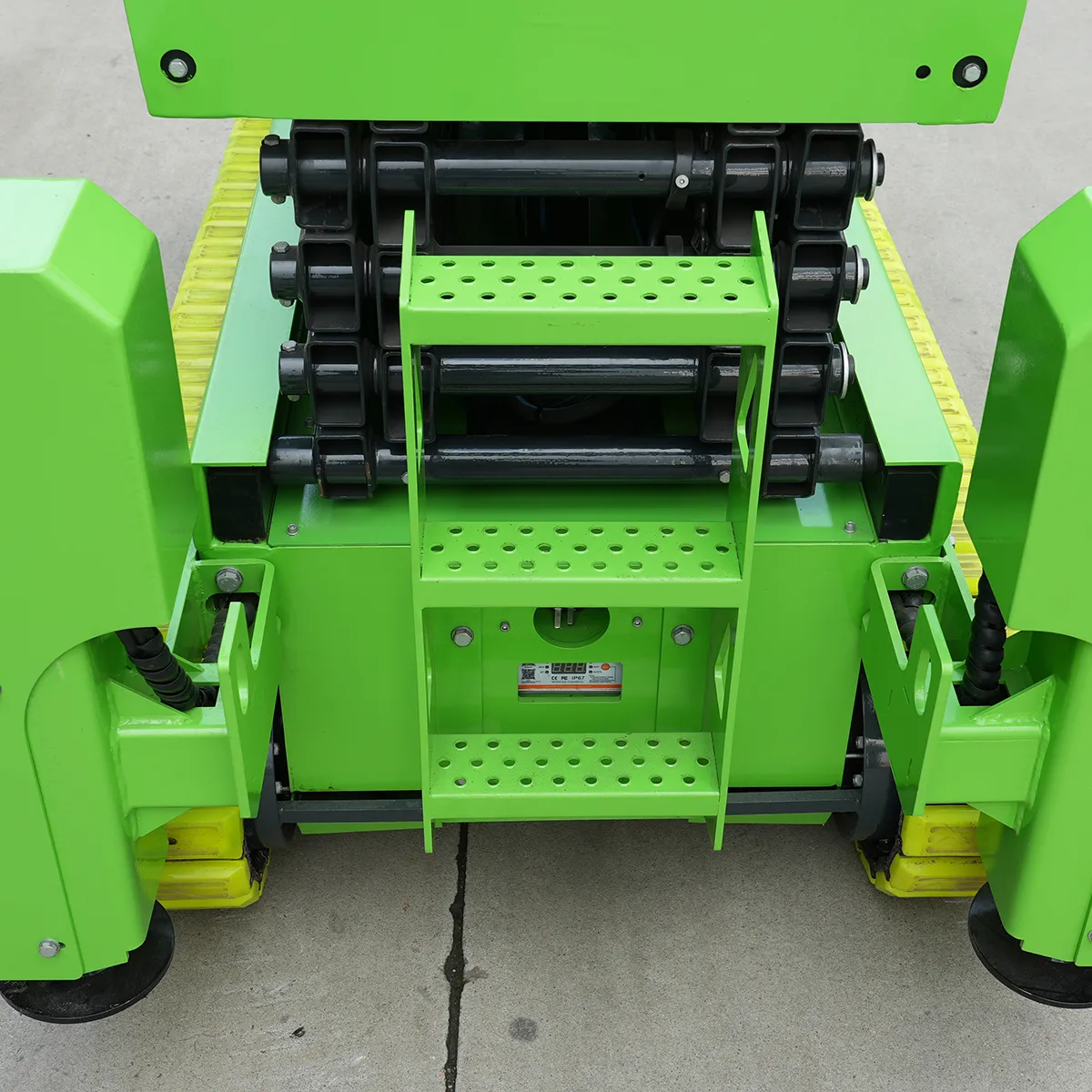

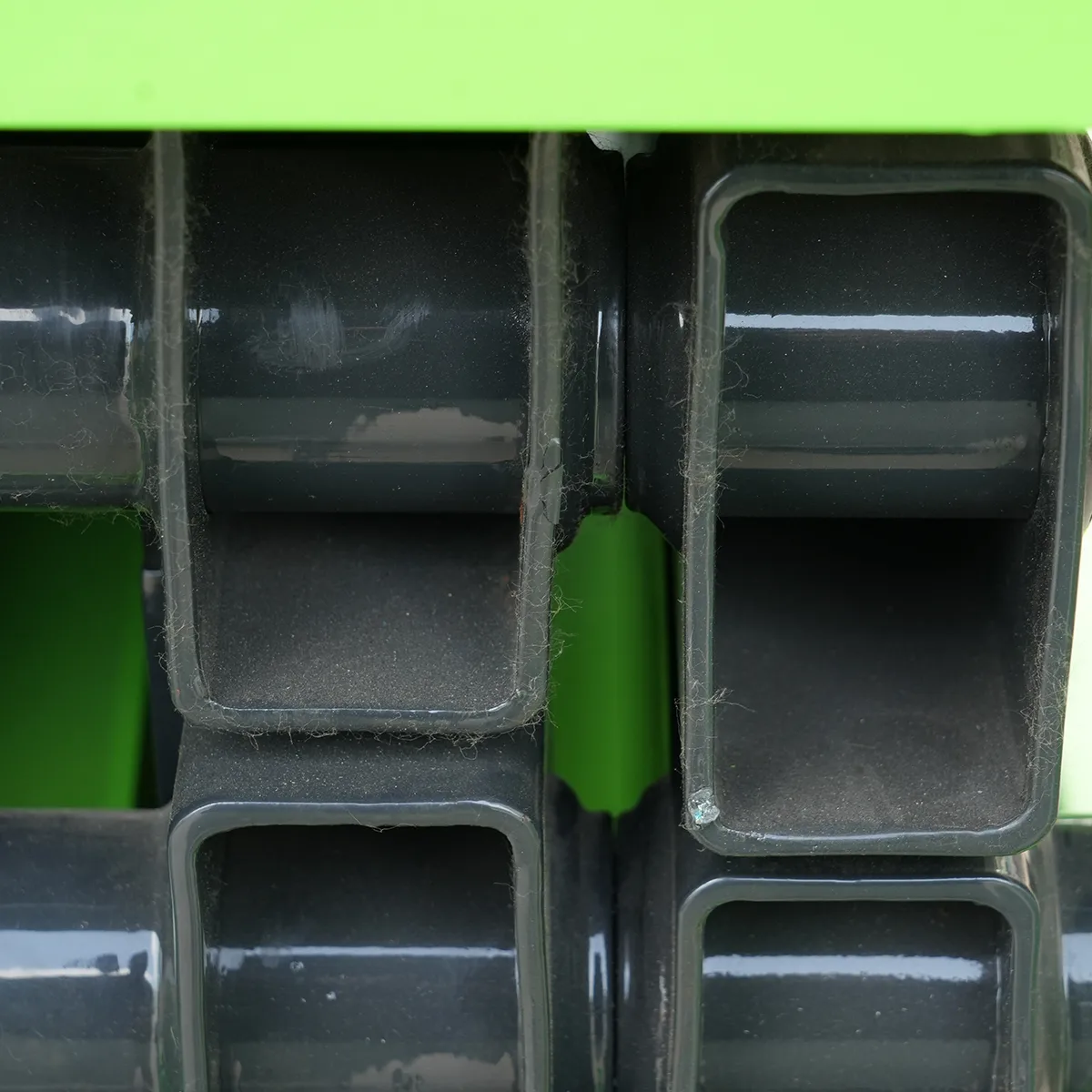

Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
Where is the tracked scissor lift used?
It is suited to construction, maintenance, industrial yards, and other sites where tracked access and elevated reach are required.
How do I choose the right model?
Match platform load, lift height, working area, track access, ground conditions, and required stabilizer configuration.
What should be confirmed before ordering?
Confirm model, rated load, lift height, platform dimensions, track route, power arrangement, and delivery requirements.
How should it be operated safely?
Use trained operators, inspect tracks and outriggers daily, keep the platform within rated load, and follow the operating manual.
