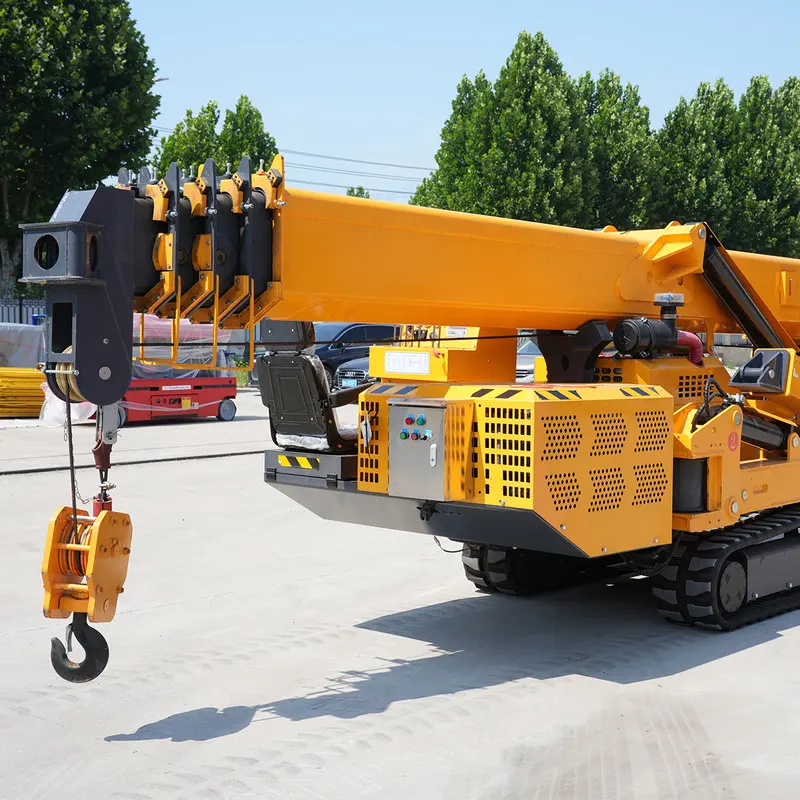

The yellow boom shell and black telescopic sections provide the verified adjustable lifting reach.

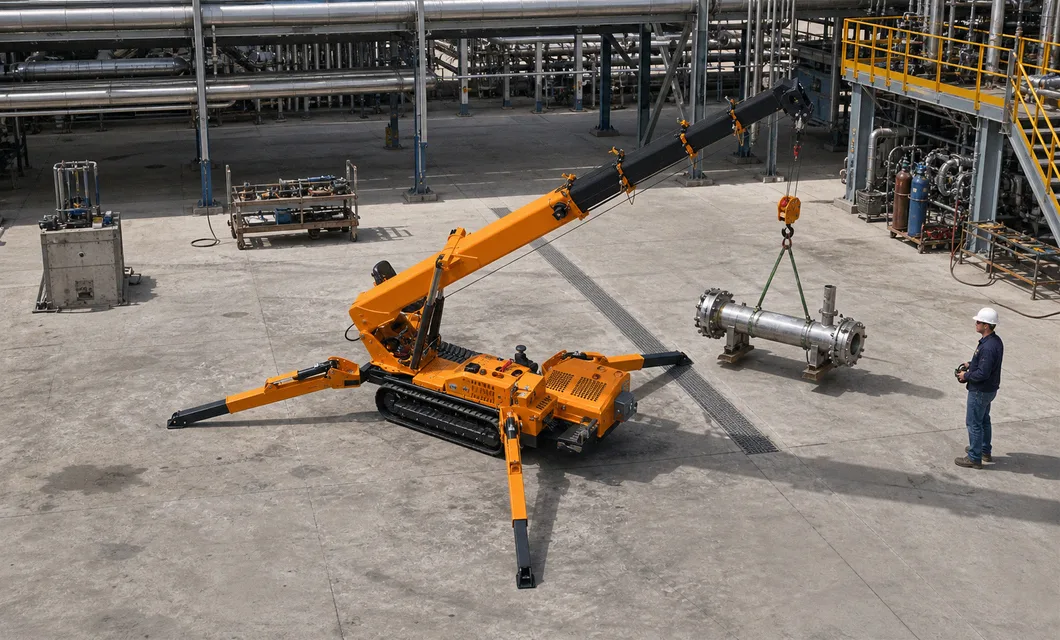

refinery-pipe-liftingCrawler Spider Crane
Reliable Product Support for Site Work

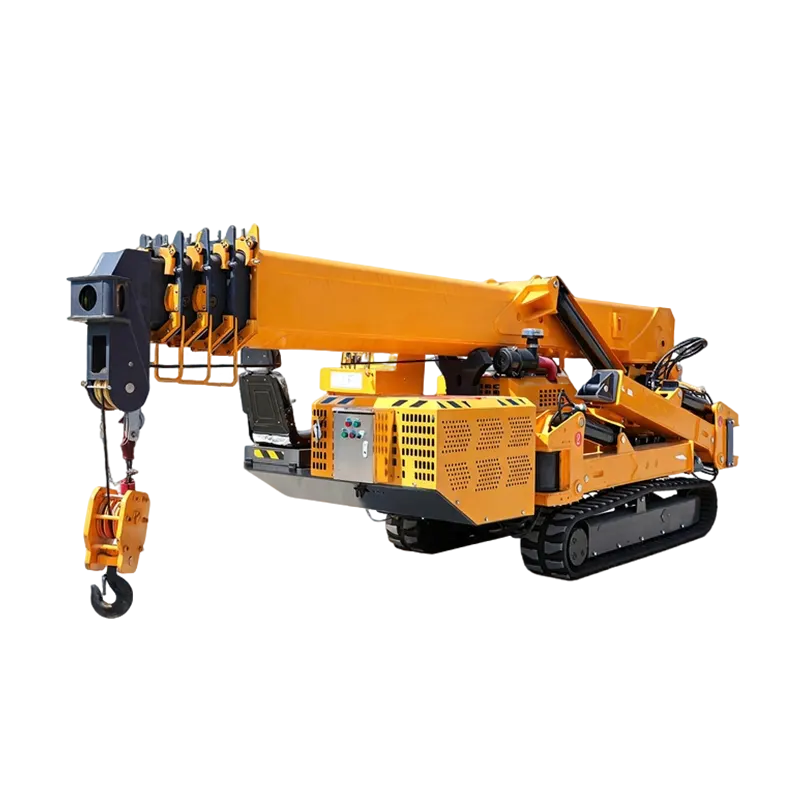

This crawler spider crane combines an 18 m operating radius, 21 m lift height, rubber tracks and deployable outriggers for constrained sites.
- Rubber Track Chassis
- 21 m Lift Height
- 18 m Operating Reach
- Four-Rope Hoisting

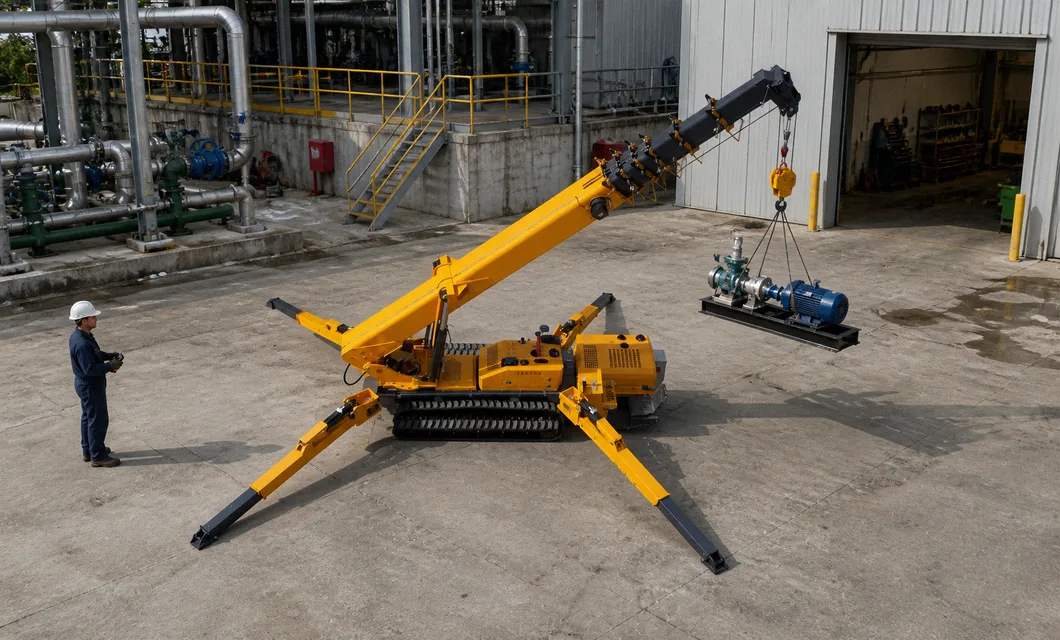

factory-pump-maintenance

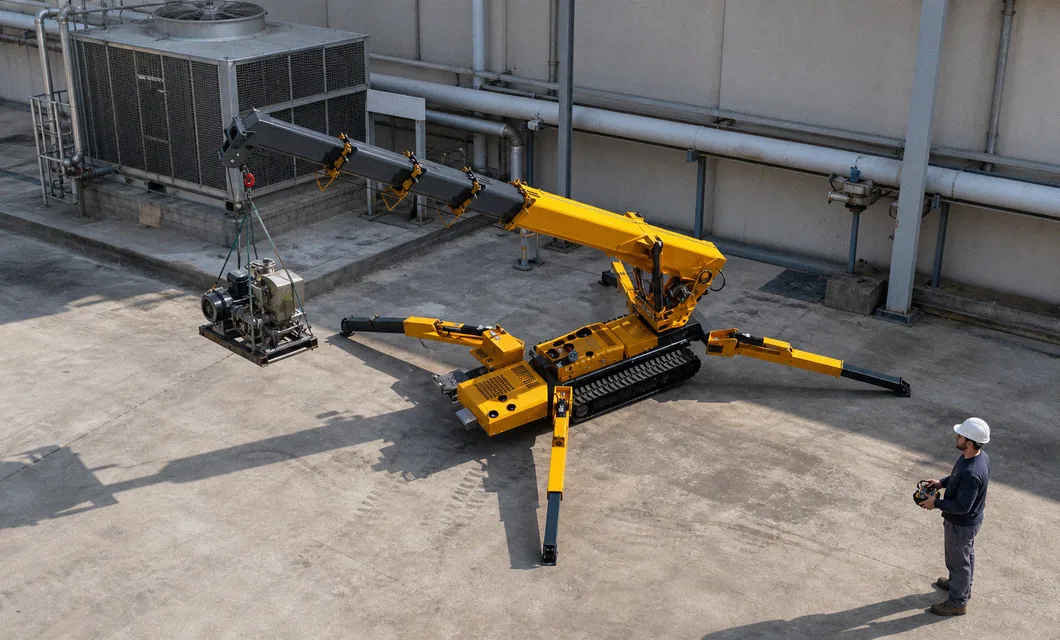

industrial-pump-liftingrefinery-pipe-lifting

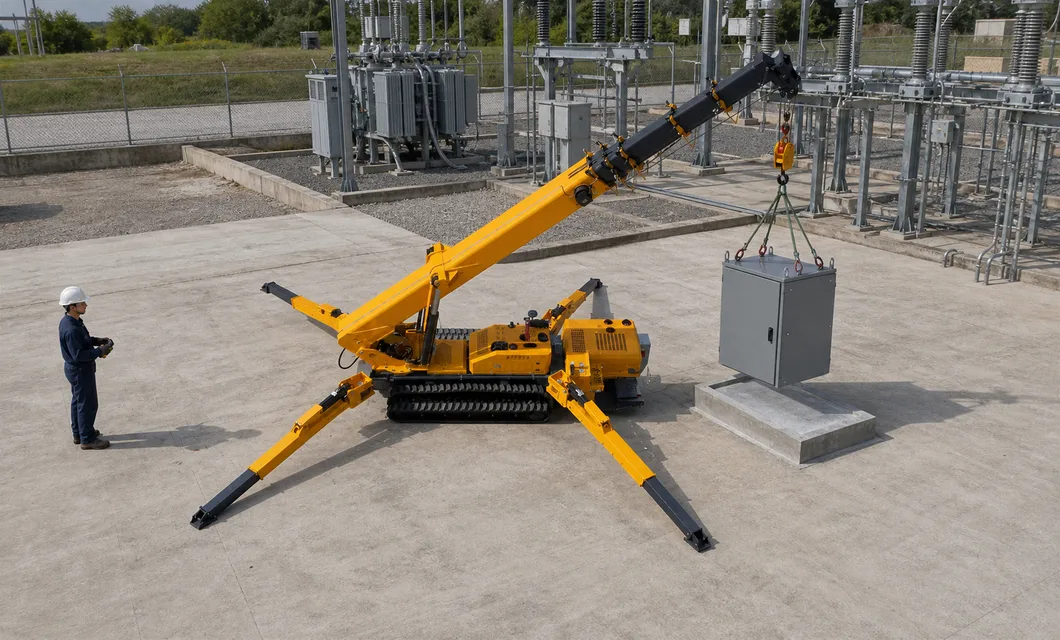

substation-cabinet-placementfactory-pump-maintenanceindustrial-pump-liftingProduct Advantages

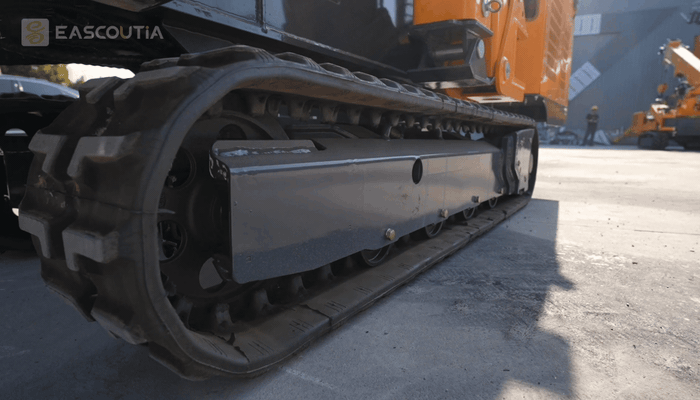

The tracked undercarriage moves the machine smoothly forward on a hard surface.
Specifications & Structural Decomposition
Product Structure Diagram
- Telescopic Boom Assembly
- Wire Rope and Hook Block

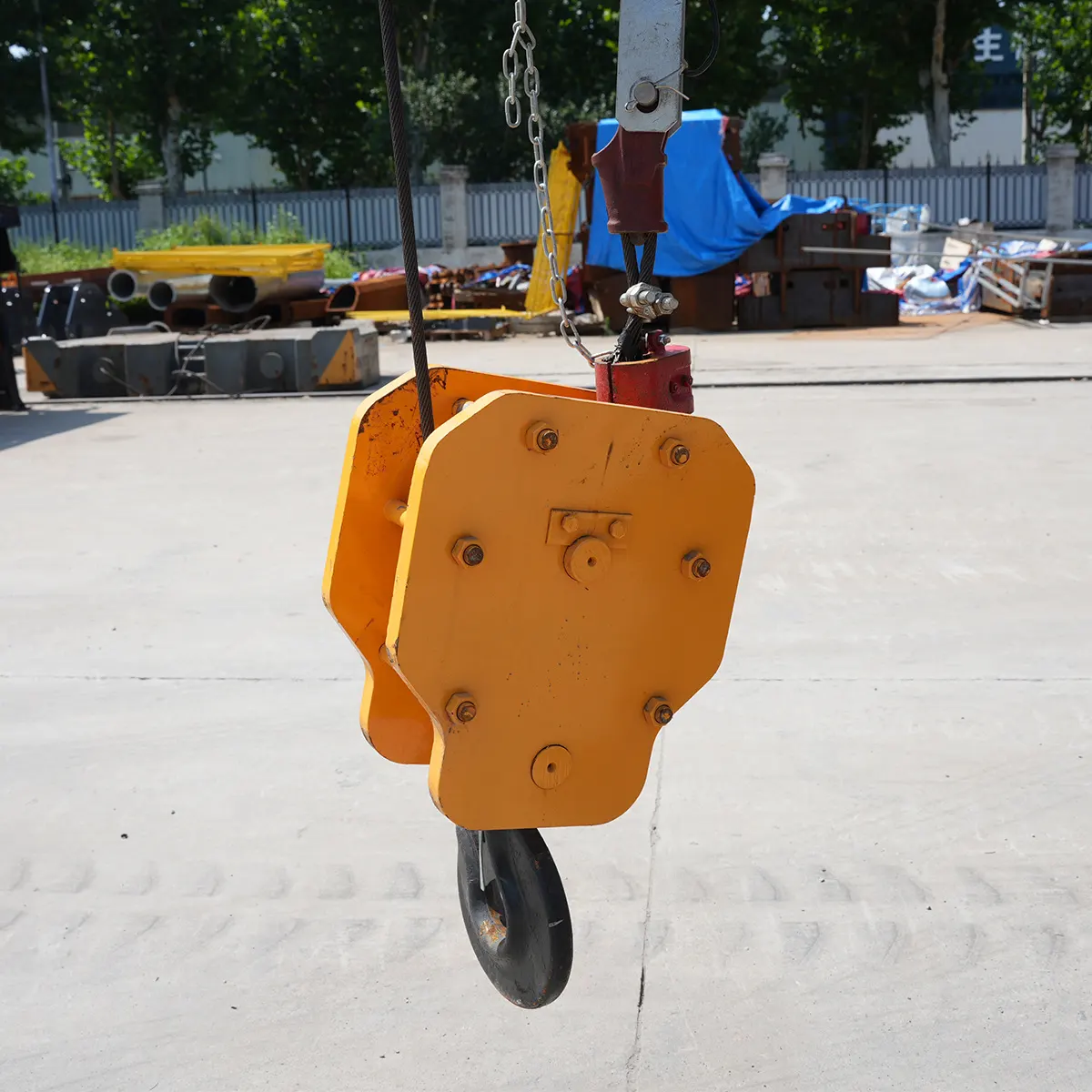

The rope, multi-sheave block and hook create the visible load connection and reeving path.
- Rotation and Luffing Base
The pivot frame, external cylinders and slewing base support boom elevation and rotation.

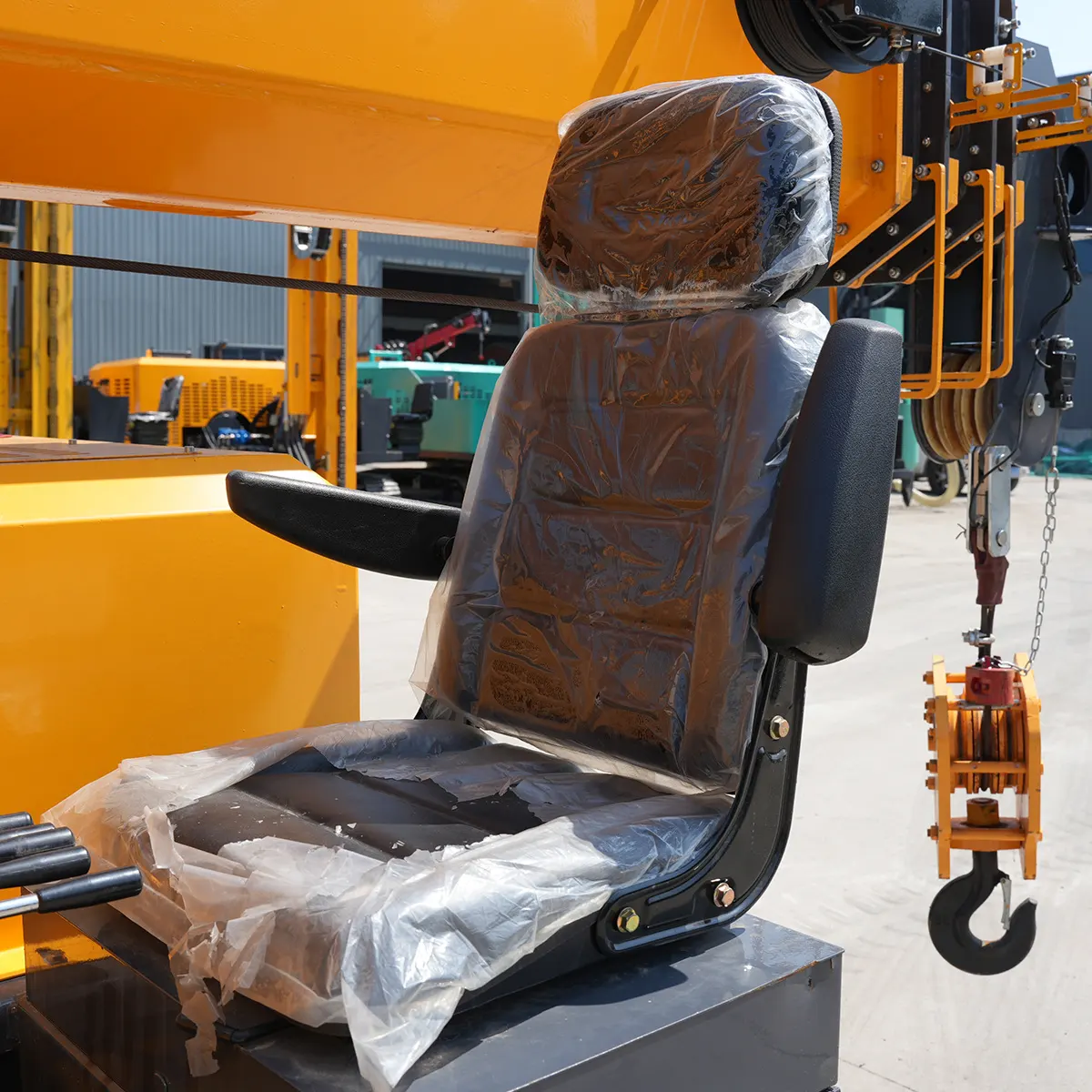

- Operator Control Station

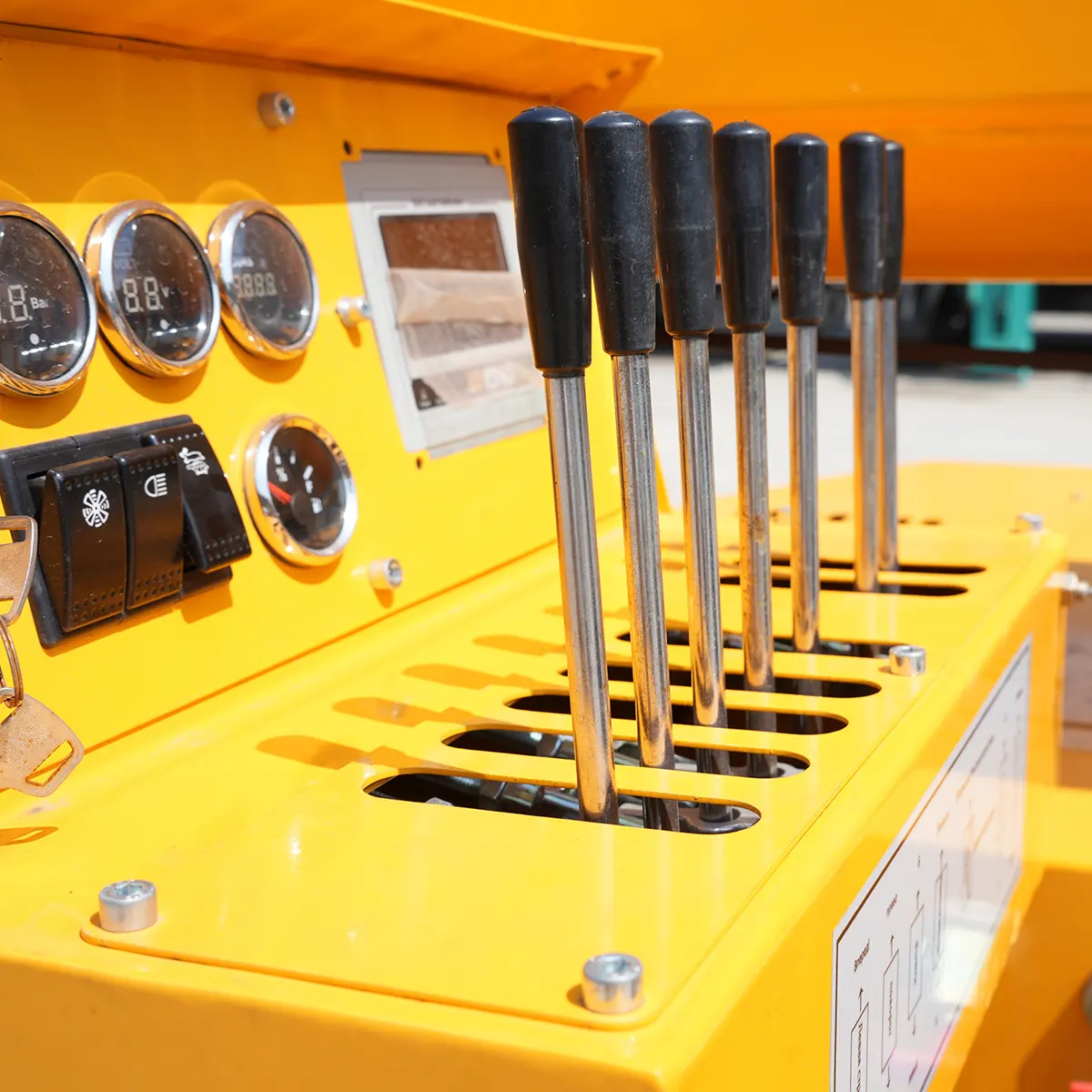

The side seat and manual lever console provide the confirmed onboard operating position.
- Power and Control Housing
The vented yellow enclosure and gray panel protect the visible power and control equipment.
- Four-Outrigger Assembly
Four articulated legs form the verified support footprint for grounded lifting operations.

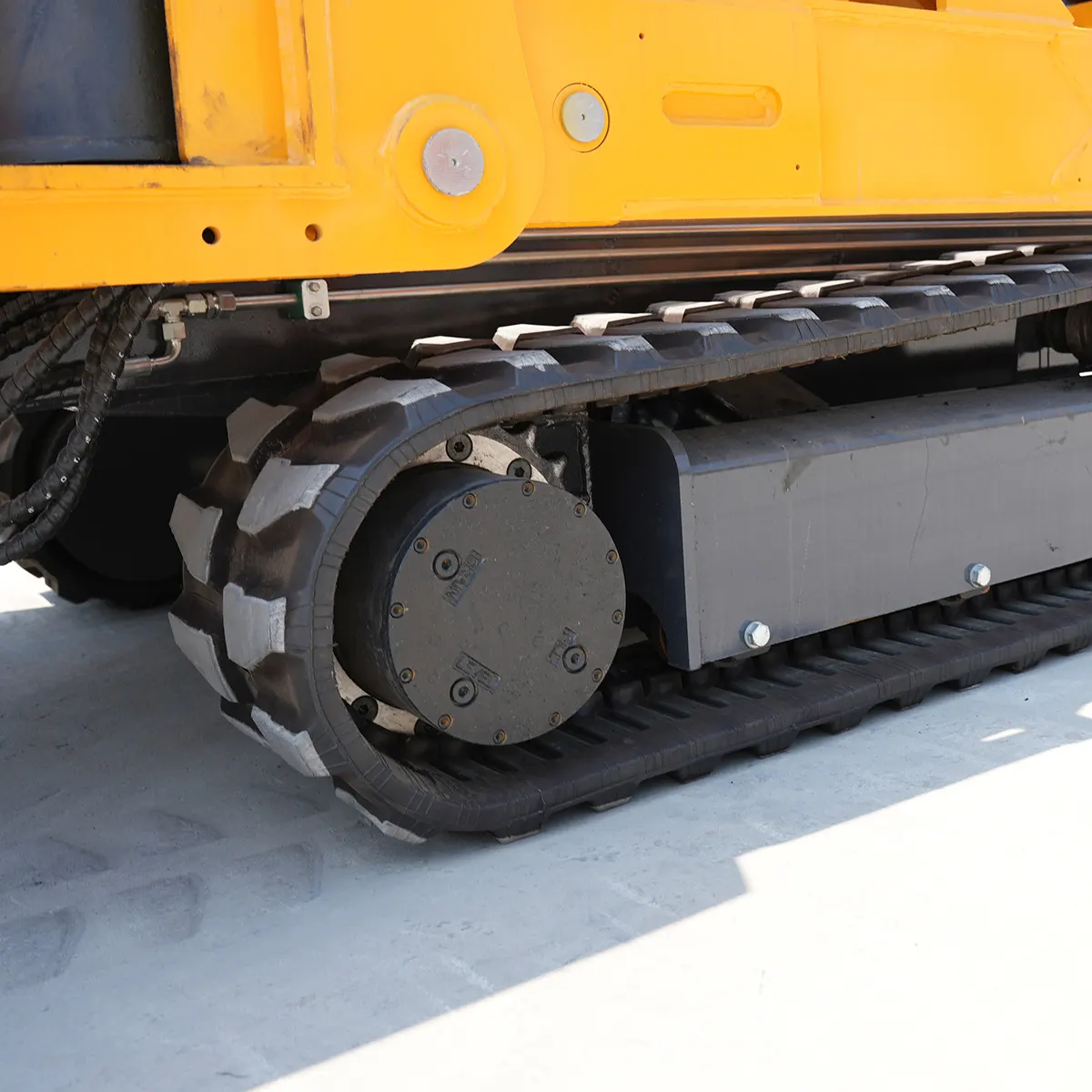

- Rubber Crawler Chassis
Twin rubber tracks and the central underframe carry the crane and support hydraulic travel.
General information
- Self‑weight
- 10T
- Maximum operating radius
- 18M
- Maximum above ground lift
- 21M
- Hook Rising Speed
- 11m/min (4 ropes) double speed
- Wire Rope Specifications
- Φ12mm×100m
- Hoist specifications
- 10T
- Telescopic arm length
- 5.5m-21m
General instructions
Simplified explanationProduct Video
Spider Crane Full‑View Showcase
Full panoramic display of the spider crane. Compact crawler‑type body with multi‑support outriggers, stable and well‑structured. Perfect lifting equipment for narrow‑space construction projects.
Spider Crane Full‑View Showcase
00:56Full panoramic display of the spider crane. Compact crawler‑type body with multi‑support outriggers, stable and well‑structured. Perfect lifting equipment for narrow‑space construction projects.
Spider Crane Close‑up Detail Display
01:22Detailed close‑up of key components, including telescopic boom, hydraulic system, crawler chassis and remote‑control module. Fine workmanship ensures long‑term reliable performance.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details

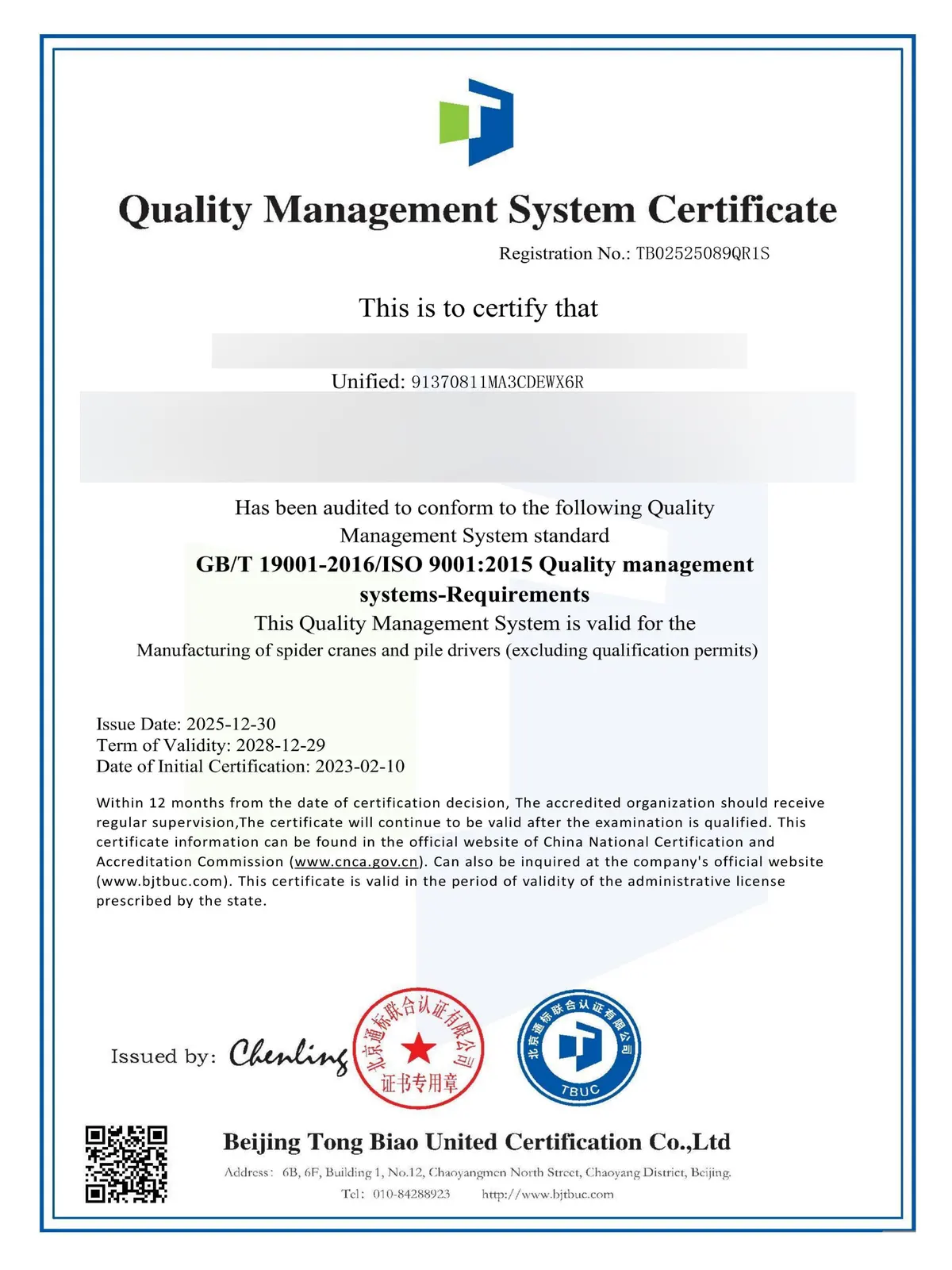

Certifications
Qualification Documents
- CE认证
_1785226743660_VO3N.jpg?x-oss-process=image/resize,m_lfit,w_1200/format,webp/quality,q_82)
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
1. Where is 8 tons of tracked spider crane typically used?
1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.
2. How do I choose the right model?
2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.
3. What should be confirmed before ordering?
3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.
4. How should it be installed and maintained?
4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
