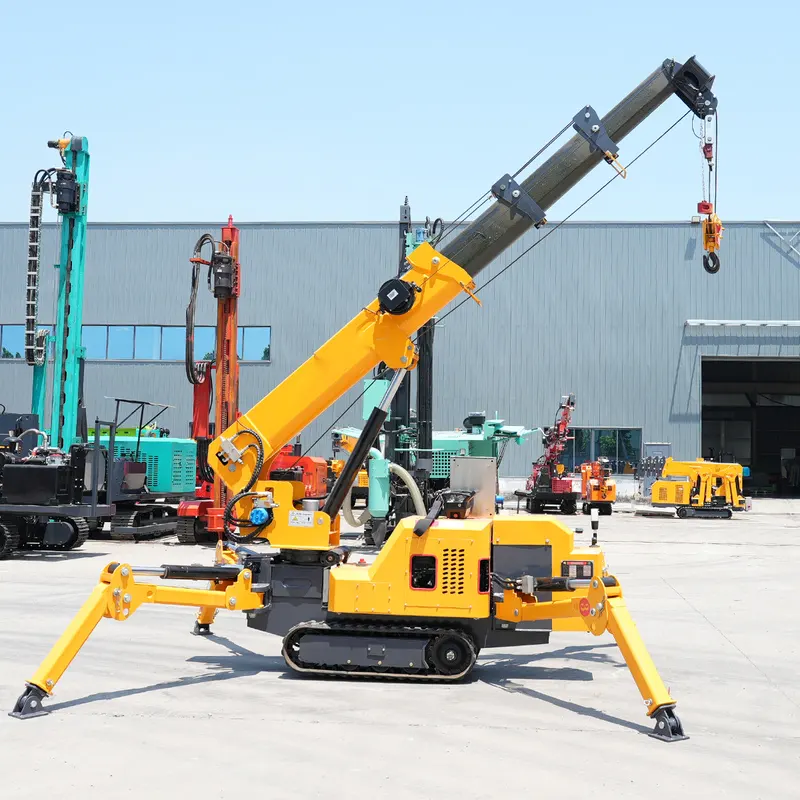

The verified yellow base and four dark telescopic sections provide adjustable lifting reach.

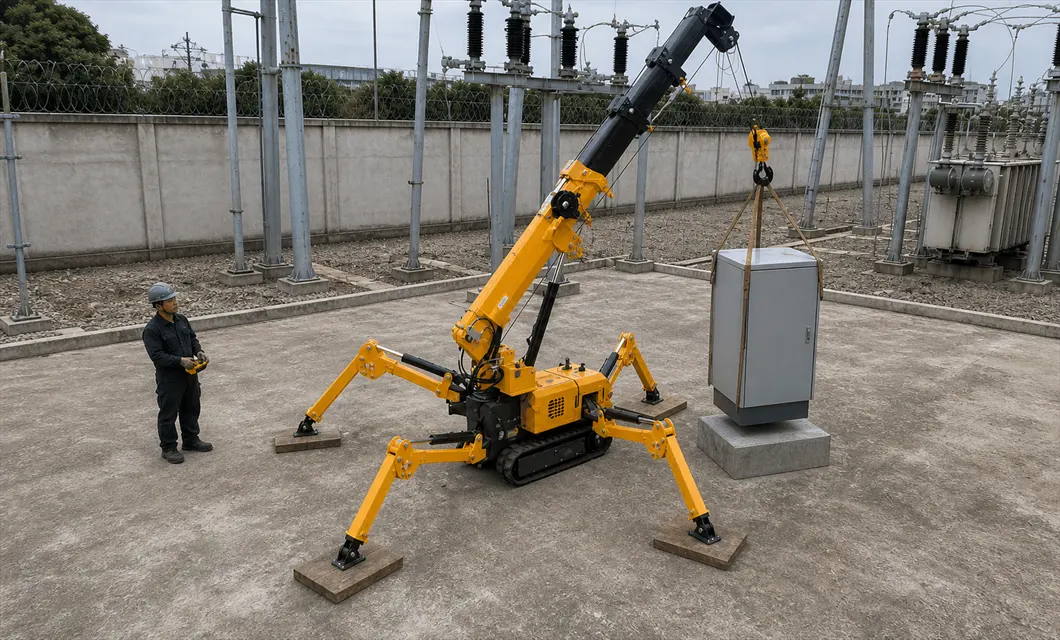

substation-cabinet-installationCrawler Spider Crane
Reliable Product Support for Site Work

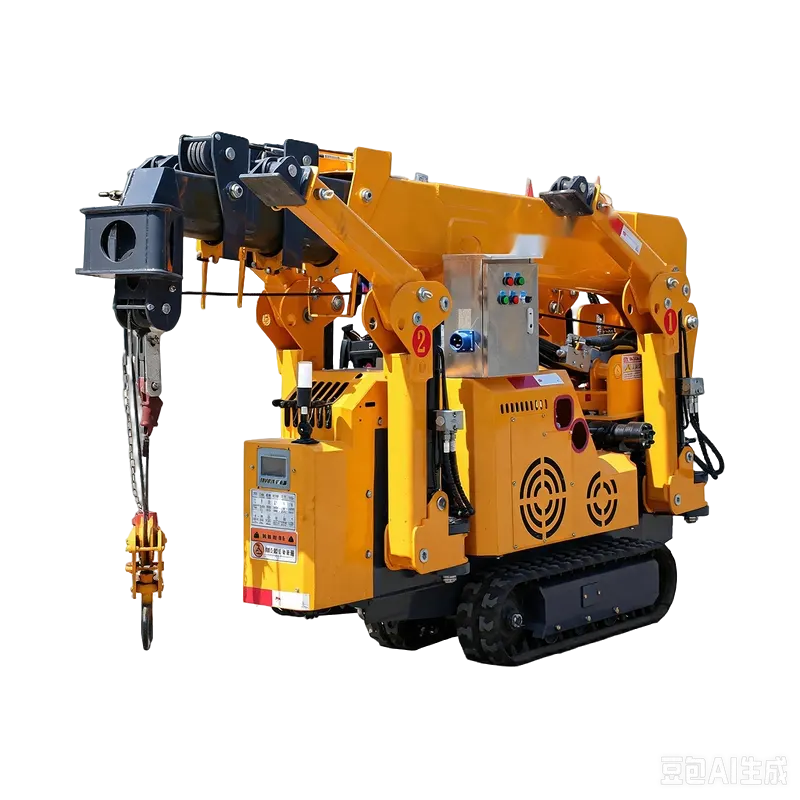

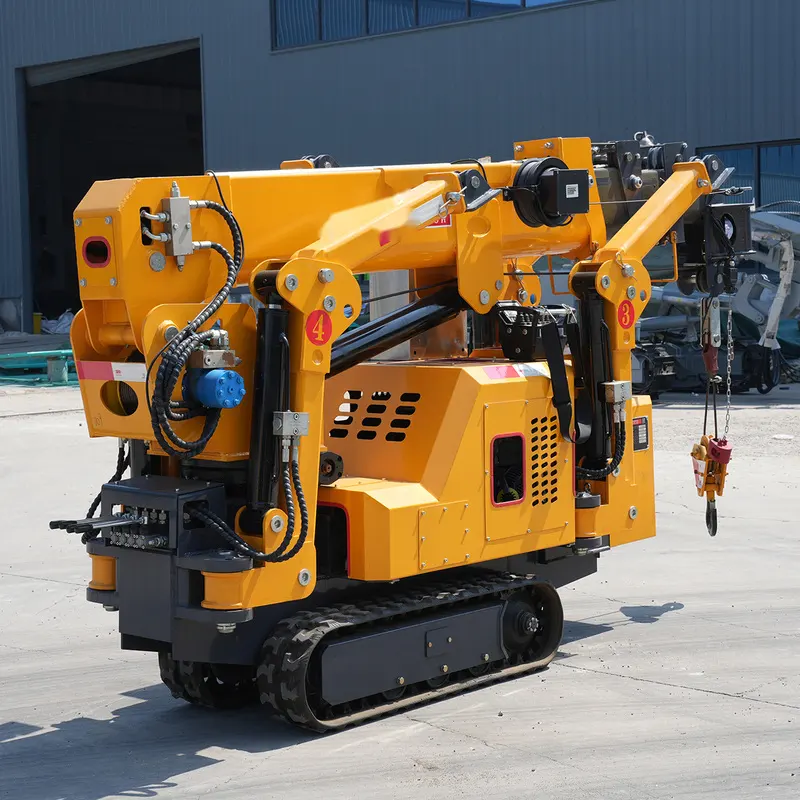

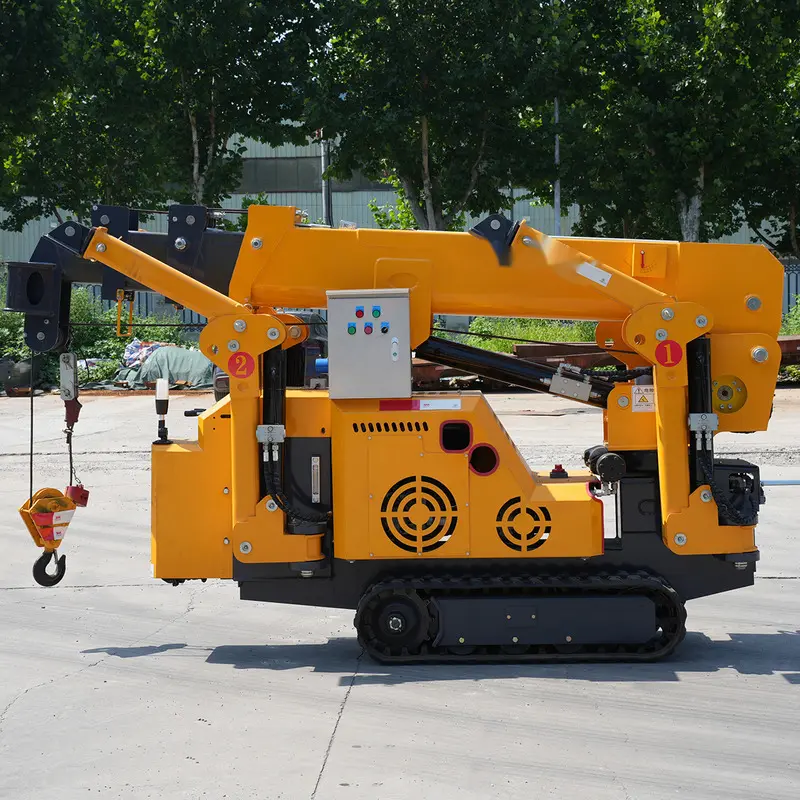

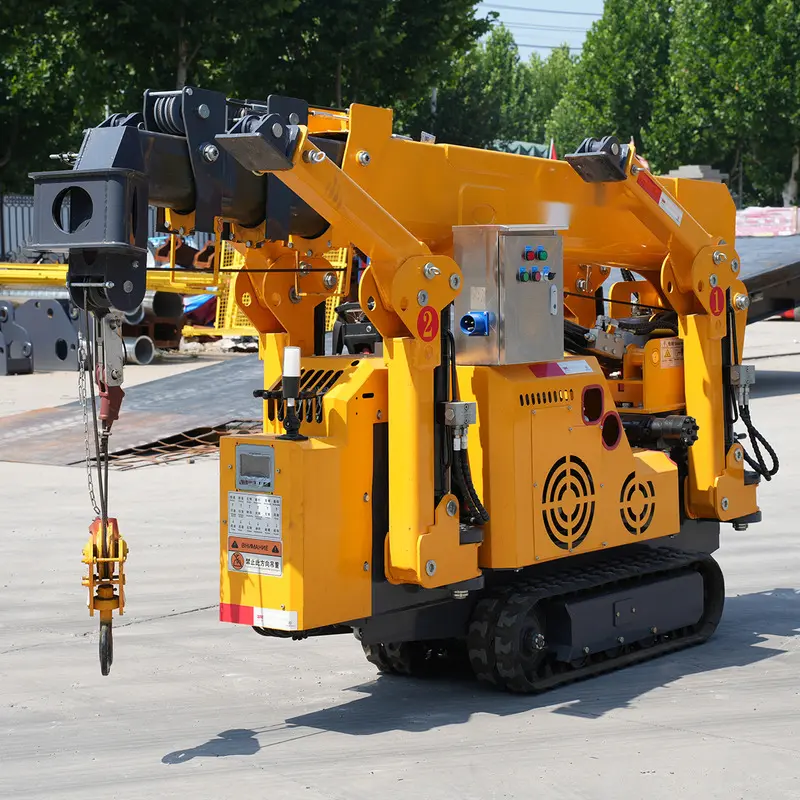

This compact crawler spider crane combines a four-section telescopic boom, four outriggers and rubber tracks for confined lifting tasks.
- 1.5-Ton Lift Class
- 6 m Working Radius
- Four-Section Boom
- Compact Crawler Base

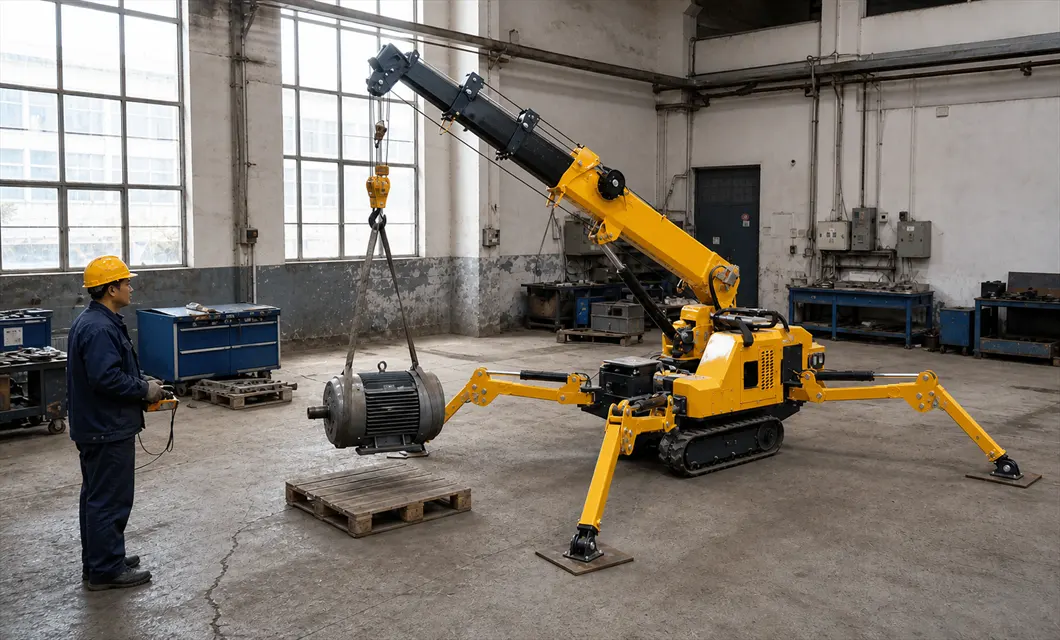

factory-motor-maintenance
rooftop-hvac-servicesubstation-cabinet-installation

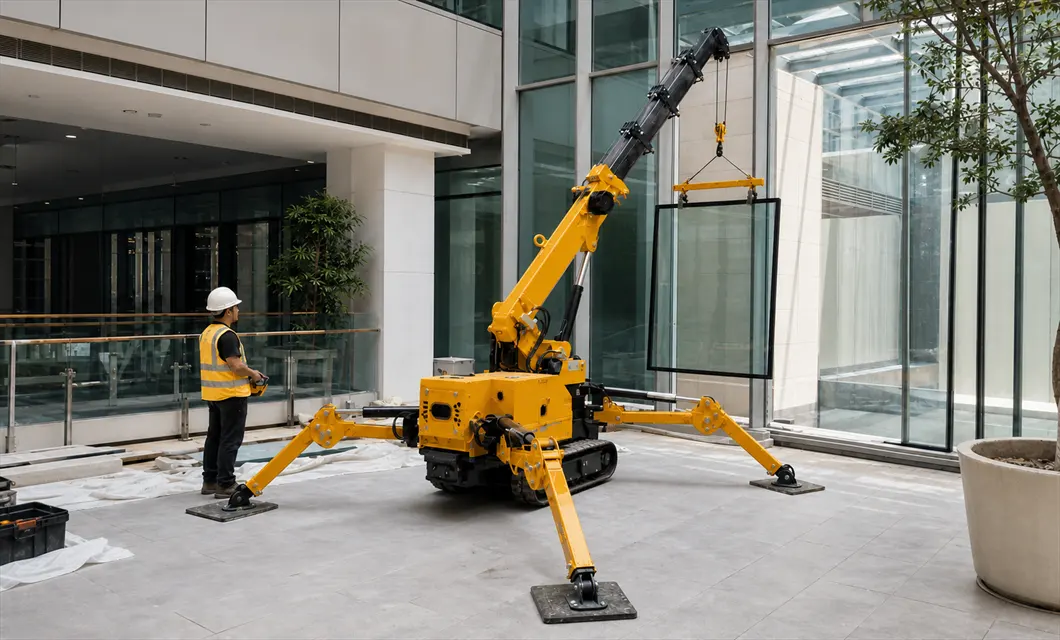

atrium-glass-installationfactory-motor-maintenancerooftop-hvac-serviceProduct Advantages

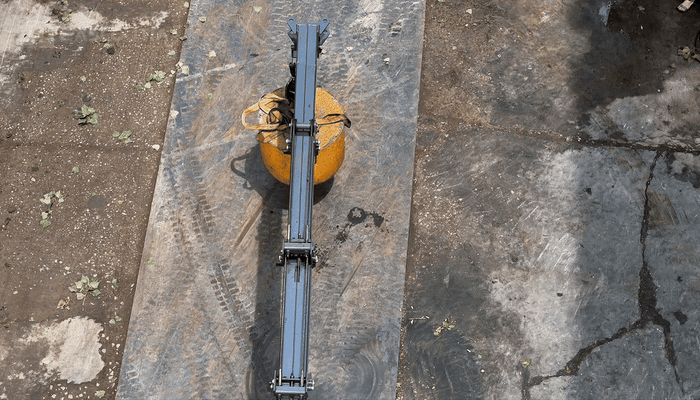

Compact Crane with Adjustable Lifting Reachn Marking
Specifications & Structural Decomposition
Product Structure Diagram

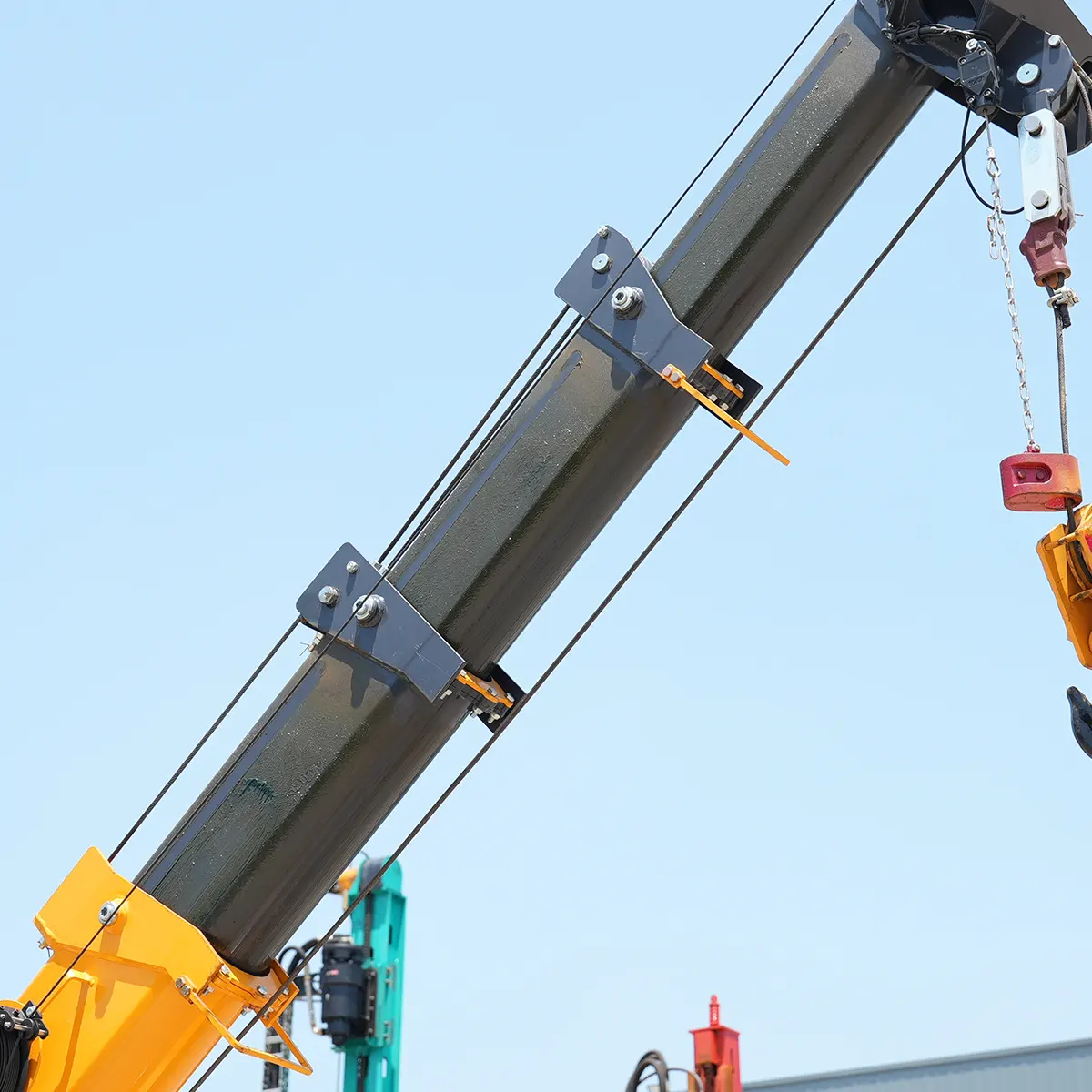

- Telescopic Boom Assembly
- Reeving and Hook Assembly

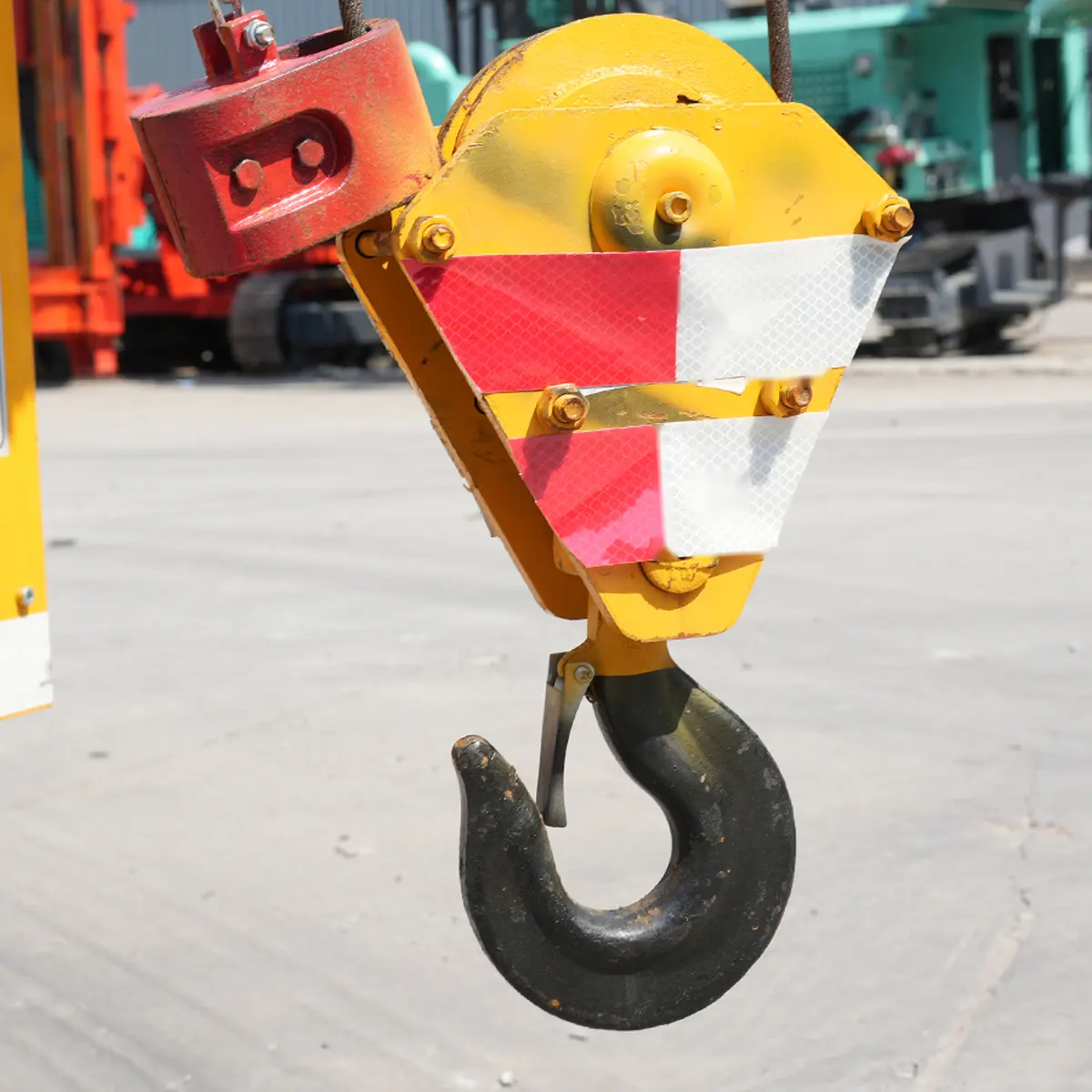

The boom-head pulleys, wire rope, hook block and hook form the visible load connection path.
- Boom Luffing Cylinder

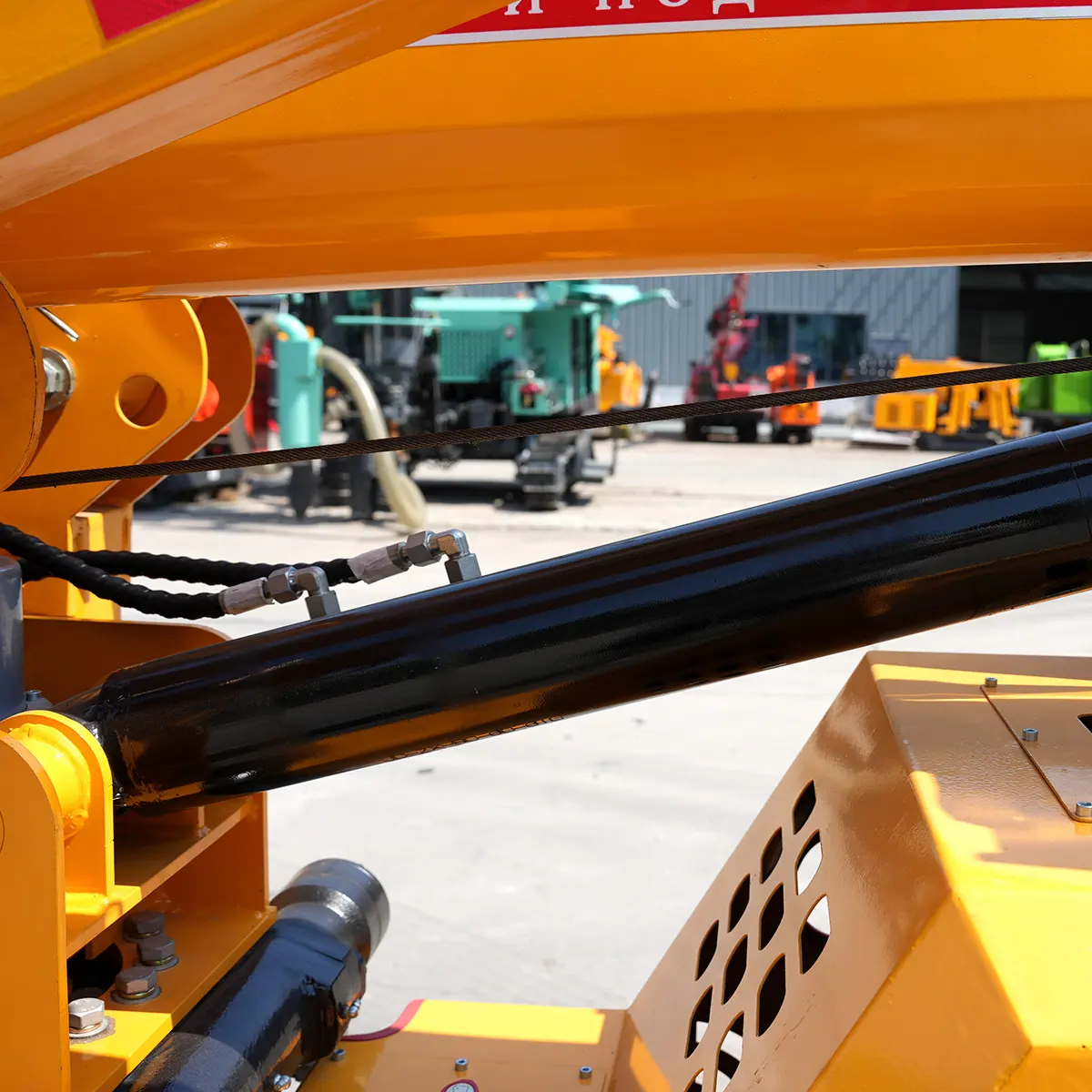

The external hydraulic cylinder changes the boom angle through its confirmed pivot mountings.
- Slewing Boom Pedestal
The rotating pedestal supports the boom base and transfers lifting forces to the carrier frame.
- Four-Outrigger Support System

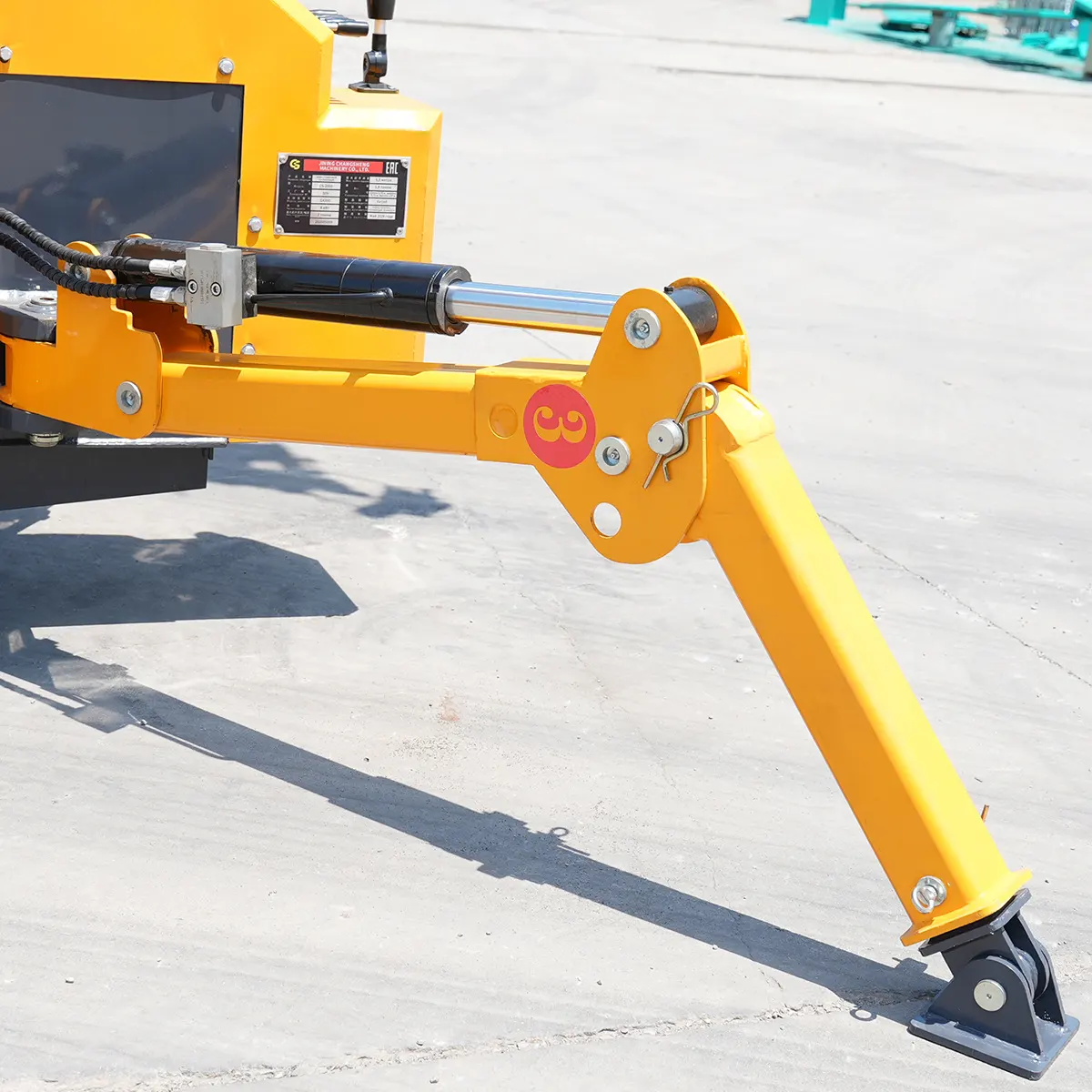

Four articulated legs and hydraulic supports create a broad footprint through grounded pads.
- Crawler Chassis Assembly

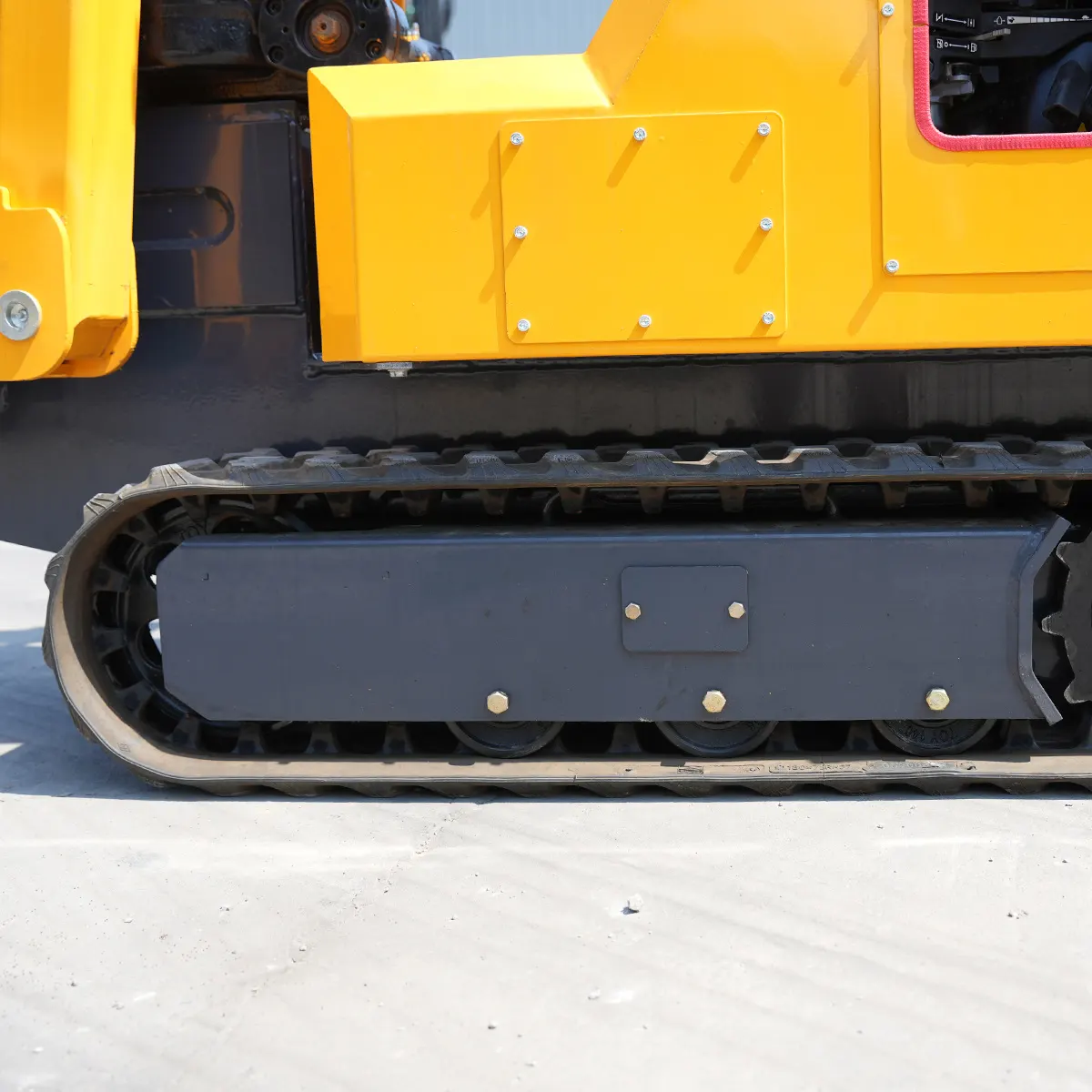

The rubber-track chassis provides compact travel and carries the central upper mounting frame.
- Power Enclosure and Controls

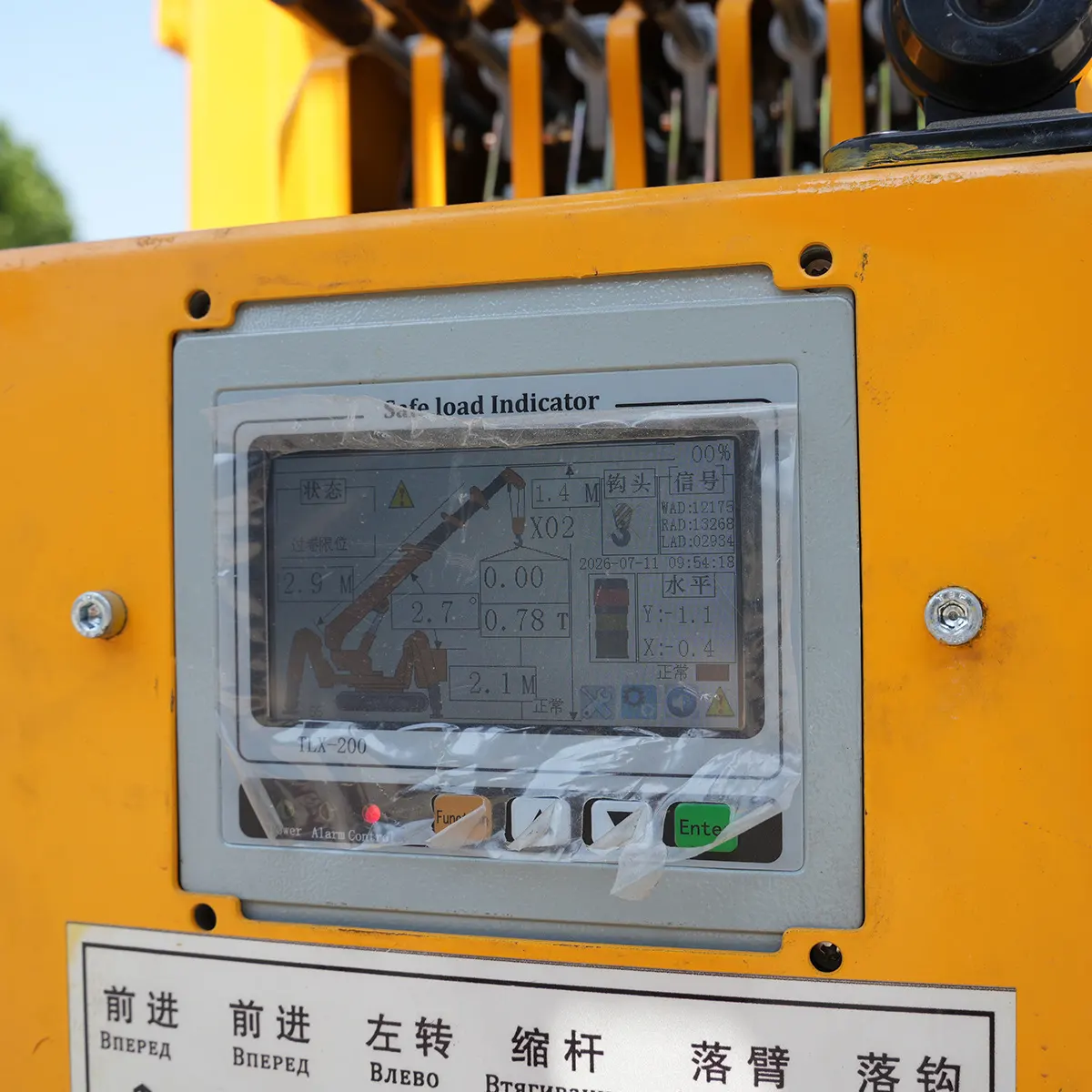

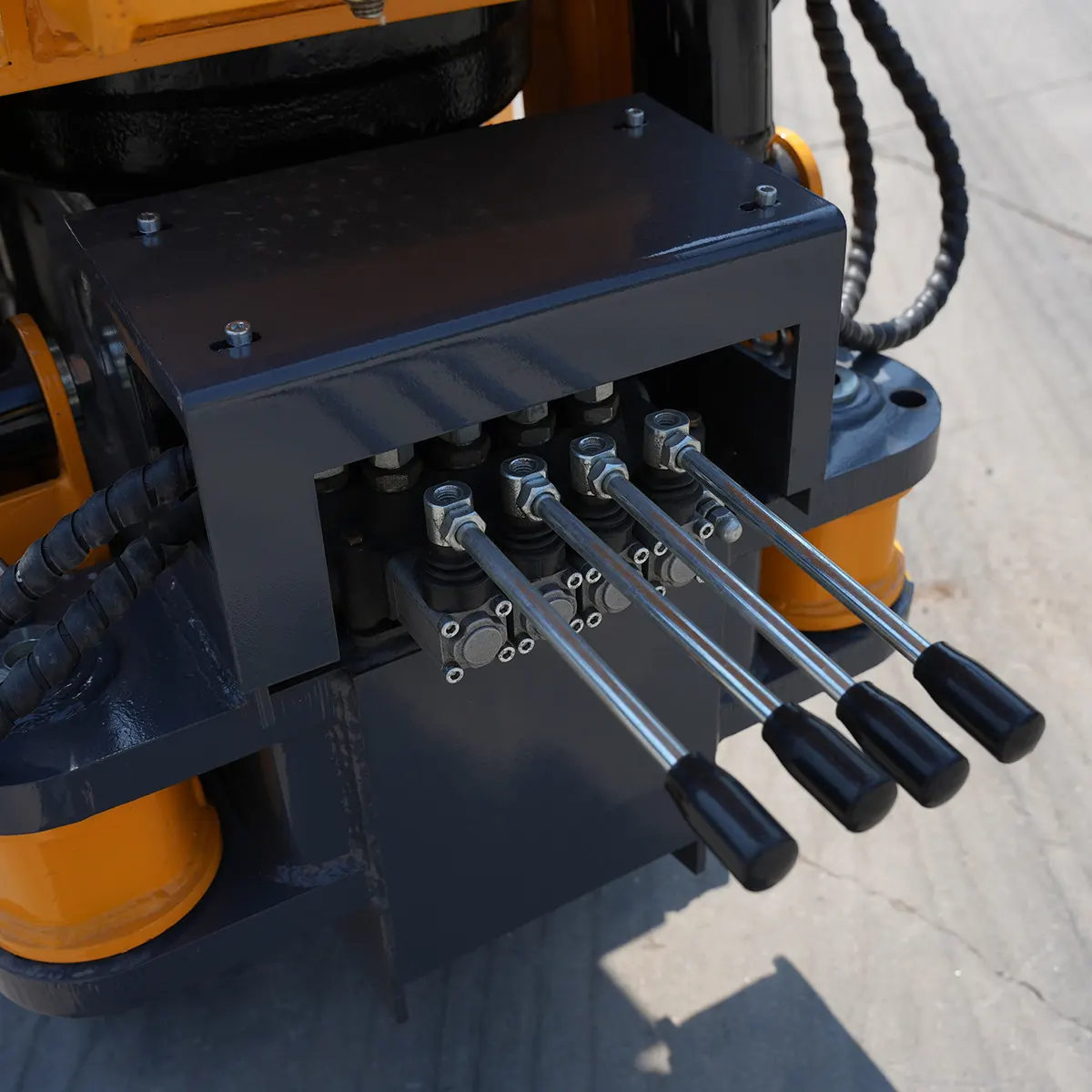

The closed yellow enclosure and visible control area support operation without exposing internals.
General information
- Self‑weight
- 1.7T
- Maximum operating radius
- 6M
- Maximum above ground lift
- 6.5M
- Hook Rising Speed
- 0-8m/min(4 ropes)
- Wire Rope Specifications
- Φ 8mm*45m
- Boom length/time
- 6.5m/20sec (Suppo
- Boom angle/time
- 0‑78°/13sec
General instructions
Simplified explanationProduct Video
1.5-ton display
1.5-ton display. Compact and sturdy structure, suitable for operation in narrow sites.
1.5-ton display
00:331.5-ton display. Compact and sturdy structure, suitable for operation in narrow sites.
1.5-ton operation
00:561.5-ton operation. Smooth operation, easy control for lifting in narrow working areas.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
1. Where is 1. 5 tons of tracked spider crane typically used?
1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.
2. How do I choose the right model?
2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.
3. What should be confirmed before ordering?
3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.
4. How should it be installed and maintained?
4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
