The confirmed multi-section boom extends lifting reach while retaining a compact folded transport form.
Accurate Plant Maintenance LiftCrawler Spider Crane
Reliable Product Support for Site Work

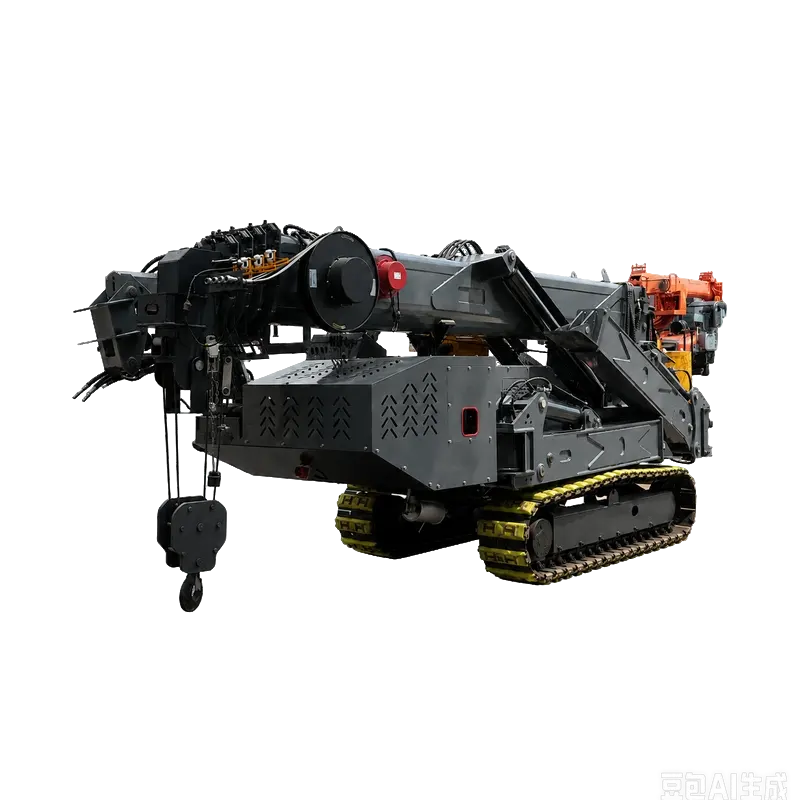

This crawler spider crane combines a telescopic boom, four-point support and remote control for lifting work in restricted operating areas.

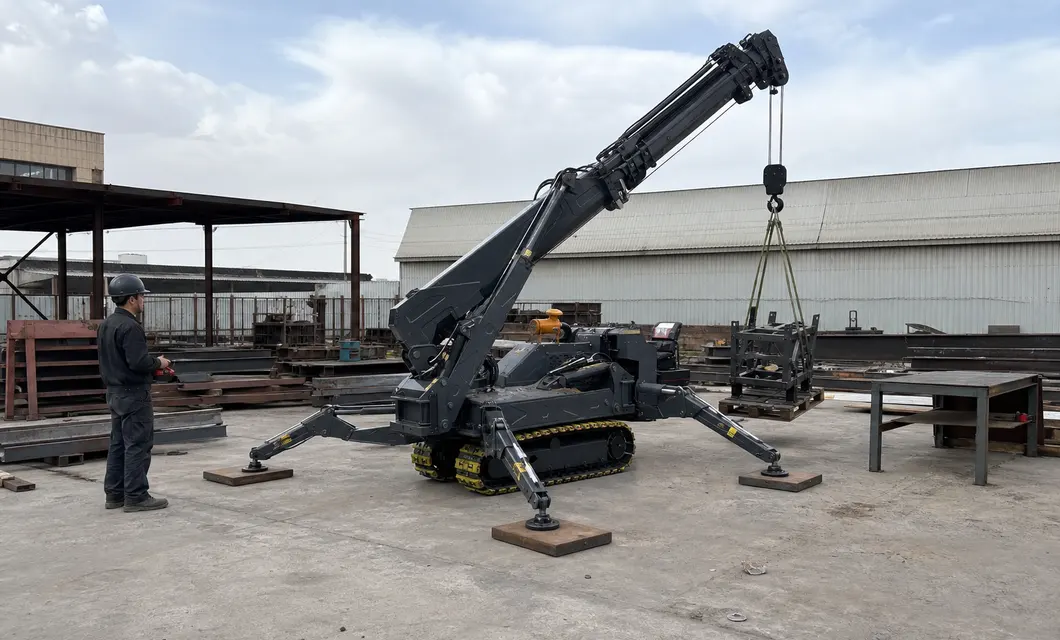

- Precise Steel Yard Lifting

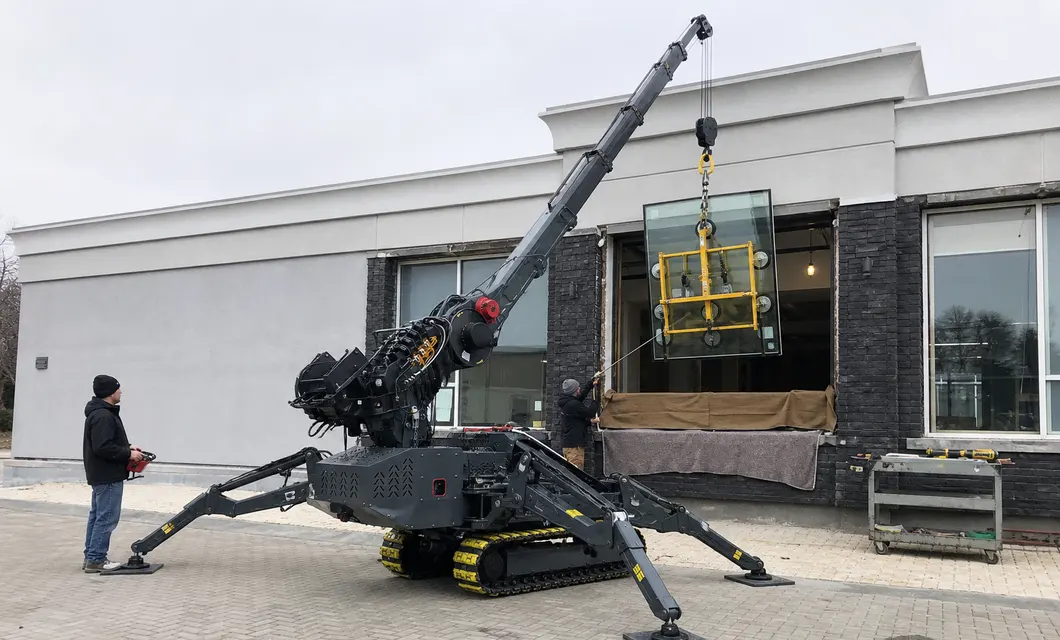

- Safe Facade Glass Installation

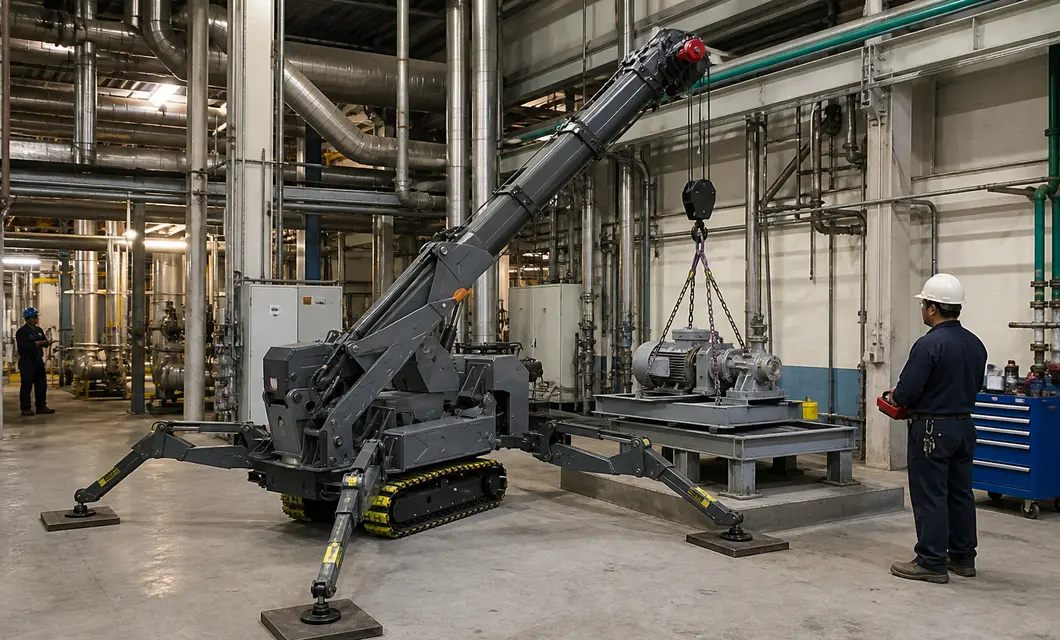

- Accurate Plant Maintenance Lift

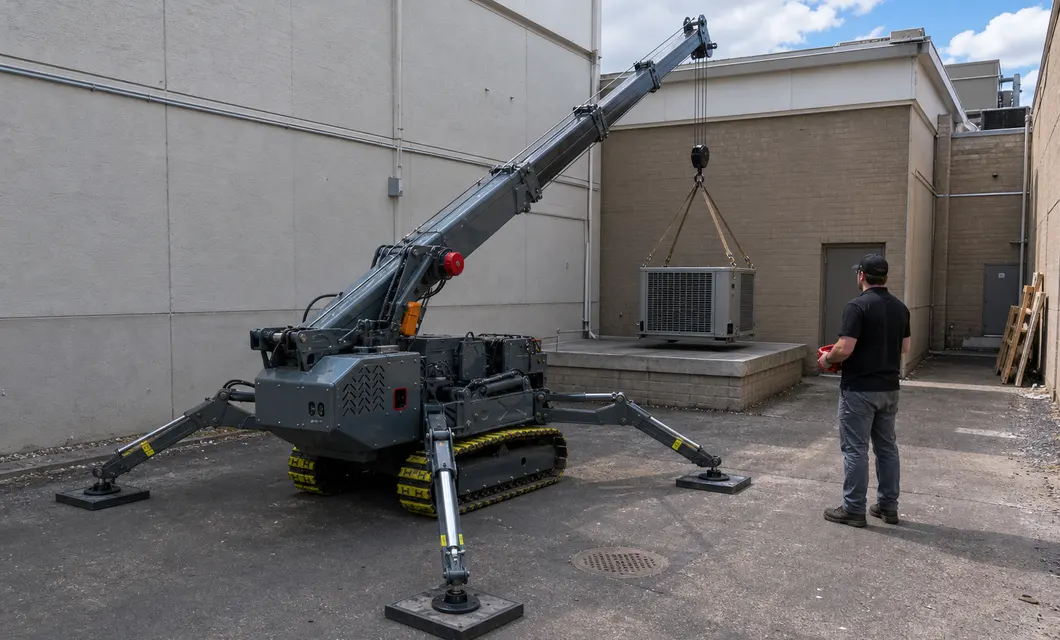

- Confined-Site HVAC Placement
Precise Steel Yard Lifting
Safe Facade Glass InstallationAccurate Plant Maintenance Lift
Confined-Site HVAC PlacementPrecise Steel Yard LiftingSafe Facade Glass InstallationProduct Advantages

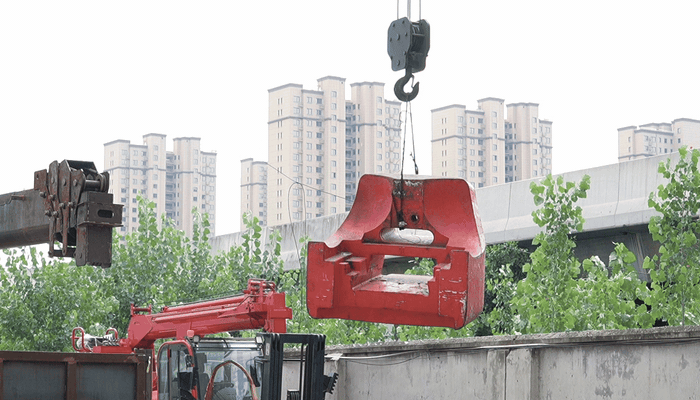

Efficient Lifting with Extended Reachss
Specifications & Structural Decomposition

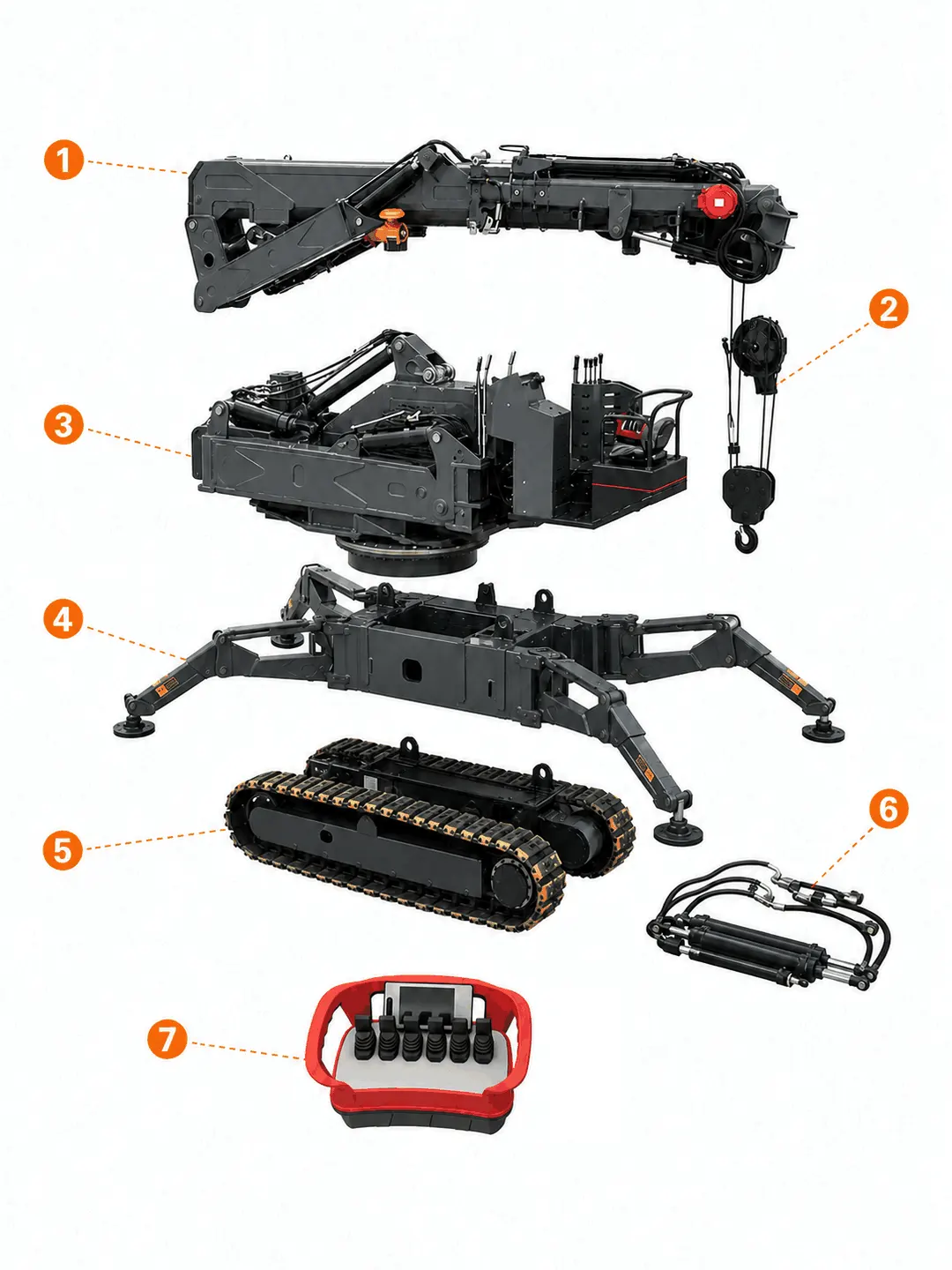

Product Structure Diagram
- Five-Section Telescopic Boom Assembly

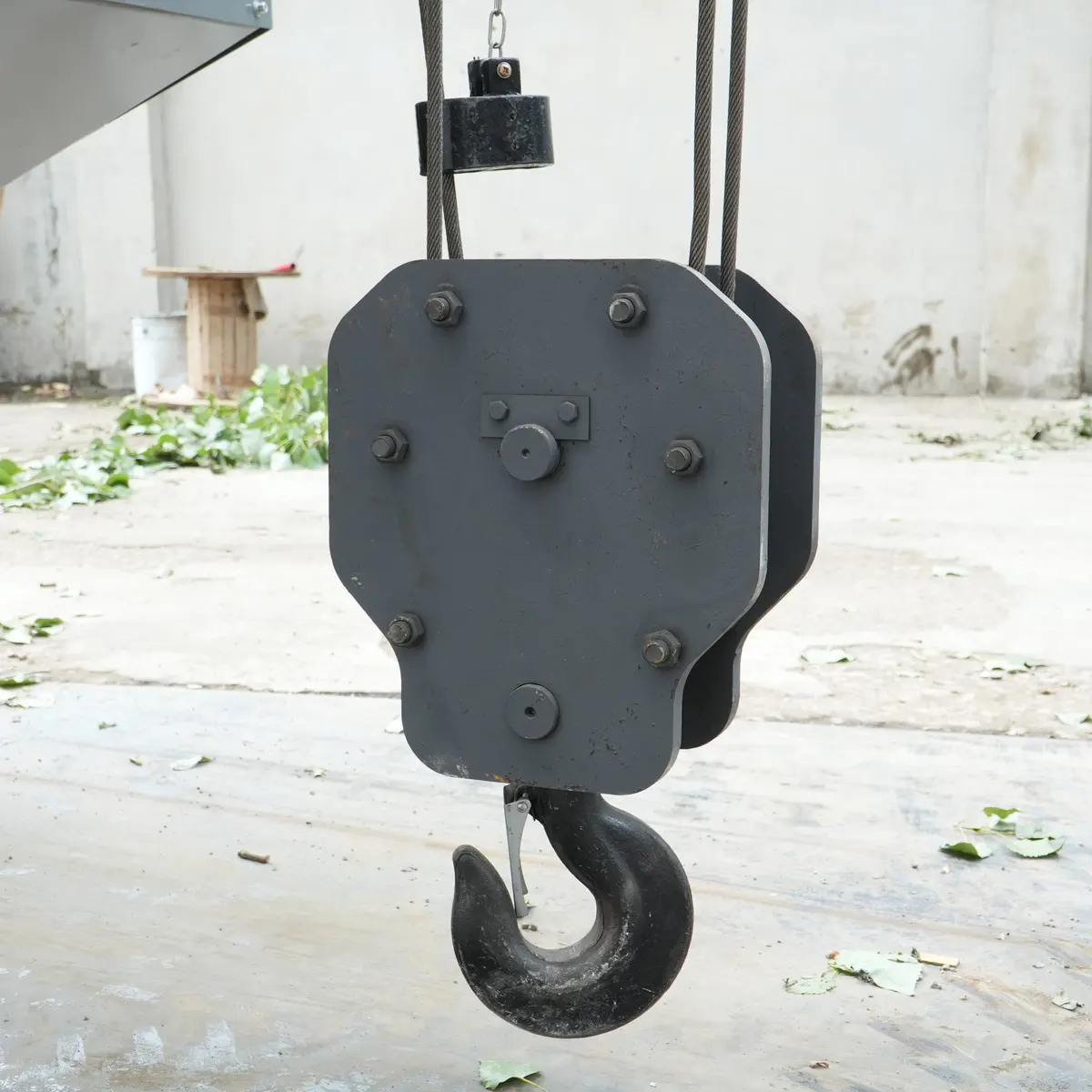

- Winch, Wire Rope and Hook Block Assembly
The visible winch, rope and hook block transmit lifting force directly to properly rigged site loads.

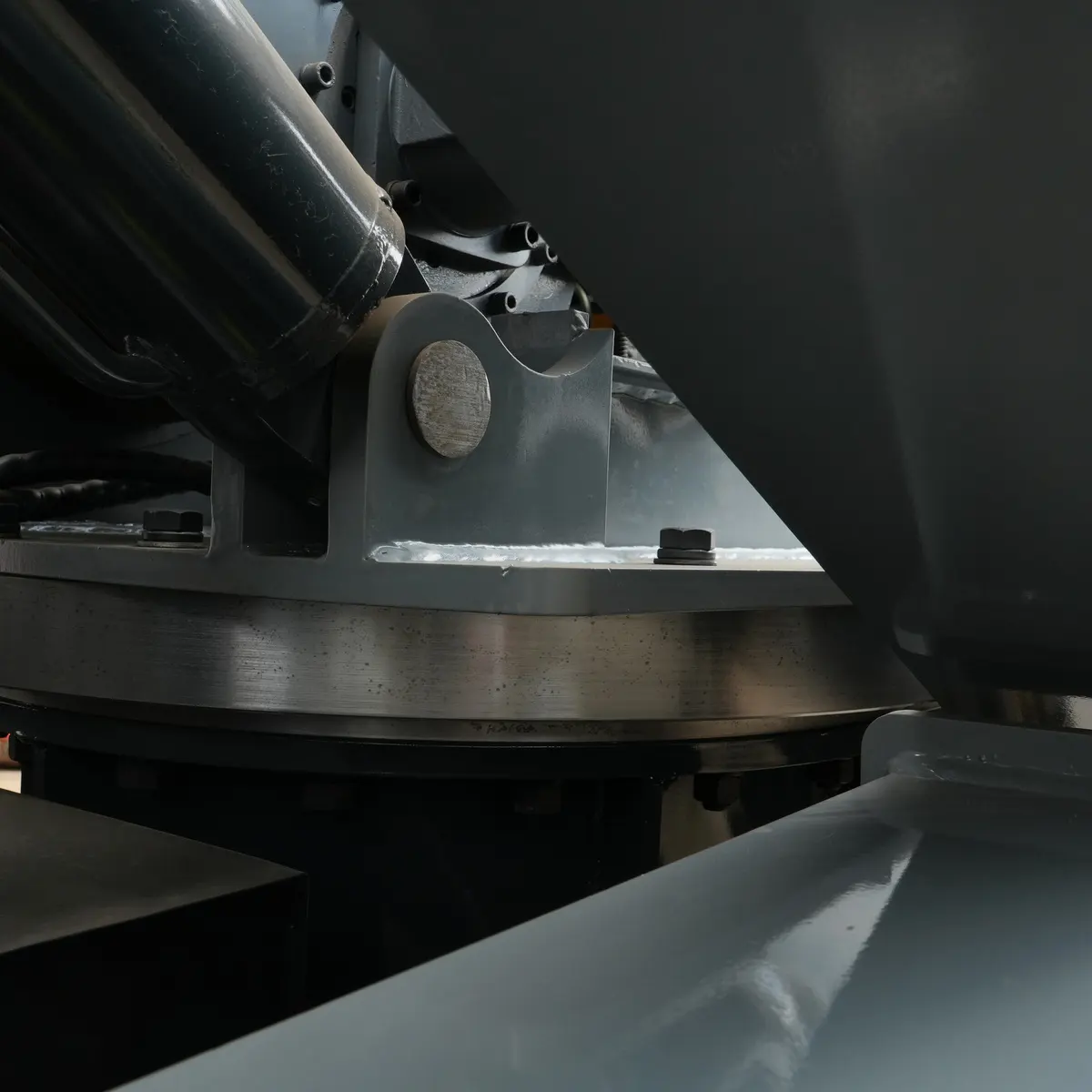

- Rotating Upper Structure and Slewing Deck
The upper frame supports the boom and control area while the visible slewing deck enables load positioning.
- Four-Outrigger Support Assembly
Four confirmed telescopic supports spread around the chassis to create a broad, grounded lifting base.

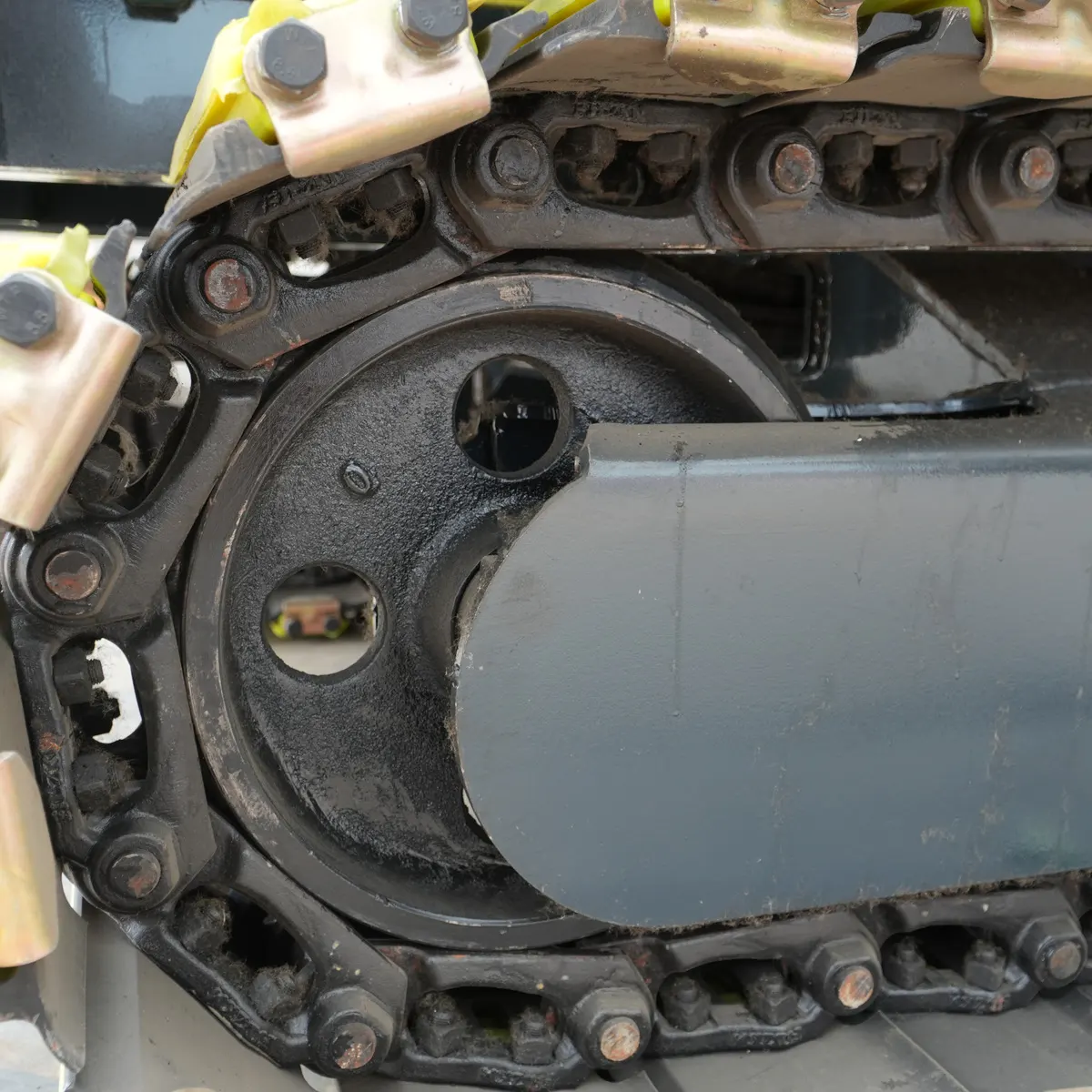

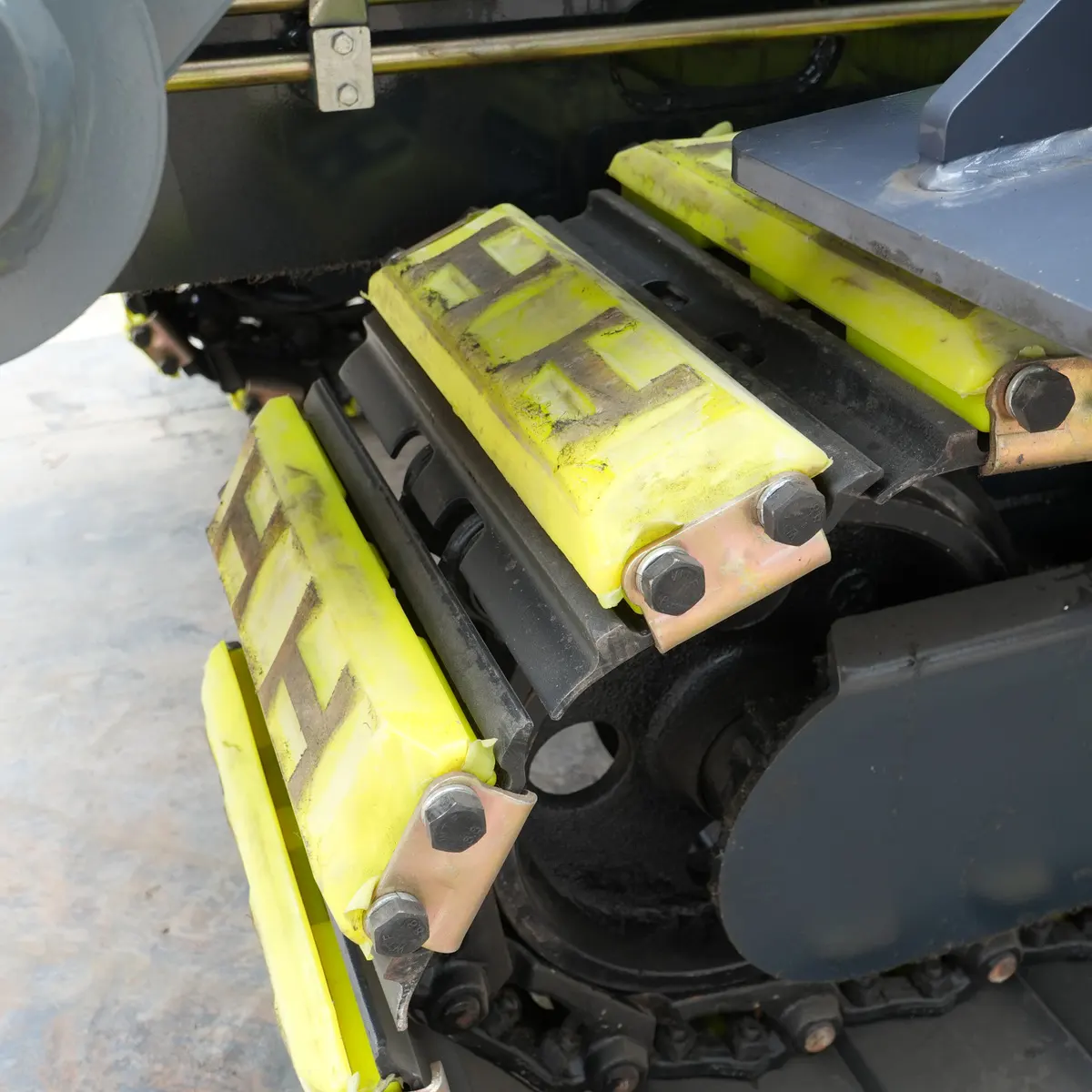

- Dual Crawler Track Chassis
The paired crawler tracks carry the machine across firm site surfaces and support compact positioning.

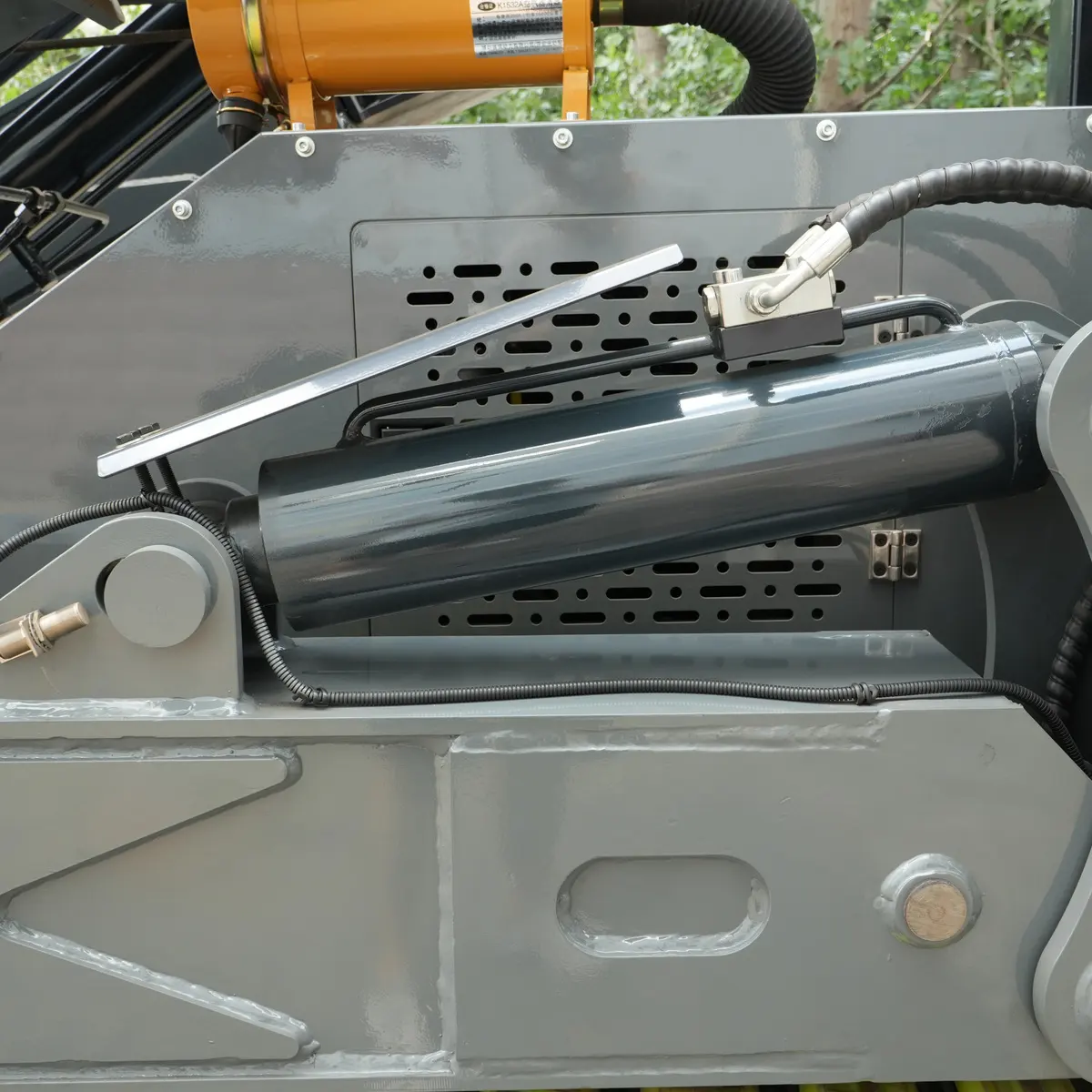

- Visible Hydraulic Cylinder and Hose Group
Externally visible cylinders and hoses drive confirmed boom and support movements through connected joints.

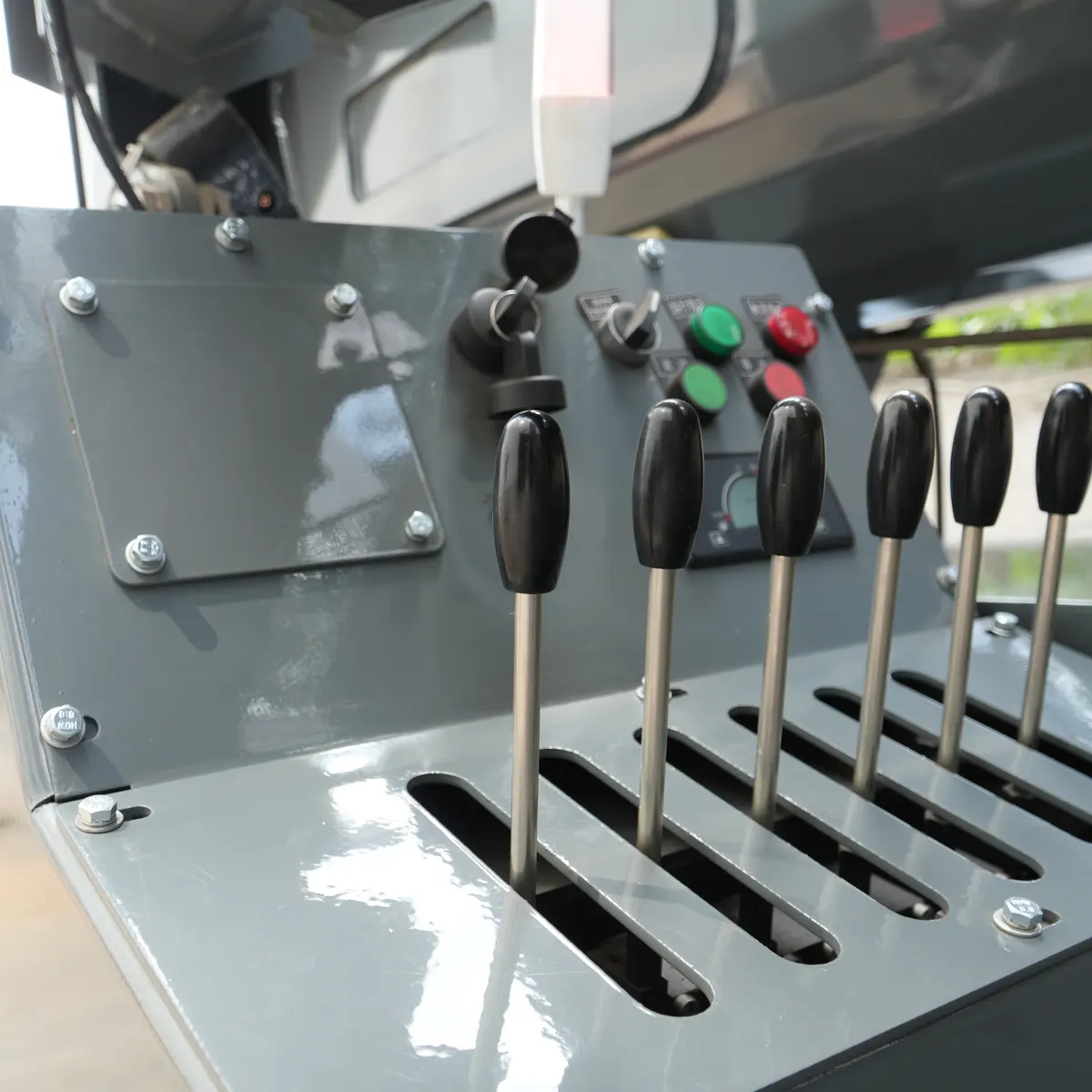

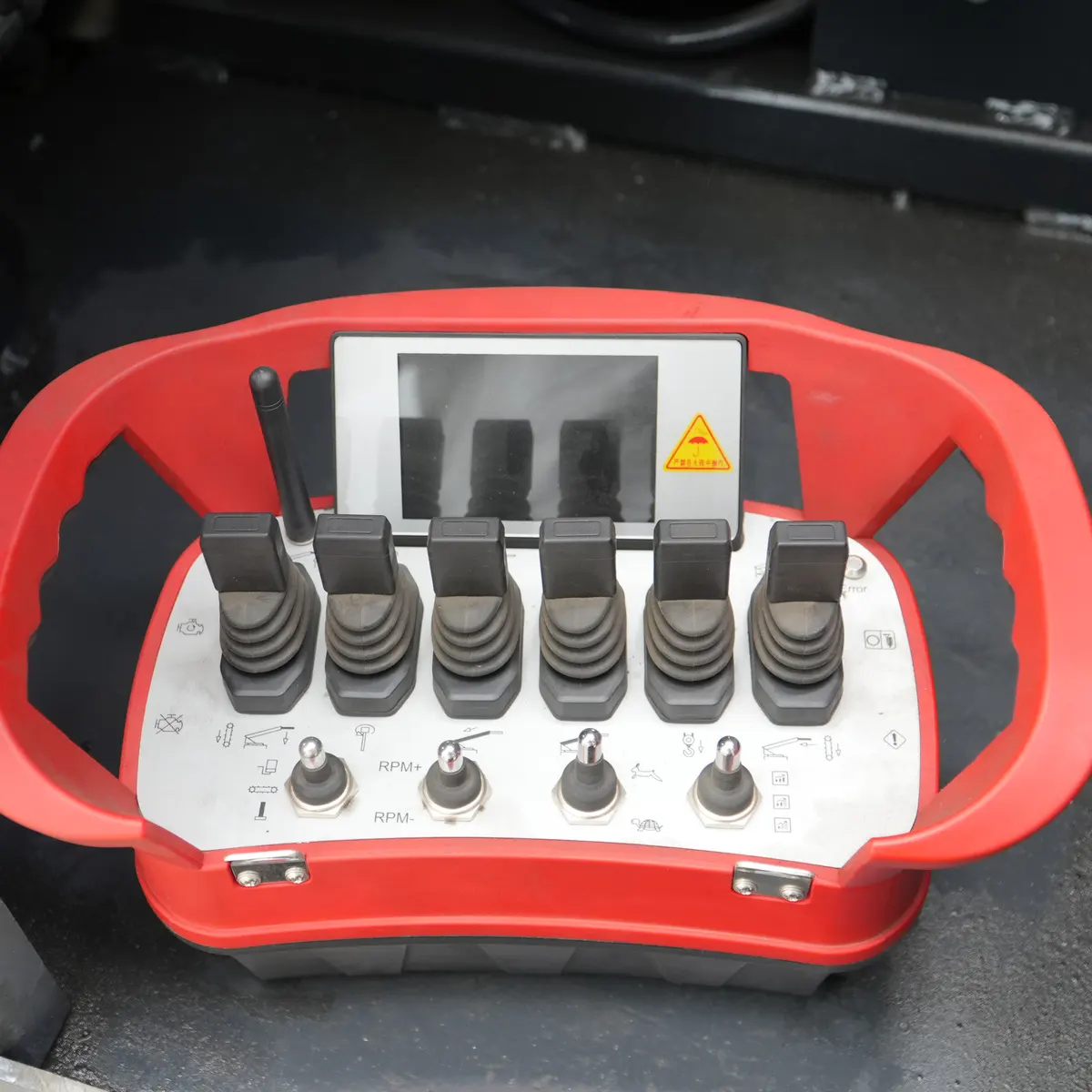

- Remote and Manual Control Assembly
The handheld remote and manual control levers provide confirmed ground-level operating interfaces.
General information
- Self‑weight
- 6.7T
- Maximum operating radius
- 15M
- Maximum above ground lift
- 17M
- Hook Rising Speed
- 12m/min (4‑rope) two‑speed
- Wire Rope Specifications
- Φ11mm*60m
- Hoist specifications
- 4m×5‑section lifting arm (Support customization)
- Boom length/time
- 4.5m‑17m/54sec (adjustable)
General instructions
Simplified explanationProduct Video
5T appearance
Full panoramic display of the spider crane. Compact crawler‑type body with multi‑support outriggers, stable and well‑structured. Perfect lifting equipment for narrow‑space construction projects.
5T appearance
01:30Full panoramic display of the spider crane. Compact crawler‑type body with multi‑support outriggers, stable and well‑structured. Perfect lifting equipment for narrow‑space construction projects.
Spider Crane Operation Demonstration
01:51Smooth remote‑controlled operation. Flexible boom extension, 360‑degree rotation and steady lifting performance. Easy to operate, safe and efficient for various lifting tasks.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
1. Where is 10 tons of tracked spider crane typically used?
1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.
2. How do I choose the right model?
2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.
3. What should be confirmed before ordering?
3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.
4. How should it be installed and maintained?
4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
