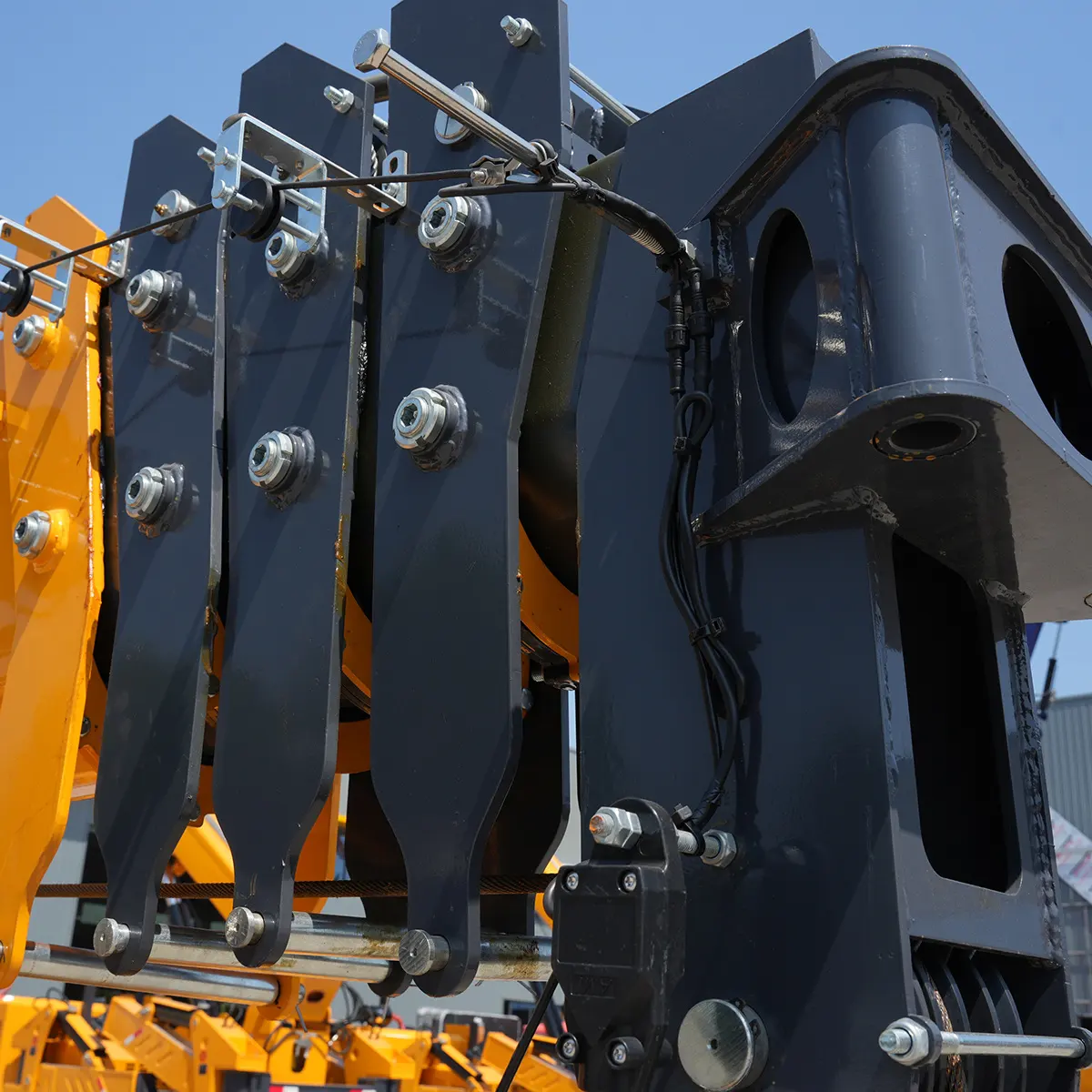

The five-section telescopic boom provides adjustable reach for confined lifting work.

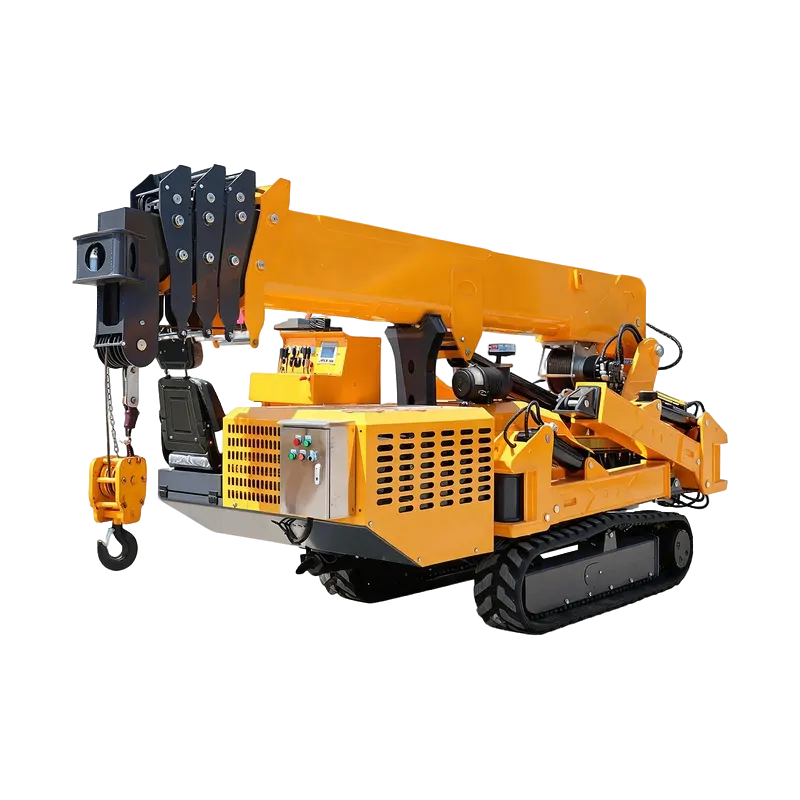

Material Handling and Elevated Work with 5 tons of tracked spider crane
5 tons of tracked spider crane is suited to warehouses, factories, yards, construction sites and maintenance operations. It supports loading, stacking, transfer or elevated access within rated capacity and site limits. Before deployment, confirm rated load, lift height, reach, aisle width, power type, tire type and ground condition.
- Warehouses
- Factories
- Yards
- Maintenance Ops
Product Advantages

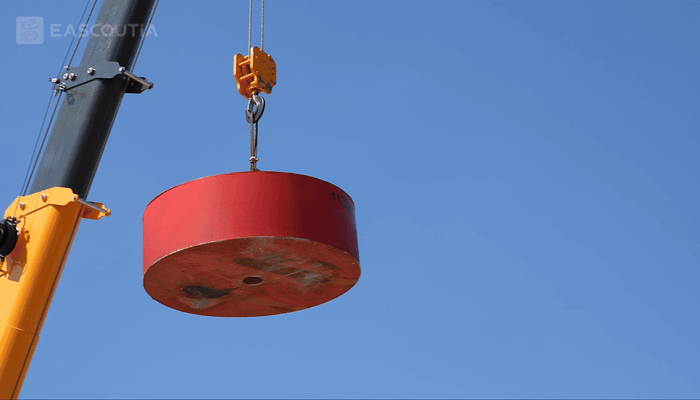

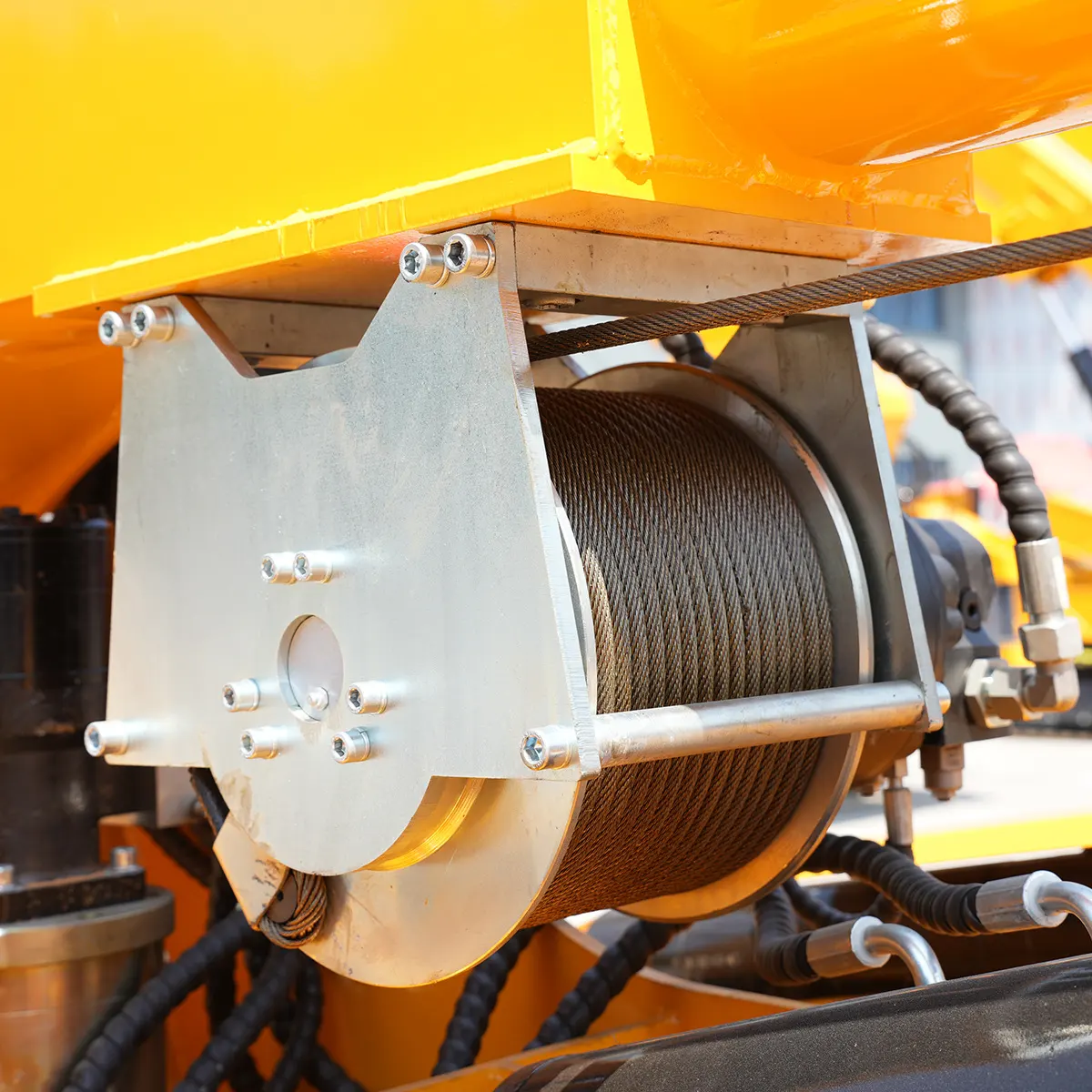

The winch reels the wire rope in and out to adjust the hook, helping position loads at the required height.
Specifications & Structural Decomposition

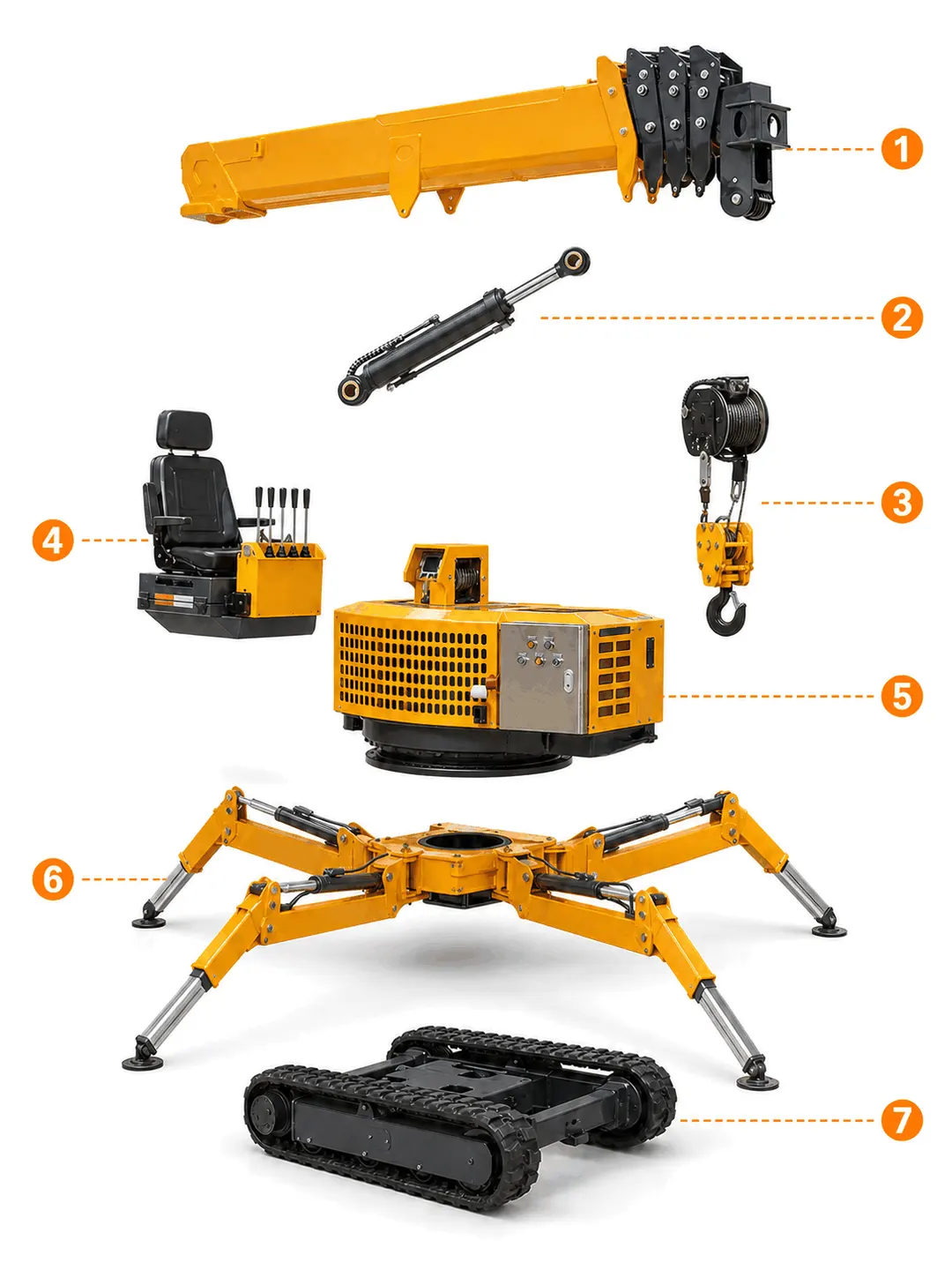

Product Structure Diagram
- Five-Section Telescopic Boom Assembly
- Boom Lift Cylinder Assembly

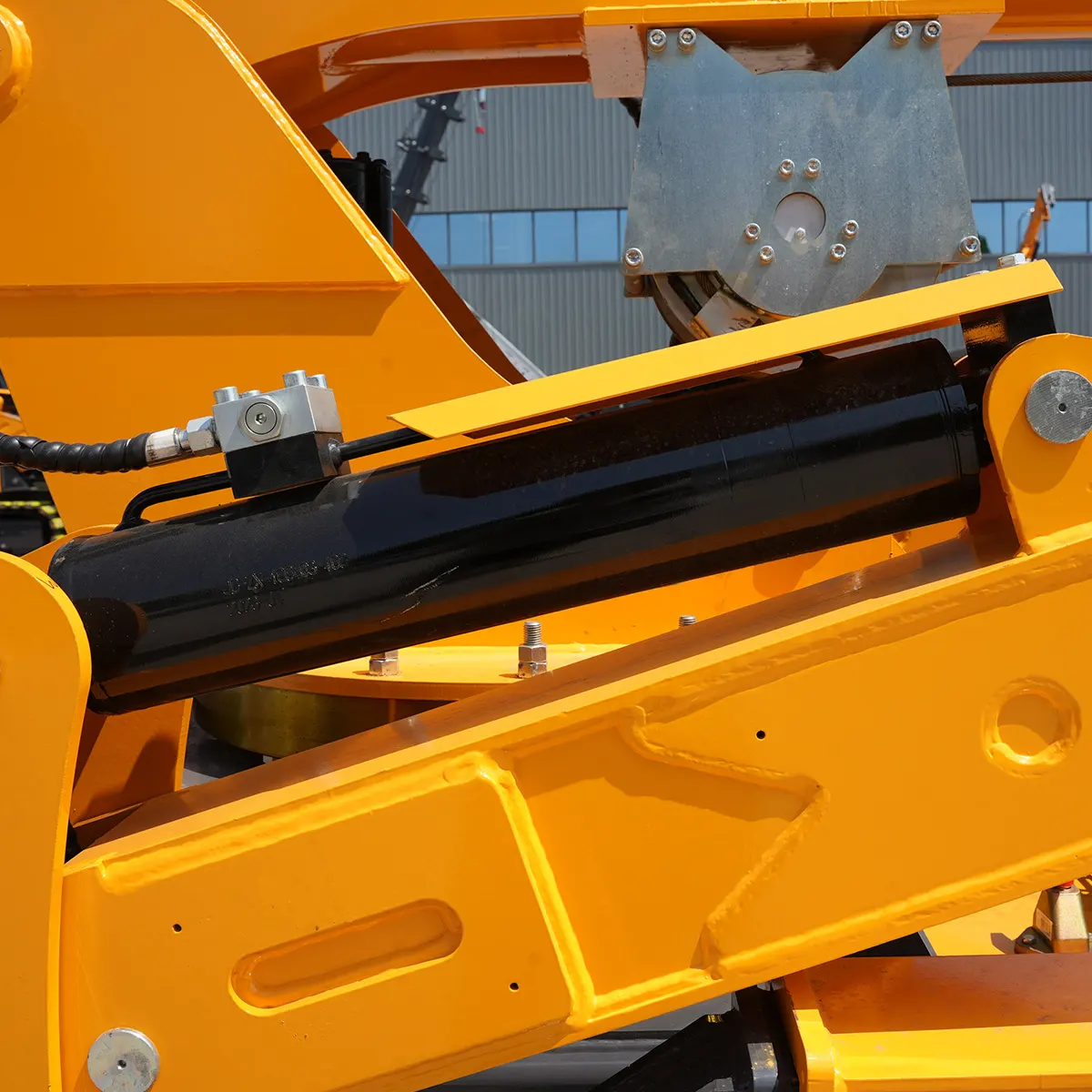

The boom lift cylinder raises and lowers the telescopic boom with controlled hydraulic movement.
- Winch, Wire Rope and Hook Block Assembly

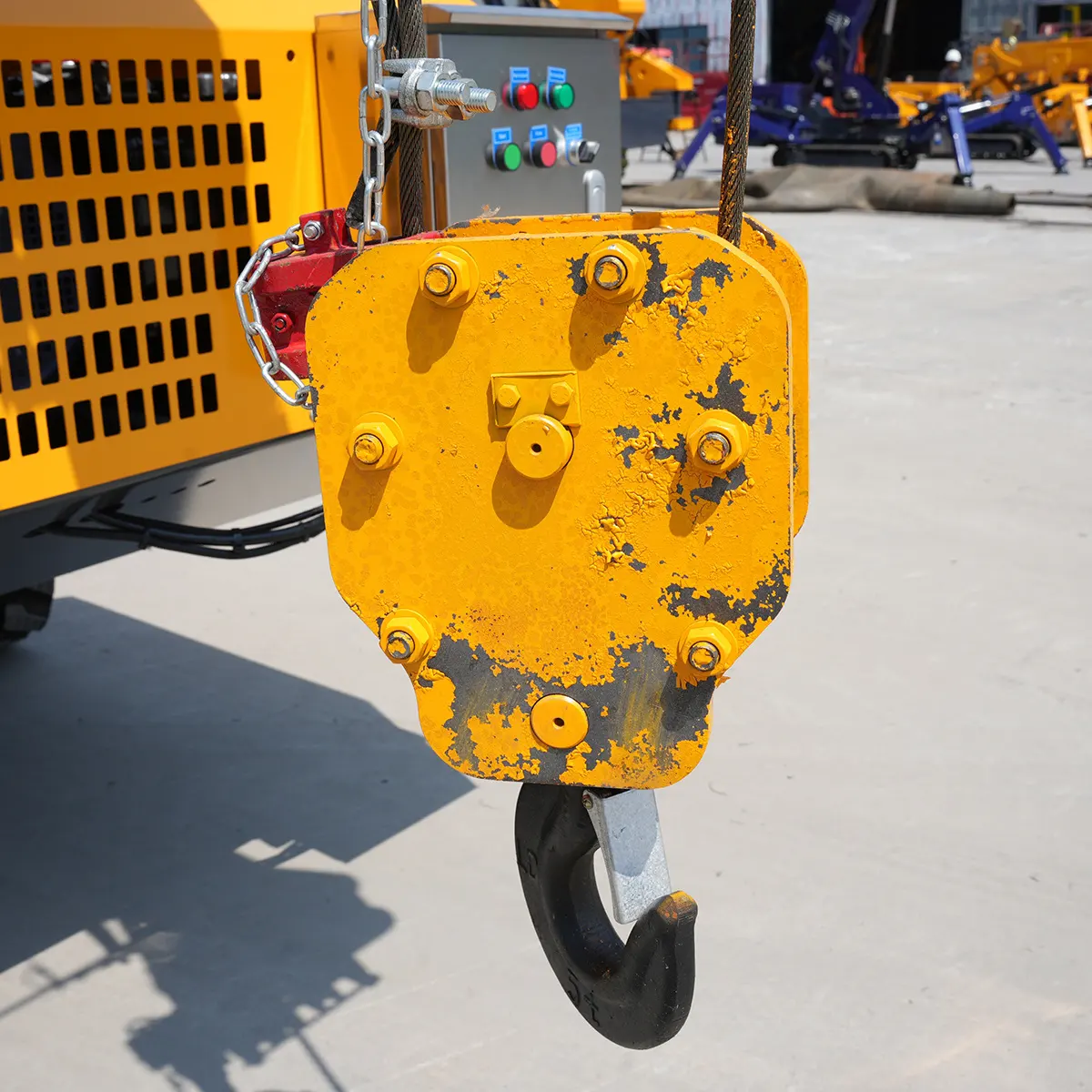

The winch, wire rope and hook block form the load-handling path for lifting operations.
- Operator Seat and Manual Control Station

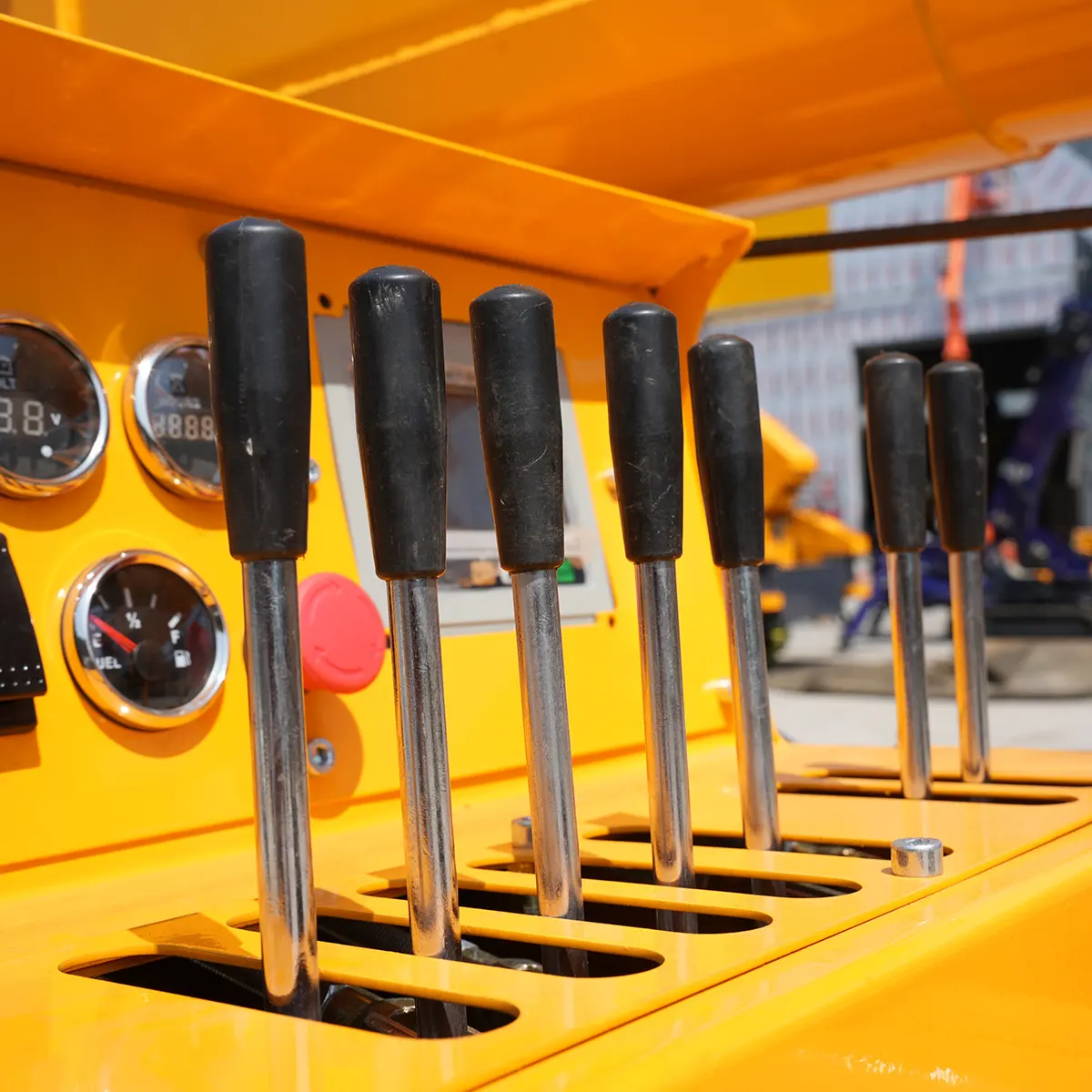

The operator seat and manual control station provide the confirmed onboard operating position.
- Rotating Upper Body and Side Housings
The rotating upper body and side housings support continuous slewing and protect core equipment.
- Four-Outrigger Support Assembly
Four outriggers extend into a broad grounded footprint to stabilize the crane during lifting.
- Dual-Crawler Chassis Assembly
Dual crawler tracks support controlled movement across suitable jobsite surfaces.
General information
- Self‑weight
- 6.7T
- Maximum operating radius
- 15M
- Maximum above ground lift
- 17M
- Hook Rising Speed
- 12m/min (4‑rope) two‑speed
- Wire Rope Specifications
- Φ11mm*60m
- Hoist specifications
- 4m×5‑section lifting arm (Support customization)
- Boom length/time
- 4.5m‑17m/54sec (adjustable)
General instructions
Simplified explanationProduct Video
Spider Crane Full‑View Showcase
Full panoramic display of the spider crane. Compact crawler‑type body with multi‑support outriggers, stable and well‑structured. Perfect lifting equipment for narrow‑space construction projects.
Spider Crane Full‑View Showcase
01:06Full panoramic display of the spider crane. Compact crawler‑type body with multi‑support outriggers, stable and well‑structured. Perfect lifting equipment for narrow‑space construction projects.
Spider Crane Operation Demonstration
01:10Smooth remote‑controlled operation. Flexible boom extension, 360‑degree rotation and steady lifting performance. Easy to operate, safe and efficient for various lifting tasks.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
yiyunying2026@163.com400 158 5899Frequently Asked Questions (FAQ)
1. Where is 5 tons of tracked spider crane typically used?
1. It is commonly used for warehouses, factories, yards, construction sites and maintenance operations, subject to the selected model and site conditions.
2. How do I choose the right model?
2. Match rated load, lift height, reach, aisle width, power type, tire type and ground condition to the actual workload and operating environment.
3. What should be confirmed before ordering?
3. Confirm model, rated load, lift height, mast or boom type and attachments, then verify the response time and any special requirements.
4. How should it be installed and maintained?
4. Prepare adequate access, level load-bearing ground, trained operators and documented daily safety checks; follow the manual for operation, inspection and routine maintenance.
