2 0-ton Load Rating
3-meter Lift Mast
60-volt Power System
Nine Handling Tools

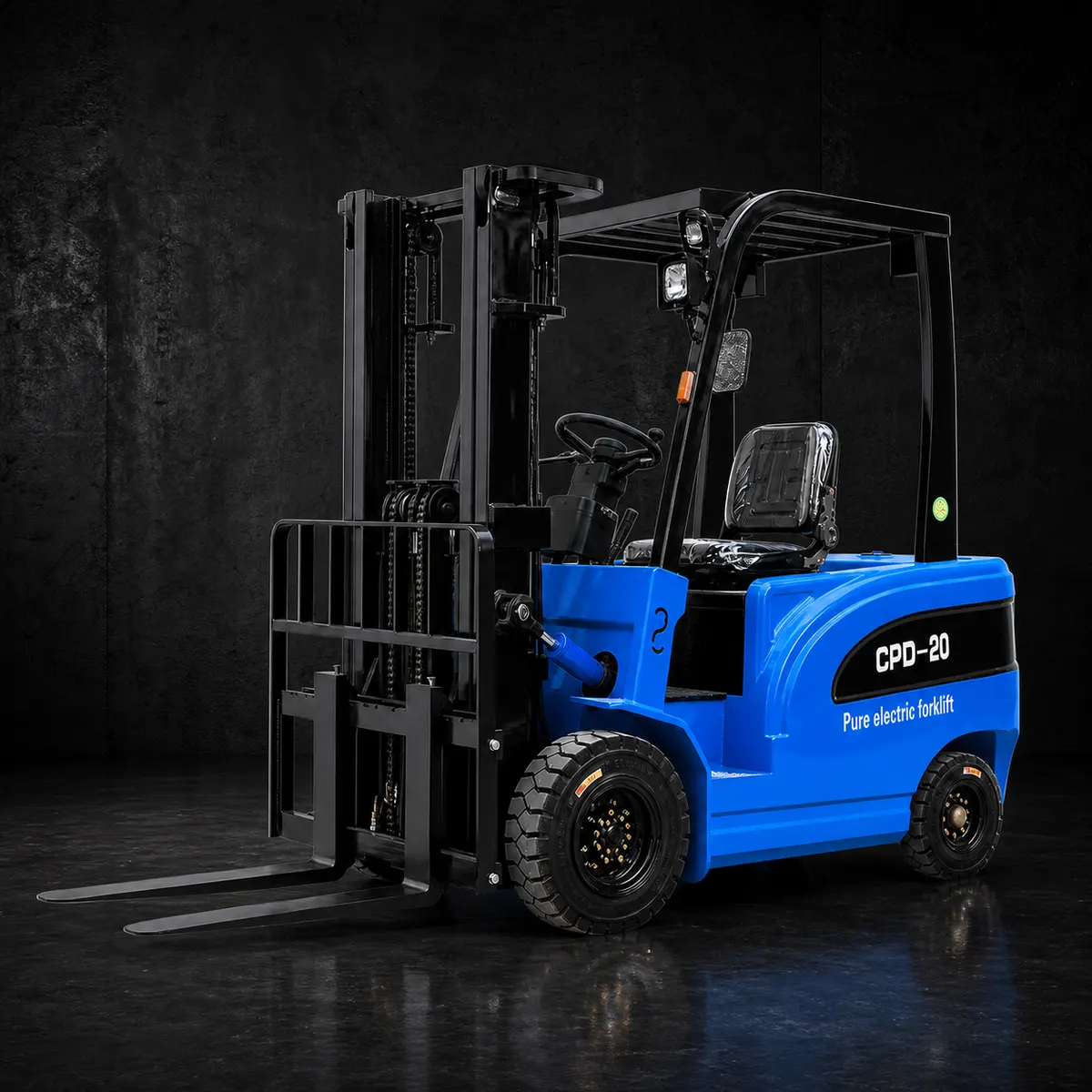

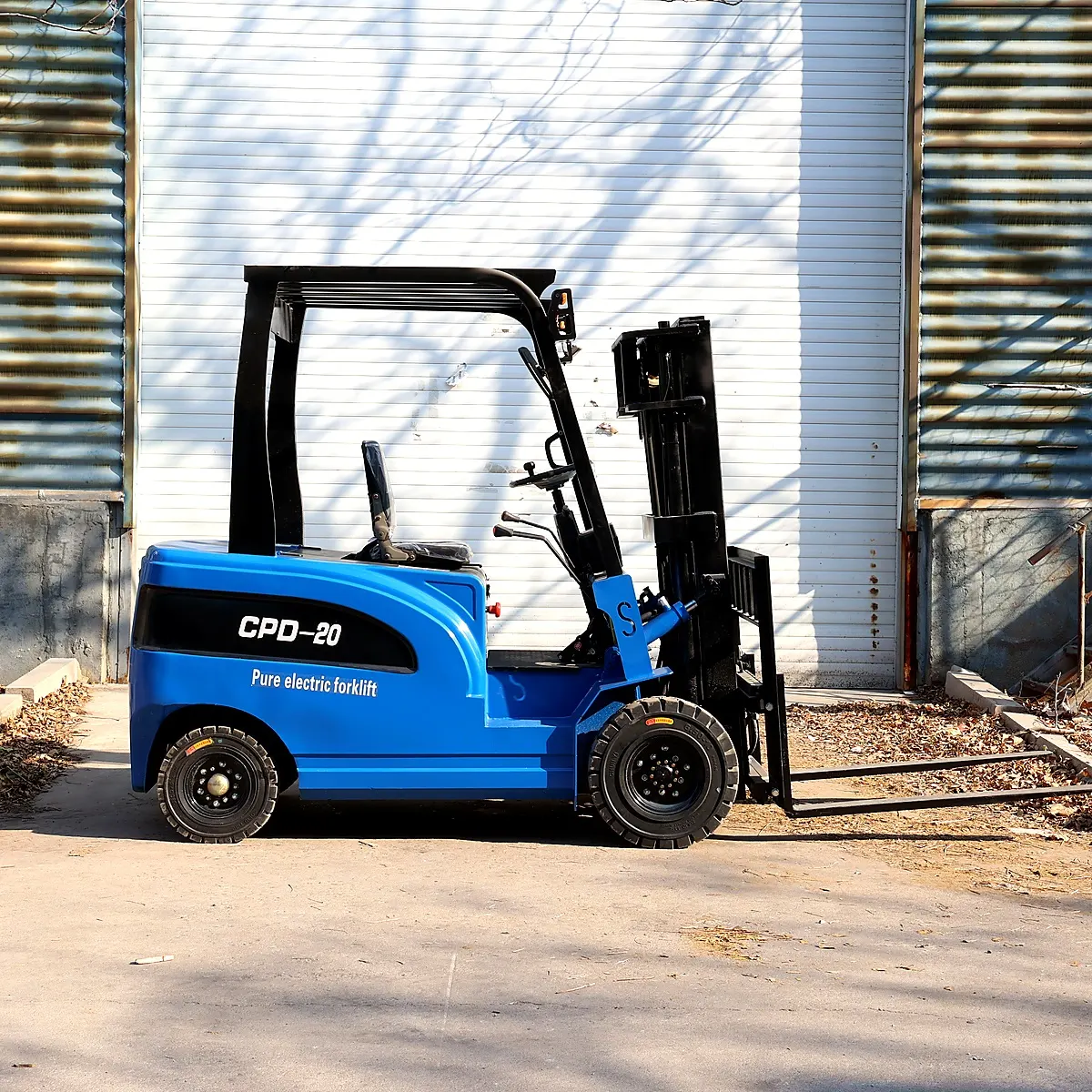

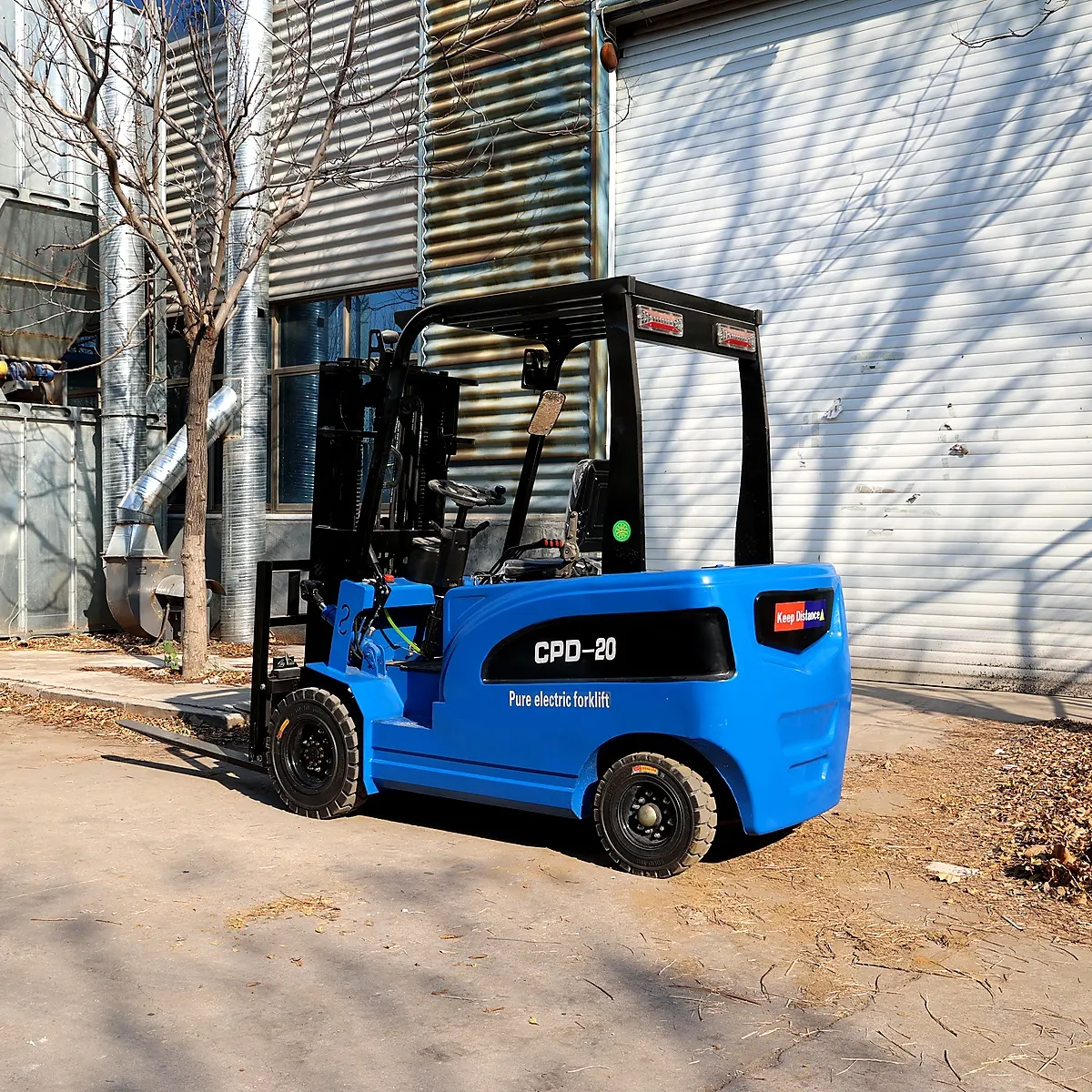

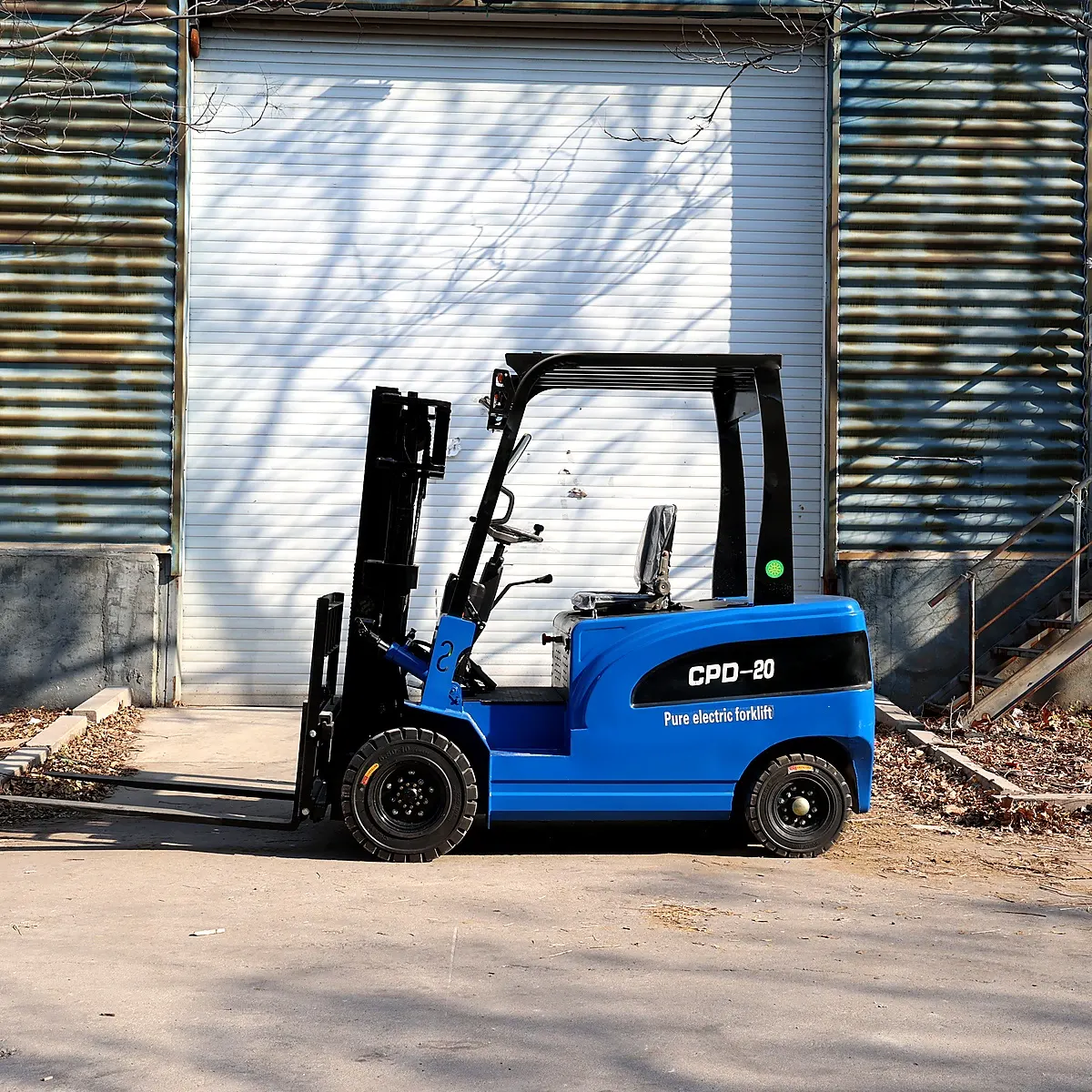

Electric forklift

Name: Electric forklift
SKU: p1_1iK09g6jtrOSYt0
Availability: InStock

This 2-ton electric forklift combines clean electric drive, stable mast lifting, secure tire grip, and protective work features for high-rack stacking.

VY-CPD-20

Core parameters

Full specifications

Climbing ability (unloaded/fully loaded): 15/13
Braking method: Oil brake
Minimum ground clearance: 9.5cm

QuantityUnit: Units

Get a Tailored Procurement Plan

Product Model: VY-CPD20
Product Color: Designated color
Response Time: 24 hours
Special Requirements: Communicate based on actual needs

Two-Ton Load Rating

The specified 2.0-ton capacity supports palletized material movement across warehouse, factory, and loading areas.

Three-Meter Lift

The 3 m standard lift height provides defined vertical reach for routine pallet stacking and retrieval operations.

Electric Drive Output

The 60 V system combines a 5000 W driving motor with a 4000 W lifting motor for travel and lifting tasks.

Adaptable Load Handling

Nine pictured attachments provide distinct ways to clamp, position, rotate, shift, or support different load forms.

Reliable Product Support for Site Work

Configured for application needs

The compact four-wheel forklift carries palletized goods smoothly through warehouse aisles, supporting efficient receiving, picking, and everyday stock movement. At the loading dock, the forklift aligns pallets at a practical height for steady truck loading, unloading, and short-distance transfer. The forklift travels through factory logistics lanes with lowered forks, supporting reliable material movement between pallet stations, equipment, and work areas. In a covered staging area, the forklift organizes pallets and supports short transfers between warehouse doors, vehicles, and temporary storage positions.

2.0-Ton Load Rating
3-Meter Lift Mast
60-Volt Power System
Nine Handling Tools

Product Advantages

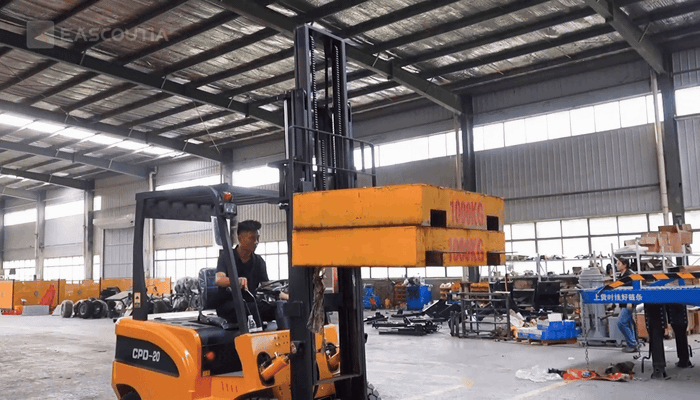

A 2000KG rated capacity and 3m standard lift height deliver smooth lifting support for stacking, loading, and warehouse material handling.

Specifications & Structural Decomposition

Product Structure Diagram

Overhead Guard Frame

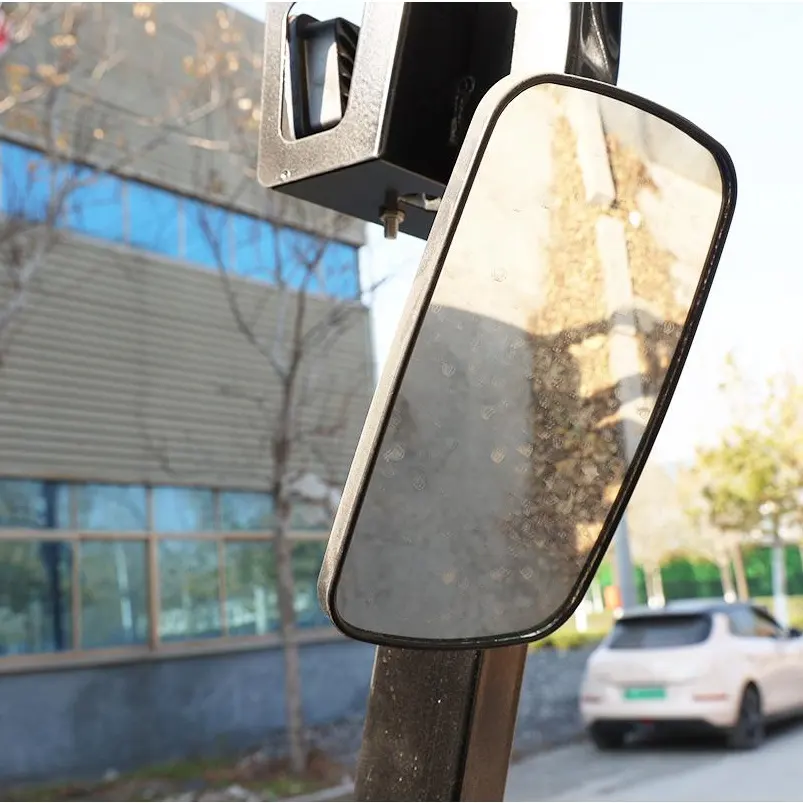

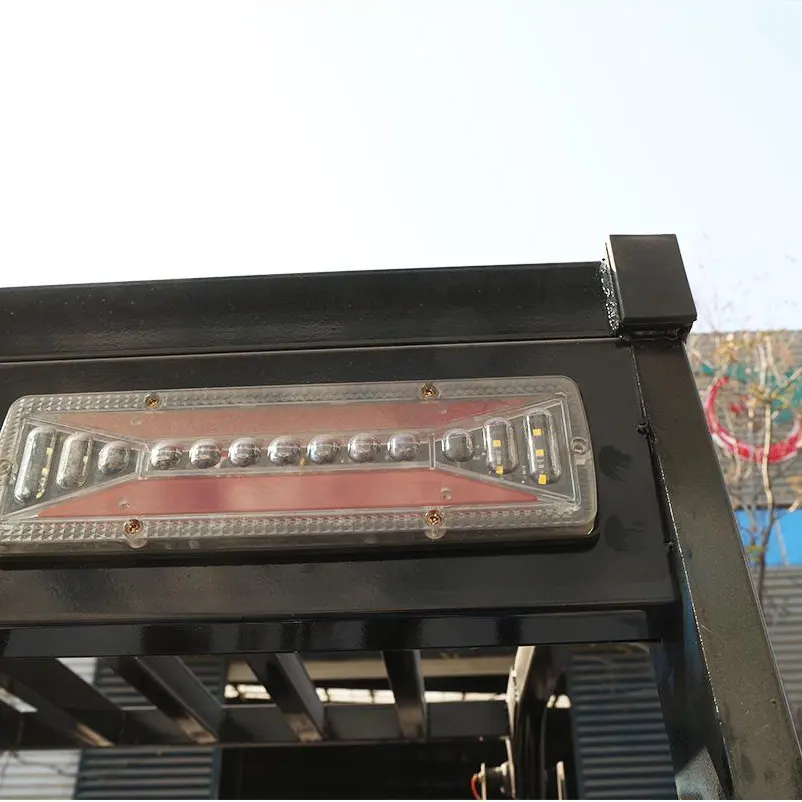

The rigid upper frame protects the operator area while supporting lights and mirrors around the workstation.
Mast and Lift Assembly
The complete mast assembly guides vertical lifting and keeps the load path aligned at the front of the truck.

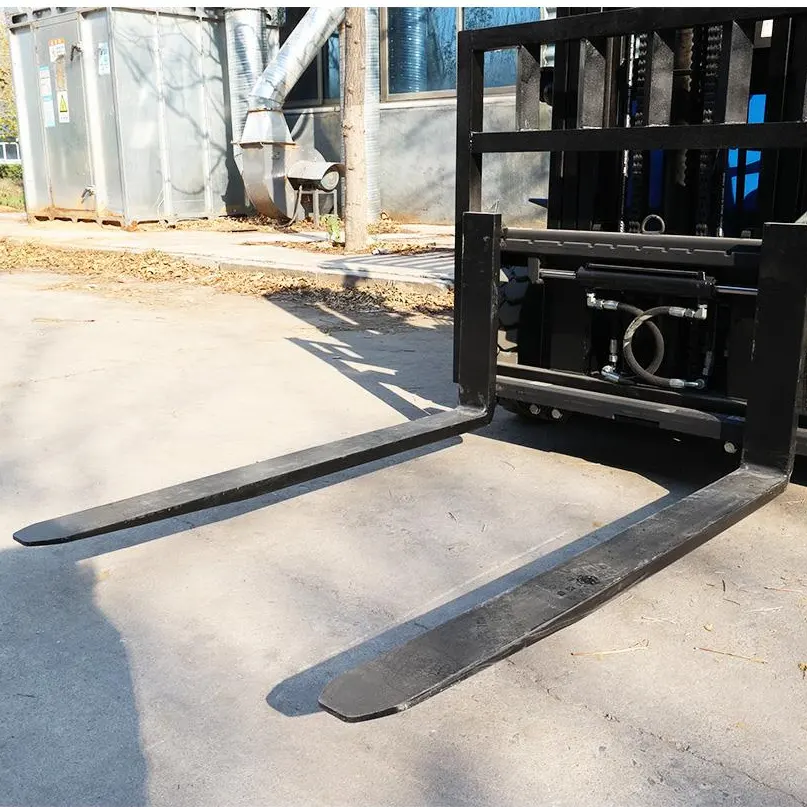

Fork Carriage Assembly
The carriage and paired forks form one load-handling unit for engaging pallets and supporting materials.

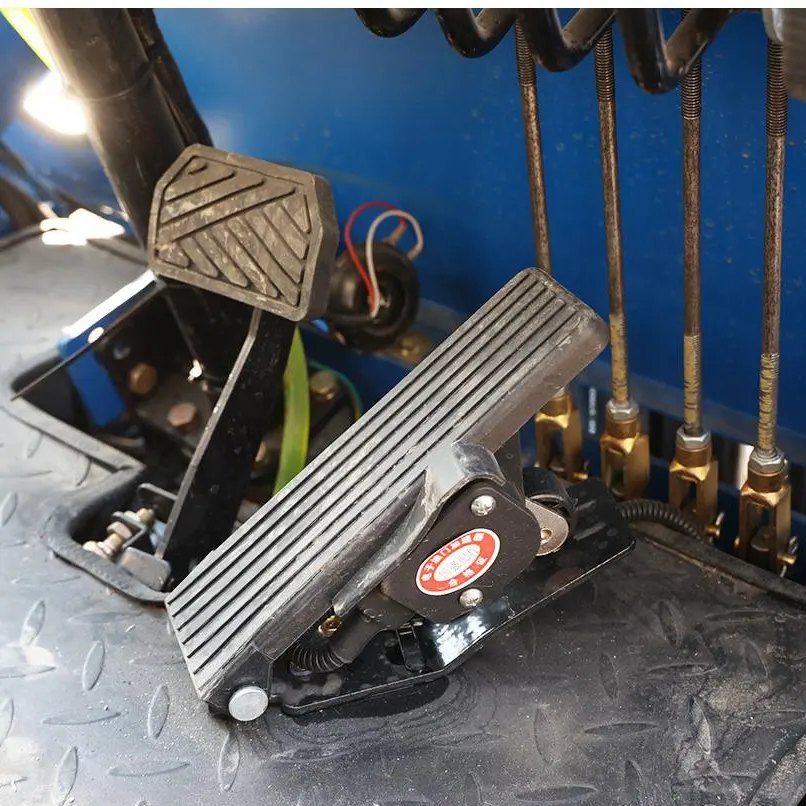

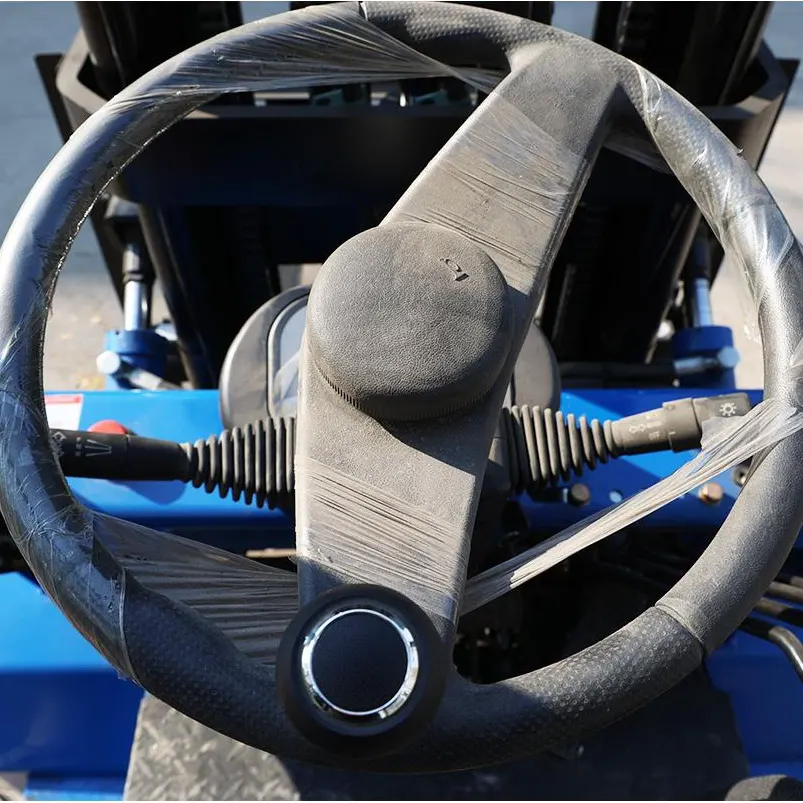

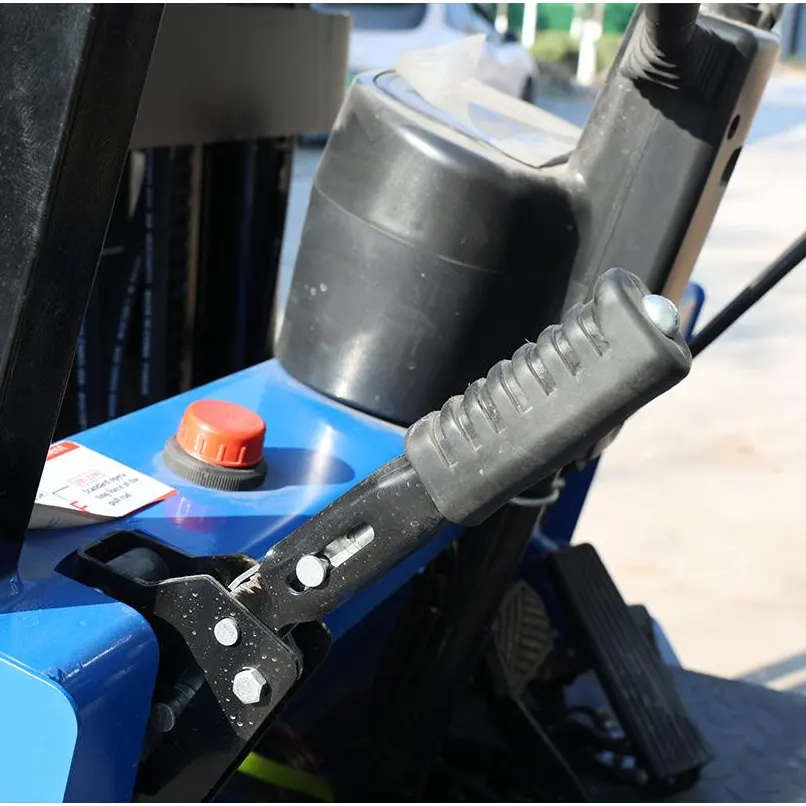

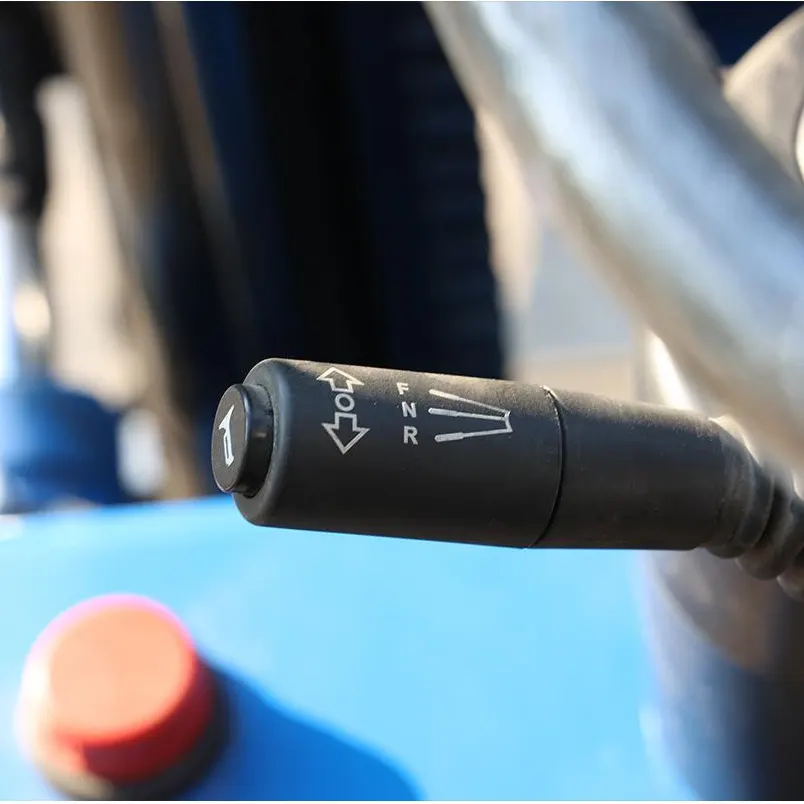

Operator Control Station
The seat, steering column, pedals and control levers are grouped for direct access during travel and lifting.
Body Shell and Counterweight
The shaped outer body protects the rear structure and provides the counterbalanced form visible on the forklift.
Main Chassis Assembly
The central frame supports the body, operator station and lifting structure in their verified installed positions.
Wheel and Axle Assembly
The connected running gear supports the forklift on four tires and transfers steering and travel forces to the ground.

General information

Standard configuration: Model: VY-CPD-20+Load Capacity：2ton+Lifting Height: 3m+Fork Length：1220mm+Battery Capacity：10pcs of maintenance-free 60V 140ah Lead-acid batteries+Net Weight ：2.8T+Overall dimensions (L * W * H)：2400*1200*2150mm+Drive Motor Power：5KW+Lift Motor Power：3KW
Door frame material: C-shaped steel

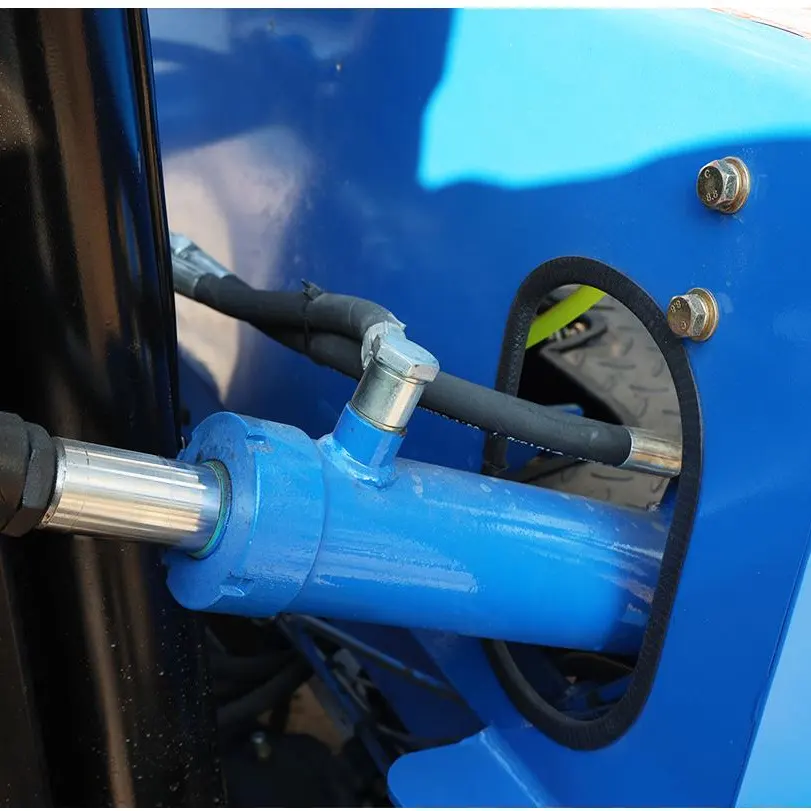

Door frame tilt angle (forward/backward): 6°-12°
Climbing ability (unloaded/fully loaded): 15/13

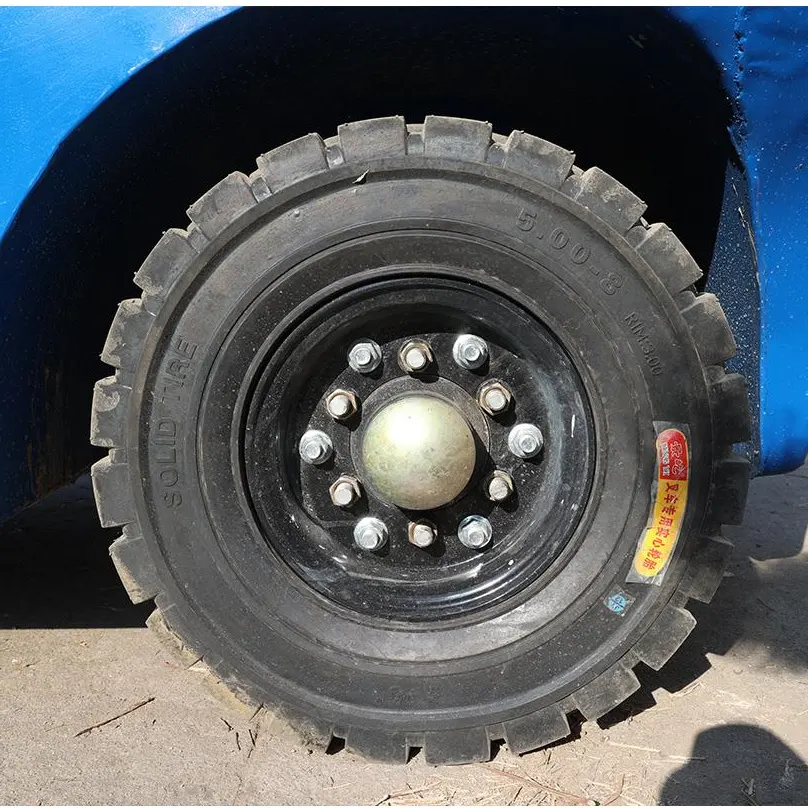

tire: Front 650-10, Rear 500-8
Minimum ground clearance: 9.5cm
Braking method: Oil brake

General instructions

Simplified explanation

Product Attachments or Core Configurations

Rotator

The hydraulic rotator turns suitable loads for controlled tipping, emptying or repositioning when correctly fitted.

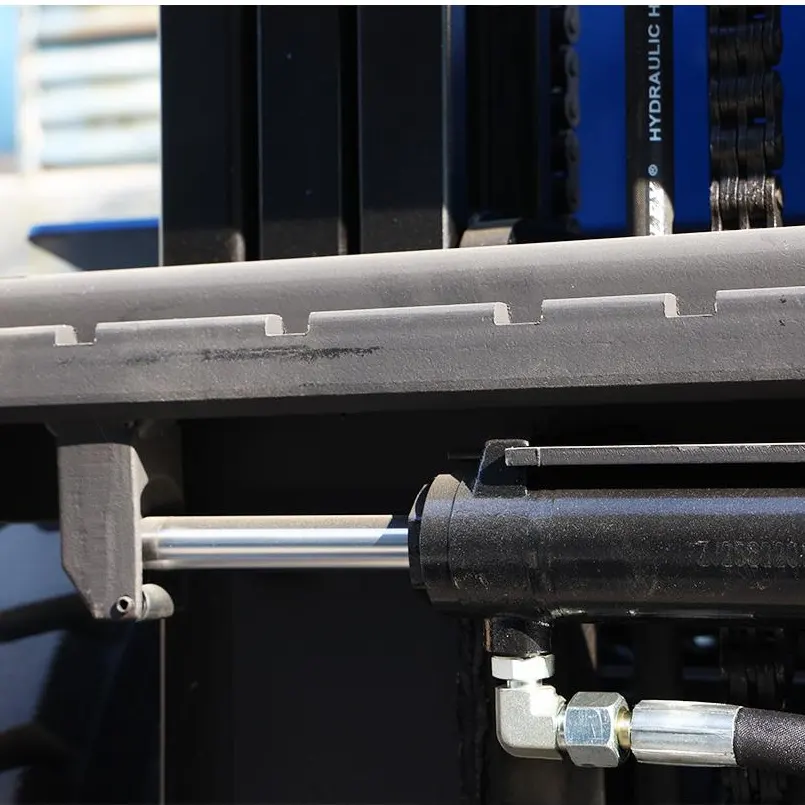

Side Shifter

Hydraulic side shifting moves the fork carriage laterally for precise load alignment without repositioning the forklift.

Bale Clamp

Hydraulic clamp arms securely hold suitable compressed bales for controlled lifting, transport and stacking work.

Carpet Pole

The smooth tapered pole supports suitable carpet, textile and material rolls for controlled lifting and placement.

Carton Clamp

Wide padded clamp arms hold suitable cartons and boxed goods without pallets during careful handling and stacking.

Fork Positioner

Hydraulic fork adjustment changes the spacing between the forks to suit different pallet and load widths from the operator station.

Multiple Load Handler

Multiple fork pairs support efficient handling of two or more suitable palletized loads during repetitive warehouse operations.

Push & Pull

The hydraulic push-pull attachment handles suitable slip-sheet loads by gripping the sheet and drawing the goods onto its platen.

Roll Clamp

Curved hydraulic clamp arms grip suitable cylindrical rolls for controlled lifting, rotation, transport and placement.

Rotator

The hydraulic rotator turns suitable loads for controlled tipping, emptying or repositioning when correctly fitted.

Side Shifter

Hydraulic side shifting moves the fork carriage laterally for precise load alignment without repositioning the forklift.

Bale Clamp

Hydraulic clamp arms securely hold suitable compressed bales for controlled lifting, transport and stacking work.

Carpet Pole

The smooth tapered pole supports suitable carpet, textile and material rolls for controlled lifting and placement.

Product Video

00:21

CPD-20 Four-Wheel Static Omnidirectional Display

00:21

CPD-20 Four-Wheel Omnidirectional Dynamic Demonstration

00:43

Packaging Video

00:40

Forklift Packaging Cabinet

00:33

Product Cabinet

01:35

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

Forklift Fork Details and Steel Pipe Handling Demonstration

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
