1 5-ton Load Rating
3-meter Lift Mast
60-volt Power System
Four-wheel Chassis

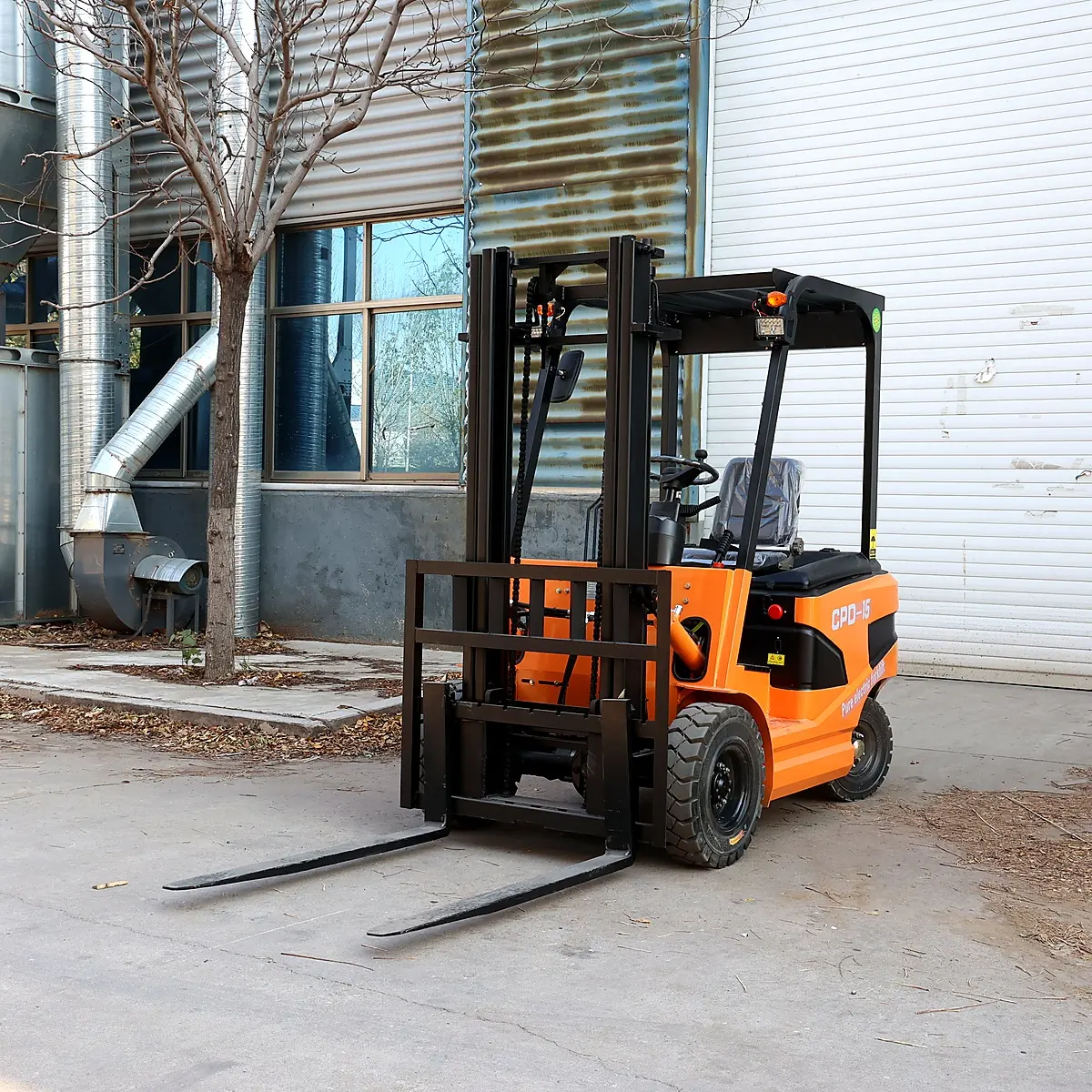

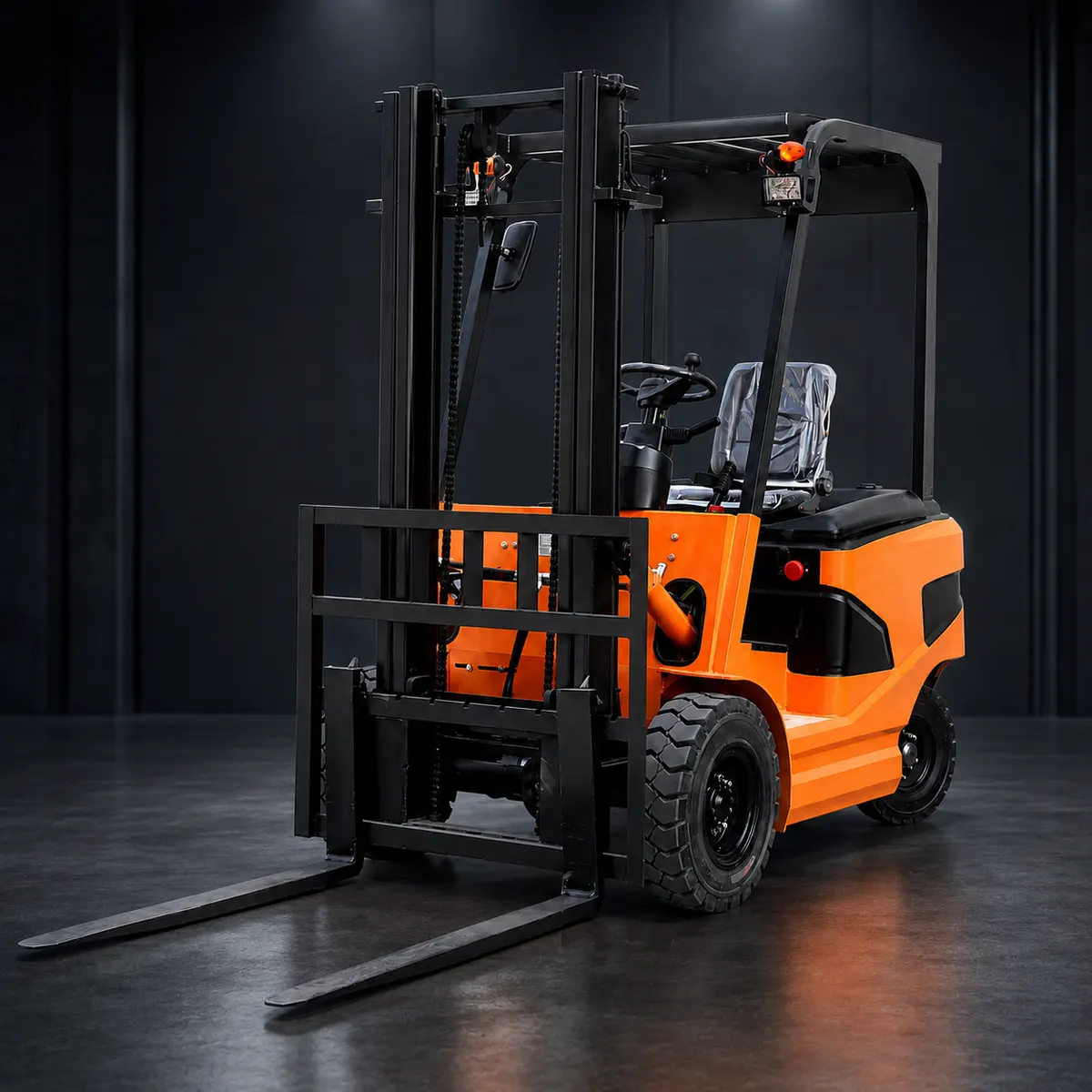

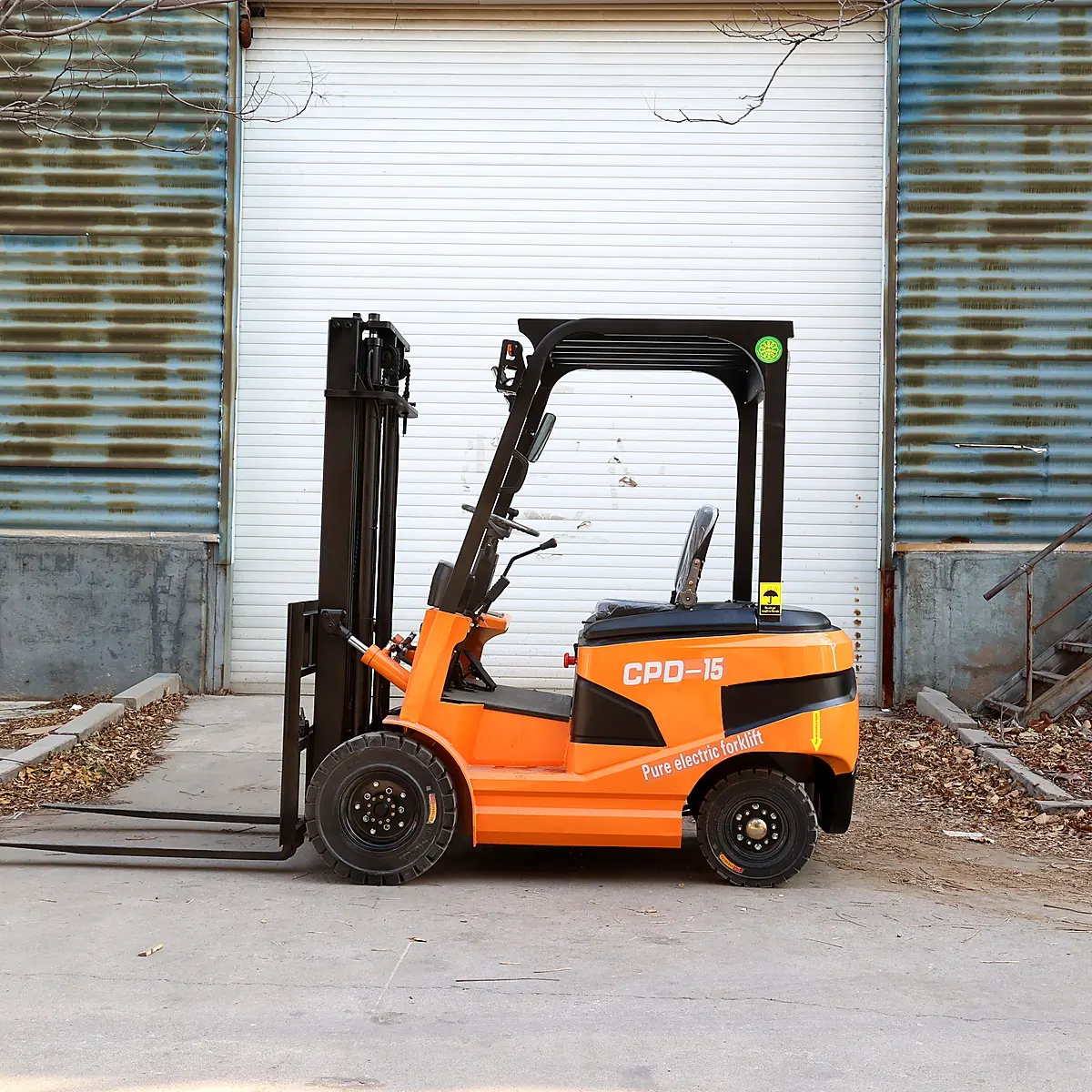

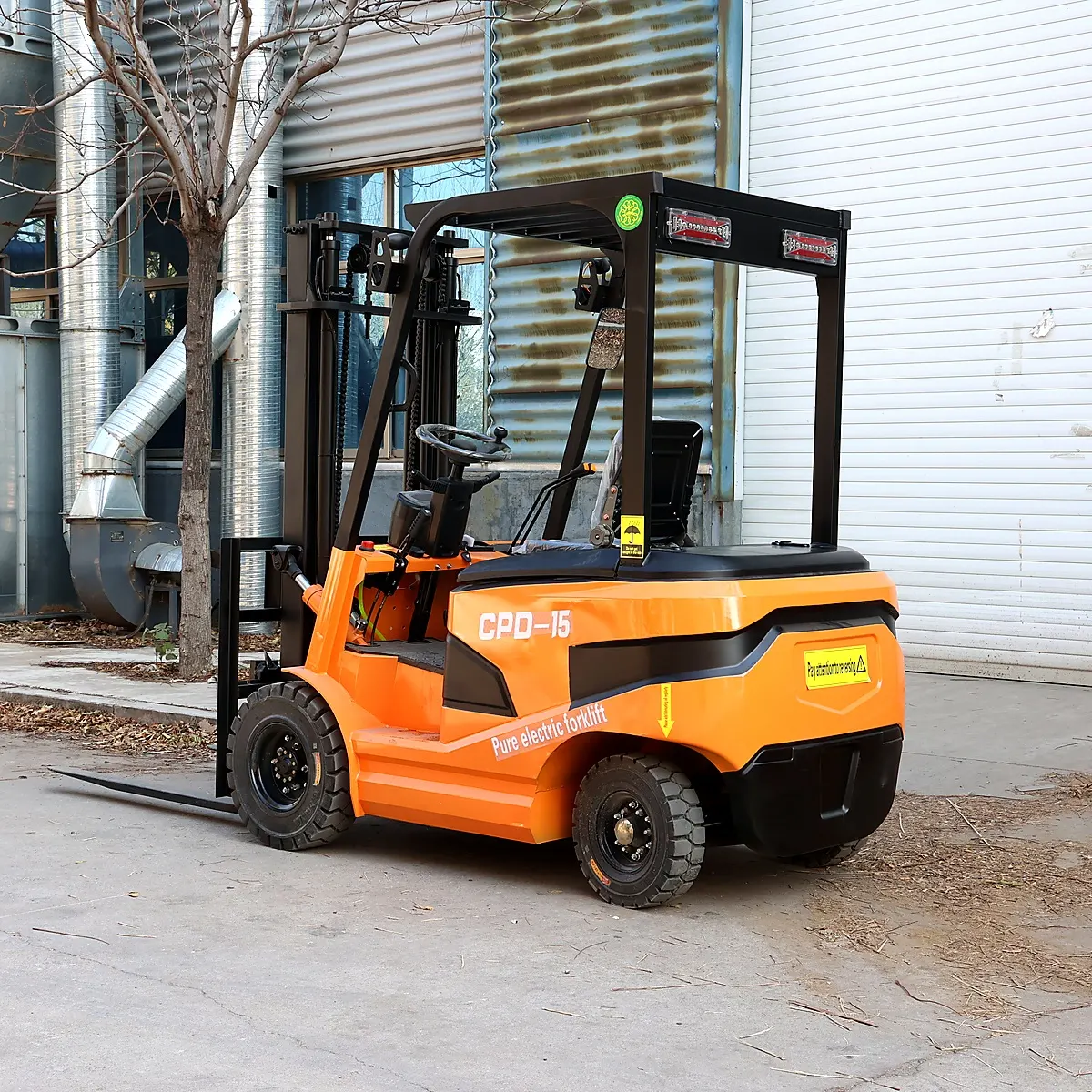

Electric forklift

Name: Electric forklift
SKU: p1_1iK09g6jtrOSYtw
Availability: InStock

This 1.5-ton electric forklift combines clean electric drive, stable mast lifting, secure tire grip, and protective work features for efficient pallet storage and retrieval.

VY-CPD-15

Core parameters

Full specifications

Climbing ability (unloaded/fully loaded): 15/13
Braking method: Oil brake
Minimum ground clearance: 9.5cm

QuantityUnit: Units

Get a Tailored Procurement Plan

Product Model: VY-CPD15
Product Color: Designated color
Response Time: 24 hours
Special Requirements: Communicate based on actual needs

Rated Load Handling

The 1.5-ton loading capacity supports defined pallet-moving tasks in warehouses, workshops, and transfer areas.

Standard Lift Reach

The 3 m standard lift height gives the mast practical vertical reach for routine pallet placement and retrieval.

Matched Electric Power

The 60 V system uses 3000 W drive and 3000 W lifting motors for electric travel and hydraulic lifting work.

Supported Four-Wheel Base

The four-wheel chassis, integrated front bridge, steel-plate rear axle, and oil brake support controlled travel.

Reliable Product Support for Site Work

Configured for application needs

A compact body and clear mast visibility support accurate pallet handling between storage racks, helping warehouse teams maintain smooth, efficient material flow. Stable lifting and responsive handling support fast movement between trucks, dock platforms, and staging zones for a more consistent loading workflow. Agile steering and intuitive controls help operators move palletized materials between workstations, supporting timely replenishment and dependable production-line logistics. Clear visibility and agile movement make the forklift well suited to covered staging and loading areas, enabling organized transfers across multiple operating positions.

1.5-Ton Load Rating
3-Meter Lift Mast
60-Volt Power System
Four-Wheel Chassis

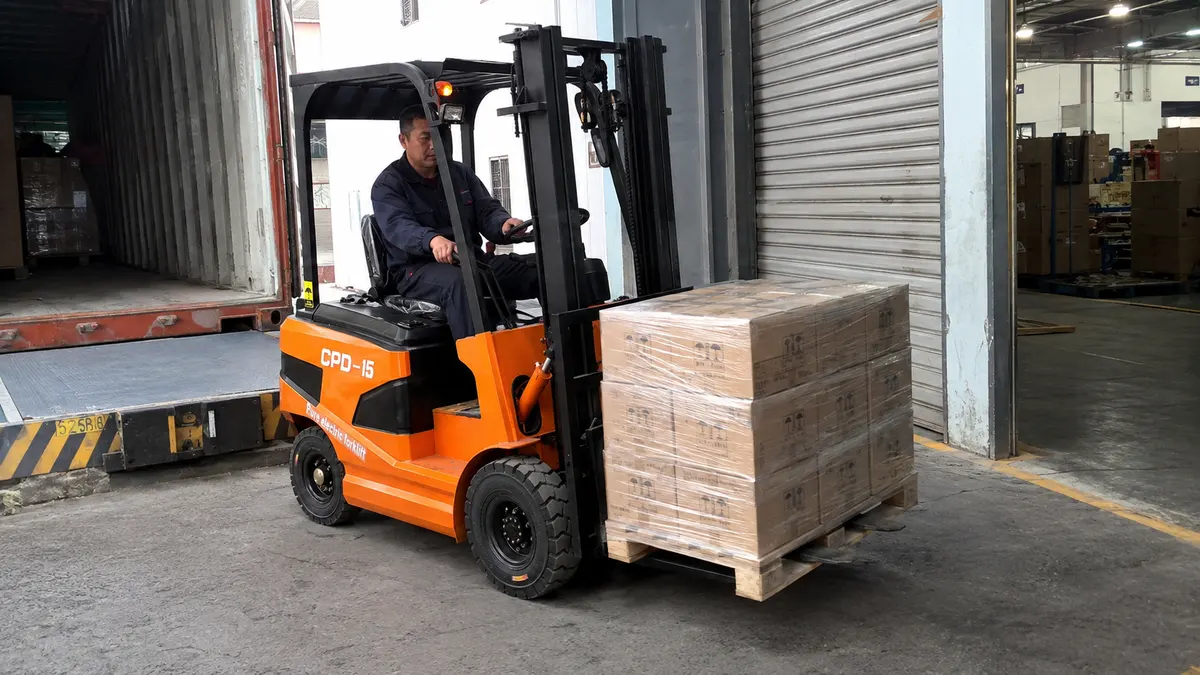

Factory Workshop Material Delivery

Covered Logistics Staging

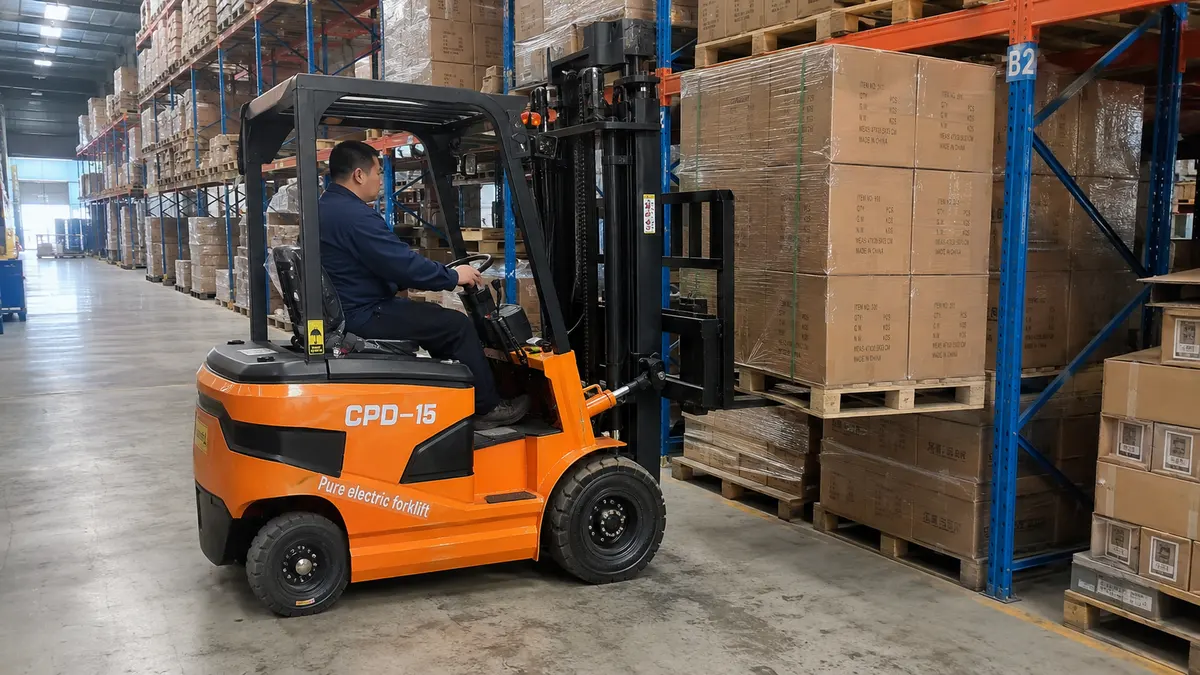

Warehouse Aisle Pallet Handling

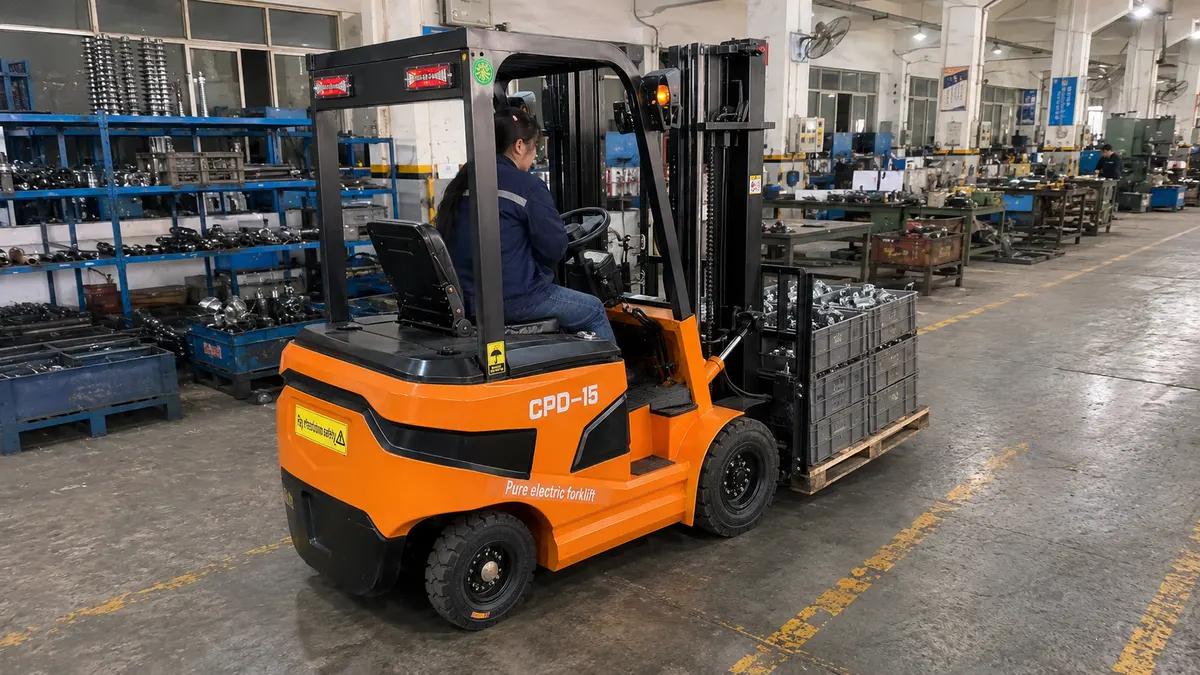

Loading Dock Pallet Transfer

Factory Workshop Material Delivery

Covered Logistics Staging

Warehouse Aisle Pallet Handling

Loading Dock Pallet Transfer

Product Advantages

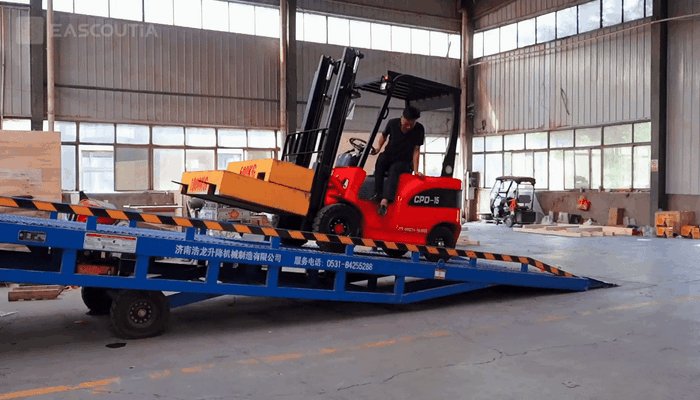

During loaded ramp testing, the forklift holds a controlled posture and transitions smoothly between stopping and starting for confident operation.

Specifications & Structural Decomposition

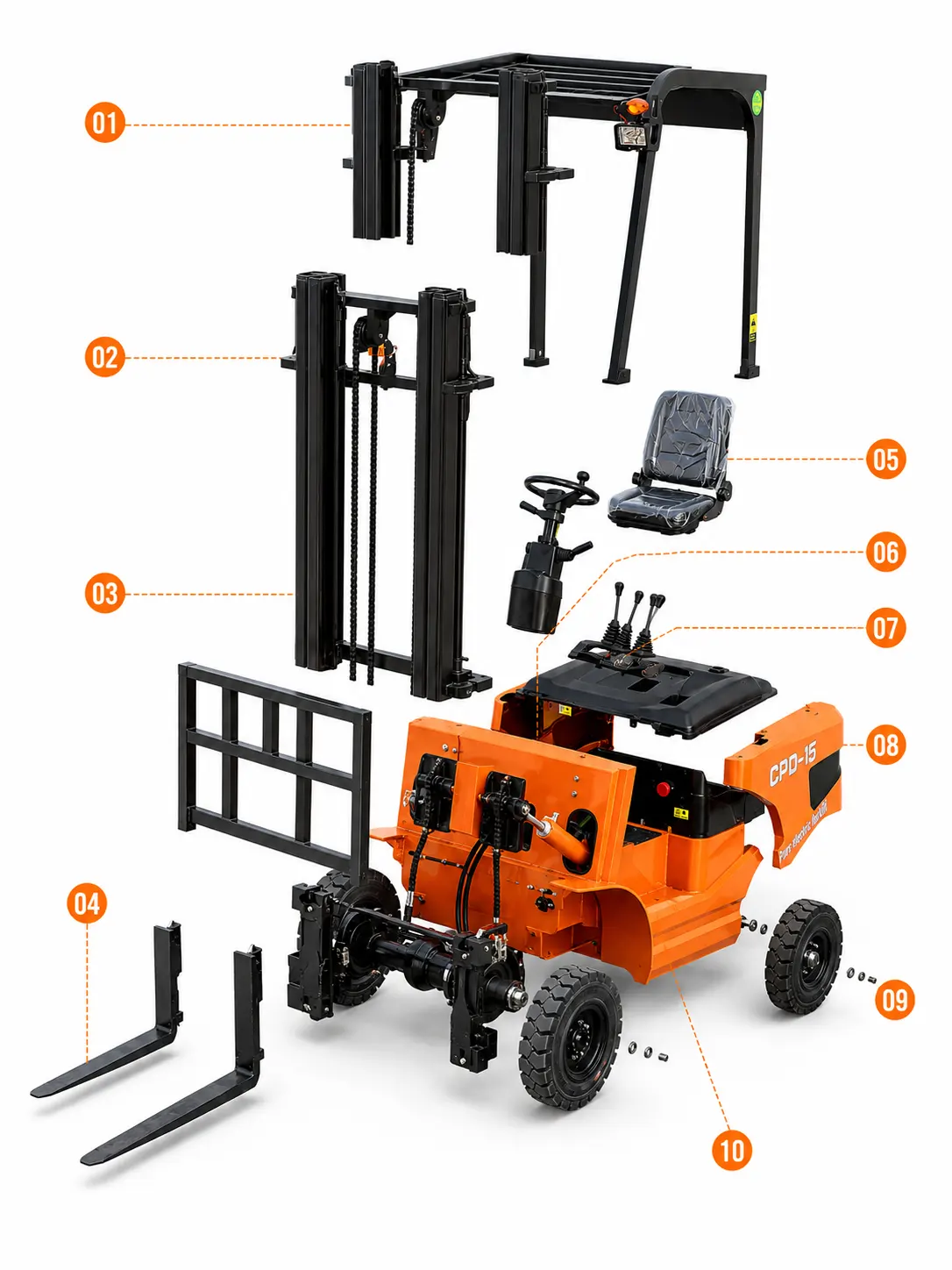

Product Structure Diagram

Overhead Guard Frame

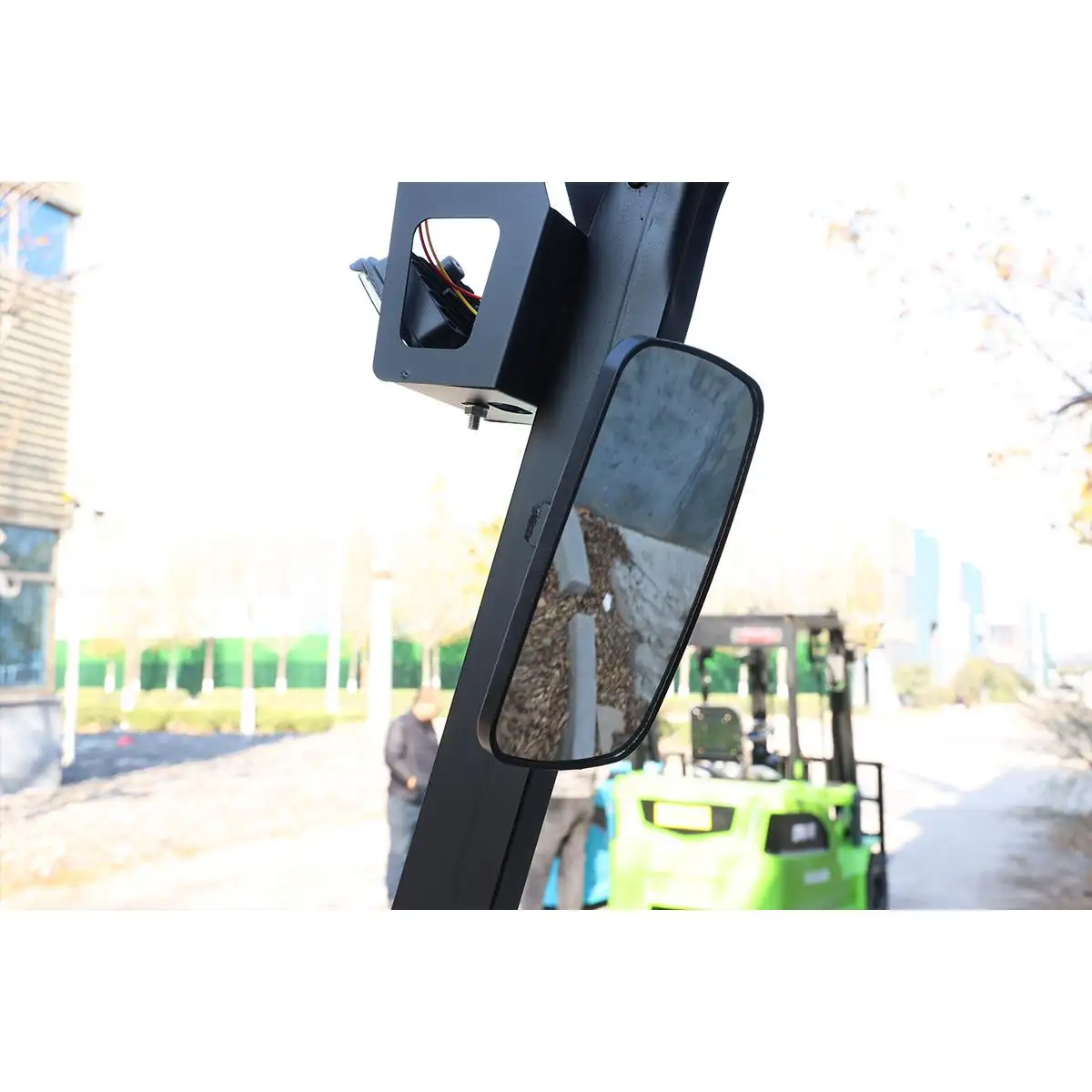

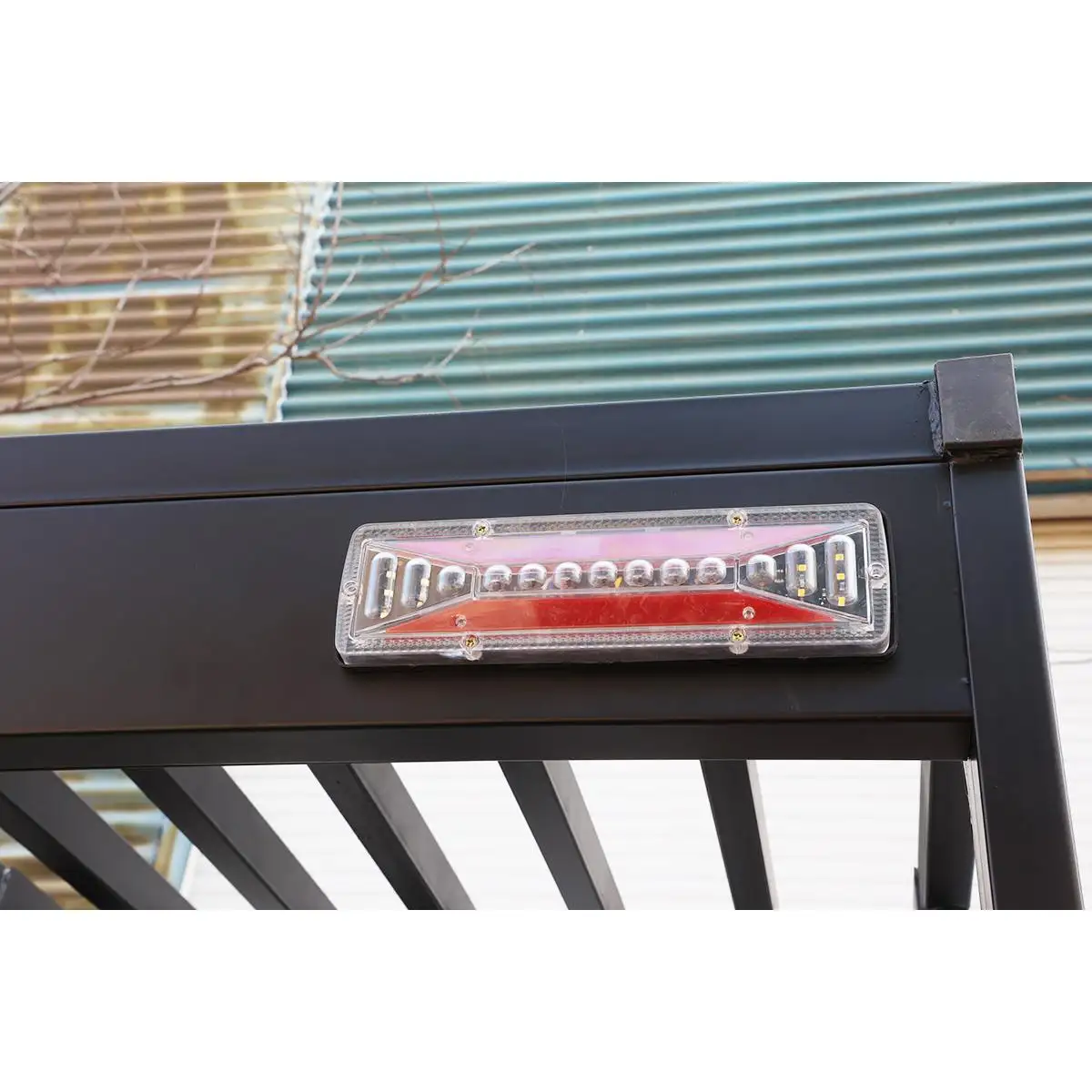

The rigid upper frame protects the operator area while supporting lights and mirrors around the workstation.

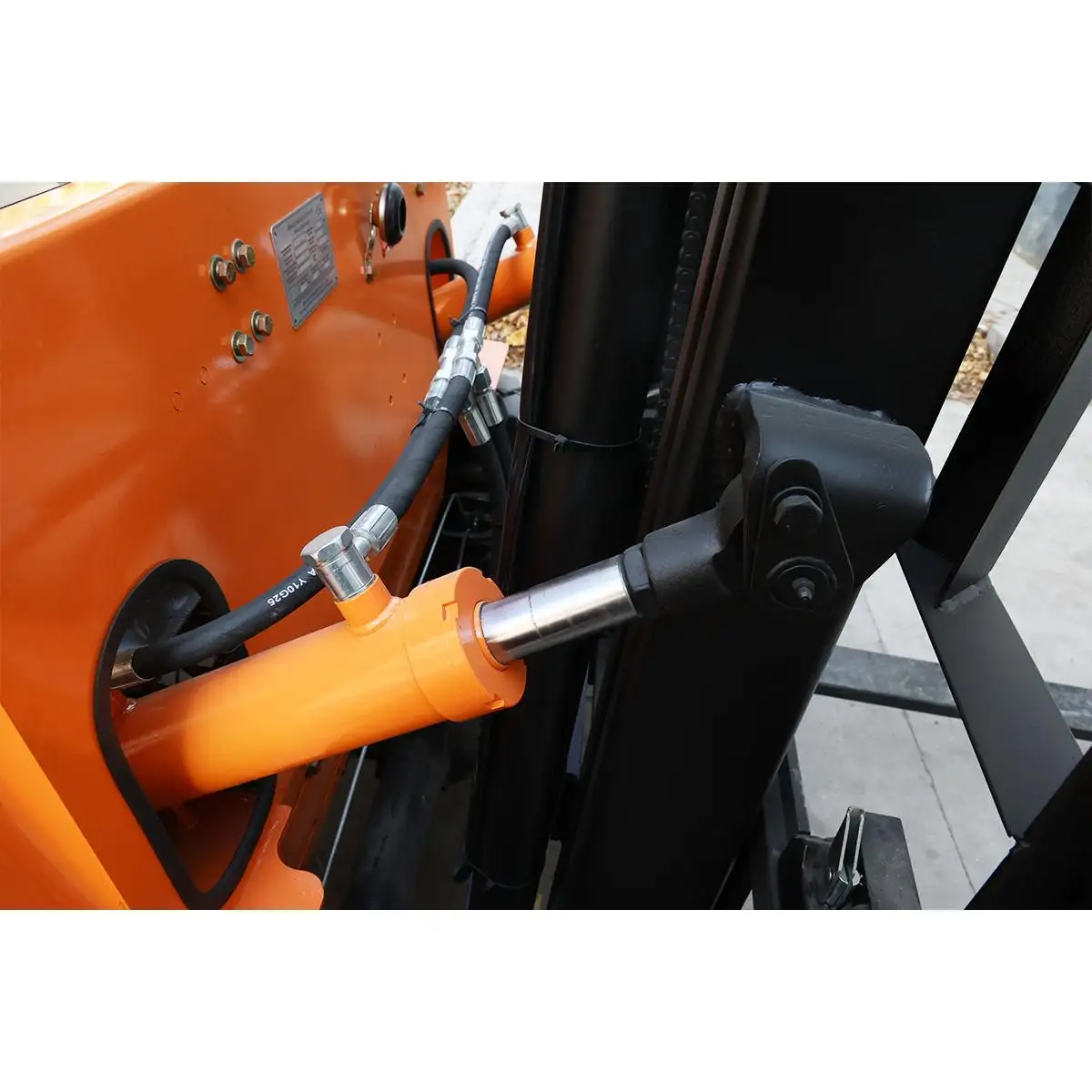

Mast and Lift Assembly
The complete mast assembly guides vertical lifting and keeps the load path aligned at the front of the truck.
Fork Carriage Assembly
The carriage and paired forks form one load-handling unit for engaging pallets and supporting materials.

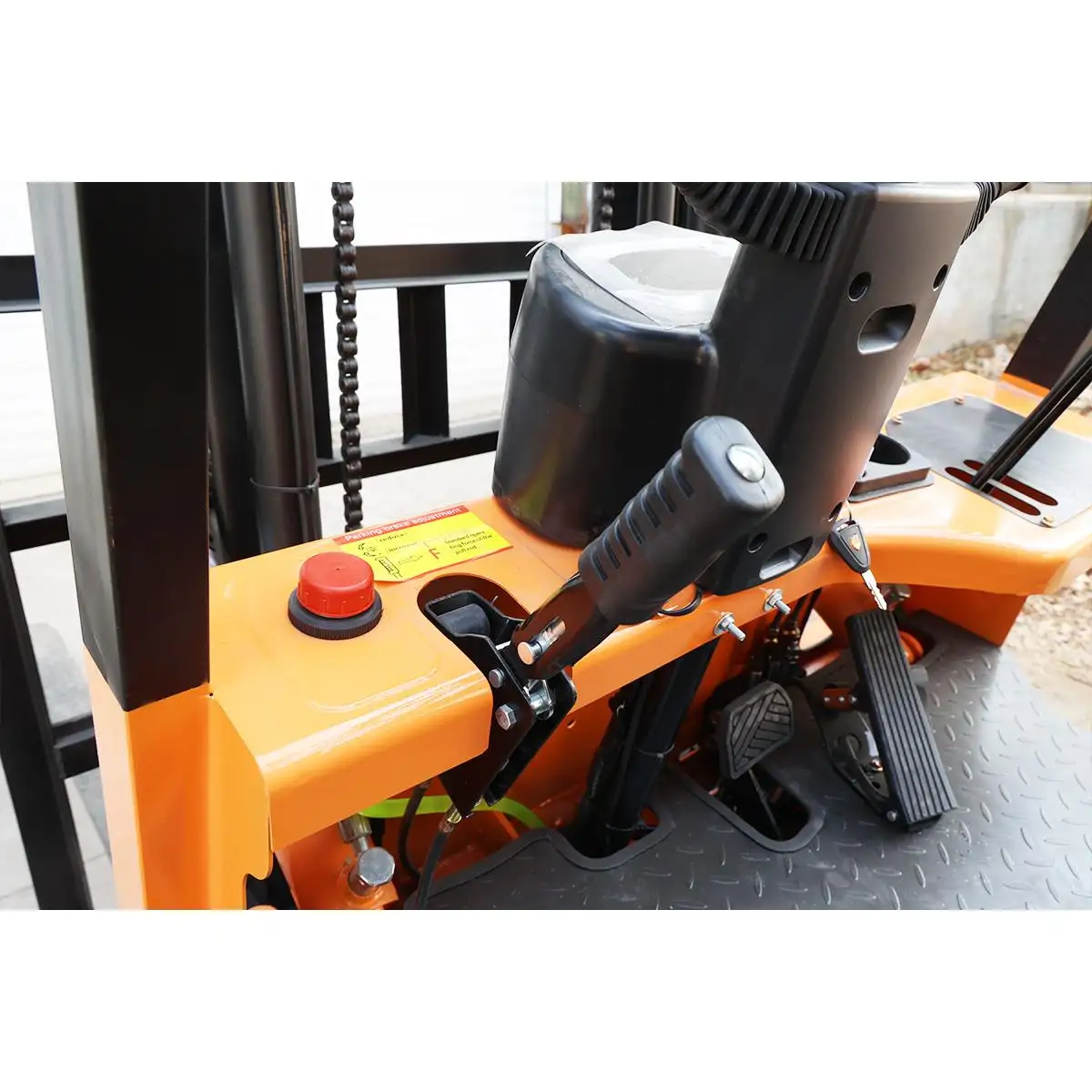

Operator Control Station
The seat, steering column, pedals and control levers are grouped for direct access during travel and lifting.
Body Shell and Counterweight
The shaped outer body protects the rear structure and provides the counterbalanced form visible on the forklift.
Main Chassis Assembly
The central frame supports the body, operator station and lifting structure in their verified installed positions.
Wheel and Axle Assembly
The connected running gear supports the forklift on four tires and transfers steering and travel forces to the ground.

General information

Standard configuration: Model: VY-CPD-15 +Load Capacity：1.5ton +Lifting Height: 3m +Fork Length：1220mm +Battery Capacity：5pcs of maintenance-free 60V 70ah Lead-acid batteries +Net Weight ：2.3T +Overall dimensions (L * W * H)：2300*1200*2150mm +Drive Motor Power：3KW +Lift Motor Power：3KW
Door frame material: C-shaped steel
Door frame tilt angle (forward/backward): 6°-12°
Climbing ability (unloaded/fully loaded): 15/13

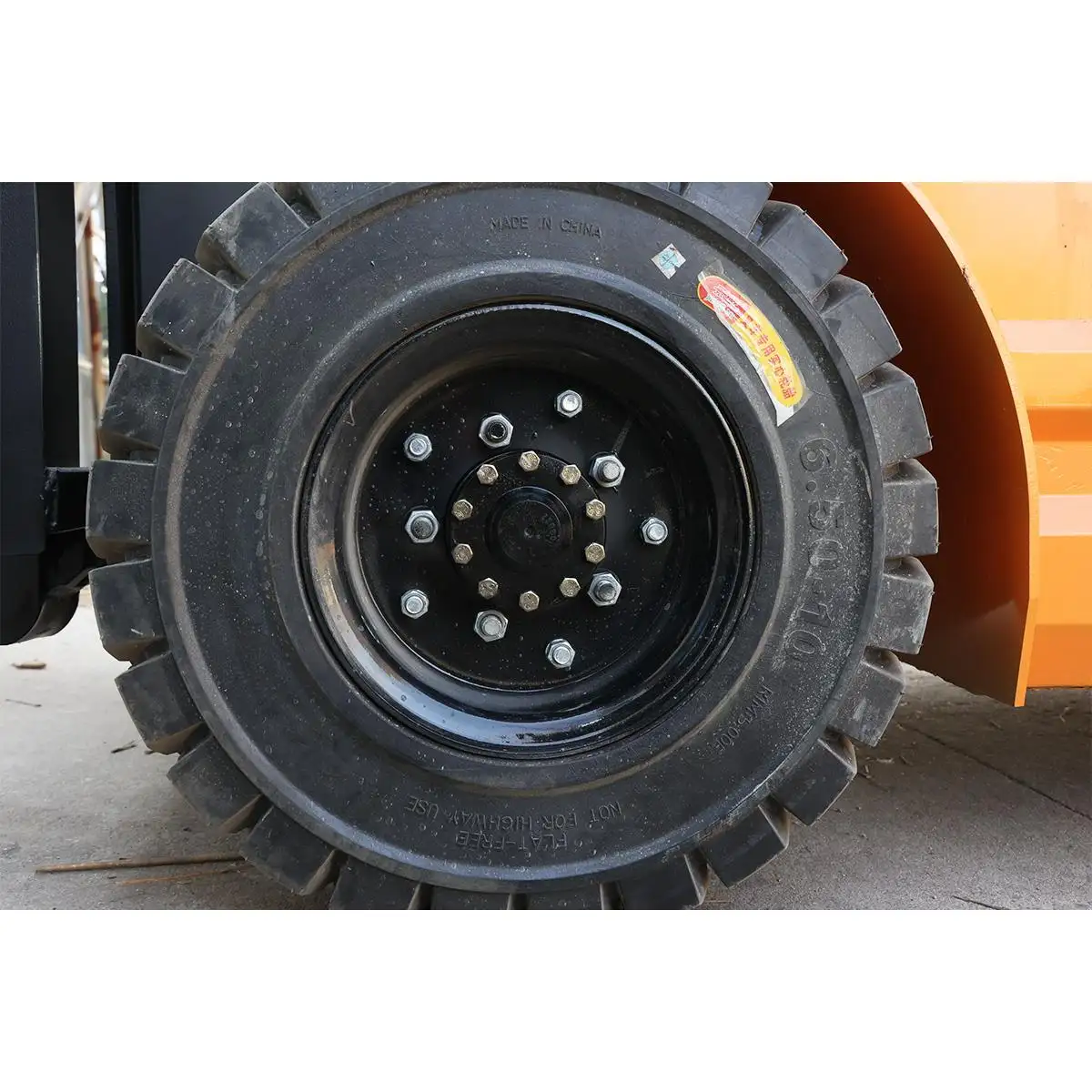

tire: Front 650-10, Rear 500-8
Minimum ground clearance: 9.5cm
Braking method: Oil brake

General instructions

Simplified explanation

Product Attachments or Core Configurations

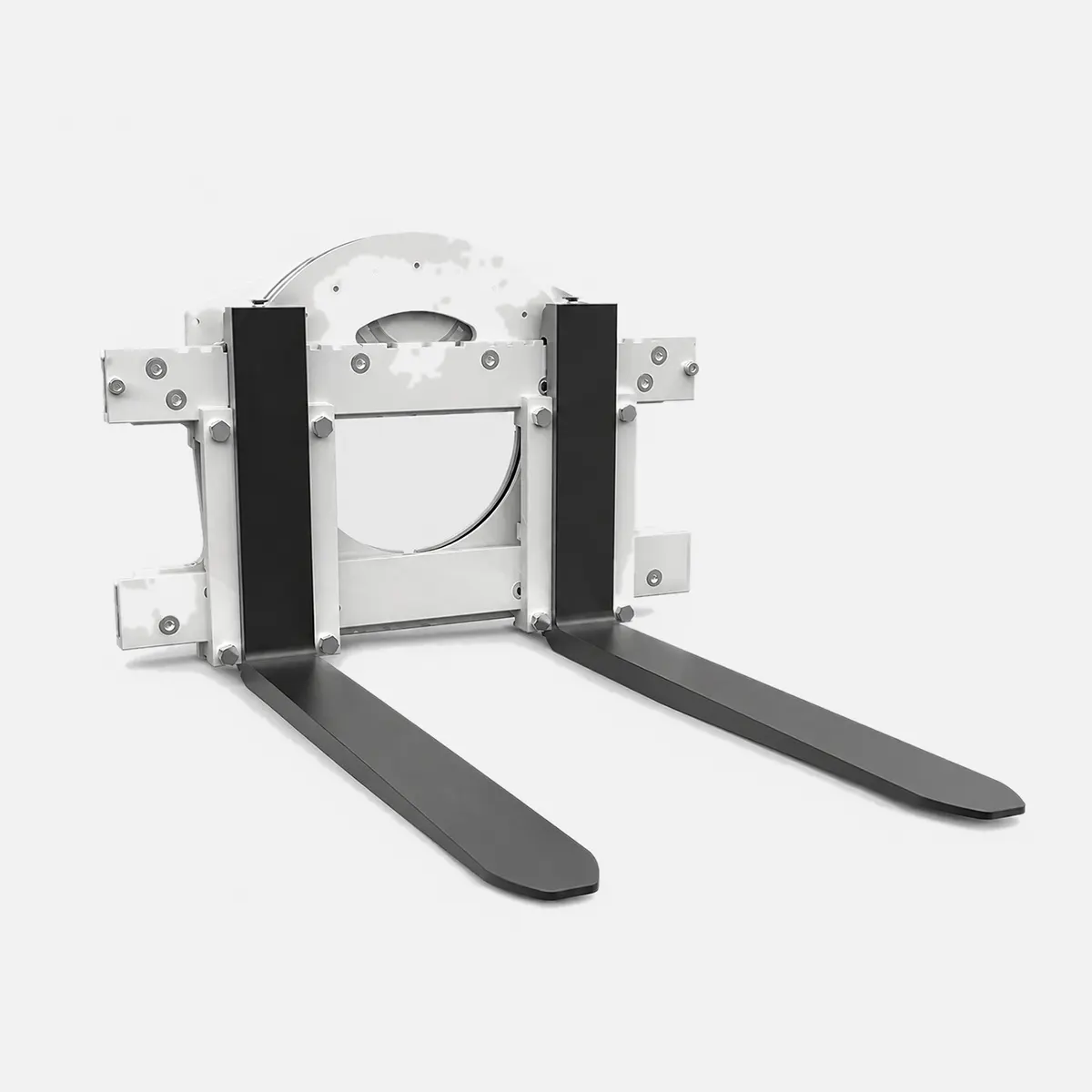

Rotator

The hydraulic rotator turns suitable loads for controlled tipping, emptying or repositioning when correctly fitted.

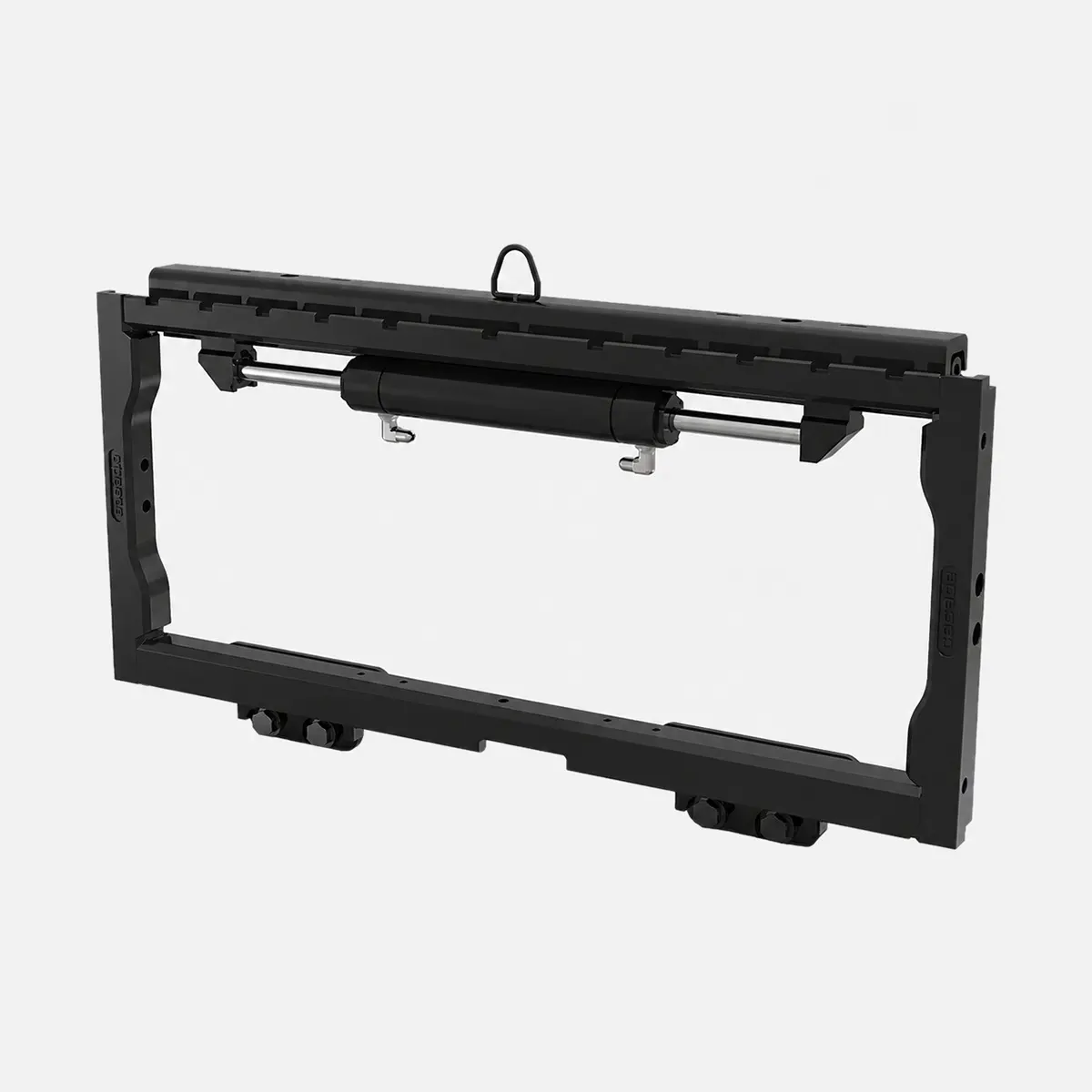

Side Shifter

Hydraulic side shifting moves the fork carriage laterally for precise load alignment without repositioning the forklift.

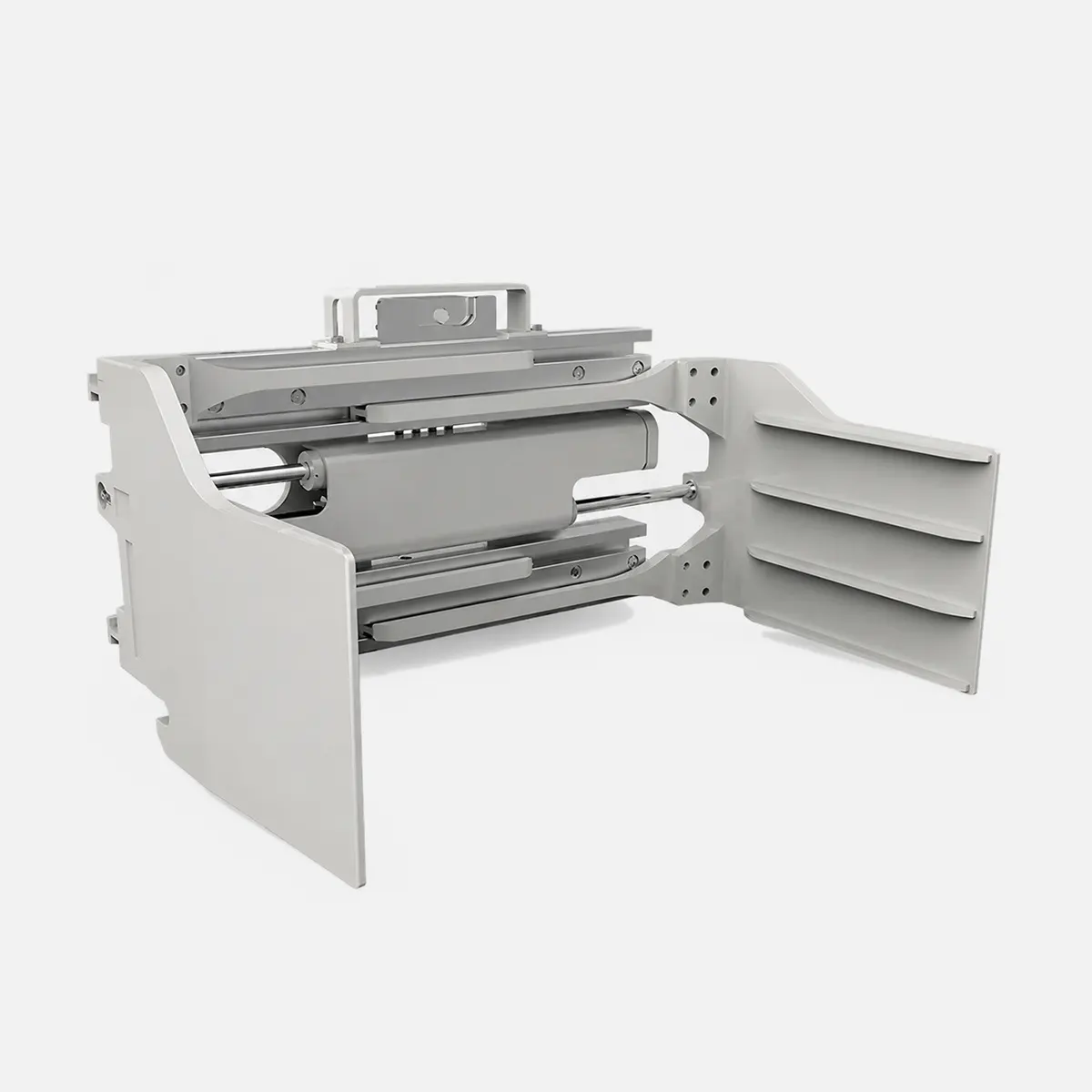

Bale Clamp

Hydraulic clamp arms securely hold suitable compressed bales for controlled lifting, transport and stacking work.

Carpet Pole

The smooth tapered pole supports suitable carpet, textile and material rolls for controlled lifting and placement.

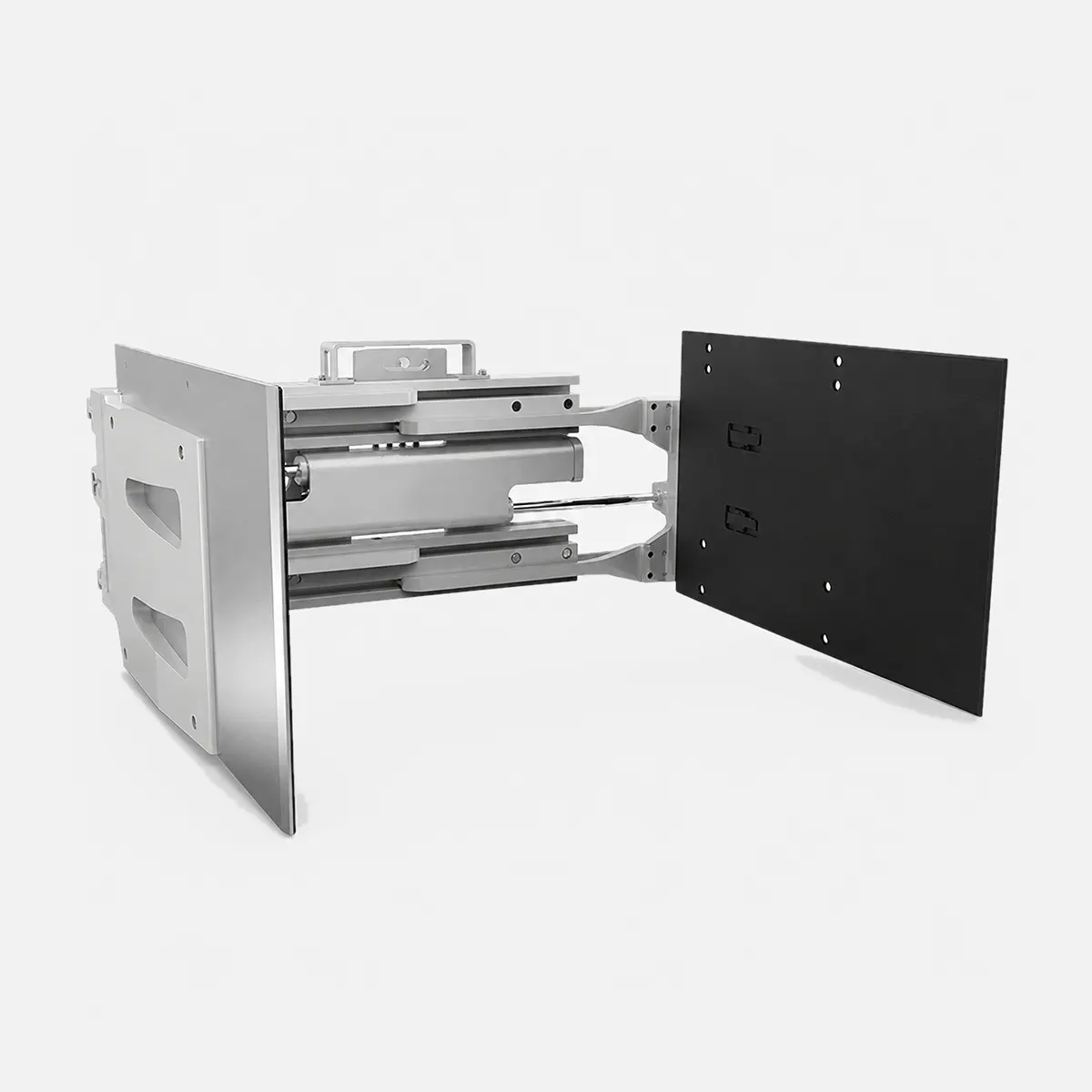

Carton Clamp

Wide padded clamp arms hold suitable cartons and boxed goods without pallets during careful handling and stacking.

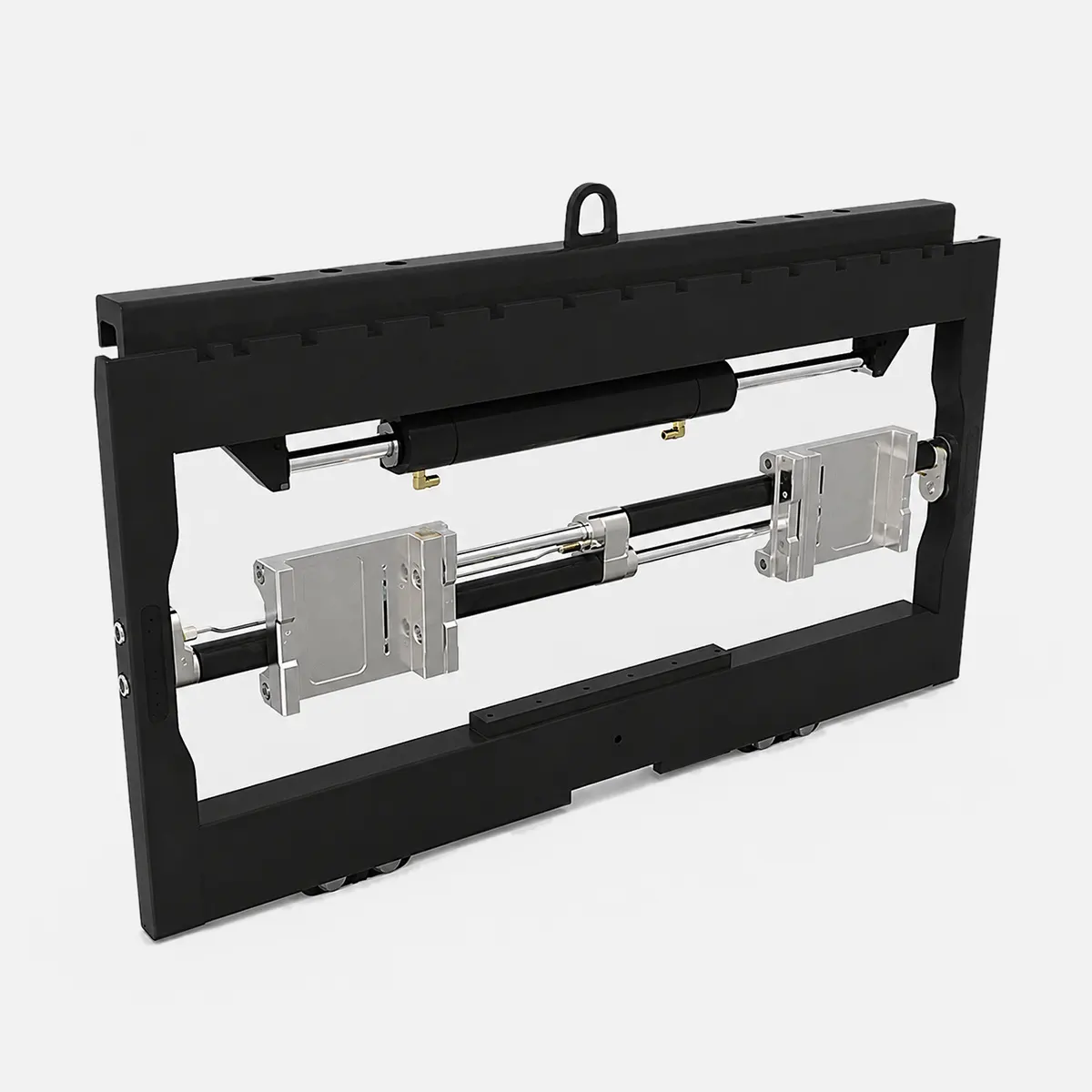

Fork Positioner

Hydraulic fork adjustment changes the spacing between the forks to suit different pallet and load widths from the operator station.

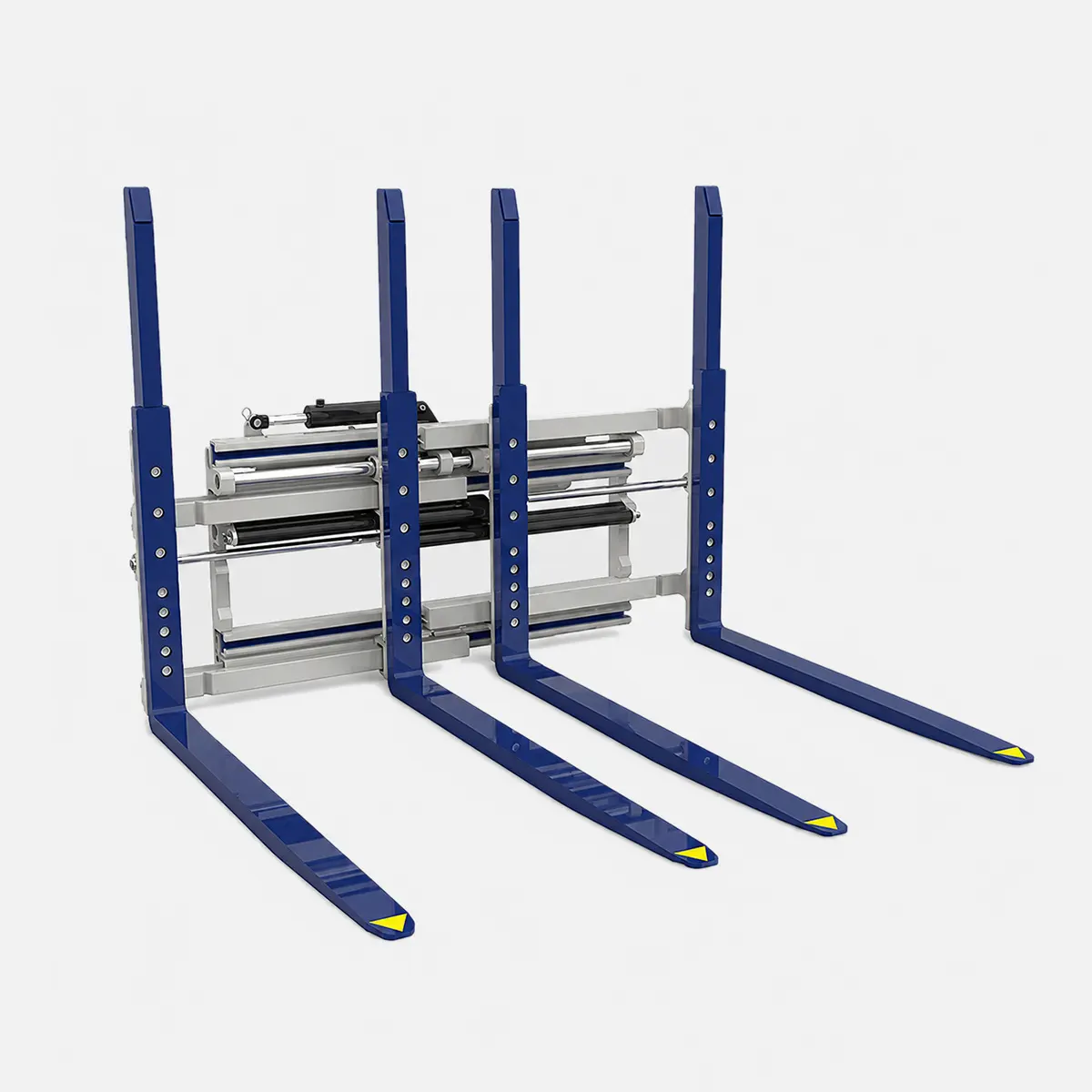

Multiple Load Handler

Multiple fork pairs support efficient handling of two or more suitable palletized loads during repetitive warehouse operations.

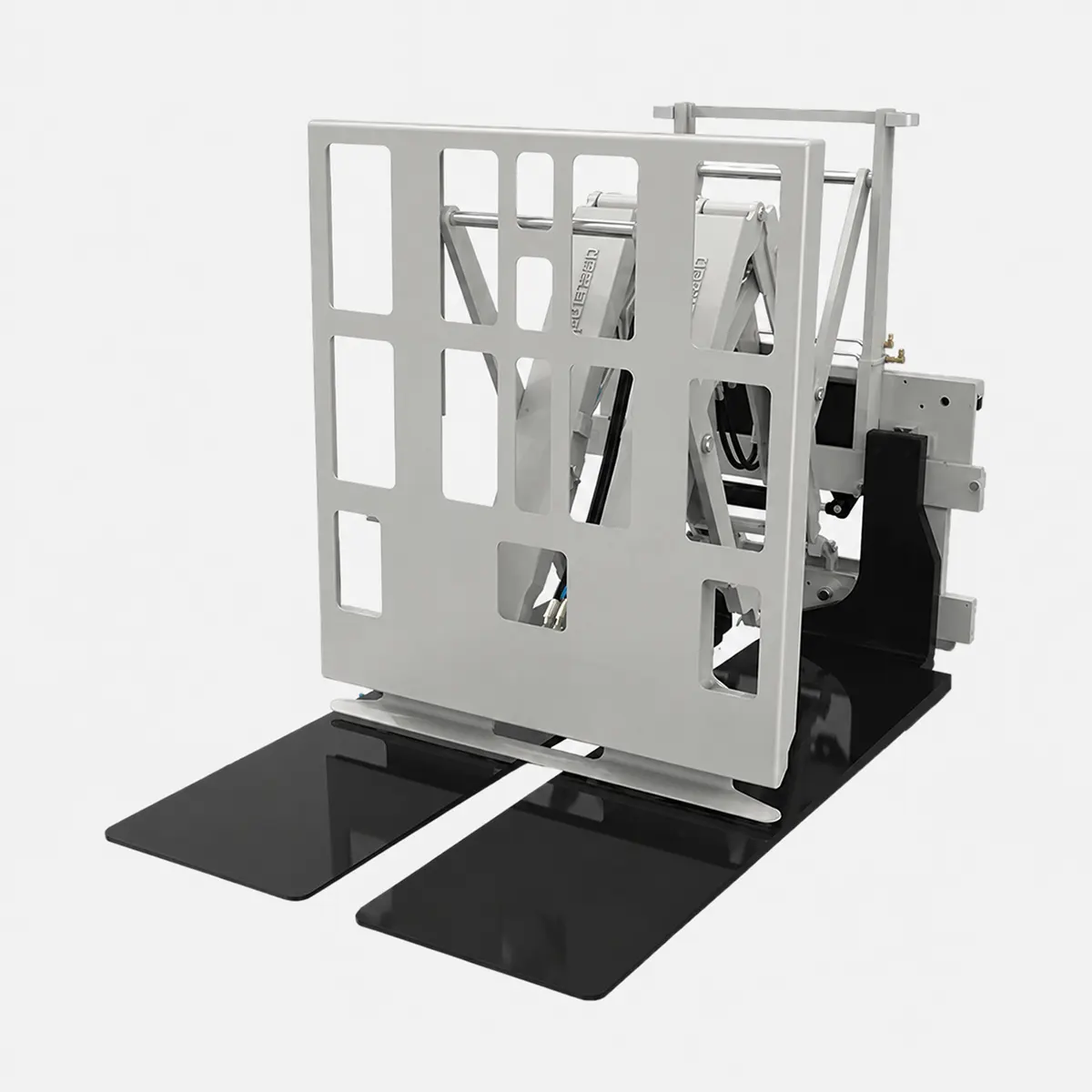

Push & Pull

The hydraulic push-pull attachment handles suitable slip-sheet loads by gripping the sheet and drawing the goods onto its platen.

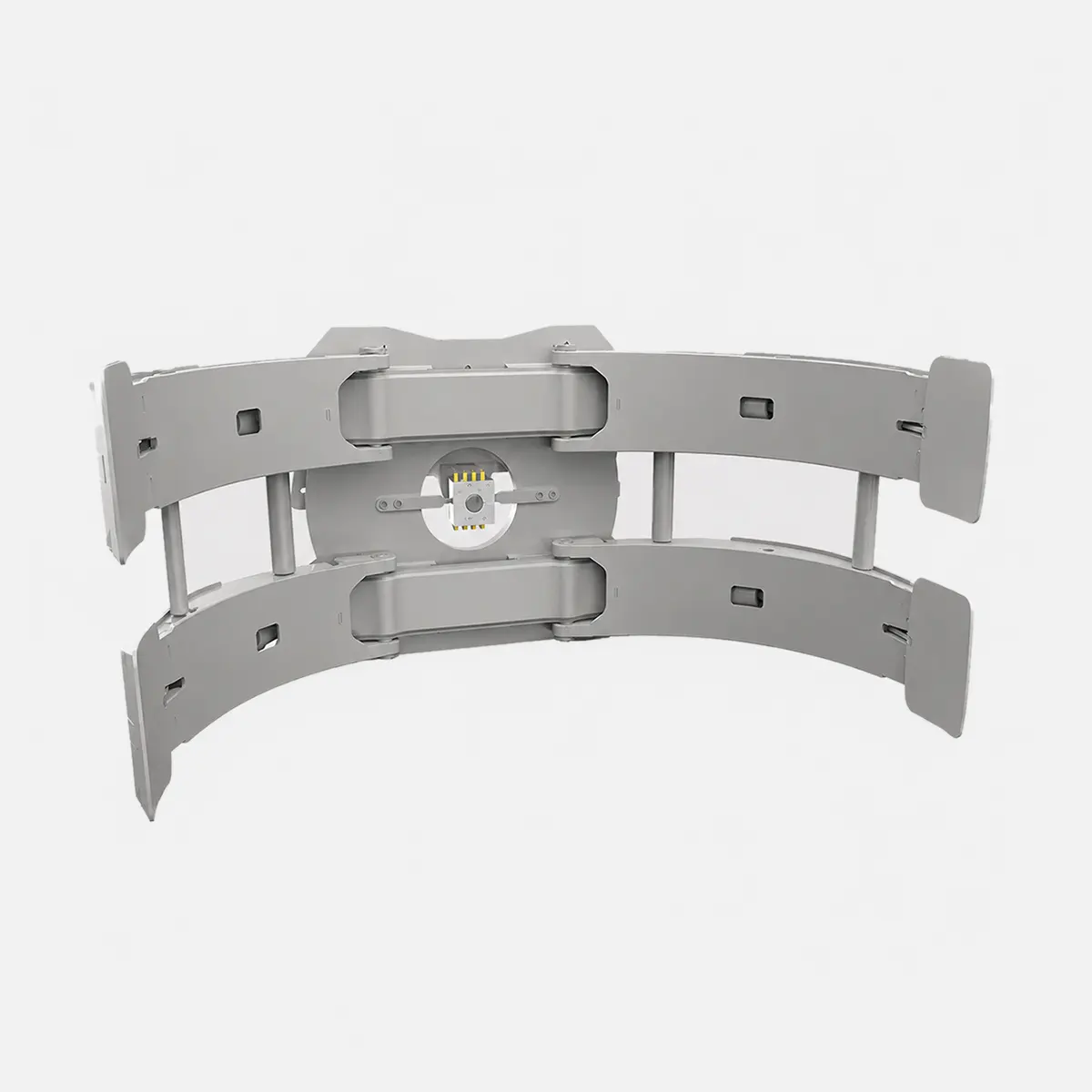

Roll Clamp

Curved hydraulic clamp arms grip suitable cylindrical rolls for controlled lifting, rotation, transport and placement.

Rotator

The hydraulic rotator turns suitable loads for controlled tipping, emptying or repositioning when correctly fitted.

Side Shifter

Hydraulic side shifting moves the fork carriage laterally for precise load alignment without repositioning the forklift.

Bale Clamp

Hydraulic clamp arms securely hold suitable compressed bales for controlled lifting, transport and stacking work.

Carpet Pole

The smooth tapered pole supports suitable carpet, textile and material rolls for controlled lifting and placement.

Product Video

00:32

efficient warehouse handling made easy.

Lift 1.5 tons to 3 meters with confidence, bringing steady, efficient, and effortless performance to every warehouse handling task.

CPD-15 All-Around Static Display

01:11The CPD-15 All-Around Static Display offers a comprehensive 360° view of key specifications and features, enabling quick evaluation and informed decision-making for warehouse operations.

efficient warehouse handling made easy.

00:32Lift 1.5 tons to 3 meters with confidence, bringing steady, efficient, and effortless performance to every warehouse handling task.

CPD-15 All-Around Dynamic Display

01:03The CPD-15 ensures smooth, precise operation with intuitive controls and responsive handling. Its ergonomic design reduces operator fatigue, enhancing safety and productivity in demanding warehouse environments for efficient material movement.

Product container loading

01:35The electric forklift is securely packaged in a reinforced crate with protective padding and moisture barriers. This ensures safe transit, prevents damage during loading, and guarantees the equipment arrives in optimal condition for immediate deployment at your facility.

Product container loading 2

00:33Forklifts efficiently load cargo into containers for safe and fast shipping.

Product container loading 3

01:26Forklifts efficiently load cargo into containers for safe and fast shipping.

Product packaging

00:40Protection is at the heart of our packaging: film guards critical surfaces, sealed plugs cover hydraulic ports, and soft wrapping shields edges and corners. Crate strength passes compression testing, with complete moisture and shock protection. Checklists, labels, and operating documents are all inc

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

Forklift Fork Details and Steel Pipe Handling Demonstration

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
