Cabinless mini crawler excavator
Manual
  • Compact crawler mobility
  • Enclosed operator cab
  • Articulated digging arm
  • Confined-site excavation

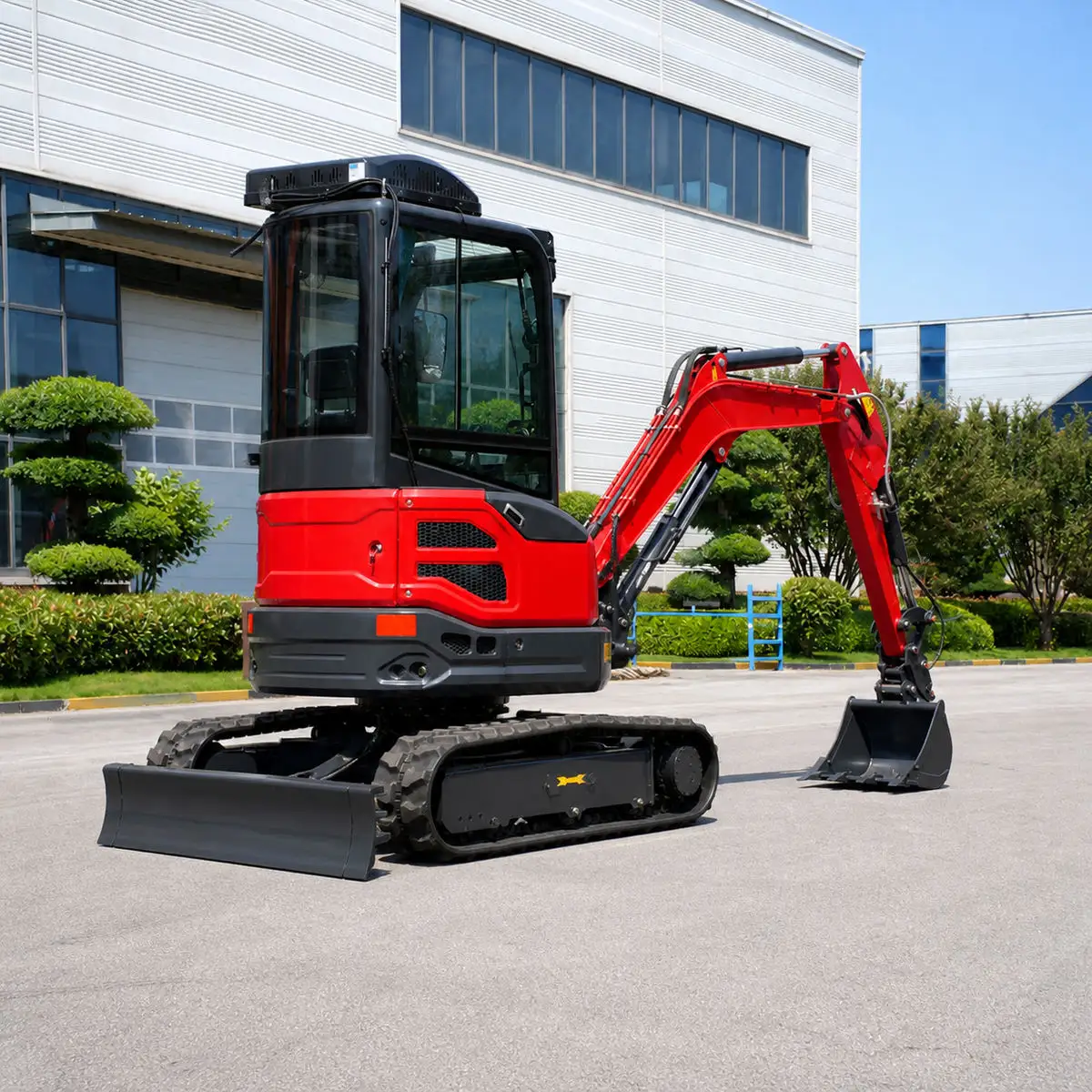

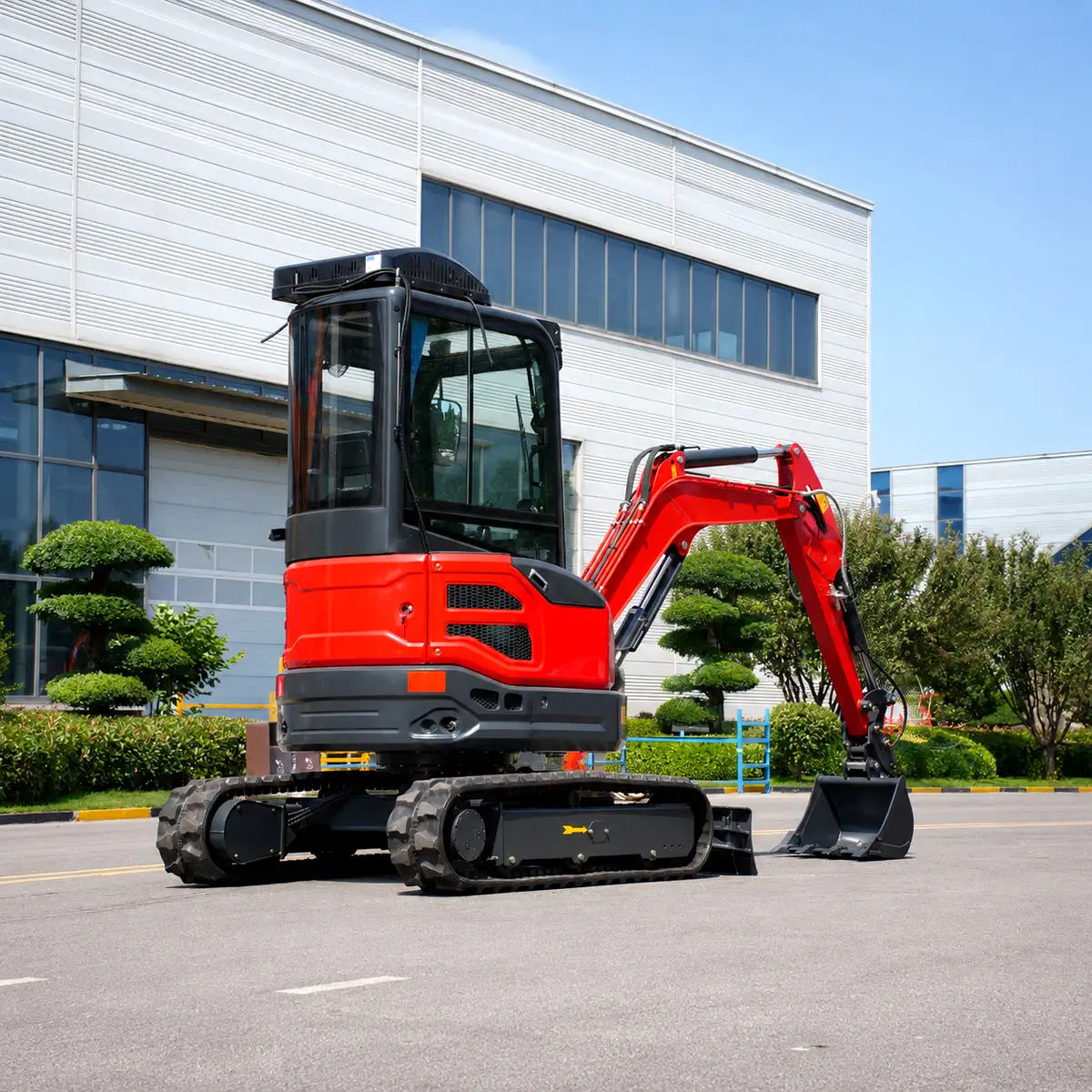

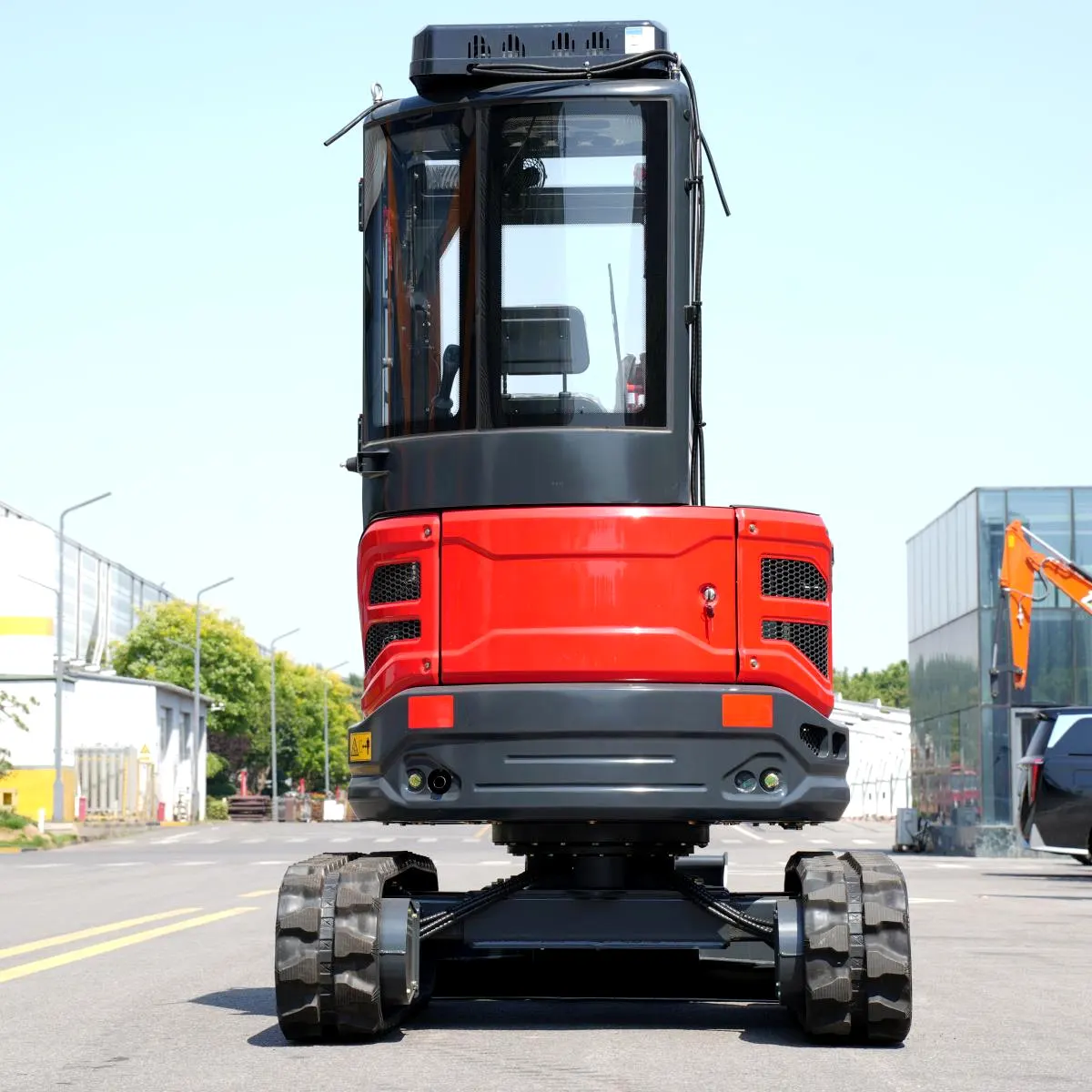

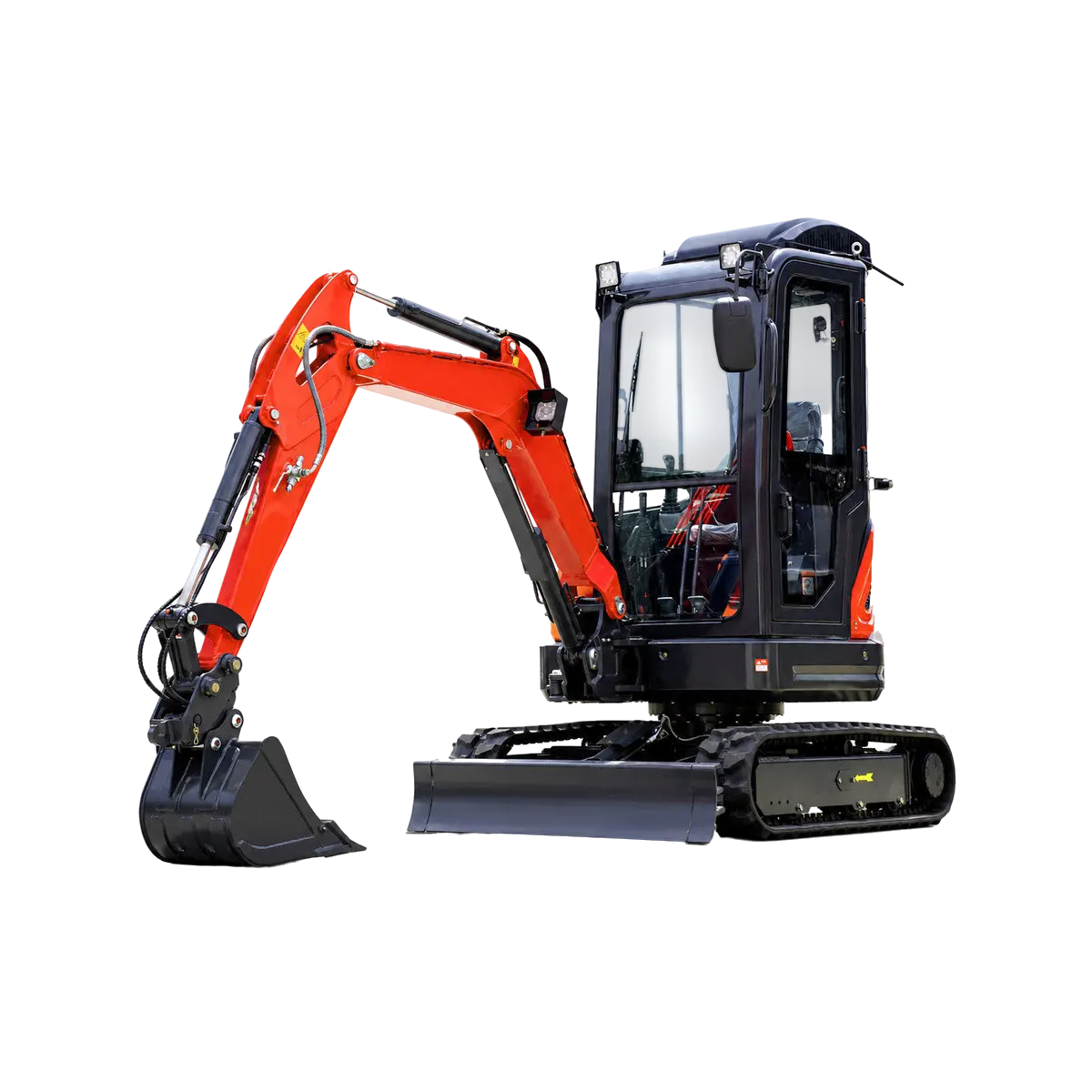

ZT27 Cabin Mini Crawler Excavator with Cabin

Controlled work across compact outdoor sites

The four scenes show the enclosed-cab machine digging drainage trenches, cutting a foundation edge, shaping a planted border and working beside a utility route. Each scene keeps the tracked excavator on stable ground while the articulated bucket works directly with loose soil.

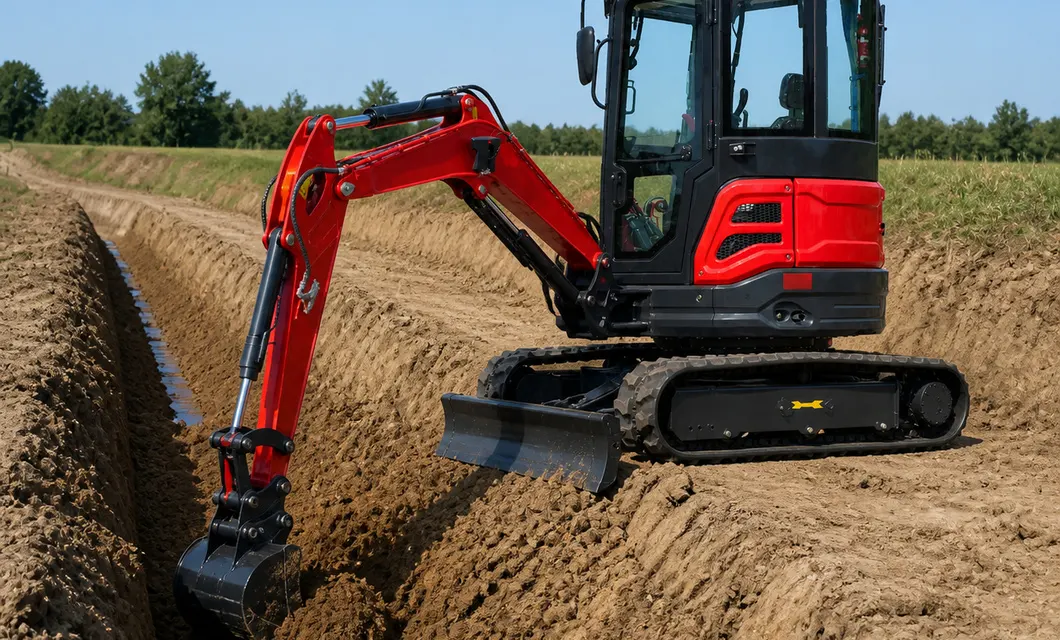

  • Drainage Trench Digging

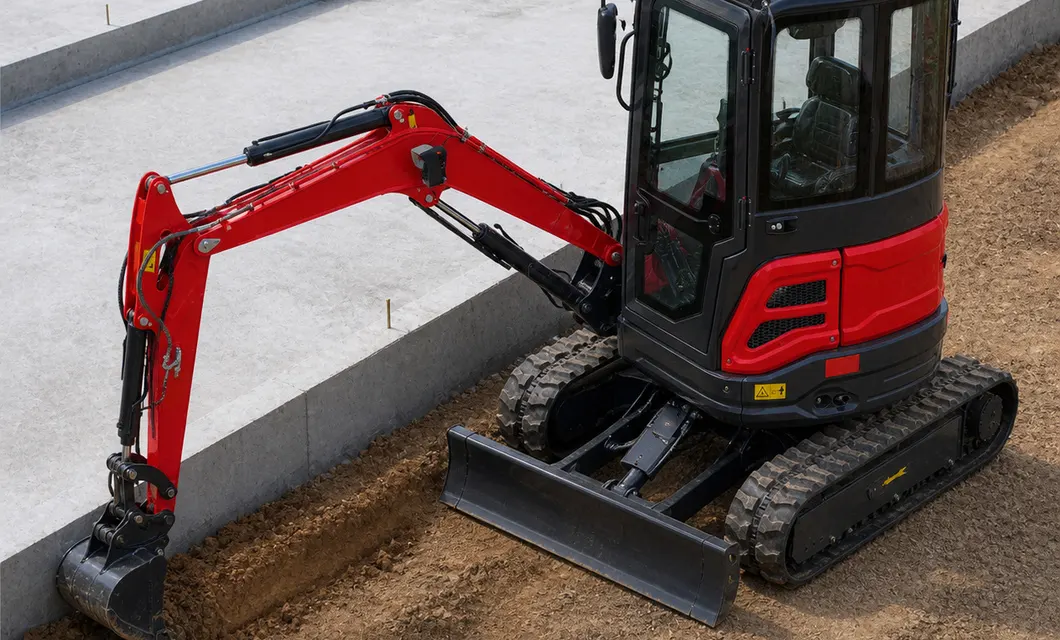

  • Foundation Edge Cutting

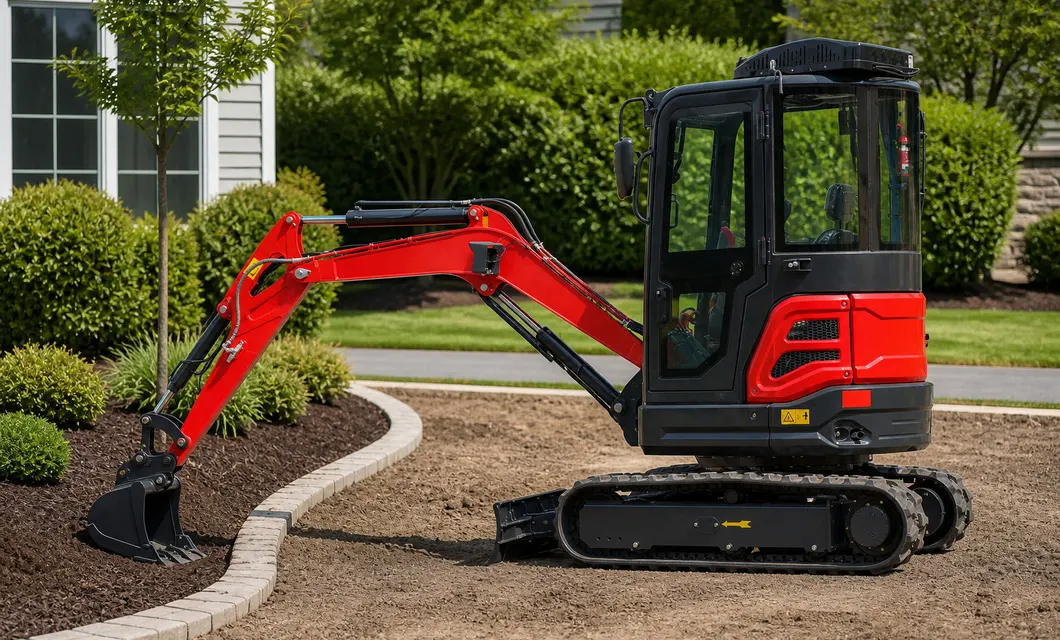

  • Landscape Edge Shaping

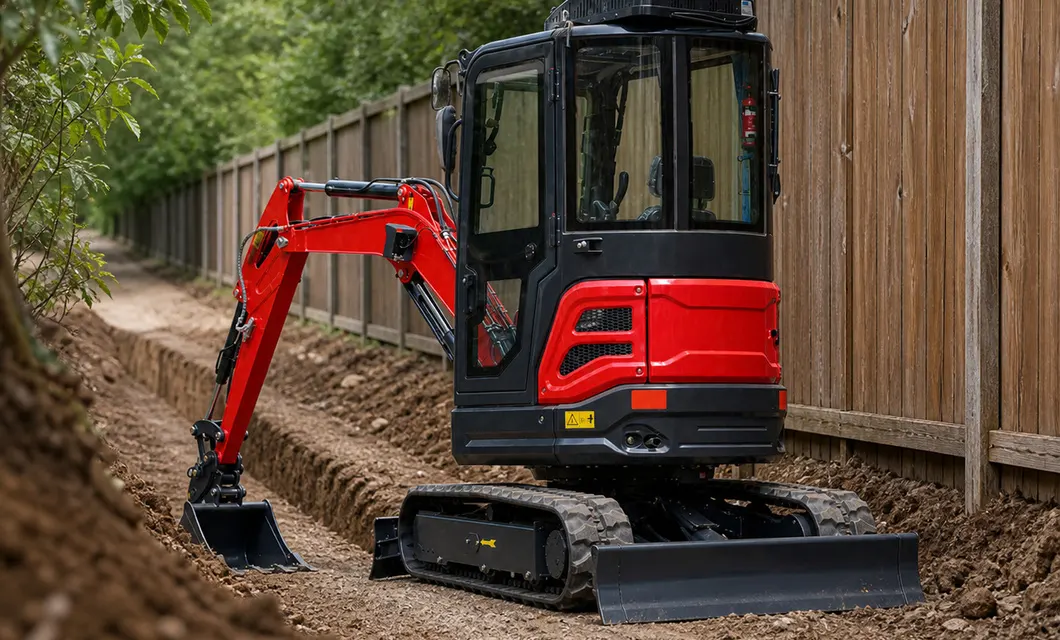

  • Utility Corridor Excavation
Landscape Edge ShapingLandscape Edge Shaping
Utility Corridor ExcavationUtility Corridor Excavation
Drainage Trench DiggingDrainage Trench Digging
Foundation Edge CuttingFoundation Edge Cutting
Landscape Edge ShapingLandscape Edge Shaping
Utility Corridor ExcavationUtility Corridor Excavation
Drainage Trench DiggingDrainage Trench Digging
Foundation Edge CuttingFoundation Edge Cutting

Specifications & Structural Decomposition

Product Structure

Product Structure
  1. 01 Enclosed Operator Cab

    Fully enclosed cab with wide glass panels, operator seat, controls, lights, and mirror, providing a protected and clearly visible working position.

  2. 02 Rear Engine Hood Cover

    Rear orange-red hood and black top cover protect the engine area while preserving ventilation, service access, and the machine’s compact profile.

  3. 03 Upper Slewing Platform

    Central upper platform supports the cab, boom base, hydraulic interfaces, and rotation connection while linking the upper body to the track frame.

  4. 04 Main Boom Assembly

    Primary orange-red boom carries hydraulic lines and pivot points, transferring lifting force from the upper structure toward the front working arm.

  5. 05 Boom Hydraulic Cylinder

    Dedicated hydraulic cylinder controls boom lifting and lowering, with its piston rod and mounting eyes aligned to the original boom pivot points.

  6. 06 Front Stick Arm Assembly

    Secondary arm extends forward from the boom, supporting hydraulic routing, linkage points, and the working reach needed for bucket positioning.

  7. 07 Bucket Linkage Assembly

    Bucket cylinder and linkage group transfer hydraulic motion to the front attachment, maintaining aligned pivots for controlled bucket movement.

General information

Cabinless mini crawler excavator
Product Basic Information
Tailless track-type micro excavator
Operating weight/tonnage
2.45 tons
Product Introduction
Closed-cab, tailless mini crawler excavator
Standard engine model
3TNV80F
Power
15.7 kW
Track type
rubber track
Cab type
Enclosed cab

General instructions

Simplified explanation

Core Component Details

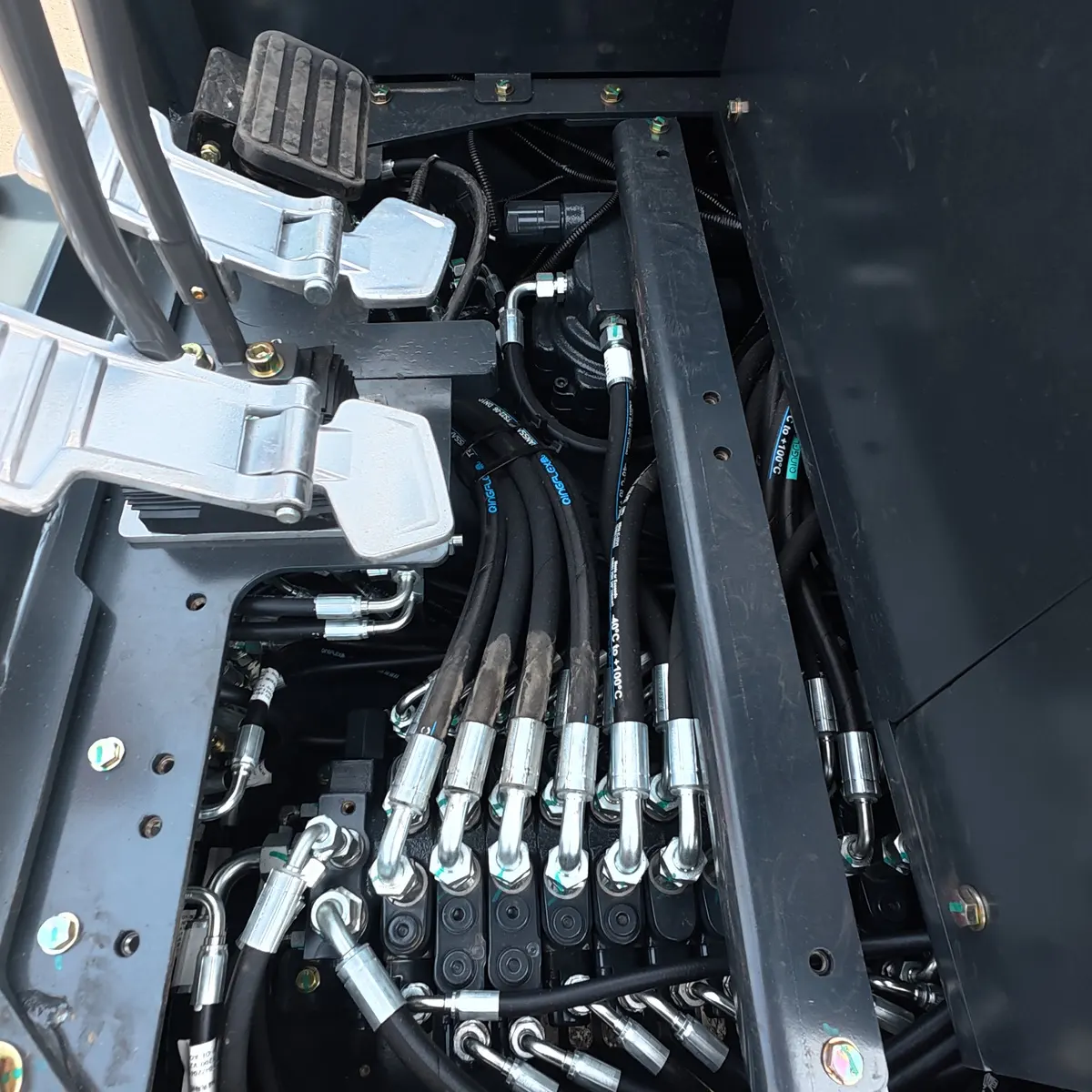

ZT27 Cabin – Detail Drawing – 01 – Foot Pedal Control and Hydraulic Valve Assembly

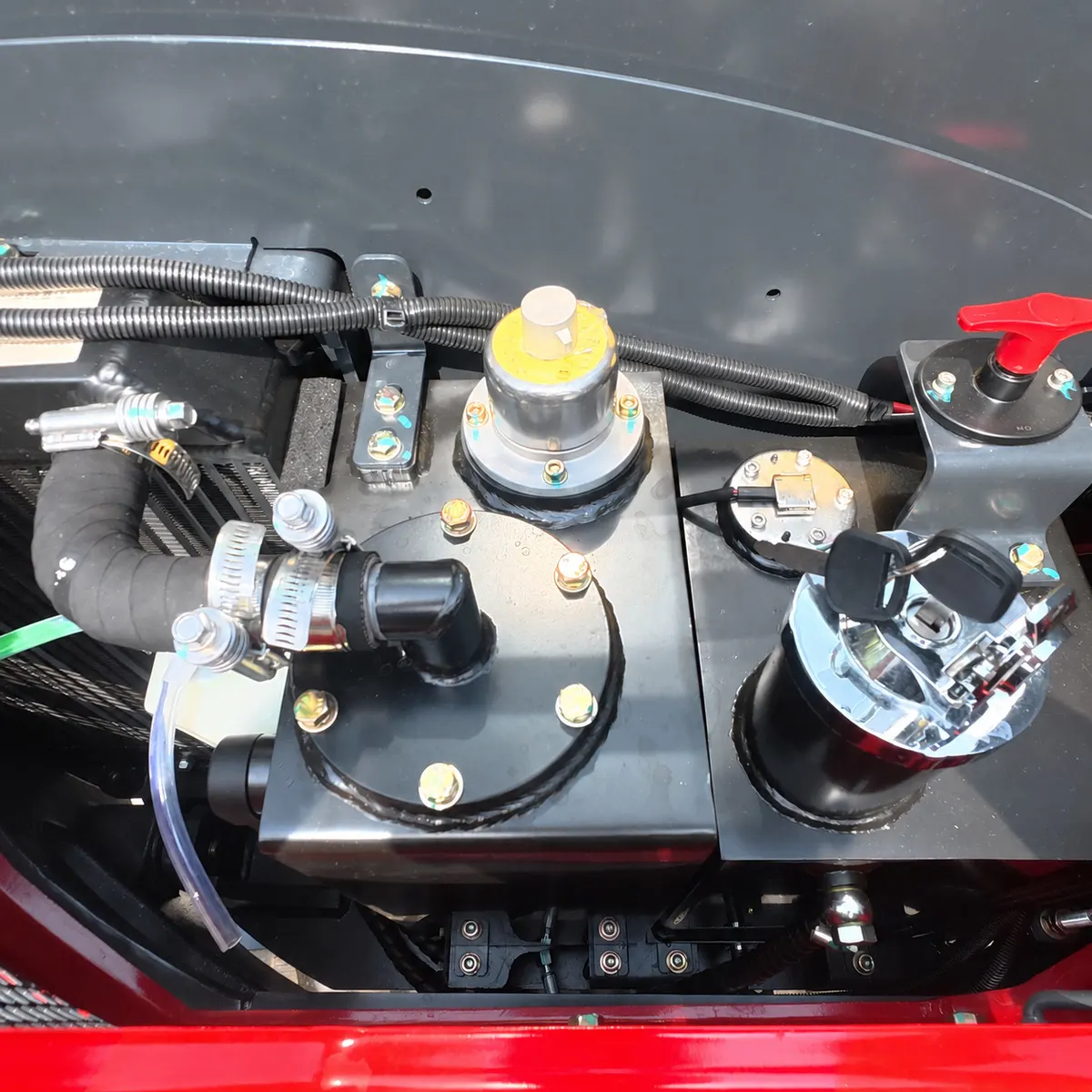

ZT27 Cabin – Detail Drawing – 02 – Hydraulic System Maintenance Components

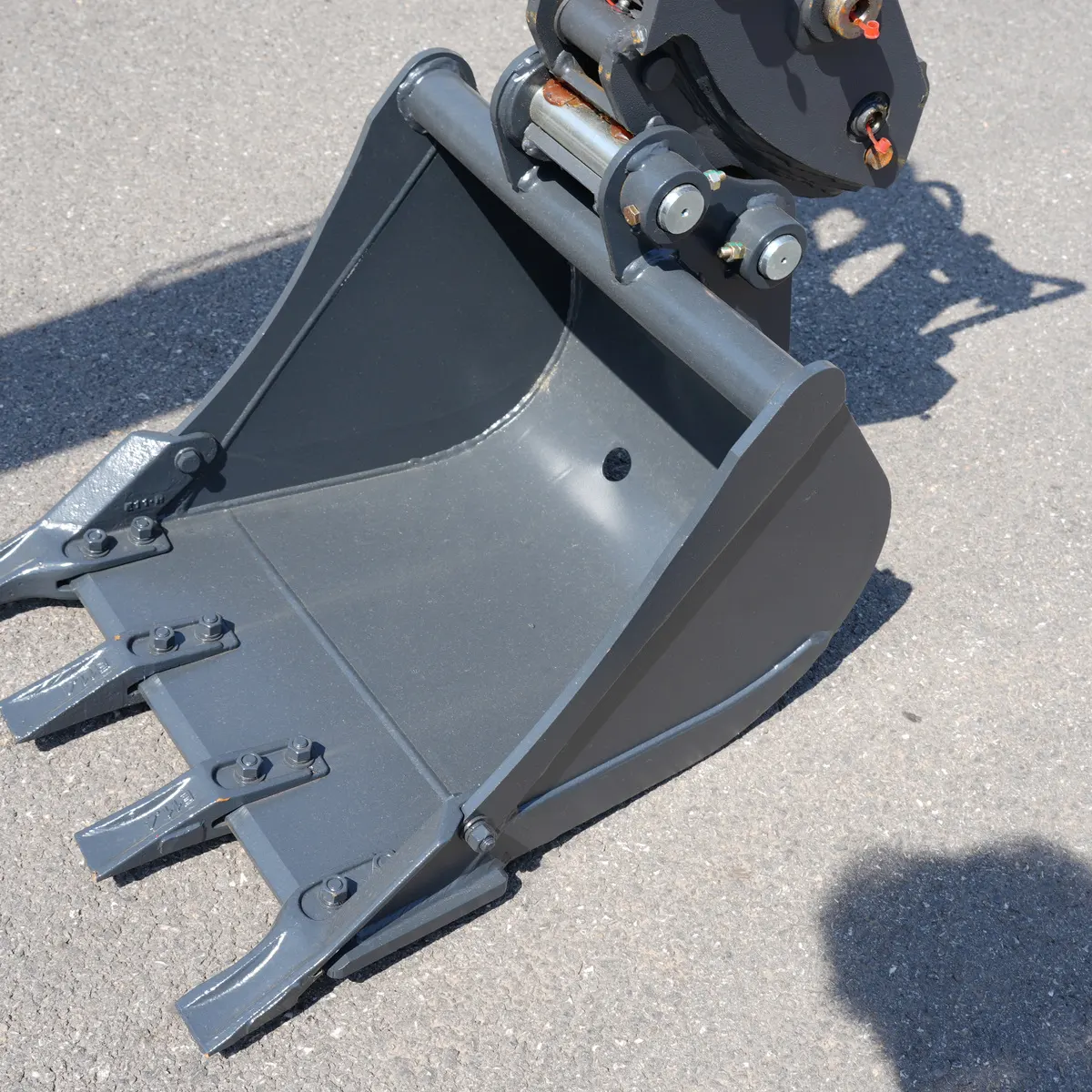

ZT27 Cab – Detail Drawing – 03 – Bucket

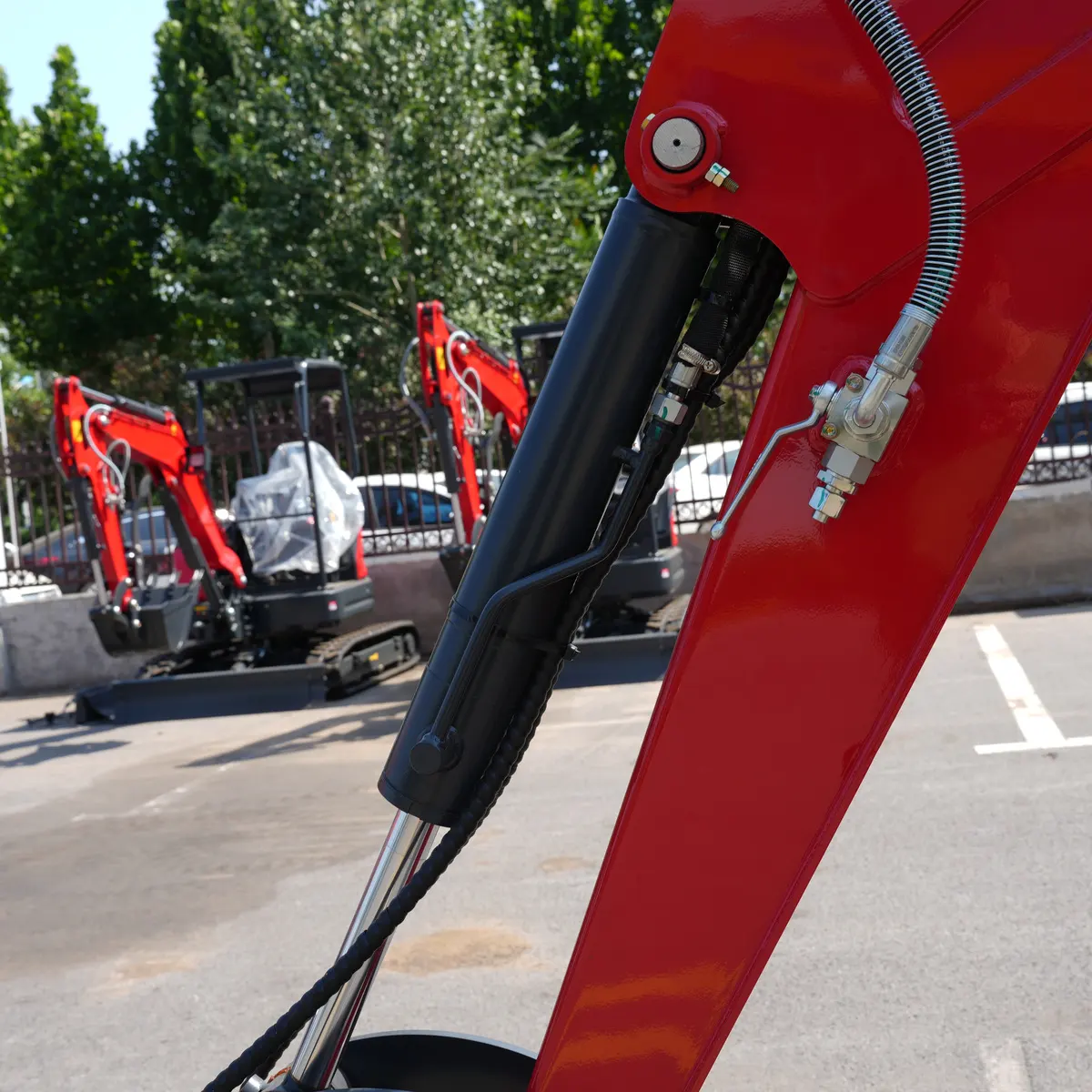

ZT27 Cab – Detail Drawing – 04 – Boom Cylinder

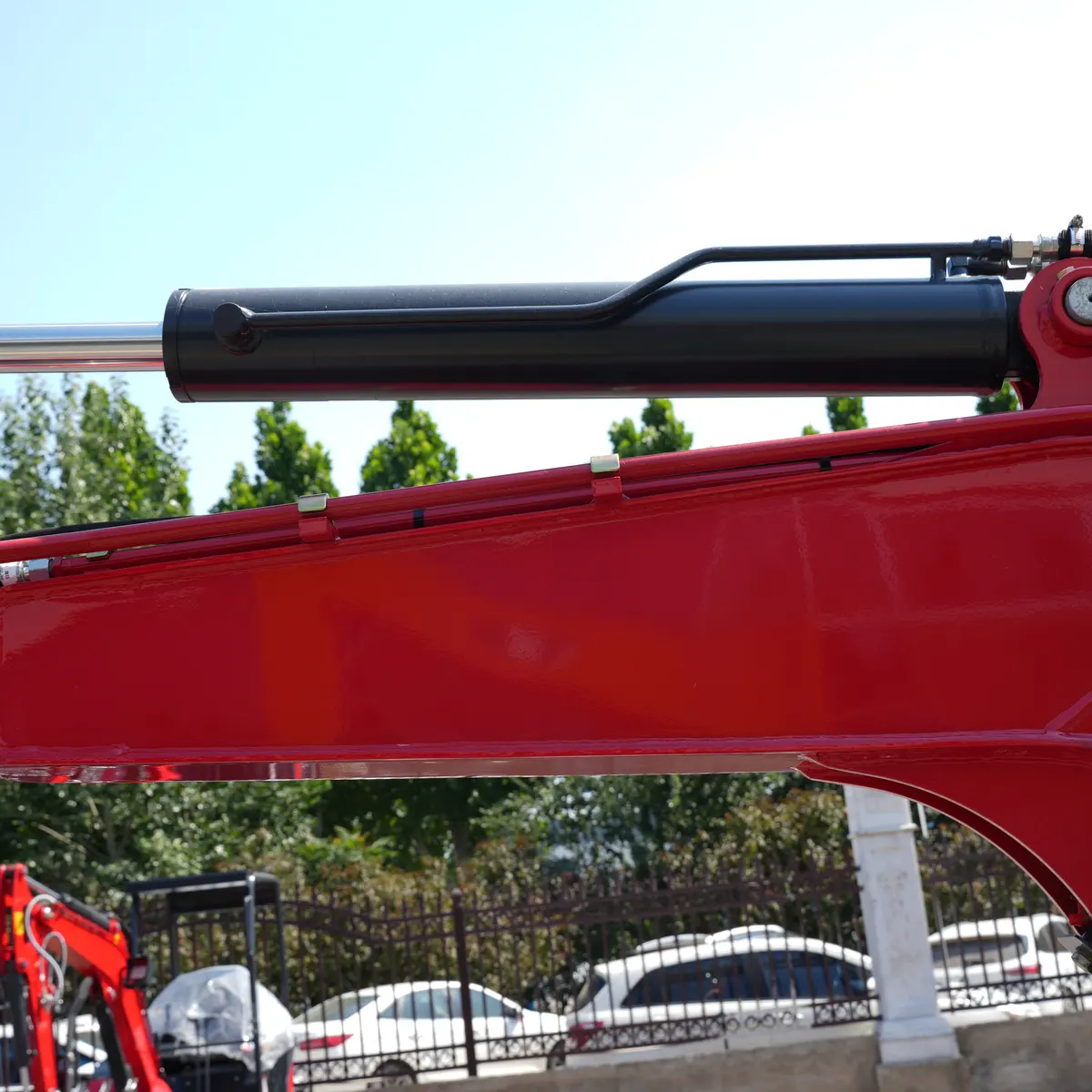

ZT27 Cab – Detail Drawing – 05 – Boom Cylinder

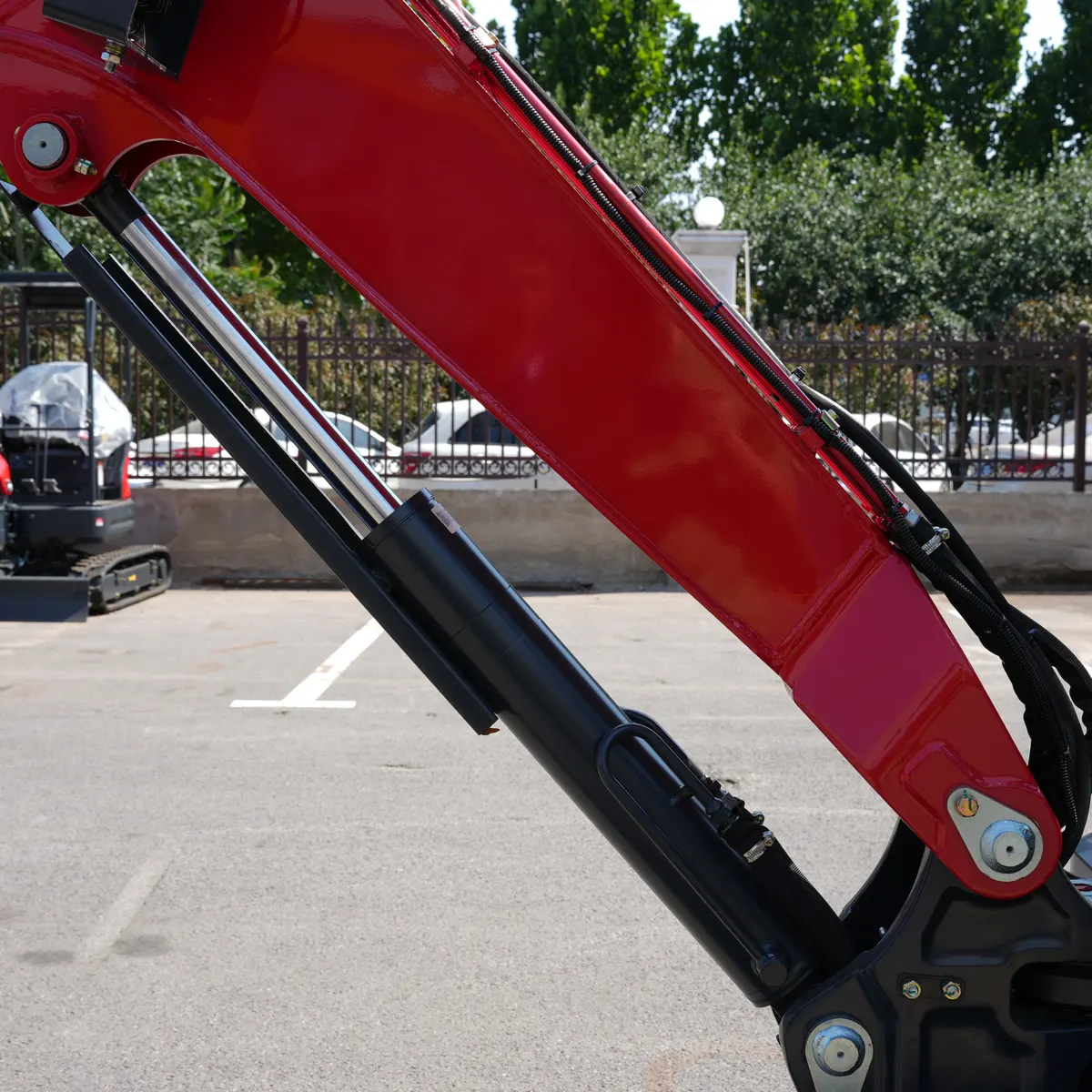

ZT27 Cab – Detail Drawing – 06 – Boom Hydraulic Lines

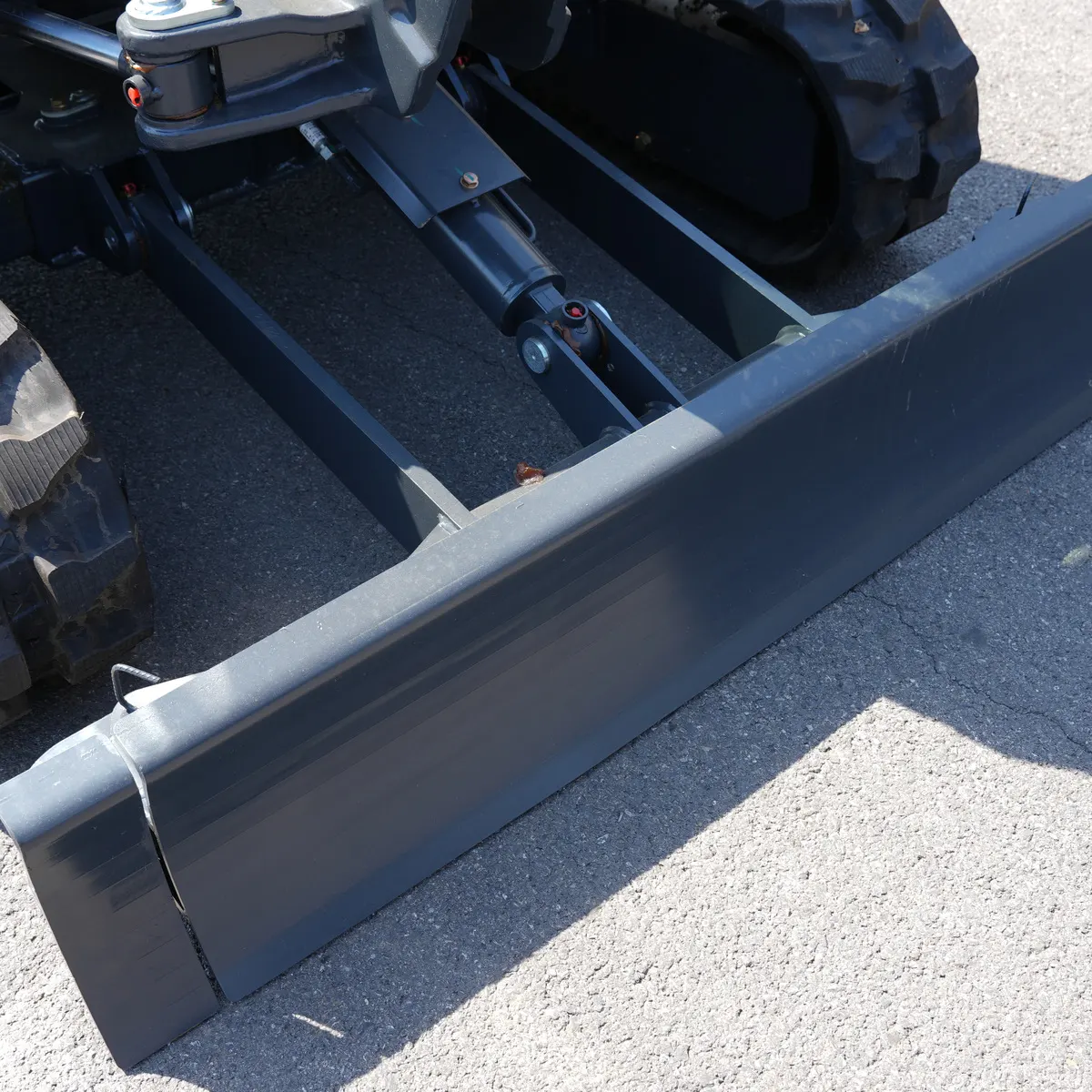

ZT27 Cabin – Detail Drawing – 07 – Bulldozer Blade

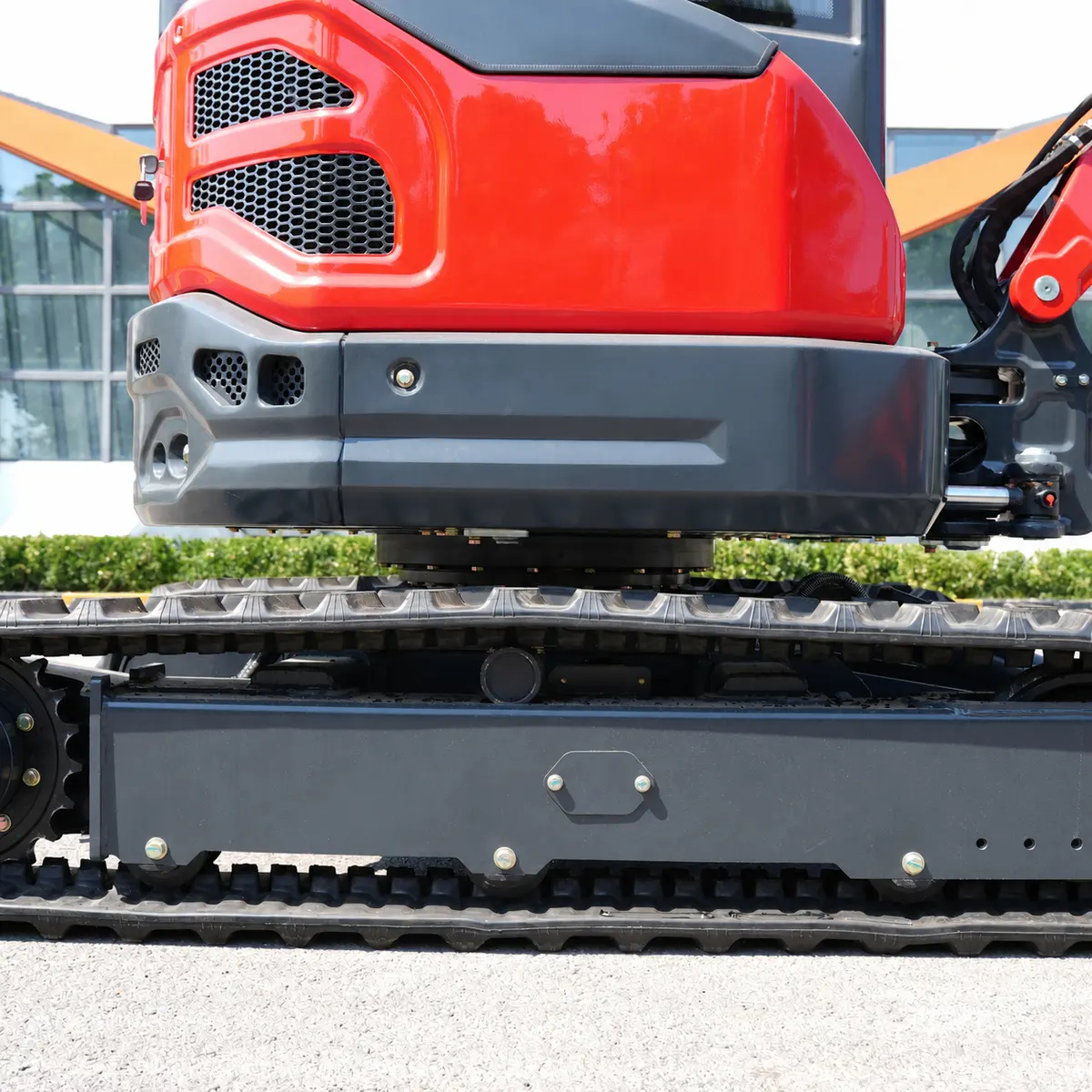

ZT27 Cabin – Detail Drawing – 08 – Crawler Chassis

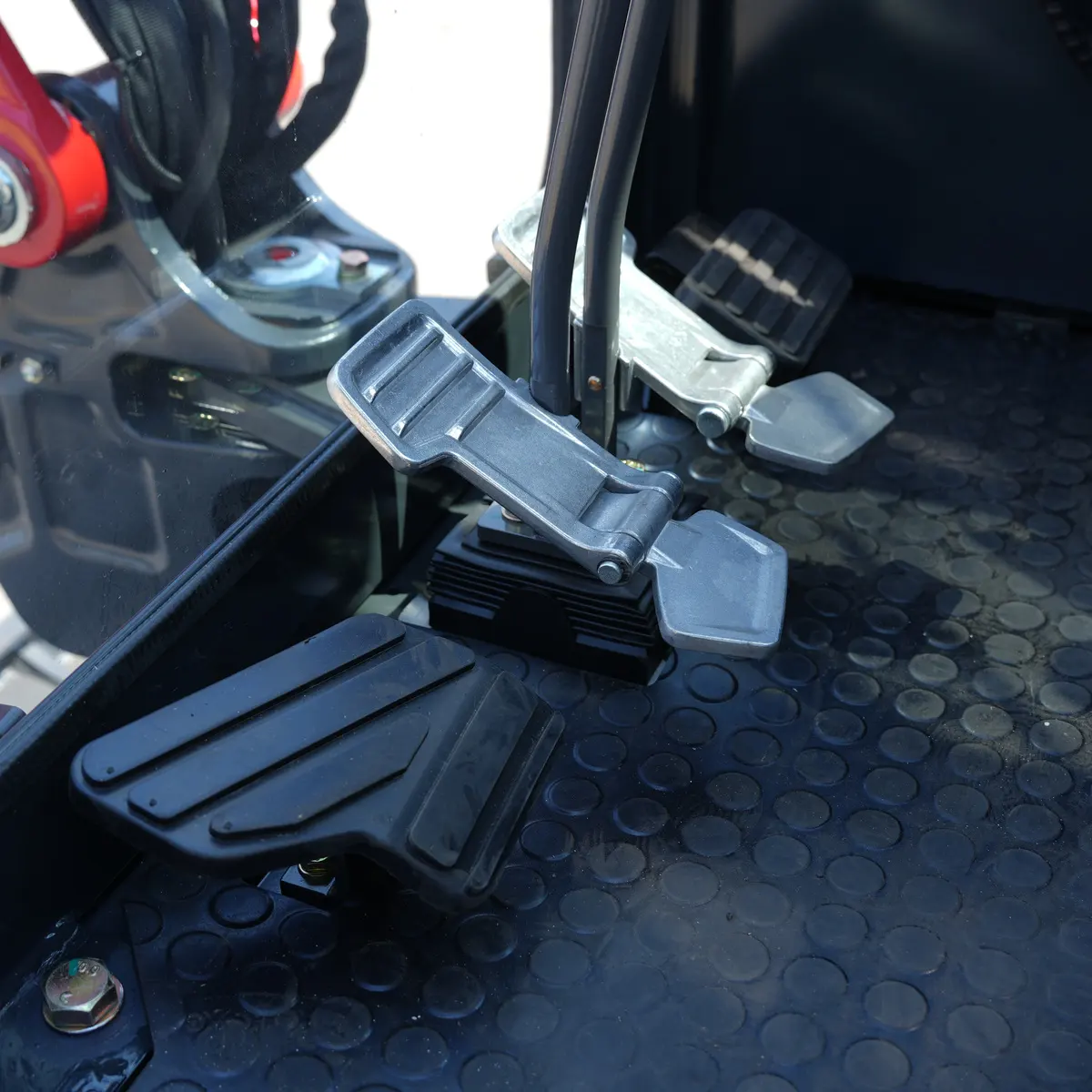

ZT27 Cabin – Detail Drawing – 09 – Foot Pedal Control

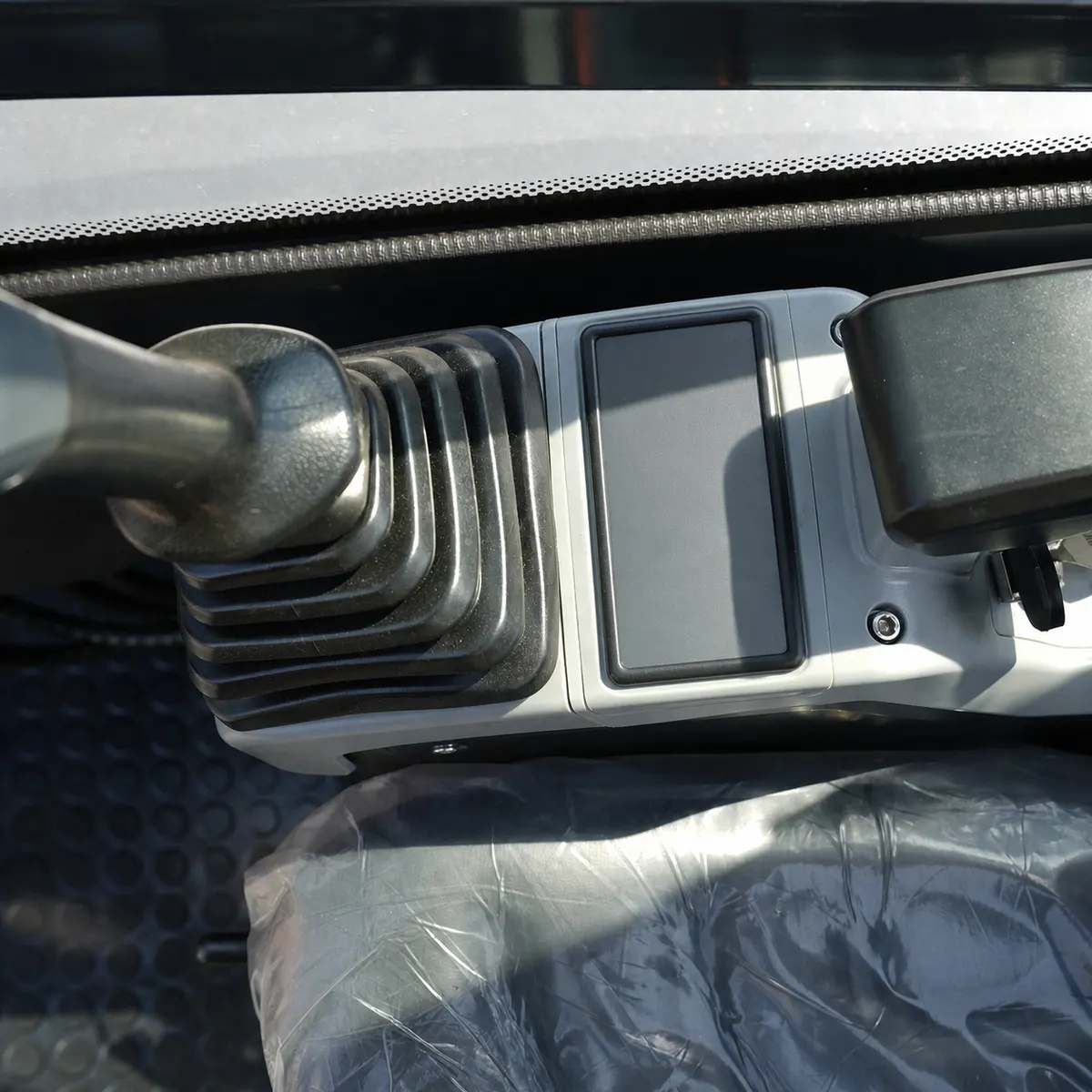

ZT27 Cabin – Detail Drawing – 10 – Right-side Control Console

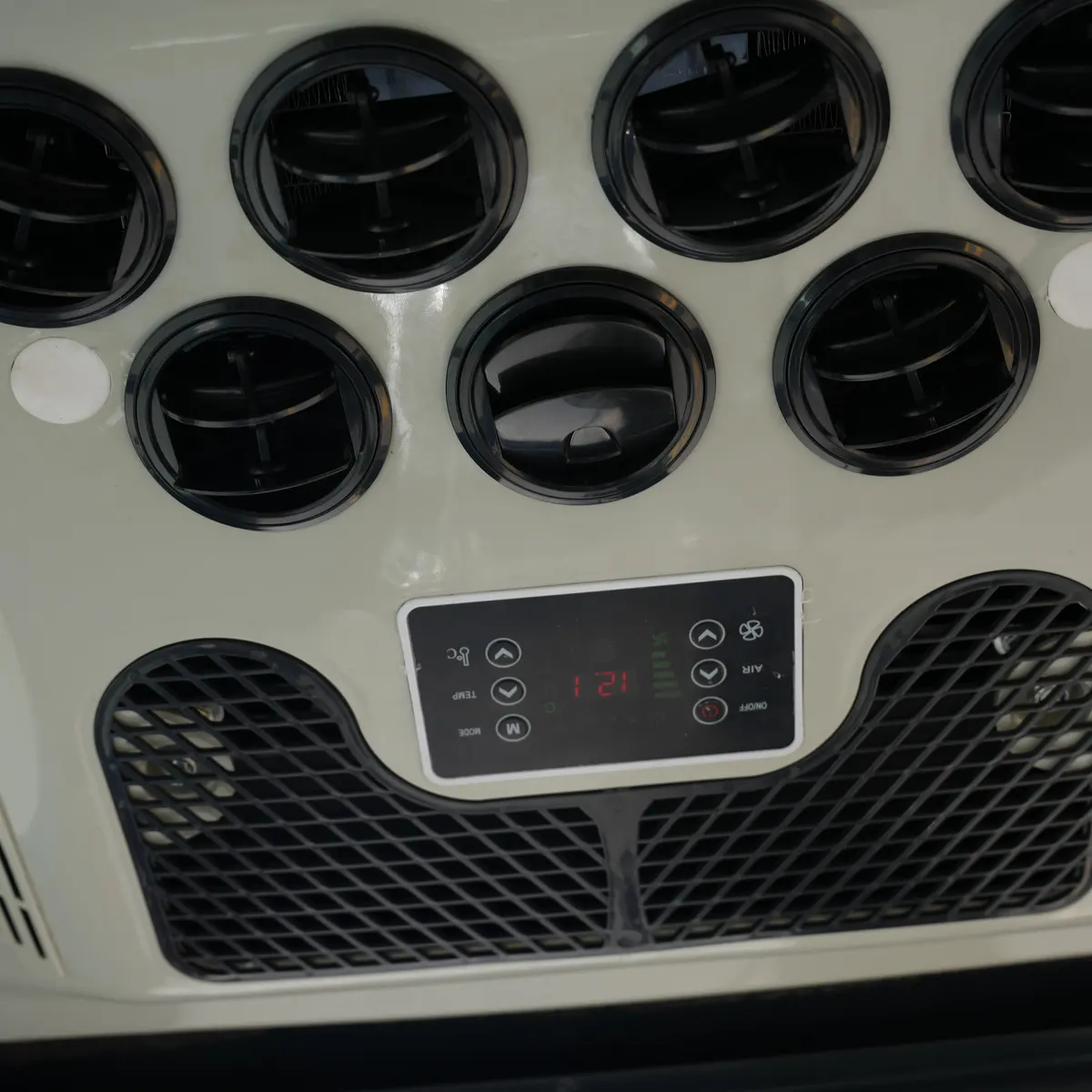

ZT27 Cabin – Detail View – 11 – Air Conditioning Outlet

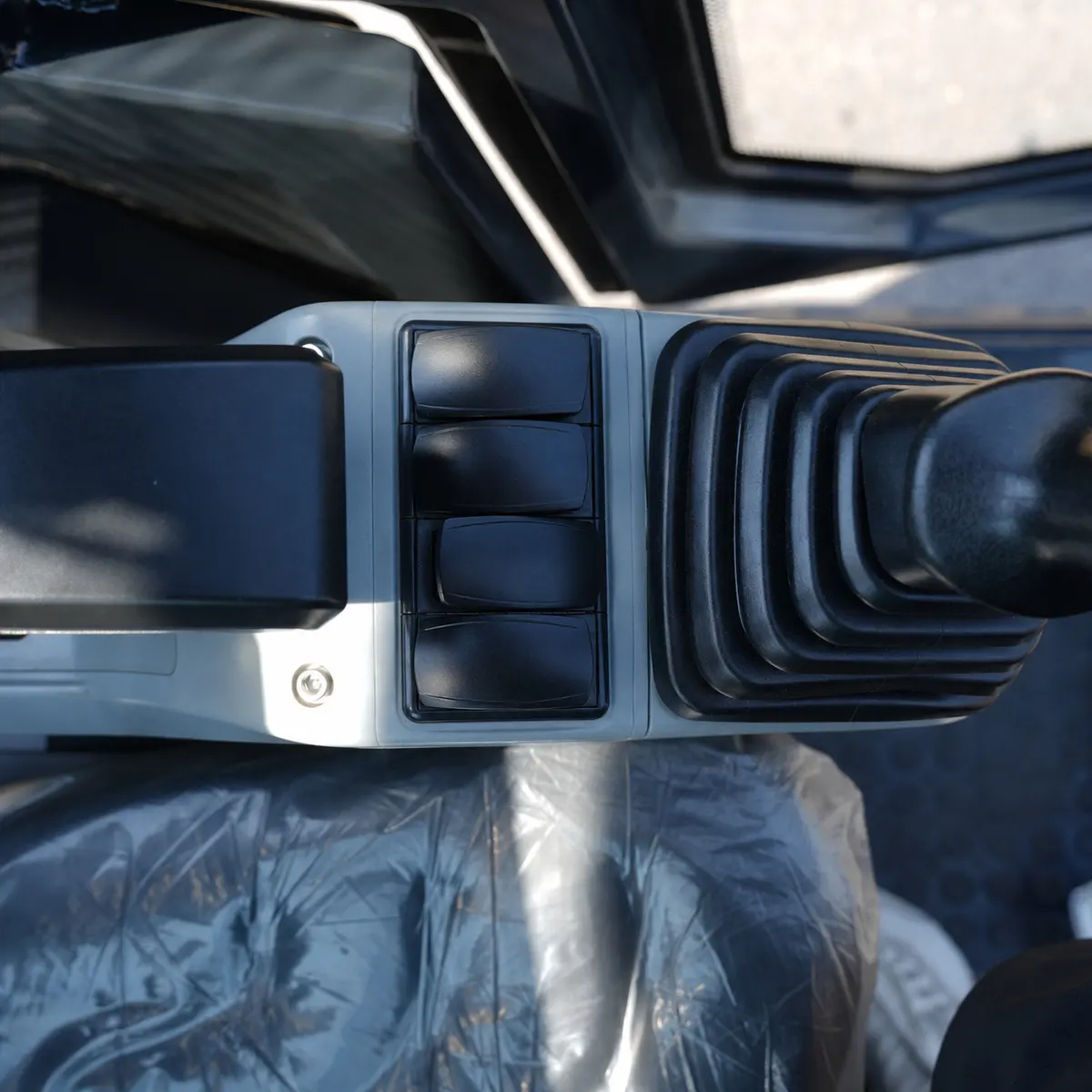

ZT27 Cabin – Detail Drawing – 12 – Left Control Console

Certifications

Qualification Documents

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions

Which tasks suit this excavator?

It is suited to localized digging, soil shaping and shallow trench work where a compact tracked machine can be placed close to the intended work edge.

What does the enclosed cab cover?

The visible enclosed cab surrounds the seat and control area, while its glazing maintains sightlines toward the working end and nearby ground.

How is the digging end controlled?

The operator station uses visible controls to coordinate the articulated boom, dipper and bucket through their existing hydraulic pivot connections.

Which details are supplied in images?

The supplied detail images show hydraulic components, digging bucket, quick hitch, attachment pedal and engine compartment.

What should be confirmed before ordering?

Confirm the intended task, required access space, preferred configuration and actual ground conditions so the machine can be matched to planned work.
